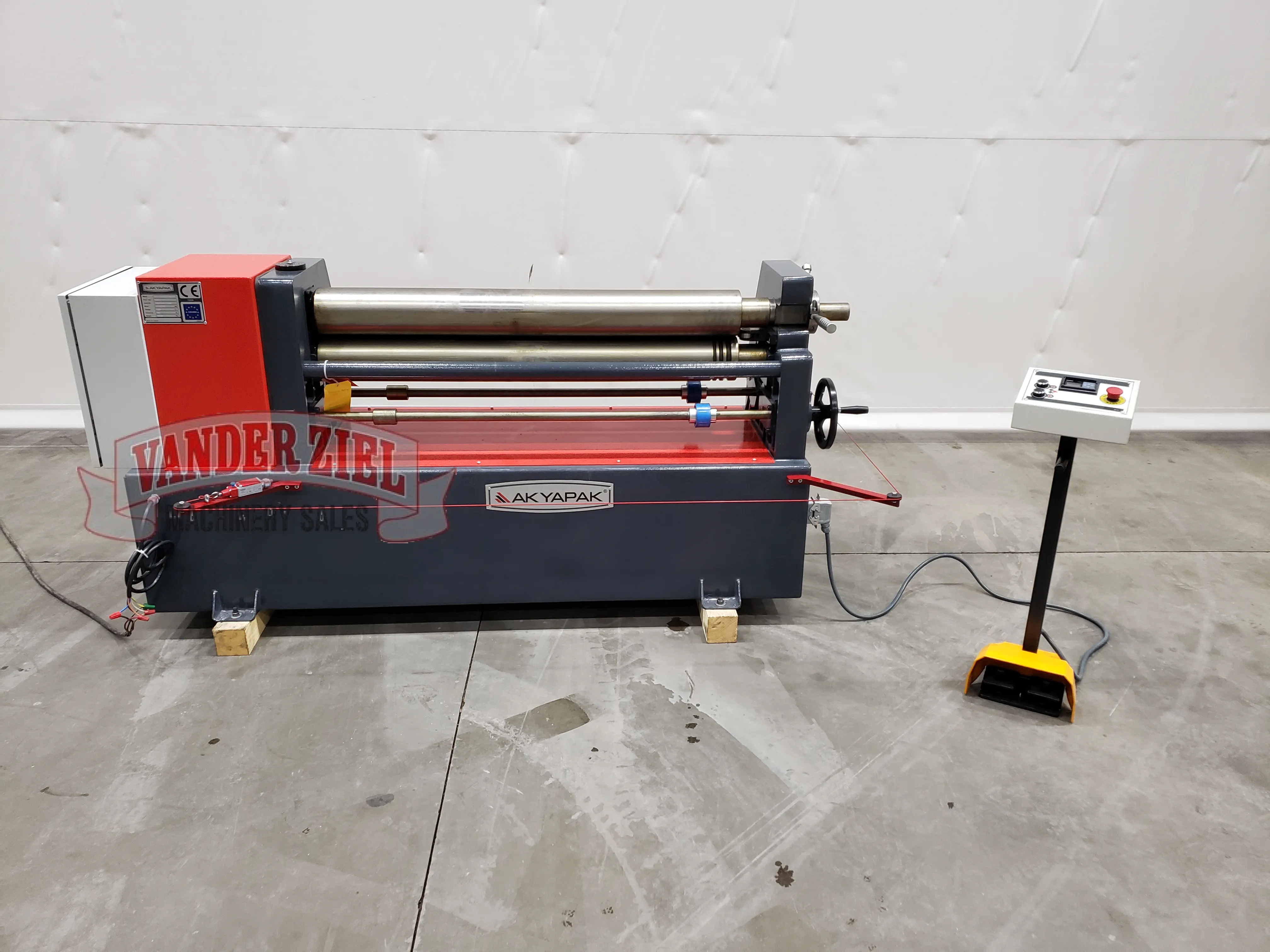

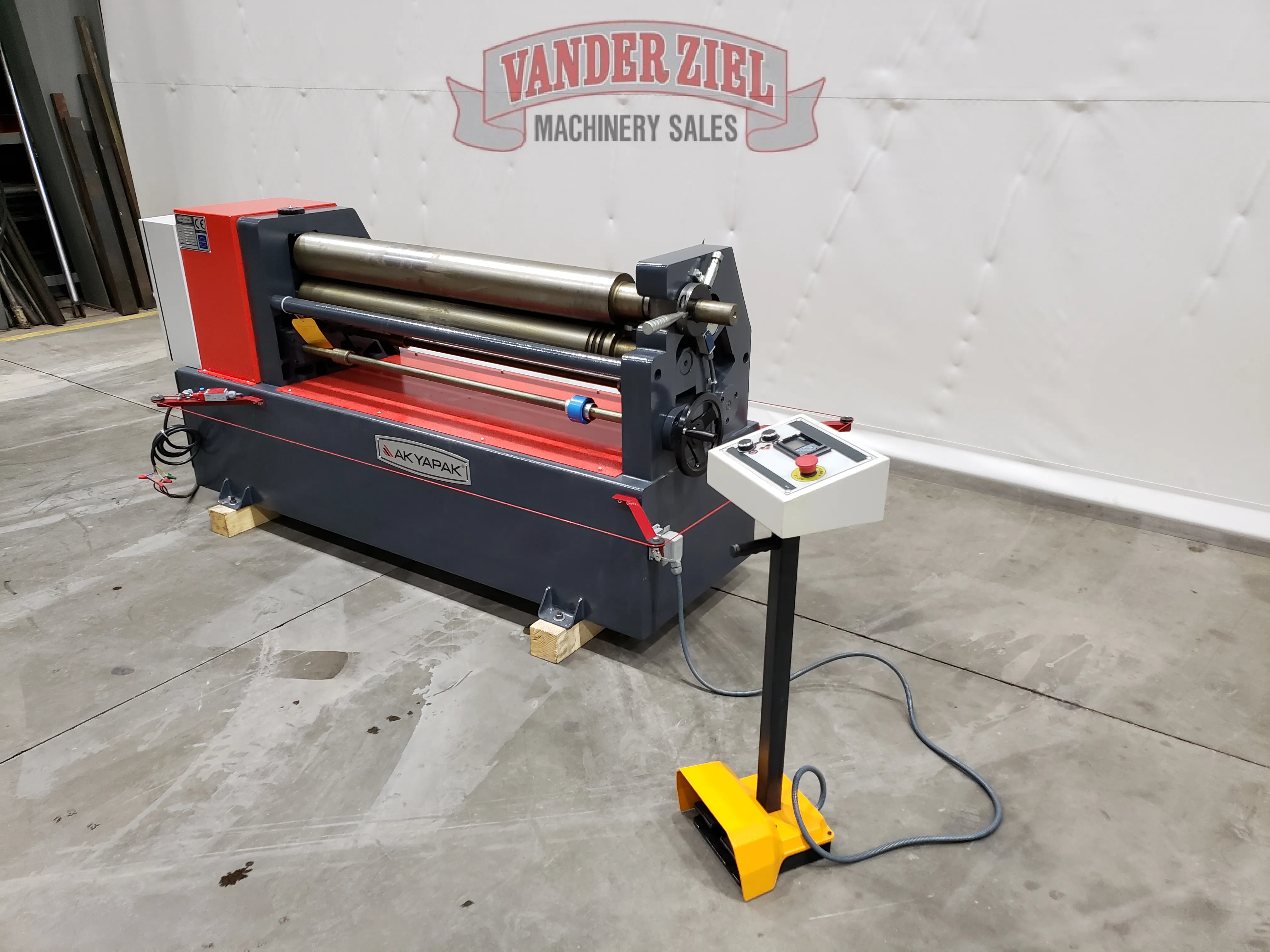

Akyapak ASM140-12/5.0 (4' x 1/4") 3 Roll Plate Bending Roll - NEW

Akyapak ASM140-12/5.0 (4' x 1/4") 3 Roll Plate Bending Roll

Asset # 17289N

460 Volt

ASM model is made of cast iron construction. ASM machines are combining the user friendly features, quality and best prices as an economical model.
• Body is made of cast iron construction

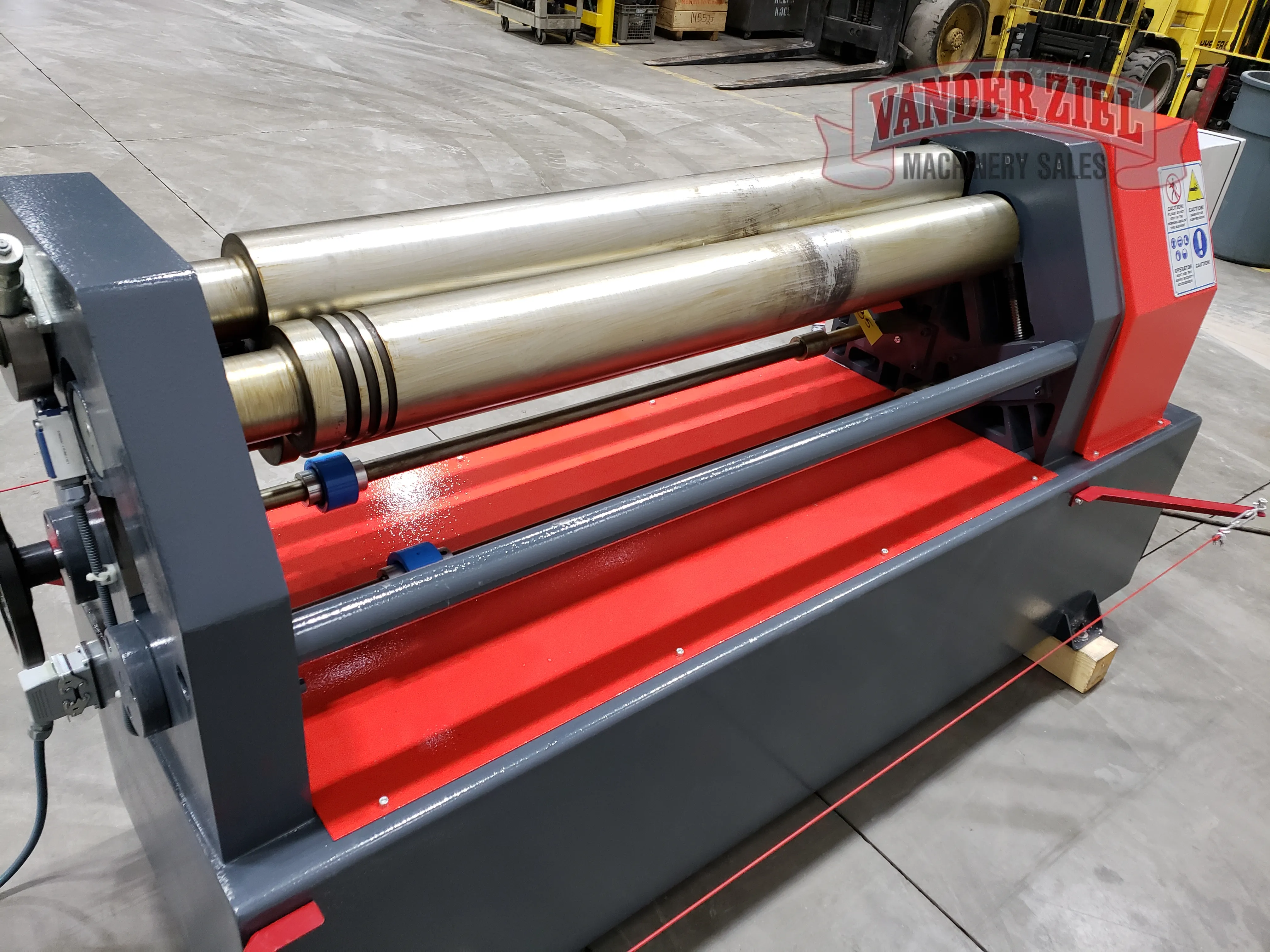

• Central rollers driven by electric motor, gearbox and gear drive

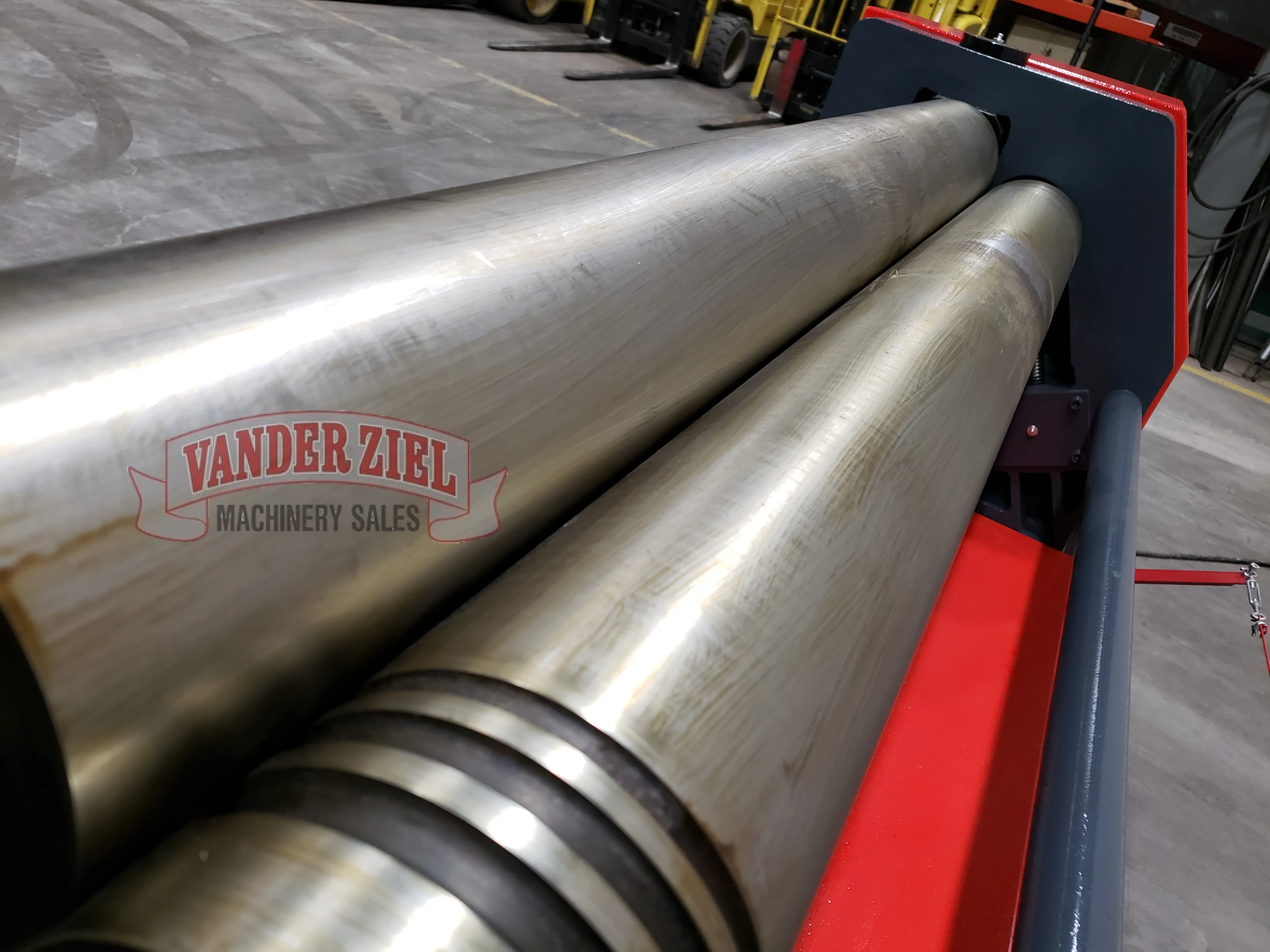

• Cone bending device
• Self brake main motor
• Top roll can be swiveled out

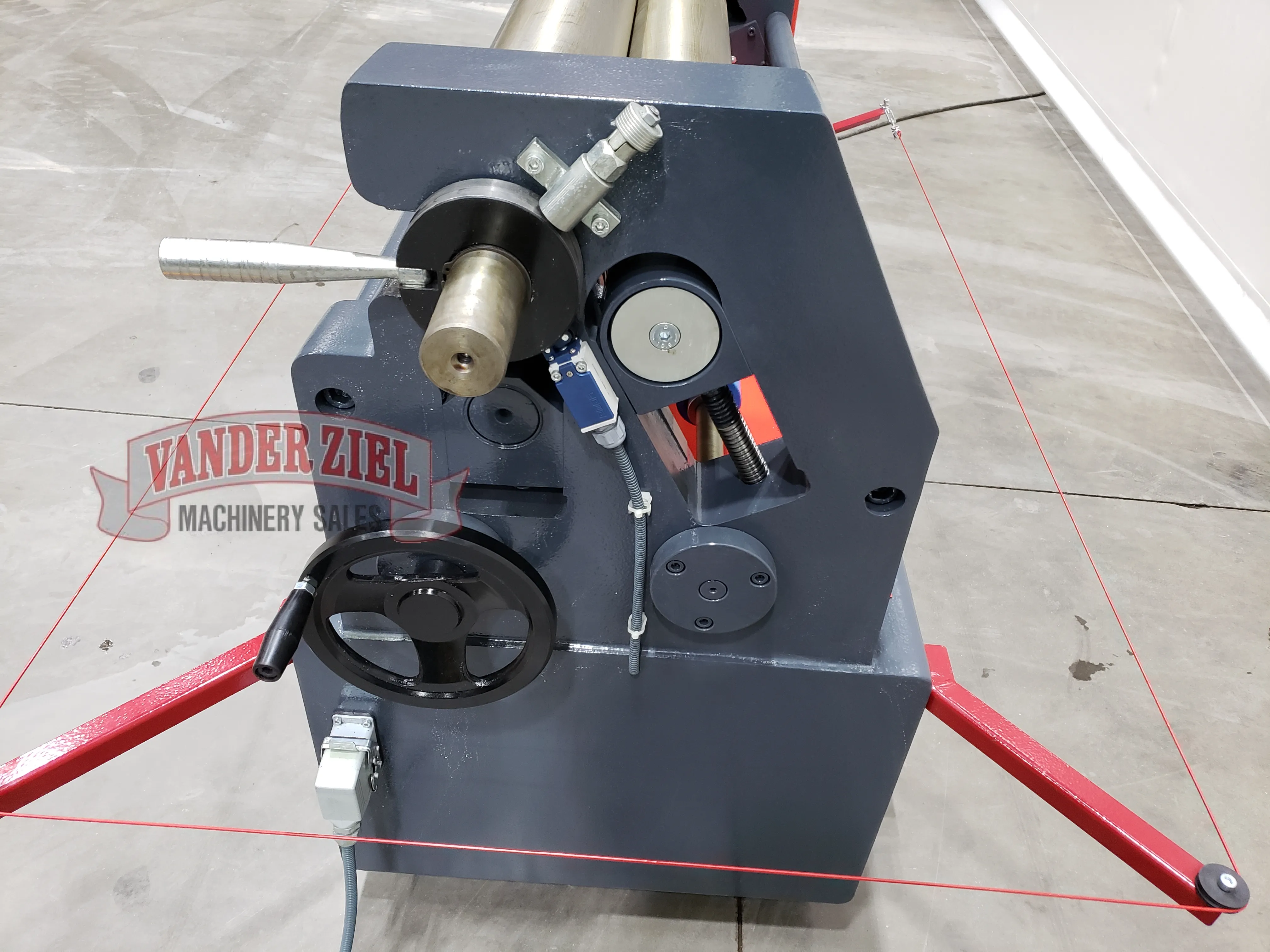

• Lower roll and back roll are with hand wheels up & down adjustable

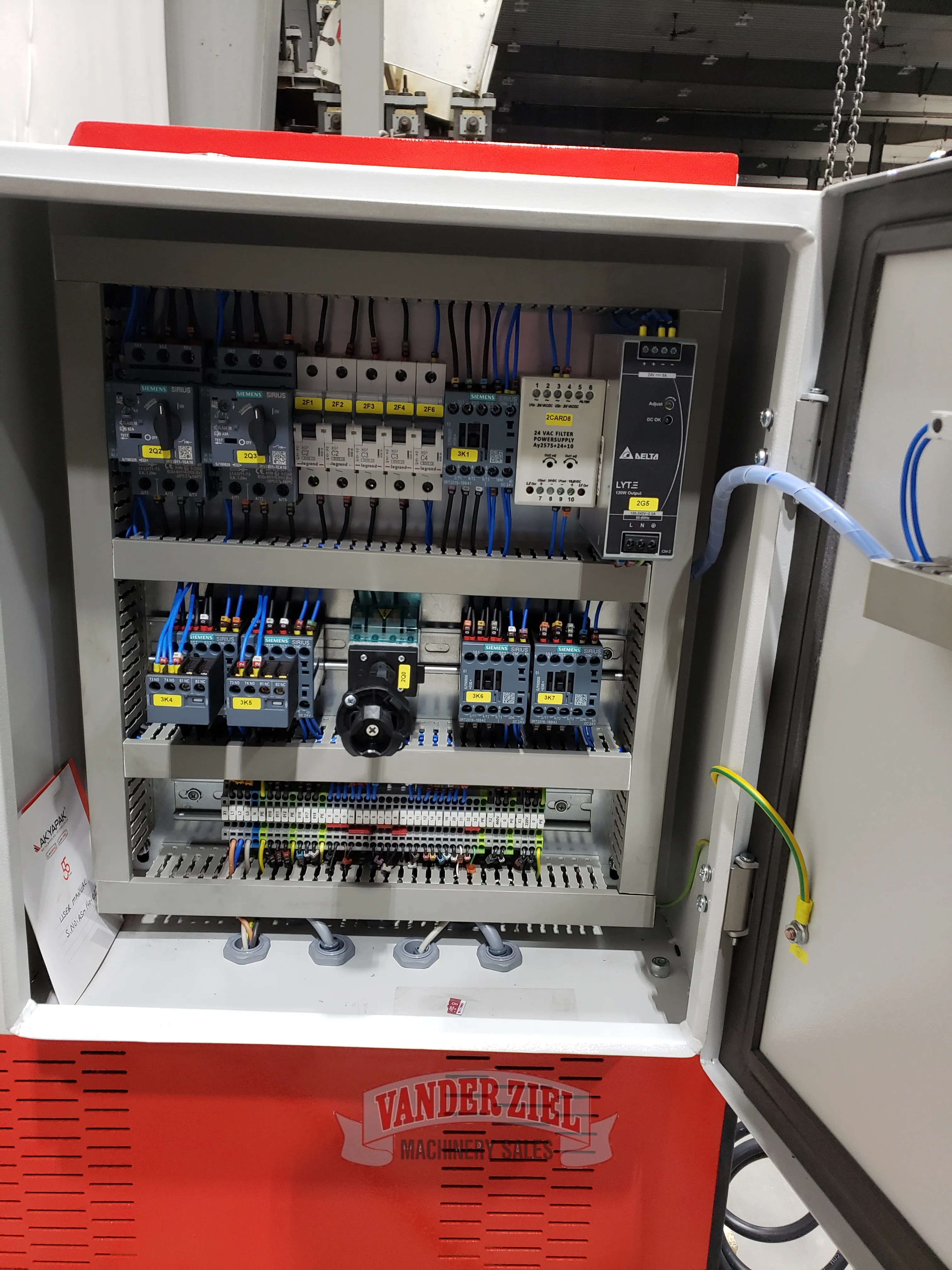

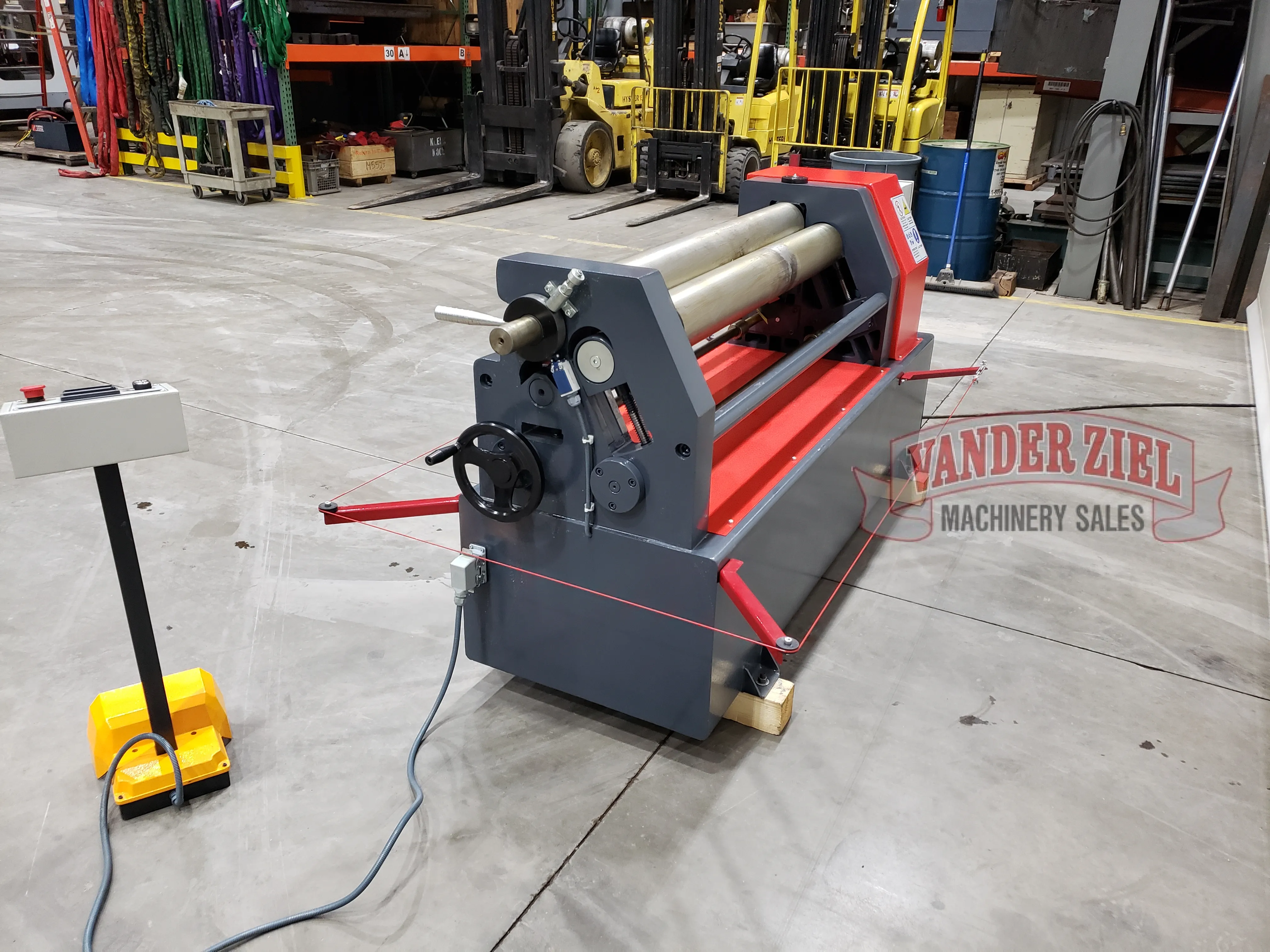

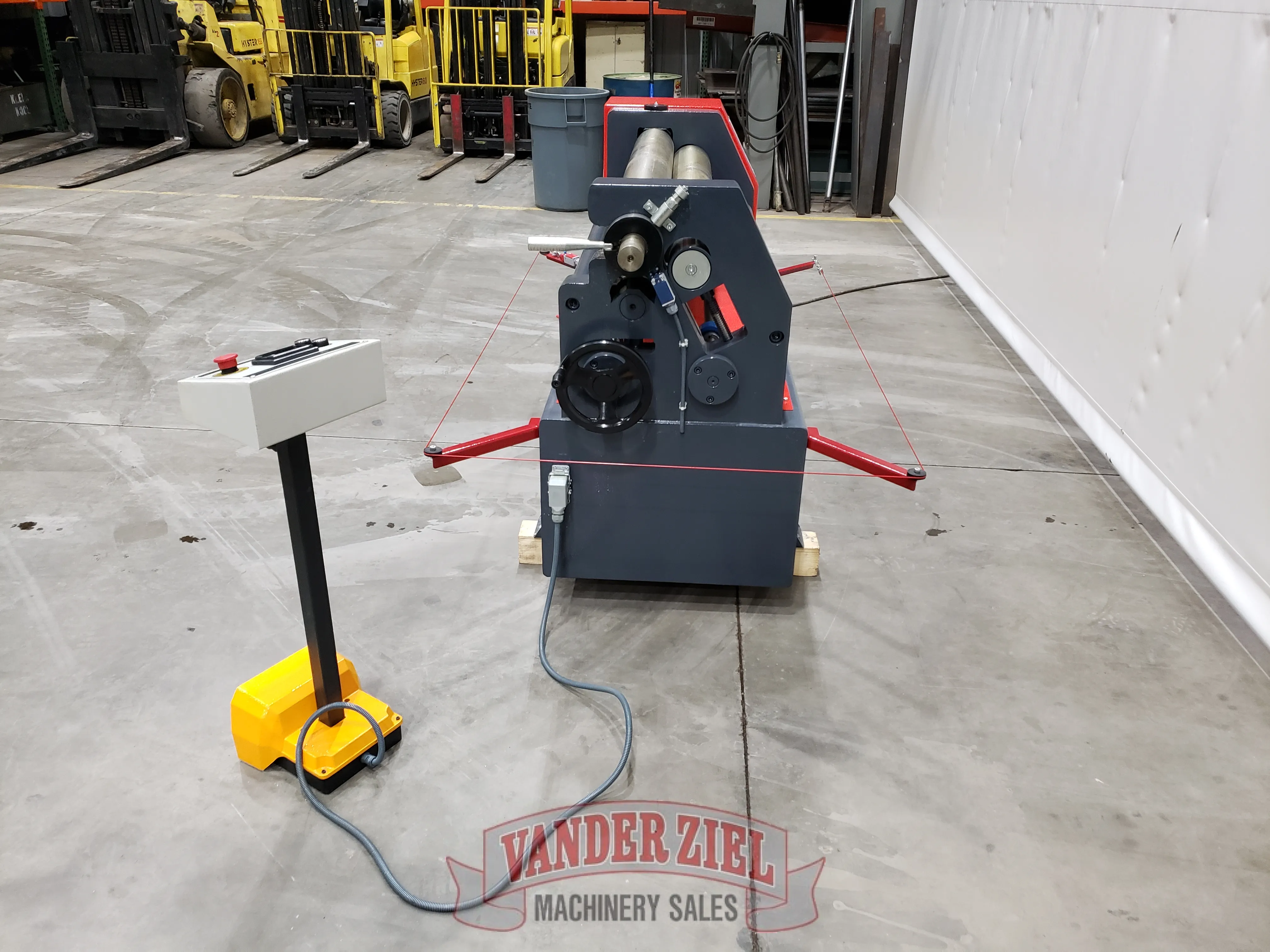

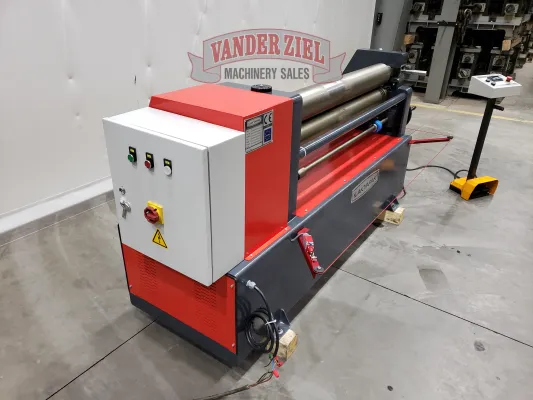

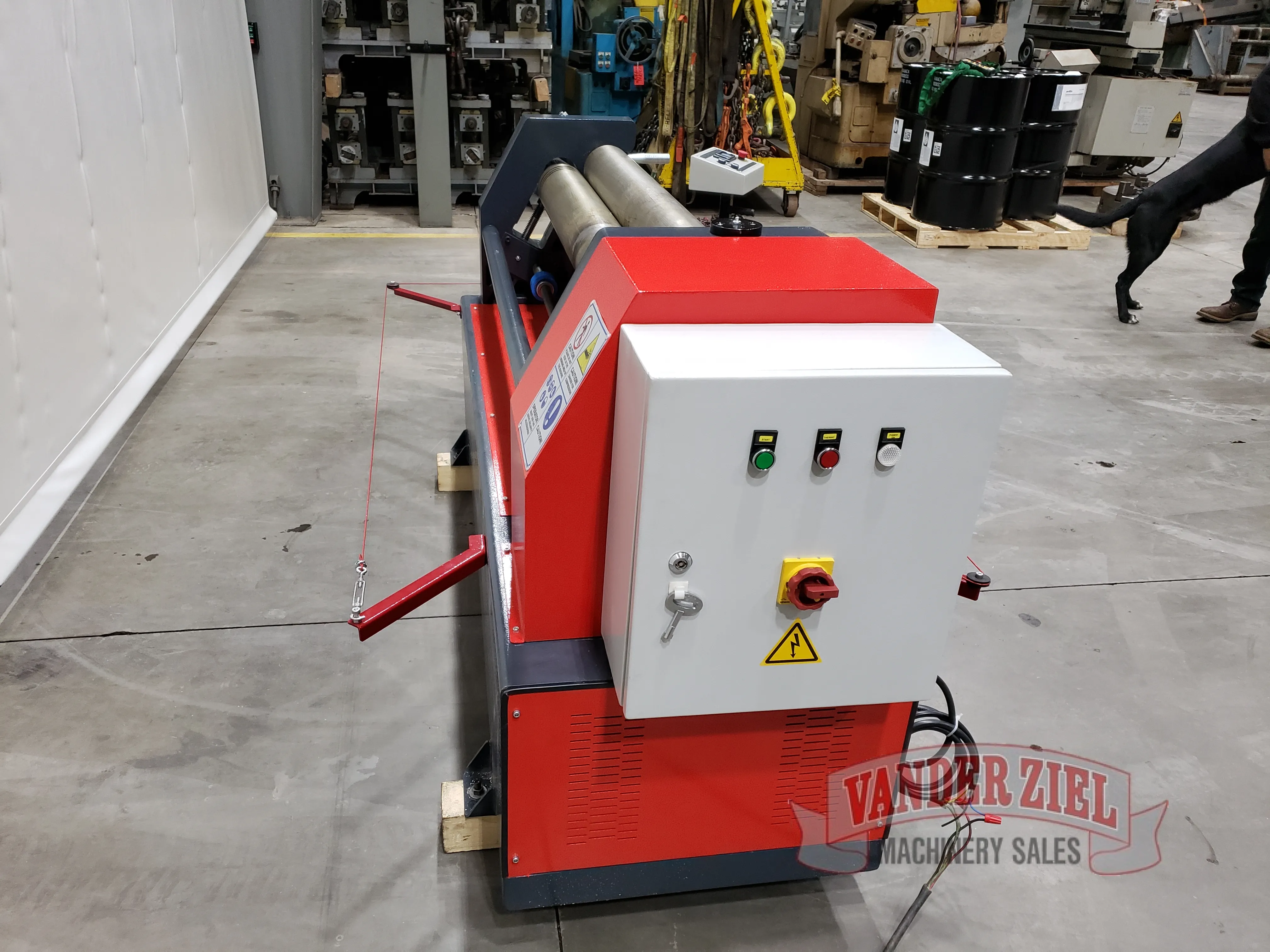

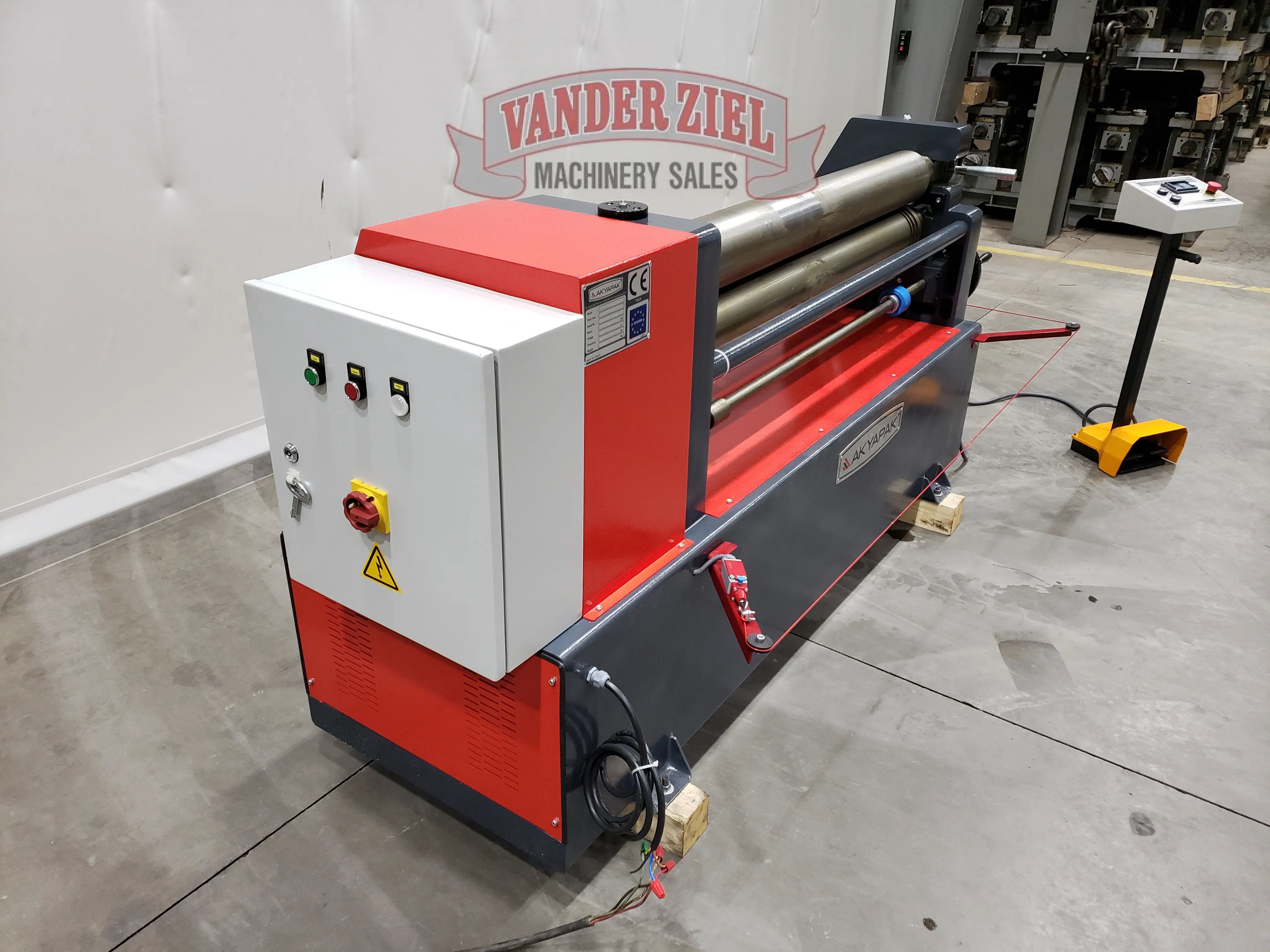

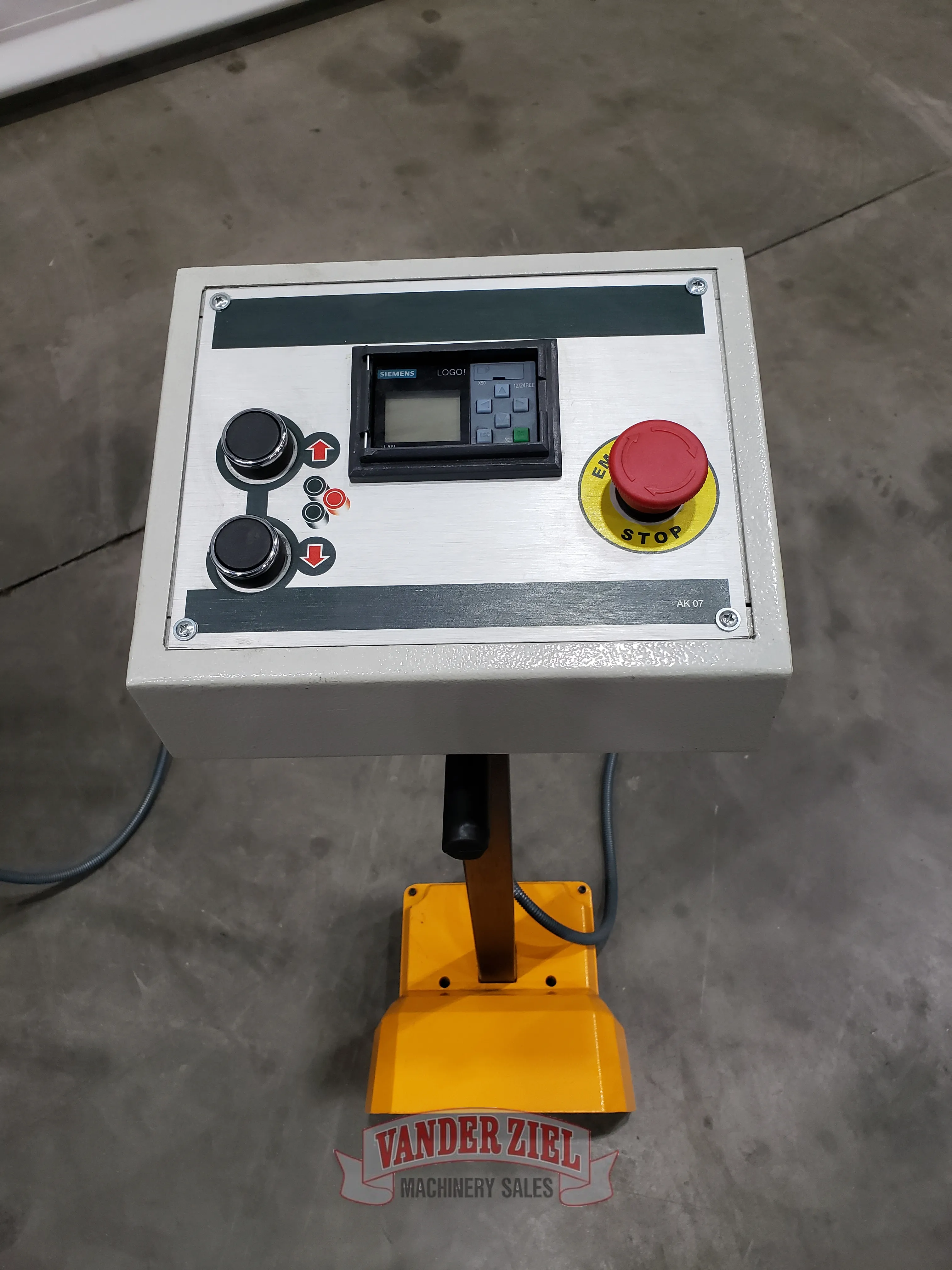

• Separate electric control panel with foot pedal
Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates

SPECIFICATIONS
Working Length in 48"
Pre-Bending In 3/16"
Max. Thickness in 1/4"
Top roll Ø In 5.5"
Min. Bending Ø in 8.3"
Motor Power hp 3
Bending Speed Ft./min 18.0
Length Ft. 6.6'
Height Ft. 3.9'
Width Ft. 3.0'
Weight lbs 2,535
* Data based upon 36.000 PSI yield point.
* For cone bending, all bending values must be reduced to %50
* Pictures shown in this offer are just for demonstration, might be with or without optional equipment.

Included Accessories:
Digital Display for Back Rolls
Power Rear Rolls
