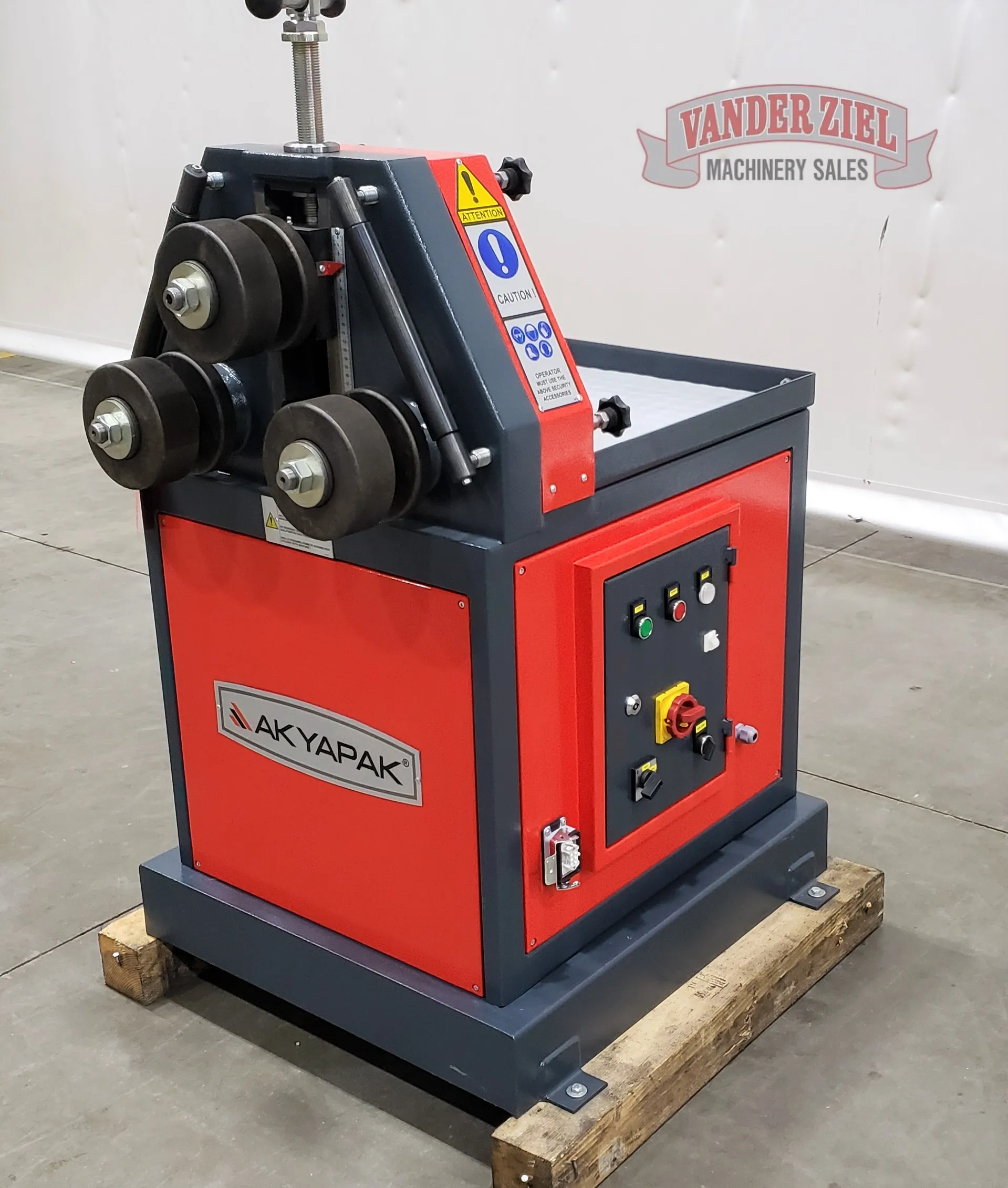

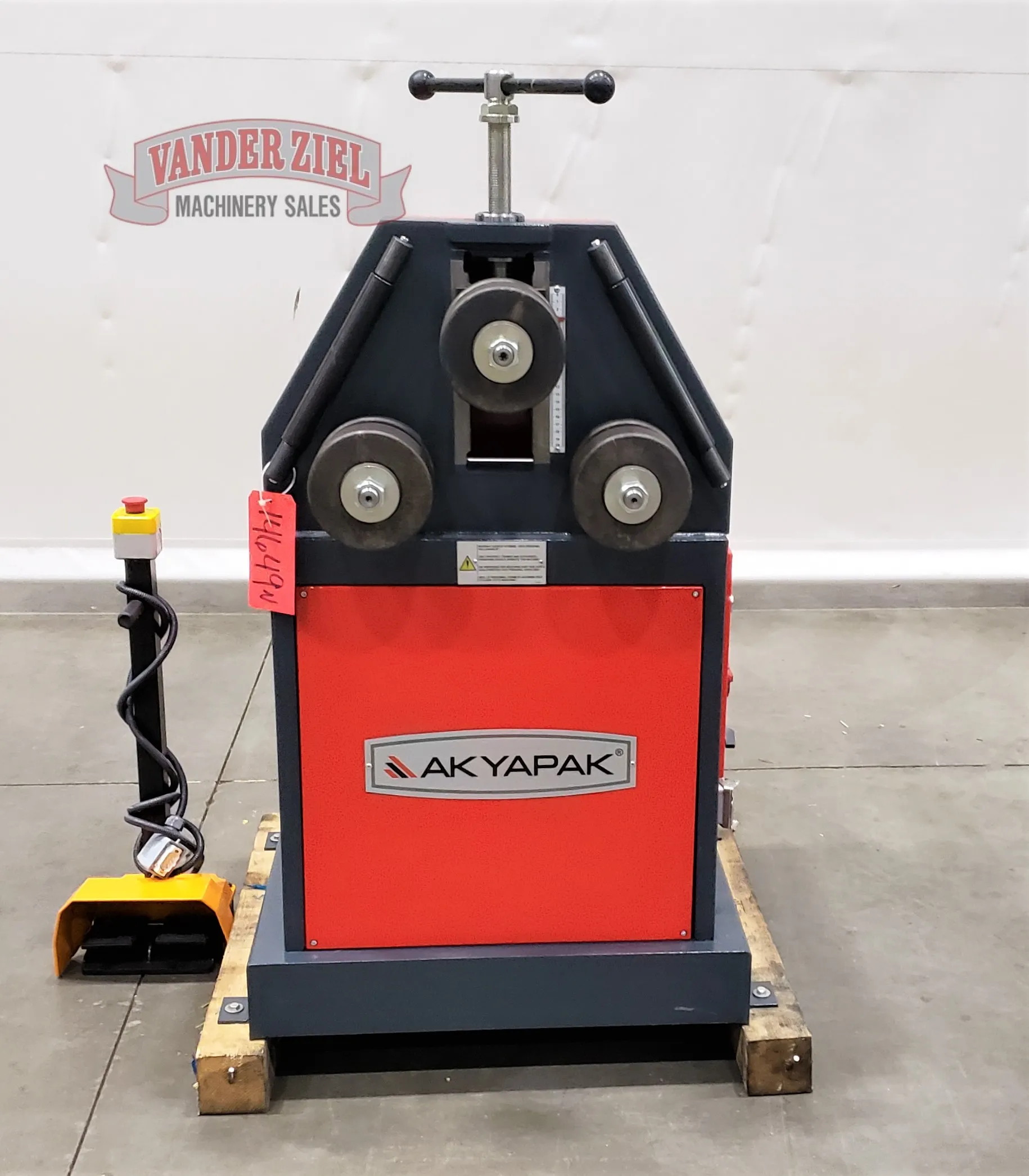

Akyapak 1 1/8" x 1 1/8" Angle Bending Roll, Model APK 35, Hardened Rolls, Guide Rolls - NEW

Akyapak 2″ x 3/16″ Angle Bending Roll, Model APK 35

Asset # 17299N

Equipped With

• APK 35 Angle Bending Roll


• Machine body is steel (ST-52) construction


• On APK35 rolls are driven by a hydraulic motor+planetry gearbox and gears


• Shafts made of special steel, hardened and grounded

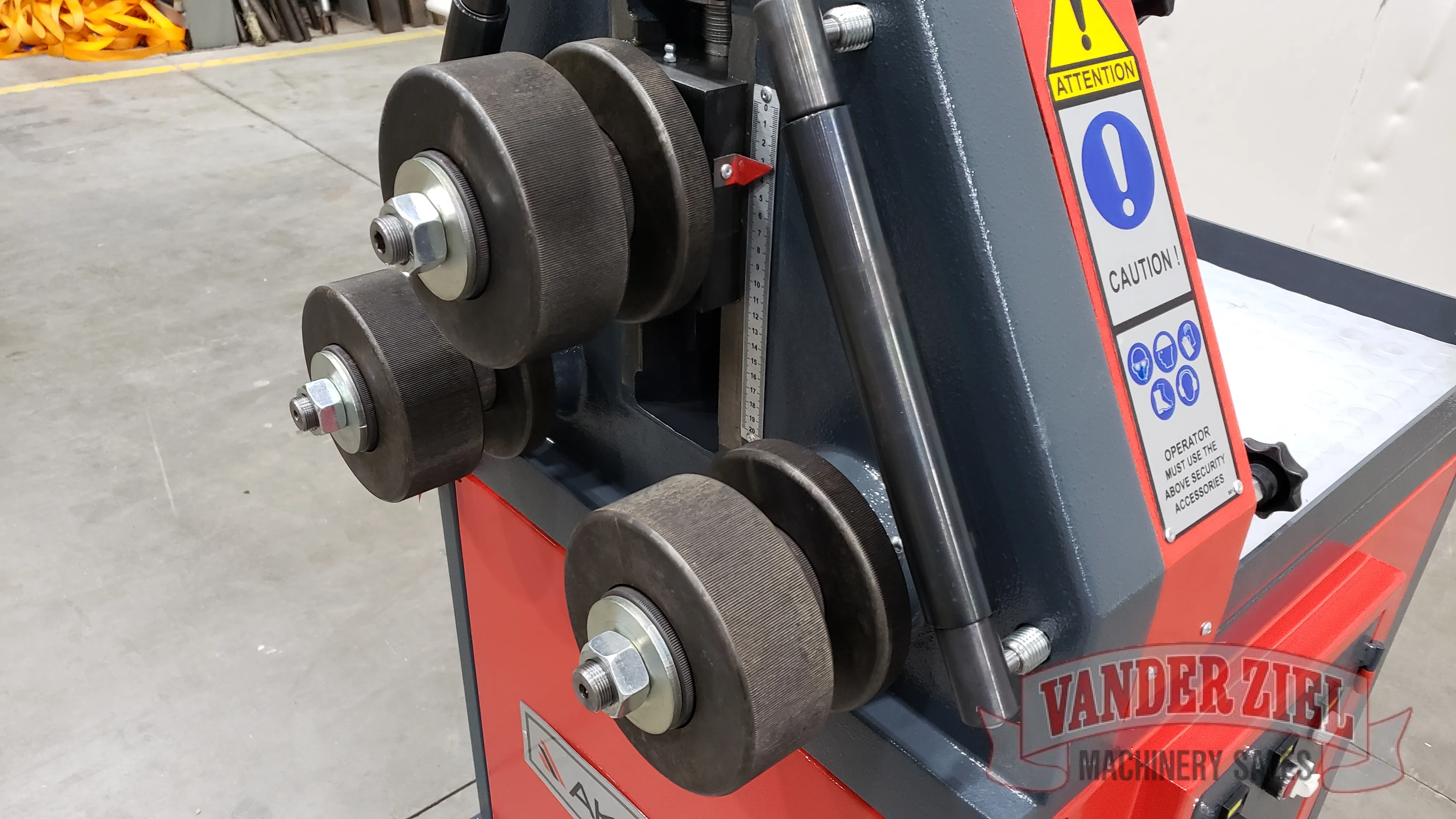

• APK35 guide rolls are adjustable manually in one direction


• One set standard rolls


• Manual lubrication

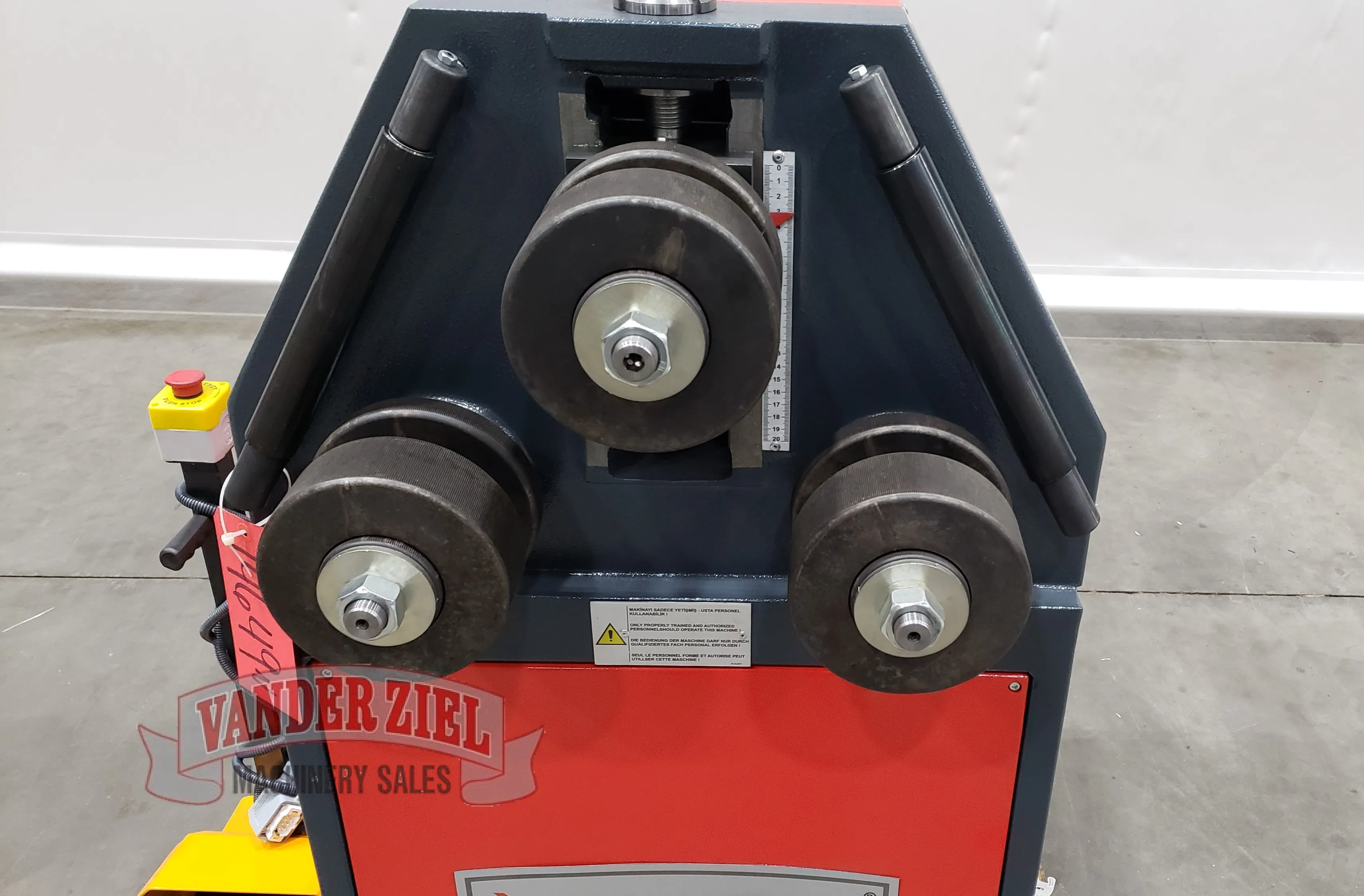

• Lower rolls hydraulic moveable up and down


• Digital display for lower rolls

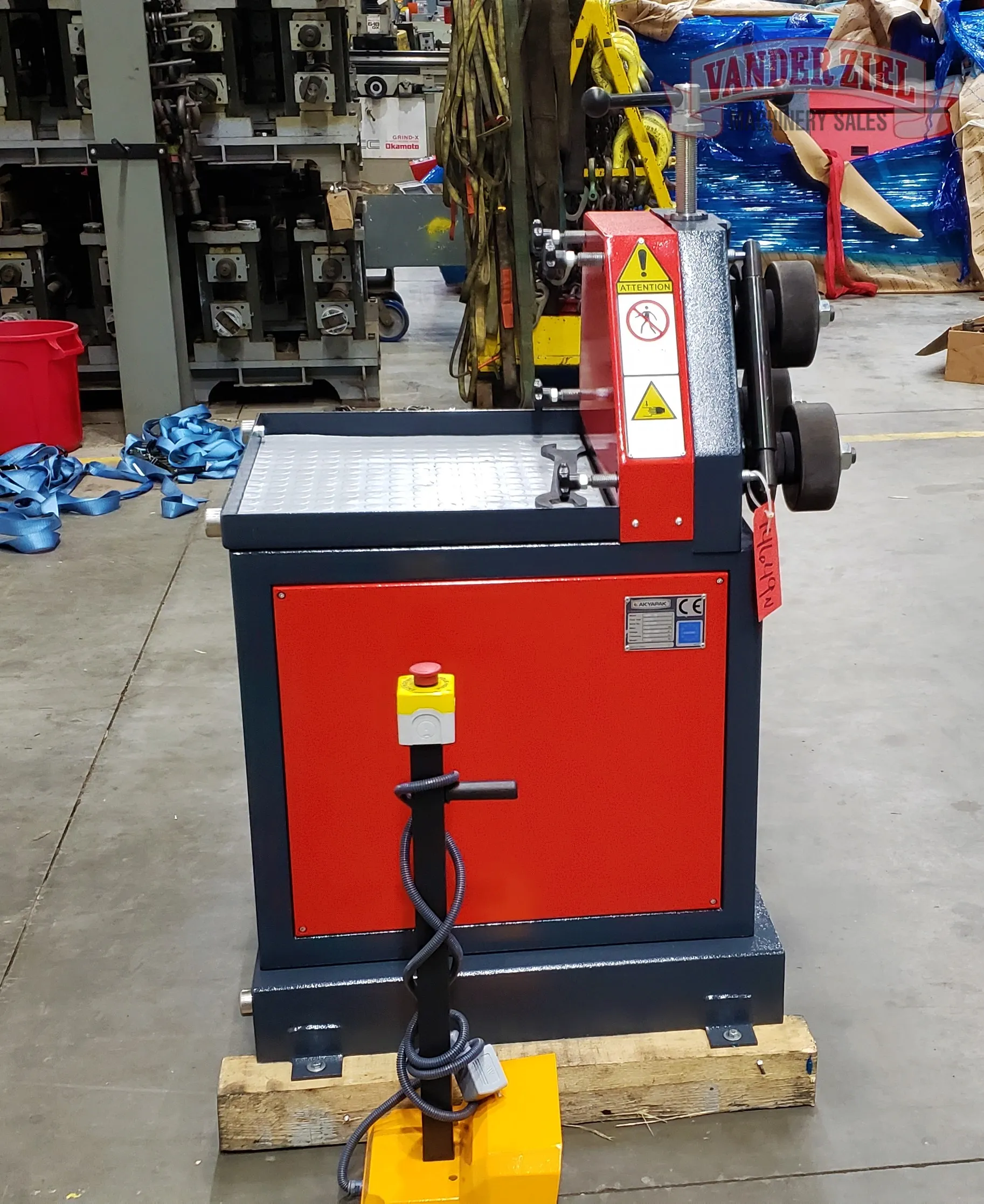

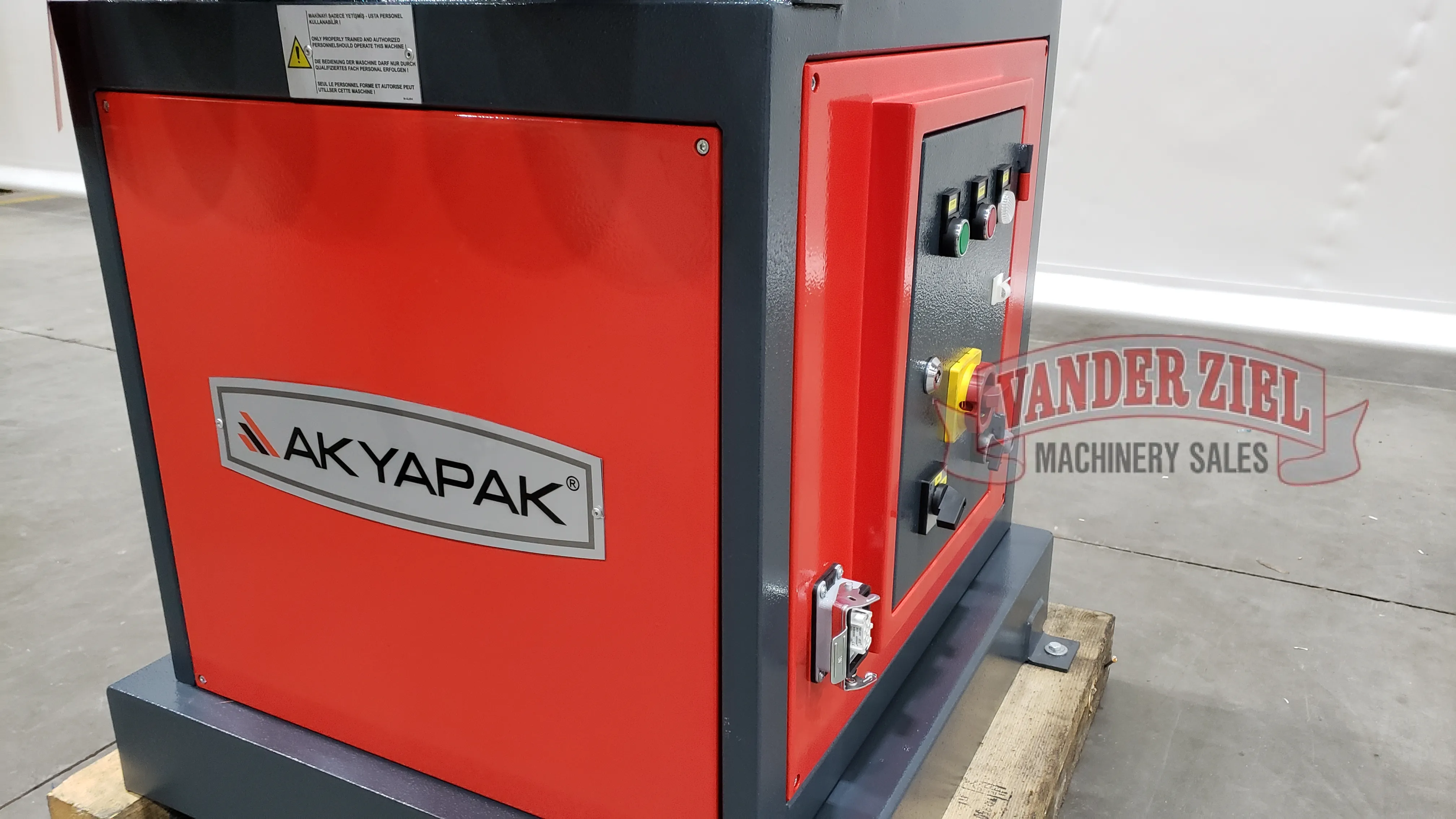

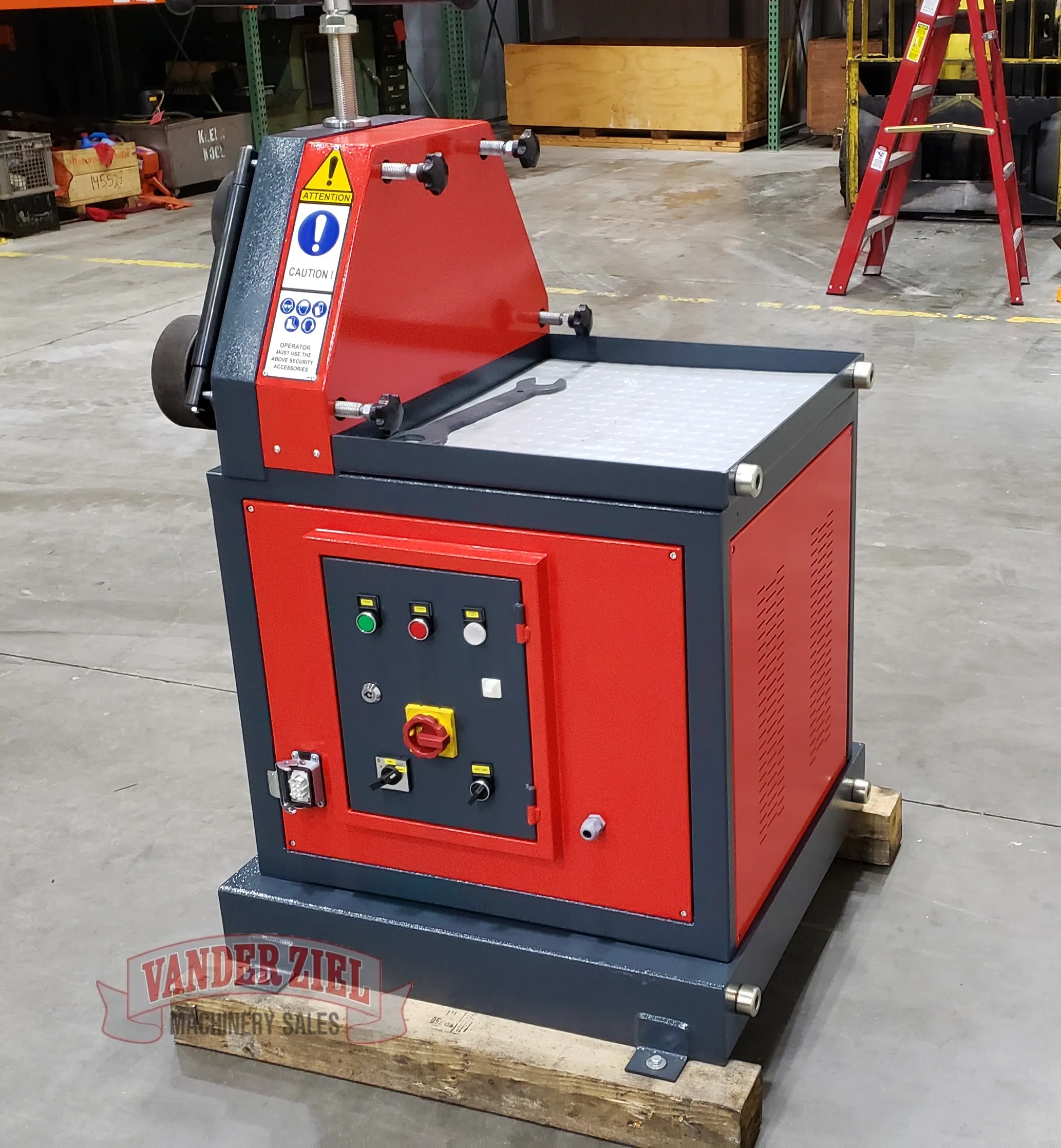

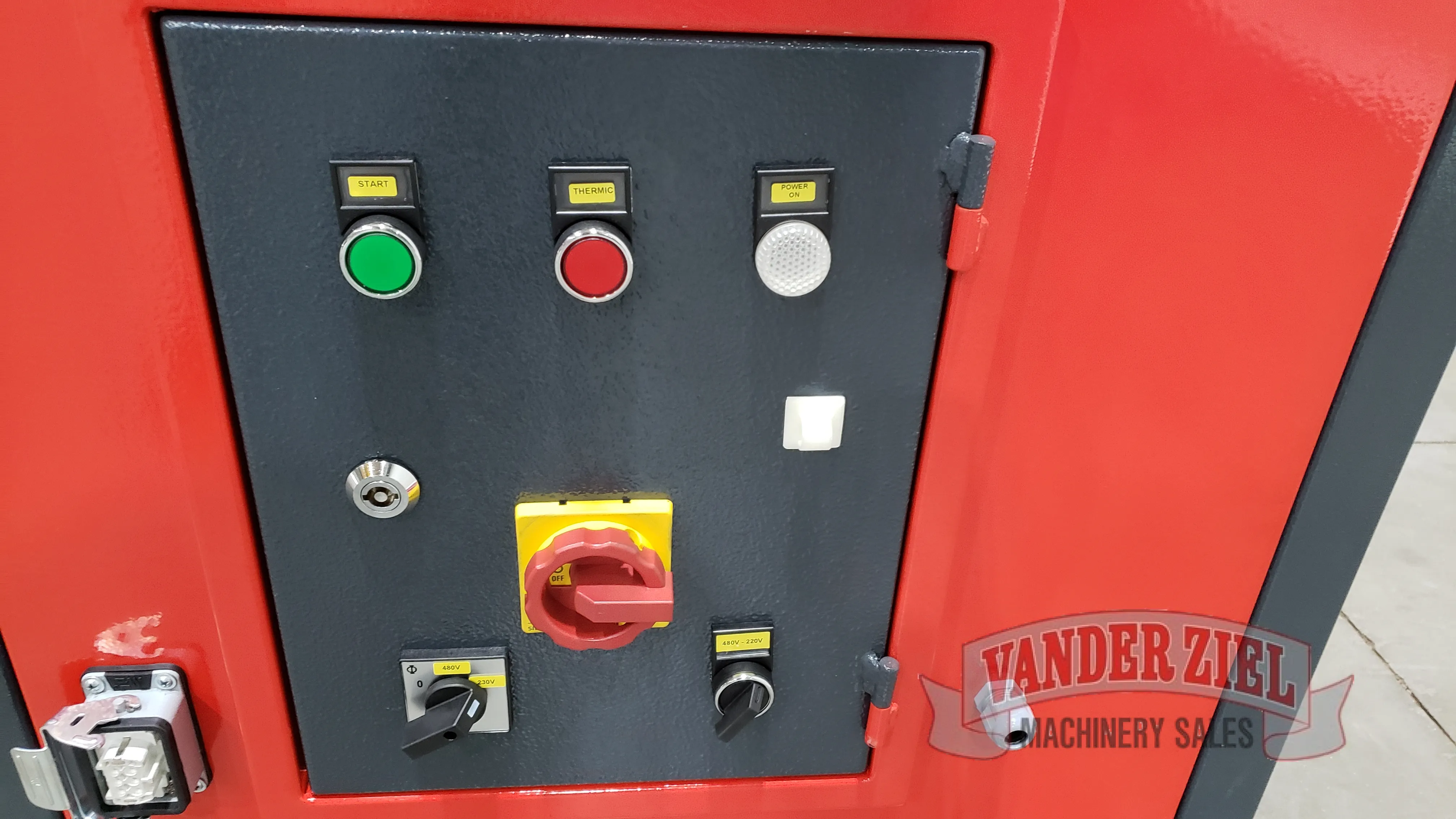

• Separate and moveable control panel


• Horizontal & vertical working


• Suitable for CE

TECHNICAL DETAILS

Roll Diameter Ø                             inch          5.90”
Shaft Ø                                           inch          1.97”
Rolling Speed                                 ft/min       14’ per/min.
Motor Power                                  hp             1.5 kw
Length                                            Ft              2.7’
Height                                             Ft              4.9’
Width                                              Ft              4.4’
Weight                                            Ibs             705

Bend Type	Size inch	Diameter min Ø	Dies
Angle Leg Out	1-31/32 x 0.19685”	33.5”	BC
Angle Leg In	1-31/32 x 0.19685”	48”	BC
T Section Let Out	31/32”	25.9”	A
T Section Leg In	31/32”	35.4”	A
Flat, Hard Way	2.33” x 0.393”1 31/32” x .472”	31.5”	A
Flat, Easy Way	4-3/4” x 0.59”	29.5”	A
Square	1-3/8”.787”	48”15-3/4”	B
Round	1.38”	31.5”	A
Tube	2-3/4” x 0.0787”	48”	B
Pipe	1.3” x 0.104	9”	B
Rectangle Tube	1 31/32” x 1.57” x .118”		B
Square Tube	2.36” x .118”		B
Channel Easy WayLegs Out	UNP60	31.7”	B
Channel Easy WayLegs In	UNP60	27.6”	B

Explanation:

A: Standard Rolls
B: Special Rolls
C: Pulling Device
D: For bending without deformation
E: Angle Device
F: Stretching Device
