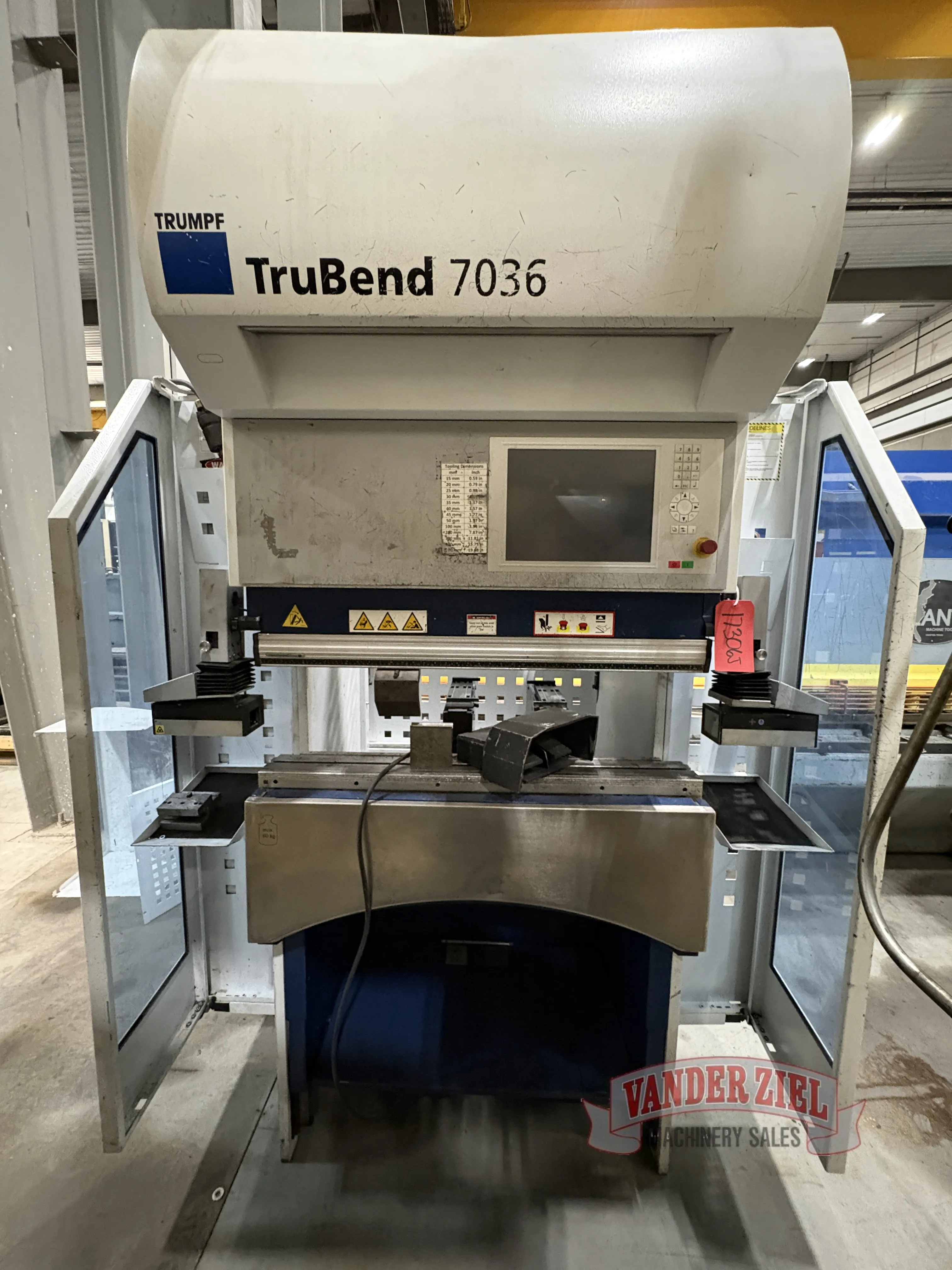

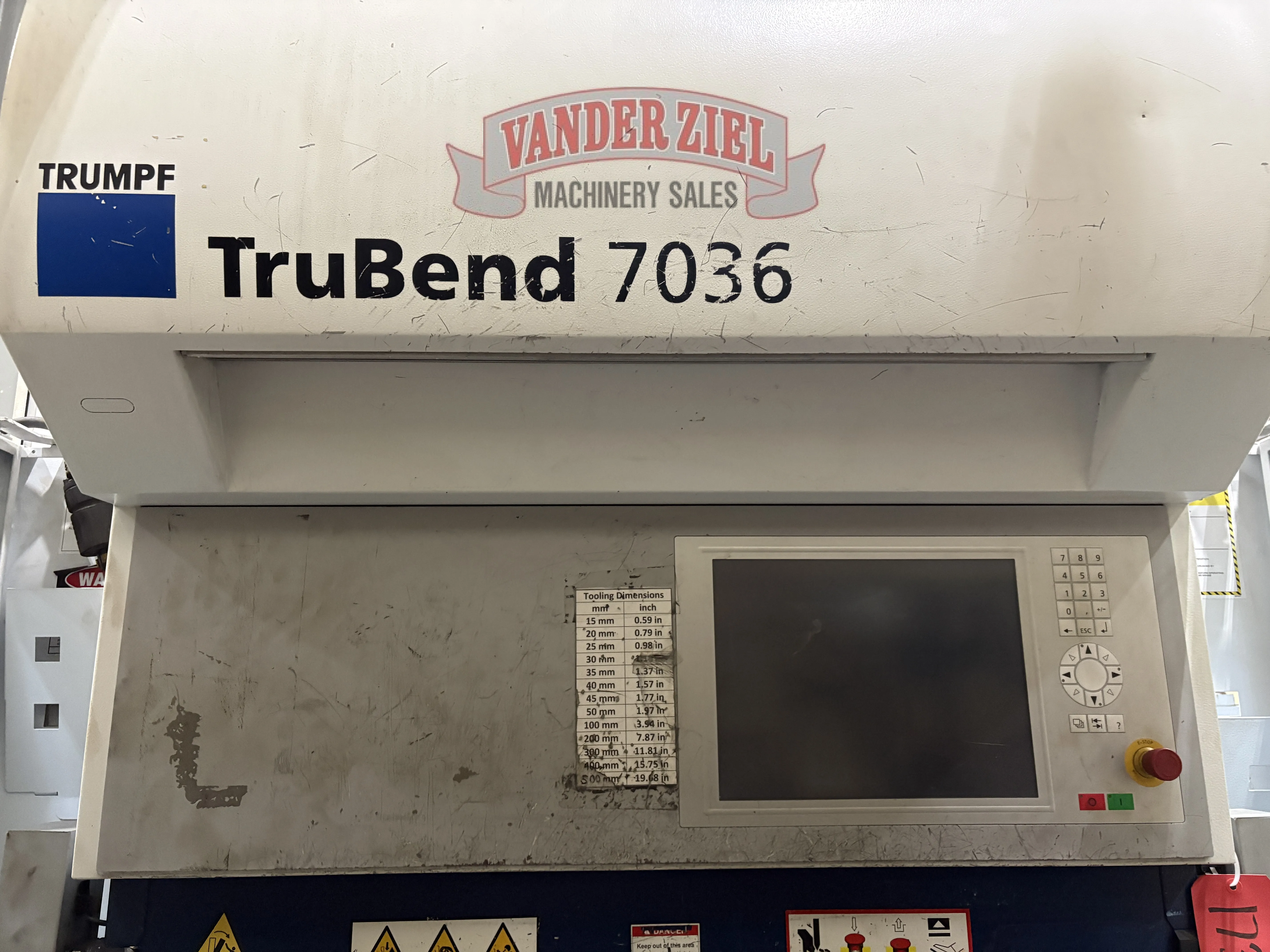

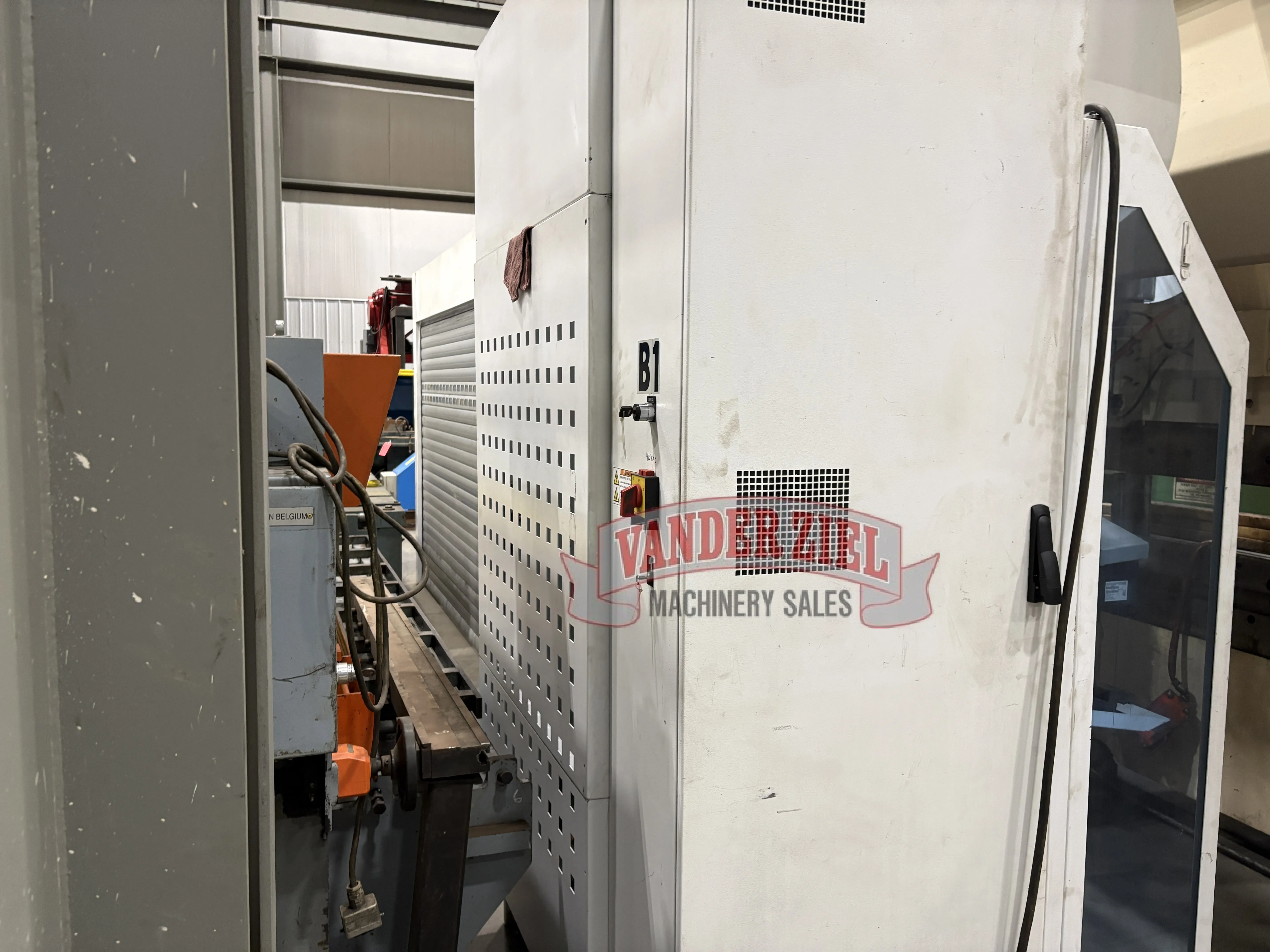

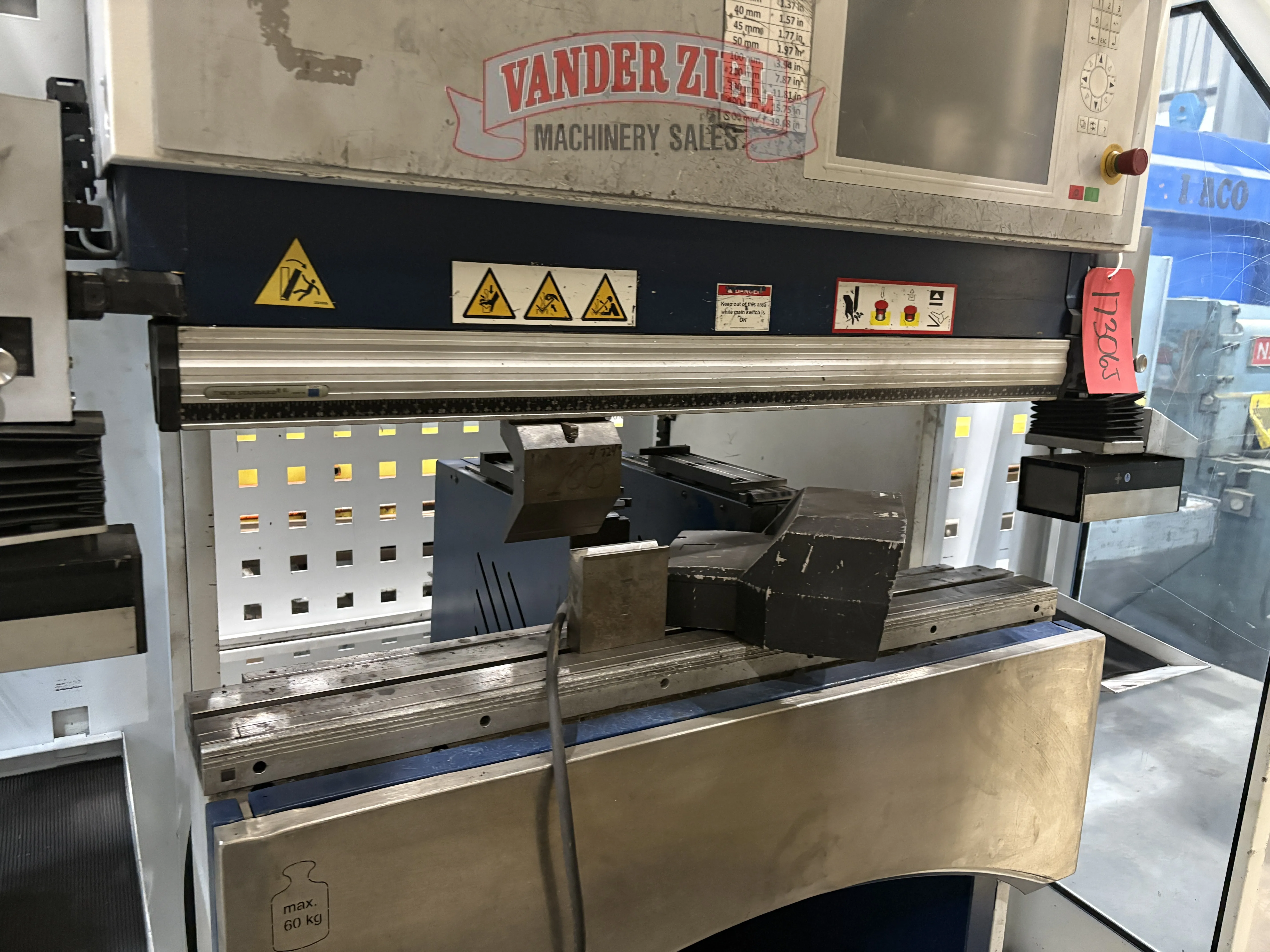

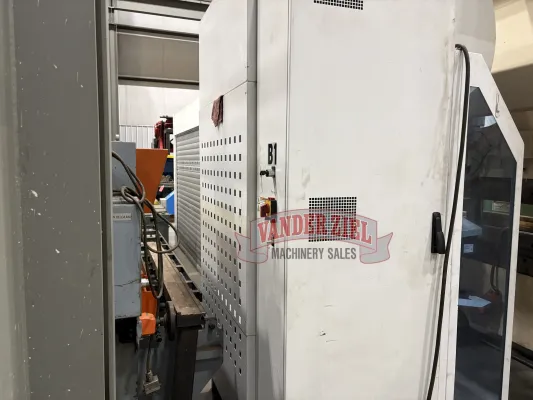

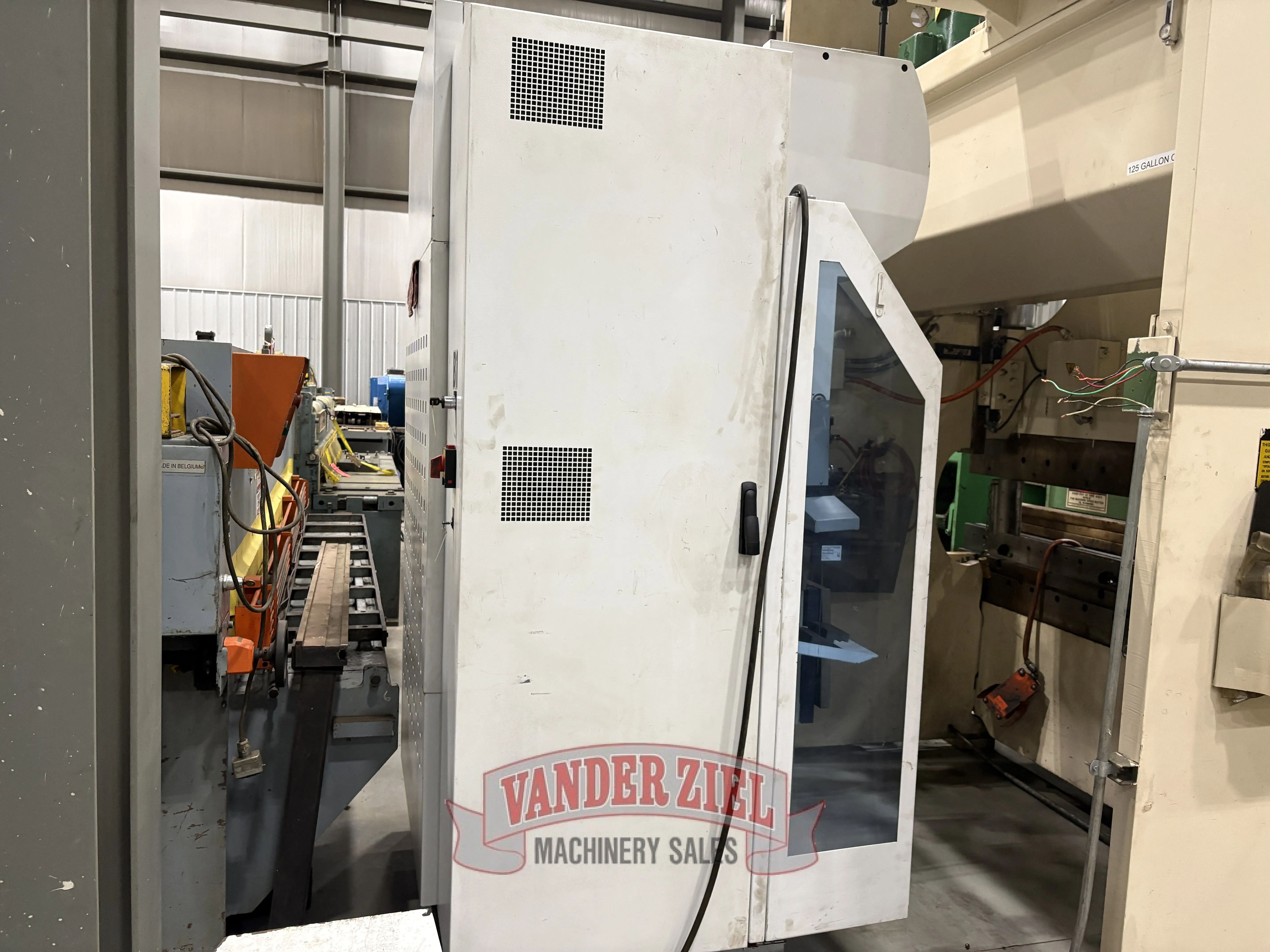

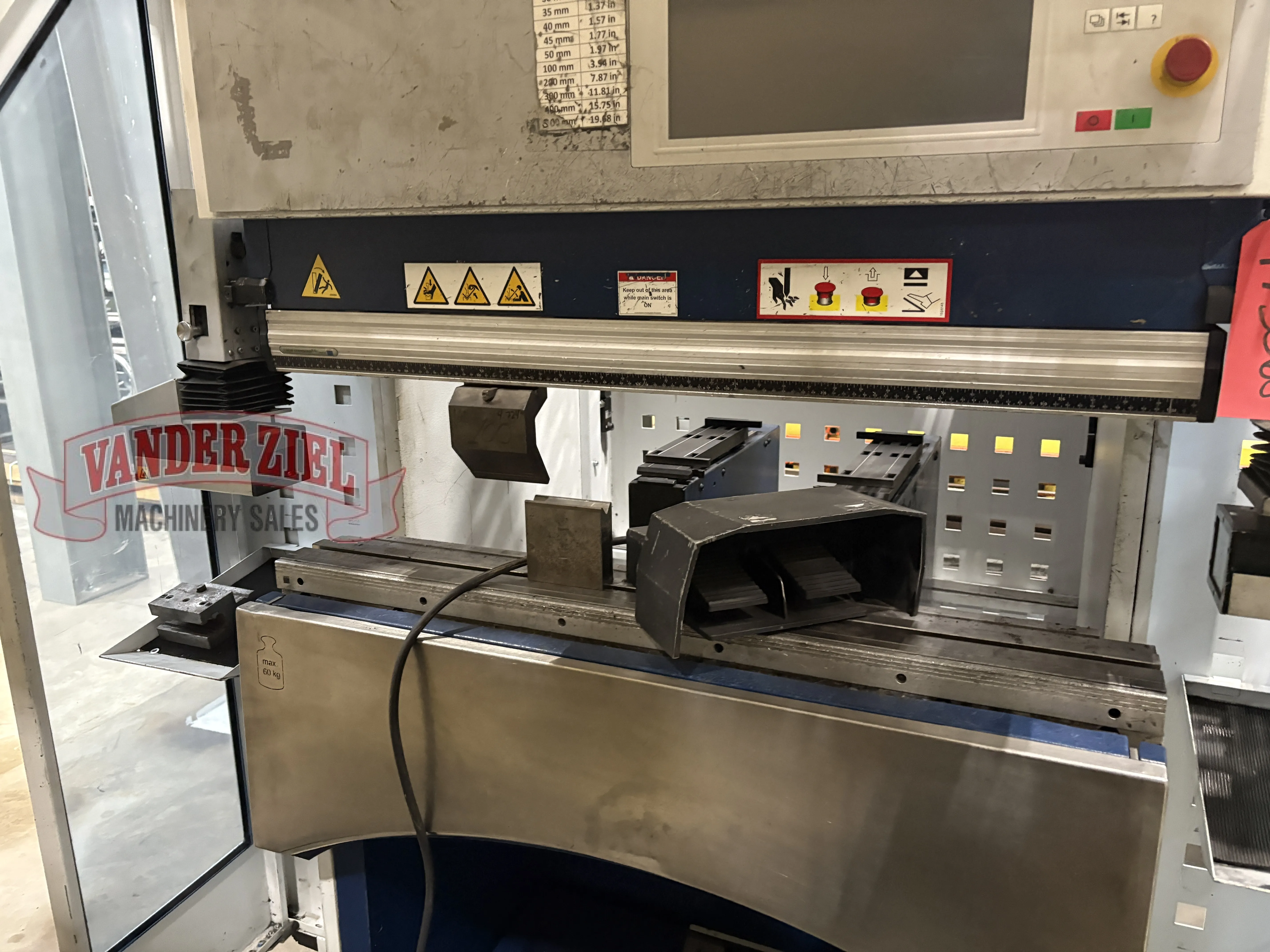

Trumpf TruBend 40" x 40.5 Tons Press Brake
Description
Trumpf TruBend 40" x 40.5 Tons Press Brake, Model 7036
Serial # B0702A1756
Asset # 17306
Specifications:
Tonnage 40.5 Tons
Bending Length 40.2"
Stroke 4.72"
Brake Time Max. 90 ms
Overtravel Max. 0.59"
Overtravel with Brake .31"
Safety Distance 7.09"
Voltage 460 V
Full Load Amps 24
Width Between Columns 36.7"
Usable Open Height 11.6"
Throat Depth 5.9"
Overall Weight 5,732 lbs.
Specifications - Subject to Verification
Specifications
Tonnage40.5 tons
Bending Length40.2 in
Open Height11.6 in
Stroke4.72 in
Overall Length40.2
Overall Height11.6 in
Overall Weight5732 lbs
As-IsNo
REF: 000902
