Lincoln Idealarc 250 Welder

Technical Specs

As-IsNo

Description

Lincoln Welder

Asset # 17480

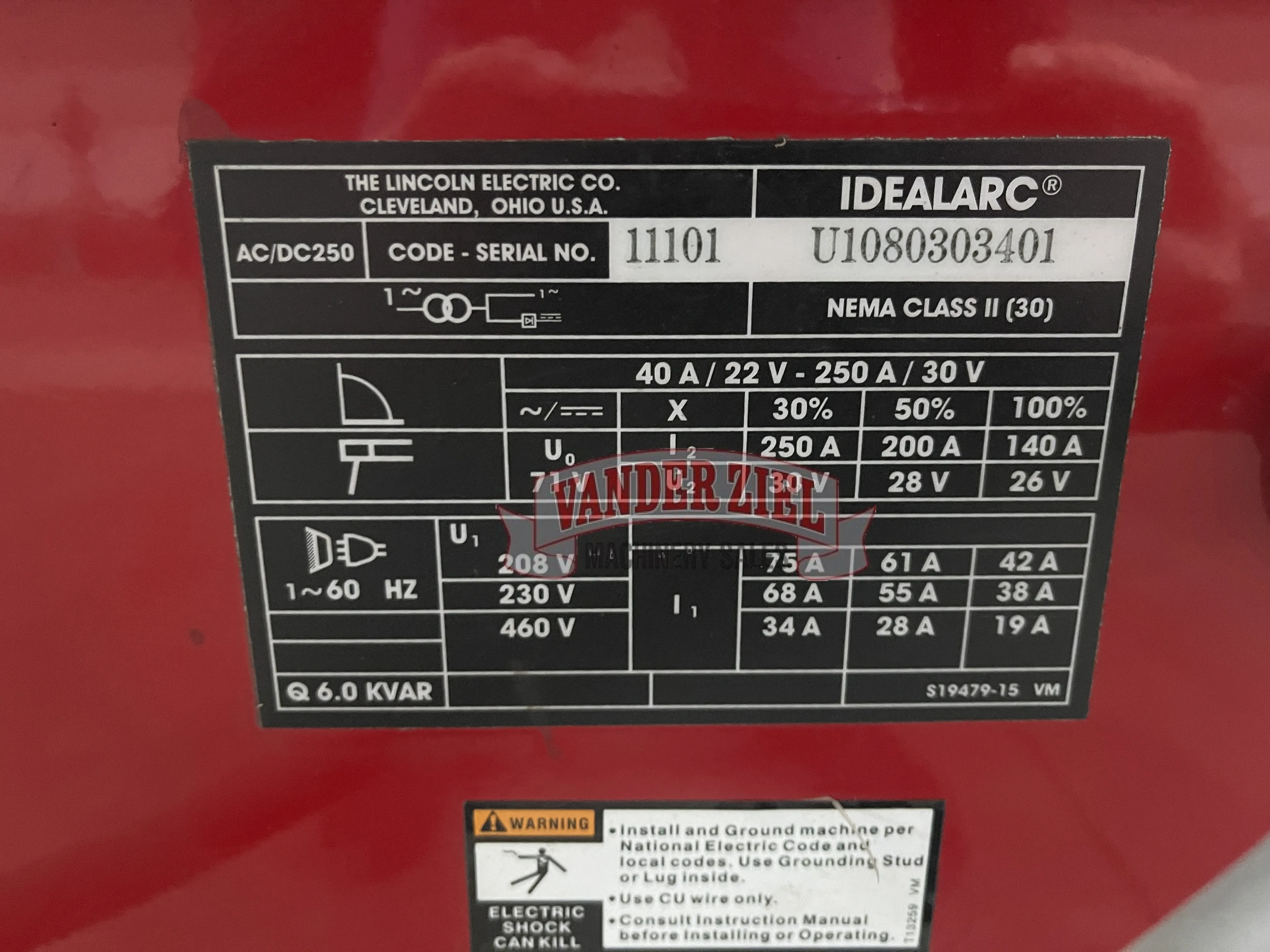

Lincoln Electric IDEALARC® AC/DC 250 – Specifications


Manufacturer:


The Lincoln Electric Co., Cleveland, Ohio, U.S.A.

Model:


AC/DC 250

Code / Serial Number:


Code: 11101
Serial: U1080303401

NEMA Classification:


NEMA Class II (30)

Electrical & Welding Output Ratings


Output Range:



  • 40 A / 22 V – 250 A / 30 V


Duty Cycle Ratings:



Duty CycleOutput Current (I₂)Output Voltage (U₂)
30%250 A30 V
50%200 A28 V
100%140 A26 V


Open Circuit Voltage:



  • U₀ = 71 V

Input Power Requirements (Single Phase, 60 Hz)


Input Voltage Options (U₁) and Corresponding Input Current (I₁):



Input Voltage30% Duty Cycle50% Duty Cycle100% Duty Cycle
208 V75 A61 A42 A
230 V68 A55 A38 A
460 V34 A28 A19 A

Additional Information



  • kVAR: 6.0

  • Document No.: S19479‑15 VM

  • Welding Processes: SMAW (Stick), AC and DC

  • Duty Cycle Class: Industrial/Shop class machine


$994

Member Pricing

Asset Number
#17480I
Location
VZMS HQ (Alto)
CategoryWelding Equipment
ManufacturerLincoln
ModelLincoln Idealarc 250 Welder
ConditionUsed
