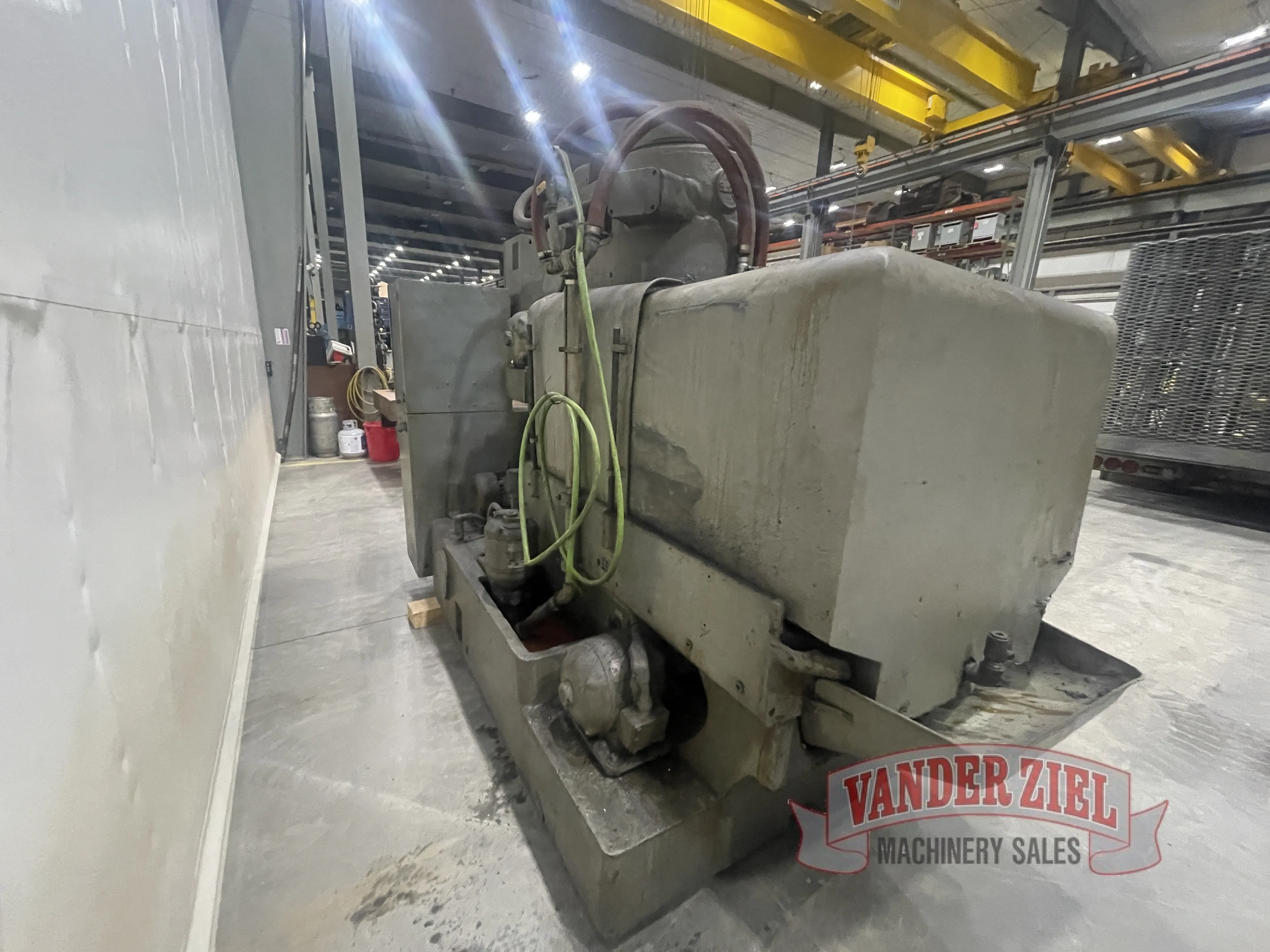

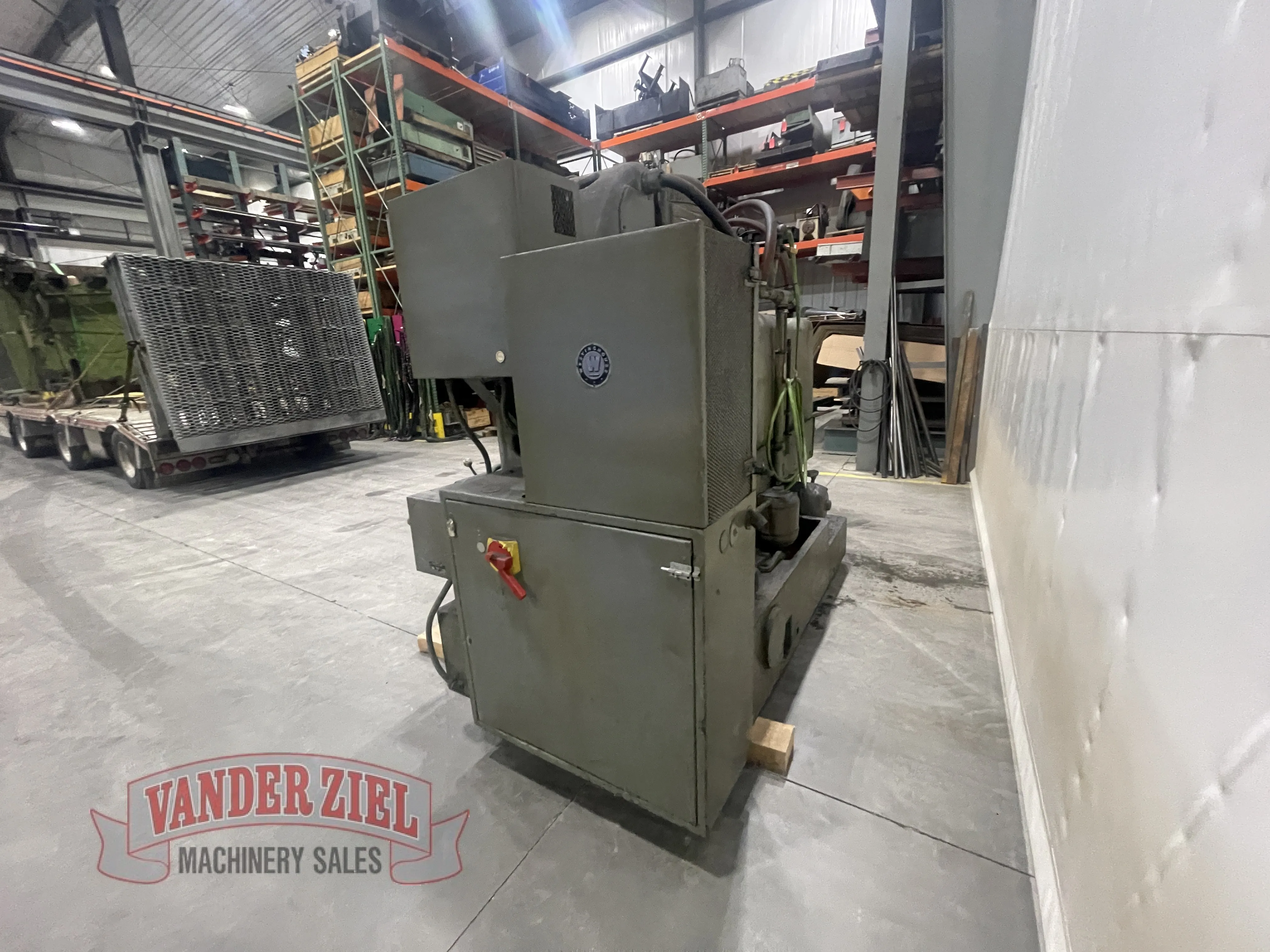

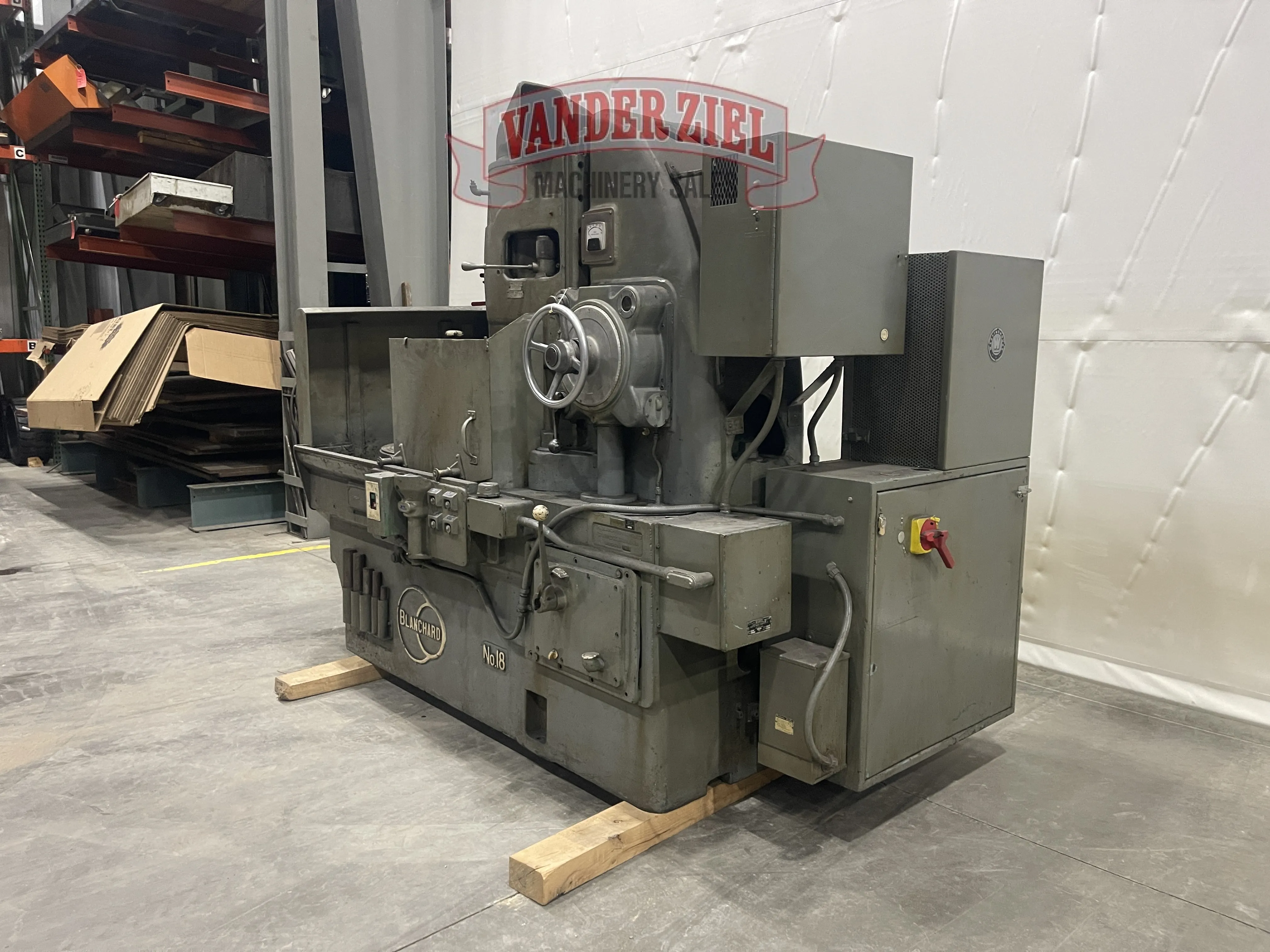

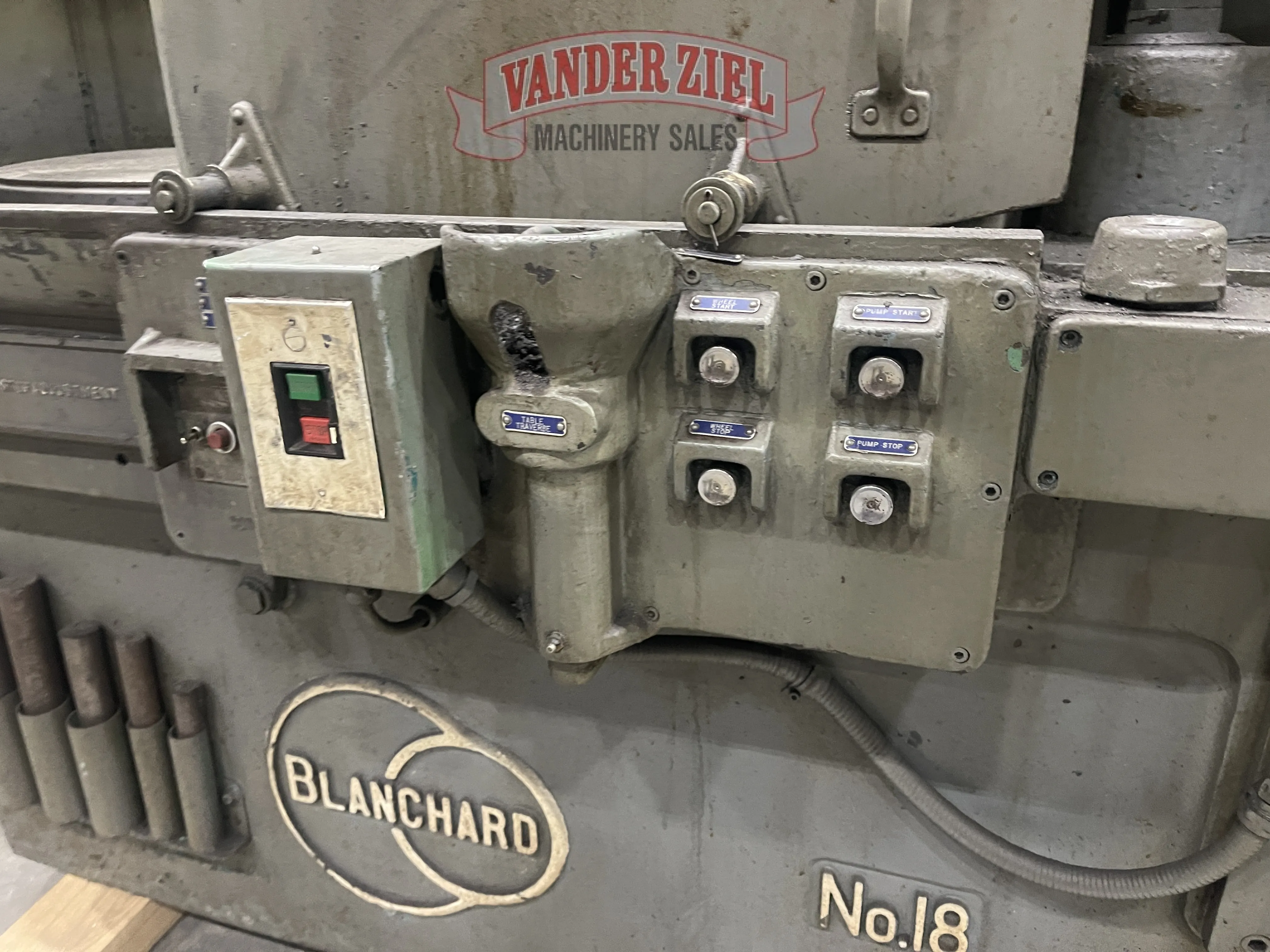

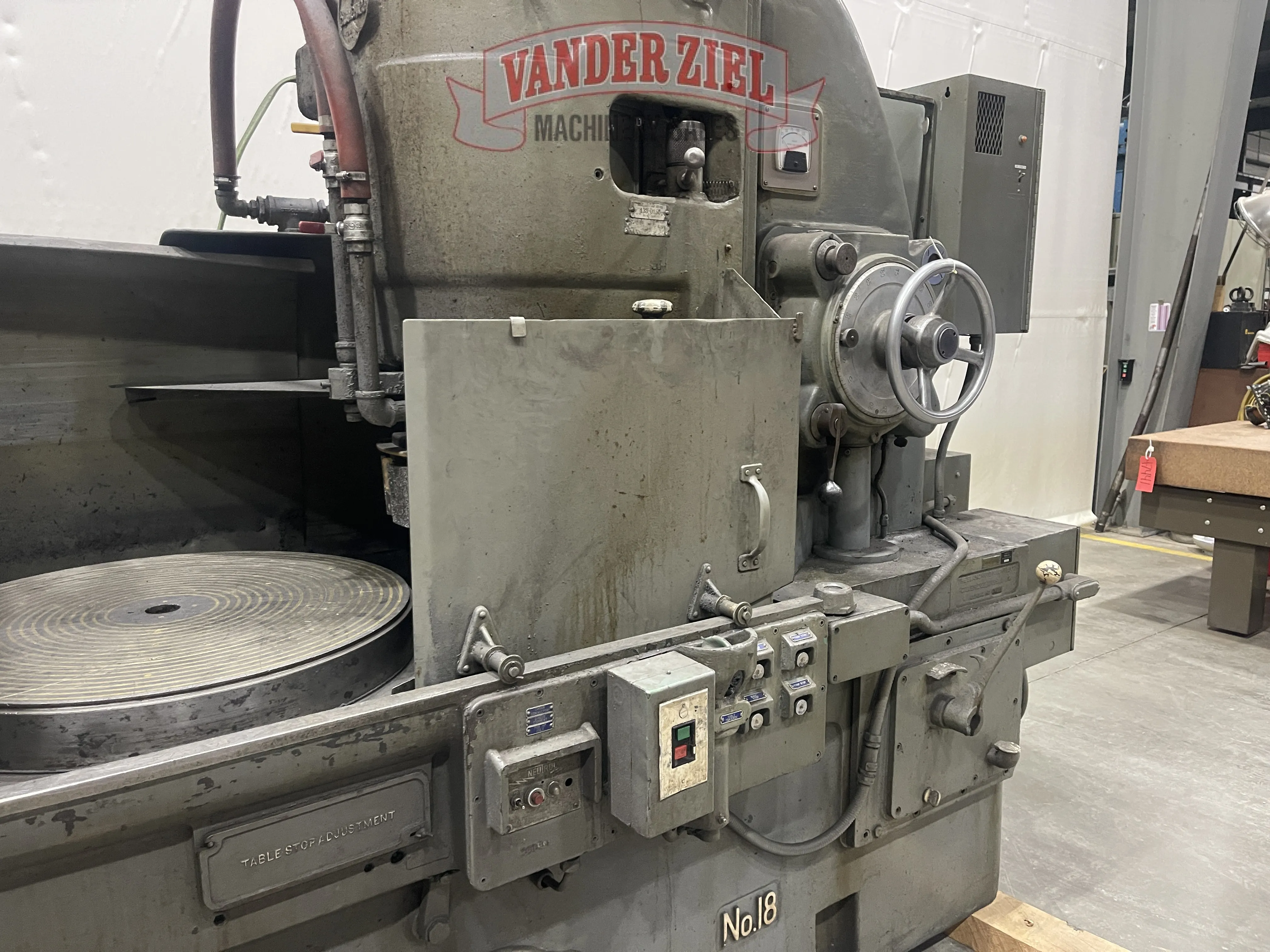

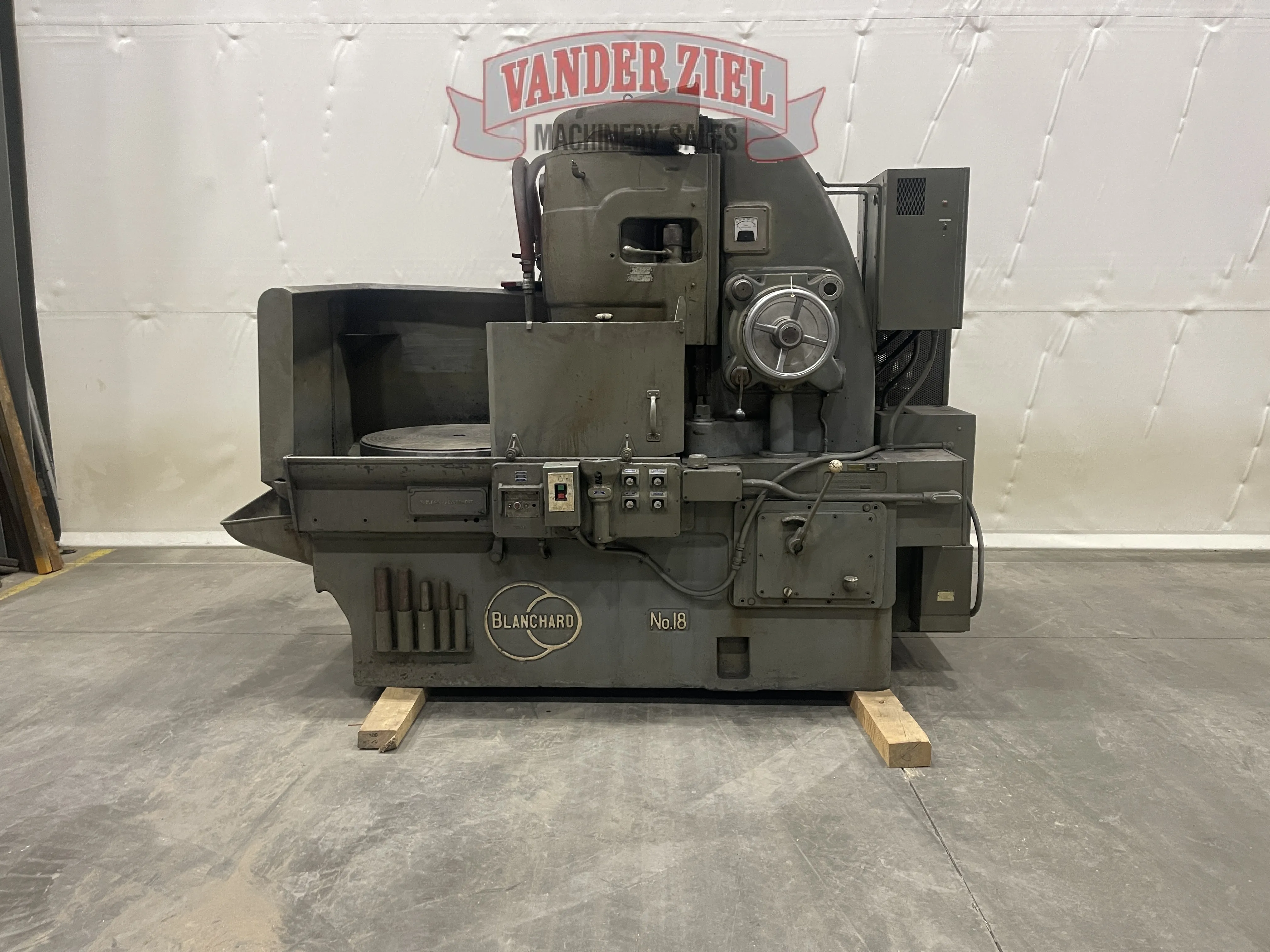

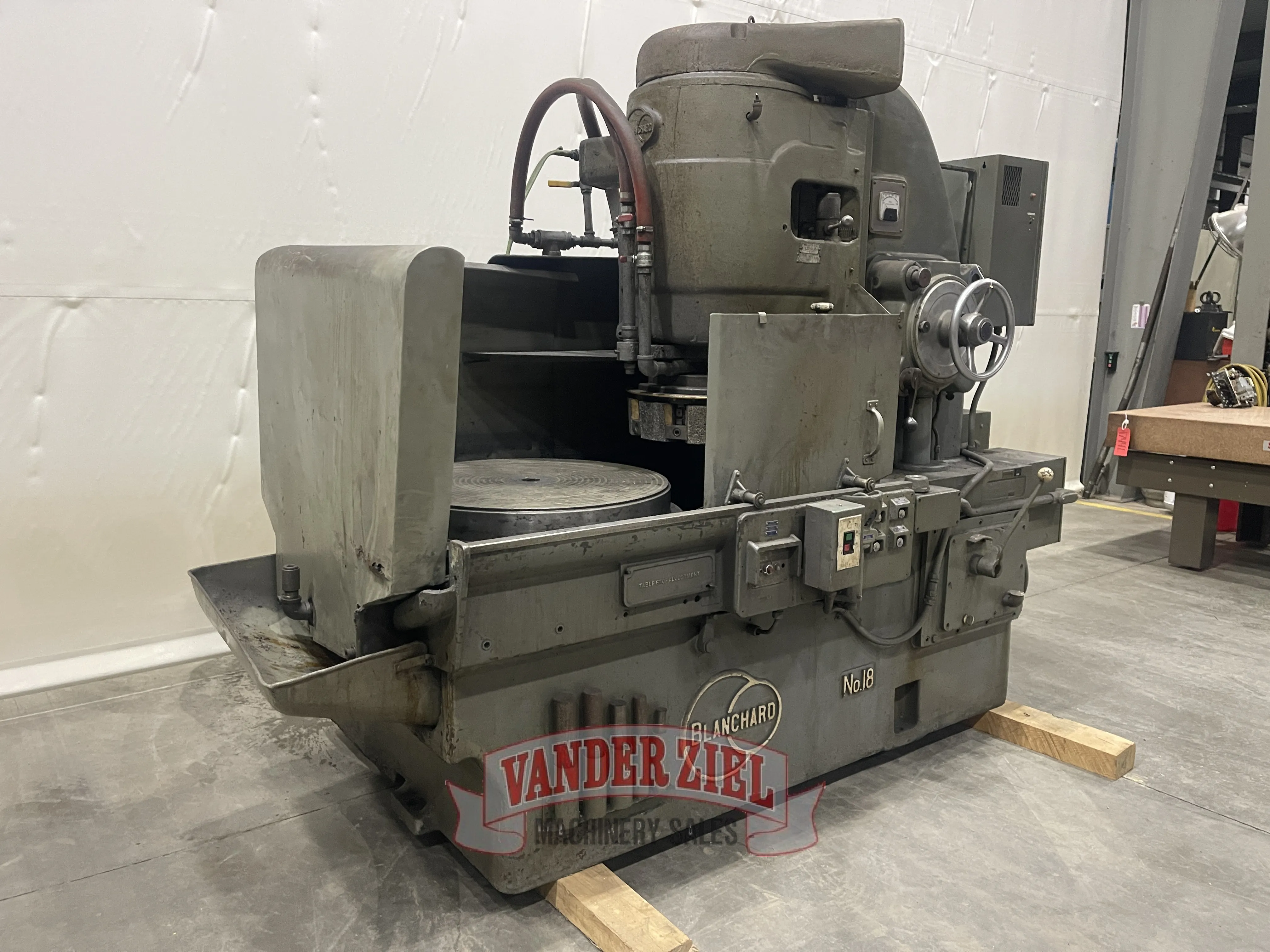

Blanchard Grinder No. 18

SPECIFICATIONS:

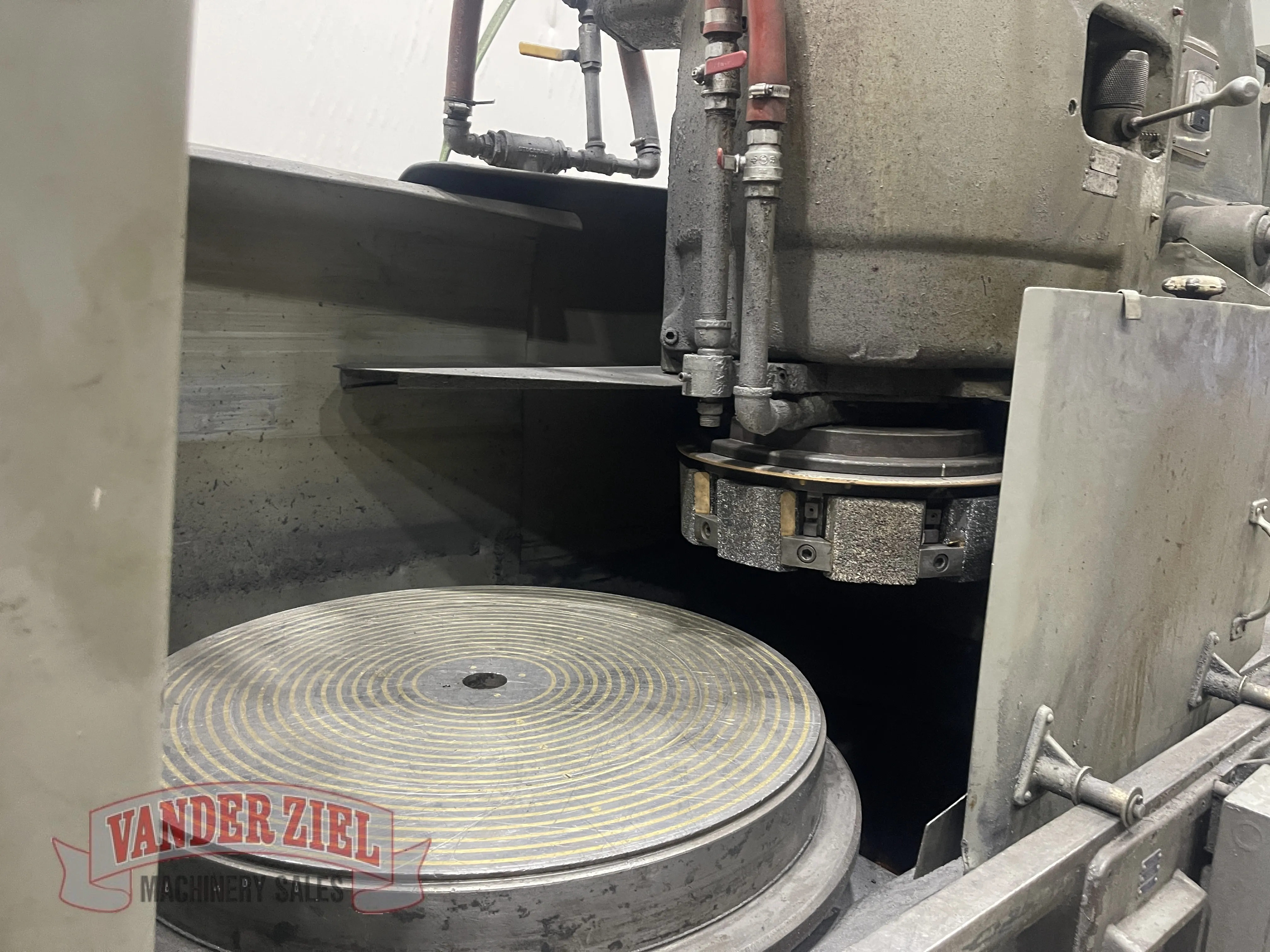

WORK TABLE: ONE PIECE 30" DIAMETER MAGNETIC CHUCK
MAXIMUM SWING: 40" INSIDE WATER GUARDS
MAXIMUM HEIGHT UNDER WHEEL: 12"
DISTANCE FLOOR TO TABLE: 35"
CHUCK SPEEDS: 6, 9, 12, 18, 25, 33 RPM
GRINDING WHEEL SIZE: 18"
GRINDING WHEEL SPEED: 720 RPM
VERTICAL DOWNFEED RATE: 0.004" TO 0.080" PER/MIN
MOTOR: 40 HP

OAD: 120" L-R X 60" F-B X 96" HIGH
APPROXIMATE WEIGHT: 12,000 LBS.

SPECIFICATIONS SUBJECT TO VERIFICATION
