Clausing Mascot 18" x 80" VS Gap Bed Lathe

Clausing Mascot 18" x 80" VS Gap Bed Lathe

Asset # 17501
Serial #MC0430009D

Specifications:
Swing over Bed 18.1"
Swing Over Cross Slide 10.6"
Swing in Gap 28.7"
Width in Front of Faceplate 8.5"
Center Height 9"
Distance between Centers 80"
Floor to Center 44"
Spindle Bore Size 3"
Nose Type D1-8 Camlock
Morse Taper in Bush No. 5 MT
Spindle Speeds 20-225, 60-675, 175-2000 RPM
Motor 14.5 HP
Bed Width 15.7"
Top Slide Width 4"
Top Slide Travel 7.5"
Cross Slide Width & Length 8", 33.5"
Cross Slide Travel 11.8

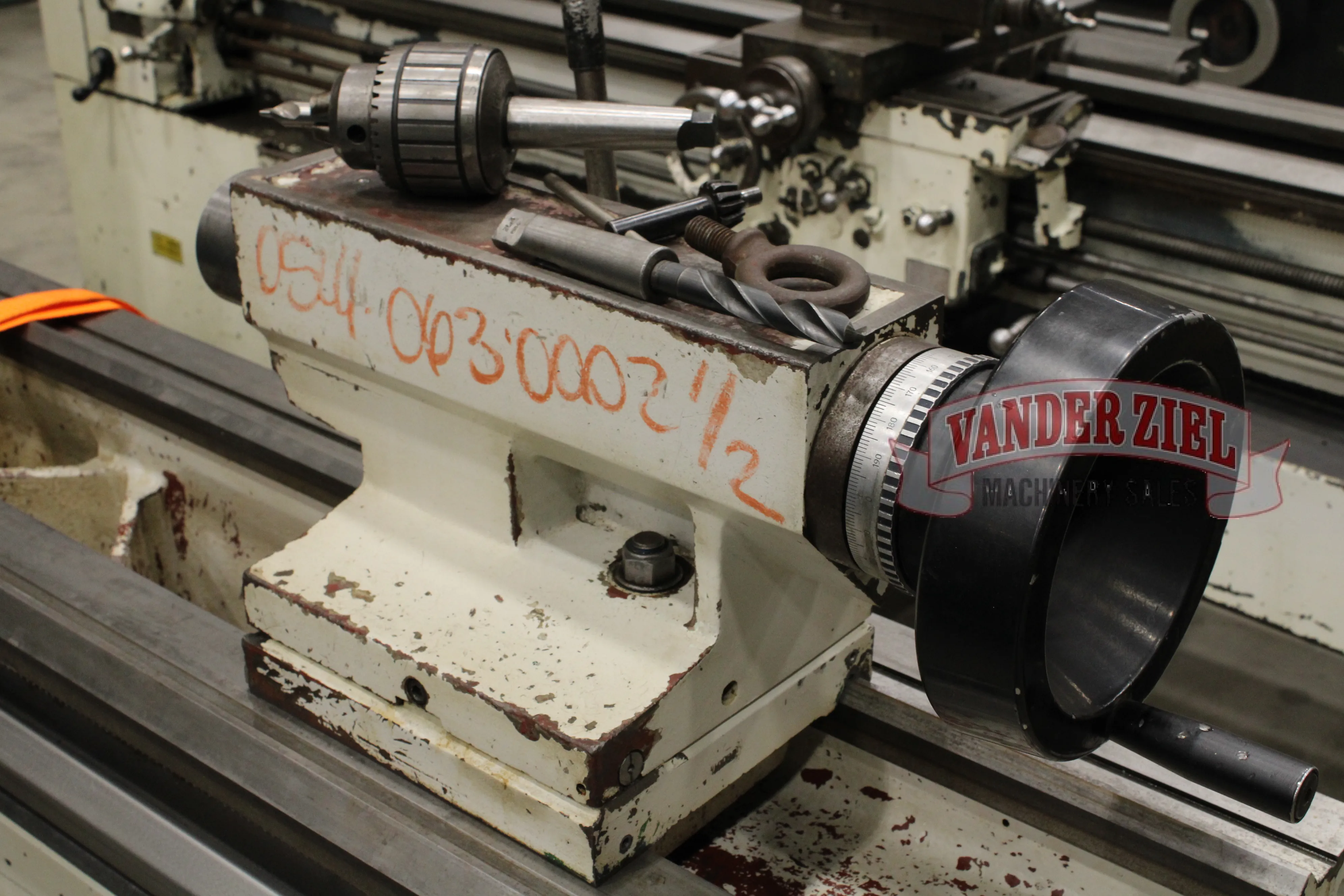

Tailstock Barrel Diameter 3.7"
Total Barrel Travel 7"
Morse Taper No. 6 MT
Leadscrew Diameter 1.5"
Leadscrew Thread 4 TPI

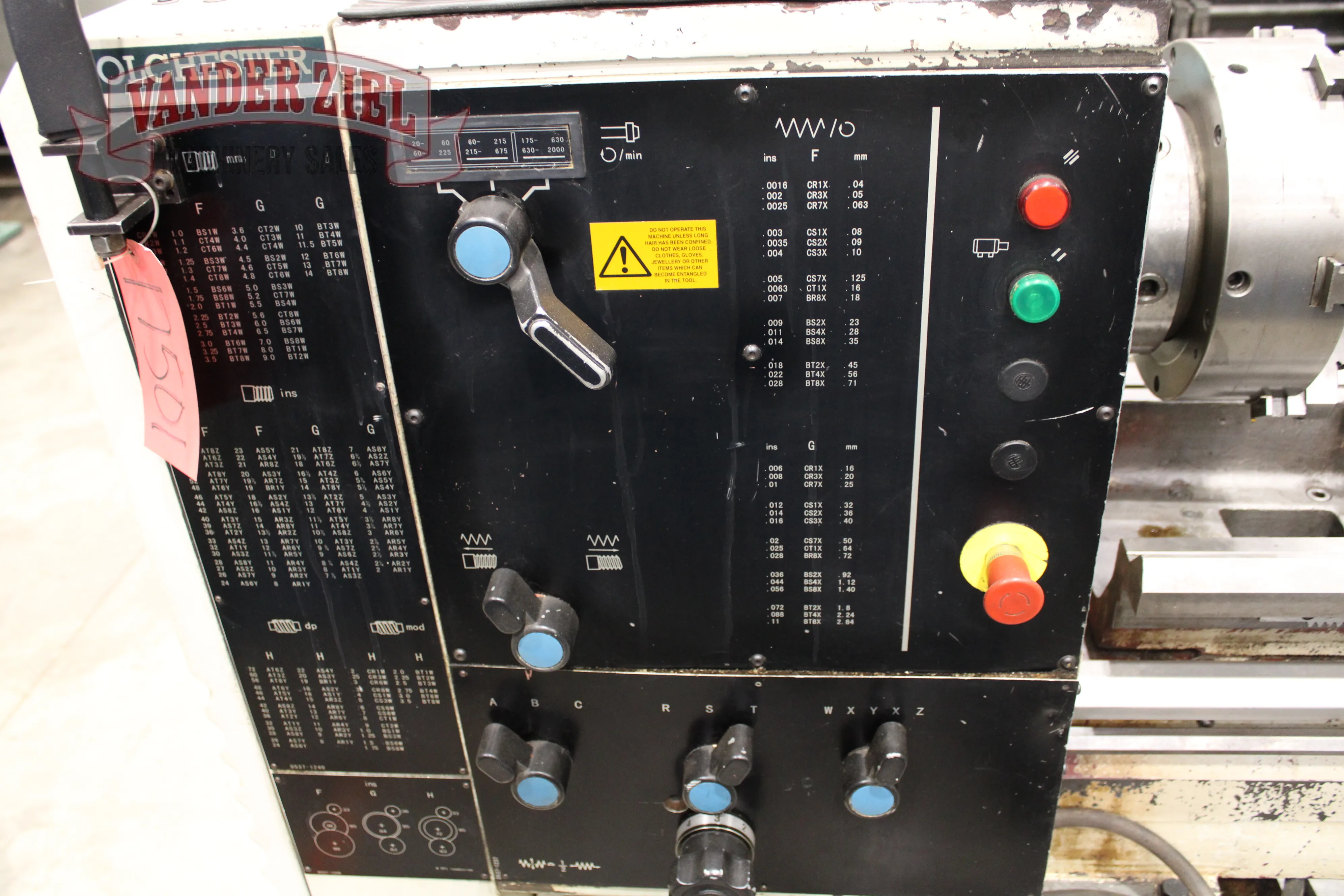

Threads
Metric Pitches 0.2 - 14mm
Imperial TPI 2-84 TPI
Module Pitches 0.2 - 3.5 Module
Diametral Pitches 8-72 dp
Feeds
Metric 0.04-2.8 mm/rev
Imperial 0.0016 - 0.110 in / rev
Overall Dimensions
140" x 43.5" x 51.2" H
Weight 6,170 lbs.

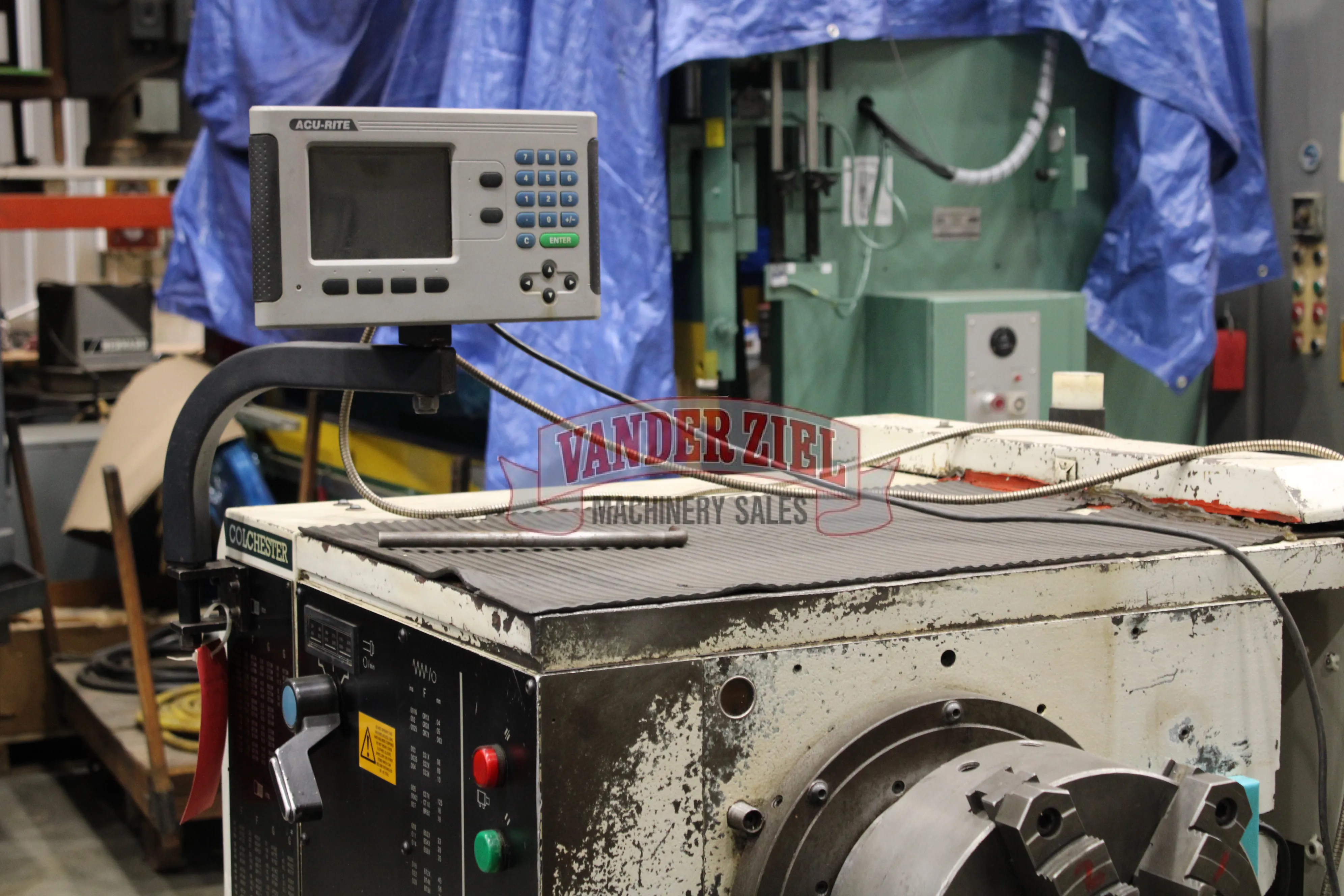

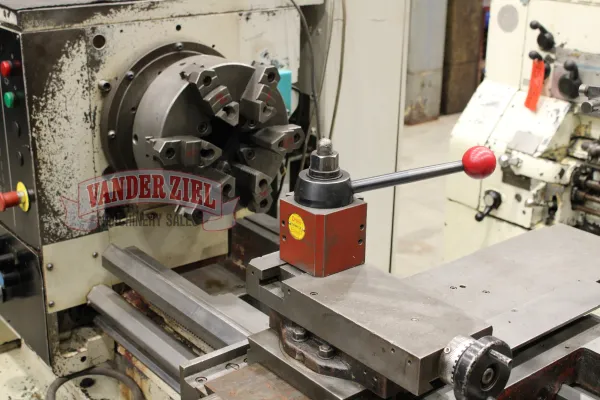

Lathe is equipped with Acu-Rite 2 Axis DRO and a 12" 6 Jaw Chuck.

Preliminary Specifications - Subject to Verification
