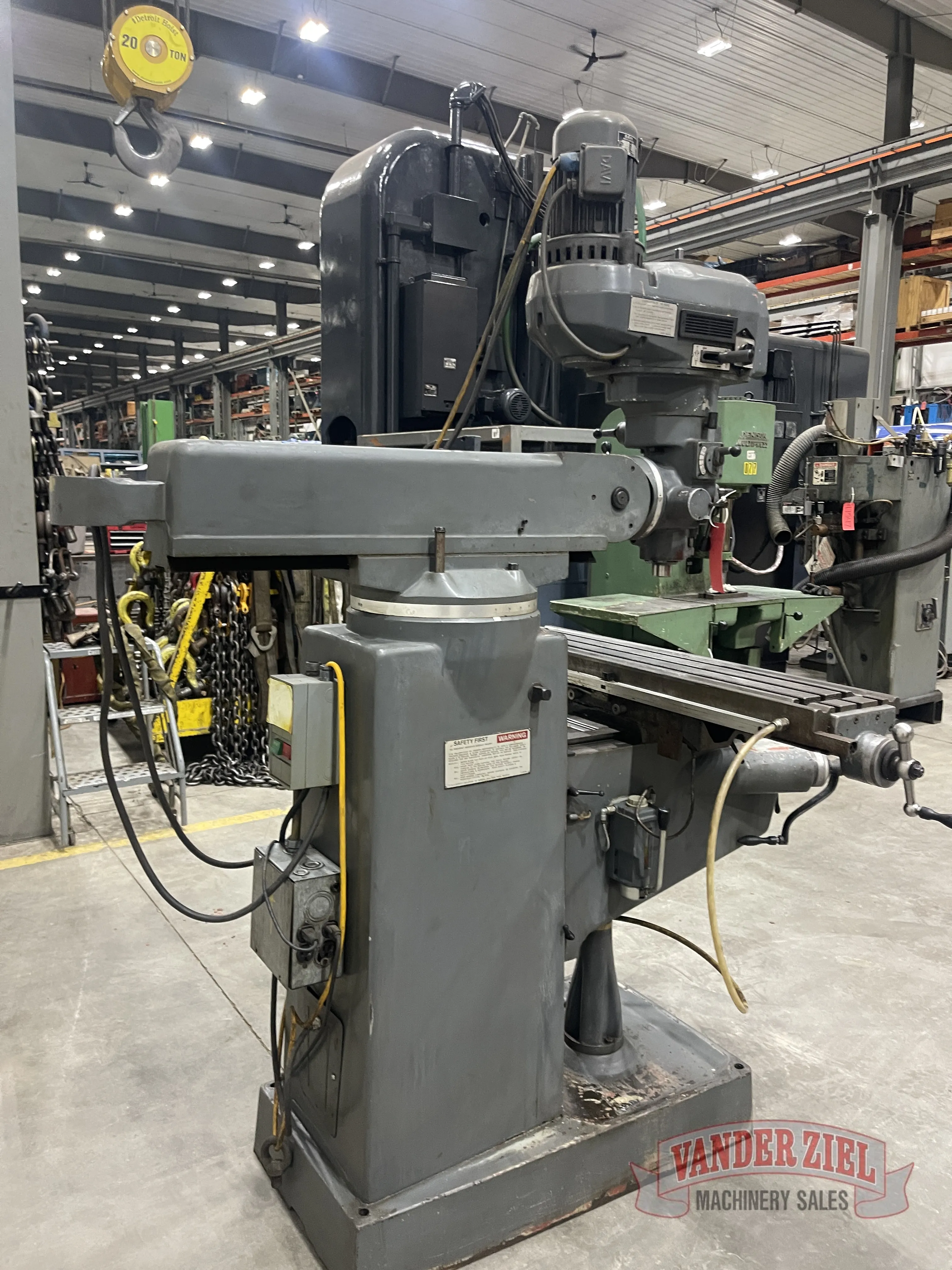

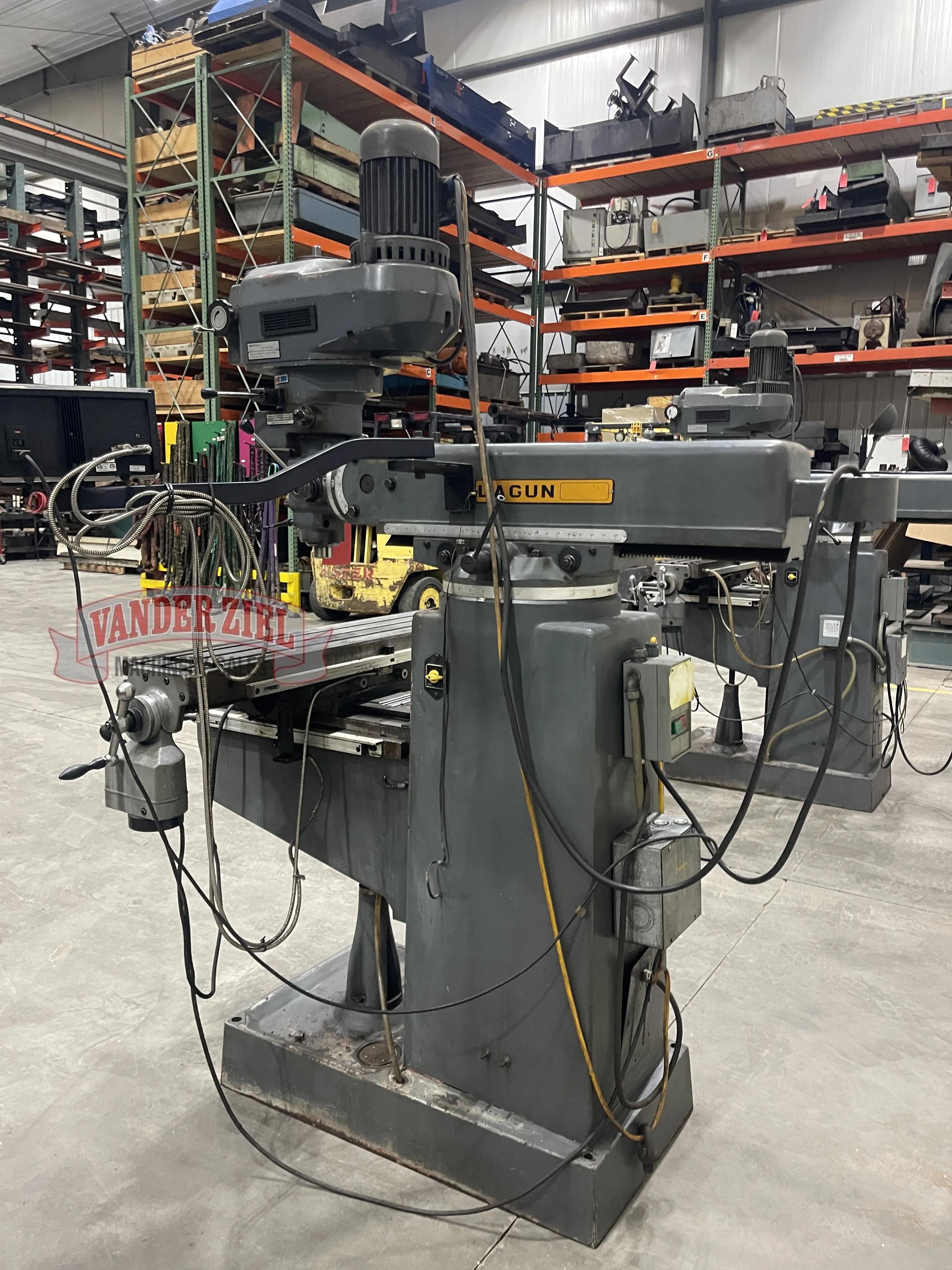

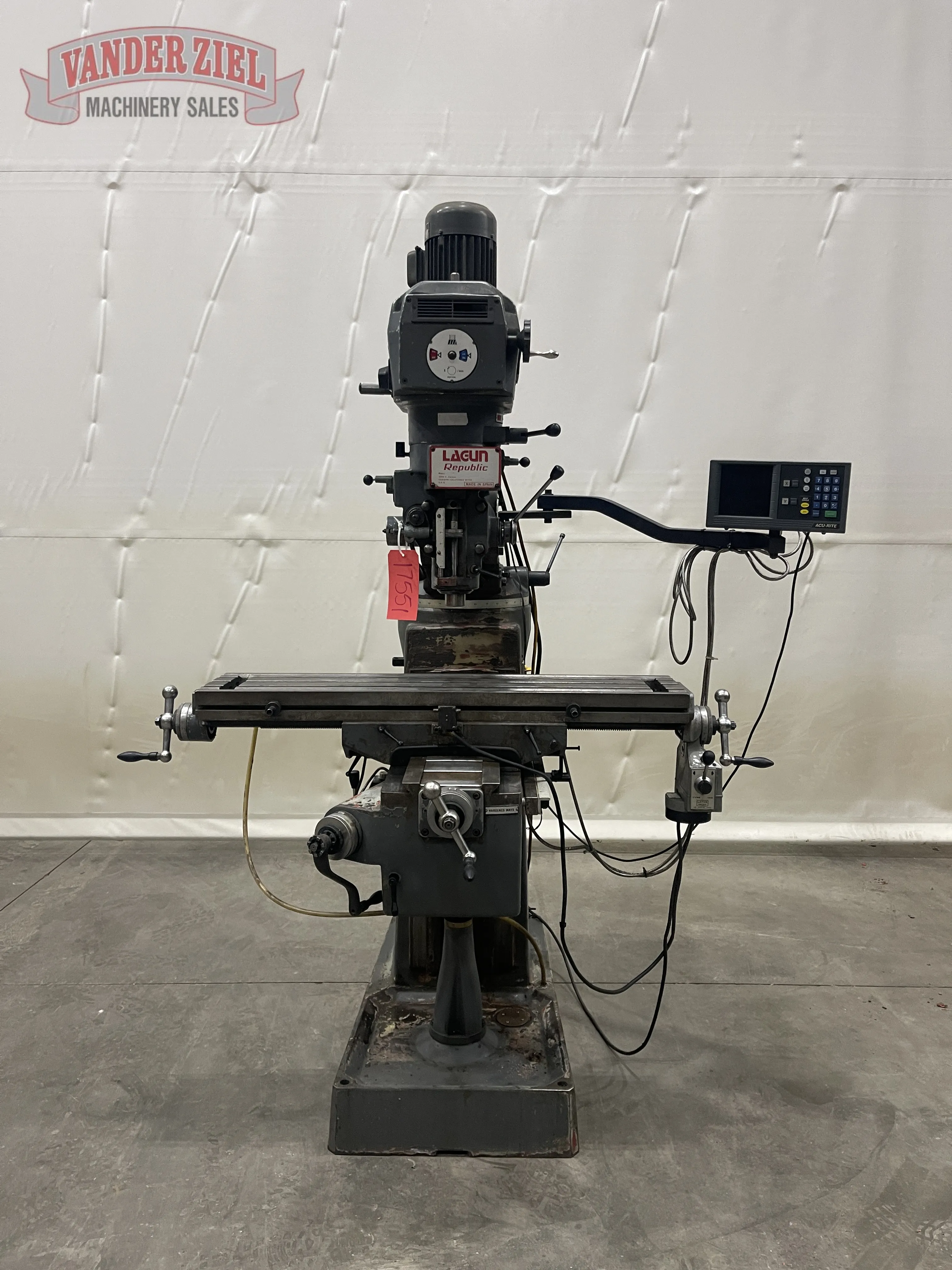

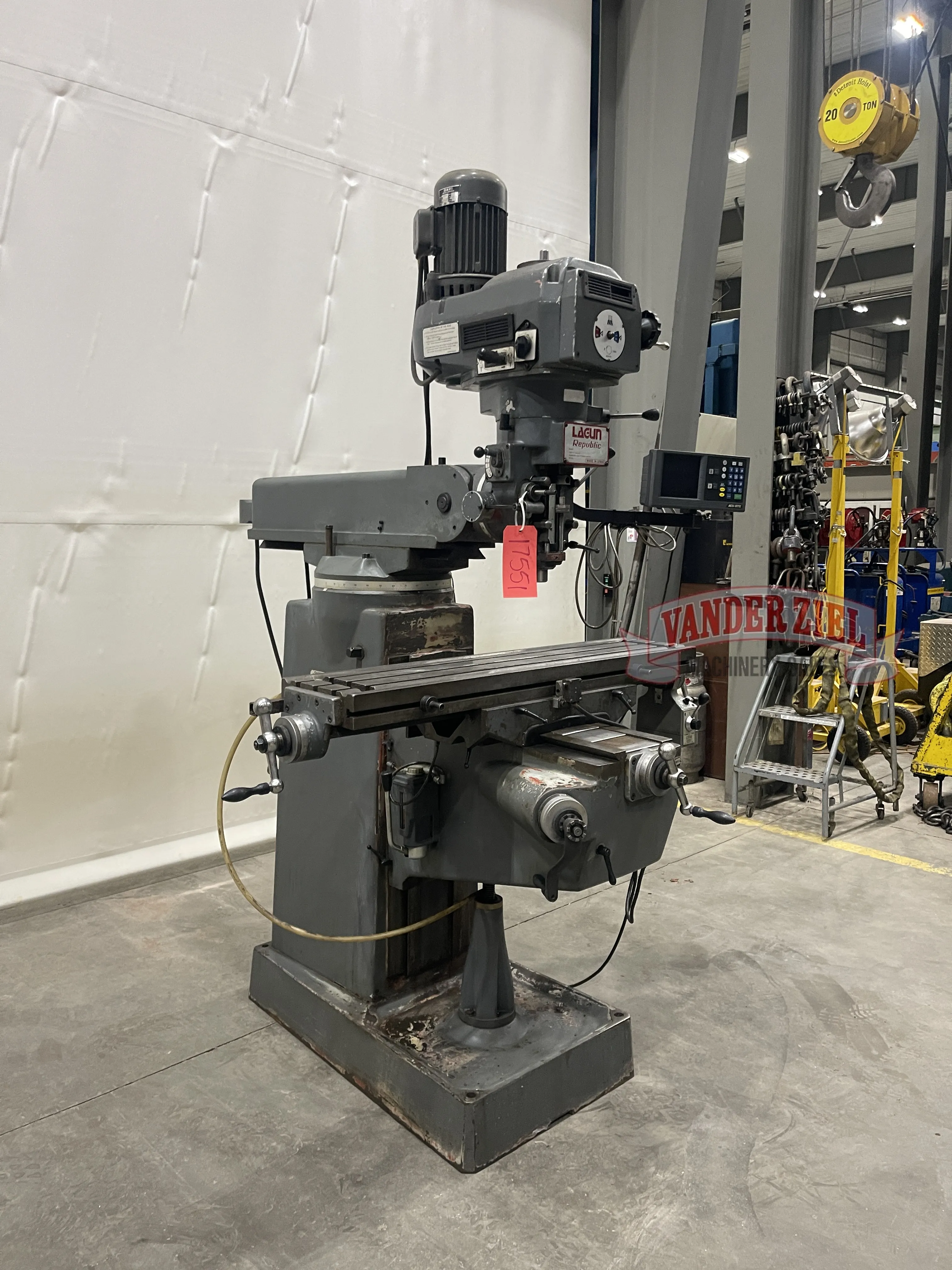

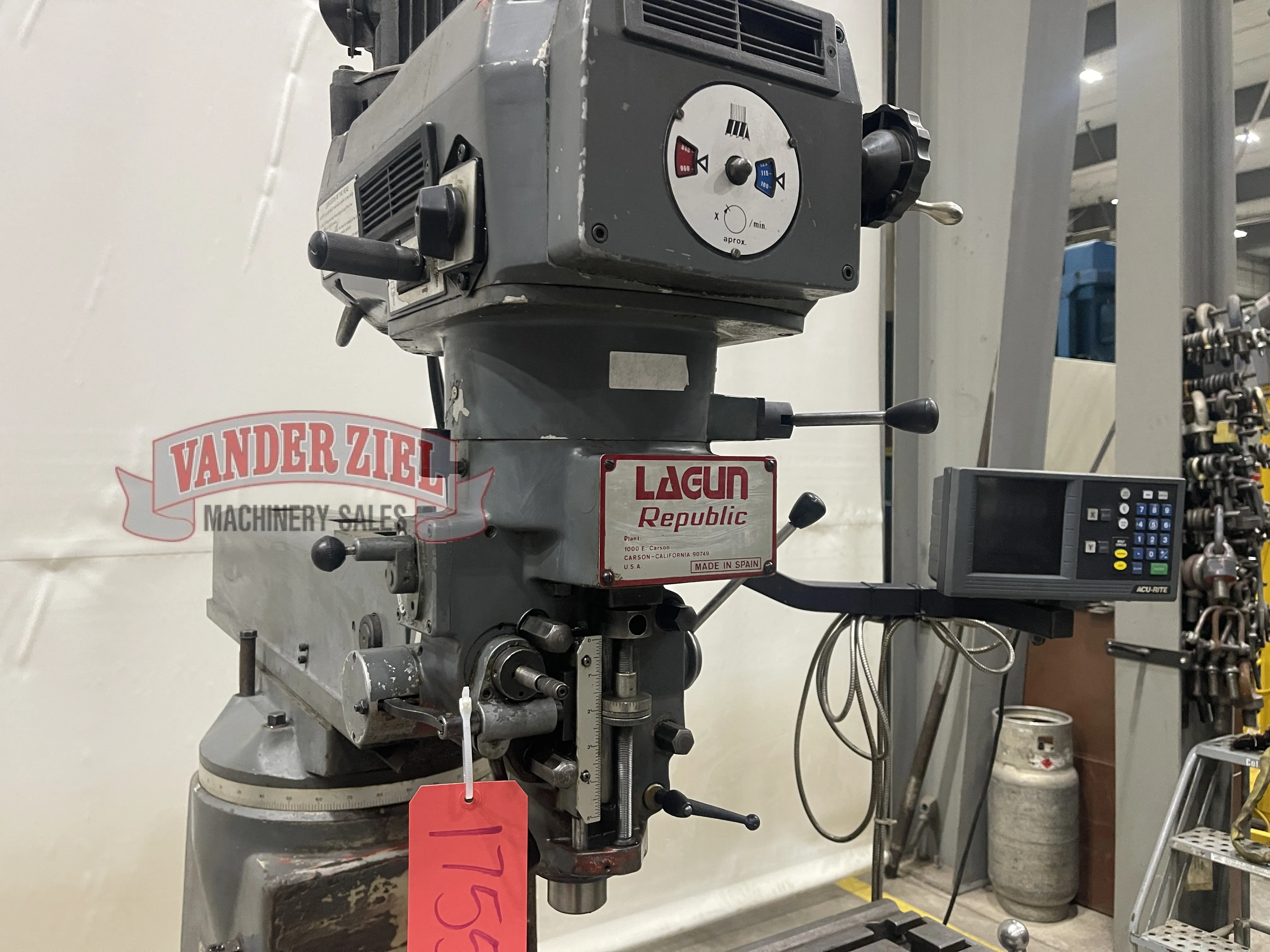

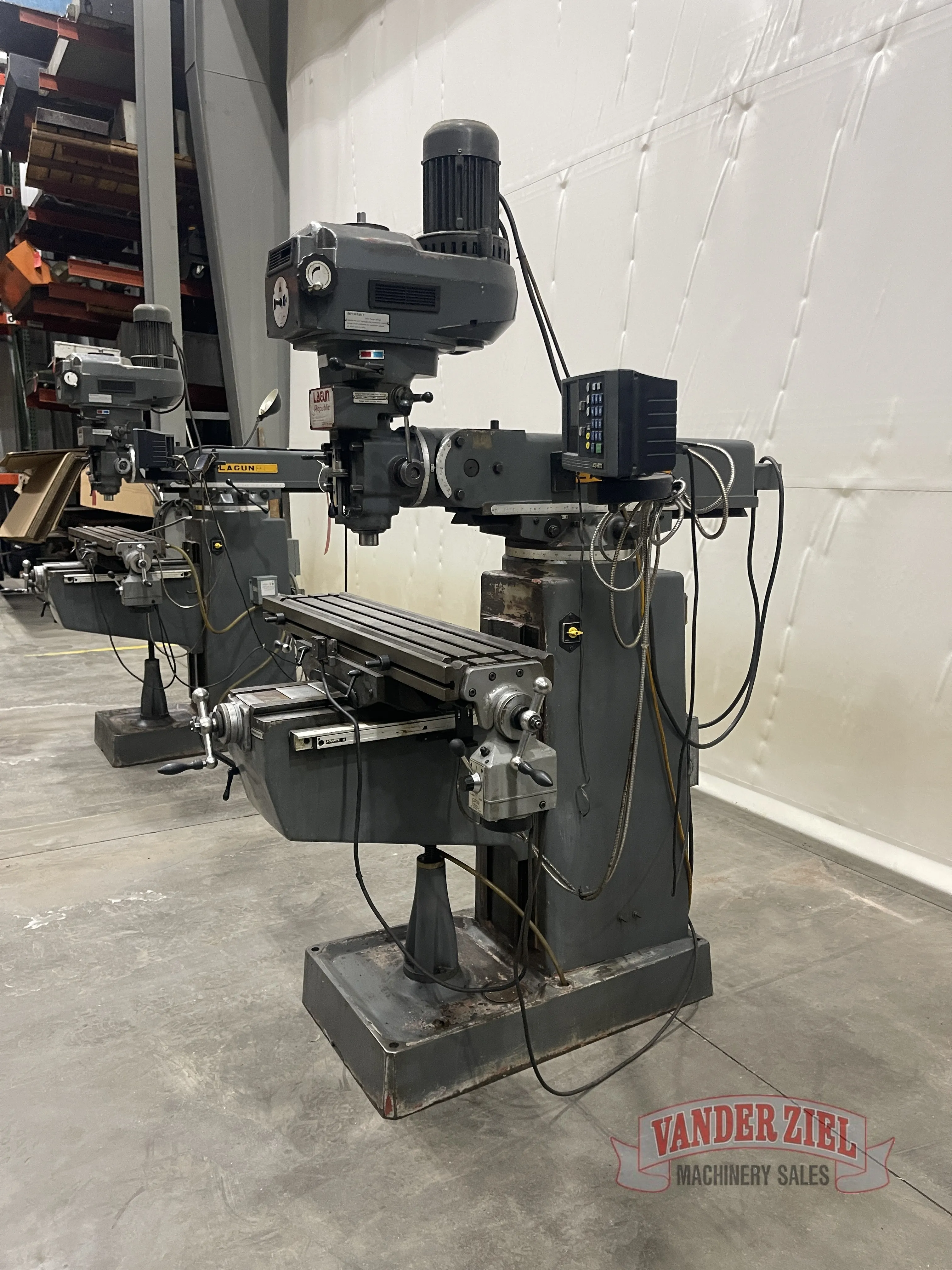

Lagun 10" x 44" Table Vertical Knee Mill, Model FTV-1, 3 HP

Lagun 10" x 44" Table Vertical Knee Mill, Model FTV-1, 3 HP

Asset # 17551

Specifications:

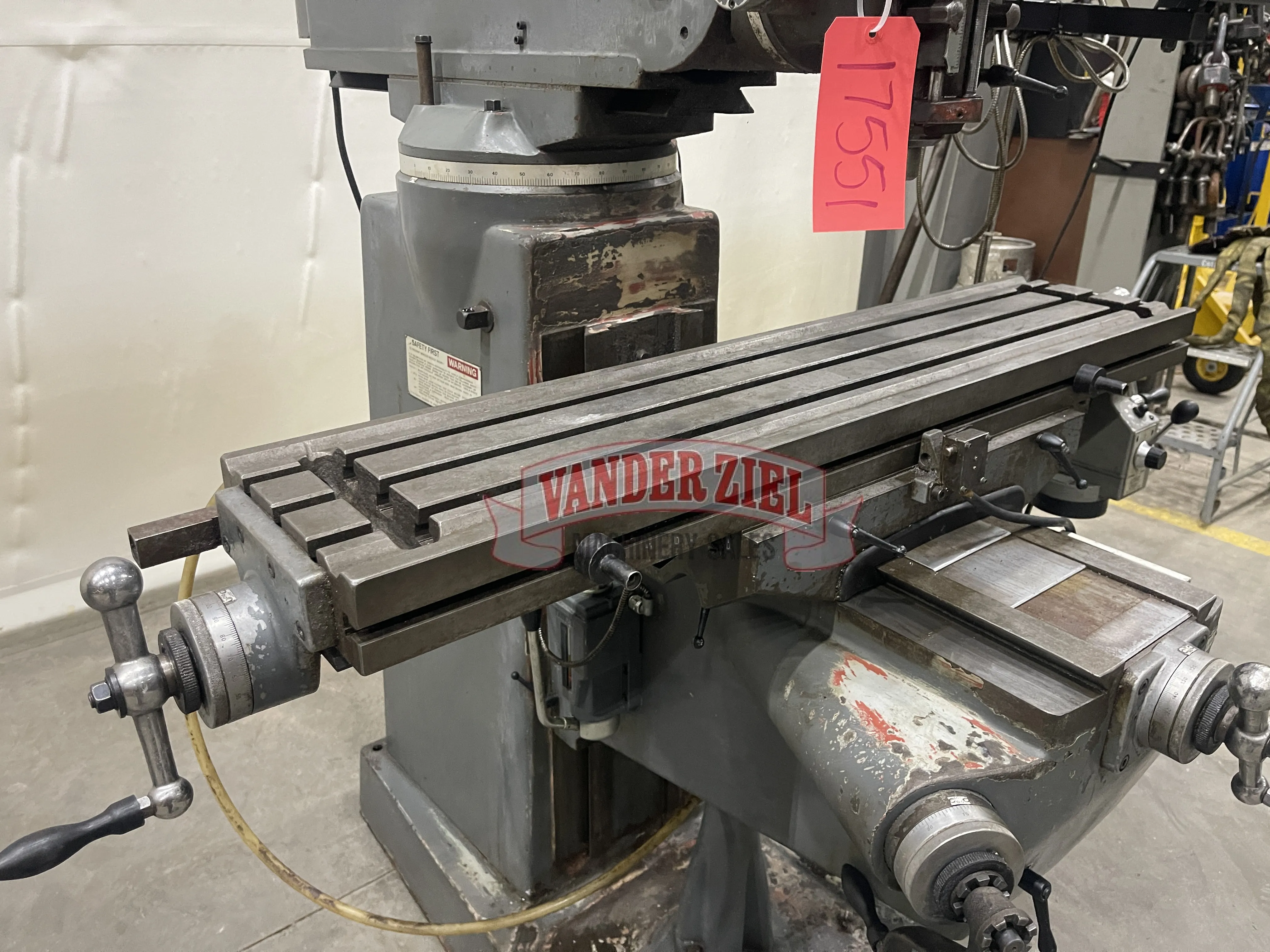

Table Size 10" x 44"
Longitudinal Travel 30"
Cross Travel 16"
Vertical Knee Travel 16"
Ram Travel 22 3/16"
Main Motor 3 HP
Spindle Speeds 55- 4250 RPM
Power Feed to Quill per Rev. .003" -.0015"-.006"
Spindle Taper R8
Quill Diameter 3 3/8"
Quill Travel 5"
Knee Width 11 1/2"
Knee to Column Bearing Length 18"
Saddle & Table Bearing Length 20"
Ram Turret and Bearing Length 19"
Total Ram Length 36"
Workpiece Capacity 36"
Approximate Machine Weight 2,750 lbs.

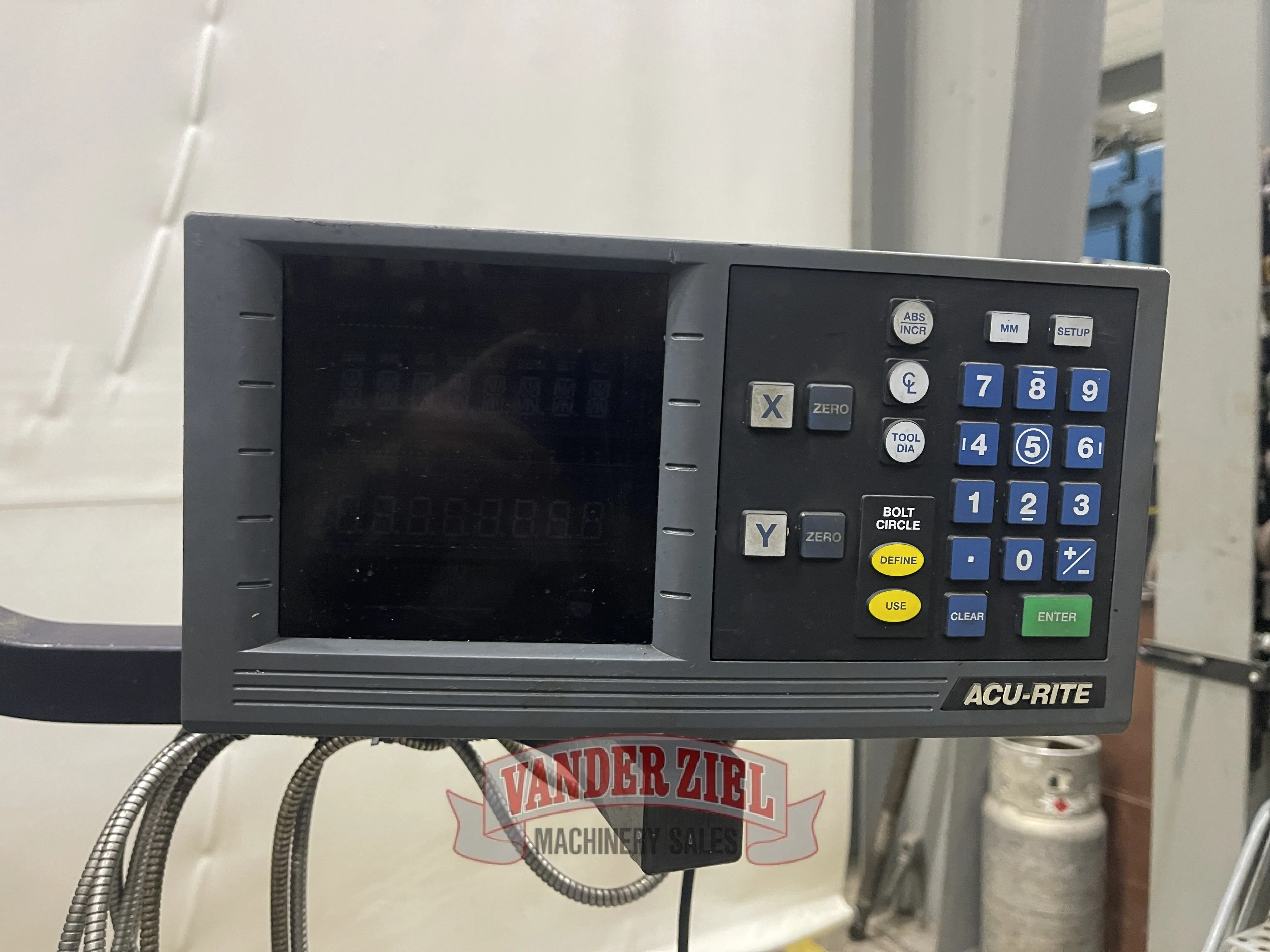

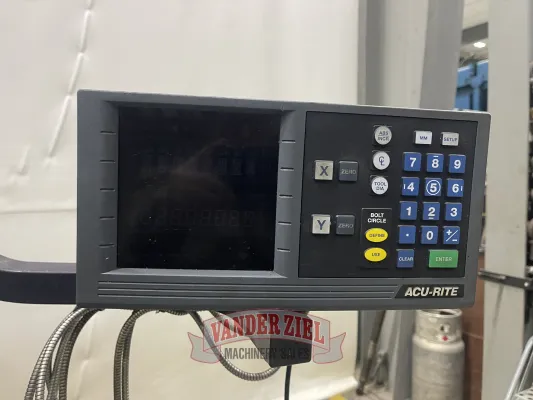

Mill is equipped with Servo power feed on X and Acu-Rite 2 Axis DRO.

Preliminary Specifications - Subject to Verification
