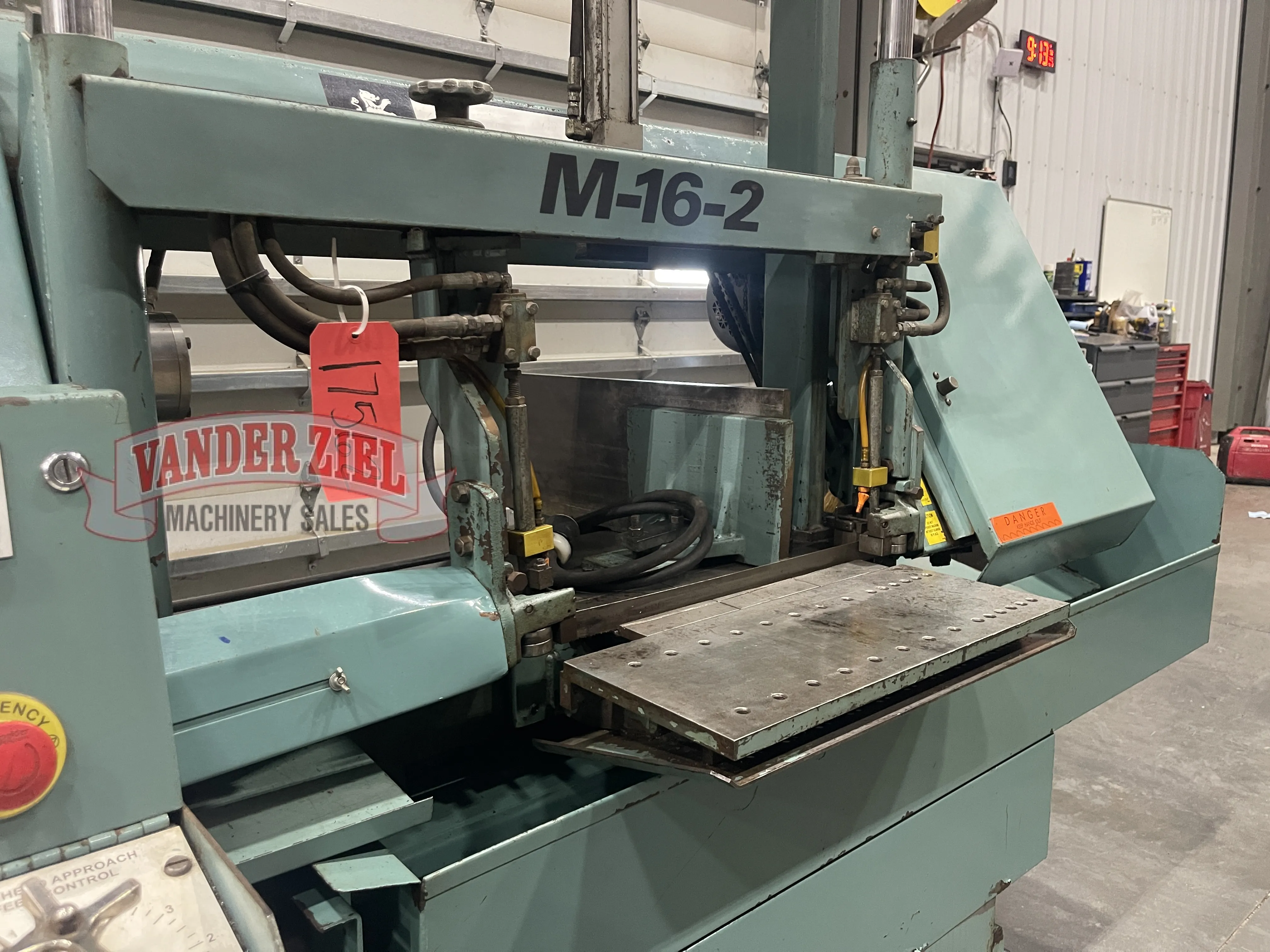

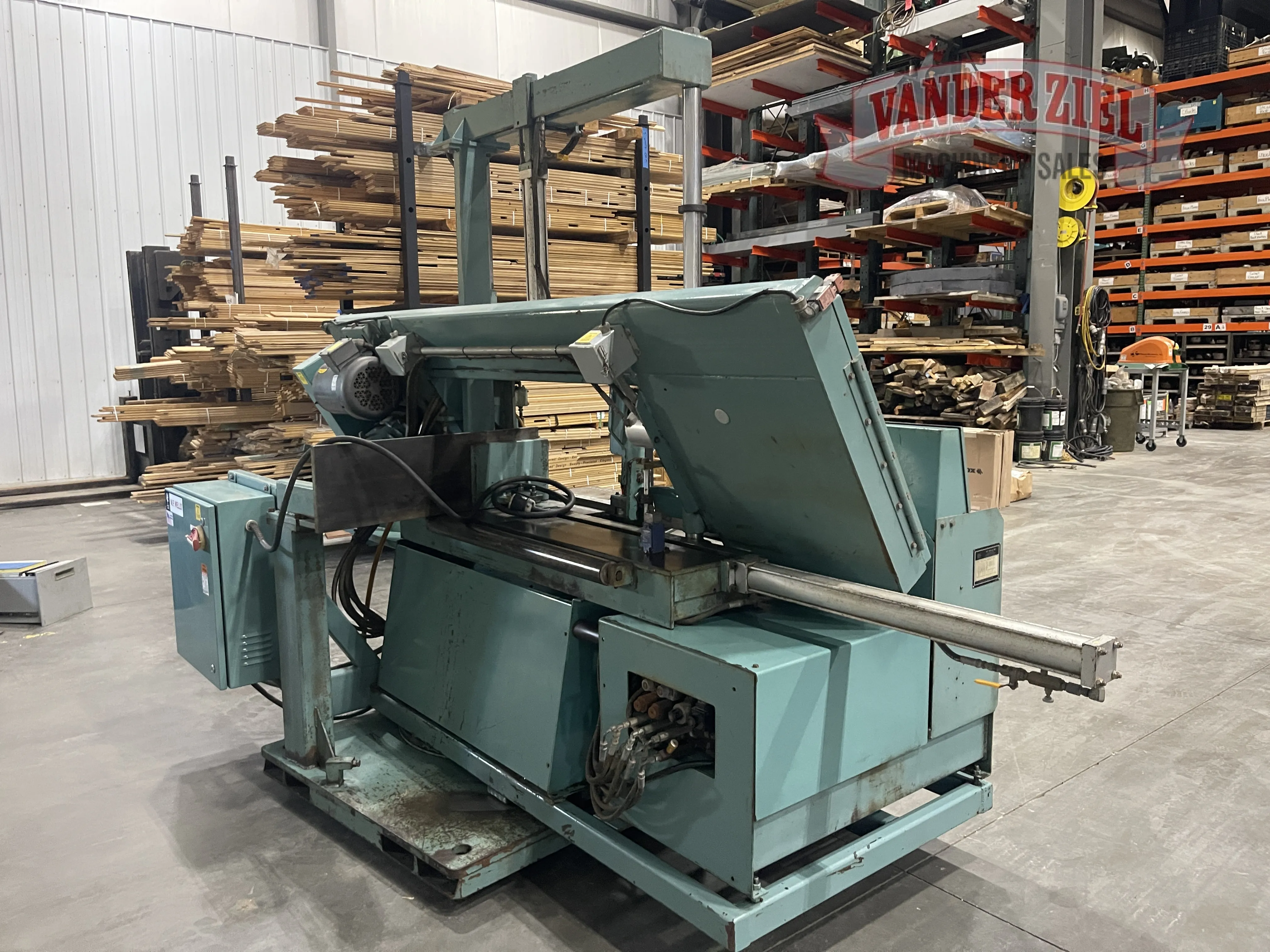

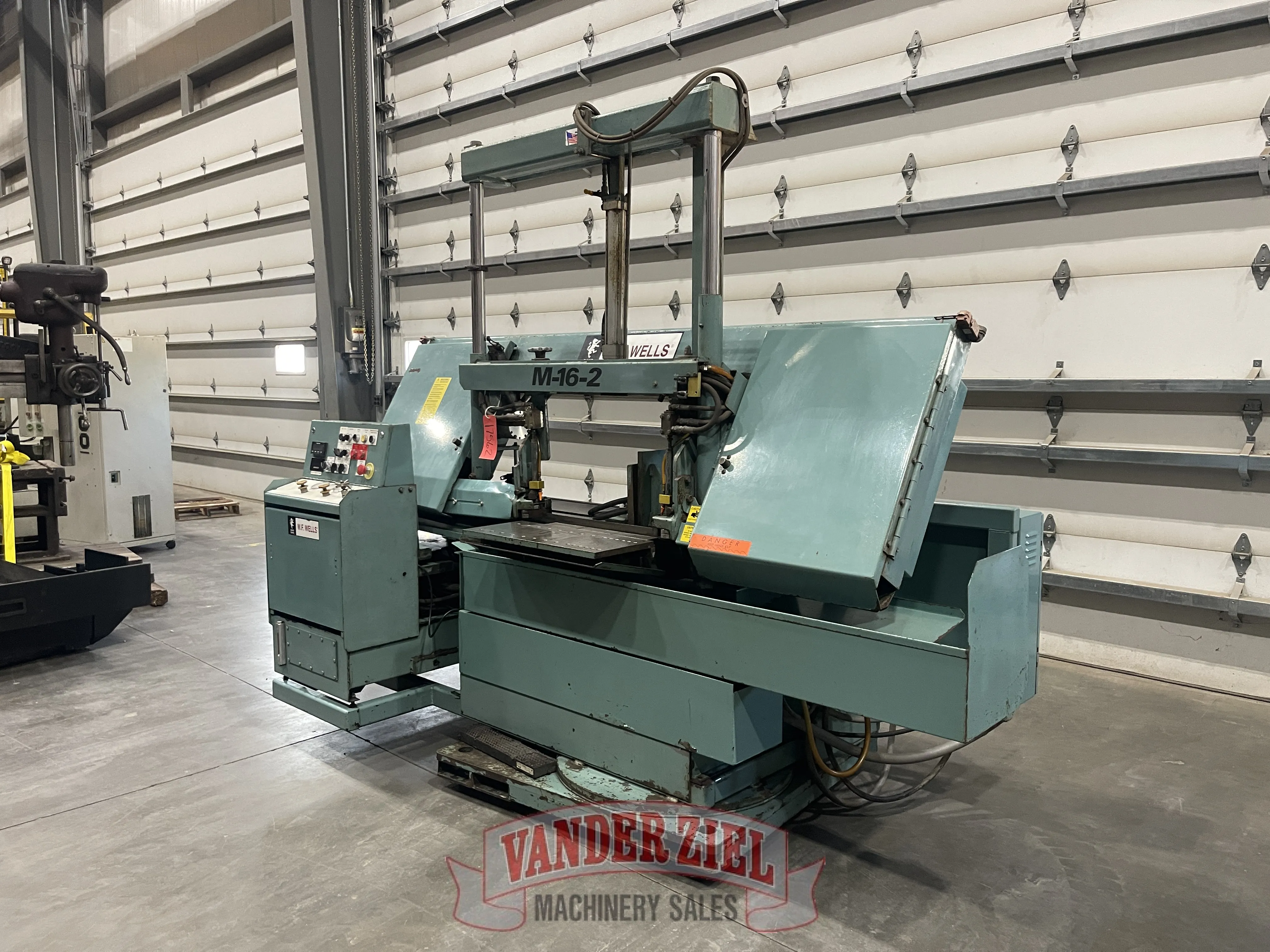

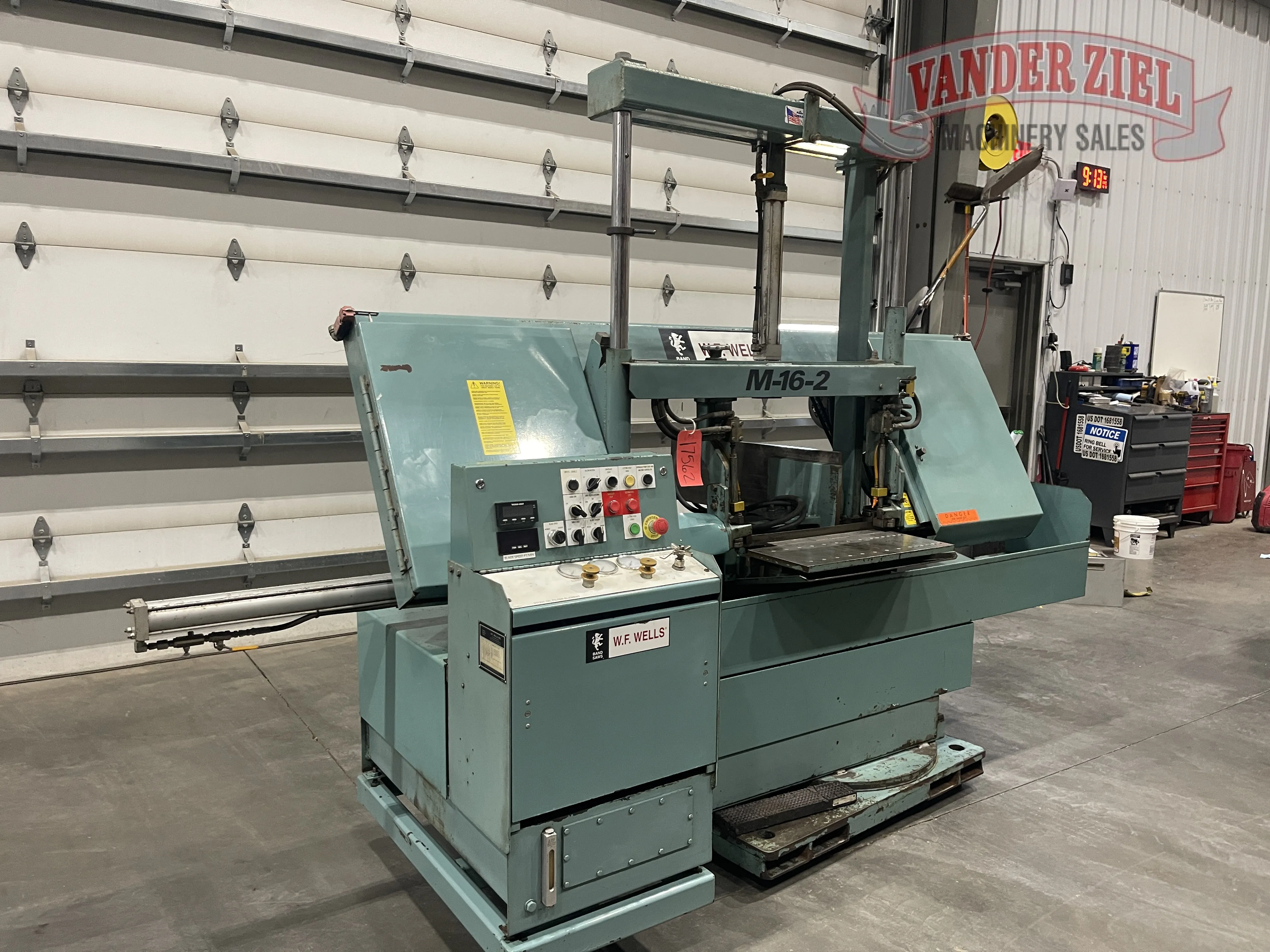

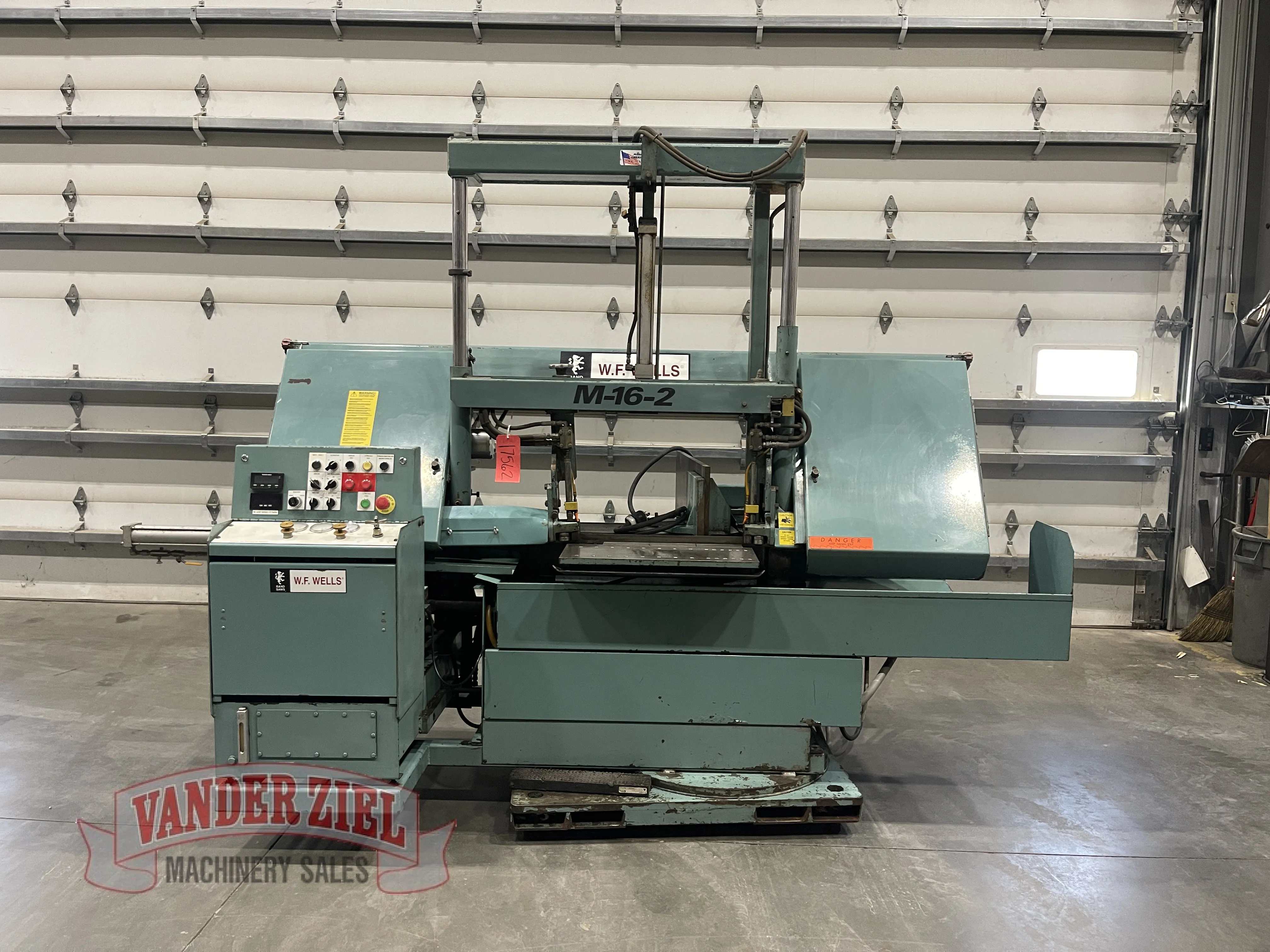

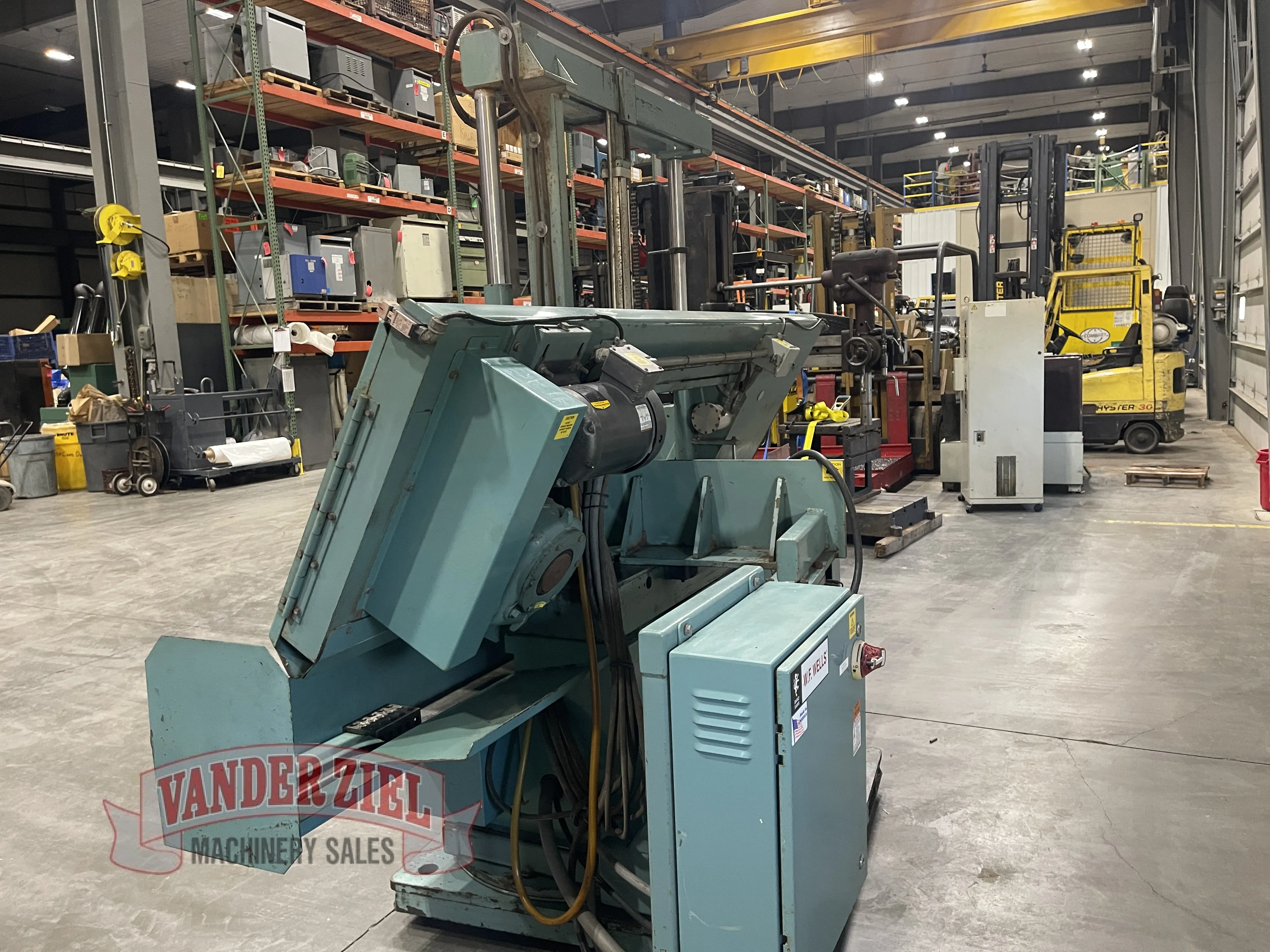

WF Wells 16" x 26" Dual Post Horizontal Saw

Description

WF Wells 16" x 26" Dual Post Horizontal Saw, Model M-16-2

Asset # 17562

Specifications:
Capacity: 16" H X 26" W @ 90°, 16" H X 16" W @ -45°
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1 1/4" X .042" X 16′ 8"
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Hydraulic
Bandwheel Size: 20"
Vise: Hydraulic
Blade Drive: 7 1/2 HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35"
Hydraulic Swivel Base with Miter Vise, Single Direction

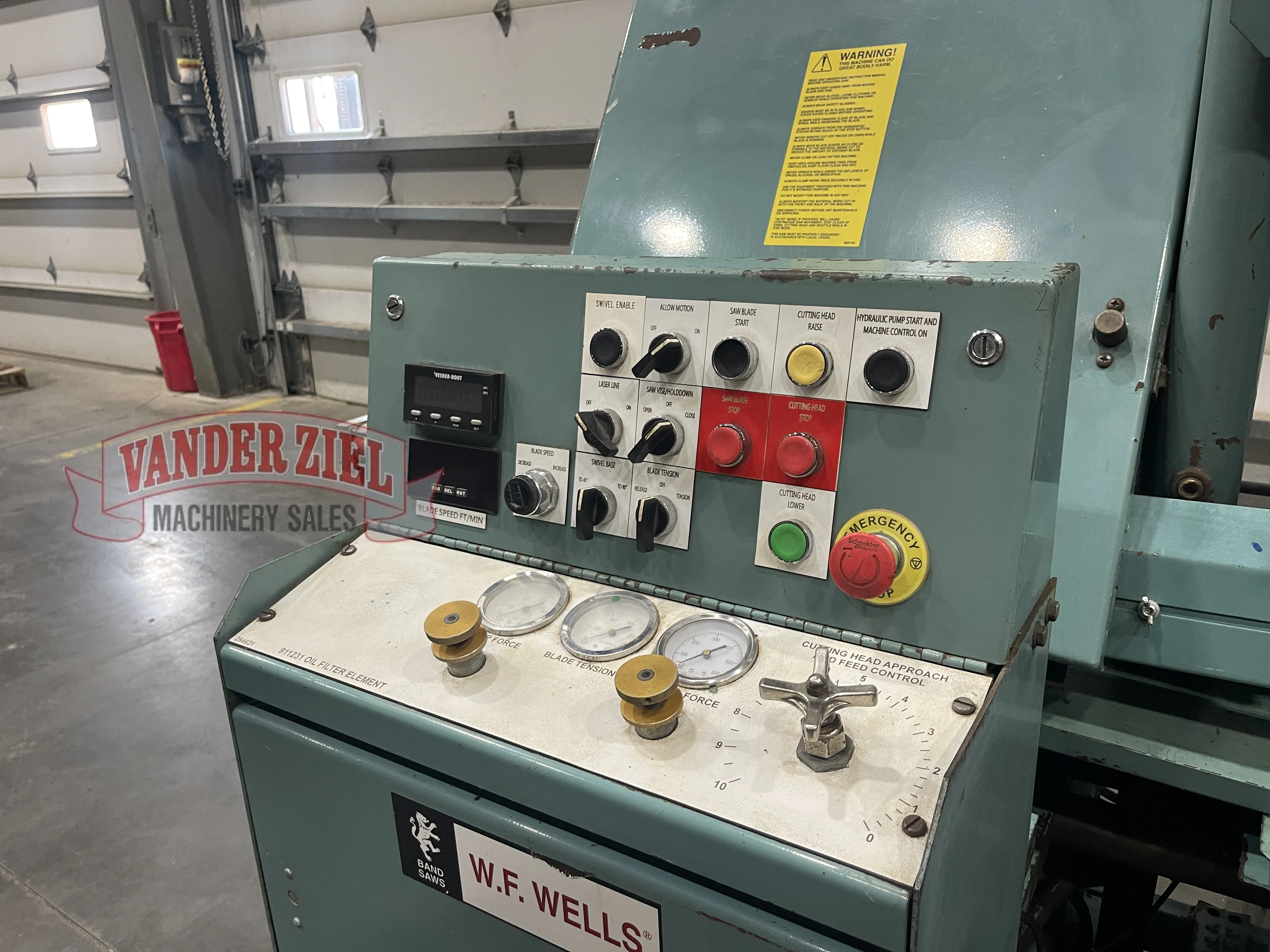

Digital Angle Display
In Feed Roller, Back of Saw Bed
Electronic Door Interlocks
Shipping Weight: 3,800 Shipping Dimensions....120"L x 60"W x 90"H
Electrics: Wired to NFPA 79 Machine Tool Standards
