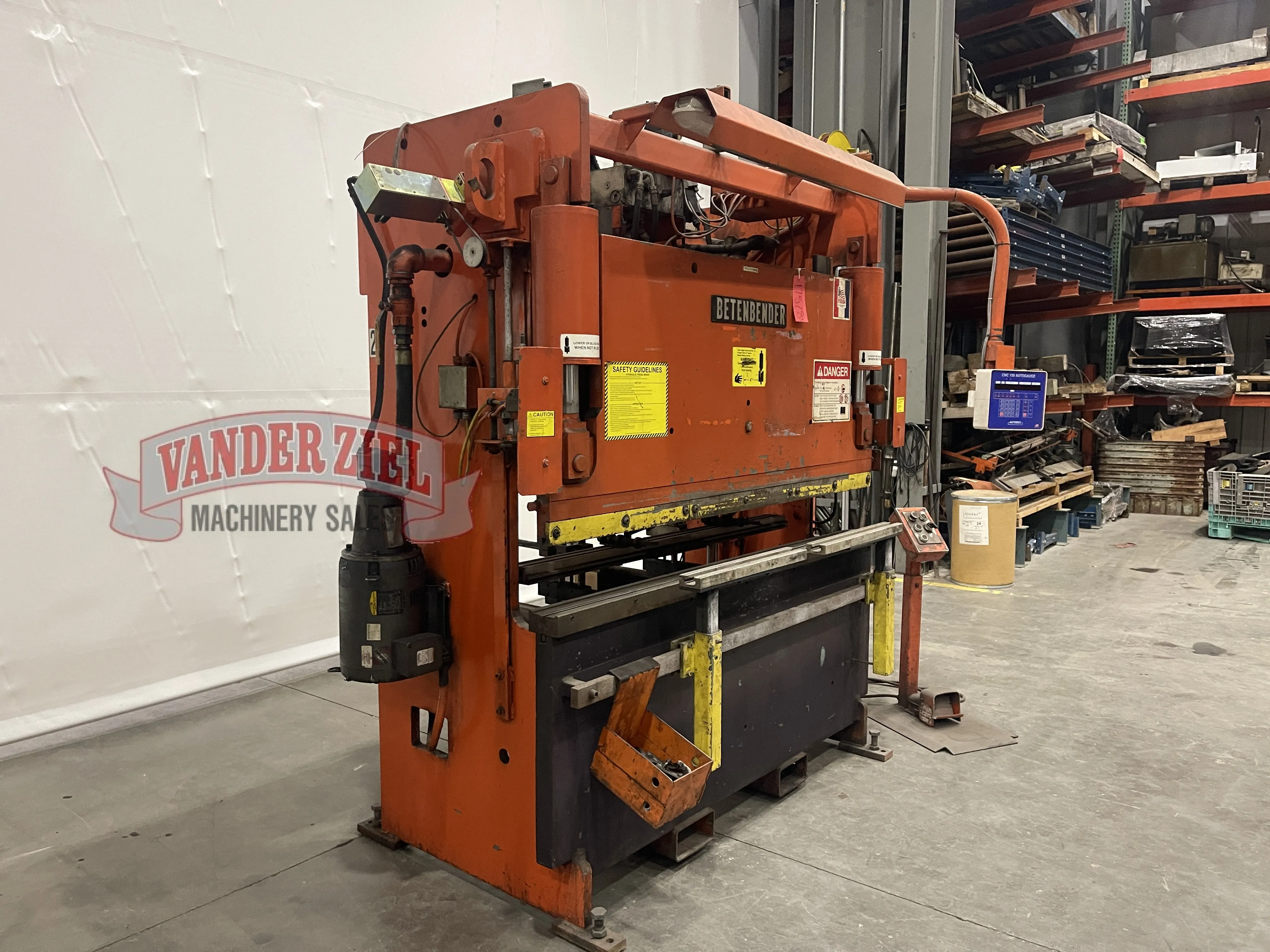

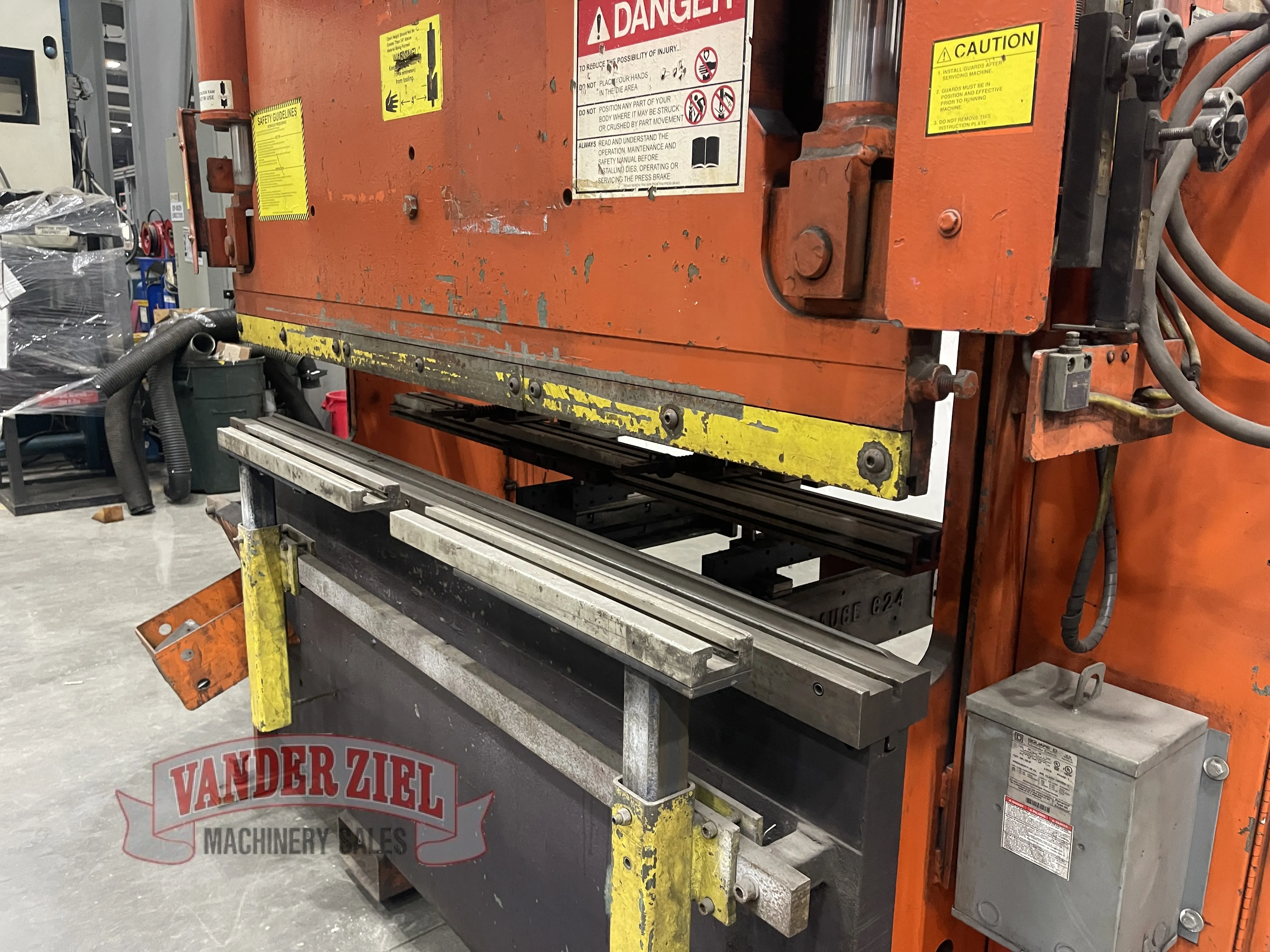

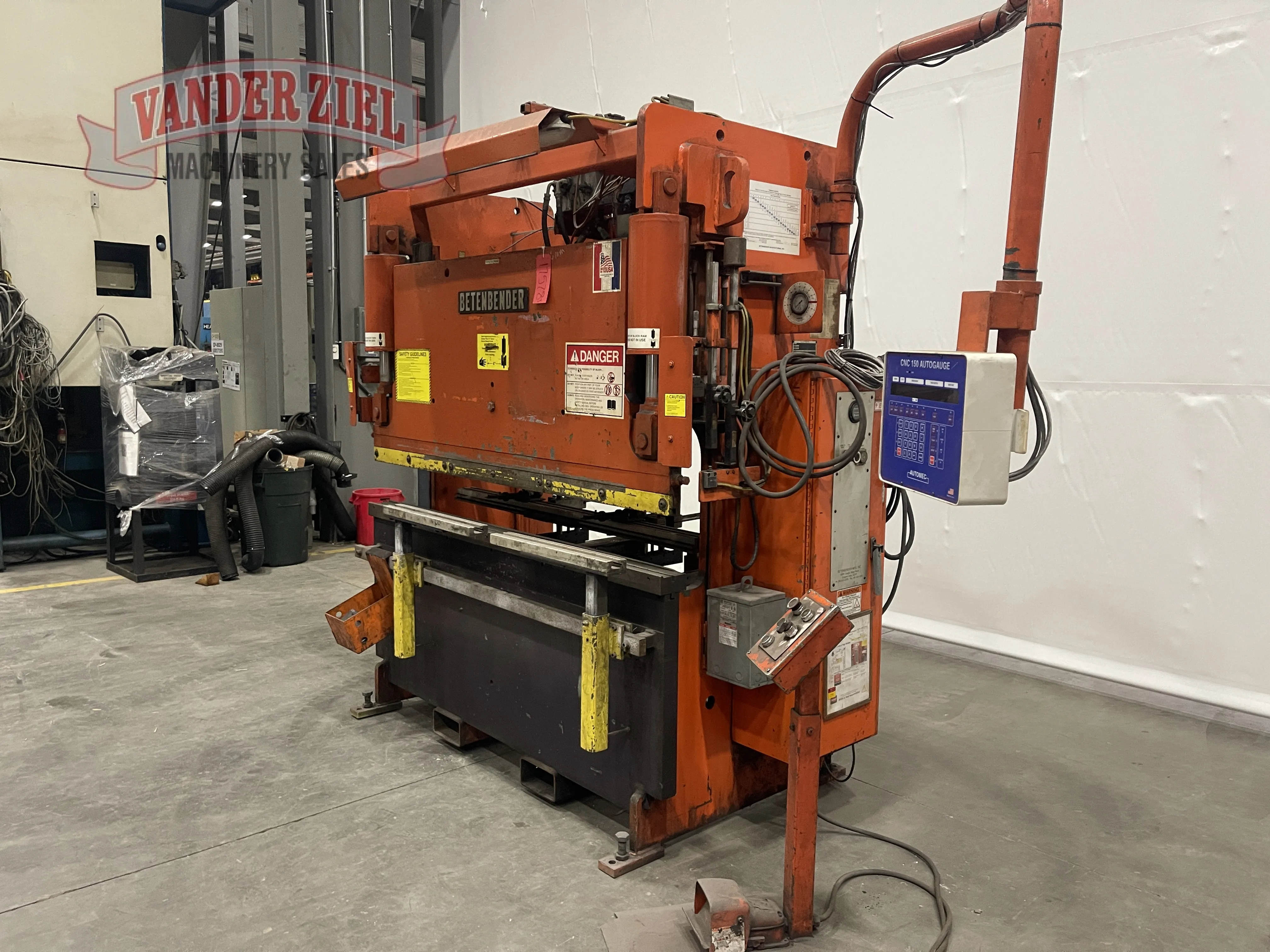

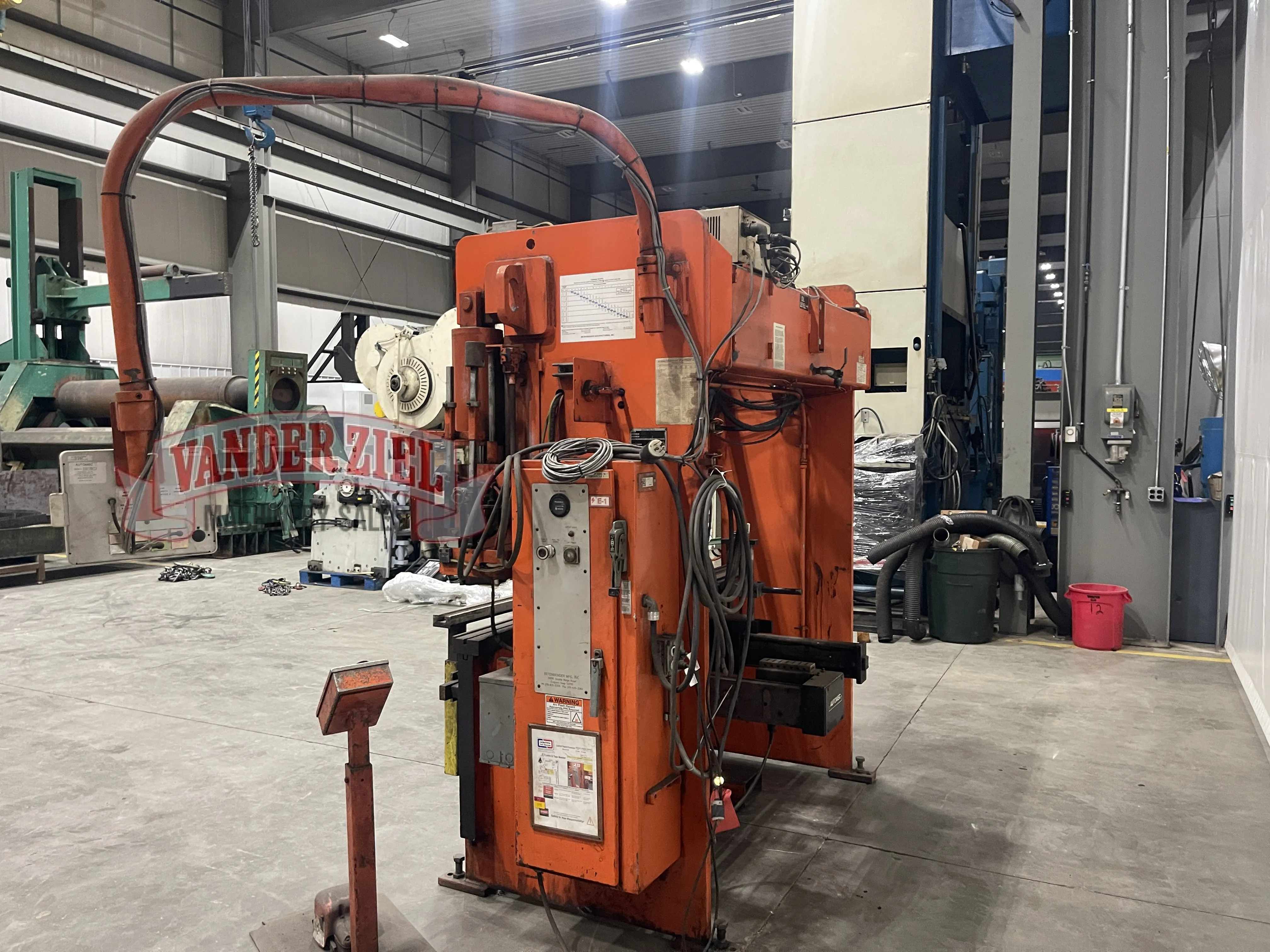

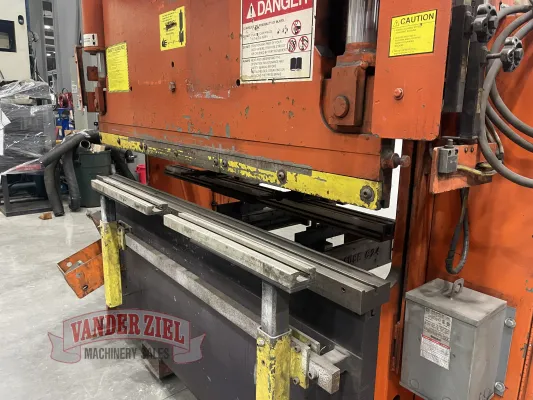

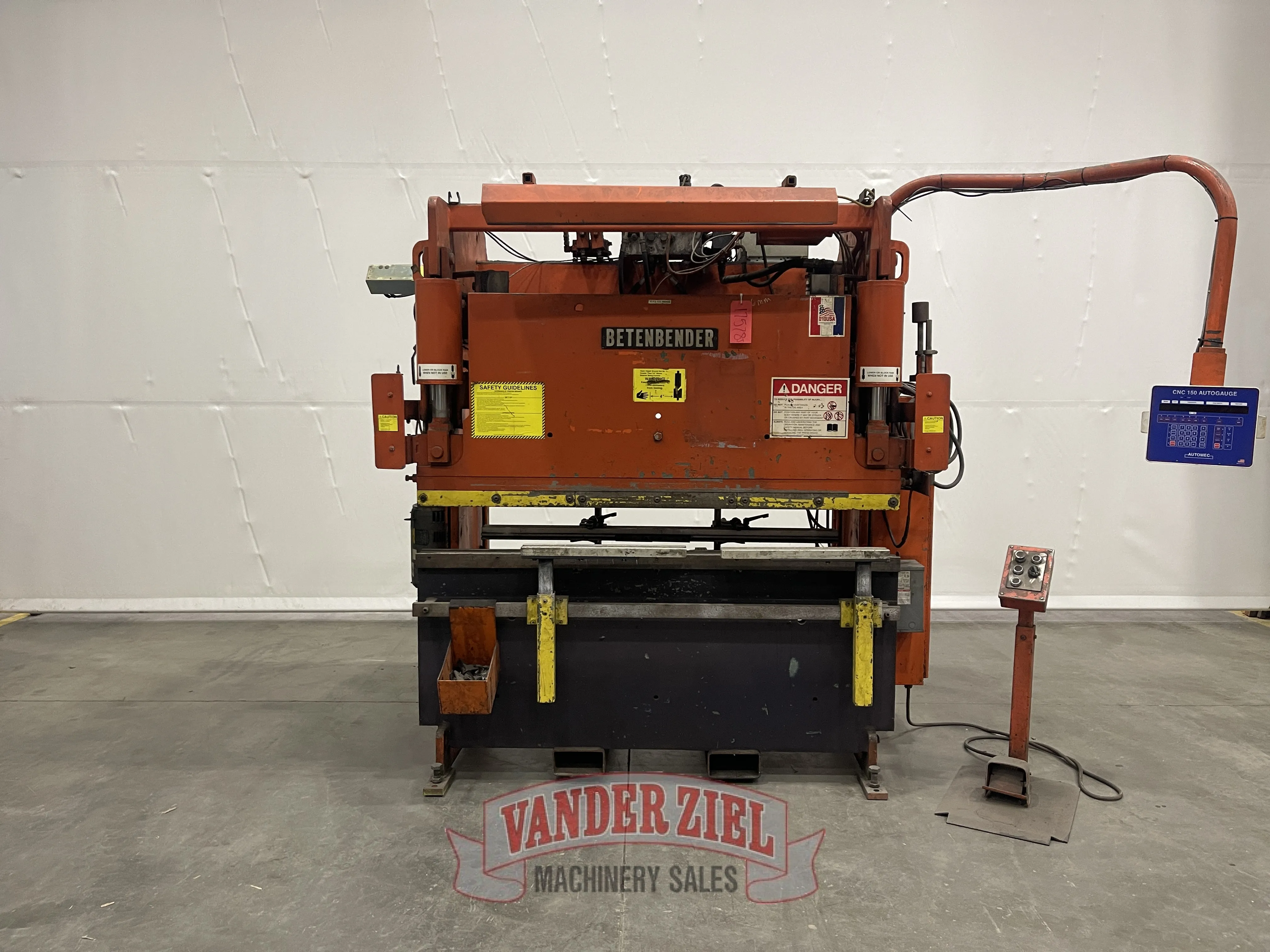

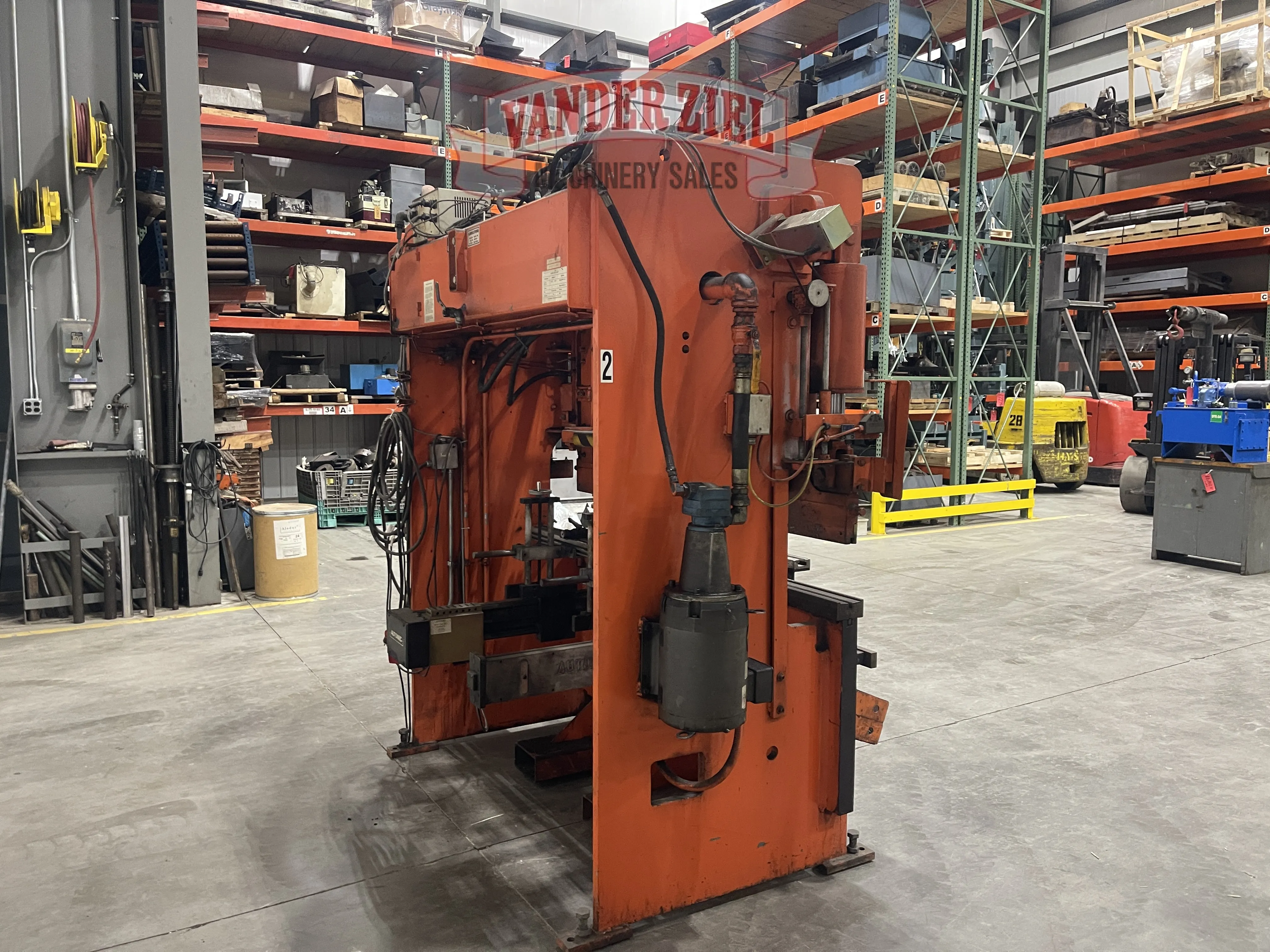

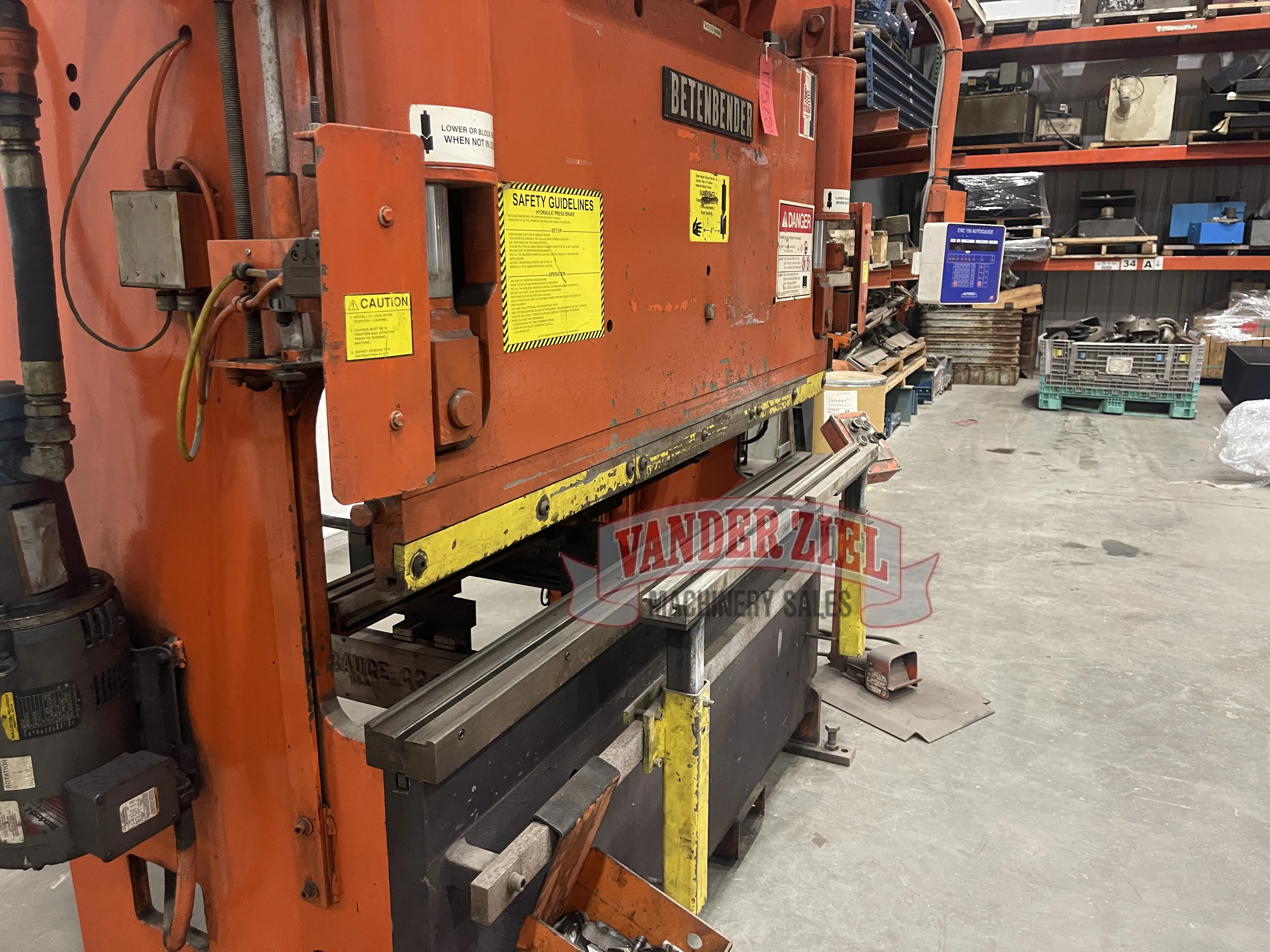

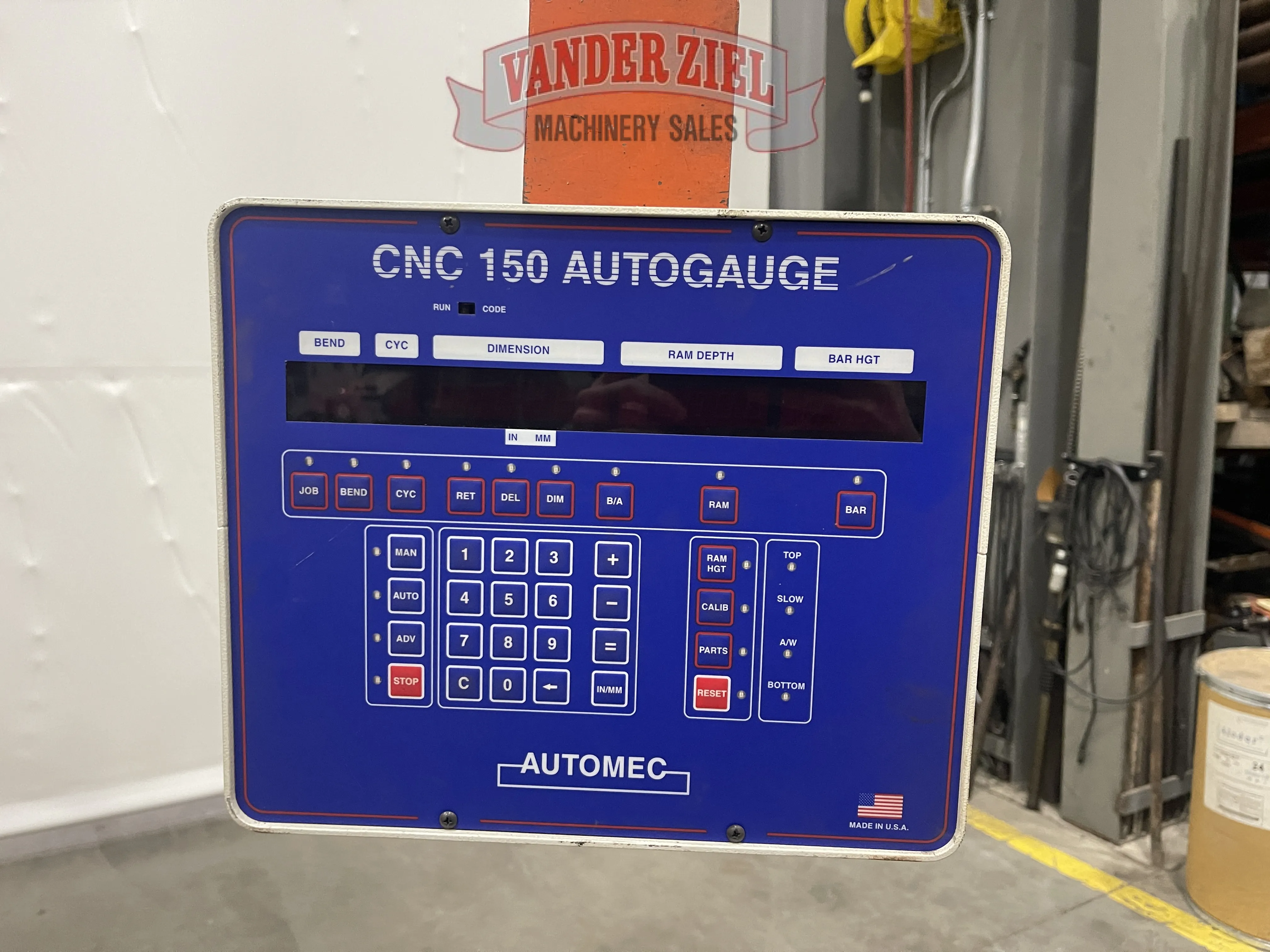

Betenbender 6' x 70 Ton Press Brake with Automec 150 Control

Betenbender 6' x 70 Ton Press Brake with Automec 150 Control

Asset # 17578

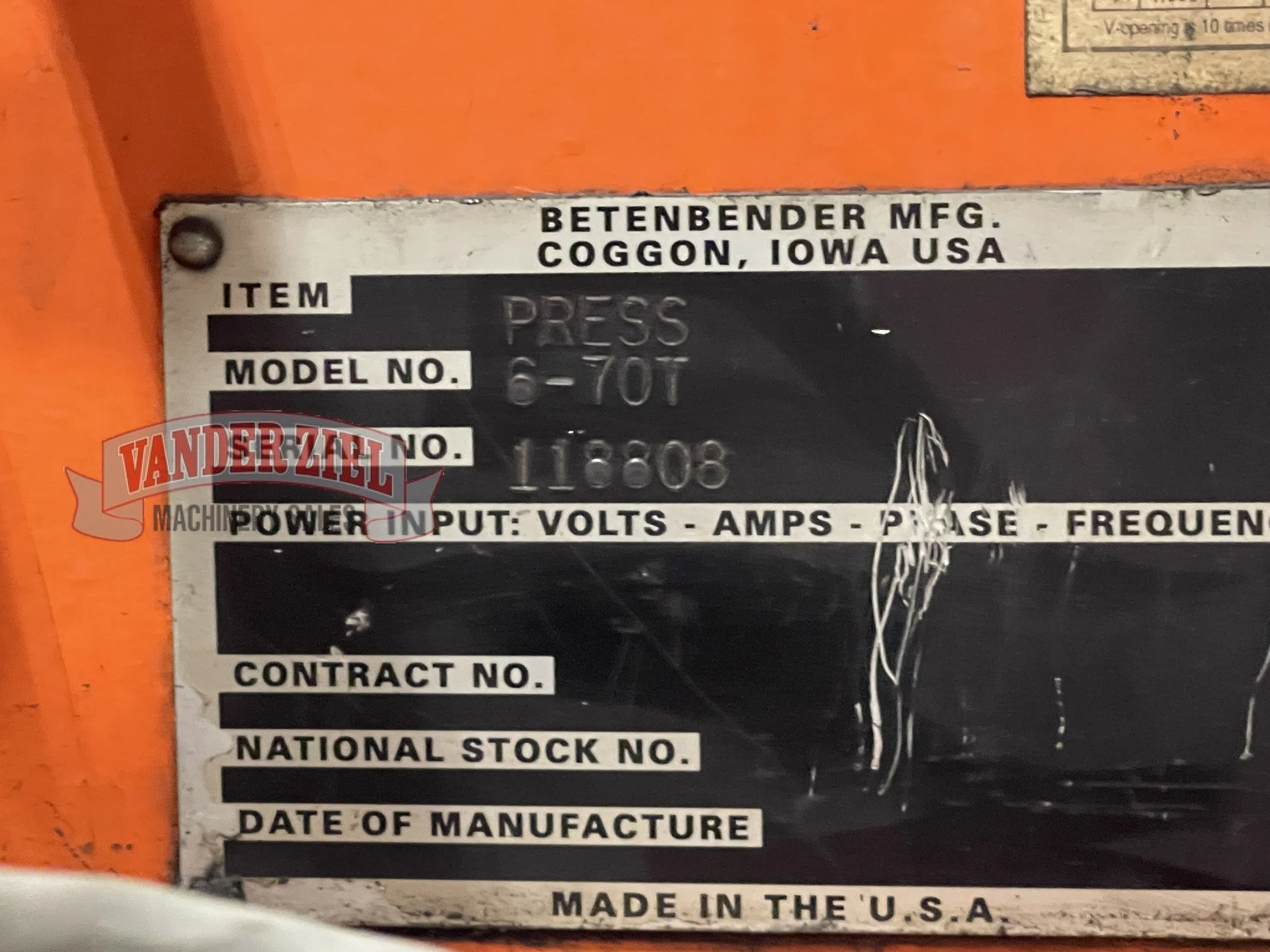

Serial # 118808

Specifications:
Width of Bed 4"
Width of Upper Machined Ram 1 3/4"
Throat Depth 8"
Open Height 14"
Closed Height 6"
Height of Bed 28"
Distance Between Housing 54 1/2"
Width of Upper Ram 2"
Width of Upper End Plates 36"
Press IPM 0-44
Rapid Approach IPM 44
Return to Open IPM 63
2 Speed Electric Shift

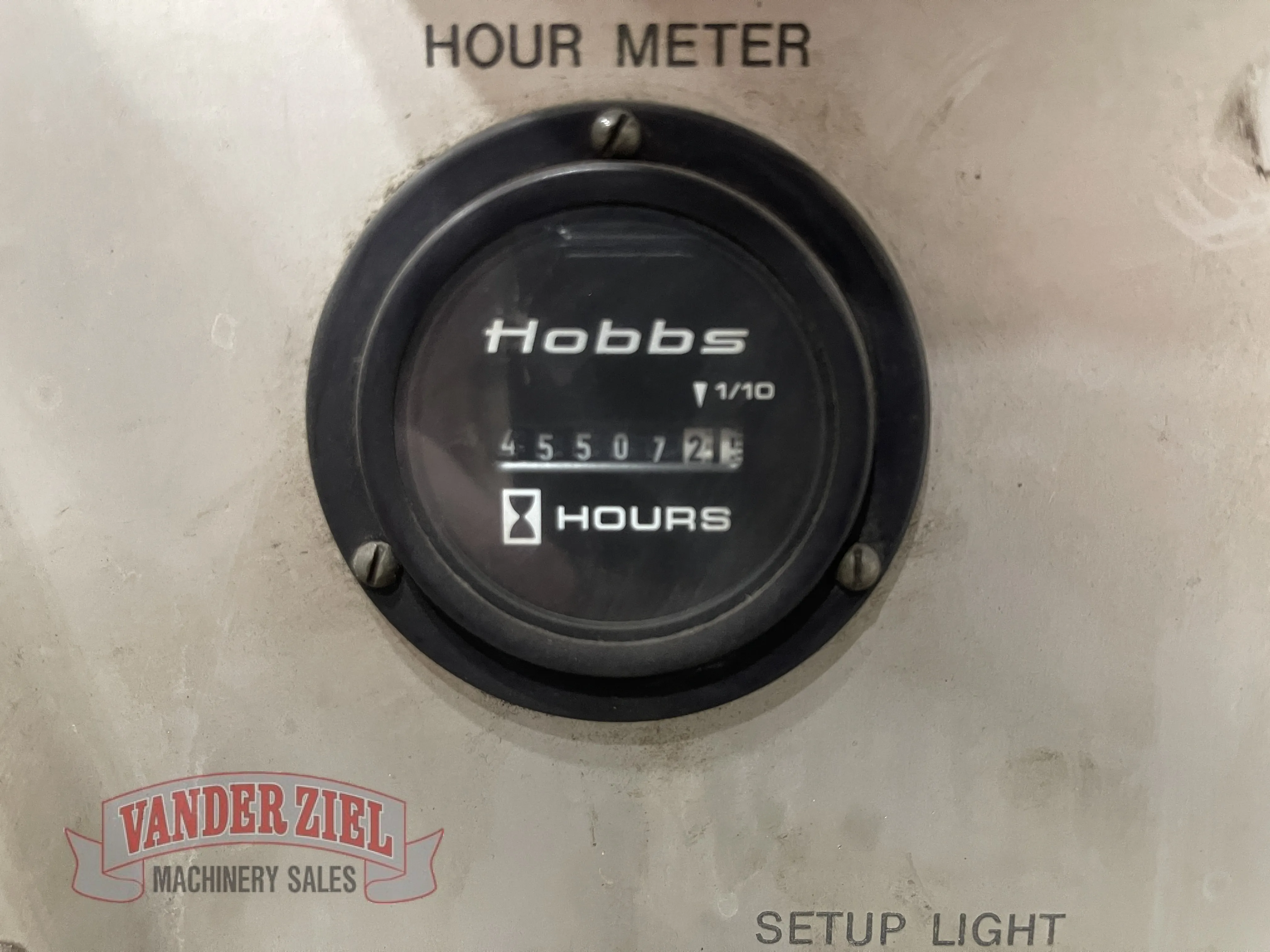

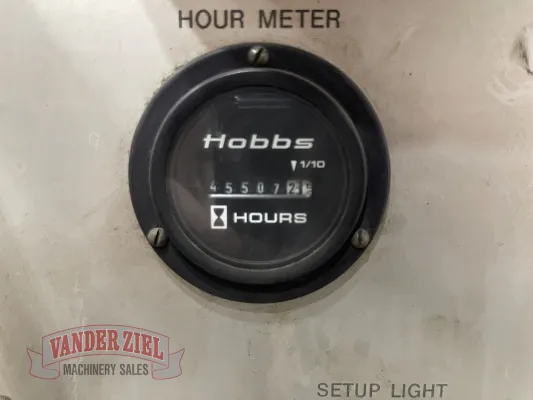

Hour Meter
Three Speed Ram
NEMA Electrics
Baldor 10 Hp Motor
Bottom Time Delay
All Hydraulic Fluids
Three Position Foot Pedal
Disconnect Switch
All Steel Construction
Overall Width 45"
Overall Height 96"
Overall Length 87"
Approximate Weight: 6,800 #

Preliminary Specifications - Subject to Verification
