KMT 12.5" Manual Cold Saw, Model C316

KMT 12.5" Manual Cold Saw, Model C316

Asset # 17659

Vertical column machines provide the construction that is the most stable of all cold saws. This means superior sawframe guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.

The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero.

The sawframe feed is rack & pinion which means you can easily pull through heavy workpieces effortlessly.

Models C 316 is a step up from hinge type construction and may be used for production of tubes profiles and small solids.

C 316 with manual vise

Standard Equipment

One HSS sawblade

Low voltage control

TEFC 3 phase drive motor

Totally enclosed worm gear transmission

Full Coolant System

Full Blade Guarding

Operators Manual Parts List/Schematics

Tool kit

Pull out chip tray

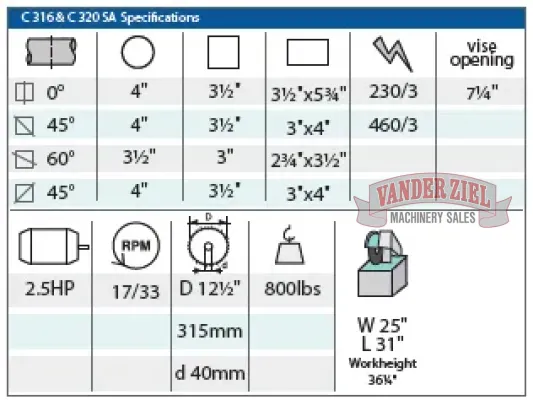

Capacities and Specifications

Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.

(see chart in pictures)
