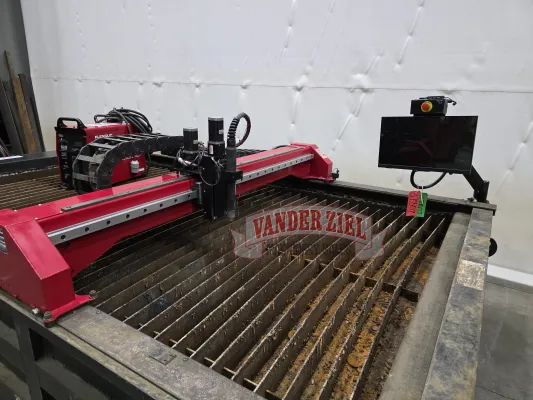

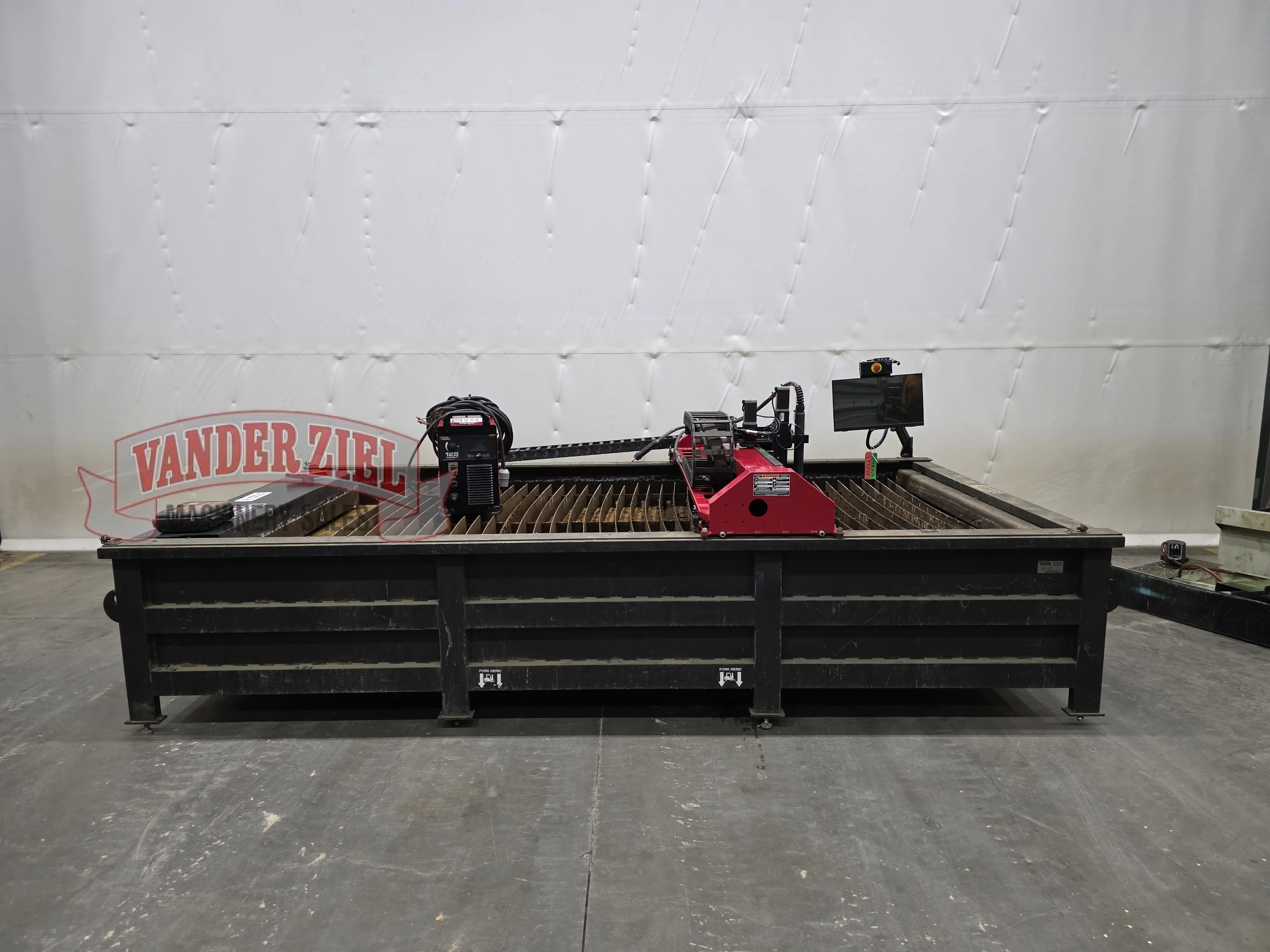

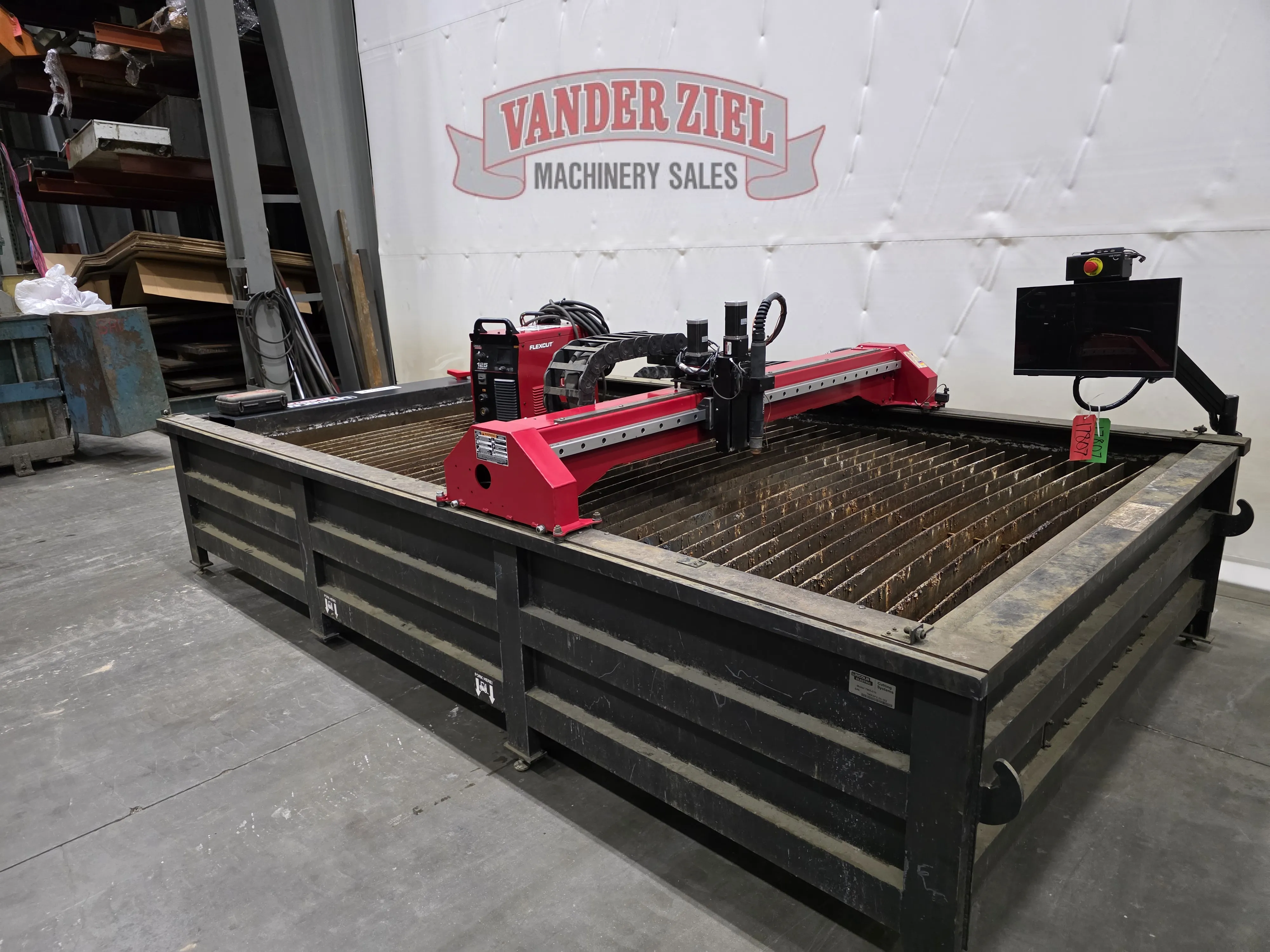

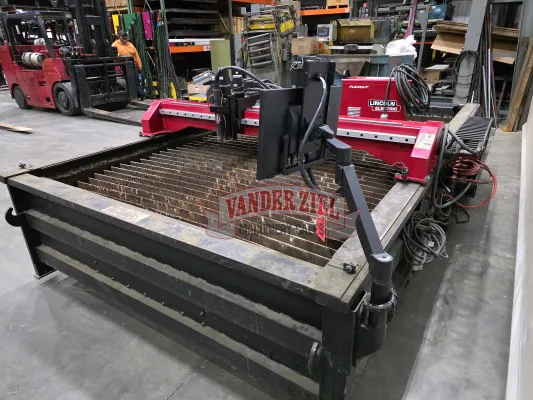

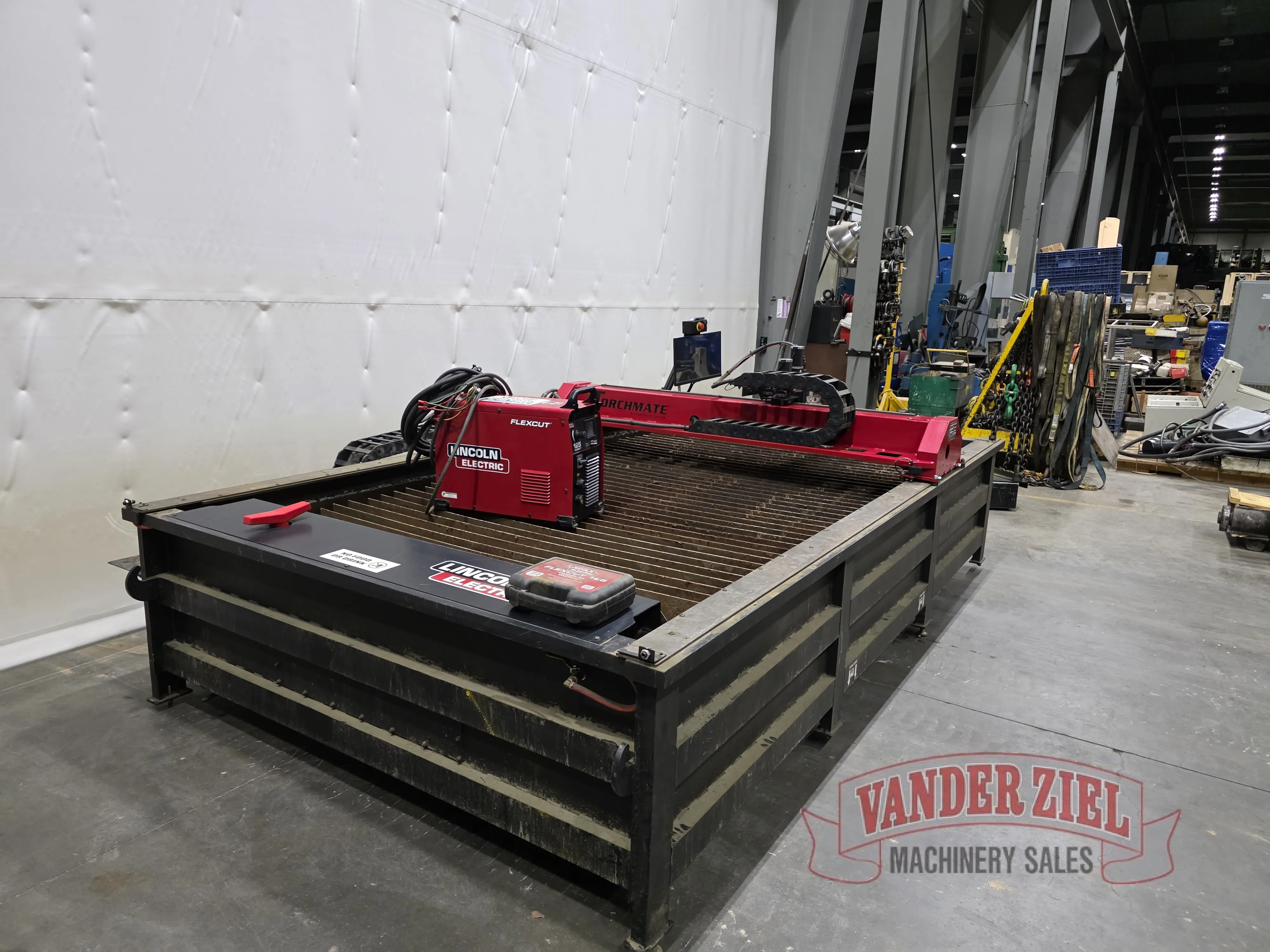

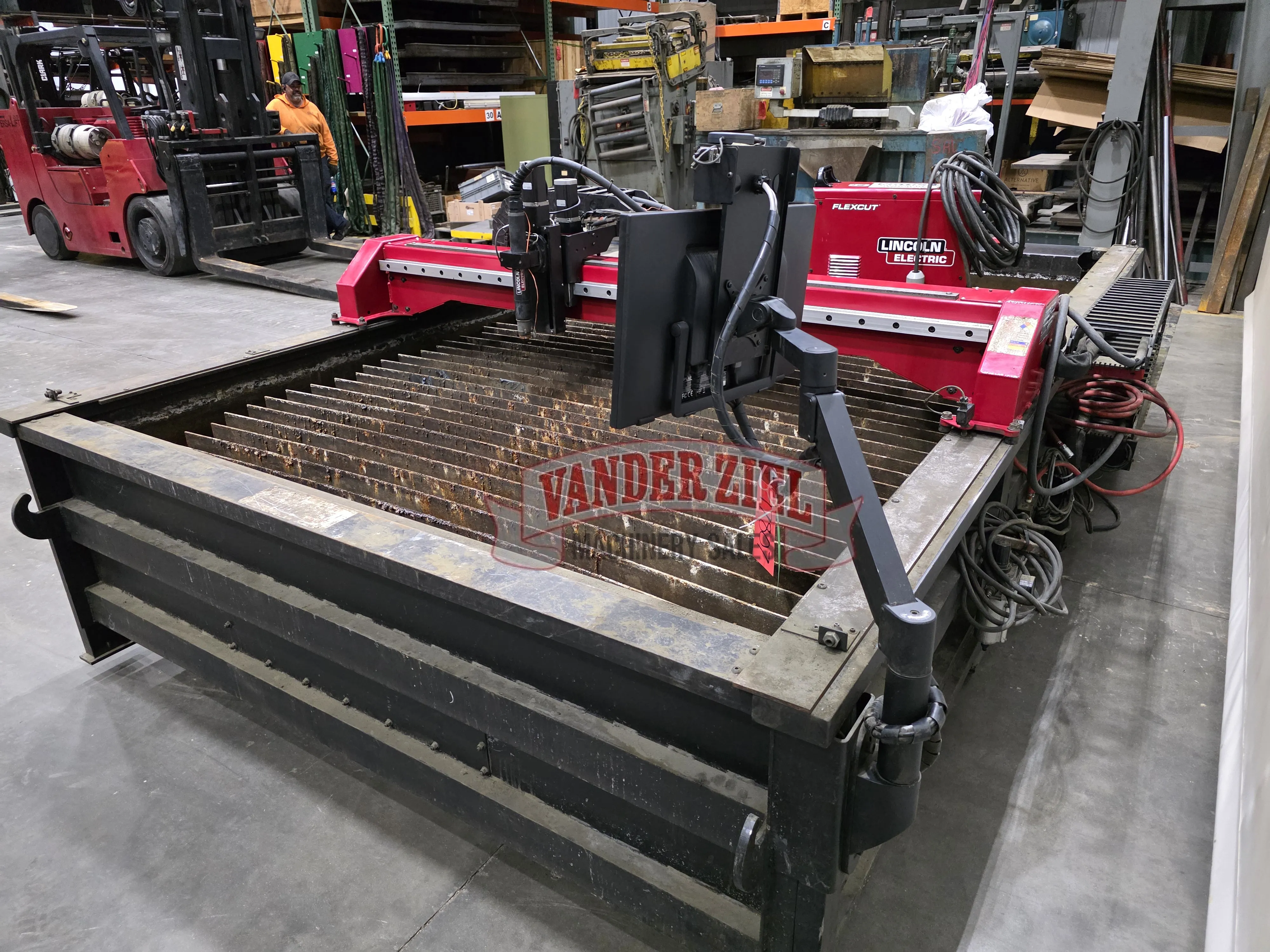

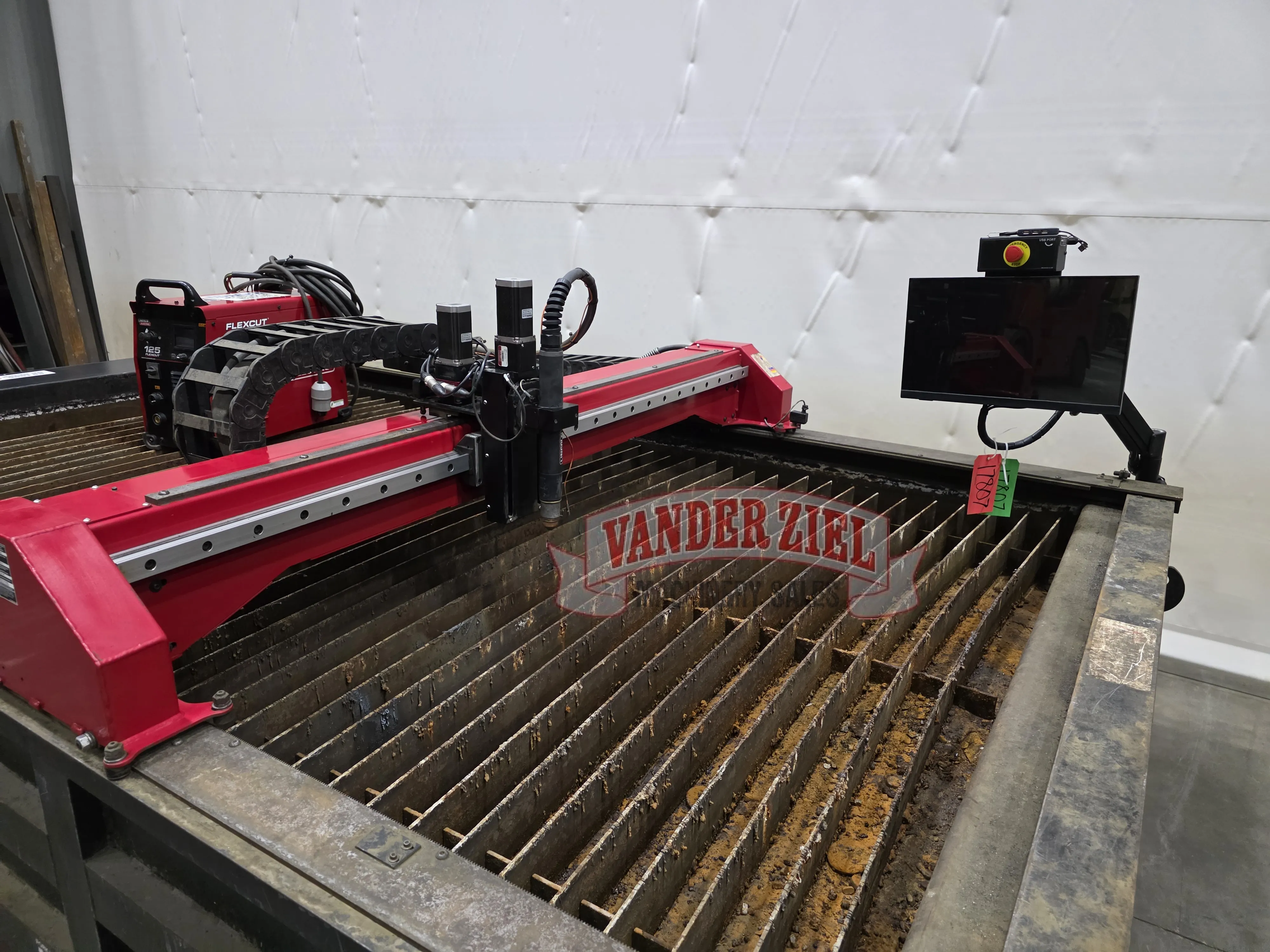

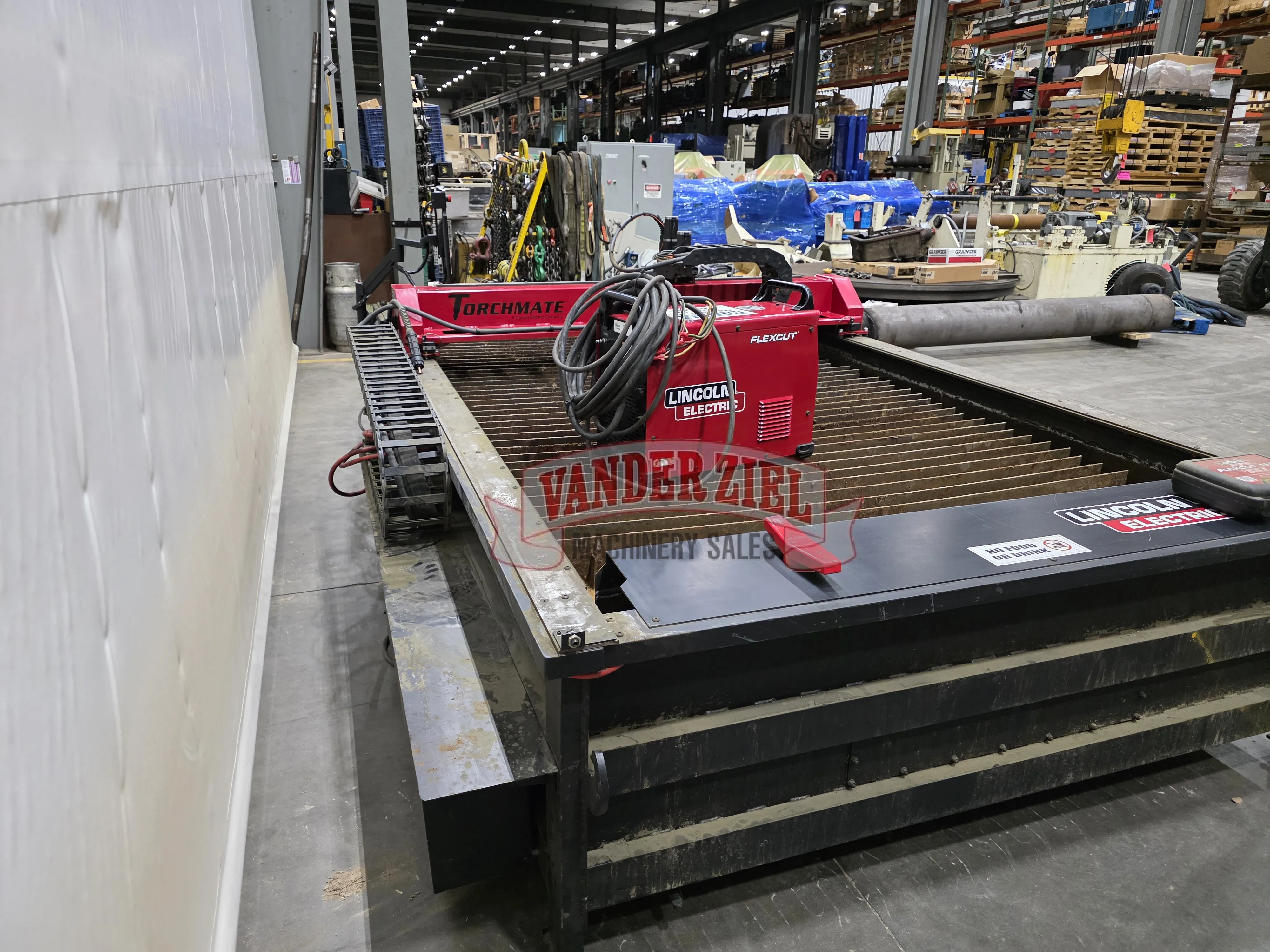

Lincoln Torchmate X CNC Plasma Cutting Table with FlexCut 125, Model TMX-510 - 2020

Lincoln Torchmate X CNC Plasma Cutting Table with FlexCut 125, 2020

$100,000 Replacement Cost, Very Little Use!

Asset # 17807J
Serial # TMXSP2-20-392

Machine Size
5x10 - New Unitized Model
5’X10’ machine leaves 92.54”x154.77” footprint

Model Features
DXF, DWG Direct Import
Adjustable water height on water table
Low backlash 5:1 gearboxes
Durable finish
Angled support slats for increased life
Factory test cut from your machine included with shipment

Standard Equipment
Water table, Gantry, and Arc Voltage Height Control
Full cable carrier system
Visual Machine Designer Touchscreen Interface
FlexCut 80 or FlexCut 125 plasma cutter

Construction
Steel fabricated gantry with dual y-axis drive
Precision x-axis linear guide—the ultimate in accuracy and durability
Precision ground y-axis guide rails to within .001 tolerances, 63 Micro finish, custom made in the USA

Electronics/Motion System
Two Y-axis 380 oz. in. stepper motors
One X-axis 380 oz. in stepper motor
8 amp micro stepping drives
Motion Controller

User Controls
Full featured Visual Machine Designer HMI

Weight
Approximately 3,739 lbs for 5’ x 10’ system with no water

Input Power
Torchmate X machine requires 15 amp/ 110 volt AC service of 8amp/220v AC service
FlexCut 125
Input Power 380-400-415/460/575V / 3 PH/ 50/60 HZ
Rated Output: 125A Current, 175 Volts / 100% Duty Cycle
Input Current @ Rated Output 3PH/1000% 40/40//40/33/28
Output Range 3 PH 20-125A
Air Pressure Required 90-120 PSI
Air Flow Rate 550 SCFH @ 90 PSI

Input Air
8 SCFM @ 90 PSI, dry air filtered to minimum 5 micron

Cutting Area
5'x10'

Cutting Capacity
FlexCut 125:

Mild Steel
210 IPM at ¼”
88 IPM at ½”
52 IPM at ¾”
32 IPM at 1”
14 IPM at 1 ½”

Stainless Steel
260 IPM at ¼”
94 IPM at ½”
45 IPM at ¾”
25 IPM at 1”
11 IPM at 1 ½”

Aluminum
275 IPM at ¼”
112 IPM at ½”
62 IPM at ¾”
40 IPM at 1”
16 IPM at 1 ½”

Drive System
Rack and pinion X/Y-Axis 5:1 Reduction
Ball Screw/Linear Stage Z-Axis

Traverse Speed
Up to 572 ipm

Cut Speed
Up to 572 ipm
Standard Software

Visual Machine Designer with Onboard Nesting
Torchmate CAD/CAM
