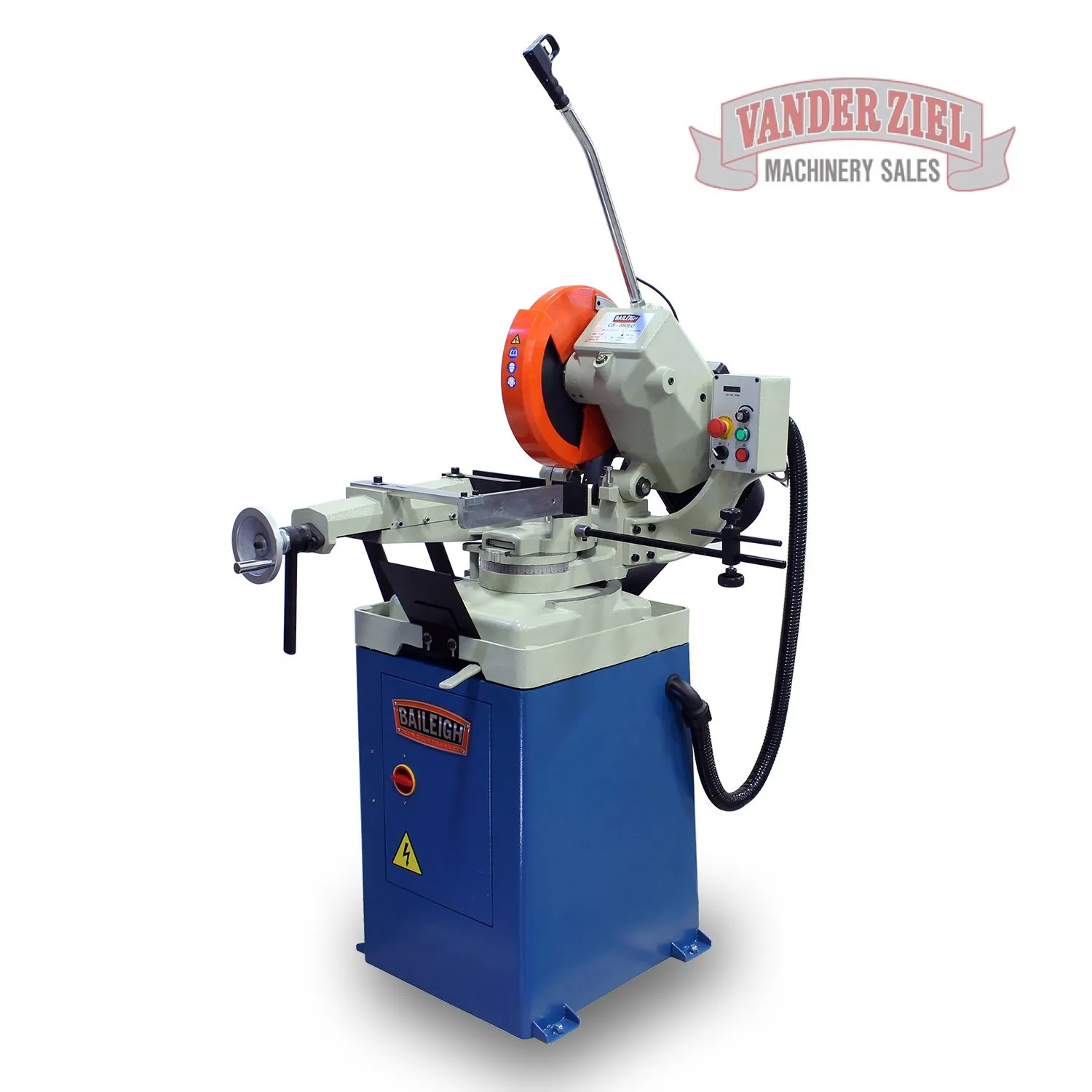

Baileigh Variable Speed Circular Cold Saw - Model CS-350EU
Technical Specs
Catalog ItemYes
Description
Baileigh Variable Speed Circular Cold Saw - Model CS-350EU
Asset # 17815N
Specifications:

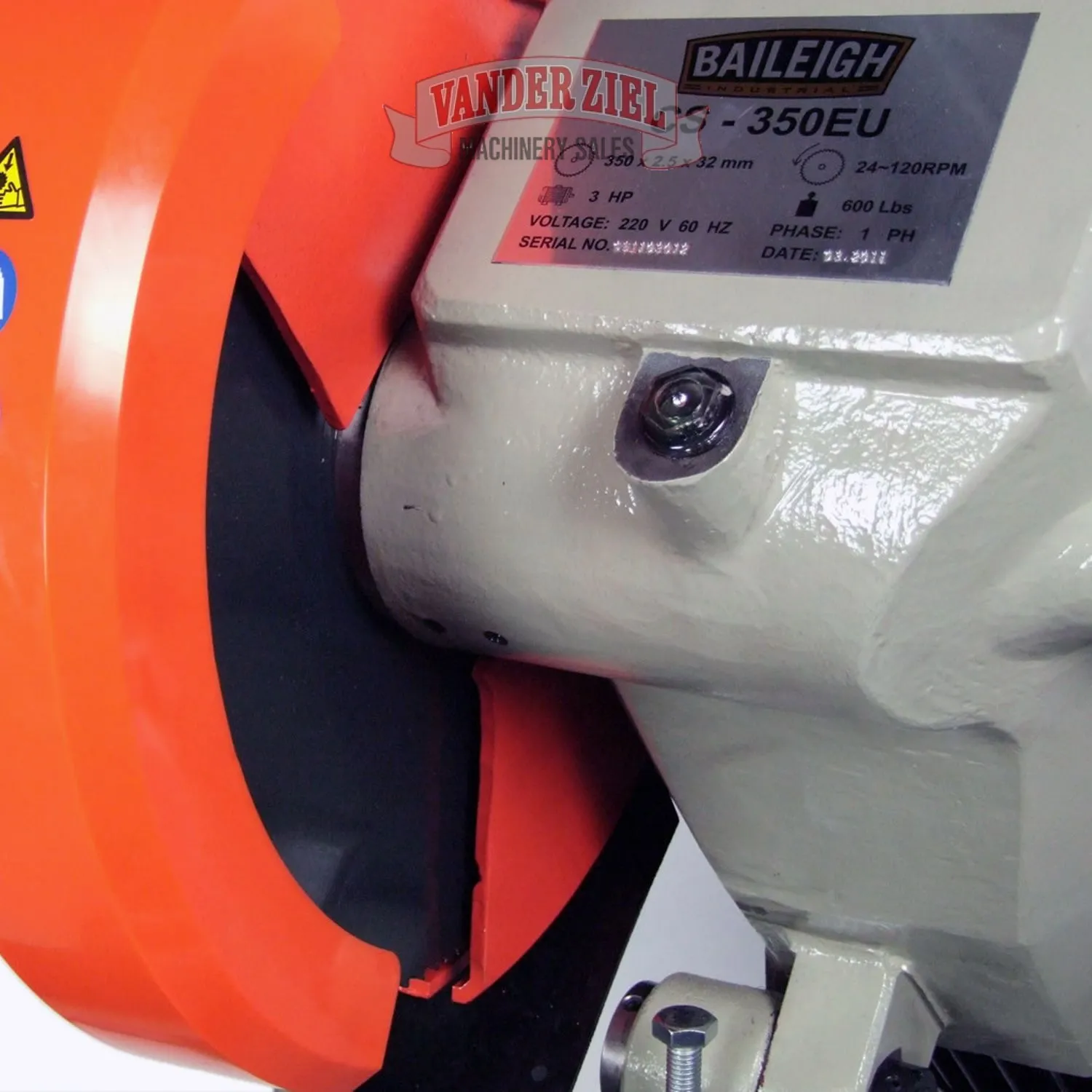

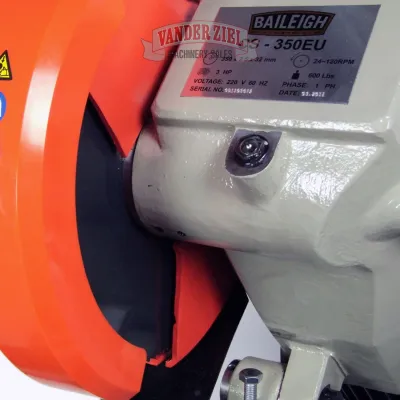

Standard 14” blade (included), 4.7” round tube capacity at 90°, and runs on 220-volt single-phase power which will work in almost any shop

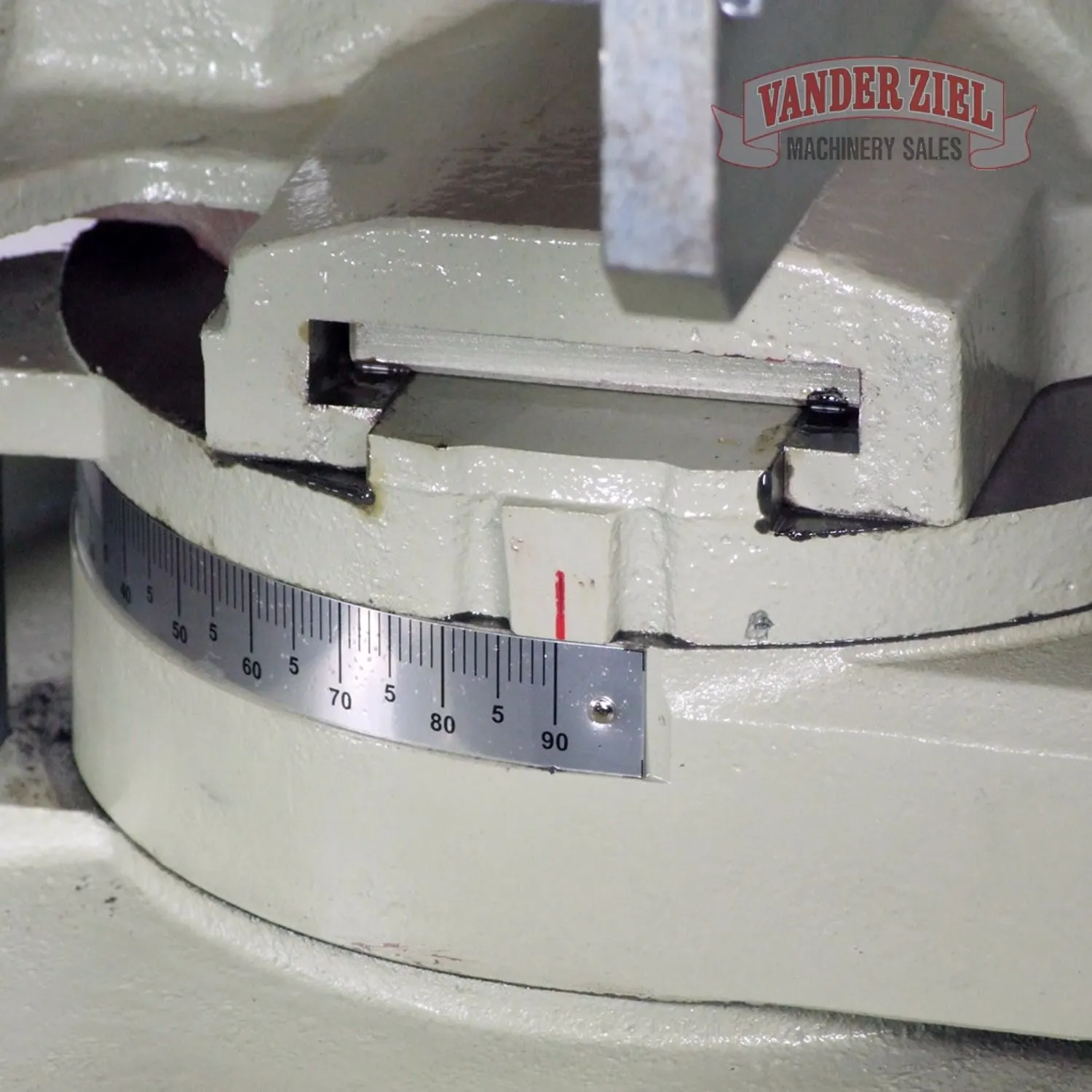

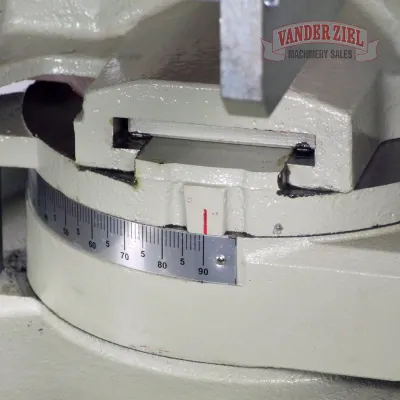

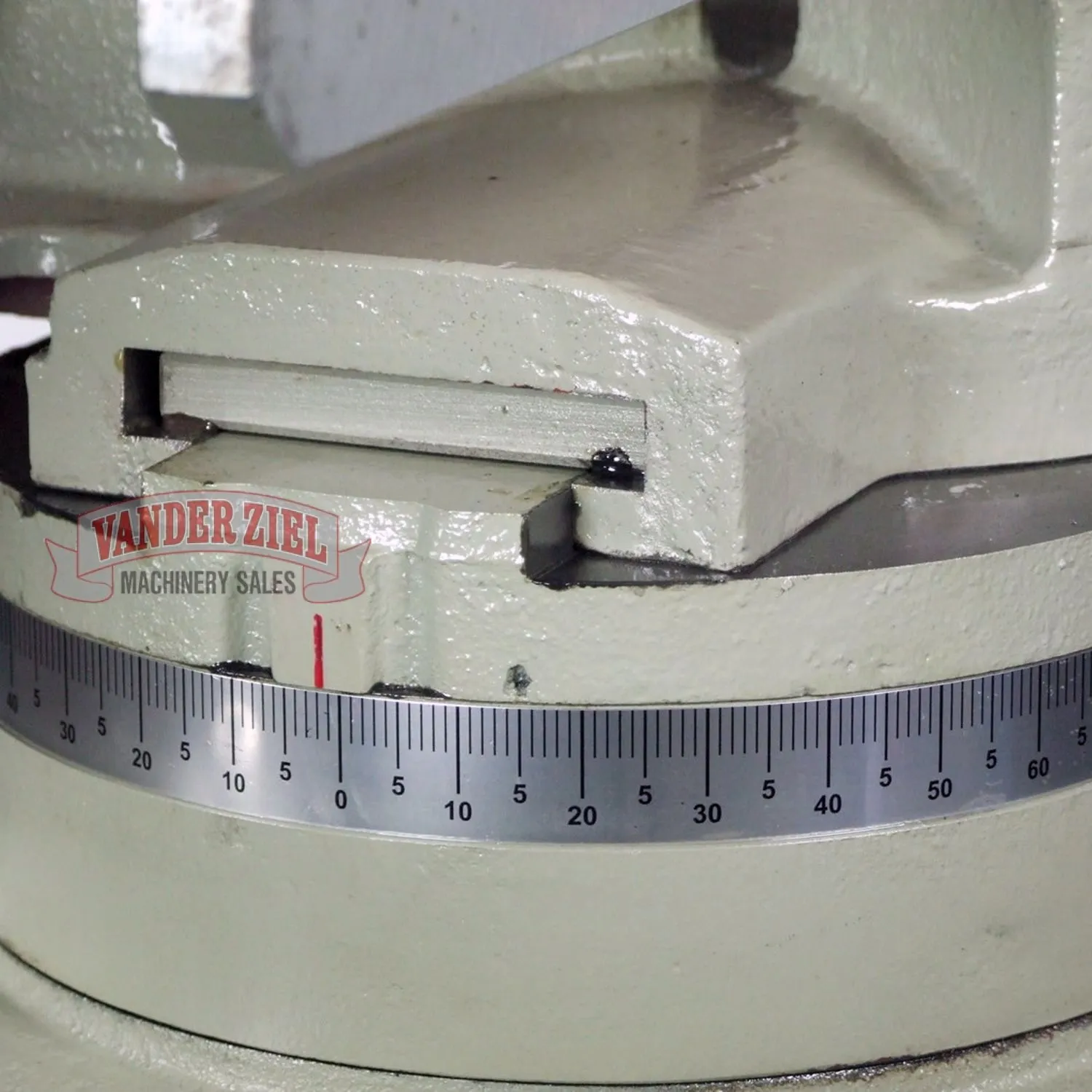

Miters 45° left and right and can slot perpendicular to the material
Cold saw machine cuts through solids, tubing, and pipe
Fine-tune the variable speed from 24 to 120 rpm to improve cut quality

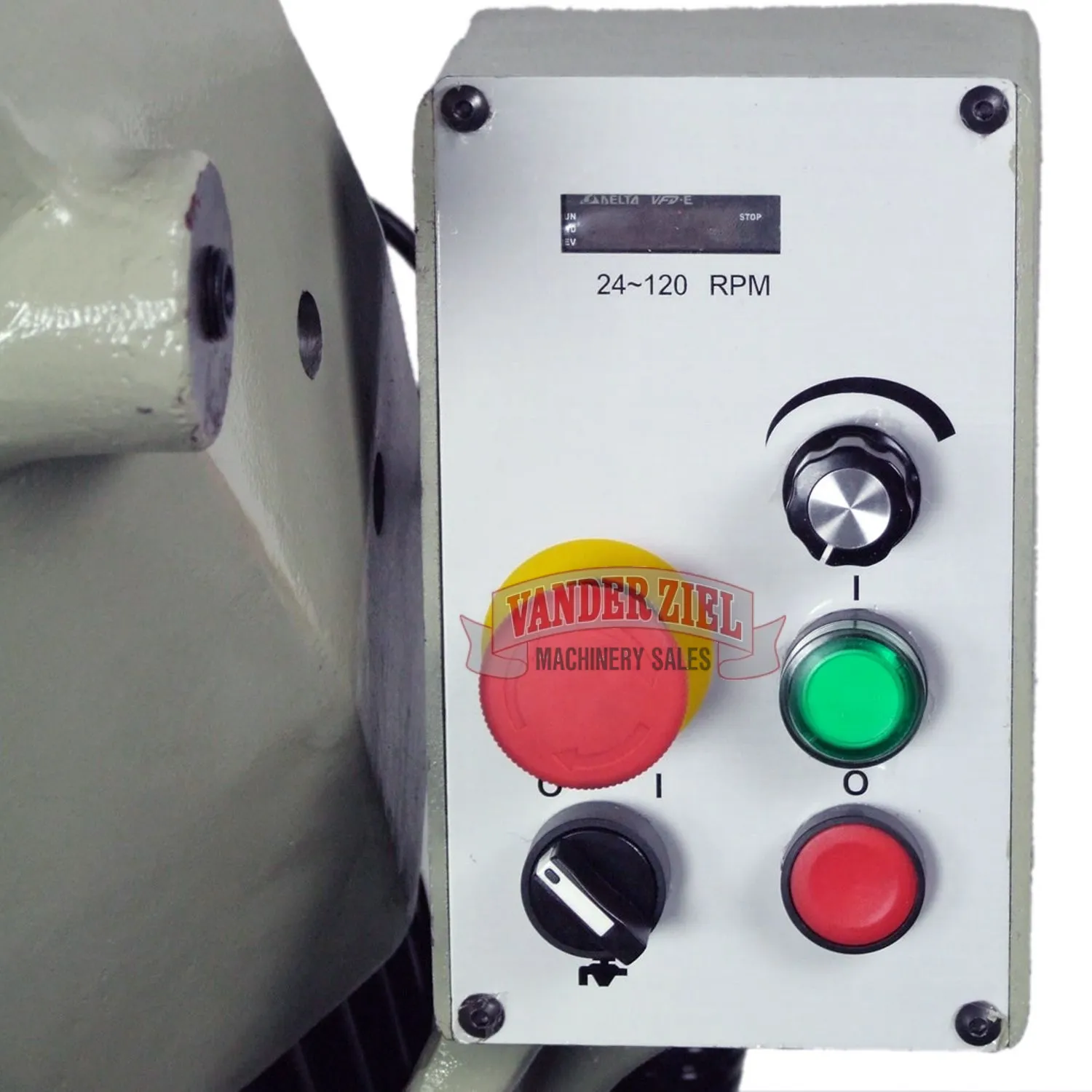

Inverter-driven motor lets you adjust the blade speed with a digital readout that shows the blade speed to assist with repeatability
3 hp motor, coupled to a direct-drive gearbox, allows the blade to cut through the material chatter-free, so that blades last longer

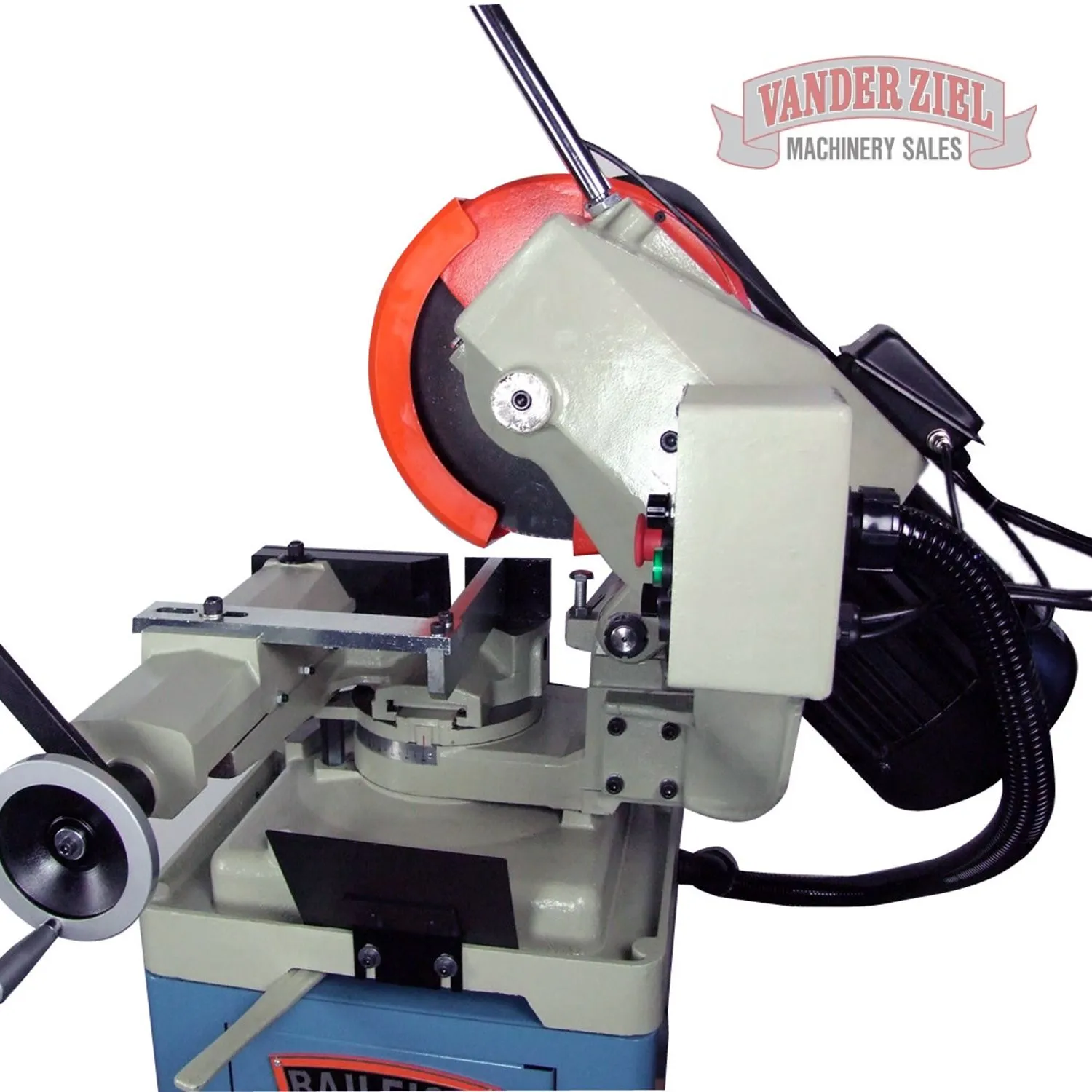

European-style vise helps increase production with a taper lock system that speeds up clamping and unclamping
Vise clamps on both sides of the cut to reduce chatter and increase blade life while the serrated jaws provide maximum hold on the material
Thick cast iron base, mounted on a heavy steel stand, stabilizes the saw to ensure accurate cutting for many years
Flood coolant system allows for mill-like cuts, prolongs blade, and saw lifespan, and reduces operator effort while the powerful coolant pump lubricates the blade and washes metal chips away
Motor (HP) 3.0 hp
Solid Round at 45 Degrees (In.) 3"
Solid Round at 90 Degrees (In.) 3.5"
Style (Type) Single Action with Cam Lock
Tubing Rectangle at 45 Degrees (In.) 3.5" x 2.8"
Tubing Rectangle at 90 Degrees (In.) 6.3" x 3.5"
Tubing Round at 45 Degrees (In.) 4"
Tubing Square at 45 Degrees (In.) 3.5" 3.5"
Tubing Square at 90 Degrees (In.) 4.7"
Warranty 1 Year
Gross Weight 705.0
Net weight 705.0
Solid Round at 45 Degrees (In.) 3"
Solid Round at 90 Degrees (In.) 3.5"
Style (Type) Single Action with Cam Lock
Tubing Rectangle at 45 Degrees (In.) 3.5" x 2.8"
Tubing Rectangle at 90 Degrees (In.) 6.3" x 3.5"
Tubing Round at 45 Degrees (In.) 4"
Tubing Square at 45 Degrees (In.) 3.5" 3.5"
Tubing Square at 90 Degrees (In.) 4.7"
Warranty 1 Year
Gross Weight 705.0
Net weight 705.0
Preliminary Specifications - Subject to Verification
