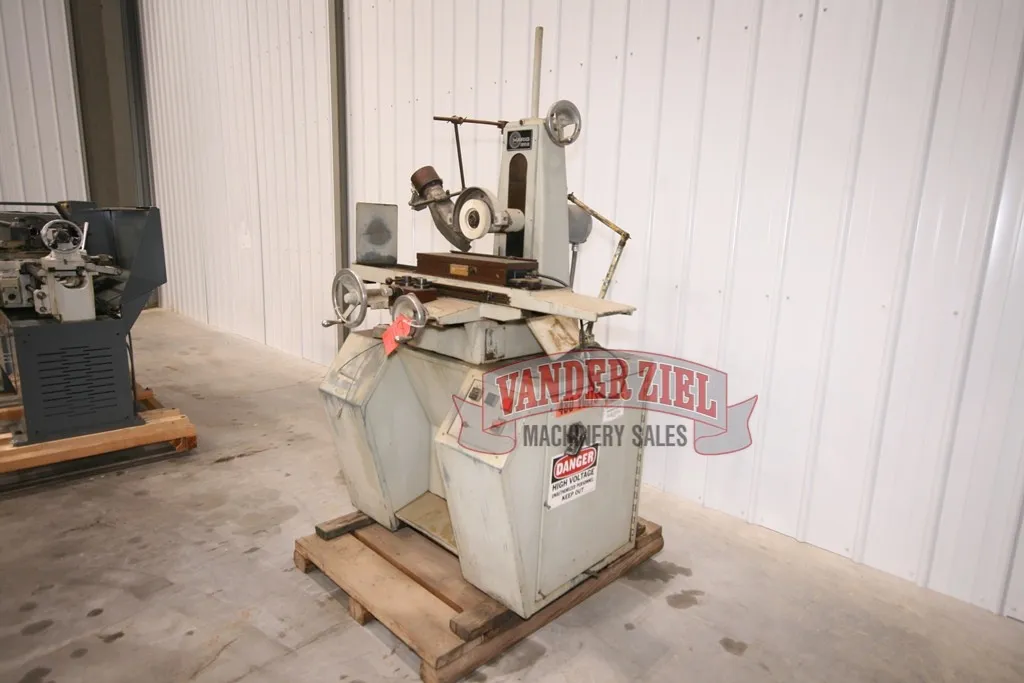

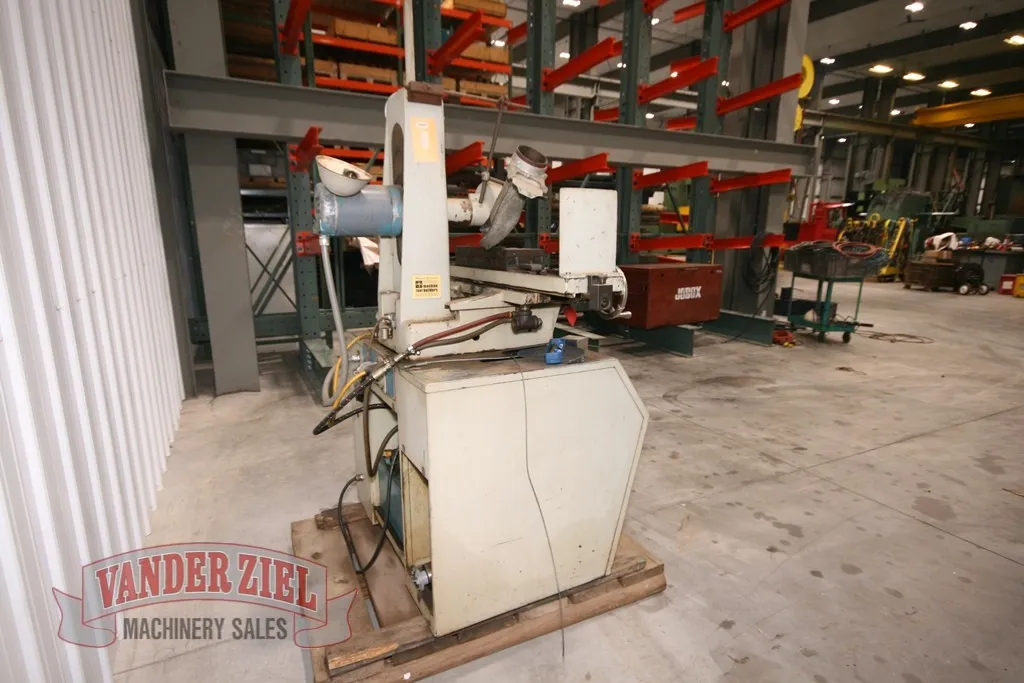

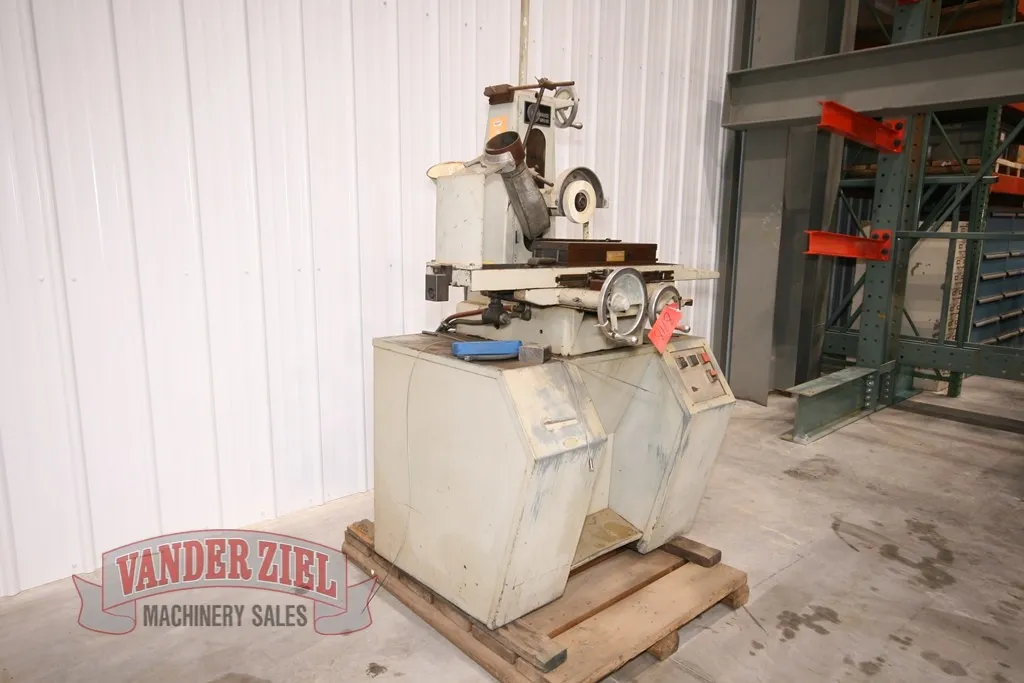

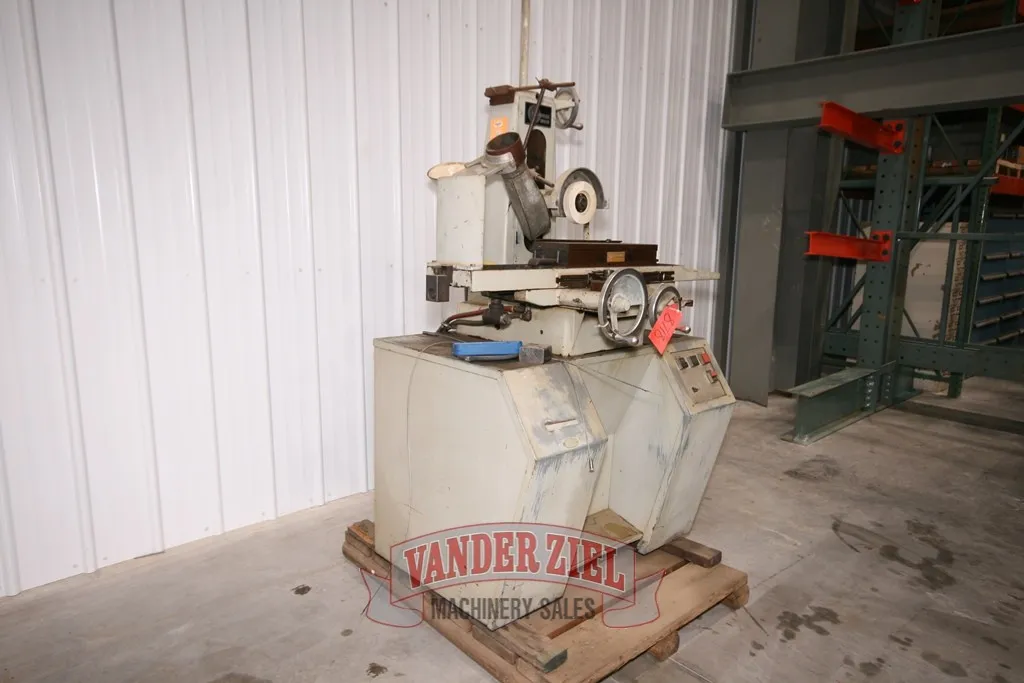

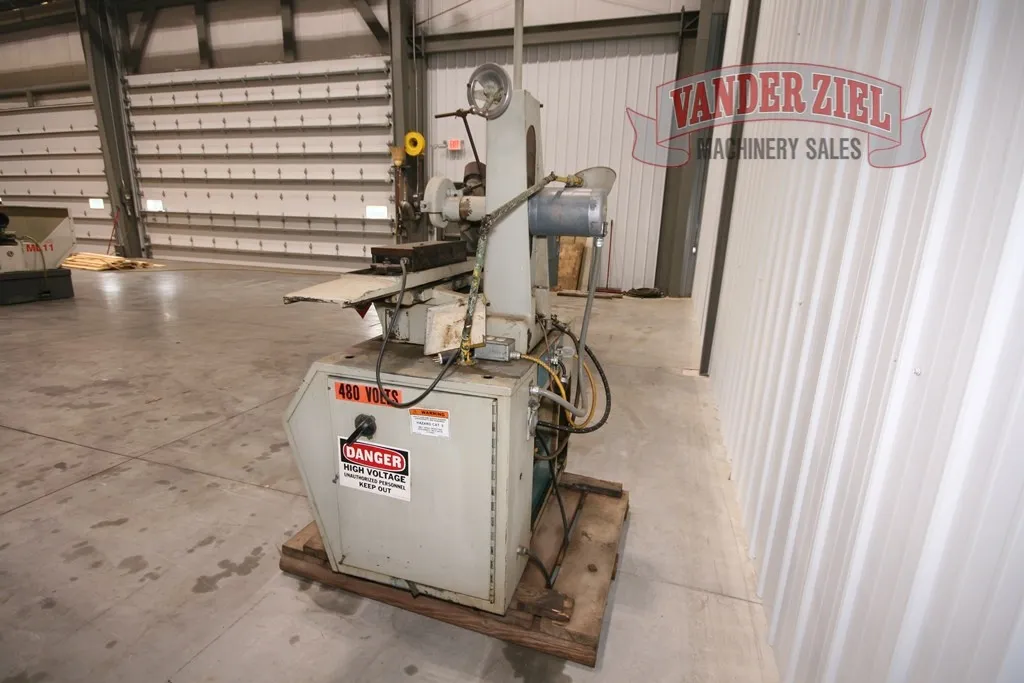

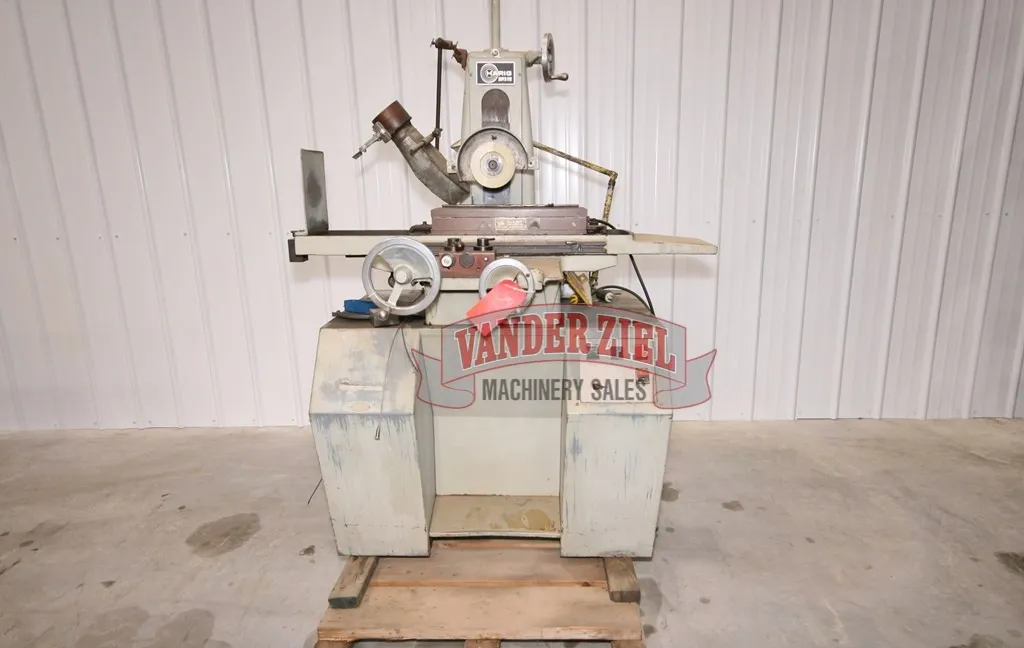

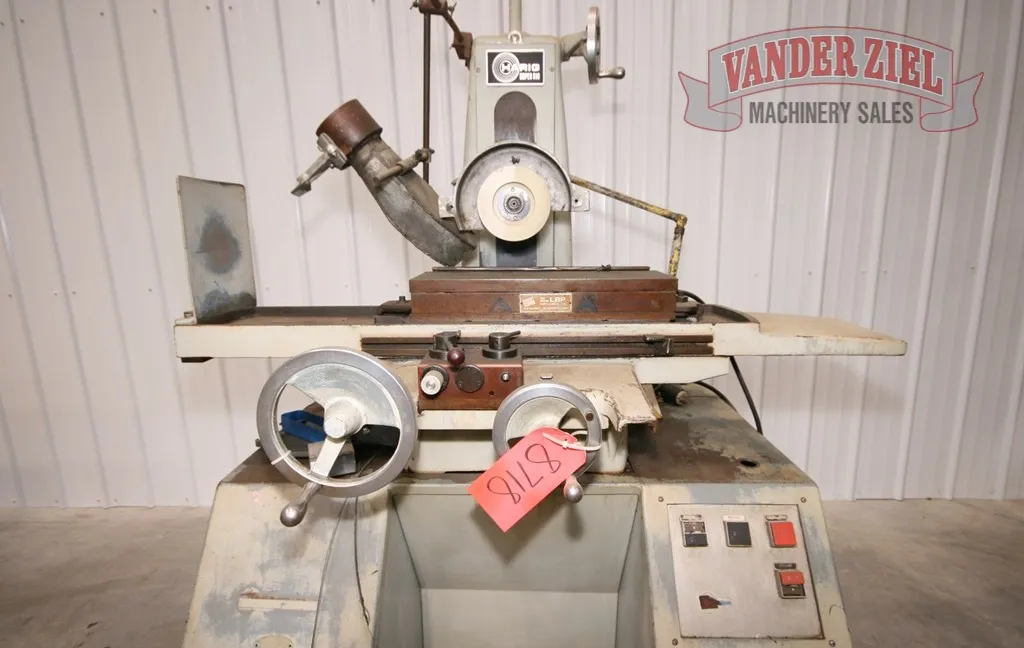

Harig 6" x 18" Hand Feed Precision Surface Grinder

Serial #NA
Asset #8718A

Specifications:

Single Axis Power Table

Platen working area 6" x 18"
Longitudinal travel 19
Cross feed travel 6-1/4"
Vertical working height (under 7" wheel) 12"
Standard wheel size 7" x 1/2" x 1-1/4"
Grinding wheel maximum capacity 8" x 1-1/4"
Elevator handwheel graduation .0005
Cross feed handwheel graduation .001
Motor 1 1/2 hp
208/230/460 volts
Spindle speed 3450 rpm
Floor area cabinet 40" x 31"
Floor area operating space 71" x 47"
Approximate weight of cabinet 290 lbs
Approximate weight of machine 638 lbs

Preliminary Specifications - Subject to verification
