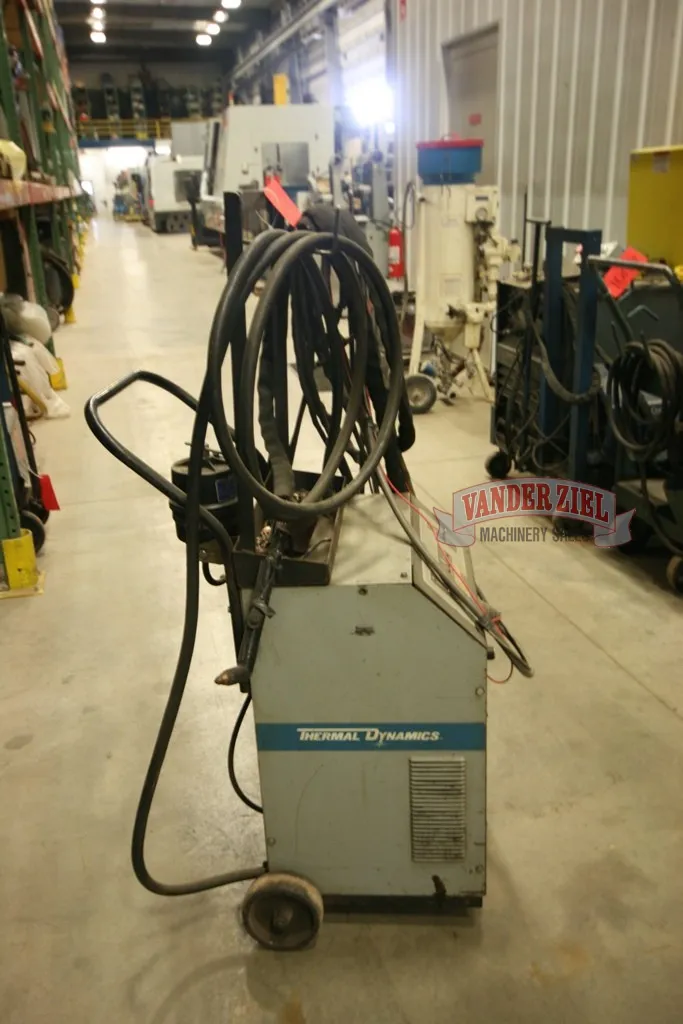

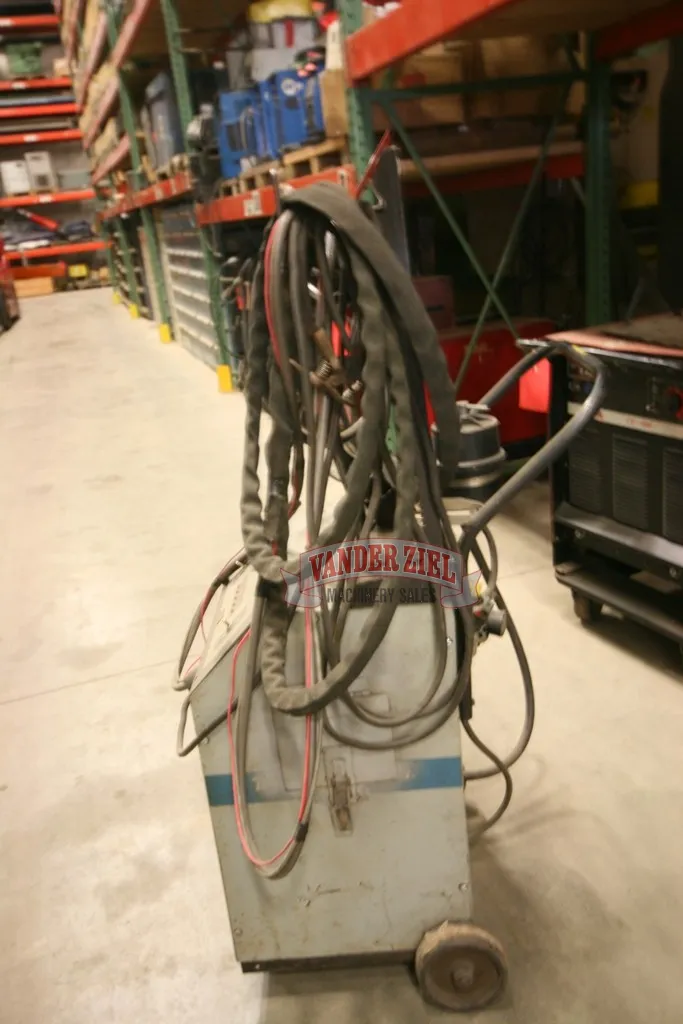

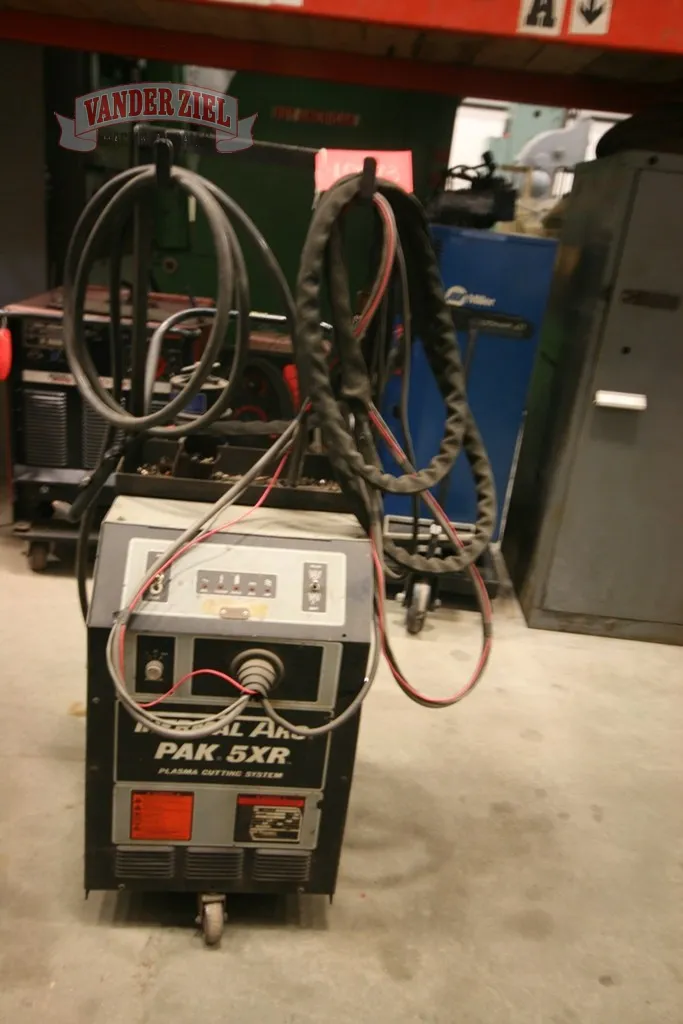

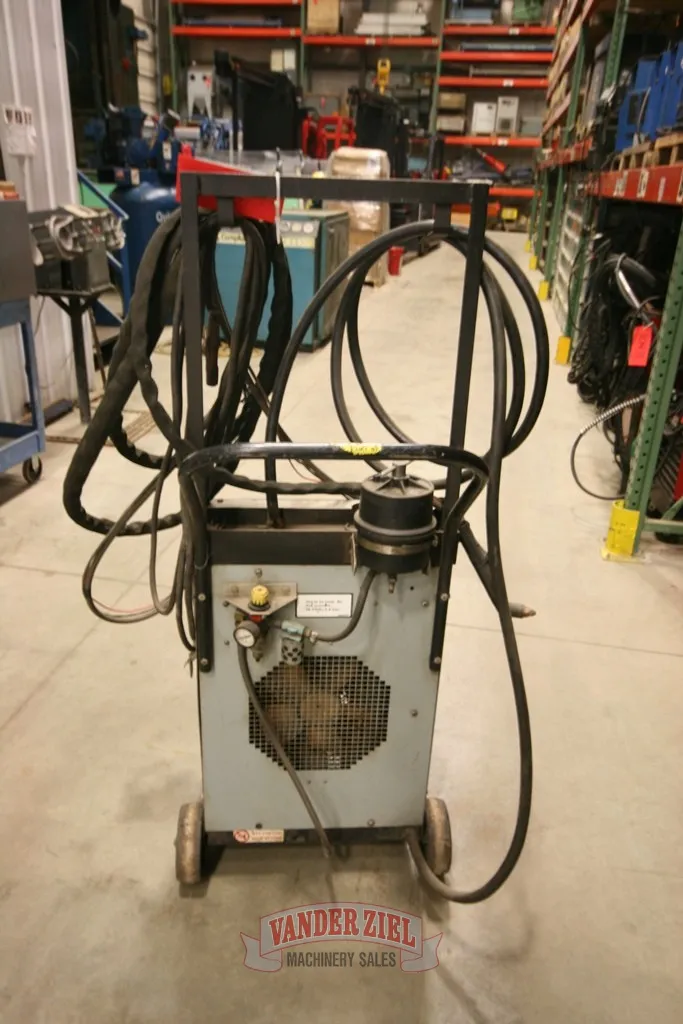

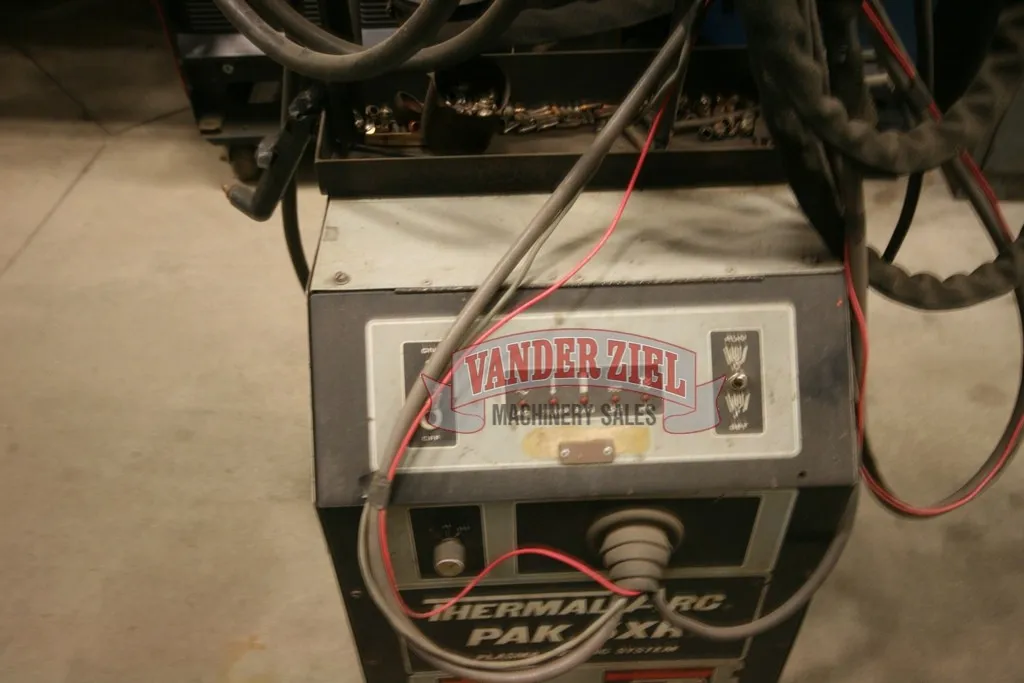

Thermal Dynamics Thermal Arc 5XR Plasma Cutting System

Serial # E6064A9823A
Asset # 10073

Specifications:
Cutting Range - Most Materials                1/2"
Compressed Air                                        240 SCFM
Power Input                                              15 KVA
Voltage, Frequency, Phase, Amperage    200/220V, 60 HZ, 1 PH, 42 A
                                                                 200/220V, 60 HZ, 3PH, 45 A
                                                                 200/220V, 50/60 HZ, 3PH, 45 A
                                                                 380/415V, 50 HZ, 3PH, 24 A
                                                                 460V, 60 HZ, 3 PH, 20 A
                                                                 500V, 50 HZ, 3 PH, 19 A
                                                                 575V, 60 HZ, 3 PH, 16 A
Rated Output, Range 1                            20 Amps
Rated Output, Range 2                            35 Amps
Rated Output, Range 3                            55 Amps
Weight                                                      200 Lbs.

Preliminary Specifications - Subject to Verification
