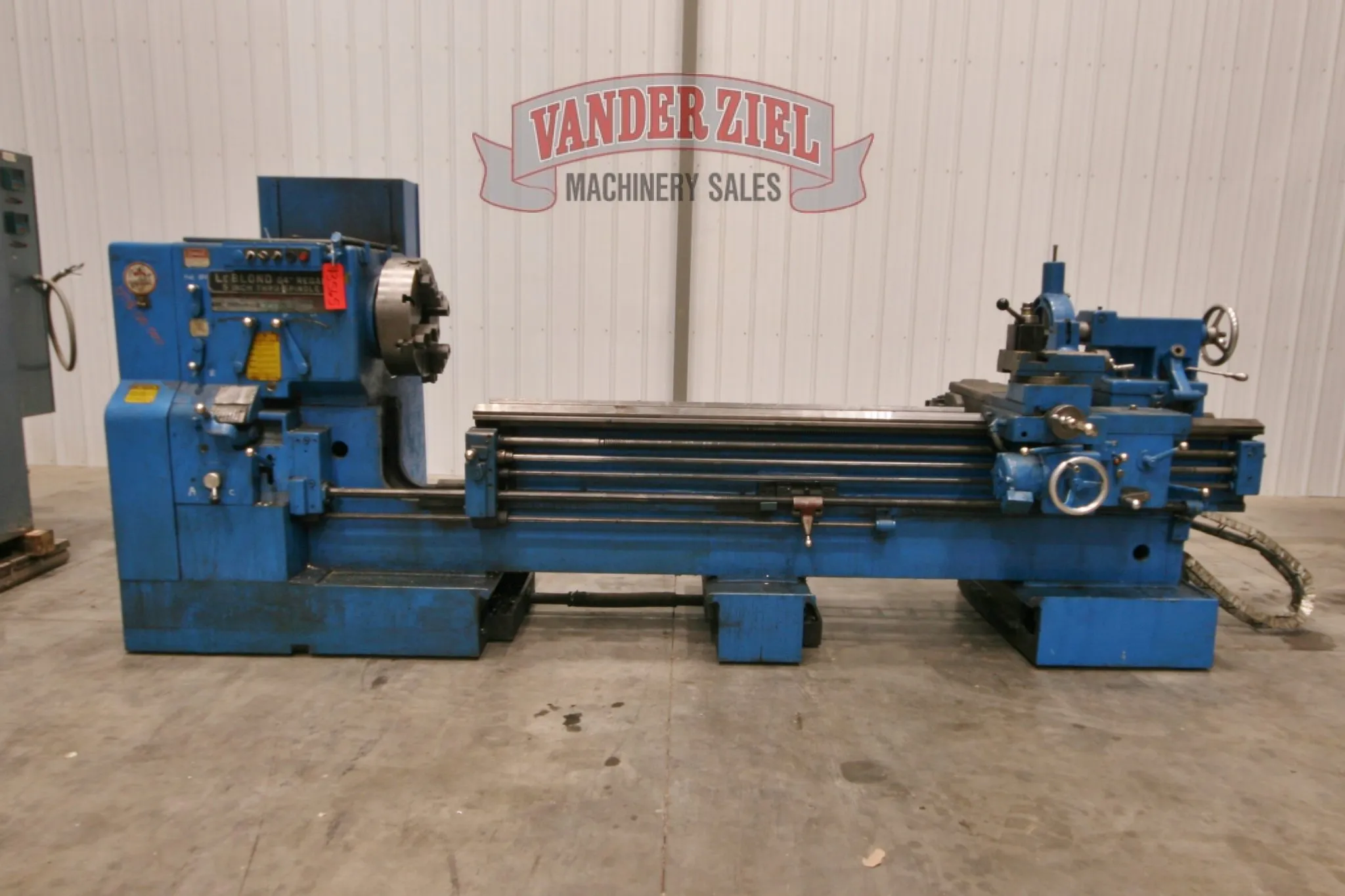

LeBlond 24" / 54" x 96" / 132" Sliding Gap Bed Lathe

LeBlond 24" / 54" x 96" / 132" Sliding Gap Bed Lathe

Serial # 6HS 507
Asset # 13565

Specifications:
Swing thru Gap 52"
Center Distance Bed Closed 96"
Center Distance Bed Extended 132"
Maximum Bed Length Open 36"
Turning Length with Extension Rest 15 1/2"
Maximum Turning Diameter with Extension Rest 33 1/2"
Distance Spindle Center to Floor 48 7/8"
Bed Length, Centers Closed 8' 6"
Top Bed Length 5' 9"
Top Bed Width 17"
Carriage Length on Bed 27"
Cross Slide Travel 19 1/2"
Size Hole Thru Spindle 5 1/4
Spindle Speeds (12) 12-900 RPM
Spindle Size of Center #5 MT
Spindle Nose 11" A-1
Motor 20 HP, 1800 RPM

Lathe is equipped with an 18" 4 Jaw Chuck and taper attachment.

Preliminary Specifications - Subject to Verification
