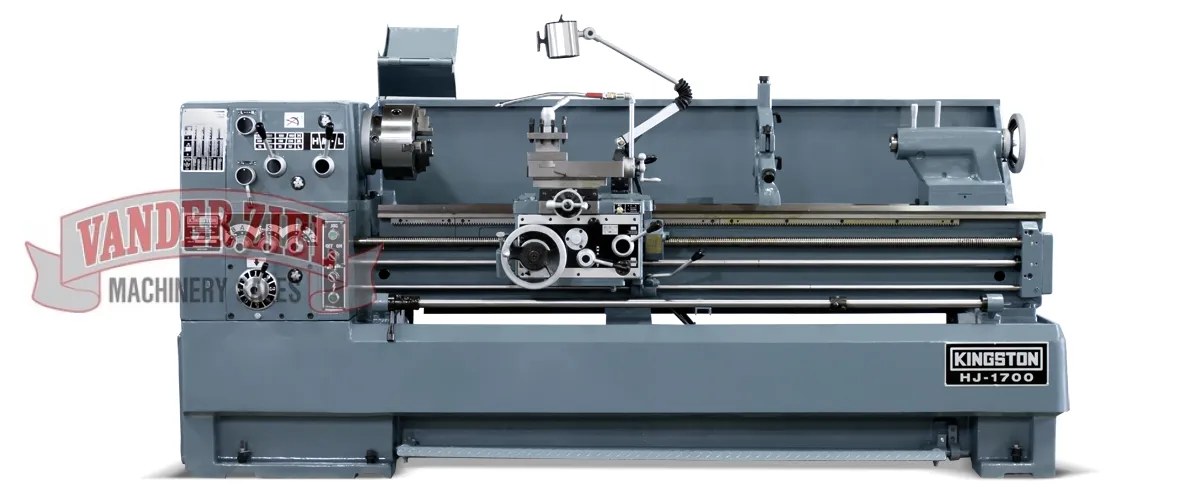

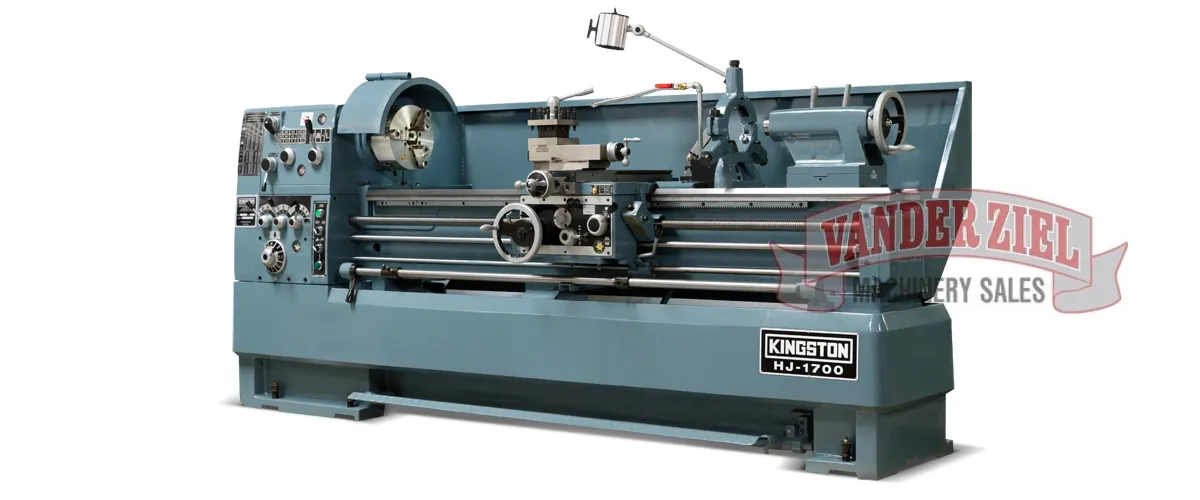

Kingston HJ-1700 (3") 17" x 67" High Precision Lathe, 3" Spindle Bore - 3PH /440 Volts
Asset # 17535
7.5 HP Motor for 230/460V, 3 Phase, 60 Cycle Wiring
2.25” Spindle Bore, 3.07" Upgrade
Spindle Nose: D1-6
12 Spindle Speeds: 35 – 2000 RPM (3" Bore: 29 – 1650 RPM)
Taiwan Made Chandox SK 10" 3-Jaw Scroll Chuck (SK 12" 3-Jaw w/ 3" Bore)
4-Way Tool Post, T-Slot Compound
4.7” Steady Rest with Roller Jaws
Coolant System With Pump And Piping

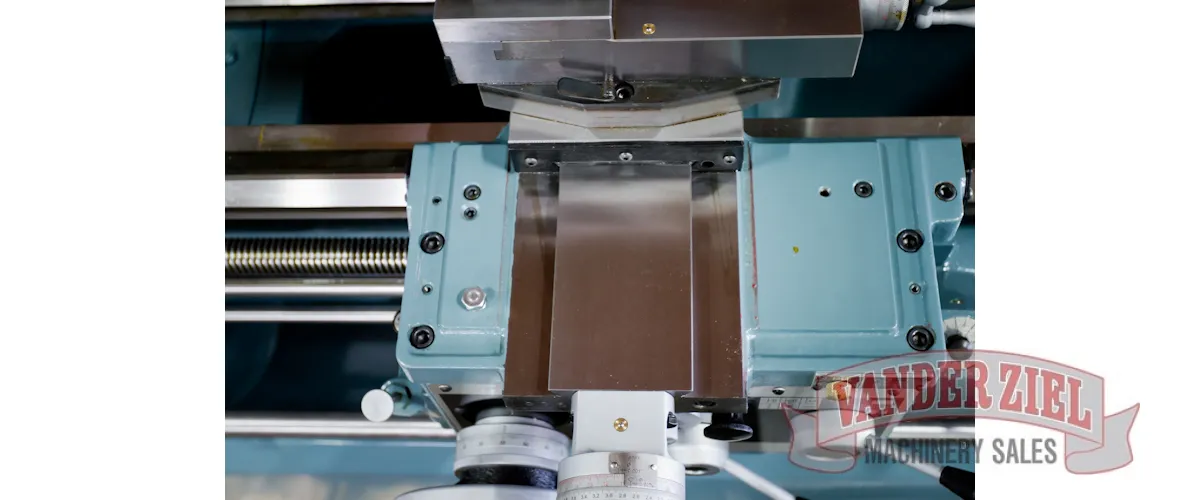

Hardened and Ground Bed and Cross Slide Ways
LED Worklight
Emergency Stop Button
Full-Length Splash Guard & Chuck Guard
Swing Over Bed: 17”
Swing Over Cross Slide: 10.6”
Swing in Gap: 24”
Distance Between Centers: 67”
Width of Bed: 11.75”
Length in Front of Face Plate: 5.9”
Height of Center from Leg Bottom: 42.3”
Spindle Bore: 3.07"
Taper of Spindle Bore & Center: M.T. #6 x #4
Type of Spindle Nose: D1-8
Number of Spindle Speeds: 12
Spindle Speeds: 29 – 1650 RPM
Number of Feed Changes: 16
Range of Feeds per Revolution - Longitudinal: 0.0012” – 0.039”
Range of Feeds per Revolution - Cross: 0.0004” – 0.0117”
Diameter and Pitch of Leadscrew: ø1.38”, 4 TPI
Range of Inch Threads: 2 – 72 TPI (44)
Range of Metric Pitches: 0.2 – 14mm (39 kinds)
Maximum Travel of Compound: 5.7”
Maximum Travel of Cross Slide: 10.4”
Tailstock Quill Travel: 6.7”
Tailstock Quill Diameter: 2.3”
Taper in Tailstock Quill: M.T. #4
Main Drive Motor: 7.5 HP
Coolant Pump Motor: 1/8 HP
Floor Space (L x W): 120” x 41”
Weight: 3,960 lbs
Preliminary Specifications - Subject to Verification
