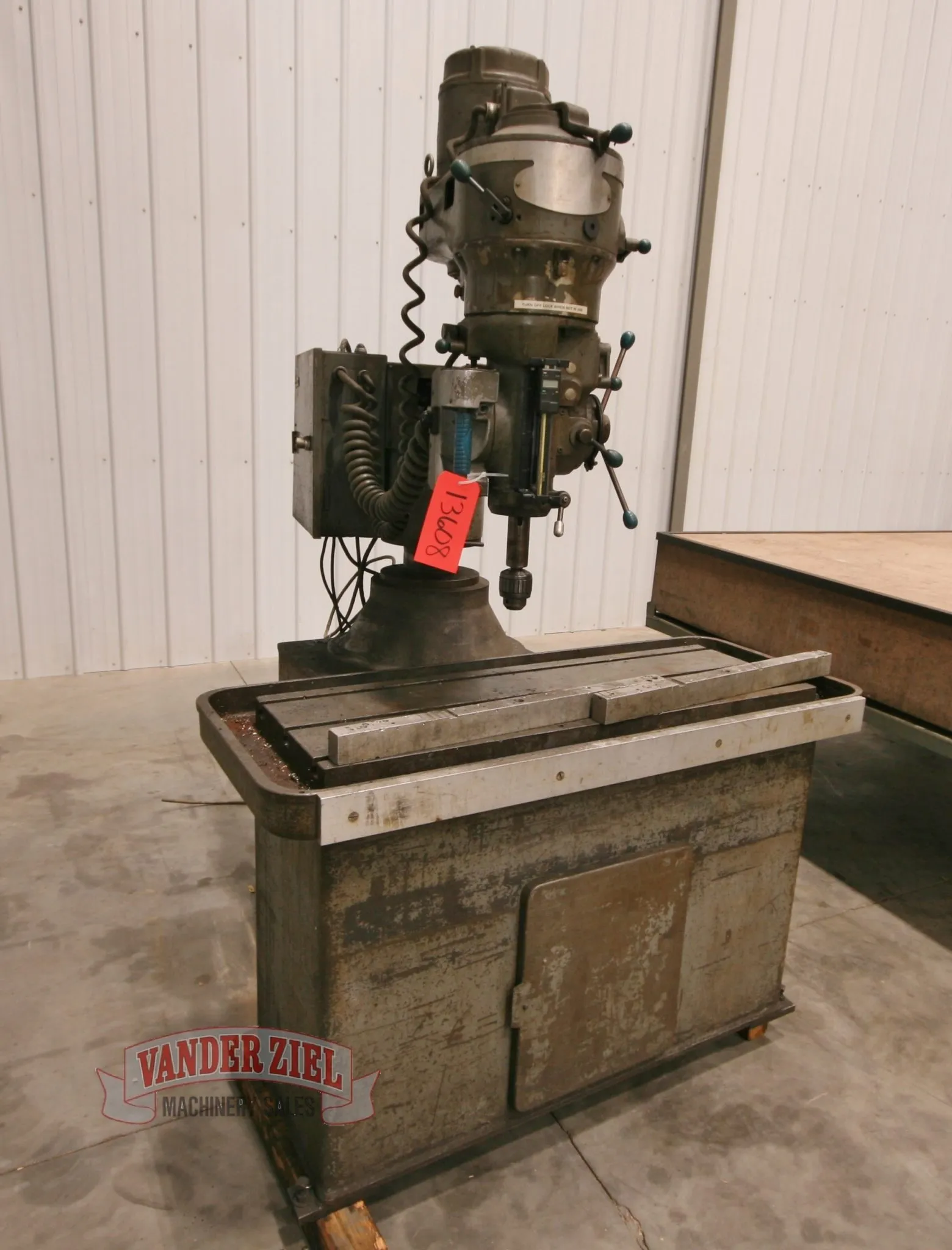

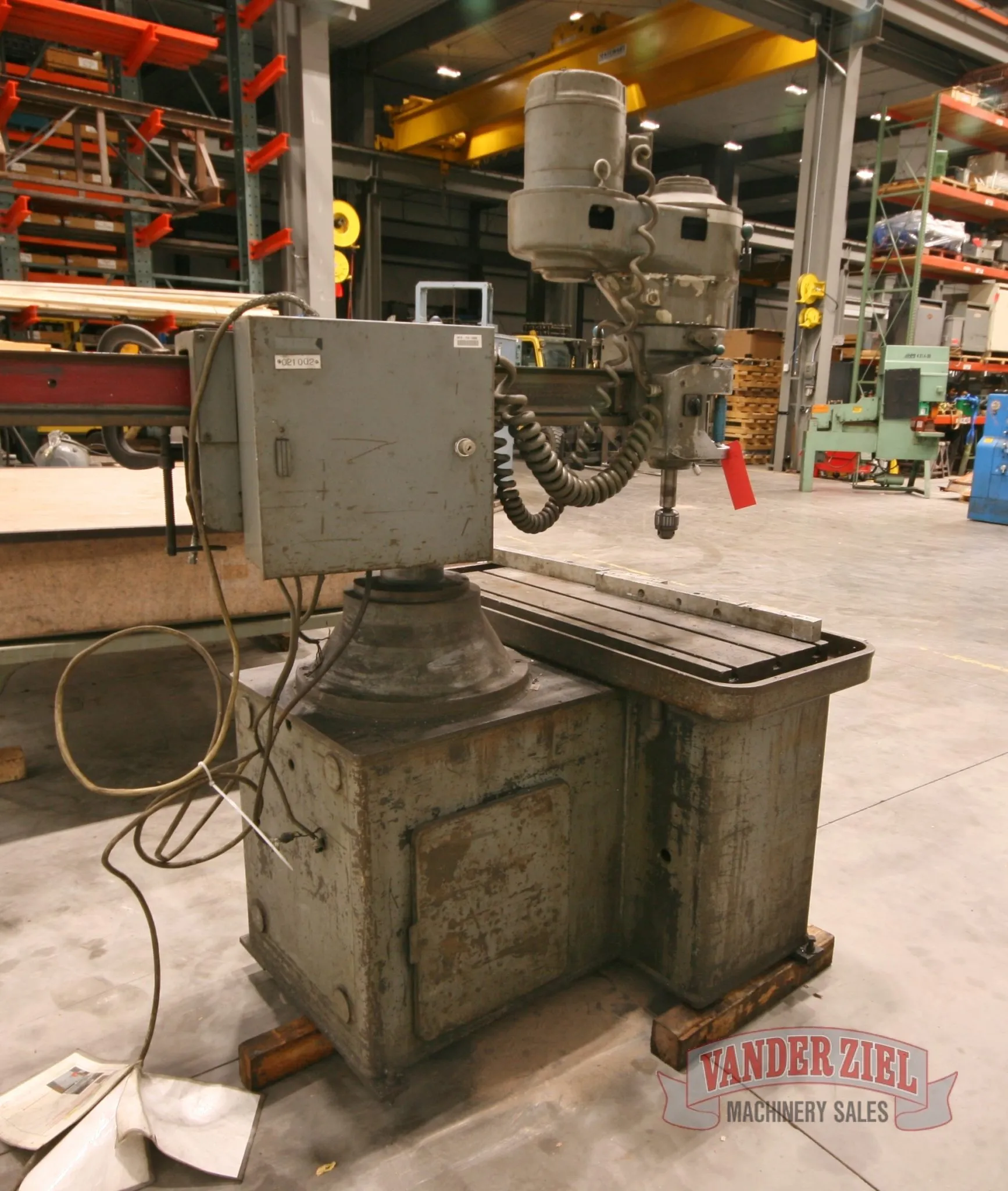

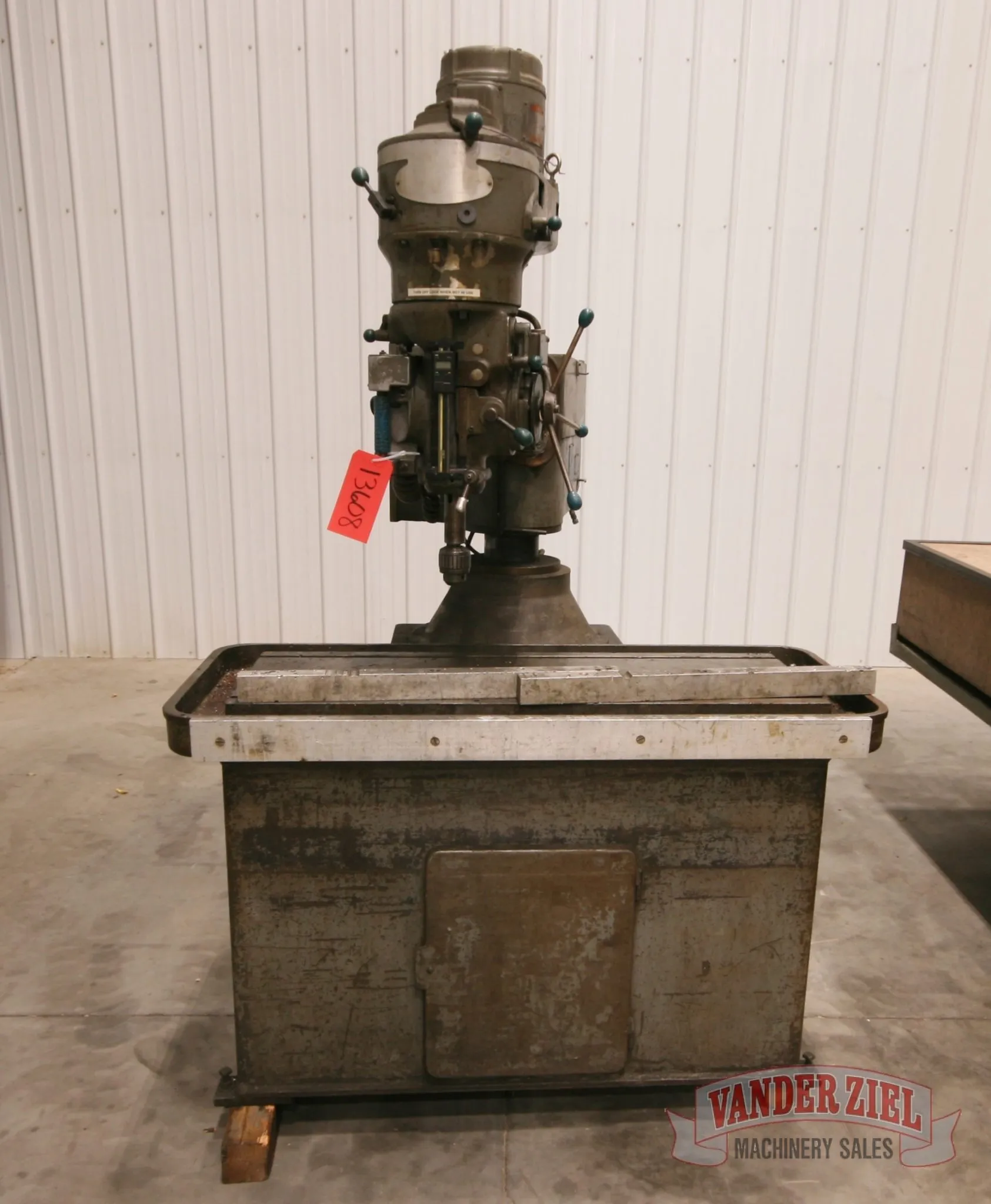

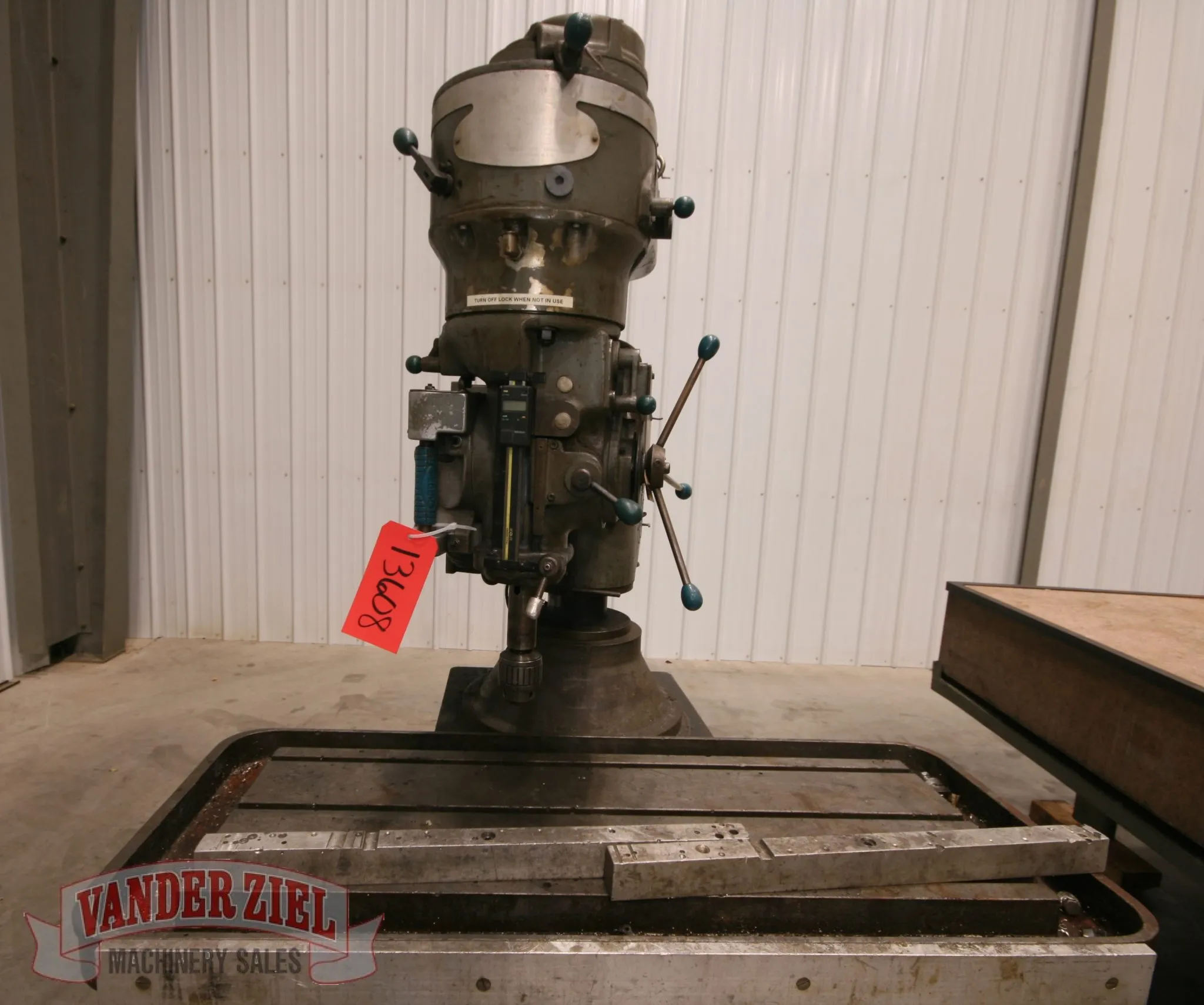

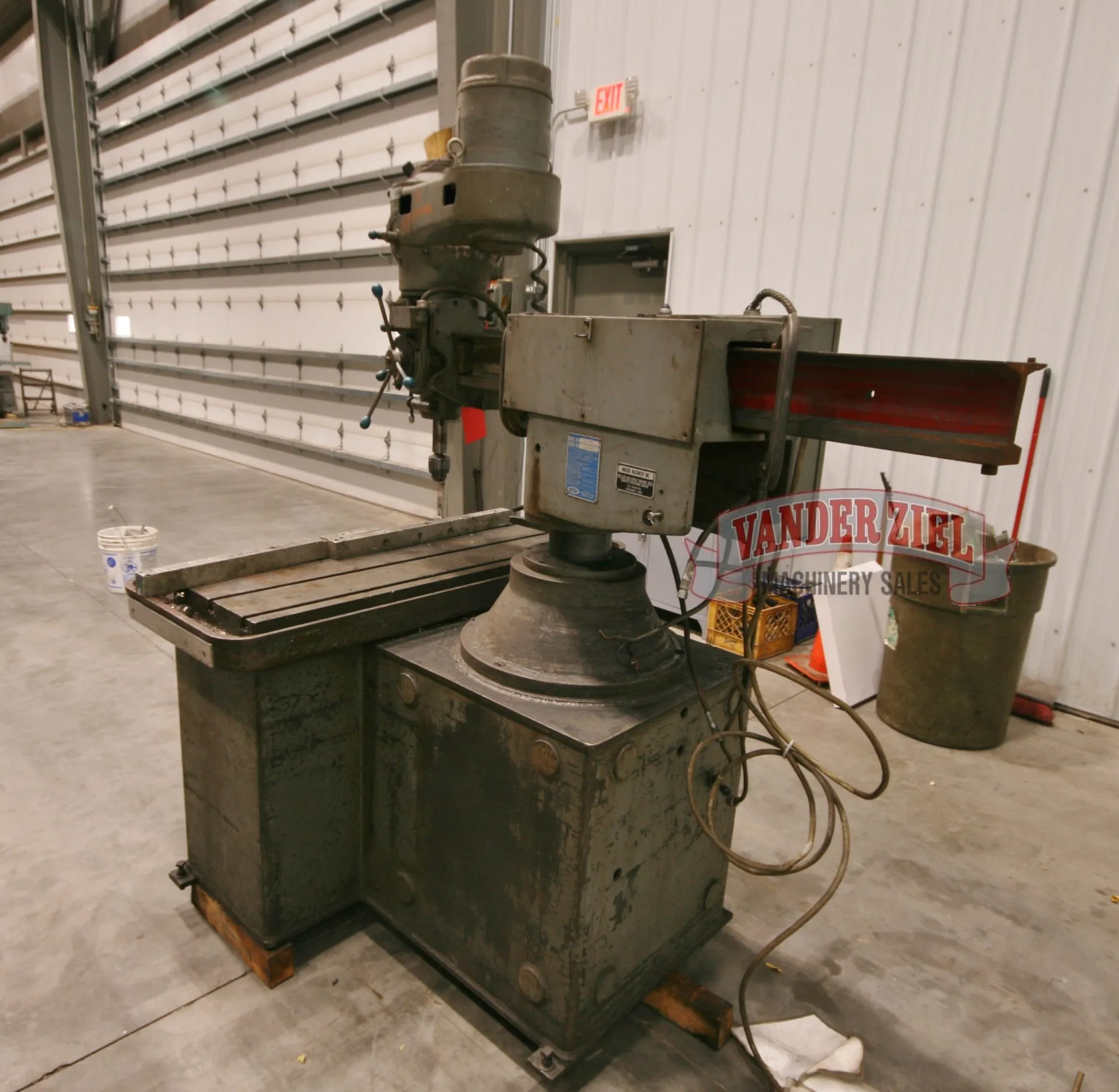

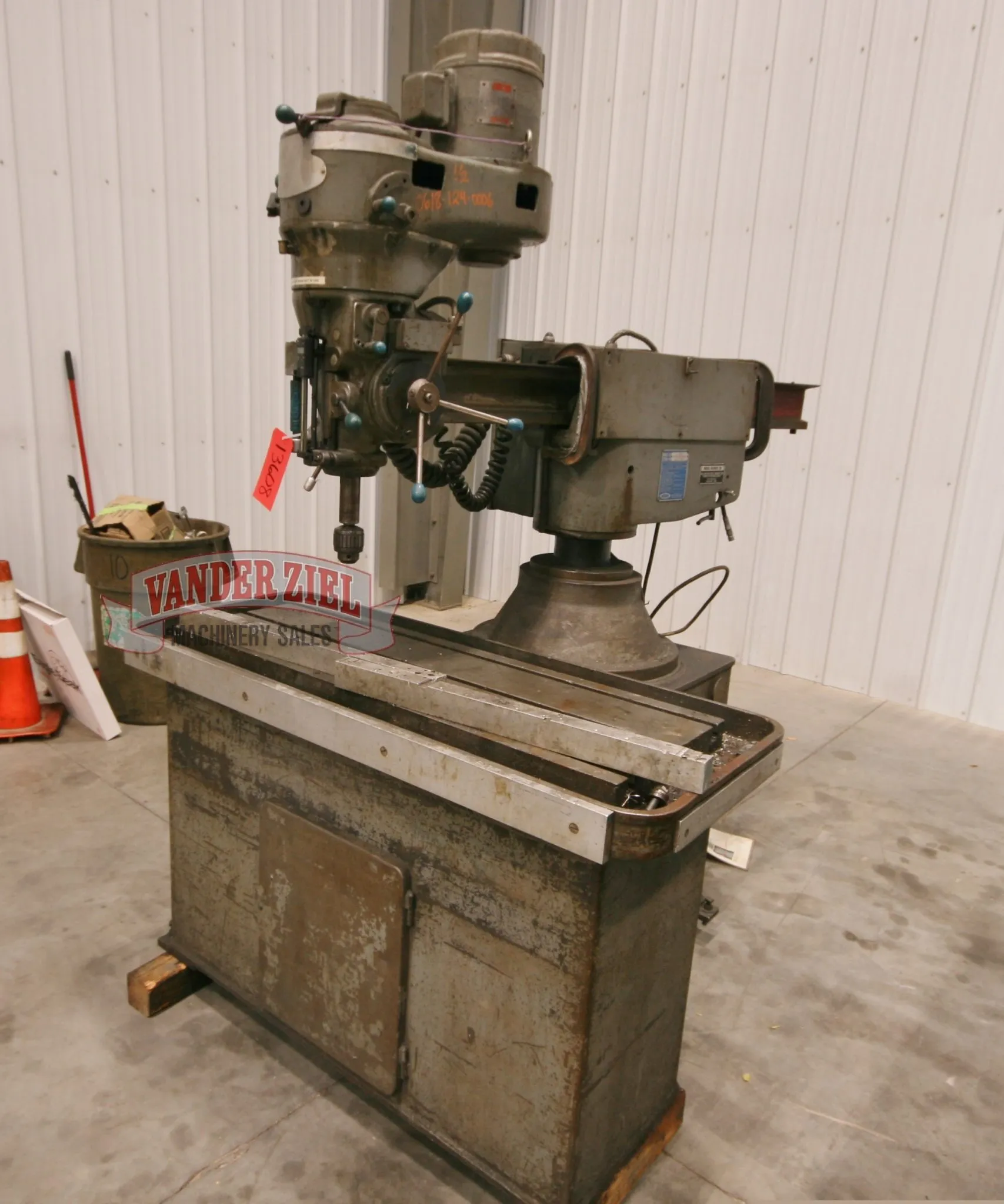

Wells Index Drill

Wells Index Drill, Model 125

Serial # 17086
Asset # 13608

Specifications:
Drilling Capacity - Cast Iron 1-1/4"
Drilling Capacity - Mild Steel 7/8"
Column to Center of Drill 8-3/4 - 41"
Table Capacity 50" x 20"
Quill Travel 5"
Quill Diameter 3-3/8"
Spindle Speeds 50 To 4200 Rpm
Spindle Taper #3 MT
Spindle Motor (2 Speed) 1.5 HP
Electrics 230/460/3/60
Weight, Approx. 2,200 Lbs.
Dimensions 72" x 54"
Height 89"

Preliminary Specifications - Subject to Verification
