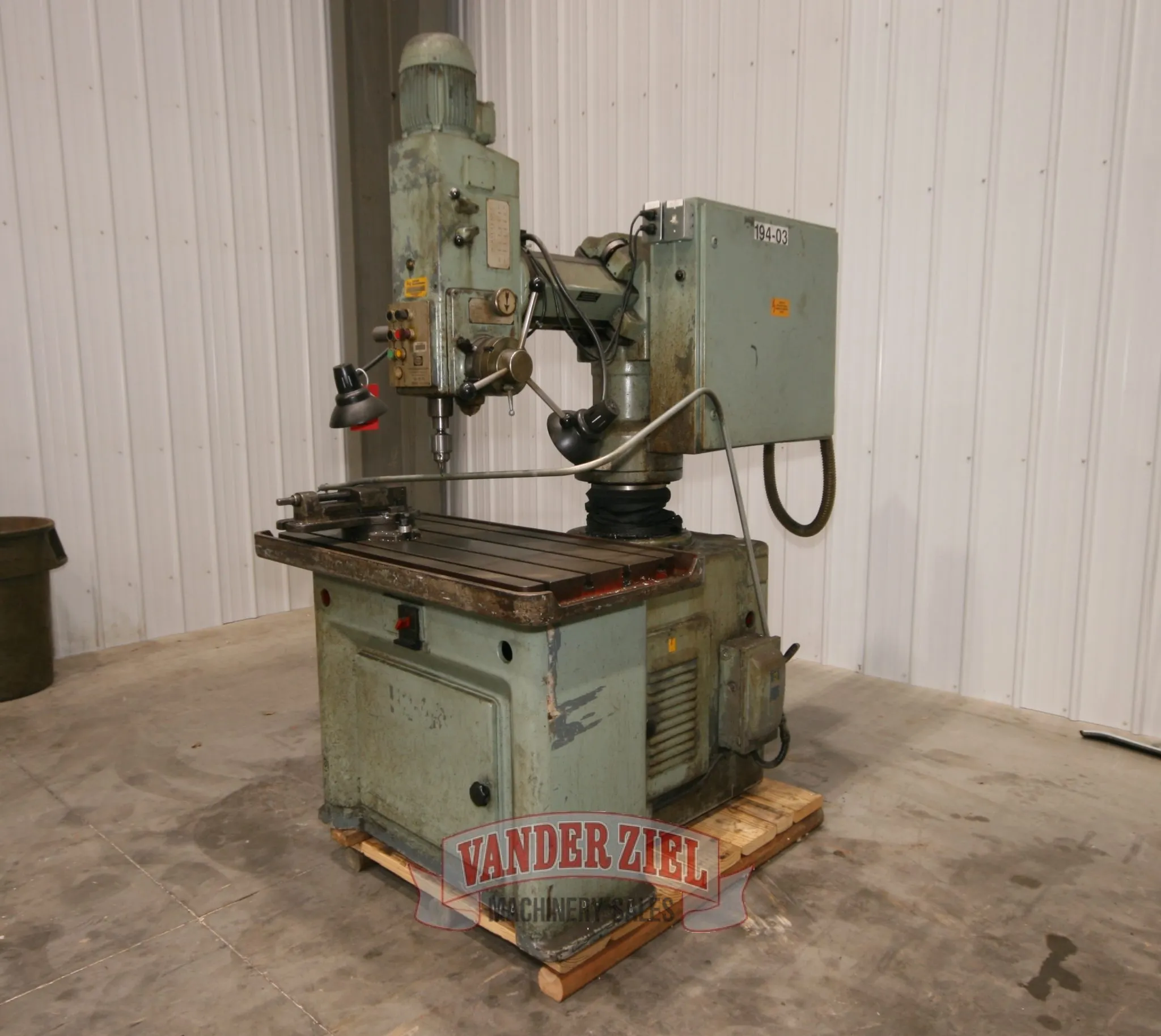

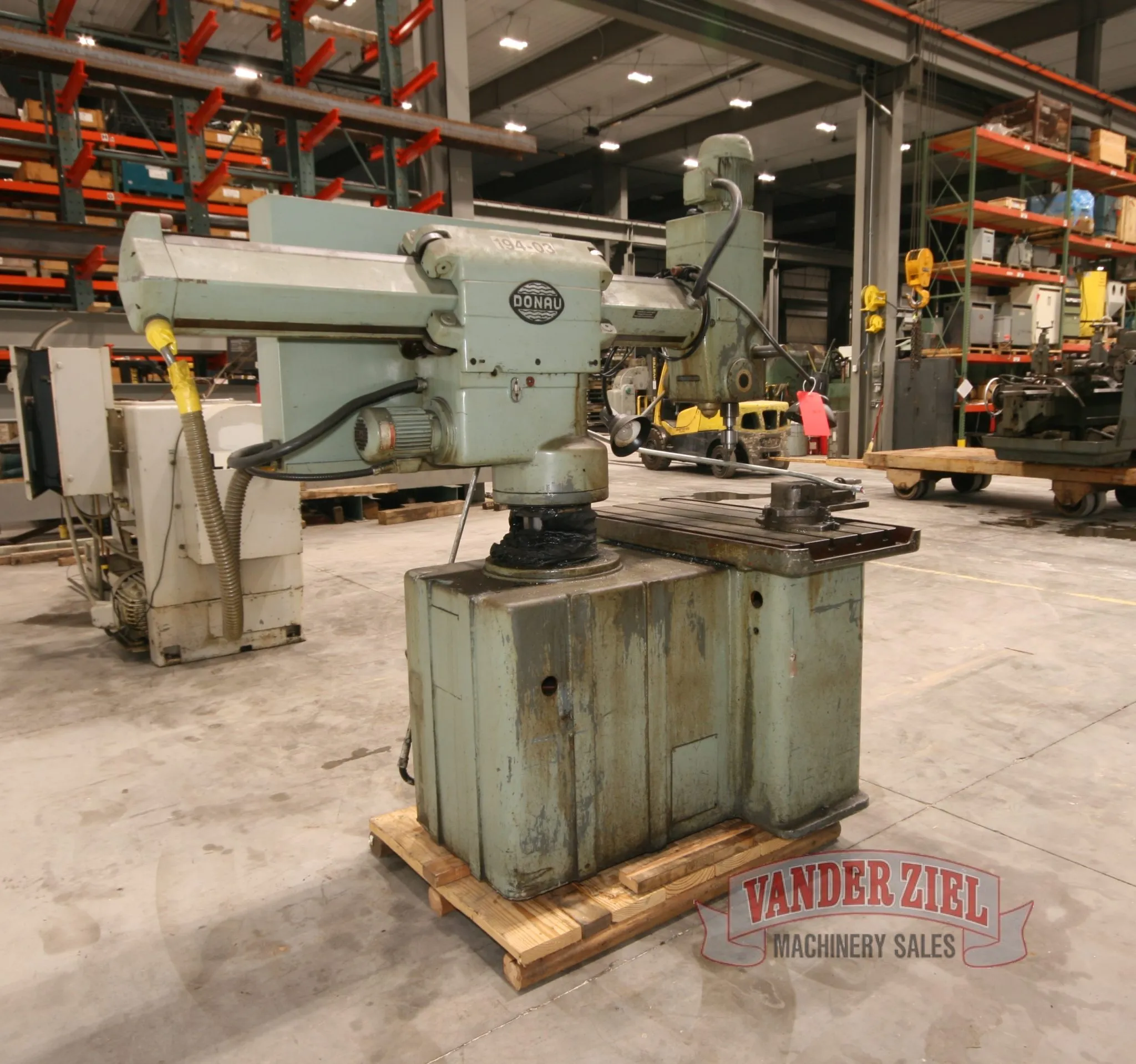

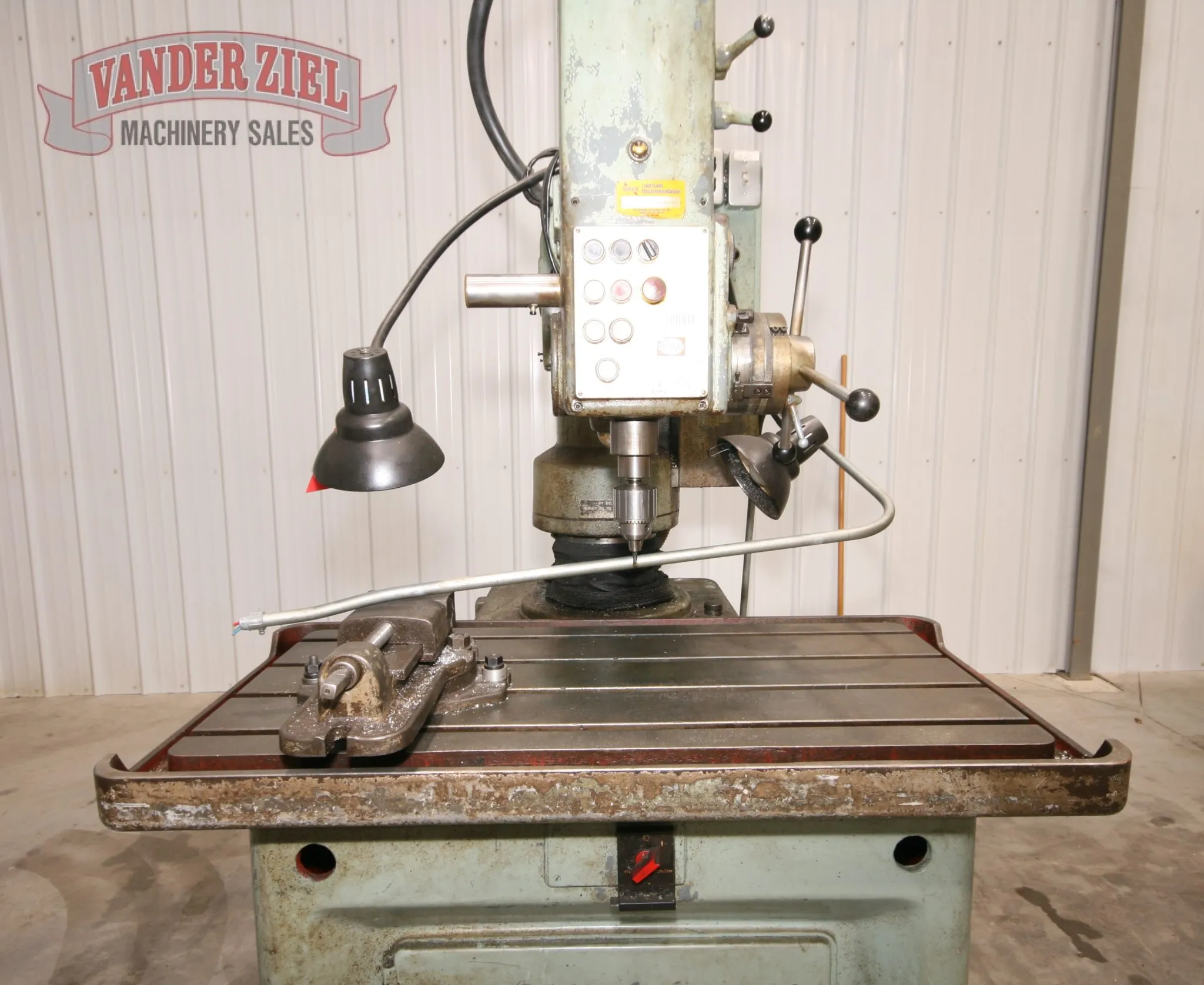

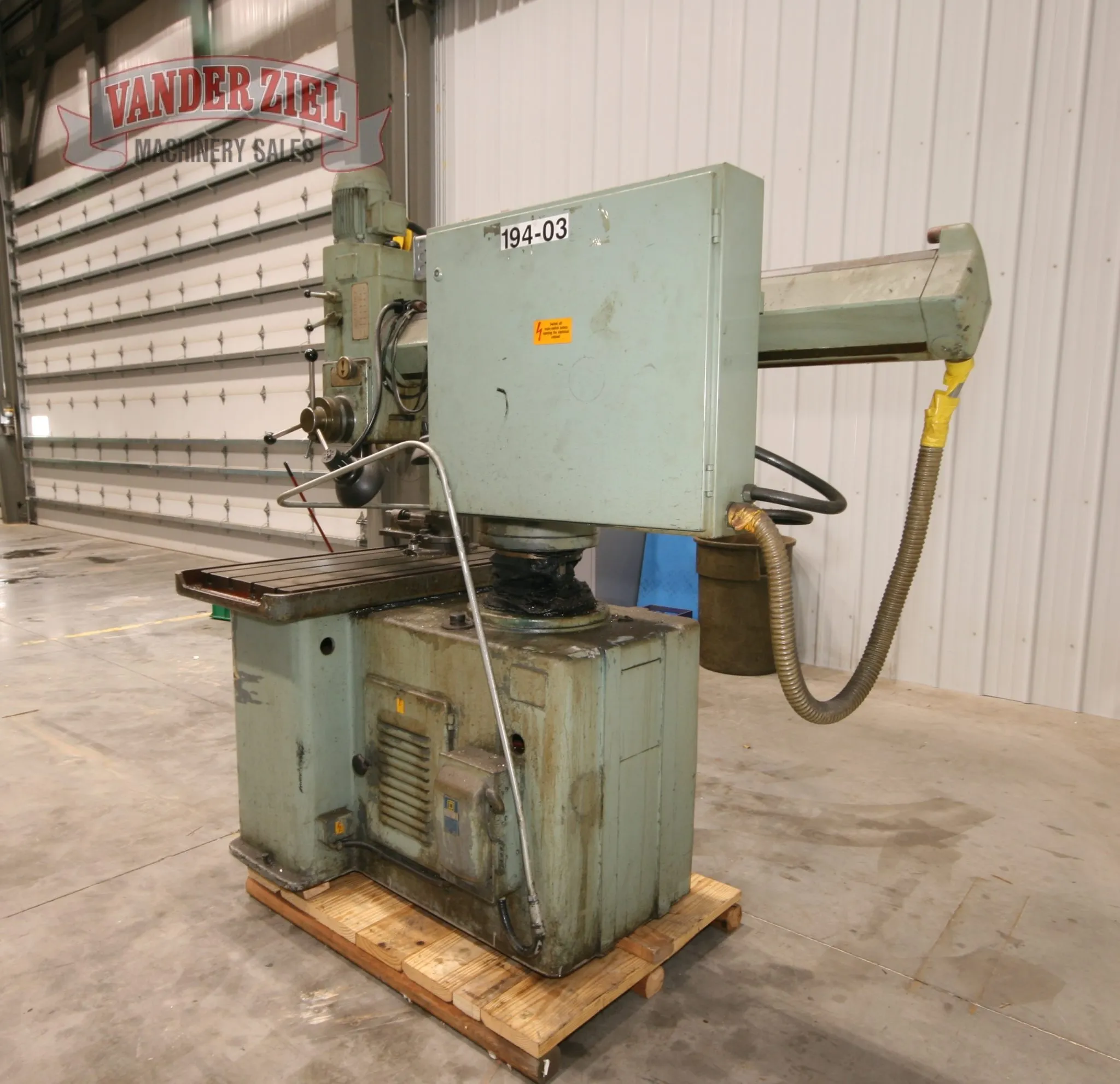

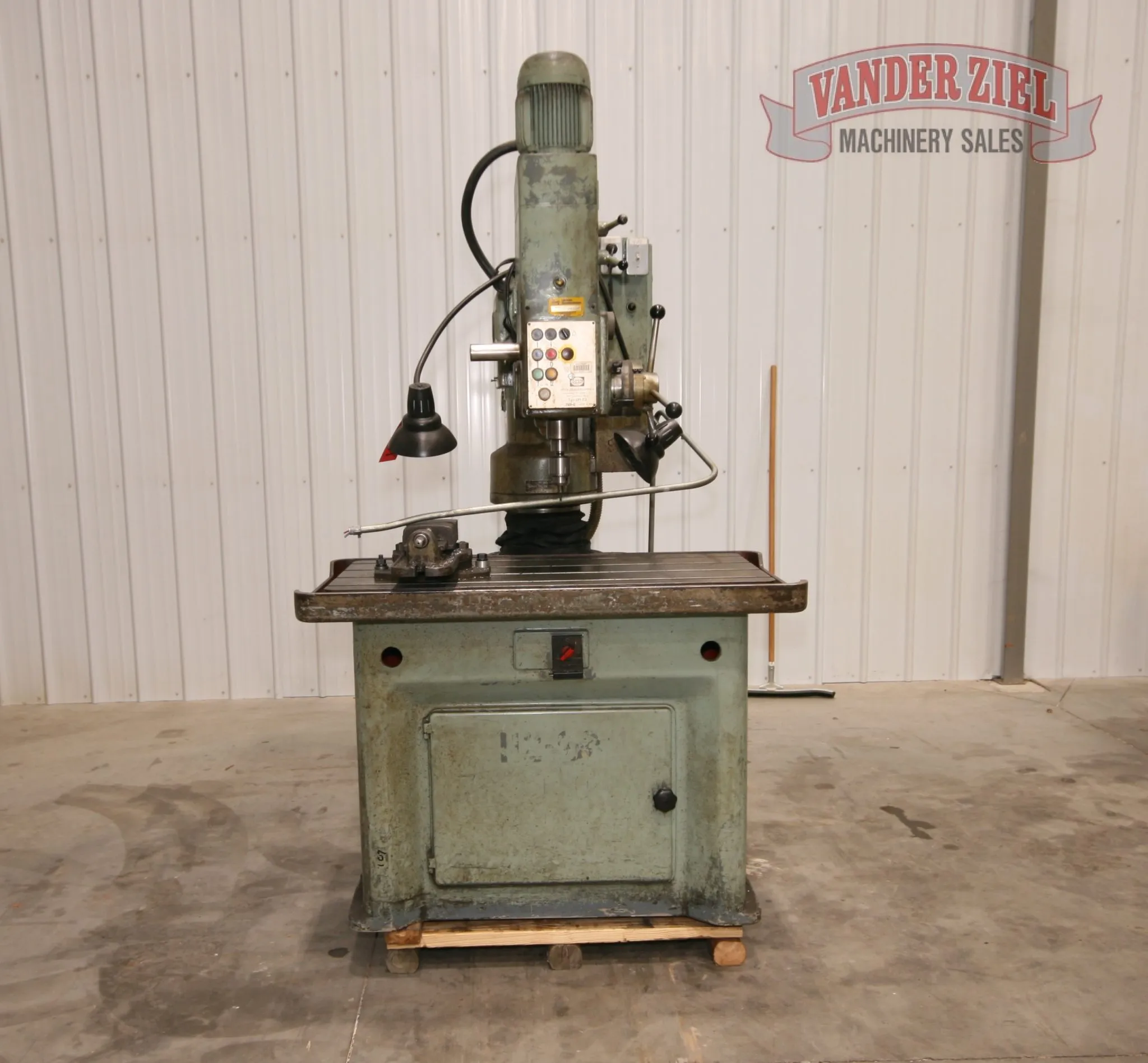

Donau 35 1/2" Sliding Radial Arm Drill

Donau 35 1/2" Sliding Radial Arm Drill, Model DR23

Serial # 2183-2
Asset # 13184

Specifications:

Drill Capacity Steel C.I.
.003 1-1/8" 1-1/4"
.006 7/8" 1"
.012 3/4" 7/8"
Morse taper of drilling spindle MT3
Diameter of column 6"
Table dimensions 19-3/4"x41-1/2"
Number of T-slots 4
Size of T-Slots 3/4", 5" On center
Distance drilling spindle to column face, max. 35-1/2"
Clearance between spindle and standard table, min/max max 26-5/32", min 8-15/32"
Clearance between spindle and baseplate, min/max max 60-1/2", min 42-3/4"
Drilling spindle stroke 6"
Number of spindle speeds 12
Speed range 108-2325 RPM
Vertical adjustment of head 8"
Drilling feeds .003-.006-.012
Height of work table 35-1/2"
Main motor 2.3 Hp
Elevating motor 1.1 Hp
Clamping motor .05 Hp
Approximate floor space 48"x72"
Approximate height 78"
Approximate weight 3600 lbs.

Preliminary Specifications - Subject to Verification
