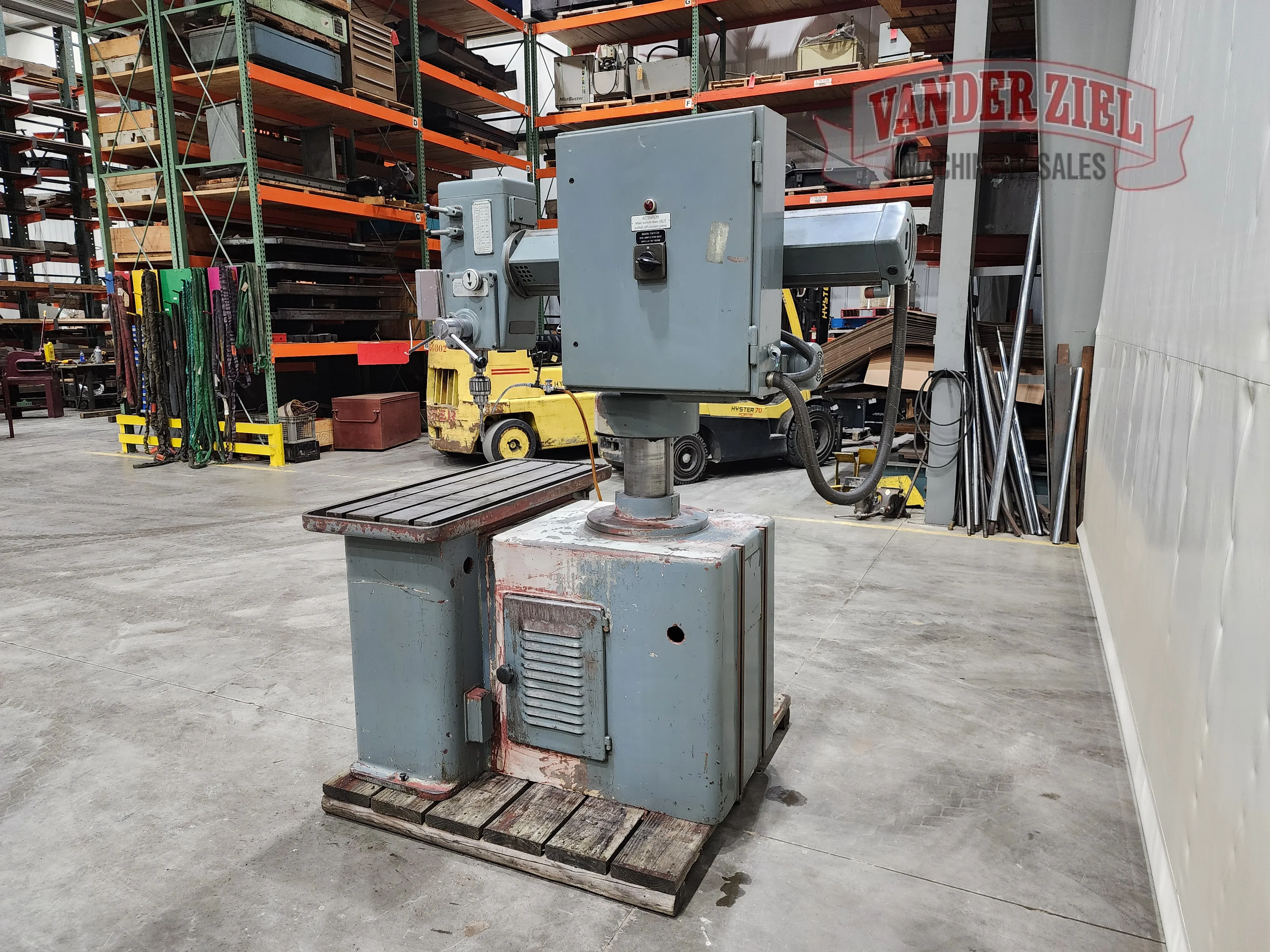

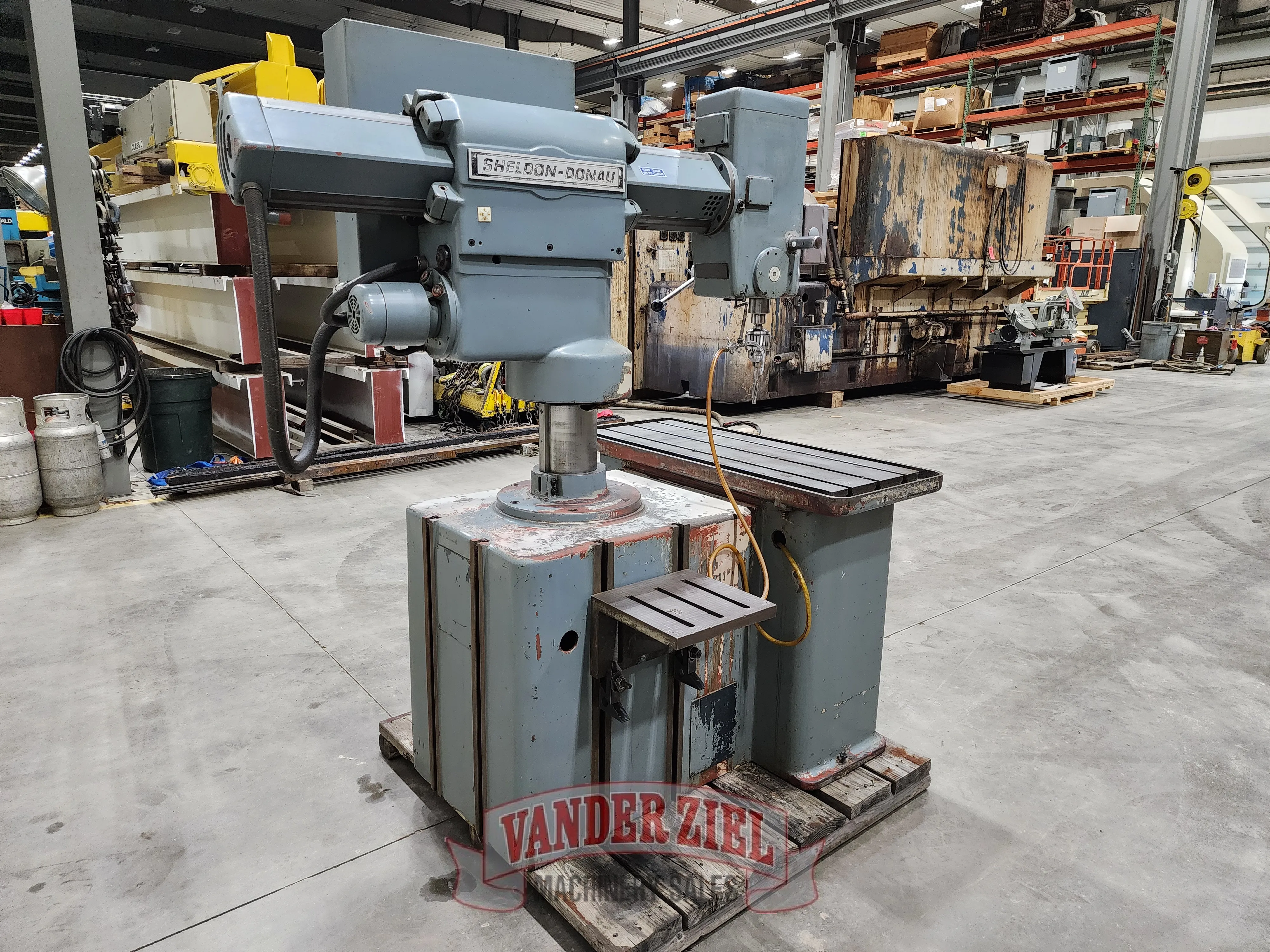

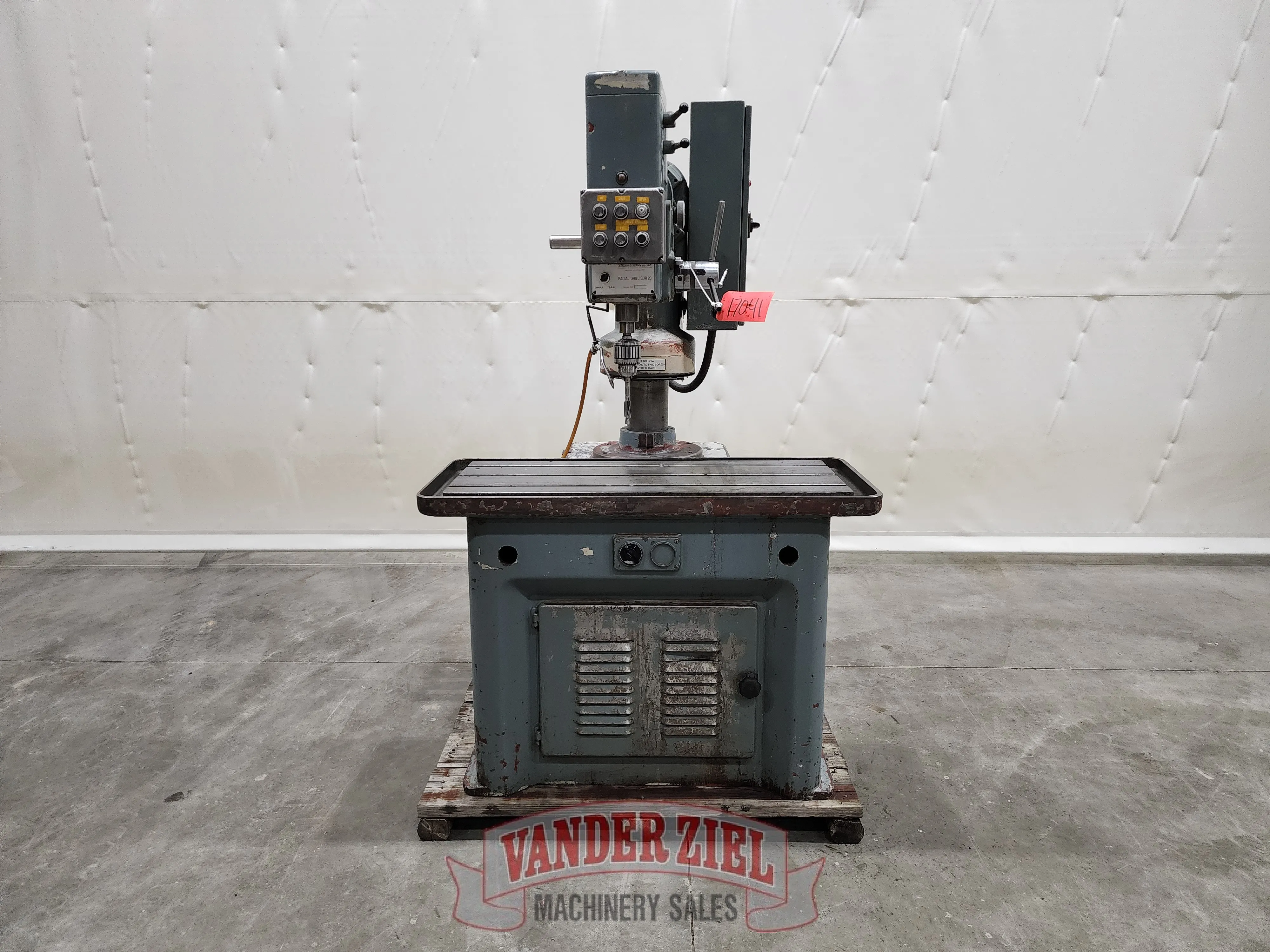

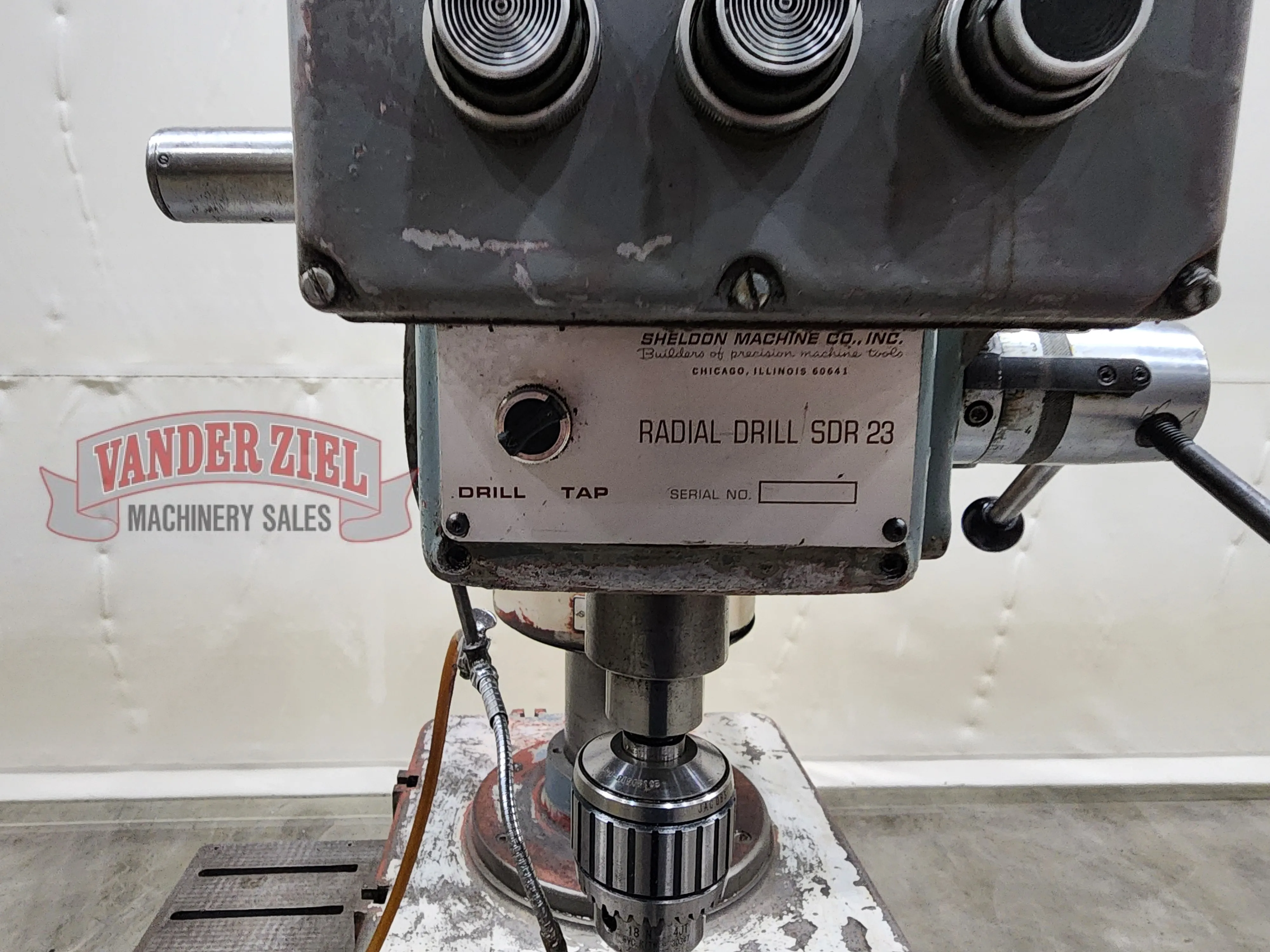

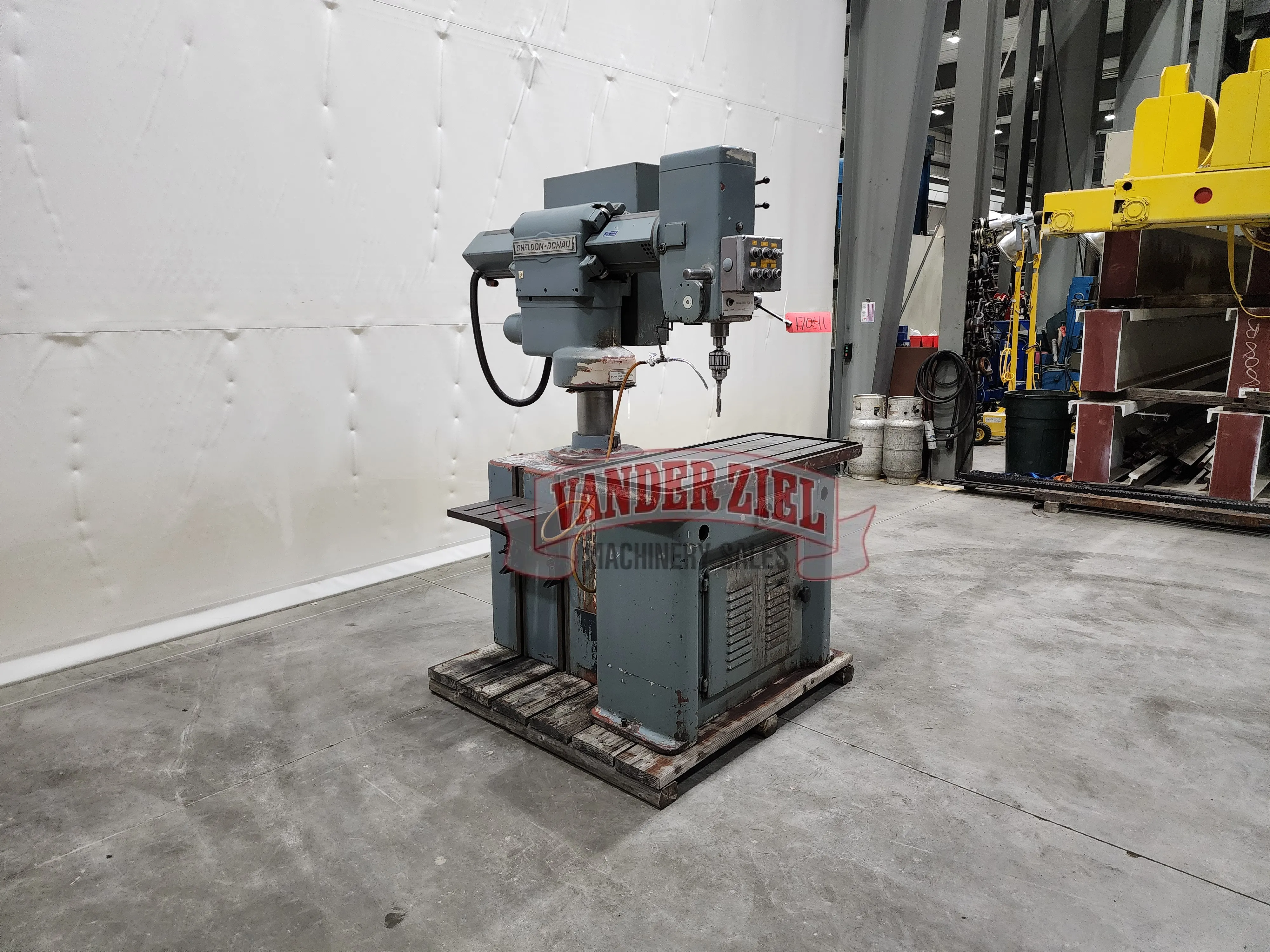

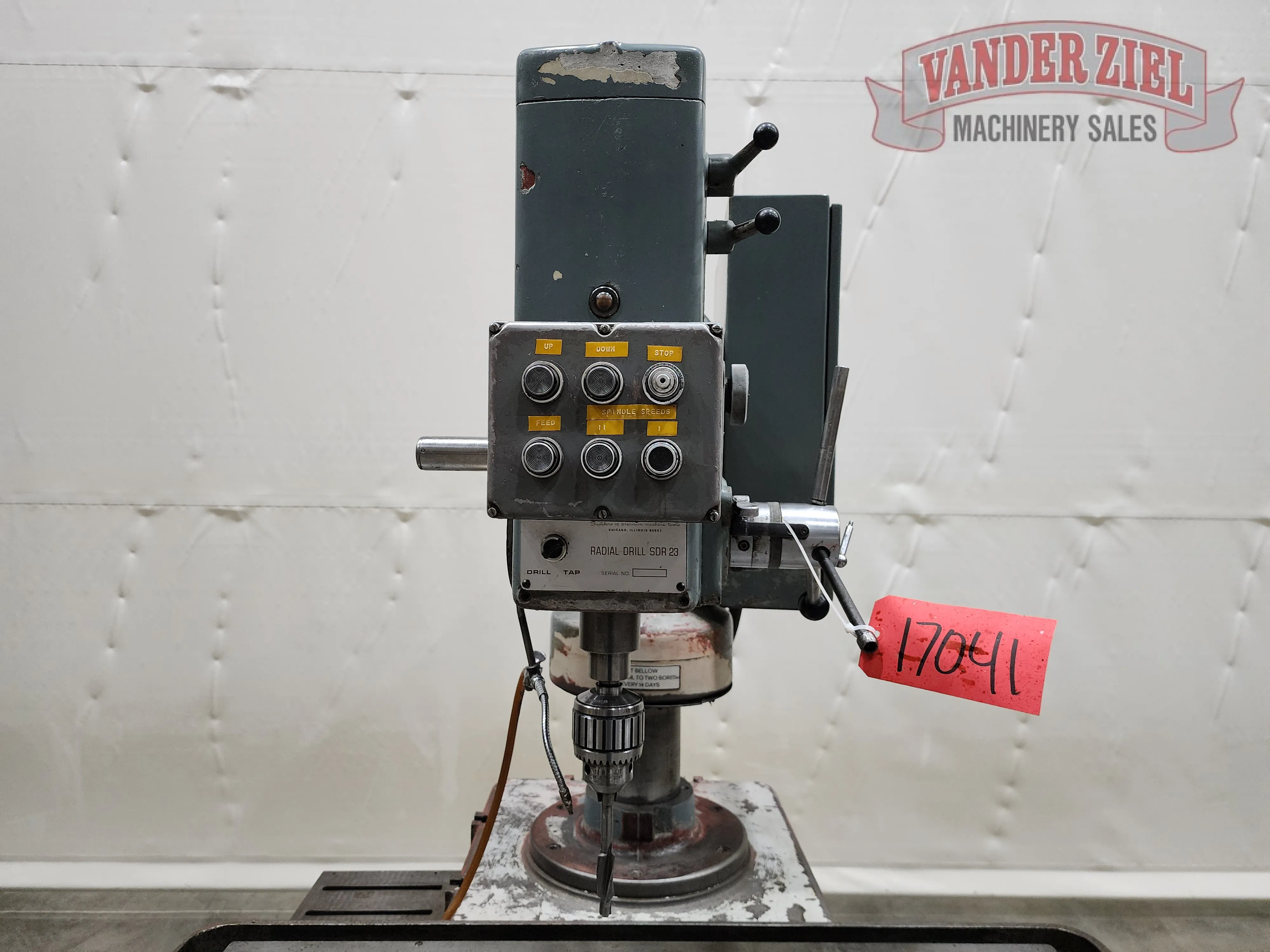

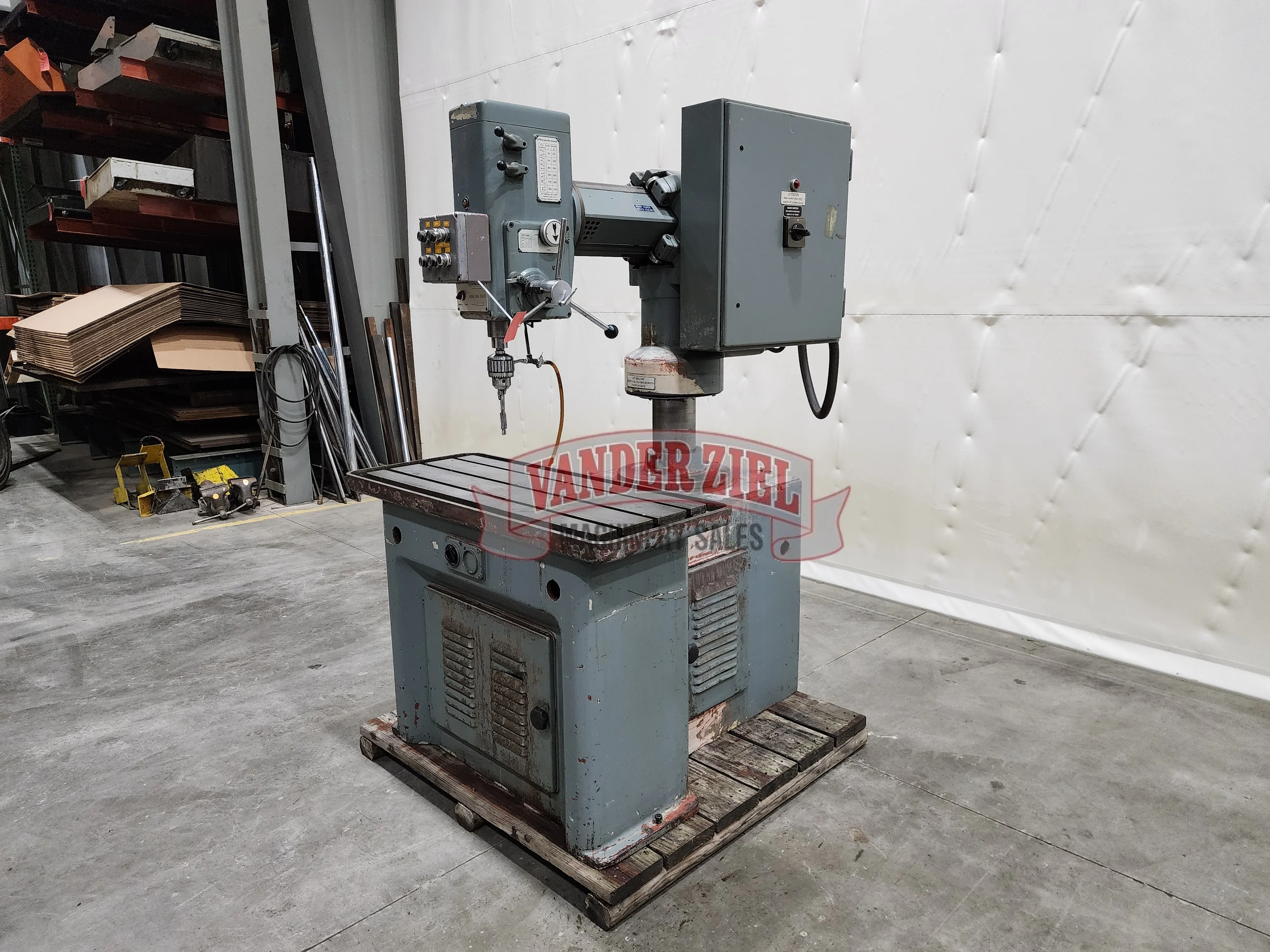

Donau (Sheldon) 26" Drill Press, Model SDR23

Donau (Sheldon) 26" Drill Press, Model SDR23

Asset # 17041

Specifications:
Drill Capacity
Steel C.I.
.003 1-1/8″ 1-1/4″
.006 7/8″ 1″
.012 3/4″ 7/8″
Tapping Capacity 7/8″ 1-1/8″
Morse taper of drilling spindle MT3
Diameter of column 6″

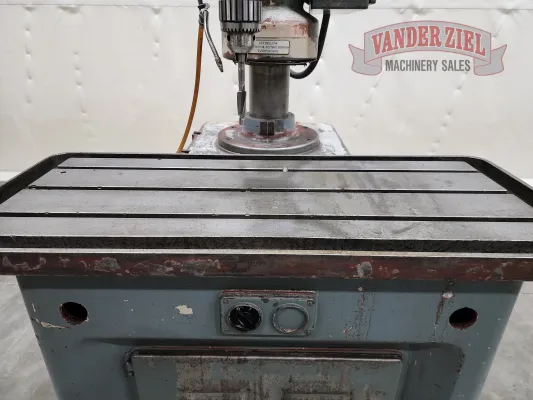

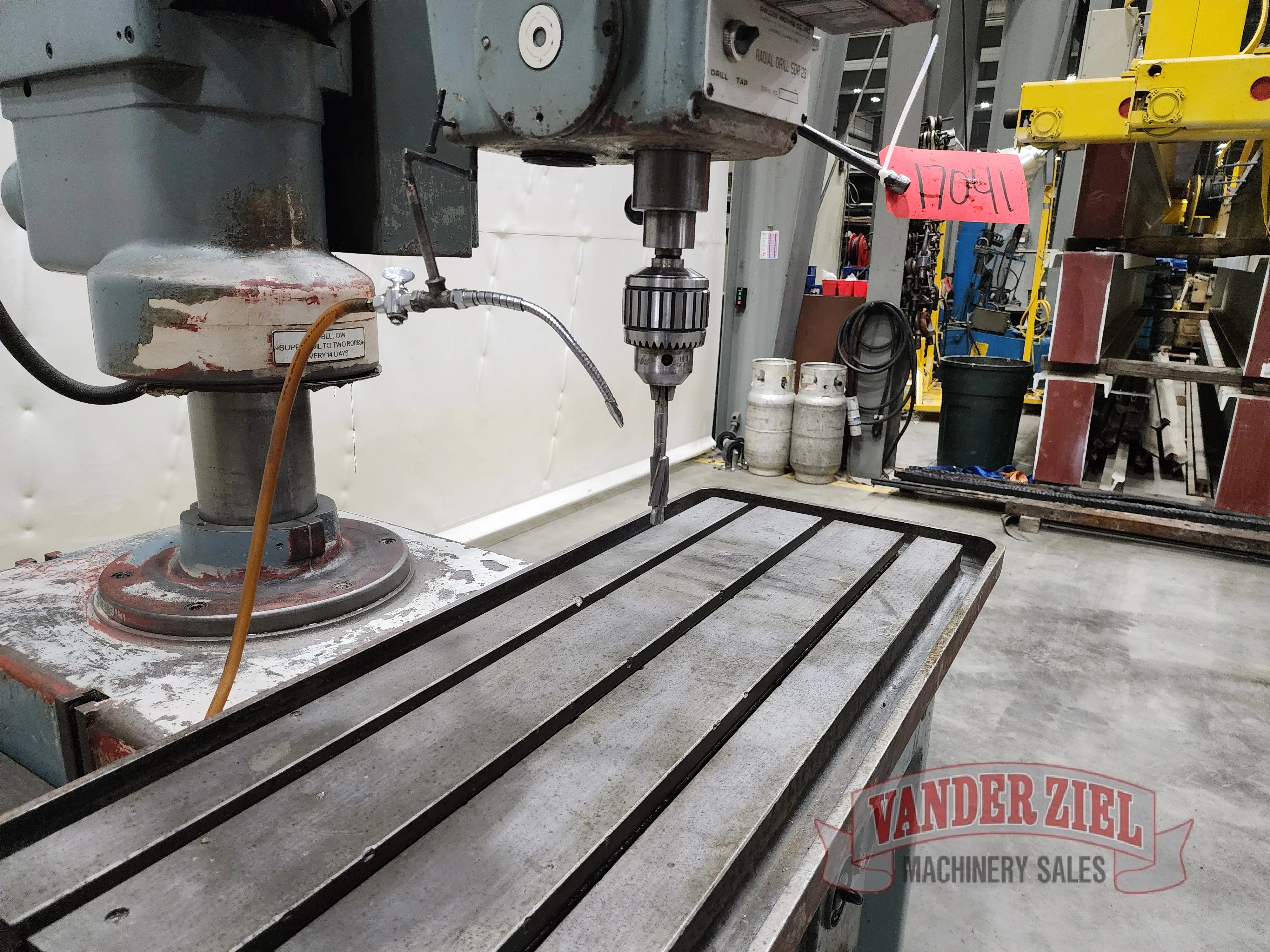

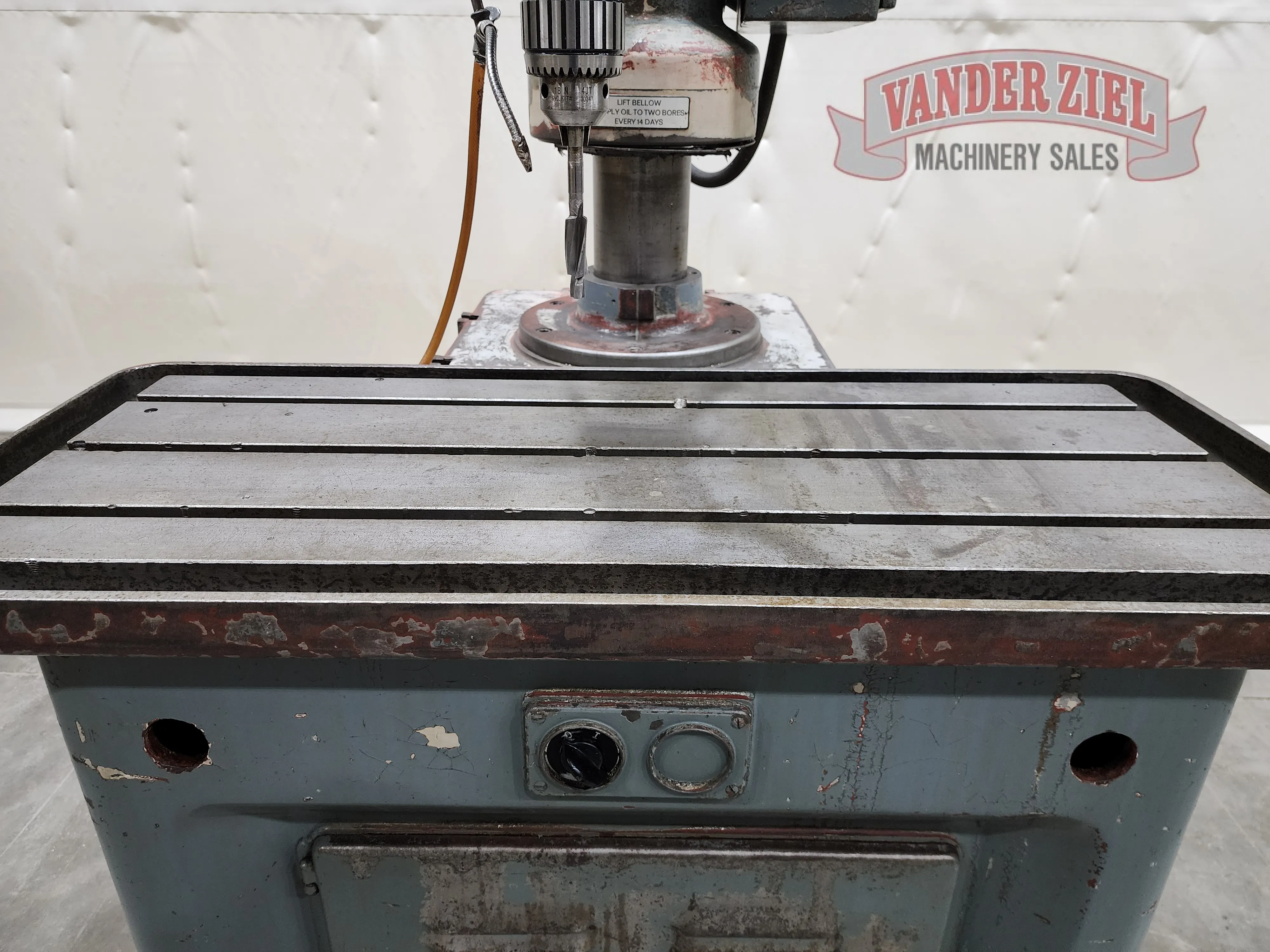

Table dimensions 19-3/4″x47-1/2″
Number of T-slots 3
Distance drilling spindle to column face, max. 35-1/2″
Clearance between spindle and standard table, min/max max 26-5/32″, min 8-15/32″
Clearance between spindle and baseplate, min/max max 60-1/2″, min 42-3/4″
Drilling spindle stroke 5″

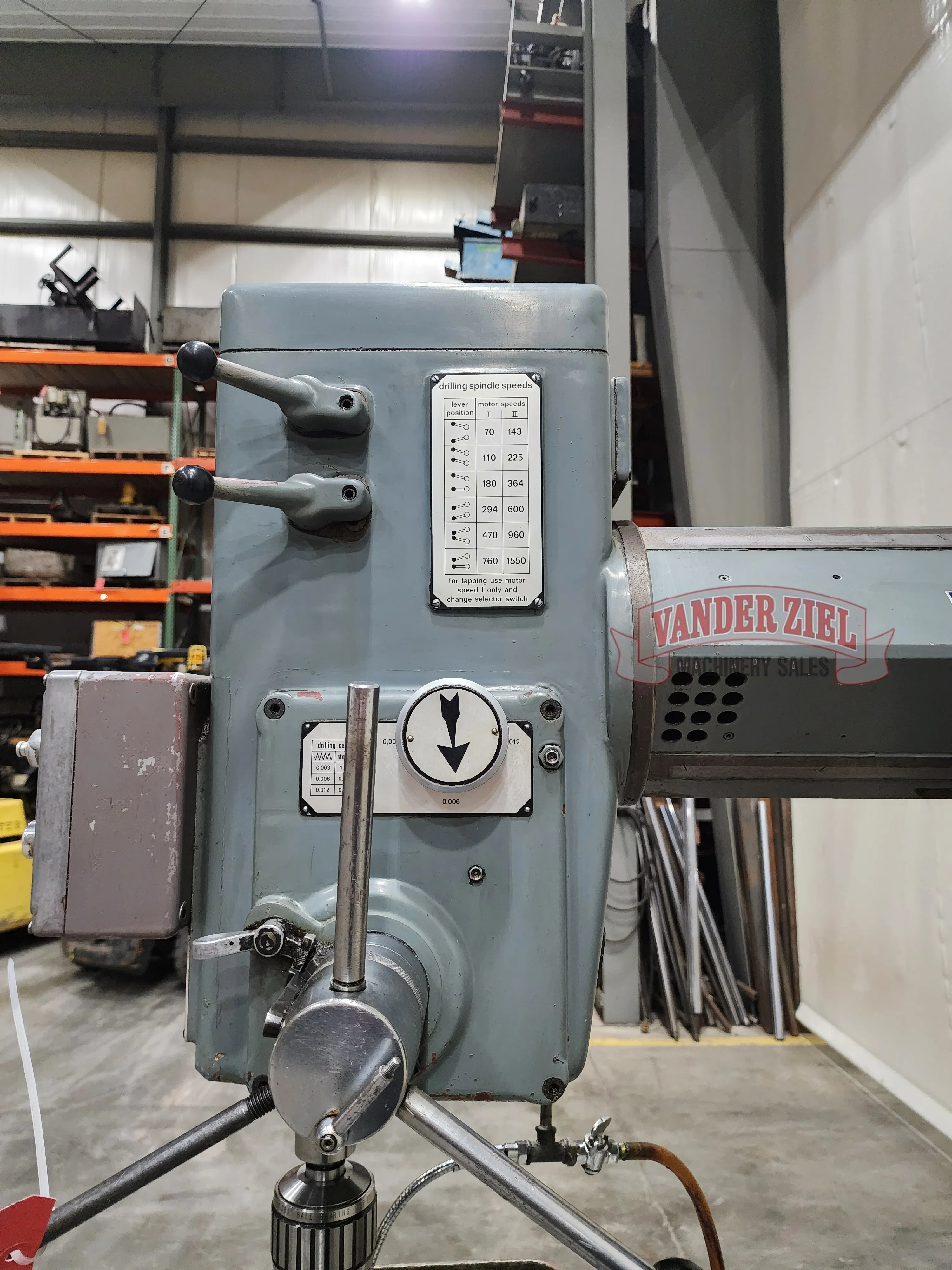

Number of spindle speeds 12
Speed range 108-2400 RPM
Vertical adjustment of head 17-3/4
Drilling feeds .003-.006-.012
Height of work table 34-1/4″
Main motor 2.3 Hp
Elevating motor 1.1 Hp
Clamping motor .05 Hp
Approximate floor space 48″x72″
Approximate height 78″
Approximate weight 3600 lbs

Preliminary Specifications – Subject to Verification
