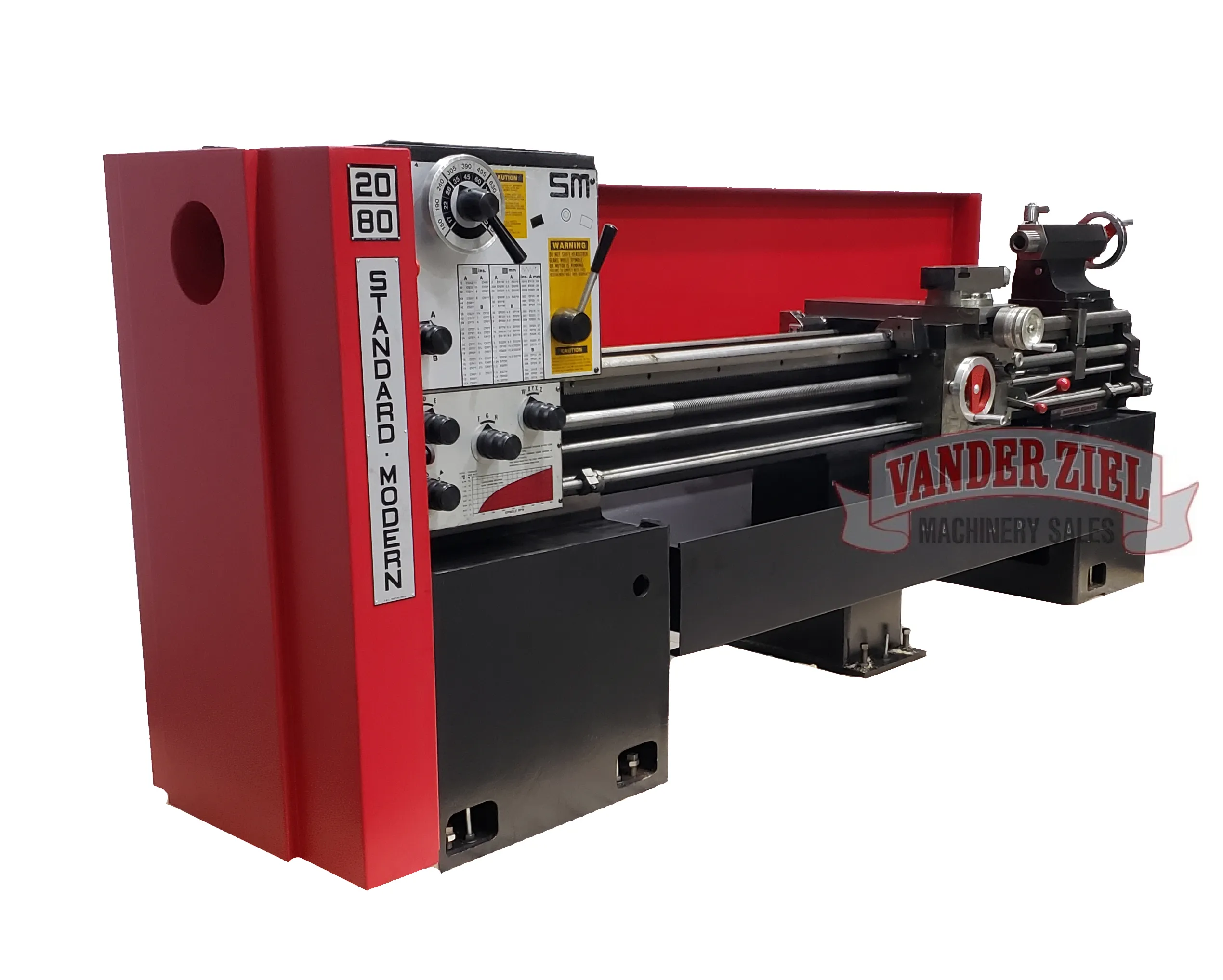

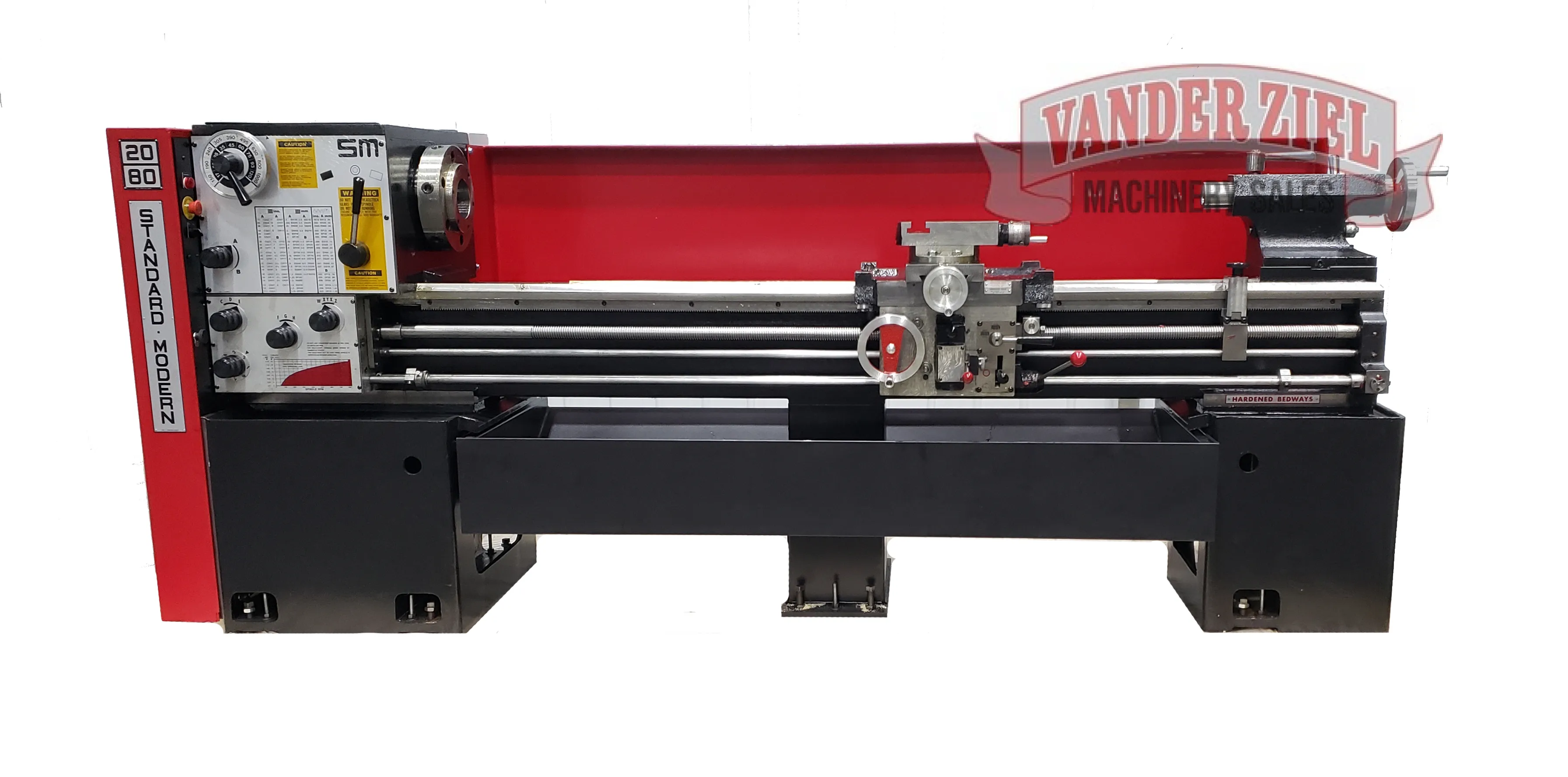

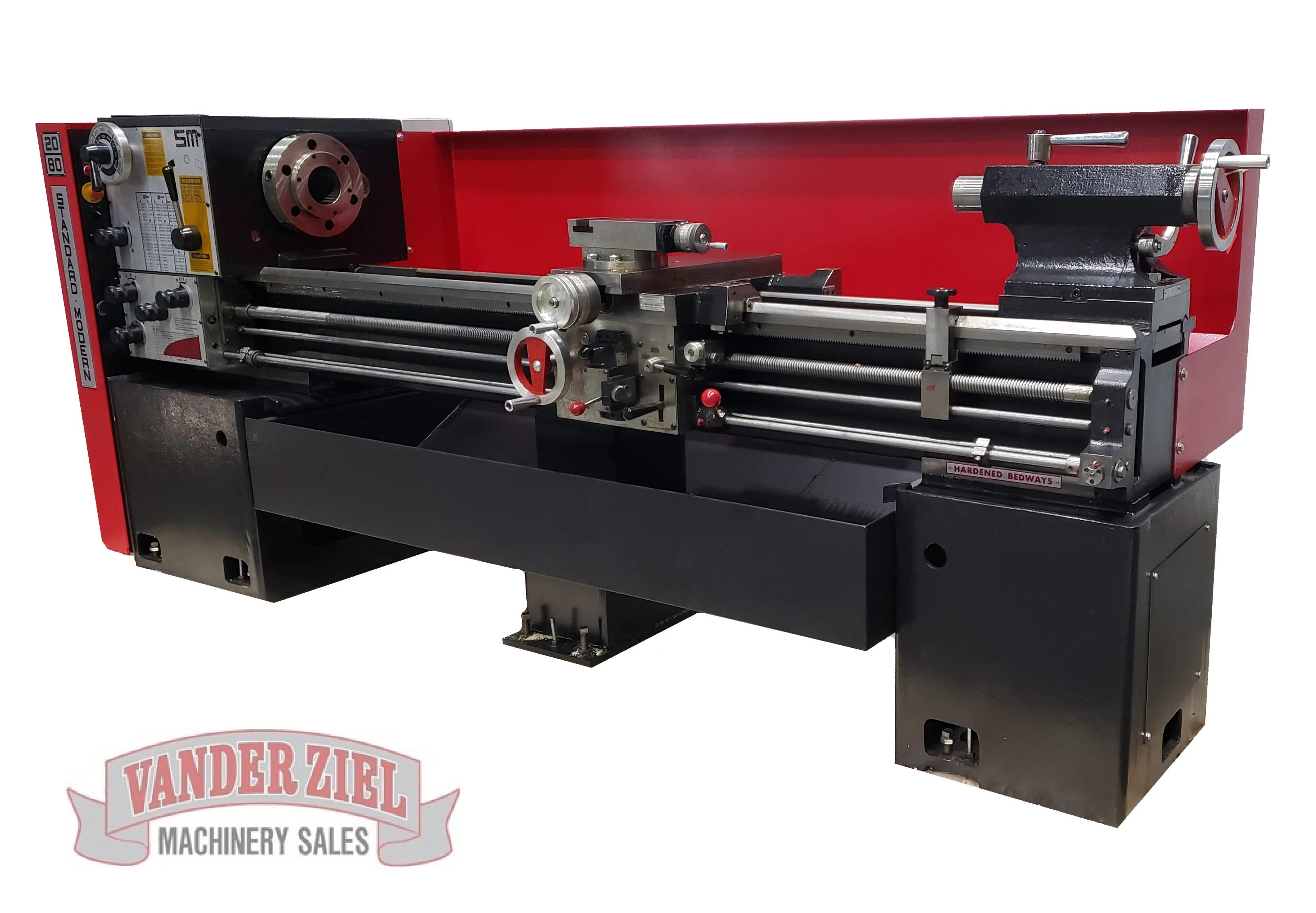

Standard Modern 20" x 80" Lathe

Standard Modern 20" x 80" Inch & Metric Lathe, Model 2000 - NEW

Asset # 14564
Serial # 764313

Features:
Capacity: 20" Dia. Swing - 80" Between Centers
15 HP Continuous Duty
18 Speed Range 27-1600 RPM
D1-11" Camlock - 3 Bearing Spindle
Inch-Metric Feed Box - Switchable
Super Stiff Bed - Ready to Future Tools
Leadscrew Reverse - Standard
Metric Threading without Spindle Reverse

Machine
Swing Over Bed up to 9" ahead faceplate 22"
Swing Over Bed and Saddle Wings 20"
Swing Over Cross Slide 12"
Distance between Centers 80"
Driving Motor 15 HP
Bar Capacity 4"

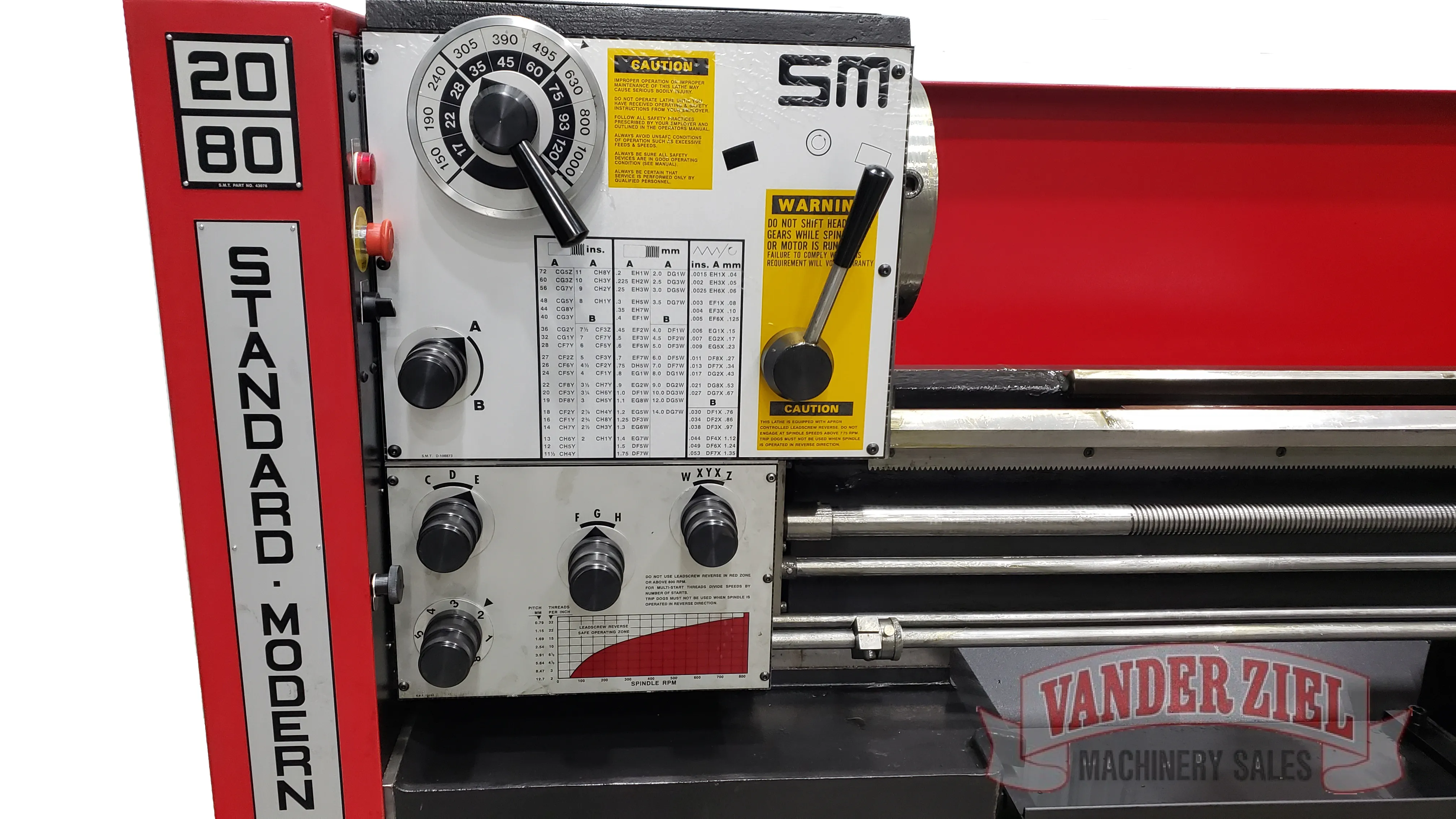

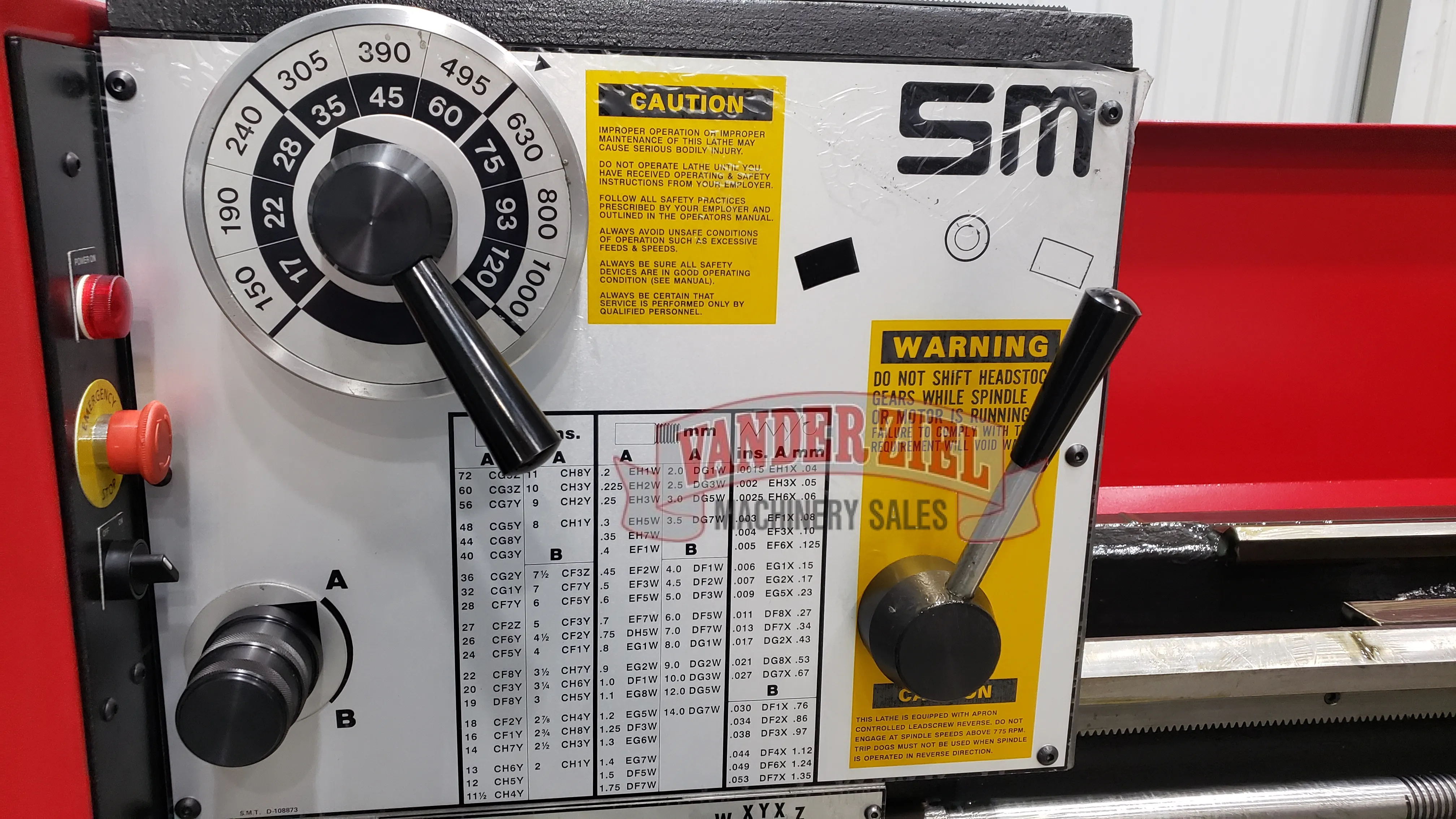

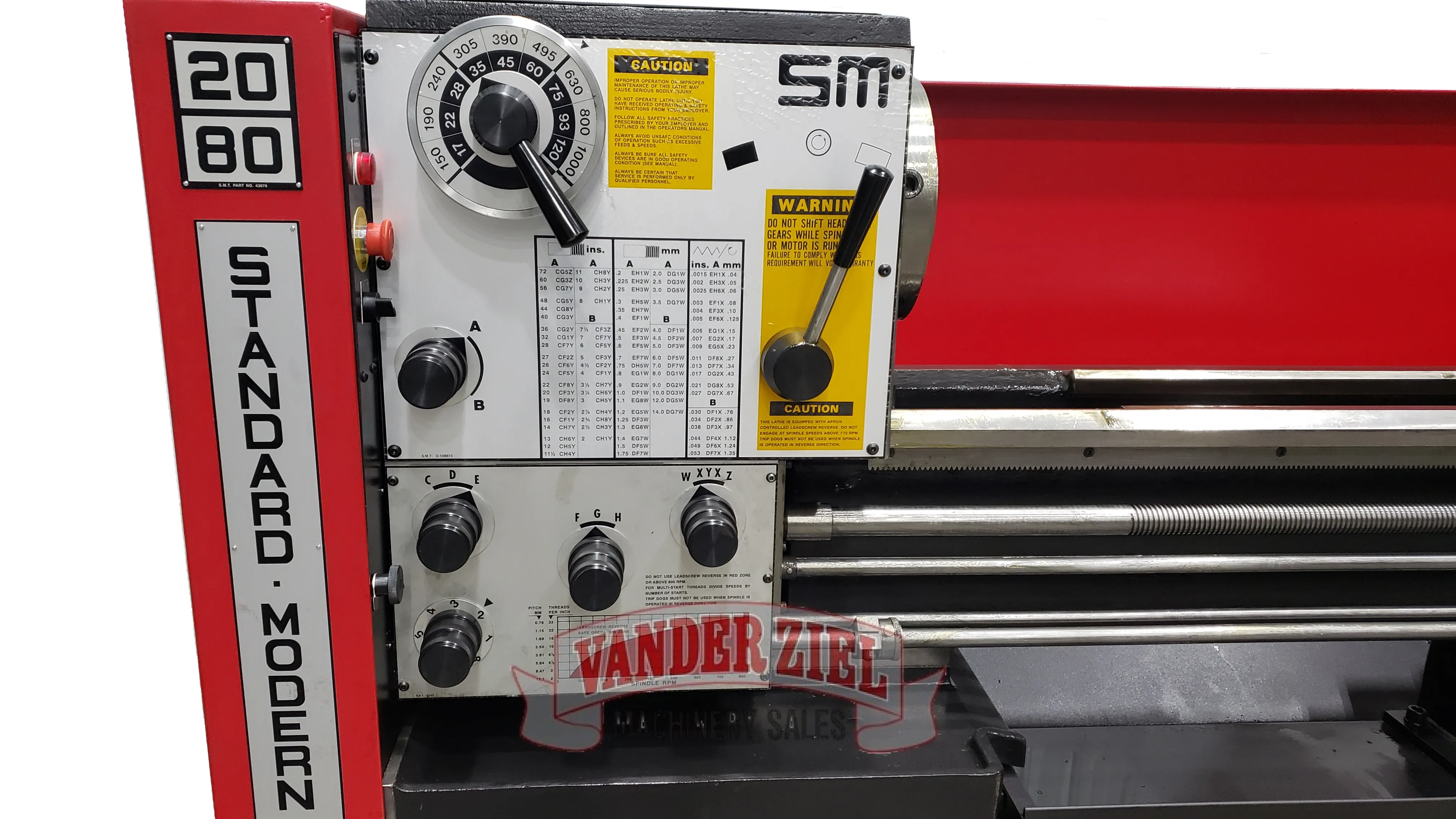

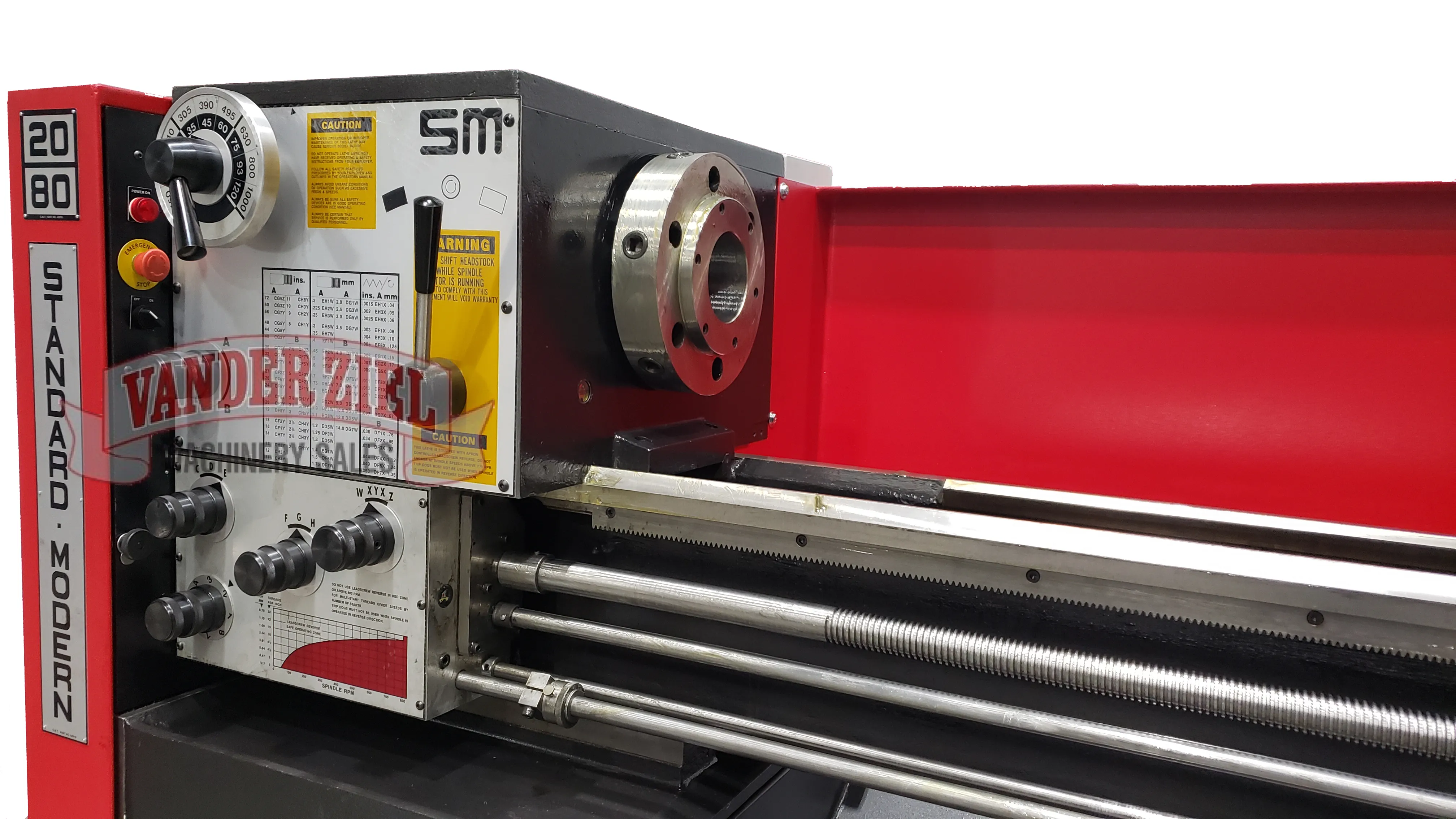

Headstock
Spindle Speeds 18
Geometric Speed Range 27-1600 RPM

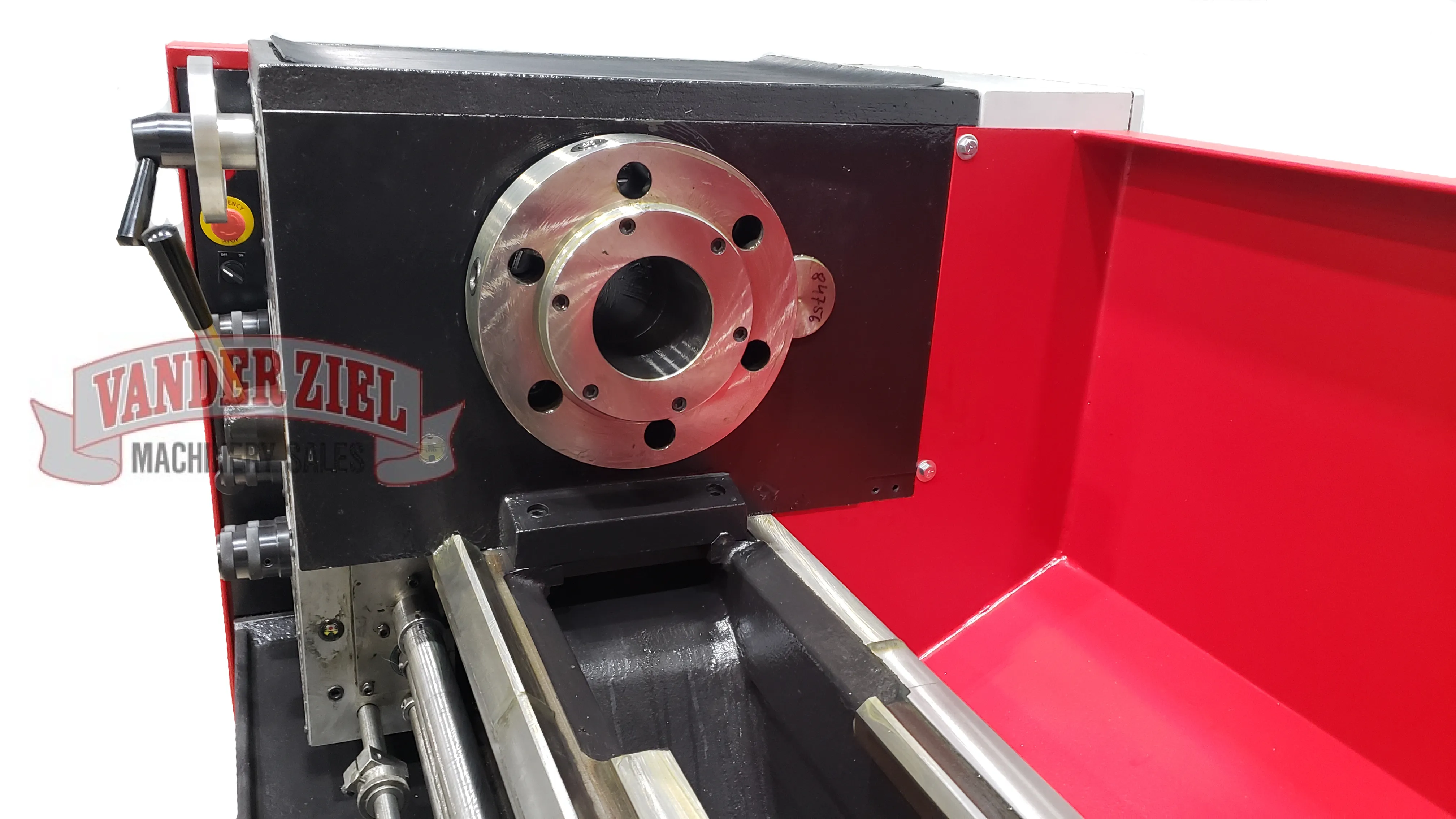

Spindle Nose - Camlock D1-11"

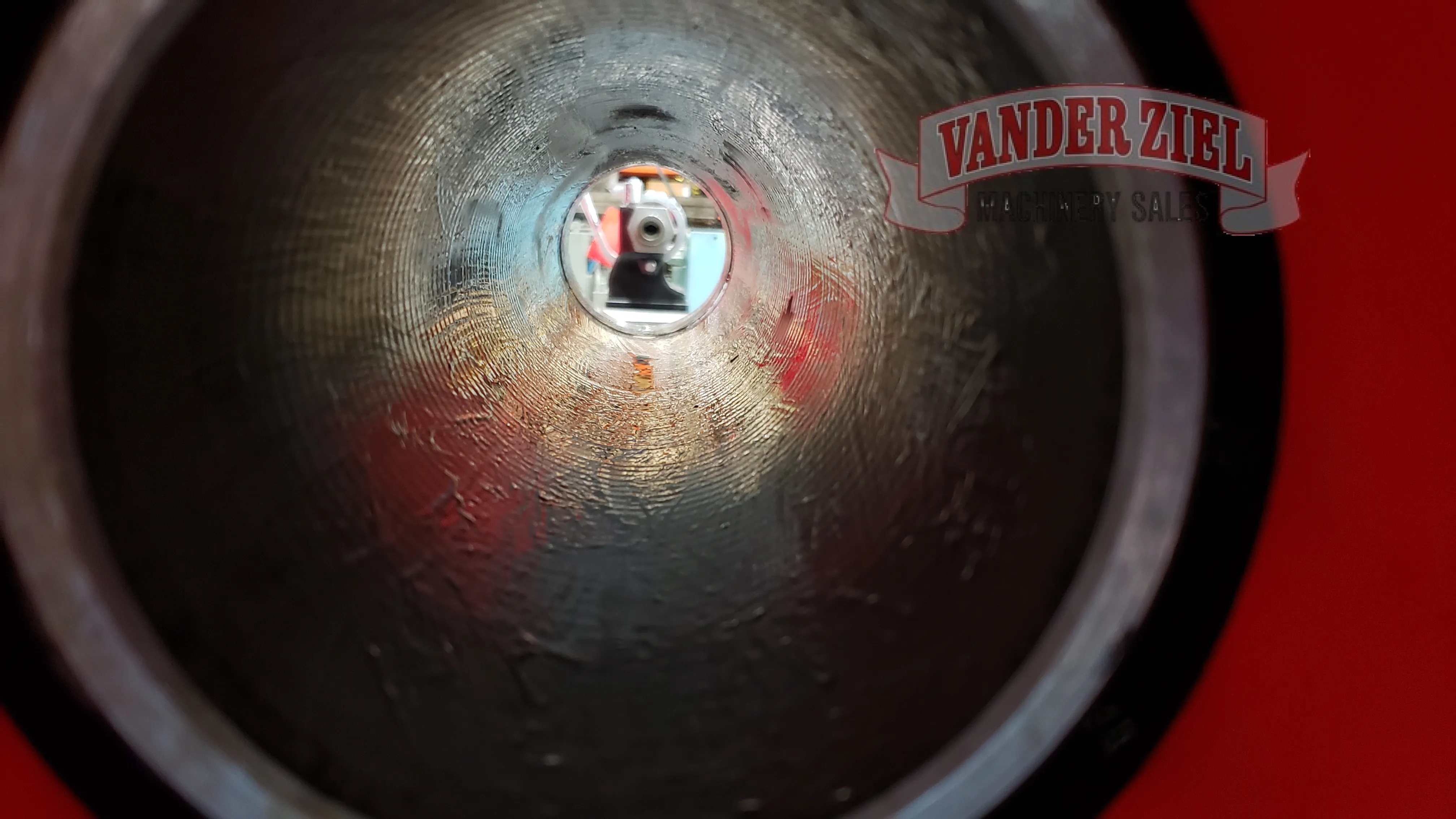

Through Hole in Spindle 4.06" dia
Taper Hole in Spindle Nose # 5 M.T.

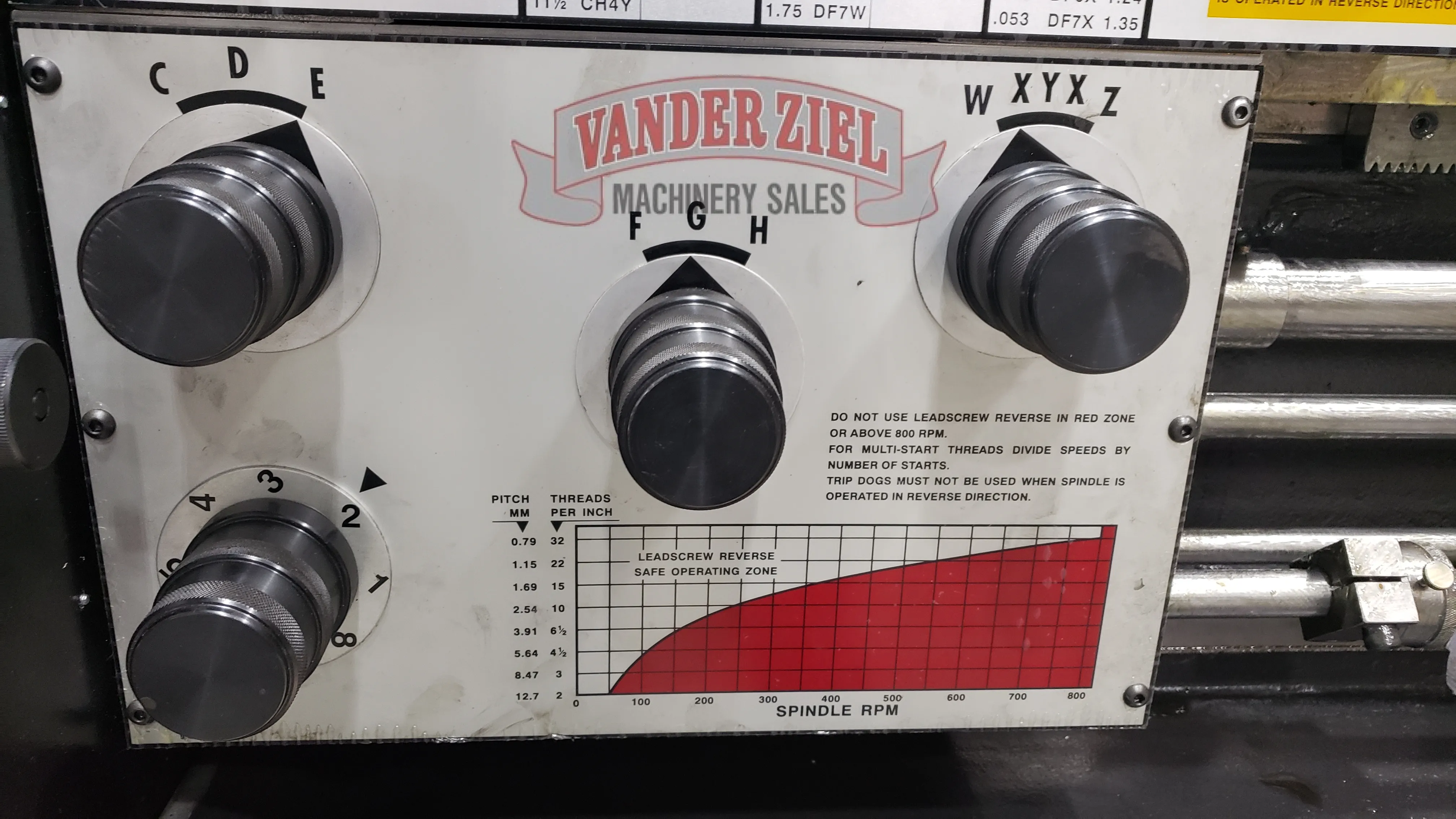

Feedbox
Feed & Thread Selections 66
Range of Threads 2-127 TPI
Inch Feed Range .0015" - .105" in./rev.
Metric Feed Range .04 - 2.67 mm/rev.
Metric Lead Range (Threads) .2 - 14 mm

Bed
Width at Top 14"
Depth 12.5"
Bed Length 124"
Base Width x Length 30"x 134"

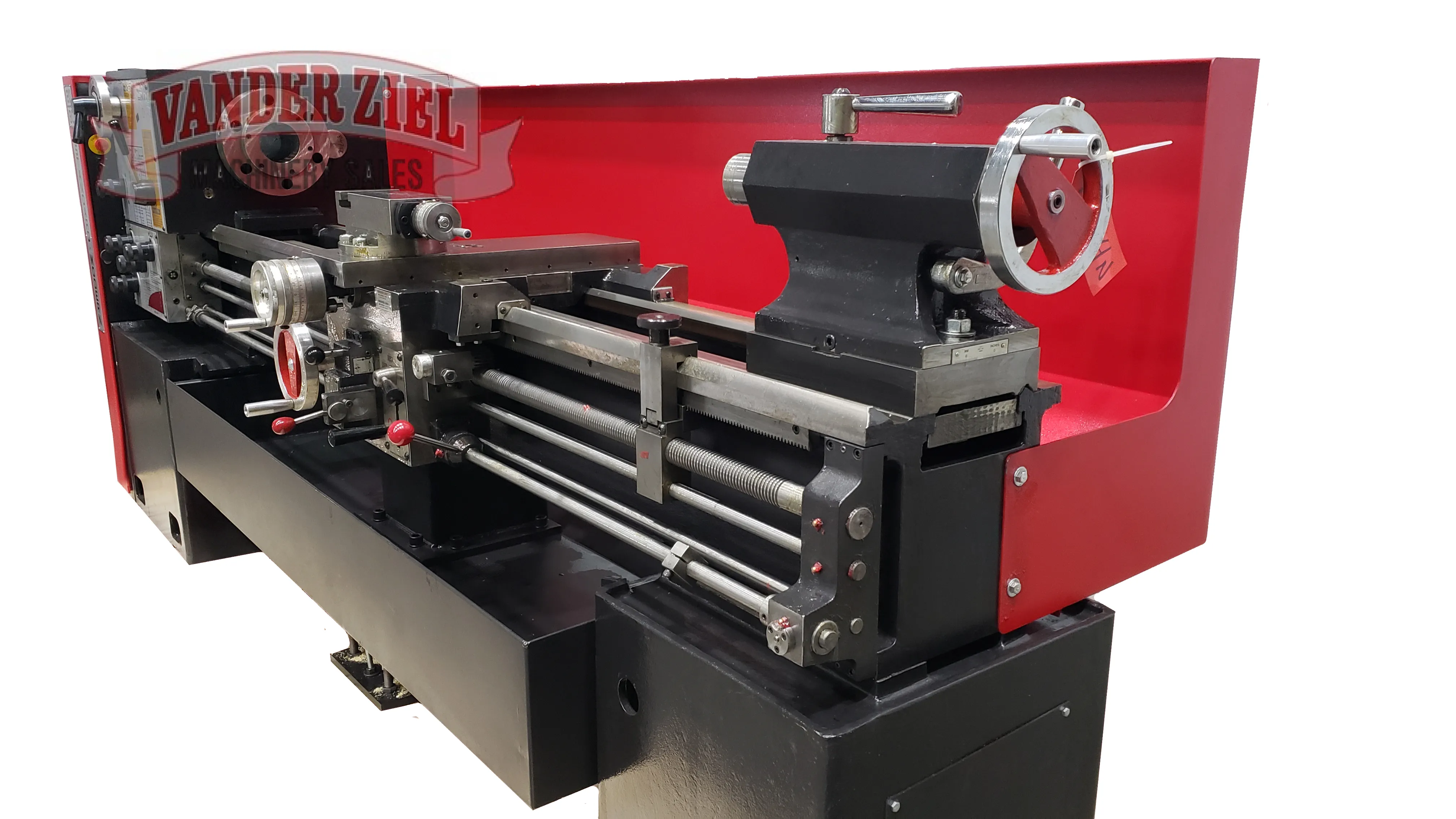

Tailstock
Spindle dia. & length 2.94"
Spindle Travel 8"
Taper Hole in Spindle #5 M.T.

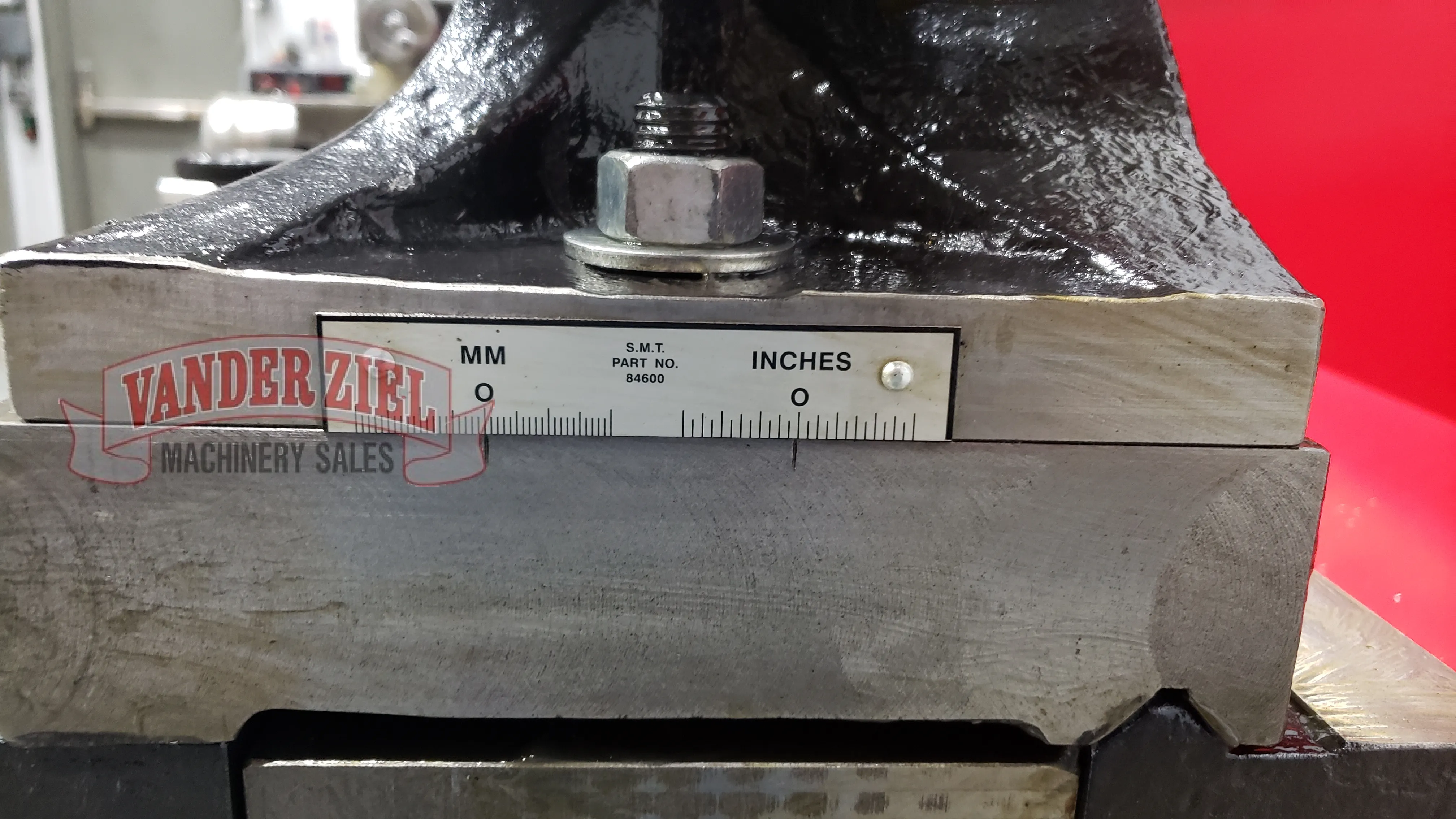

Offset 3/4"

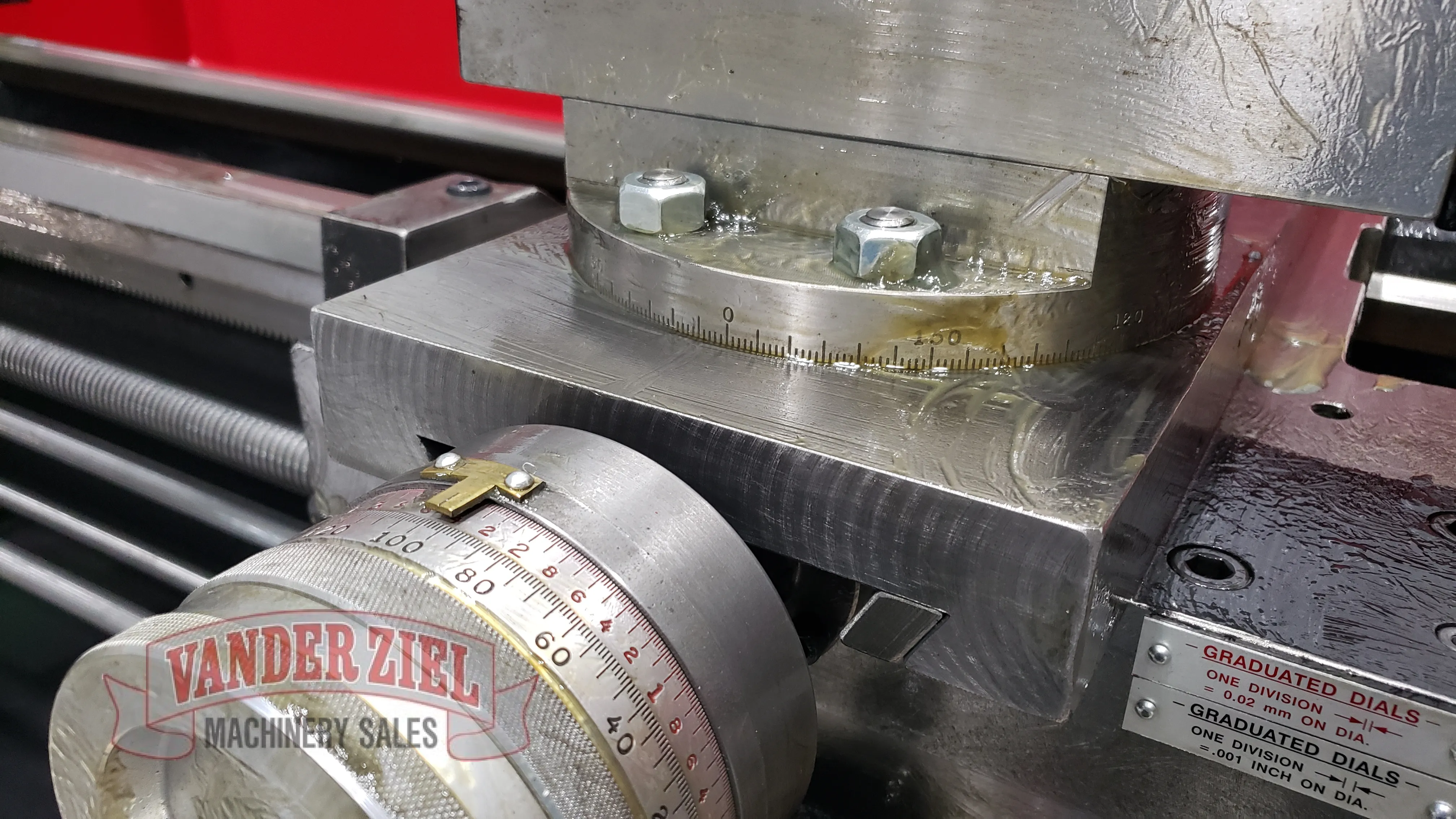

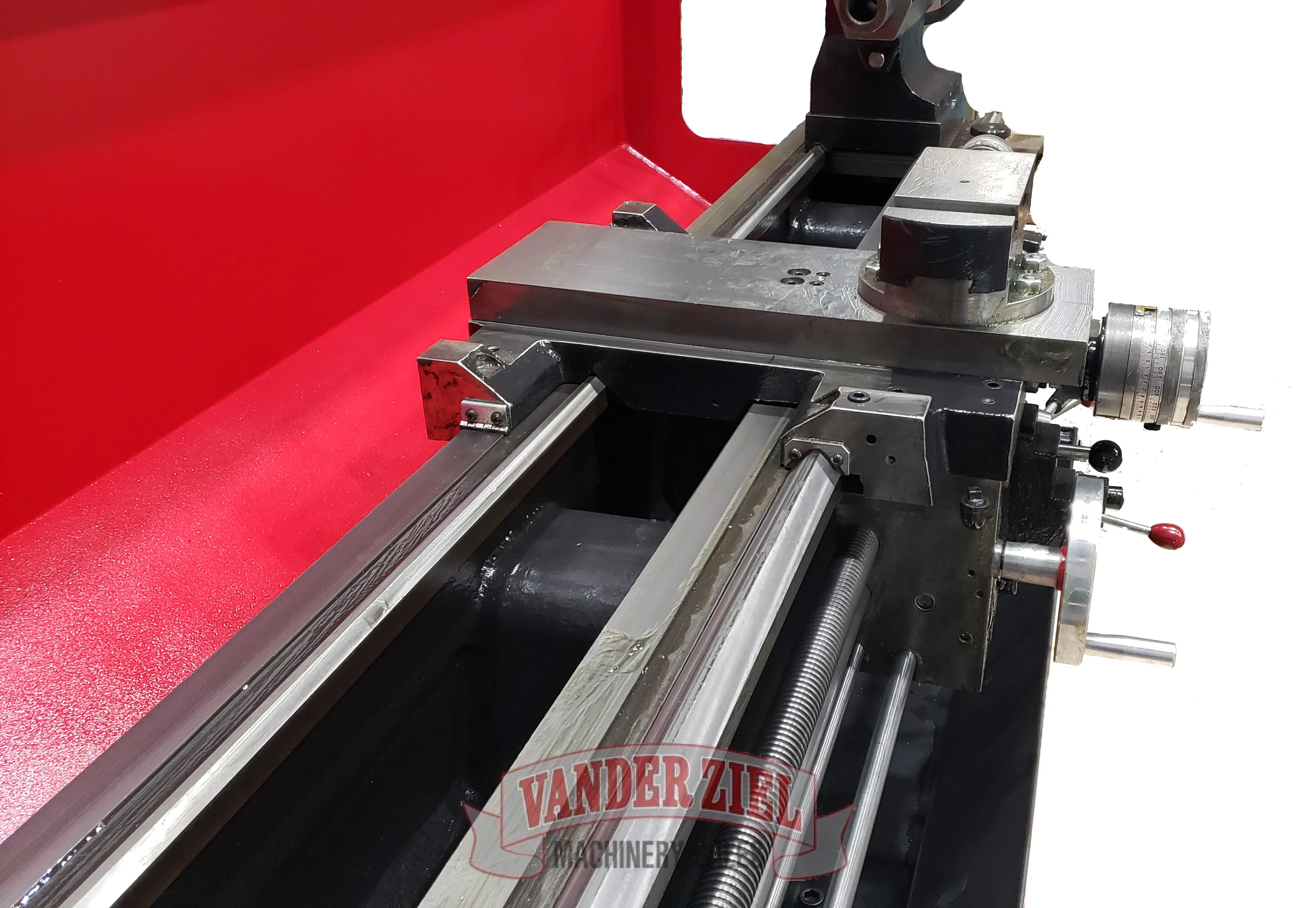

Carriage Cross Slide
Length of Ways 21"
Width of Bridge 10"
Cross Slide Travel 12"
Cross Slide Length 24"
Compound Slide Travel 5"
Direct Reading Dial Graduation .001"

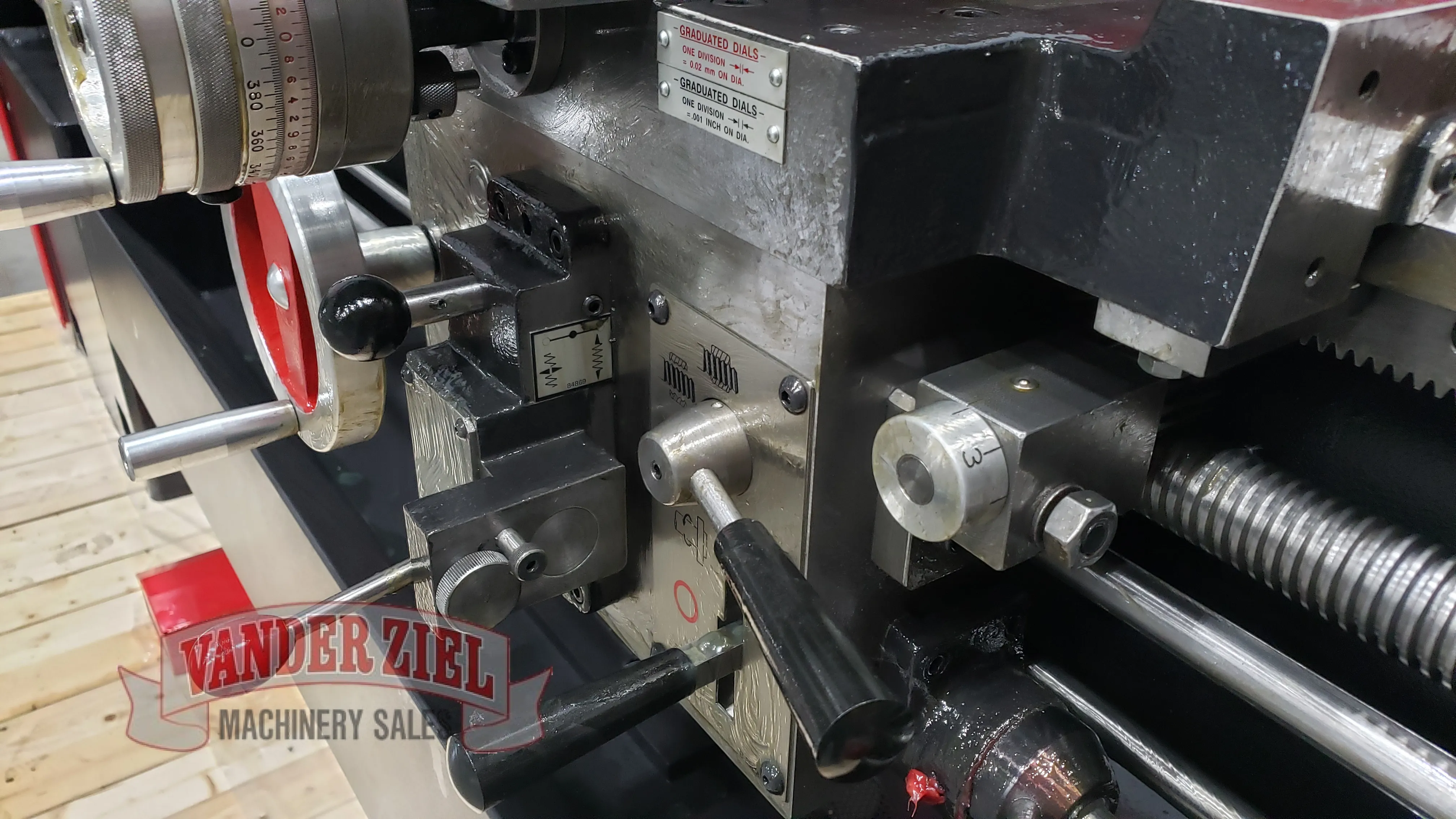

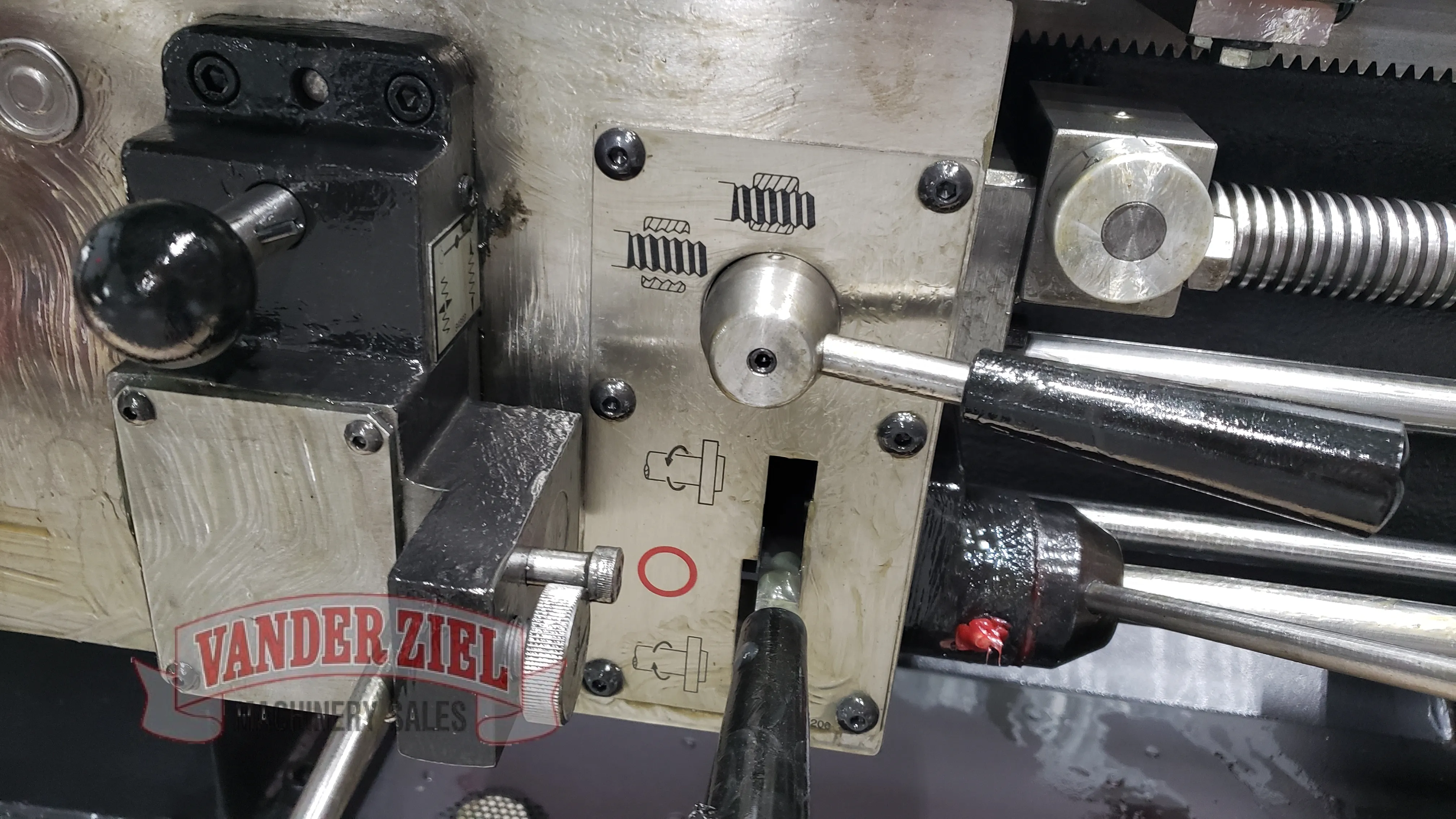

Apron
Handwheel - One Revolution 1.00"
Half Nuts Double
High Speed Threading 800 RPM
Repeatability of Auto Carriage +/- .005"
Feed Torque Control Variable

Shipping Data
2080 - Gross Weight 6,000 lbs.
Crate Size 60" x 146" x 80" H

Included Accessories
Electric brake - Self Actuating
All Hardened and Ground Gears - No Clutches

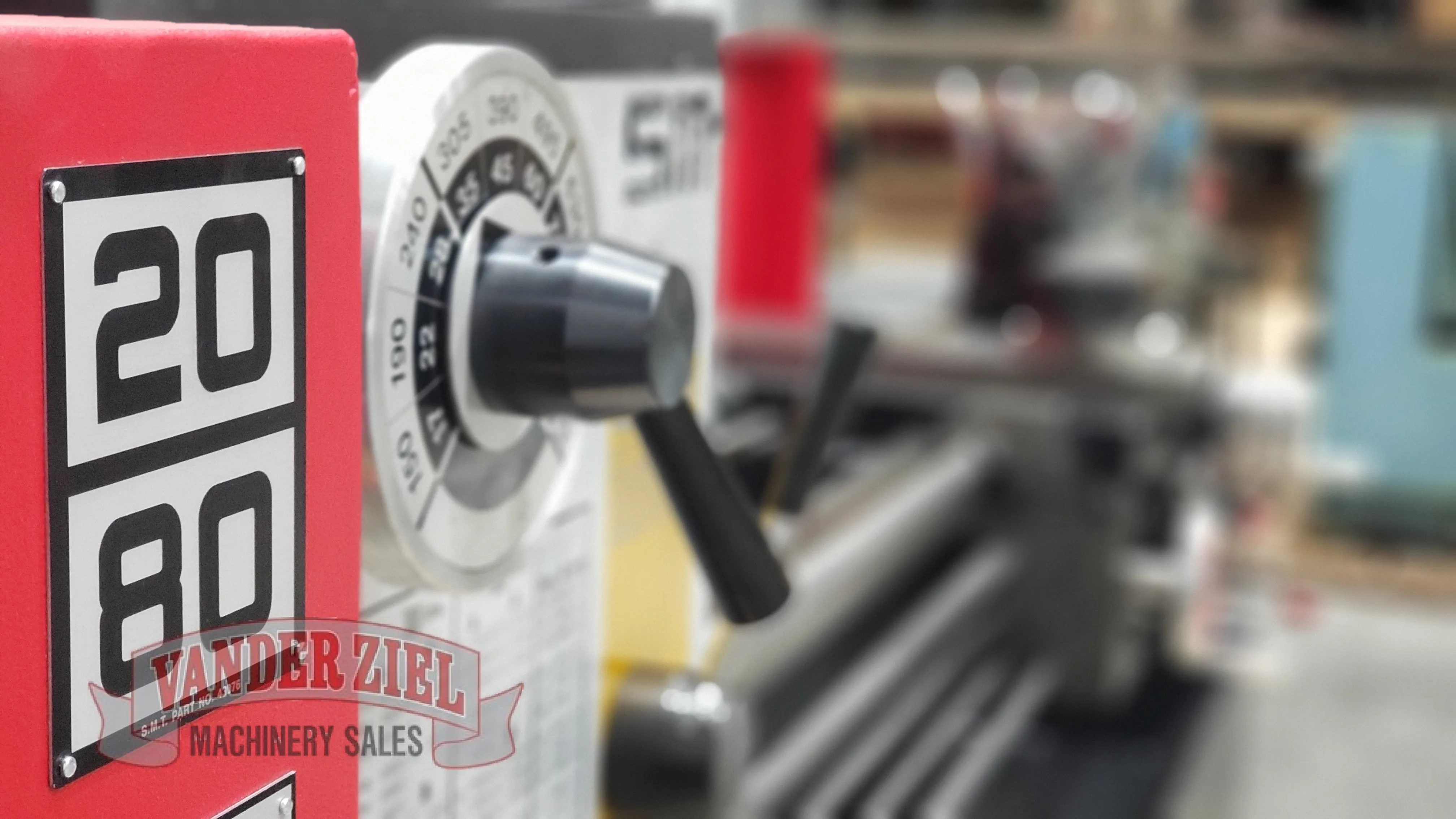

Direct Reading Speed Dial
Convenient Hi-Lo Neutral Shifter
Wrenches, Keys, Sparse Shear Pins
No Transposing Gears
Compare Range of Inch/Metric Threads - Switchable
Feed Reverse and Leadscrew Reverse

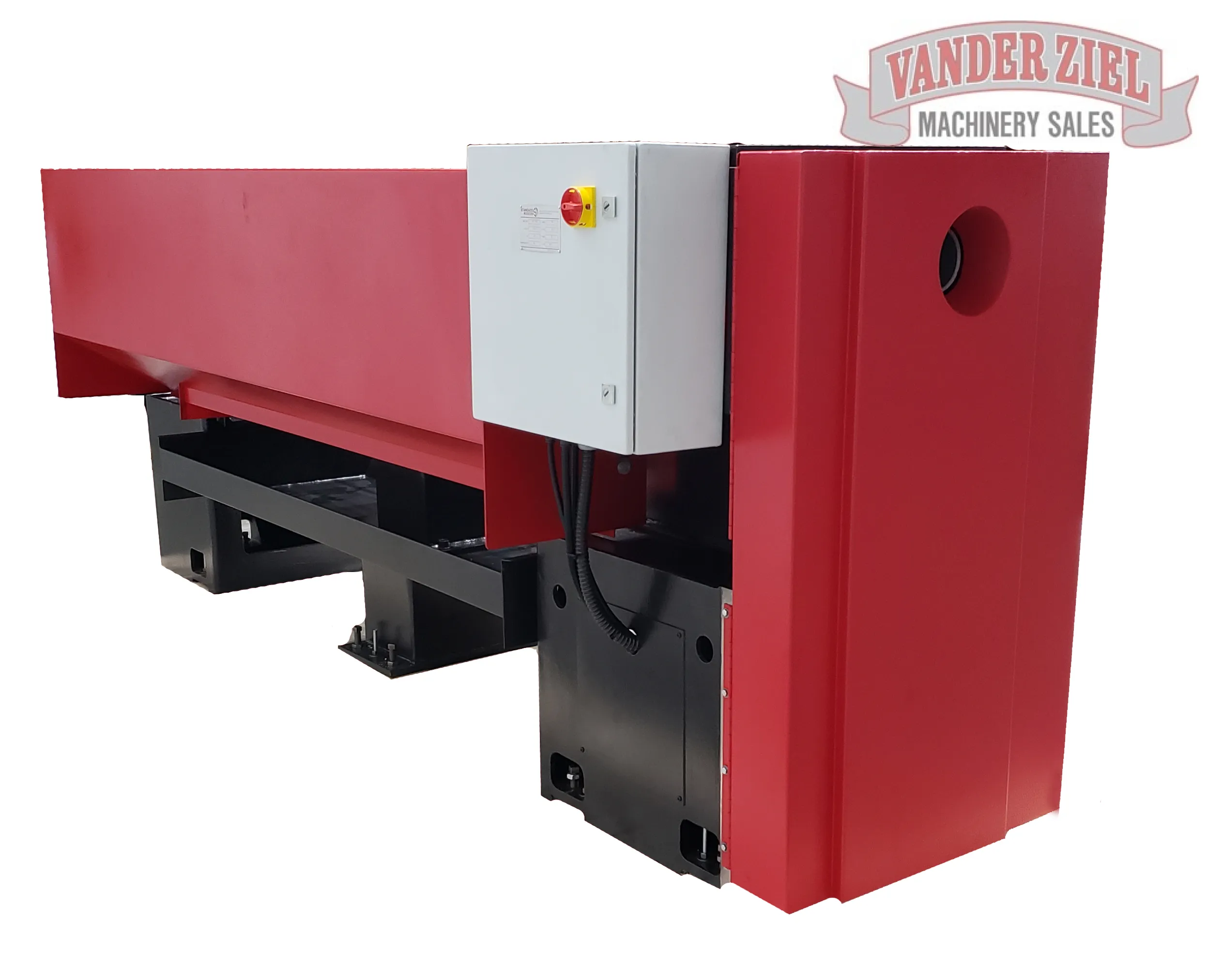

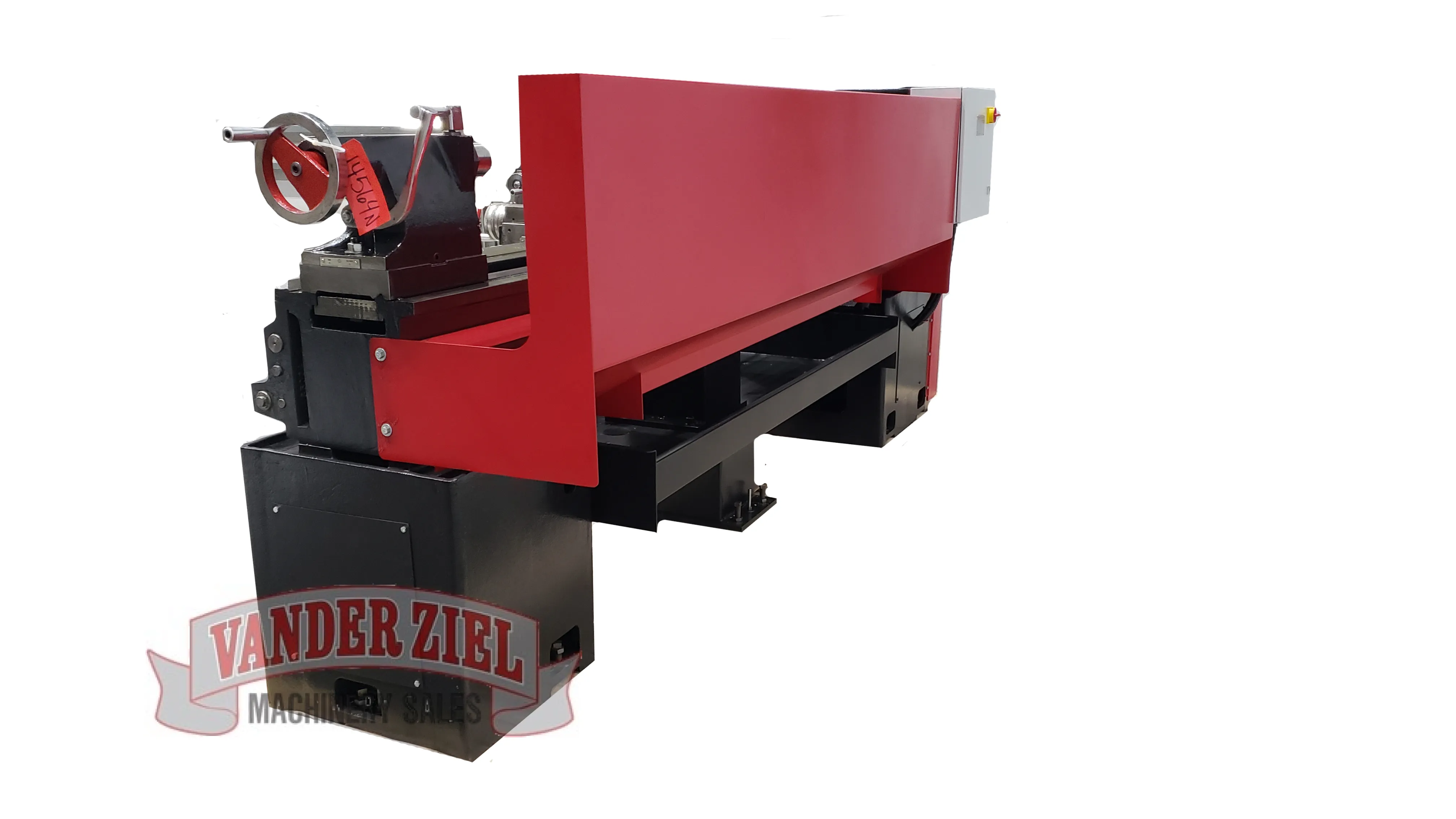

Full Length Rear Splash Guard
Bi-Direction Auto Carriage Stop (Feeds & Threads)
Hardened Quill with Tang Drive

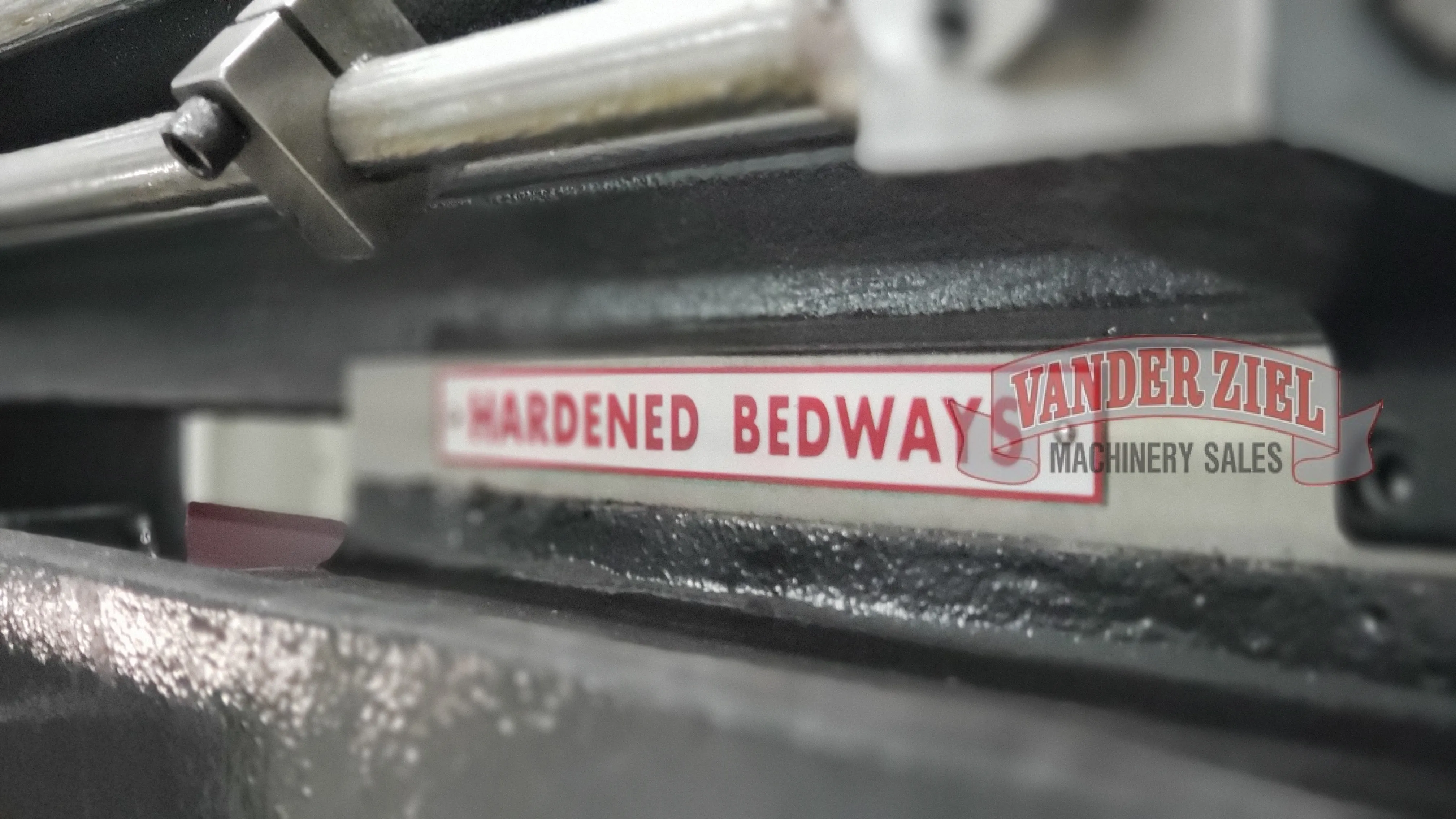

Deep Bed Design
Chip Clean Out - Front & Rear
Operators Handbook
Standard 115 V Electric

Optional Accessories:
Telescopic Taper Attachment +/- 10 Deg. x 16" Stroke
Large Toolmakers Faceplate - 18" Dia.
Micrometer Carriage Stop - Inch or Metric
Rear Toolpost
Two Speed Tailstock
Coolant System
Steady Rest - 6" or 10" Plain or Roller
3 & 4 Jaw and Collet Chucks
Turret Toolpost
Live Centers
Inch Threading Dial
Please Inquire about and other Options
