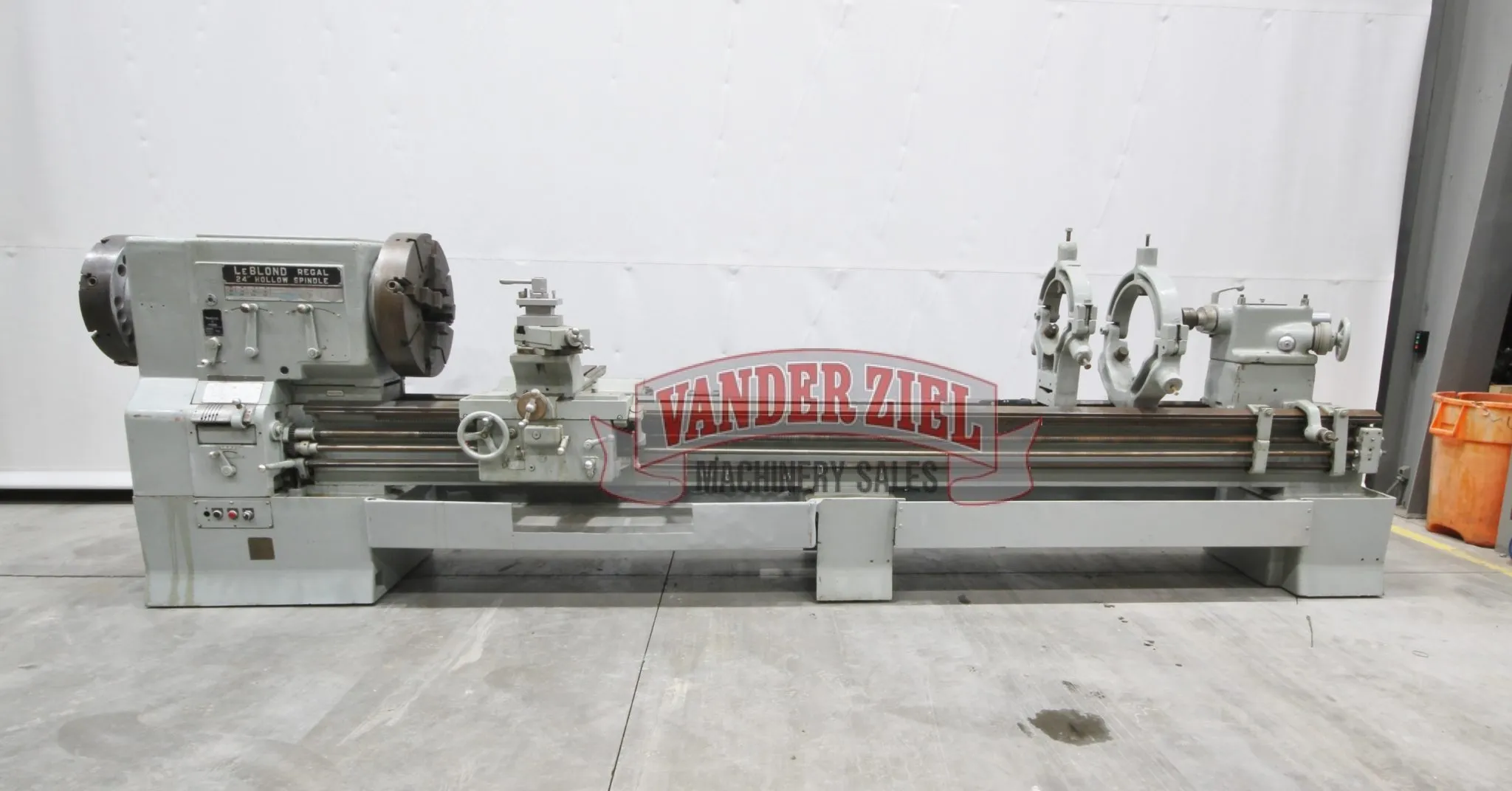

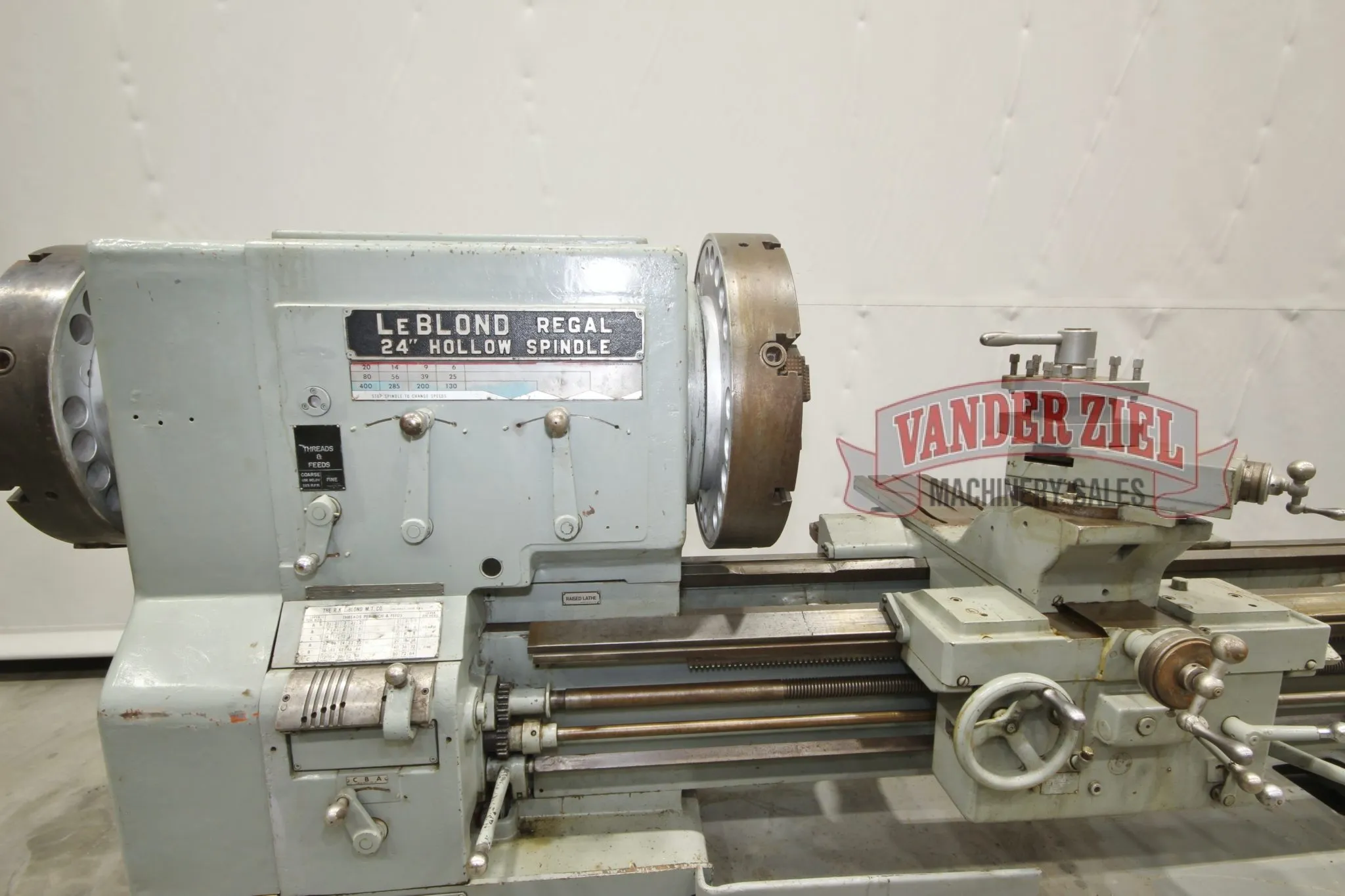

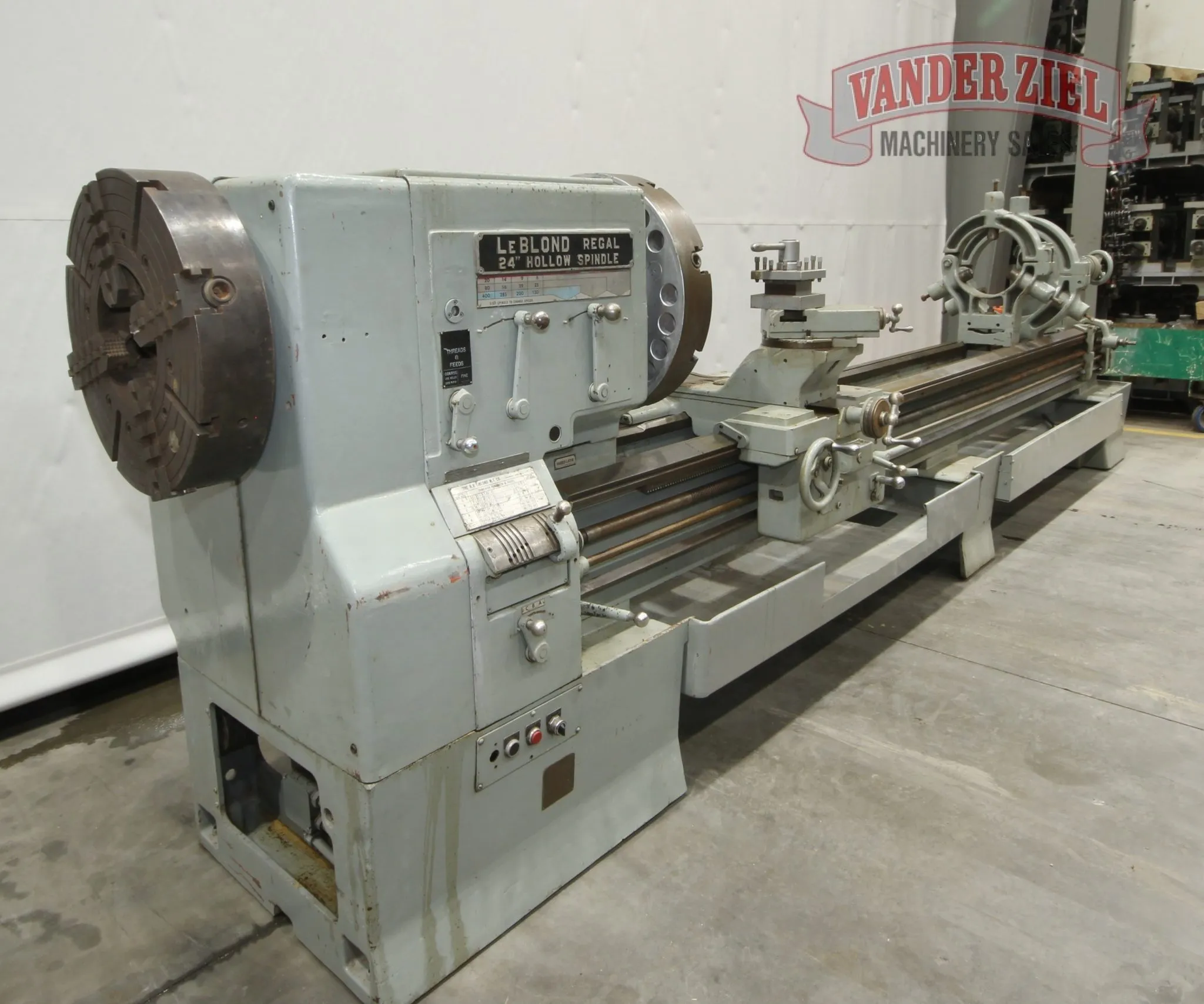

LeBlond 32" x 144" Regal 24" Hollow Spindle Lathe with 3" Raise Head

LeBlond 32" x 144" Regal 24" Hollow Spindle Lathe with 3" Raise Head

Asset # 14026
Serial # 2H-568

Specifications:
Swing over Bed and Carriage Wings 32"
Swing over Cross Slide 24 1/4"
Distance between Centers 144"
Spindle Speeds (12) 6-400 RPM
Size of Spindle Hole 9"
Headstock Length on Bed 25 3/4"
Bed Width 17"
Bed Depth 14 7/8"
Carriage Length on Bed 26"
Carriage Bridge Width 9"
Cross Slide Travel 13"
Compound Rest Travel 4 3/4"
Feed Range (48) .0036 - .205
Thread Range (48) 2-112
Leadscrew Diameter and Threads per Inch 1 7/16", 4
Tailstock Spindle Diameter 3 1/8"
Tailstock Center Morse Taper #5
Spindle Travel 7 1/2"
Tailstock Length on Bed 14 3/4"
Motor 15 HP, 1800 RPM
Weight 9,120 lbs.

215"L x 51"W x 60"T

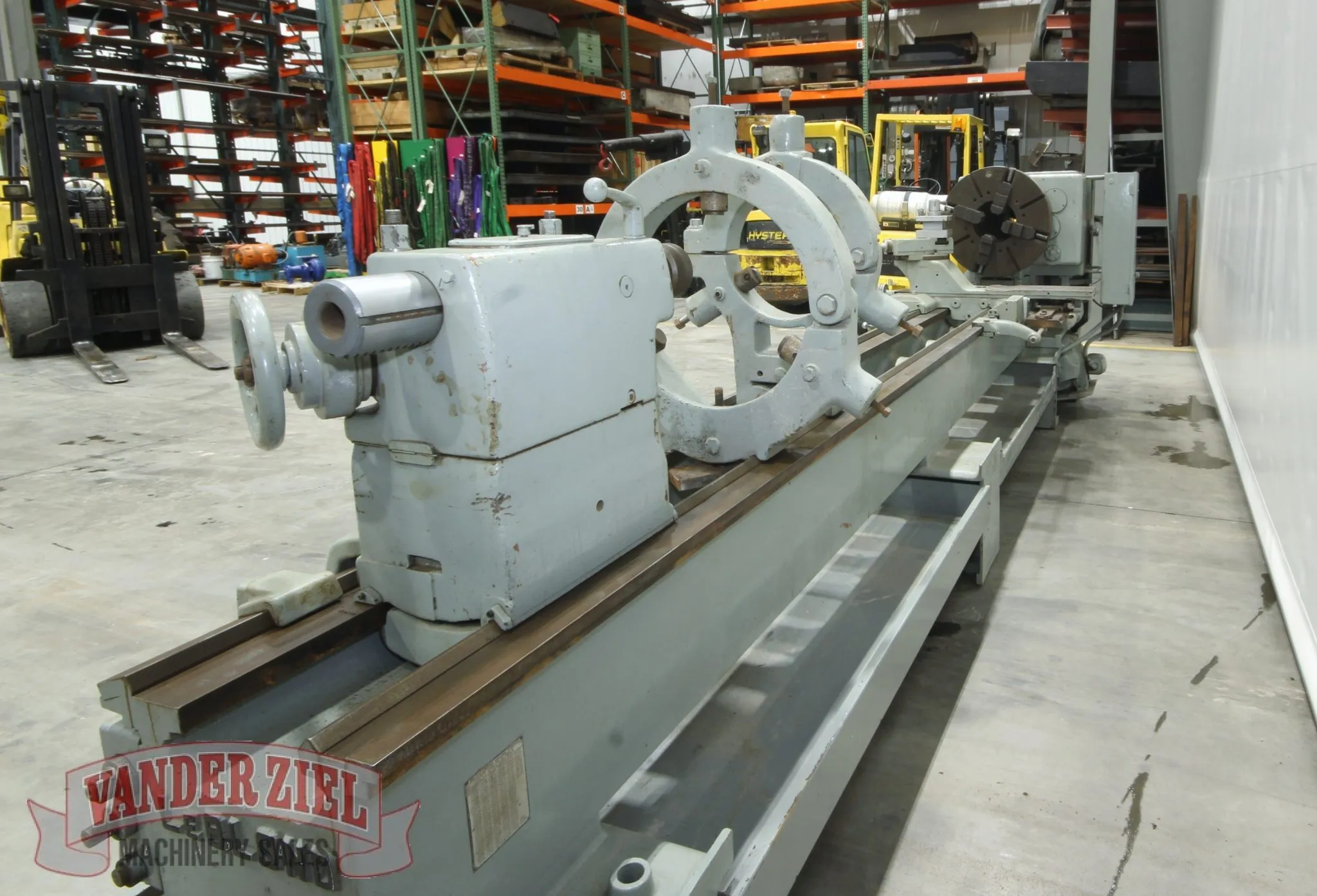

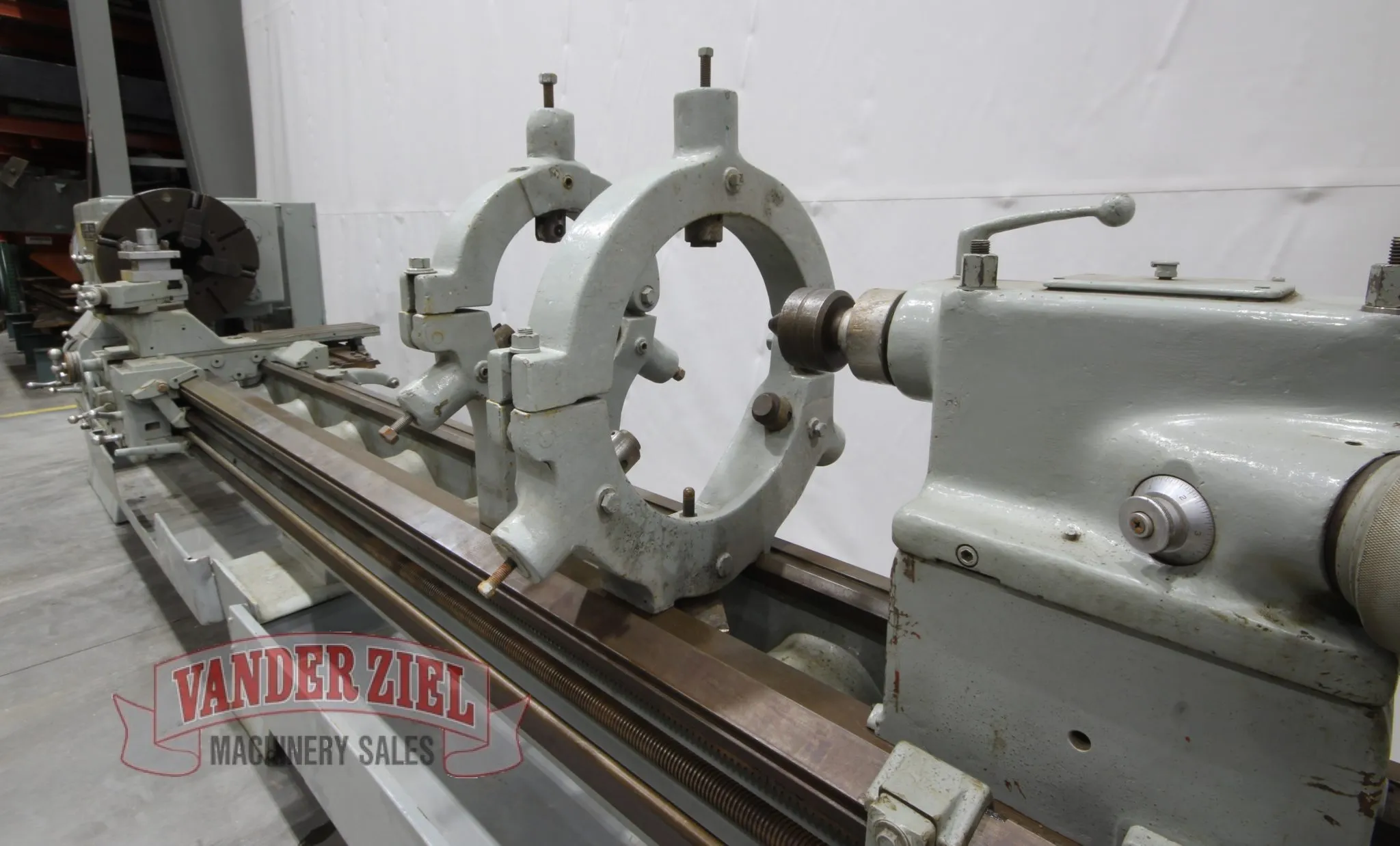

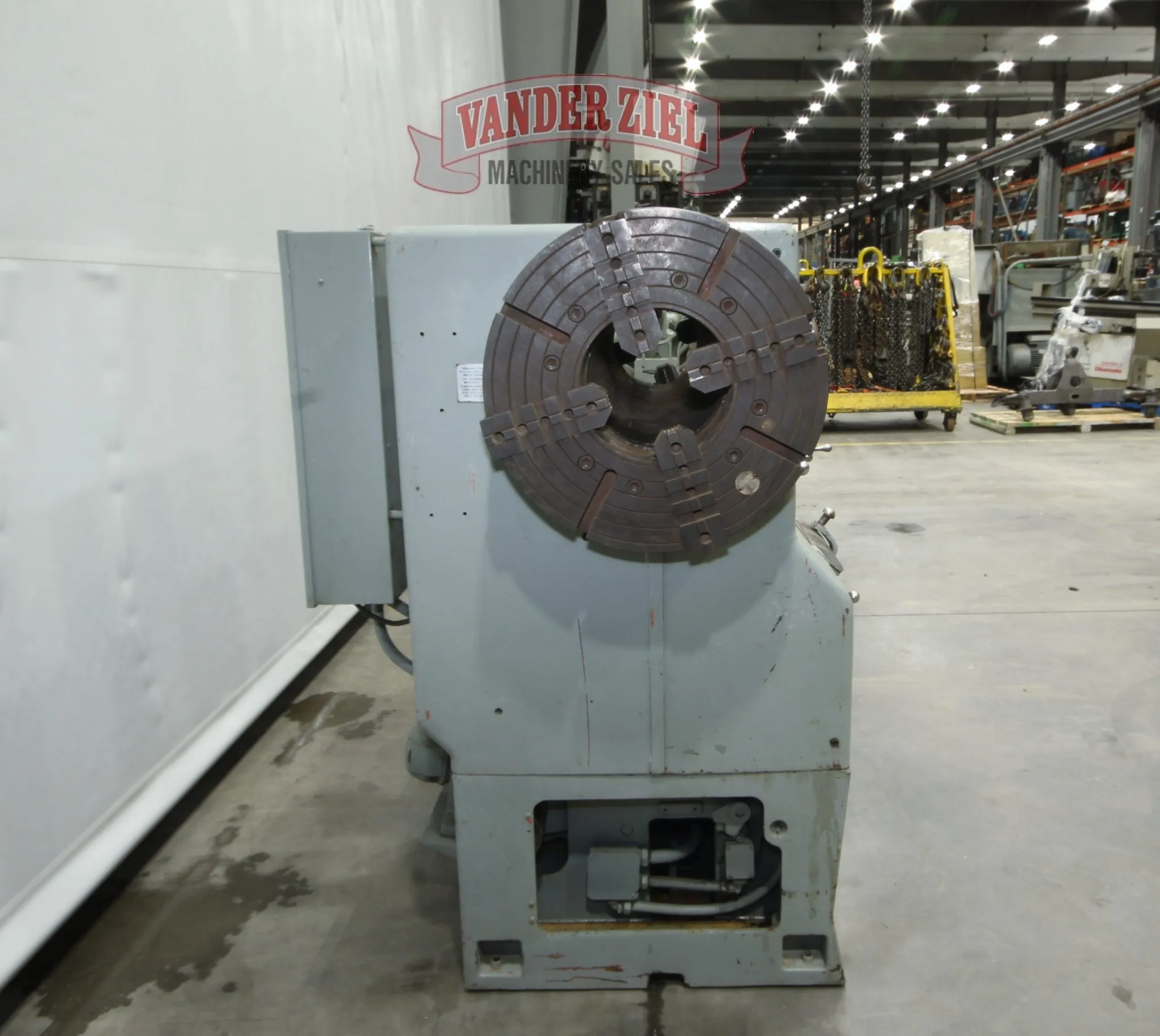

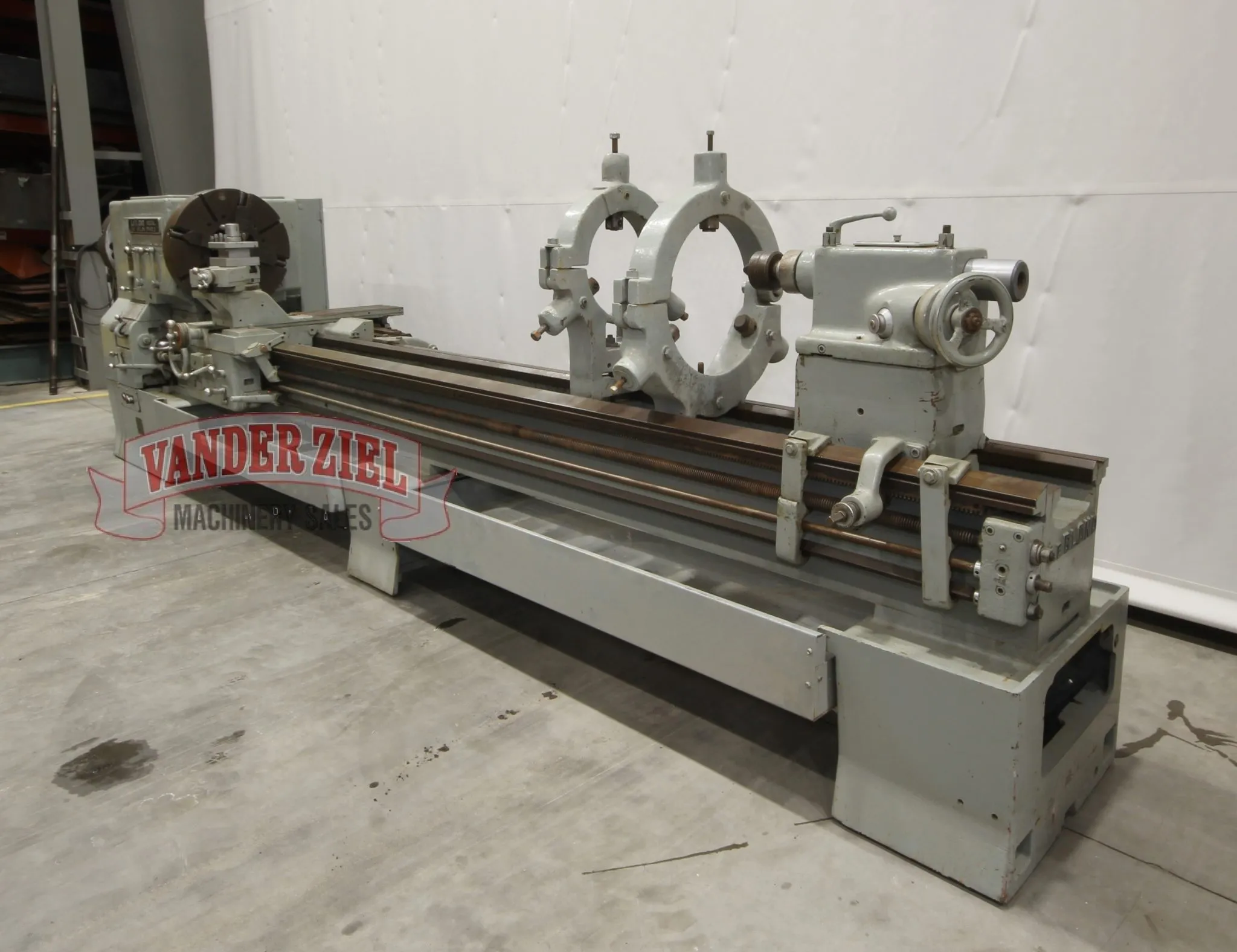

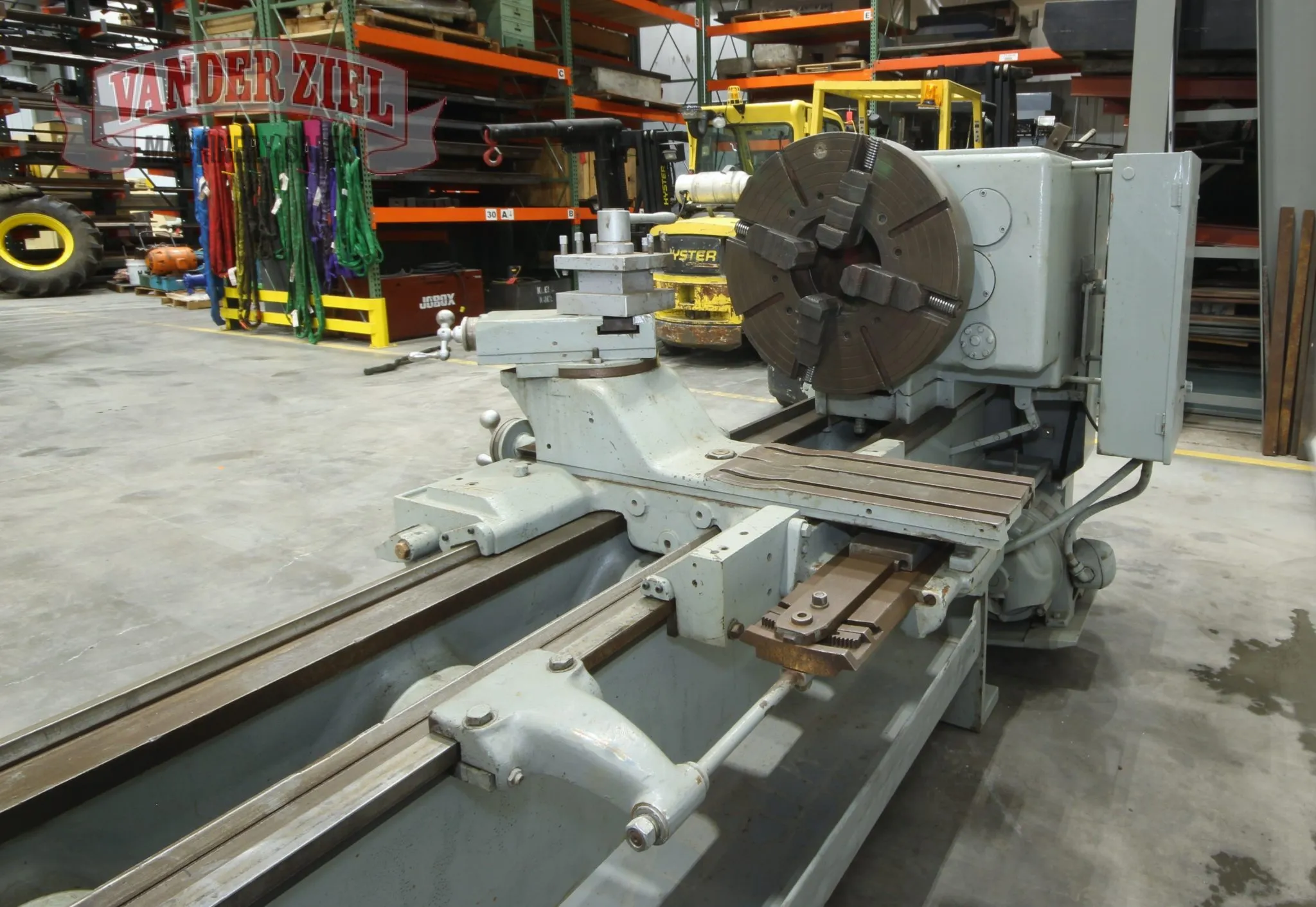

Lathe is equipped with 24"-4 Jaw Chuck, 21"-4 Jaw Chuck, taper attachment, 12" Steady Rest, 17" Steady Rest, 3" Raised Head.

Preliminary Specifications - Subject to Verification
