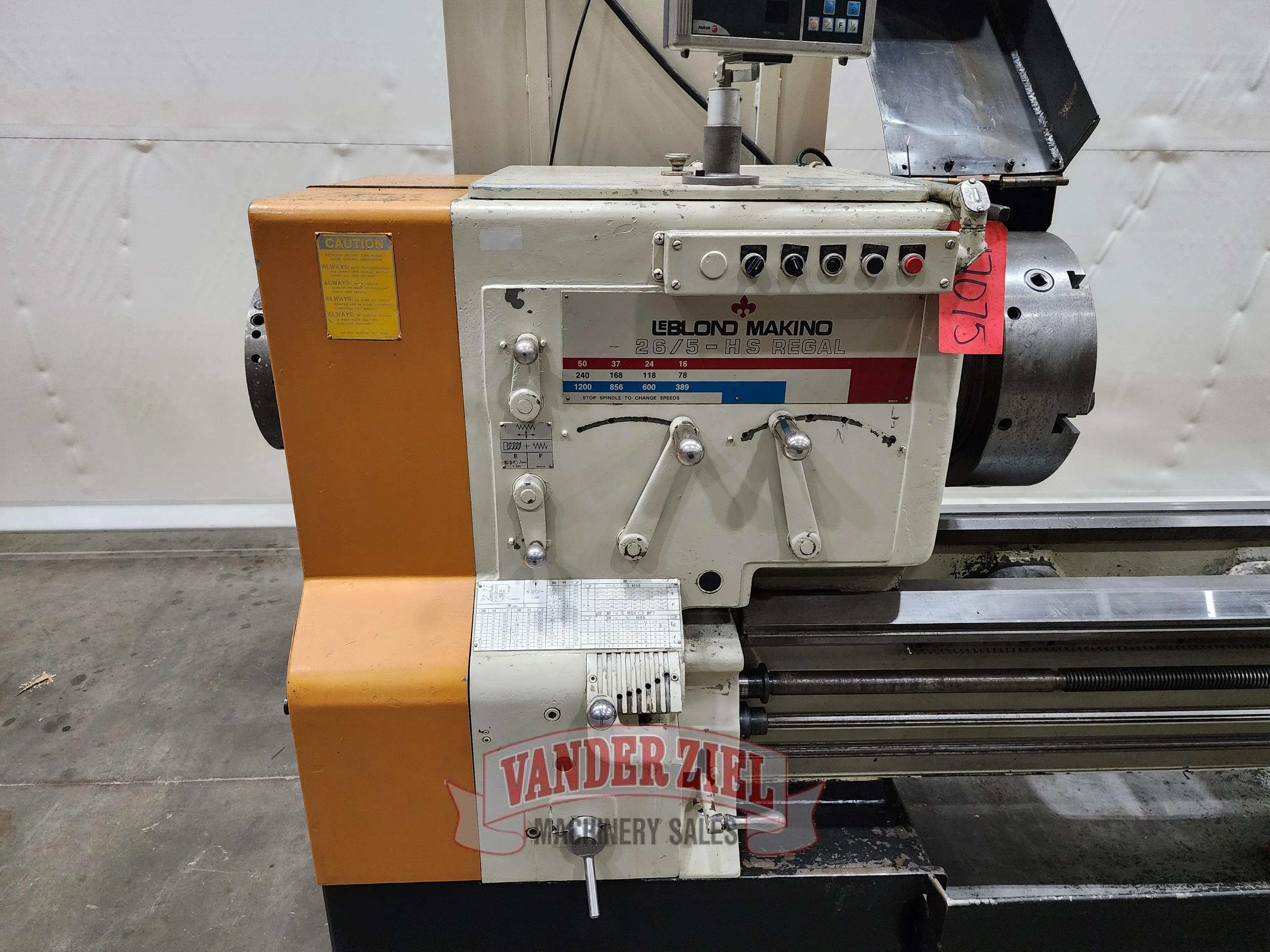

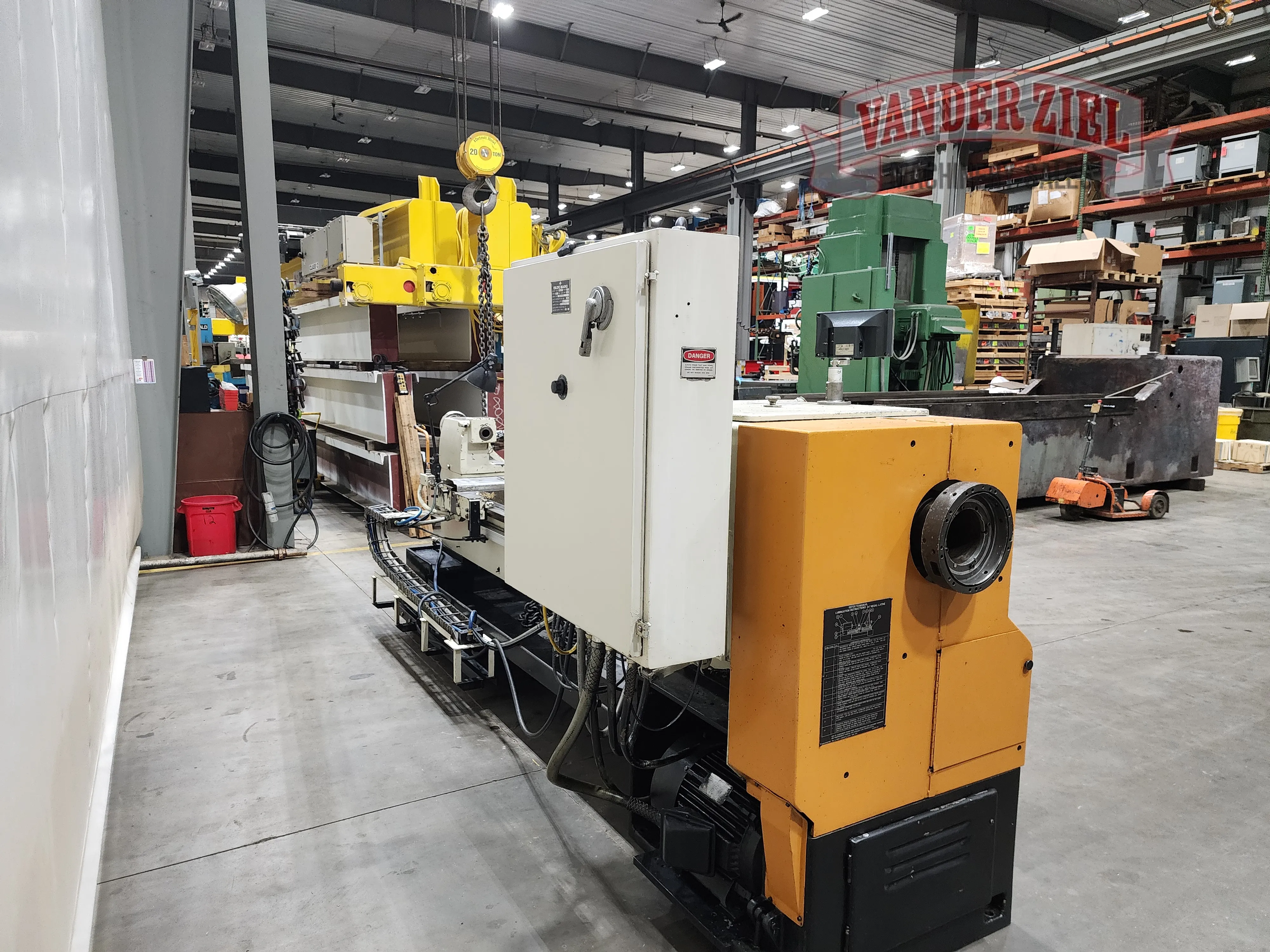

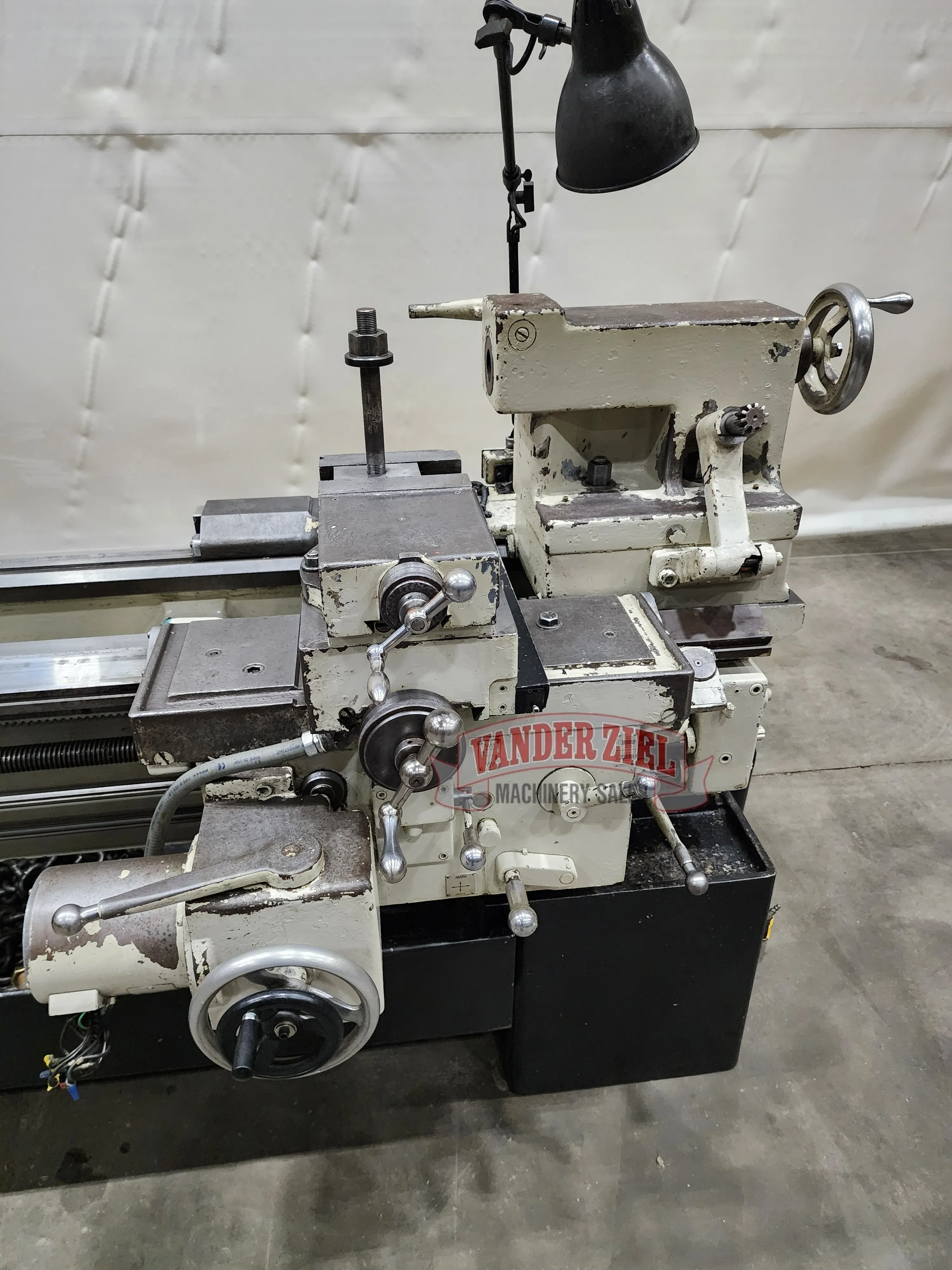

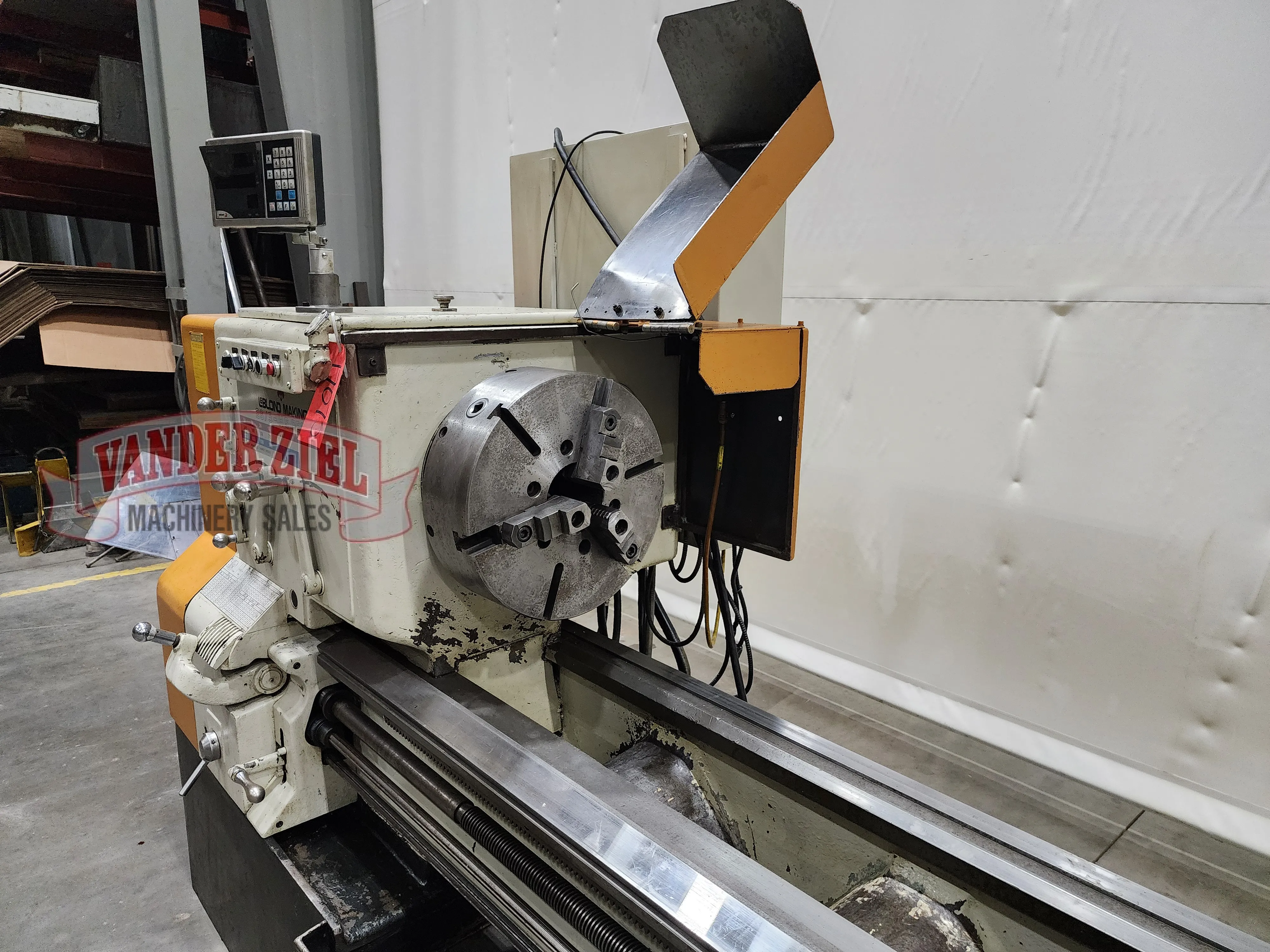

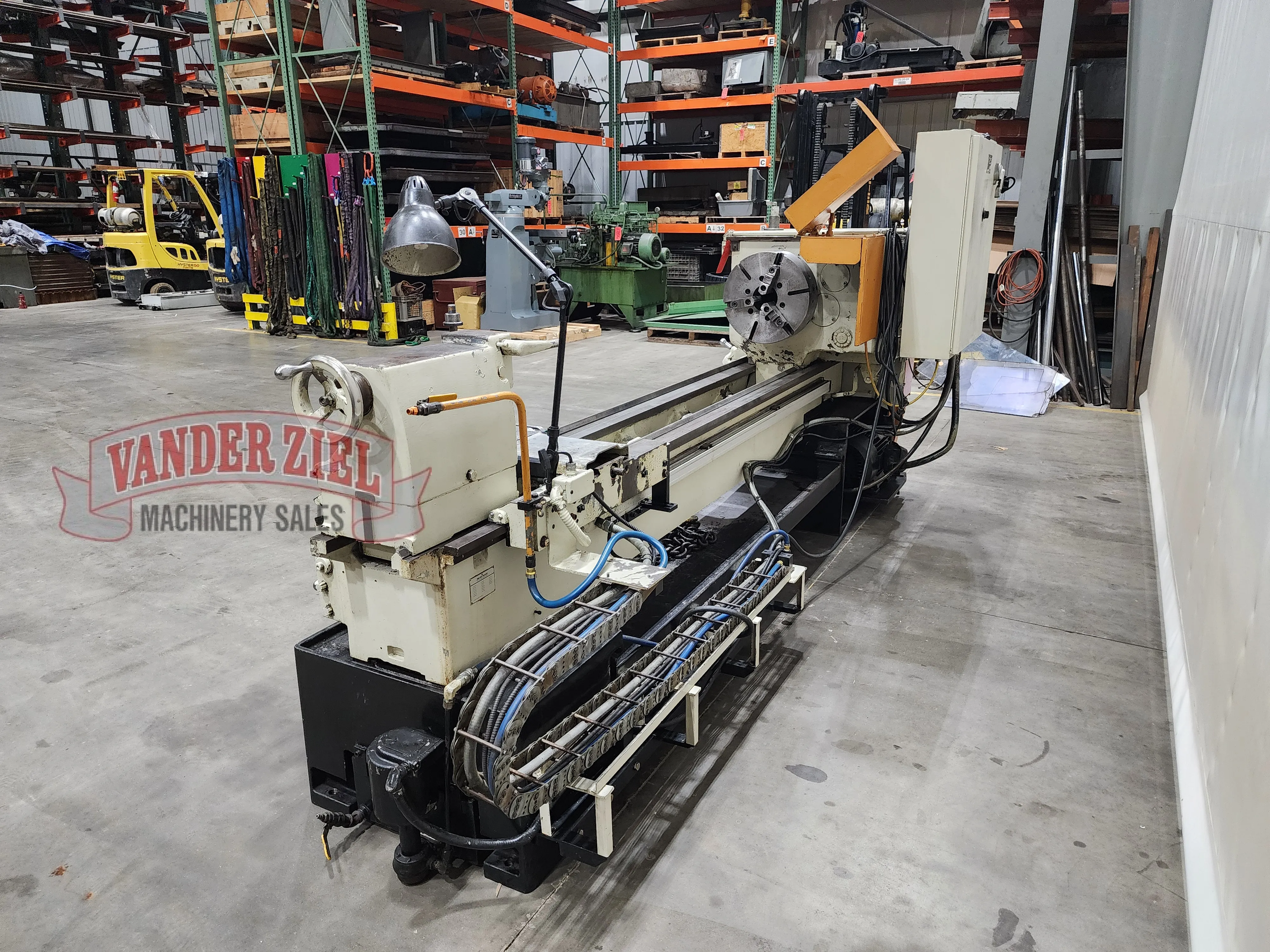

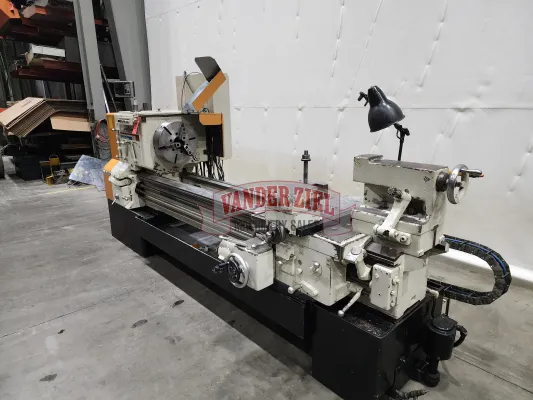

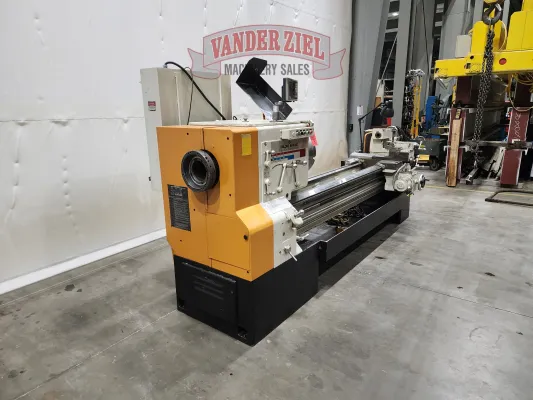

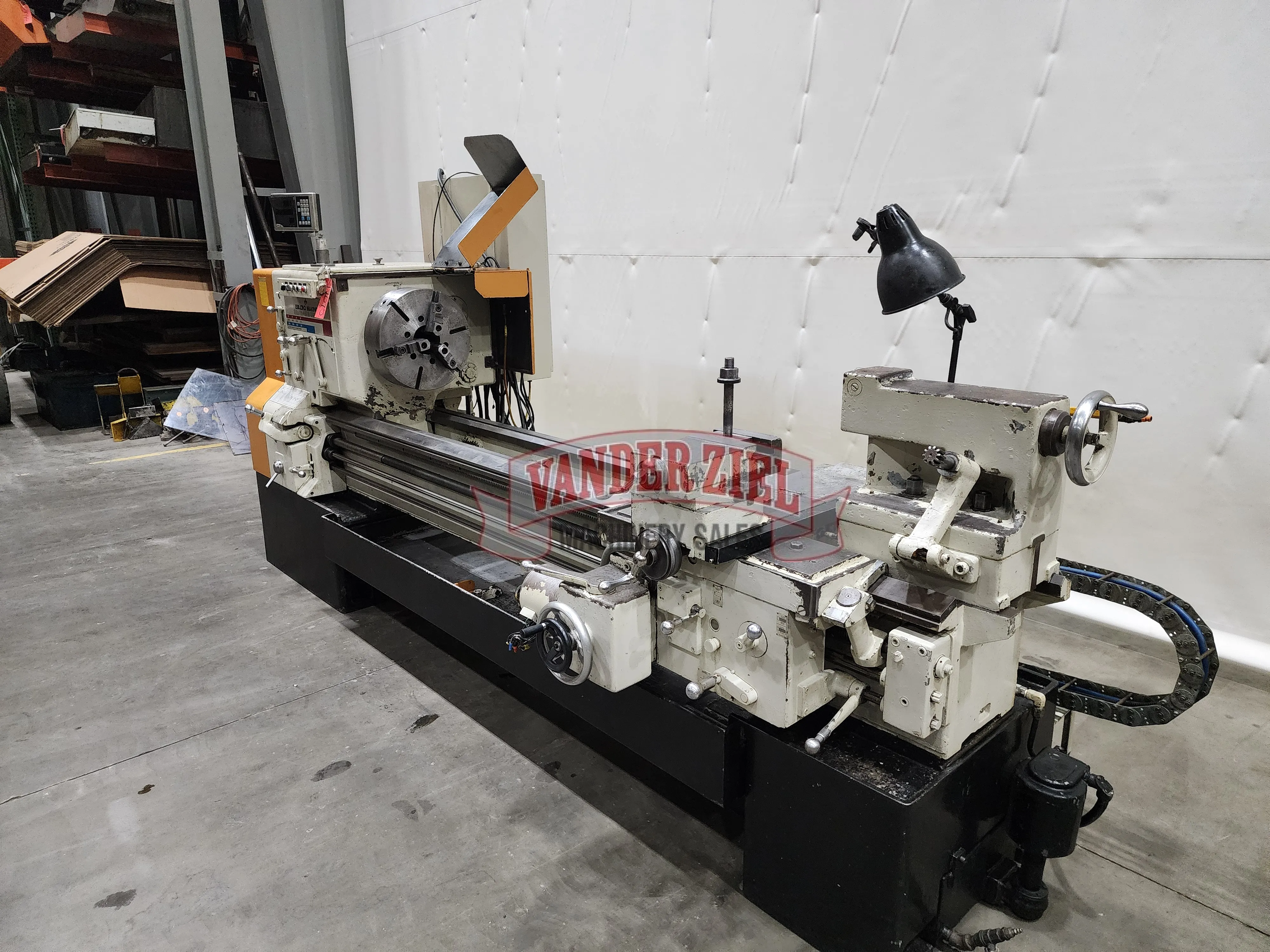

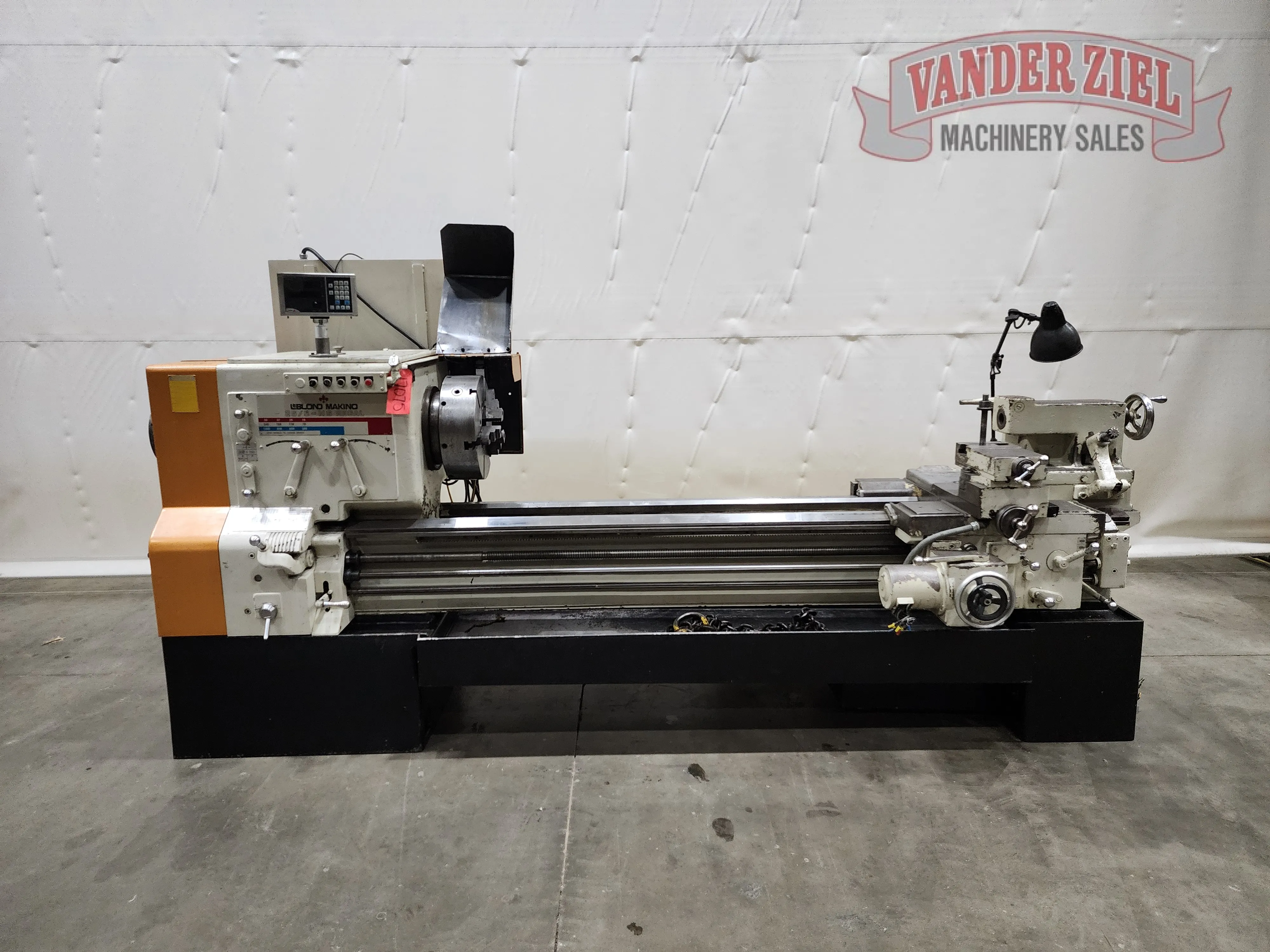

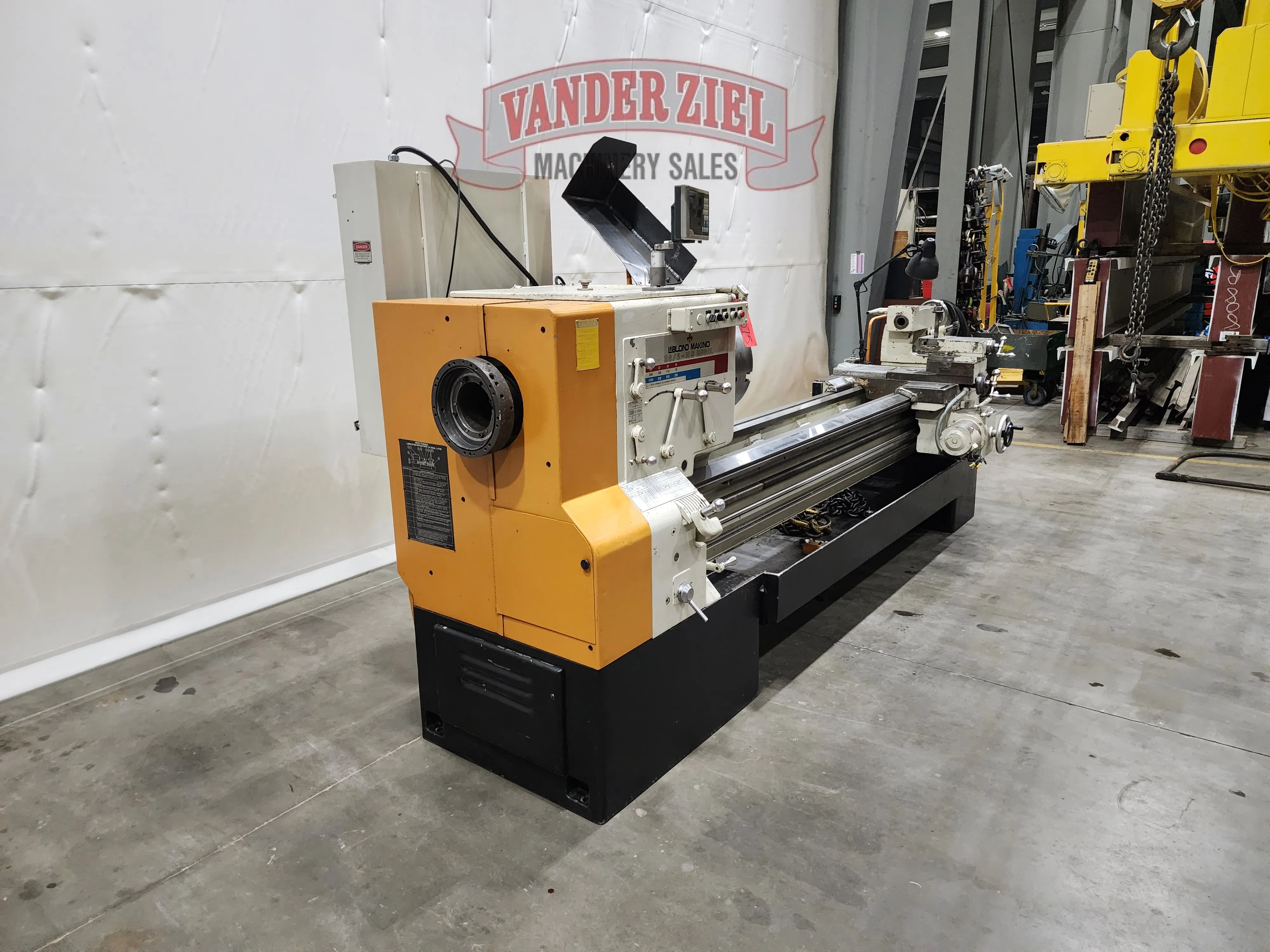

LeBlond Makino 26” x 72” Lathe, 5 ¼” Spindle Bore, Model 26/5 HS

LeBlond Makino 26” x 72” Lathe, 5 ¼” Spindle Bore, Model 26/5 HS

Serial # 8HS-142
Asset # 17075

Specifications:
Swing over Bed & Carriage Ways 26”
Swing over Cross Slide 18 ¼”
Distance Between Centers 72”
Size of Tool Holder 1 1/16” x 1 ½”
Size of Hole thru Spindle 5 ¼”
Spindle Speeds (12) 16-1200 RPM
Spindle Nose 11”
Bed Width 17”
Bed Length 10’ 6”
Length of Carriage on Bed 26”
Cross Slide Travel 14 ¼”
Feeds (48) .0036 – .205 IPR
Threads (48) 2-112 TPI
Tailstock Spindle Diameter 3 1/8”
Motor 30 HP, 1800 RPM
Weight 8,250 lbs.

Preliminary Specifications – Subject to Verification
