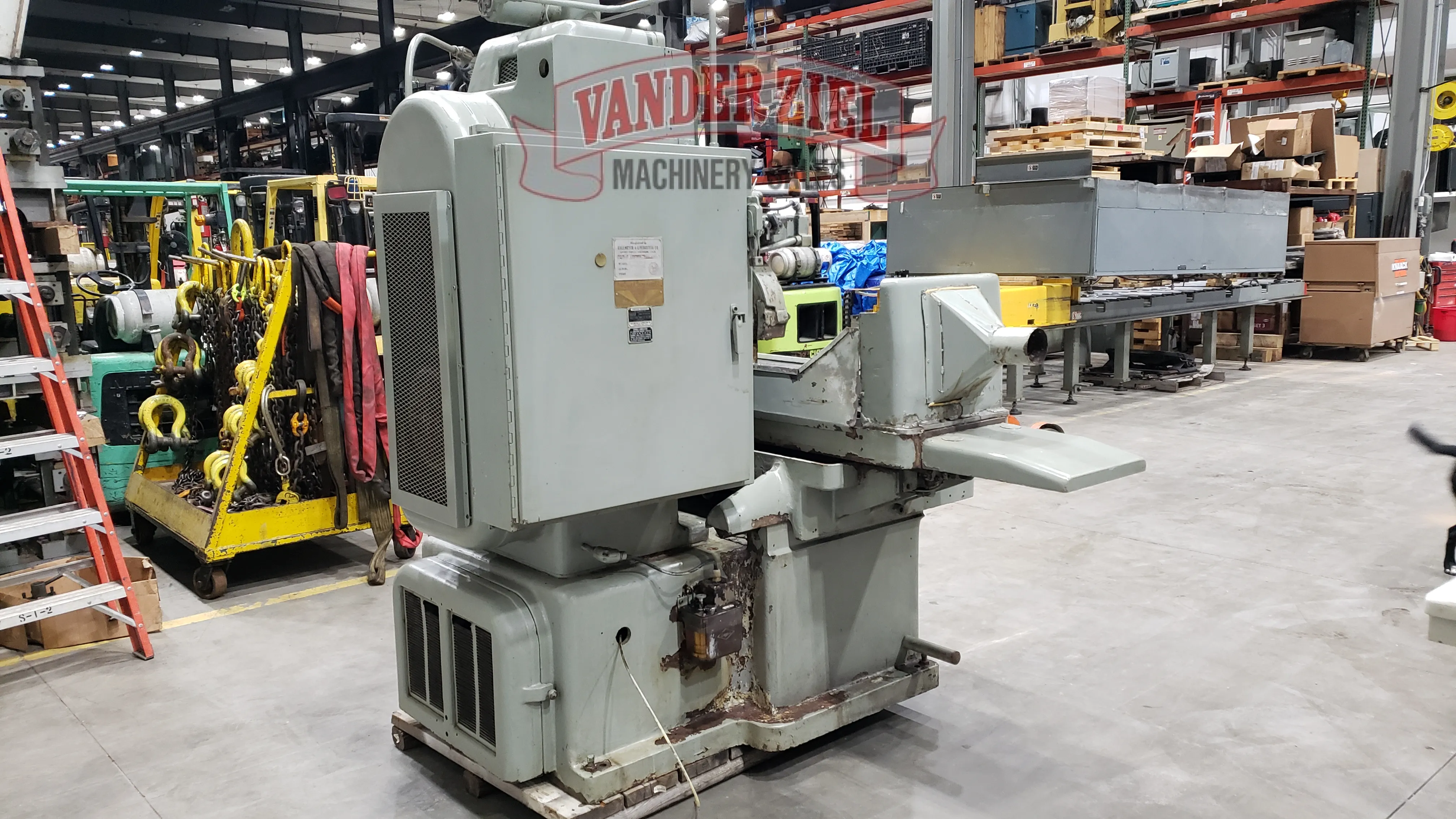

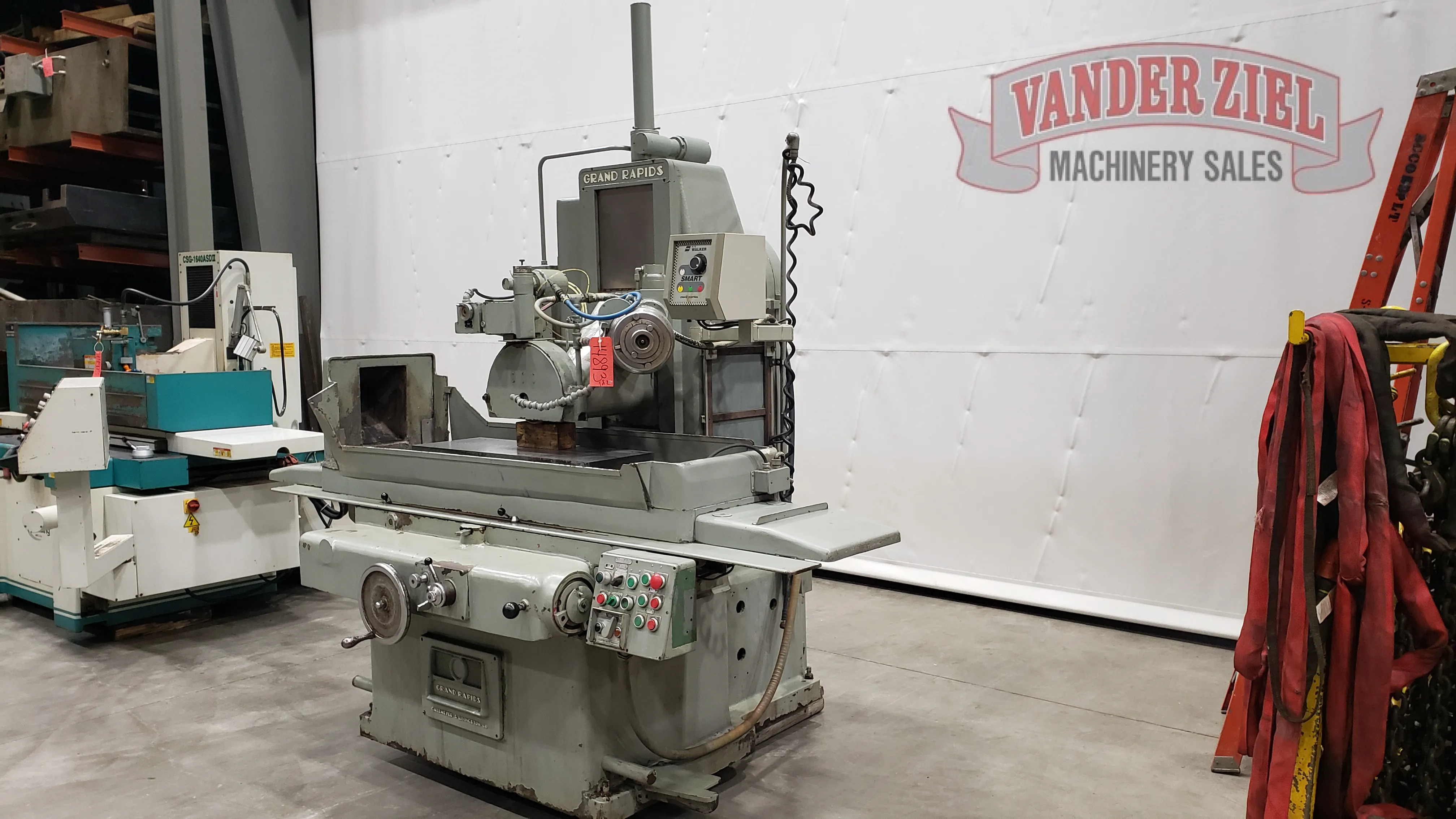

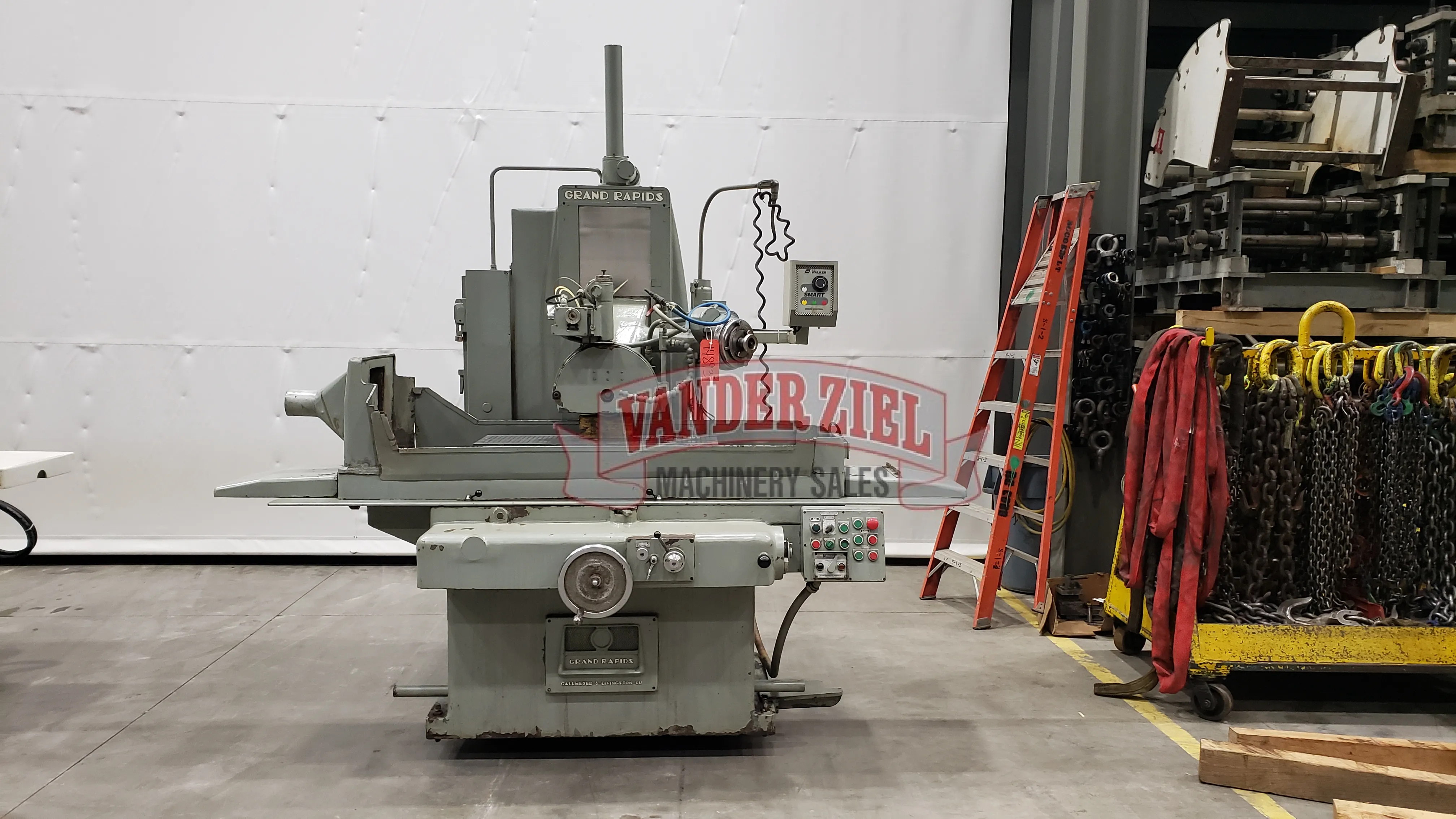

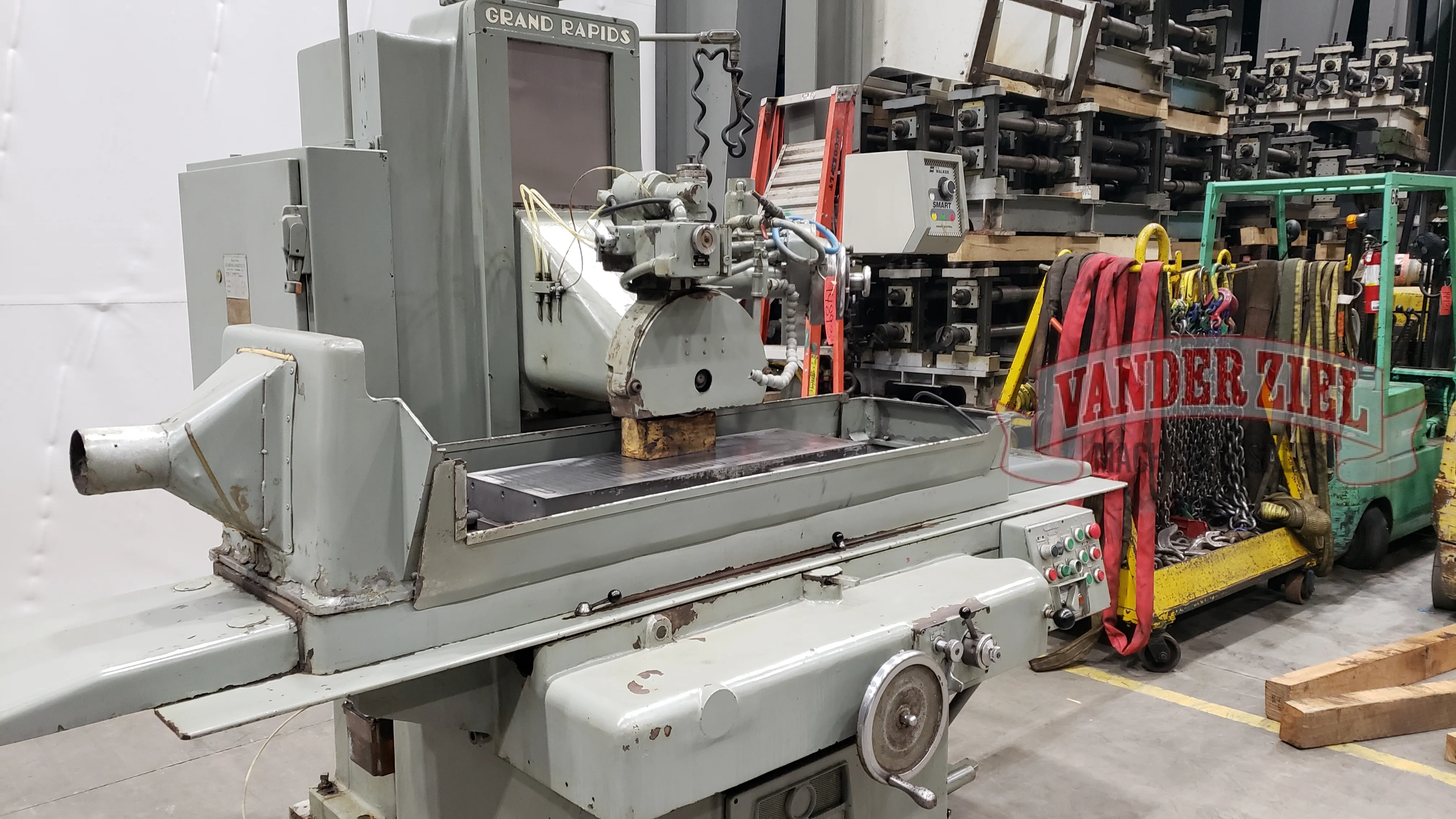

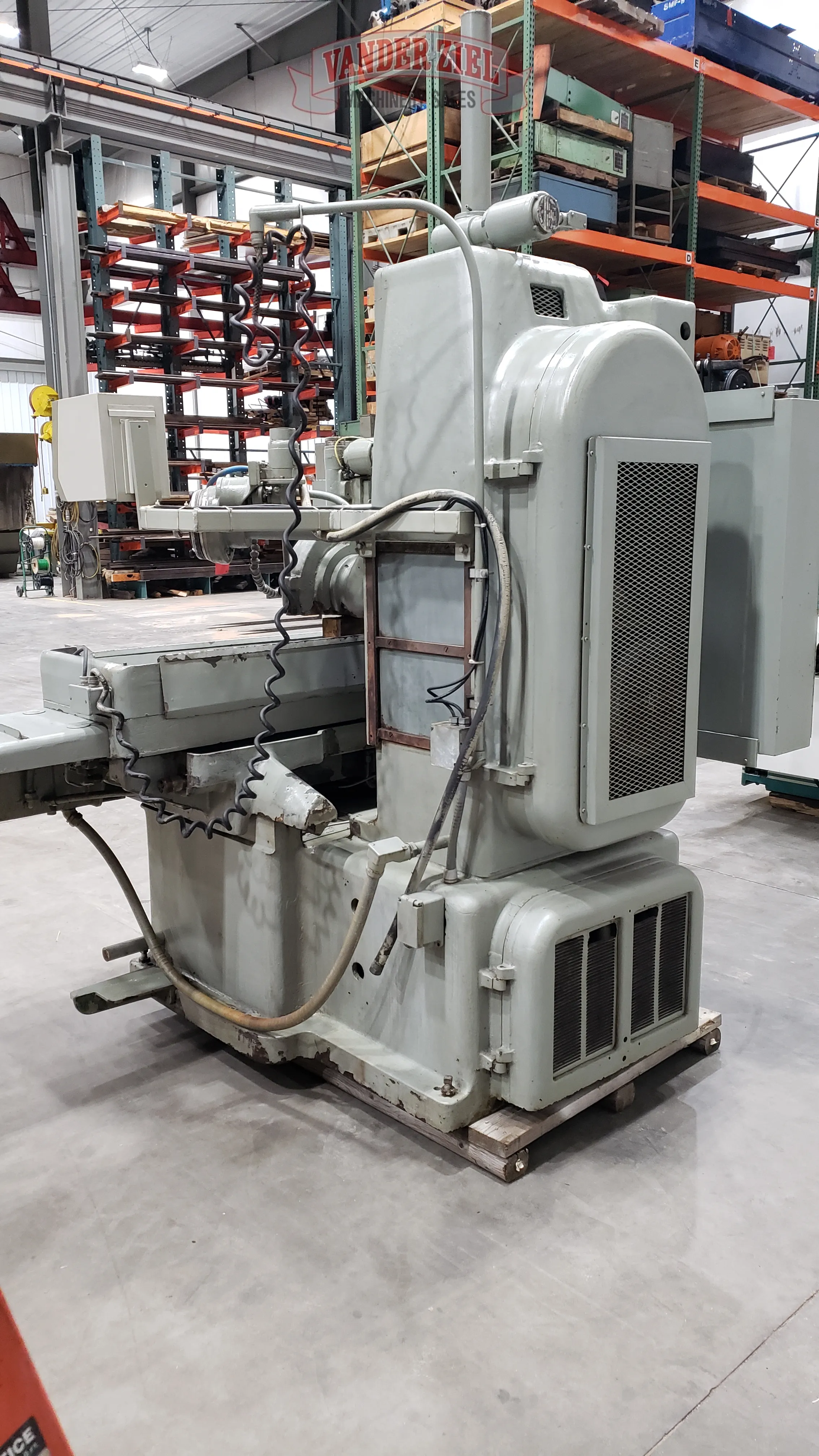

Gallmeyer & Livingston 12" x 36" Hydraulic Grinder

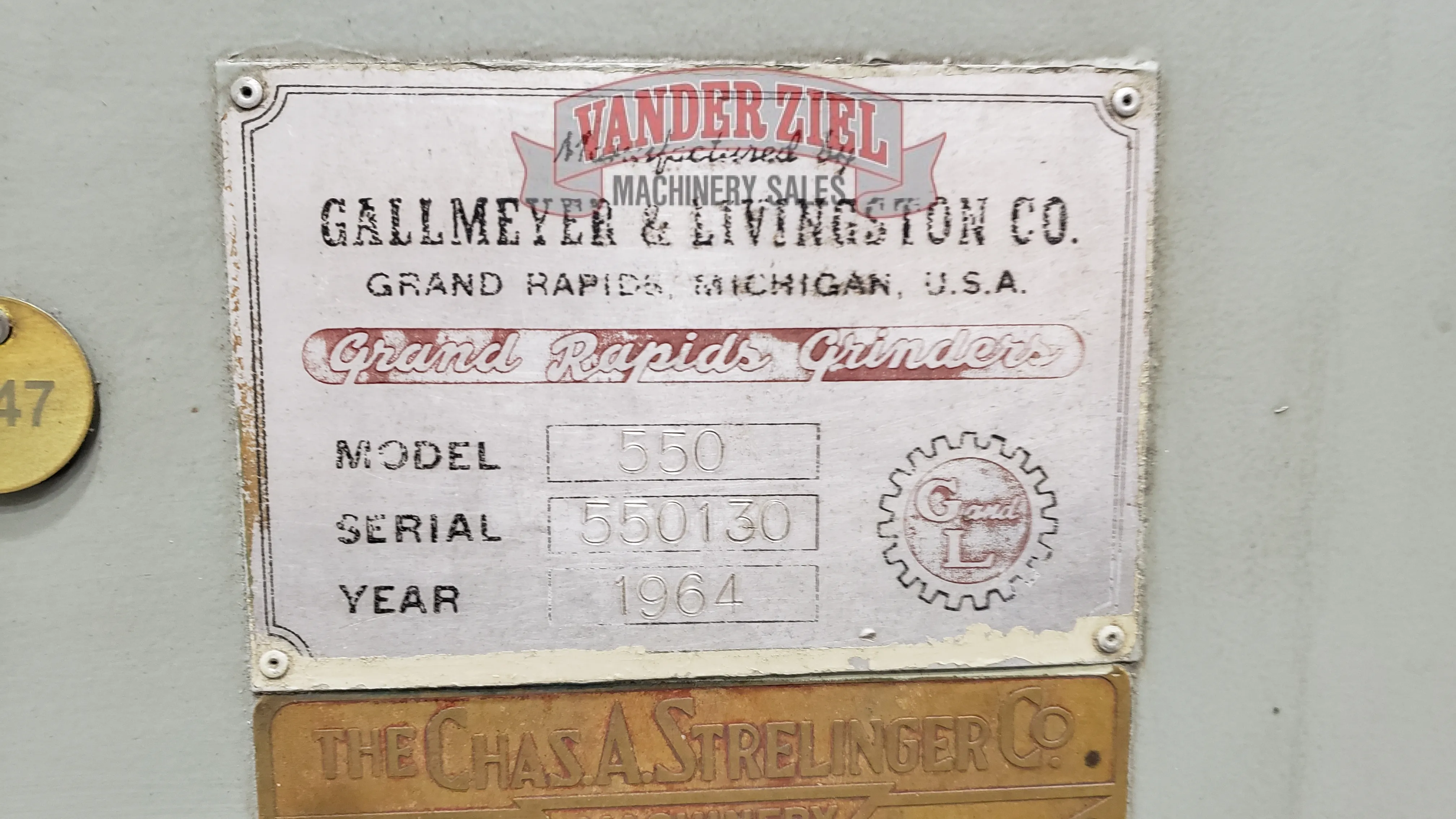

Gallmeyer & Livingston 12" x 36" Hydraulic Grinder, Model 550

Serial # 550130
Asset # 14893

Specifications:
Chuck Size 12" x 36"
Max. Grinding Width 15"
Max. Grinding Length 36"
Work Height - Full Wheel 18"
Height Floor to Work Surface 38"
Spindle Wheel Diameter 14"
Spindle Wheel Width 1 1/2"
Spindle Wheel Bore Size 5"
Throat Depth 17 1/8"
Housing Radius 3"
Spindle Speed 1750 RPM
Spindle Drive Motor 7 1/2 HP
Vertical Adjustment Speed per Minute 9.33"
Table Work Surface 12" x 37"
Maximum Longitudinal Travel 47 1/2"
Maximum Longitudinal Speed 100 ft/min
Maximum Cross Travel 13 3/4"
Continuous Cross Speed - Max. per Minute 120 per minute
Step Cross Travel - Maximum 3/4"
Hydraulic Motor 3 HP
Floor Space 171" x 104"
Machine Height 102"
Approximate Weight 9,000 lbs.

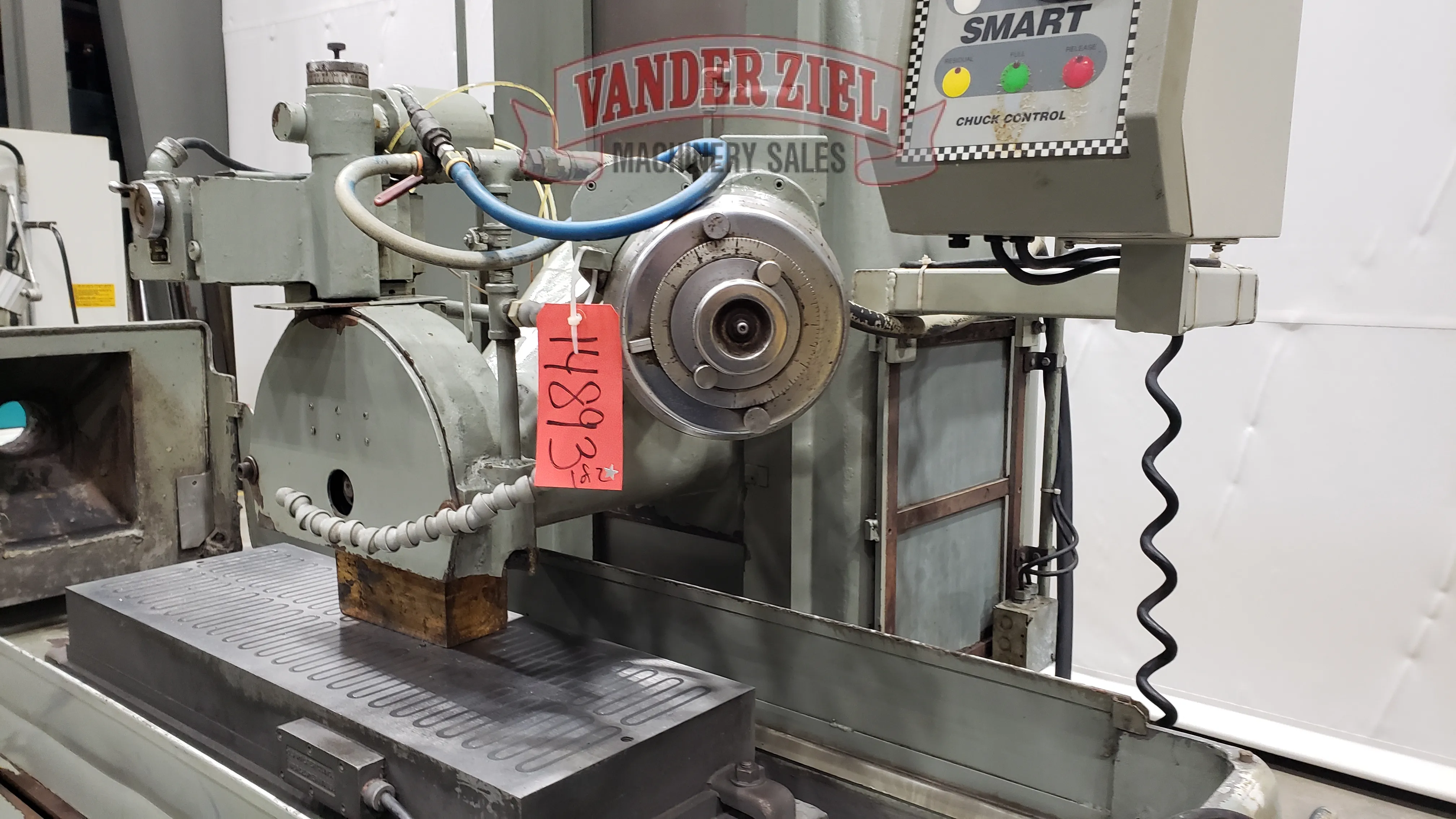

Grinder is equipped with Incremental downfeed and a OS Walker chuck control.

Preliminary Specifications - Subject to Verification
