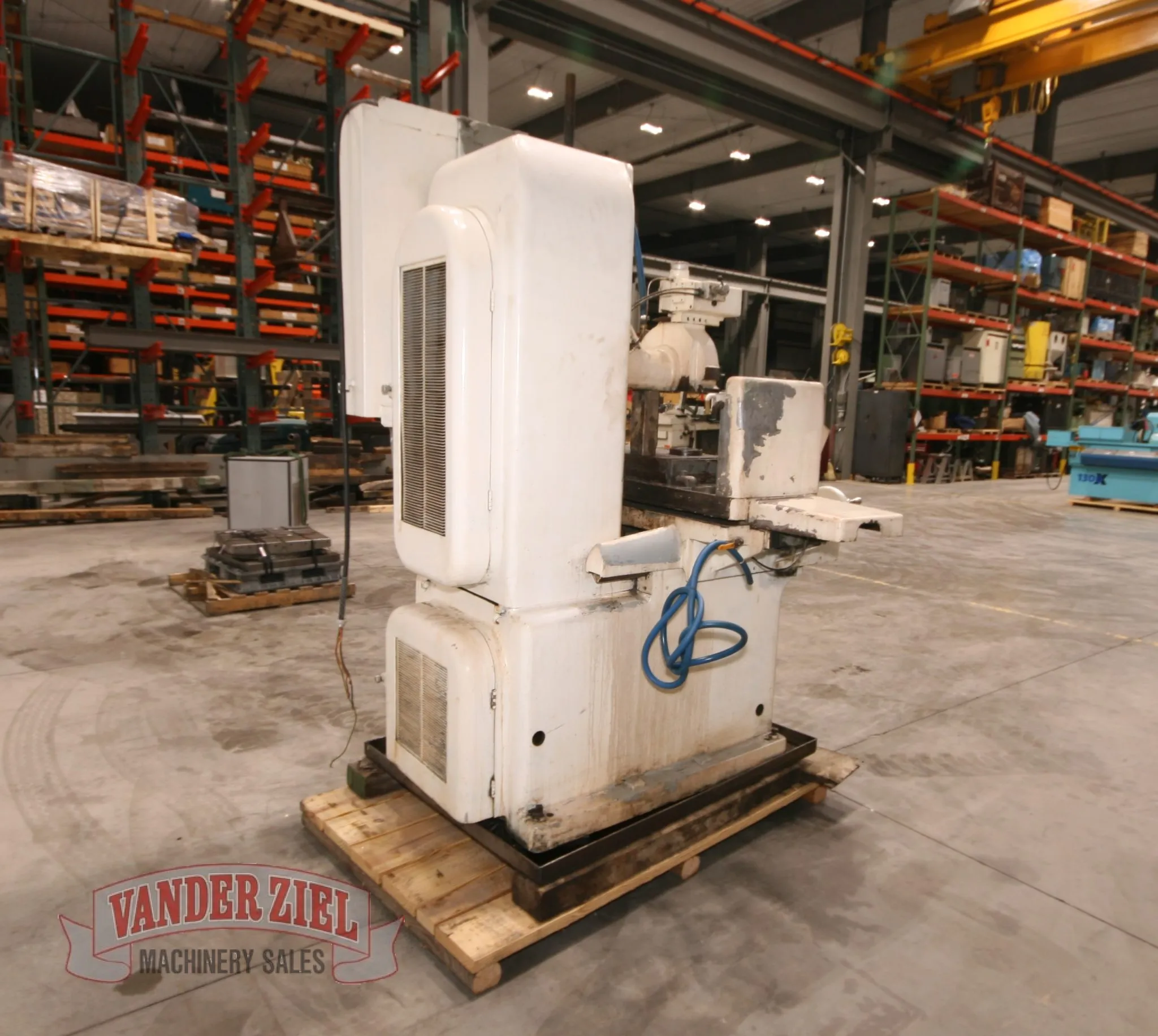

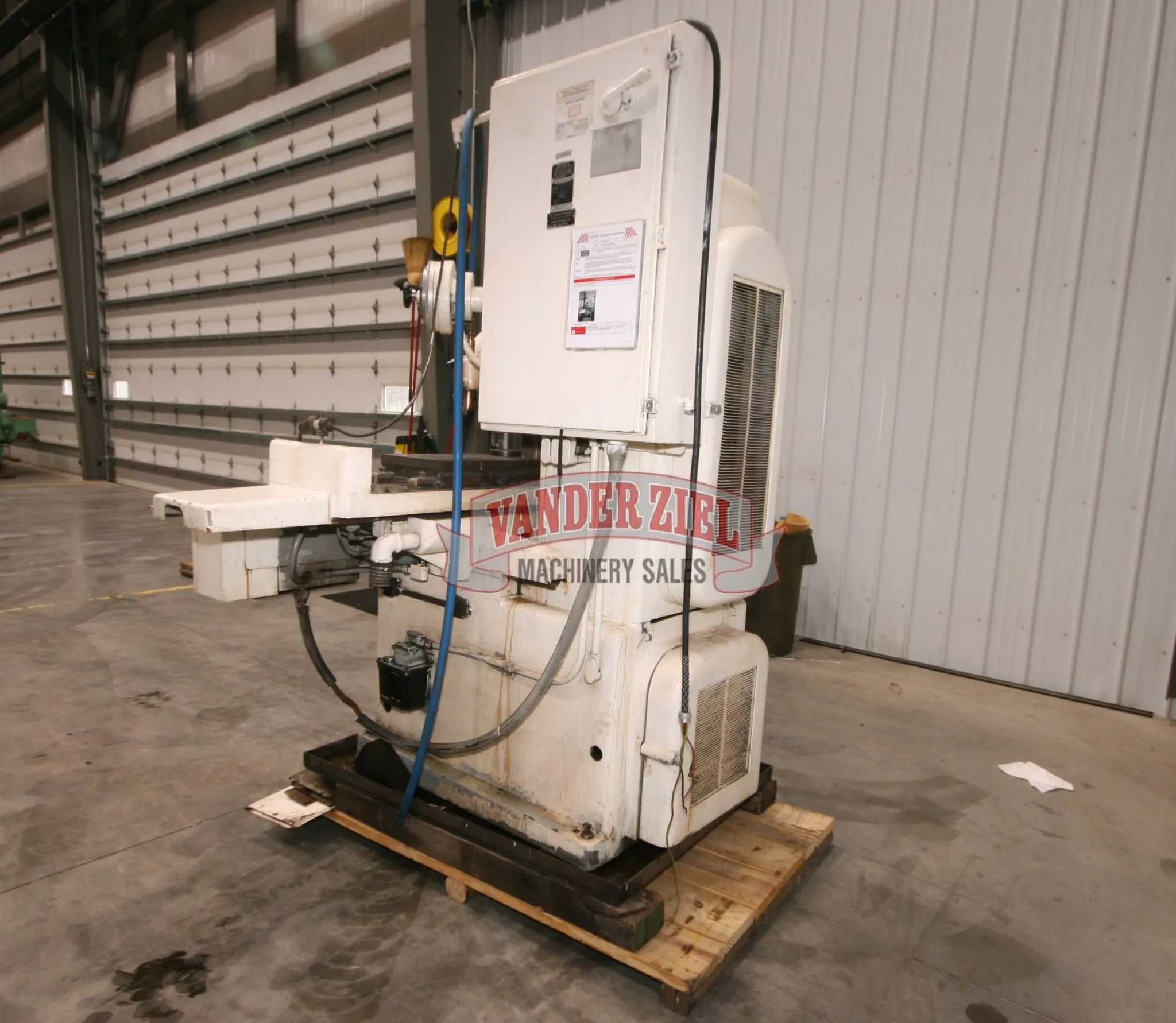

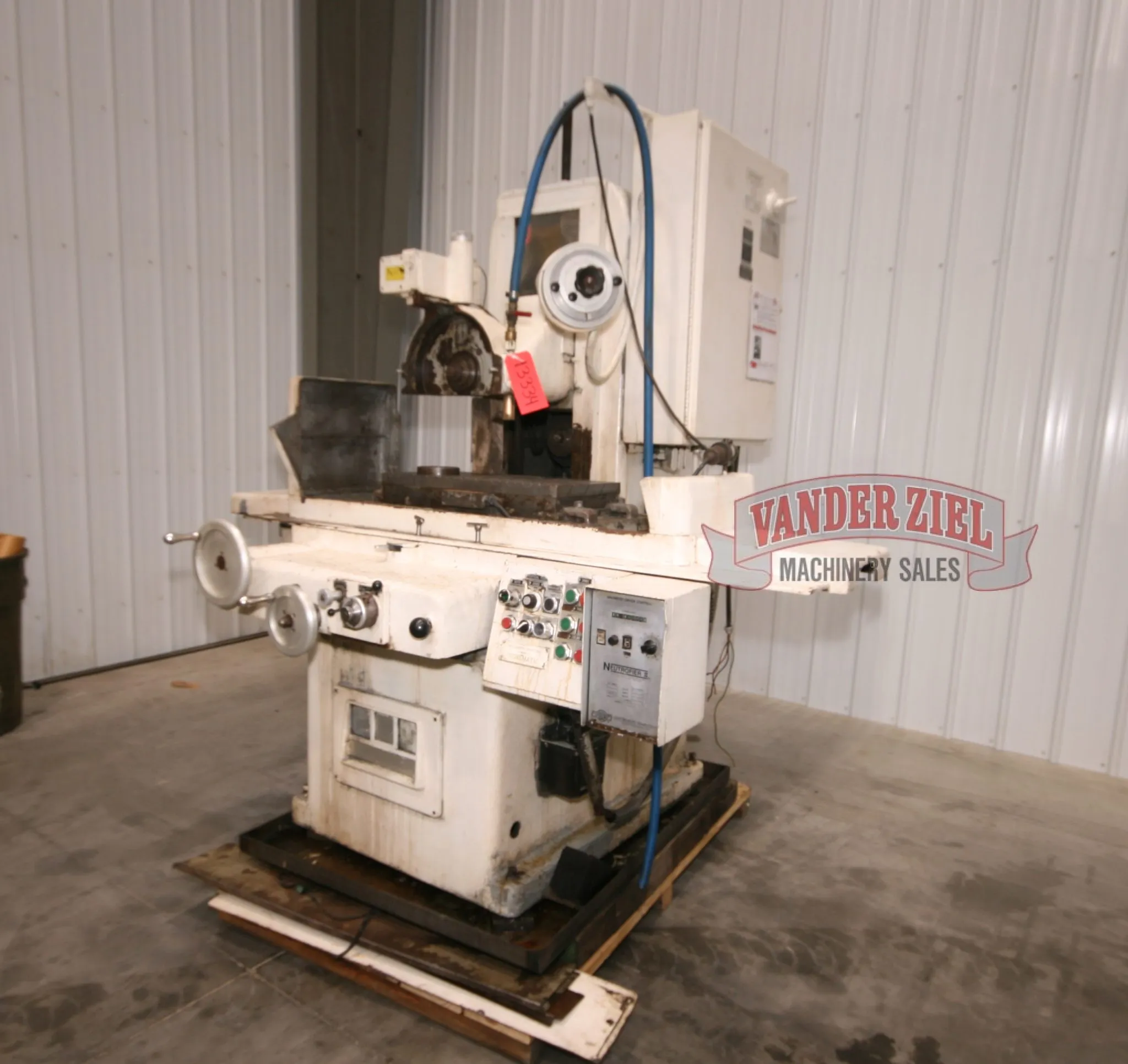

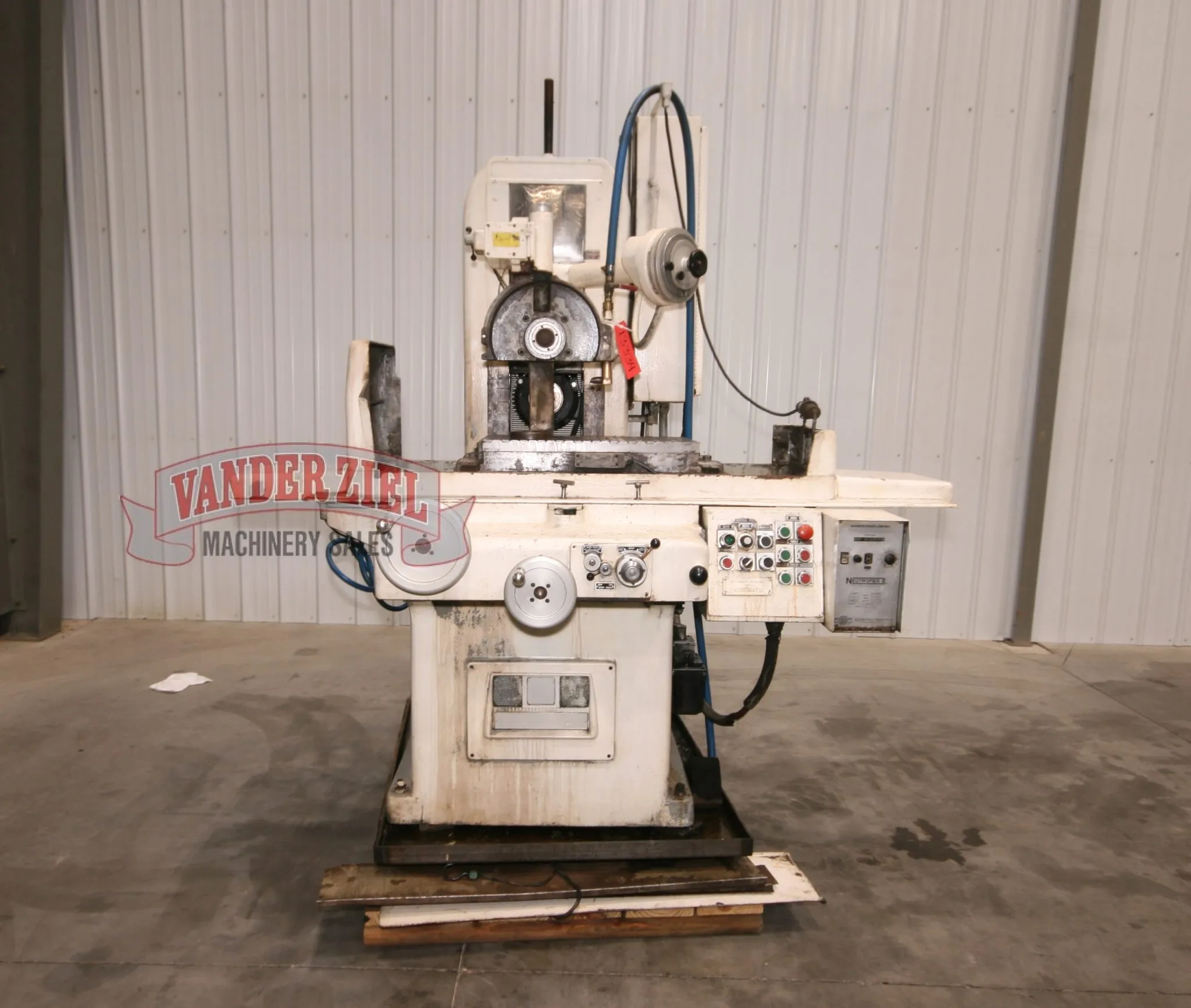

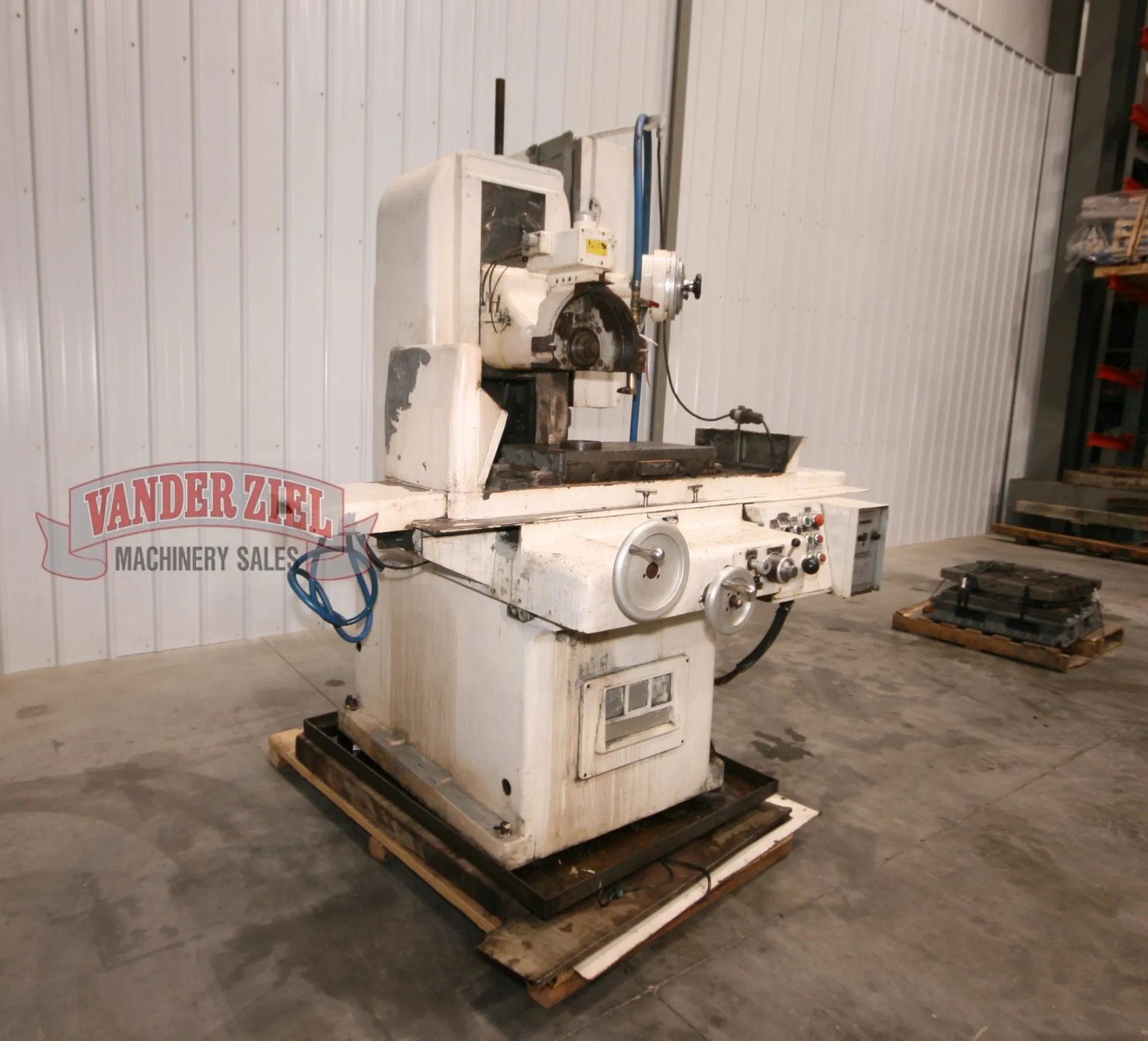

Gallmeyer & Livingston 12" x 24" Hydraulic Surface Grinder

Gallmeyer & Livingston 12" x 24" Hydraulic Surface Grinder, Model 373

Serial # 373424
Asset # 13334

Specifications:

Working surface of table 12"x24"
Longitude table speed 3" to 150 FPM
Longitude-hydraulic table travel-max 29 1/2"
Transverse hydraulic table-max 13 1/4"
Standard wheel size 12"x1"x3"
Vertical movement of wheel head 19"
Max distance wheel to table 15"
Distance center of spindle to bottom of housing 2 1/2"
Standard spindle speeds 2000-2400 RPM
Standard spindle motor (1750 RPM) 3 Hp
Standard hydraulic pump motor (1200 RPM) 1 1/2 Hp
Approx floor space 73"x110"
Approx weight 5200 lbs.

Grinder is equipped with incremental downfeed and Electromagnetic chuck control.

Preliminary Specifications - Subject to Verification
