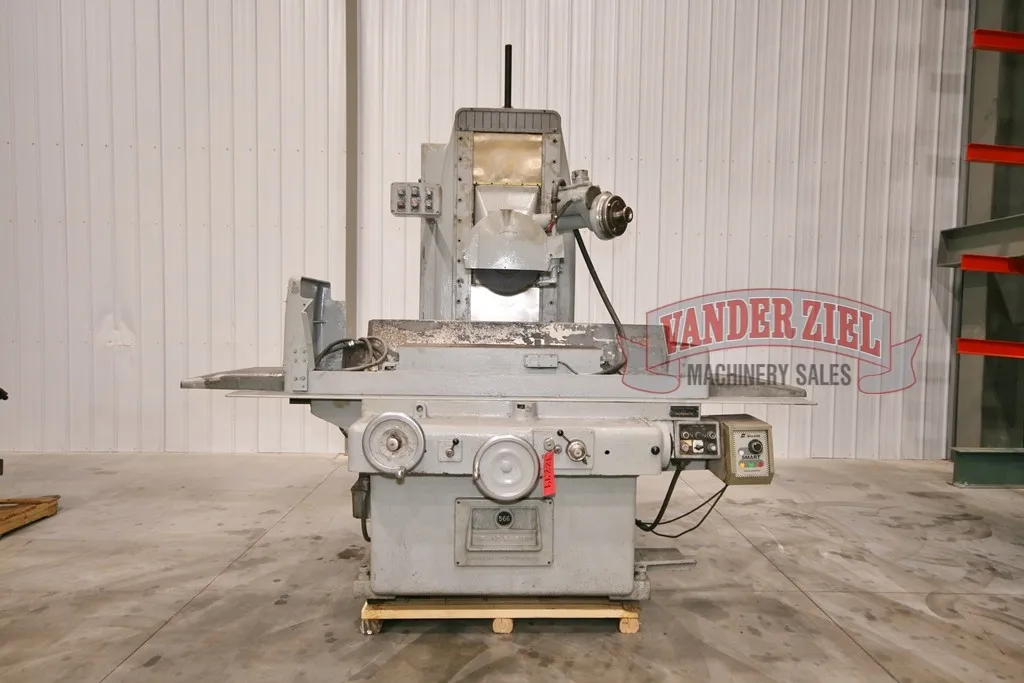

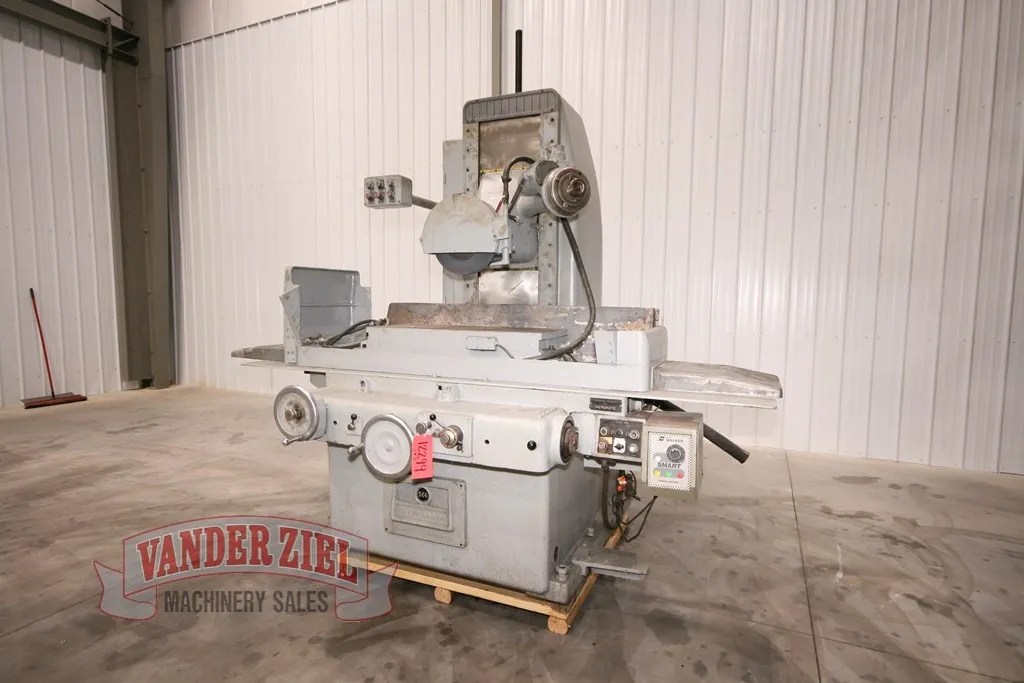

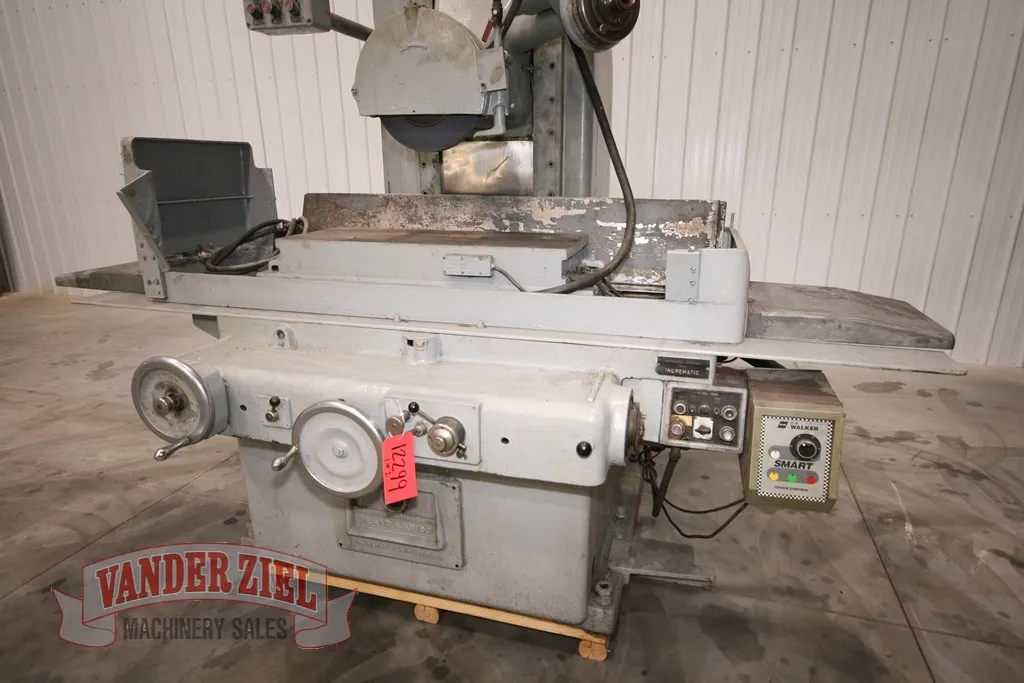

Gallmeyer & Livingston 14" x 36" Hydraulic Grinder

Gallmeyer & Livingston 14" x 36" Hydraulic Grinder, Model 566

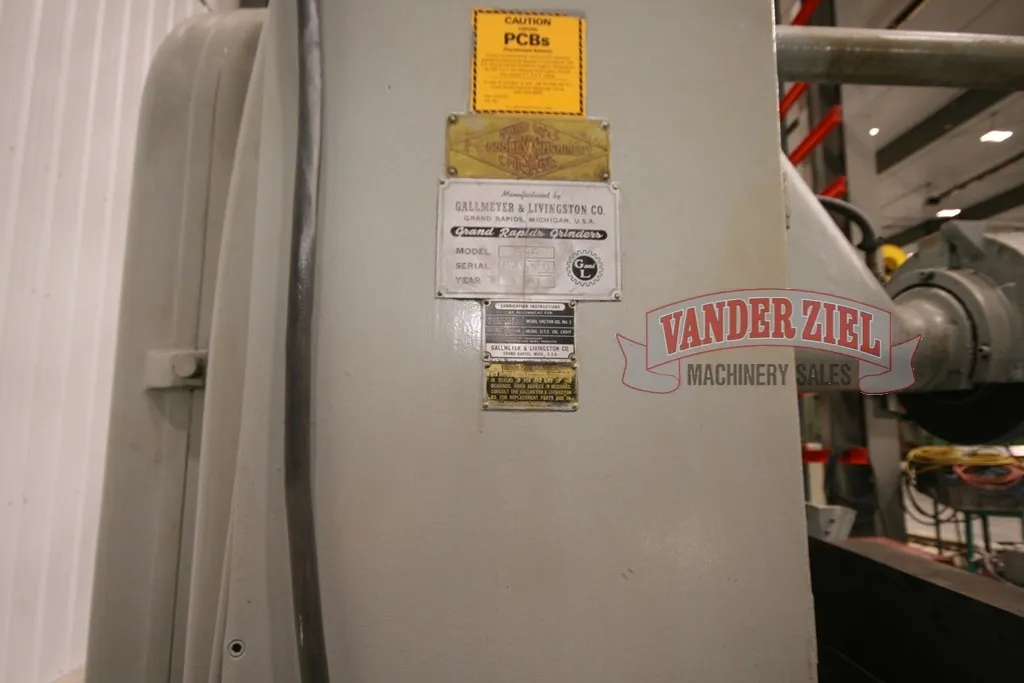

Serial # 566110
Asset # 12299

Specifications:
Working Surface of Table    14" x 36"
Longitudinal Table Speed    3" - 150' per Min.
Hydraulic Table Travel - Longitudinal    47 1/2"
Hydraulic Table Travel - Transverse    15 3/4"
Standard Size of Wheel    14" x 1 1/2" x 5"
Vertical Movement of Wheel Head    25"
Maximum Distance from Wheel to Table - Under 14" Wheel    18"
Distance Center of Spindle to bottom of Spindle Housing    3"
Spindle Speeds    1750 & 2100 RPM
Hydraulic Pump Motor    3 HP, 1140 RPM
Spindle Motor    7 1/2 HP, 1750 RPM
Floor Space    172" x 82"
Weight    10,050 lbs.

Preliminary Specifications - Subject to Verification
