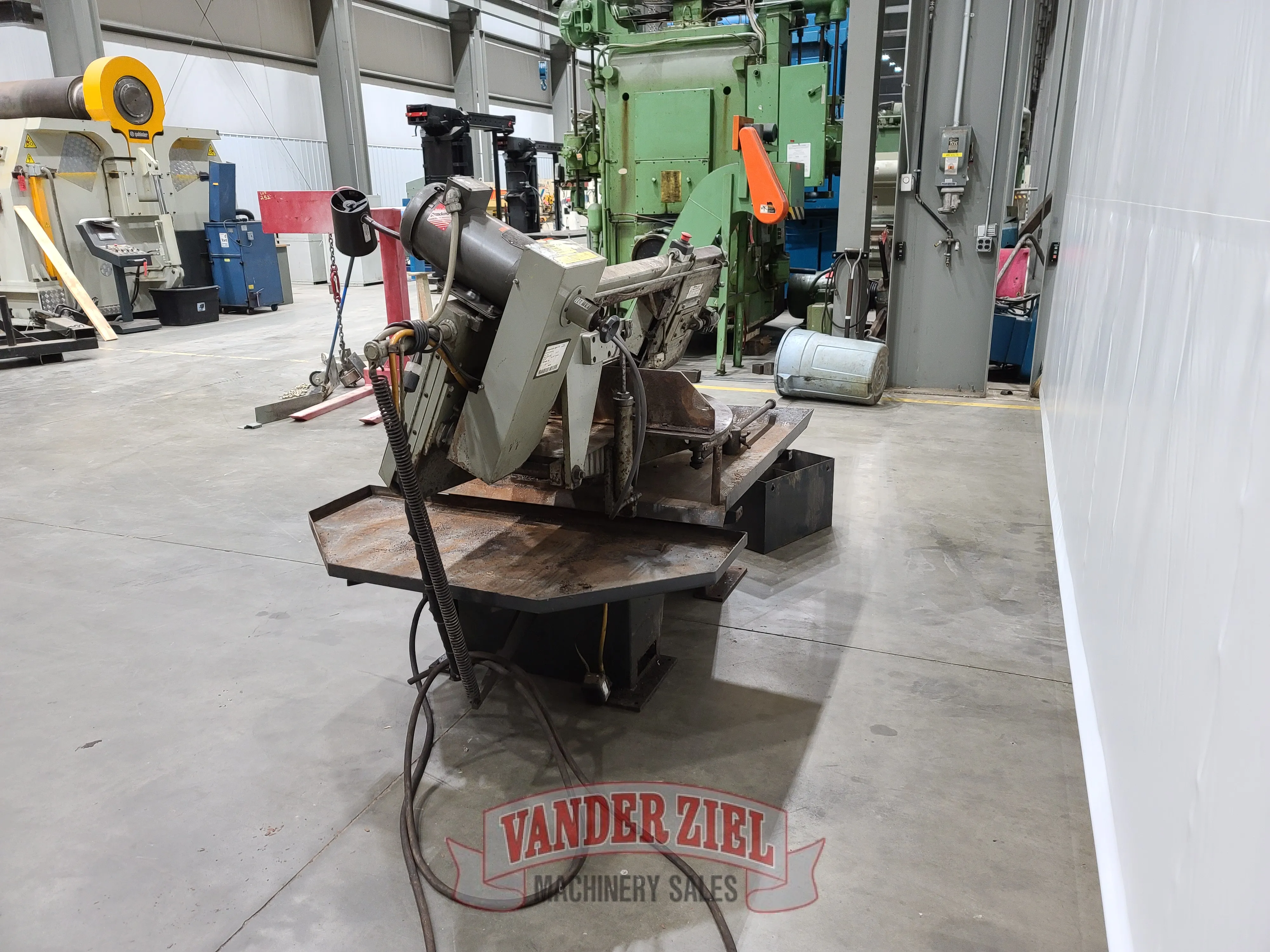

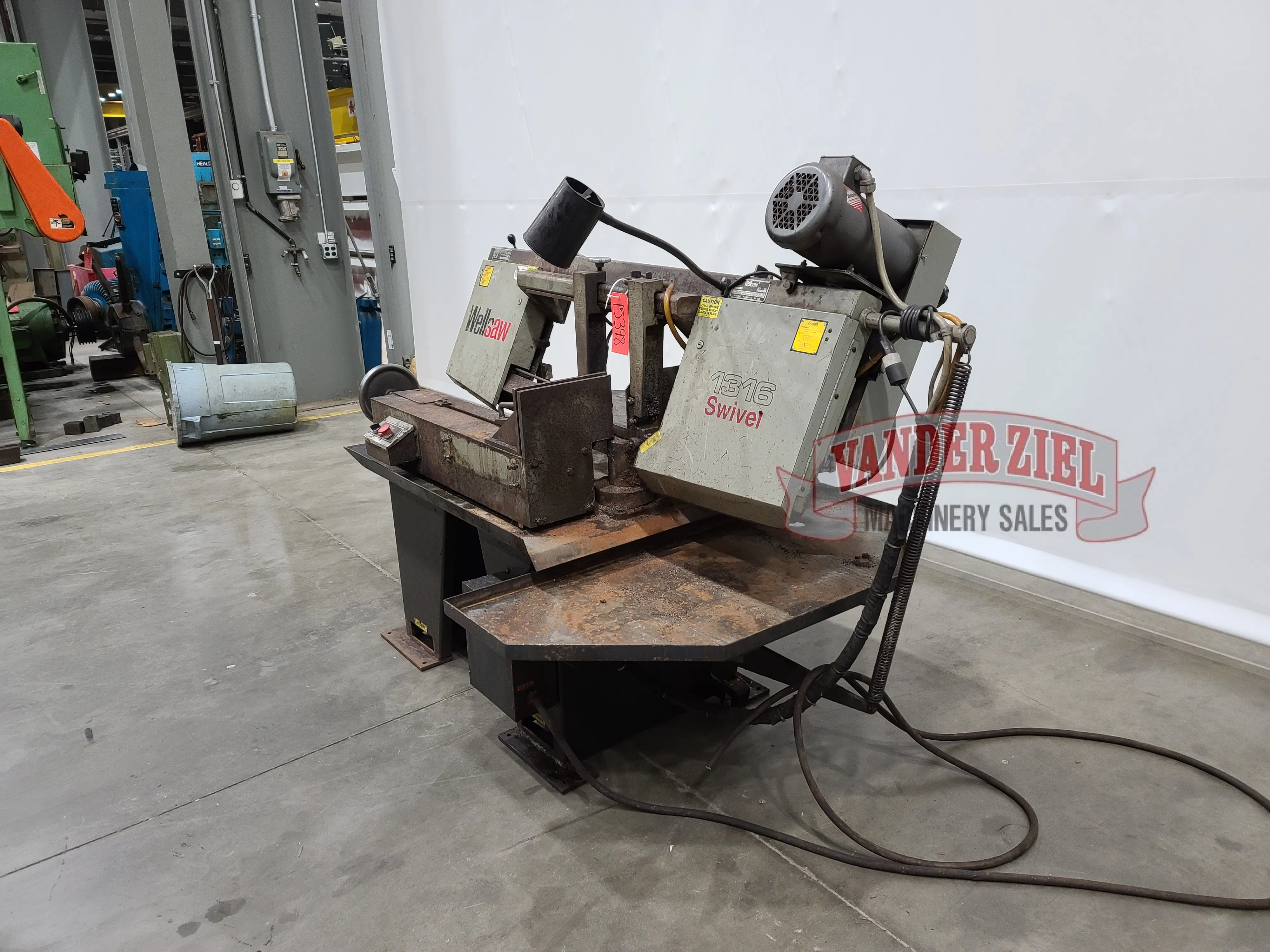

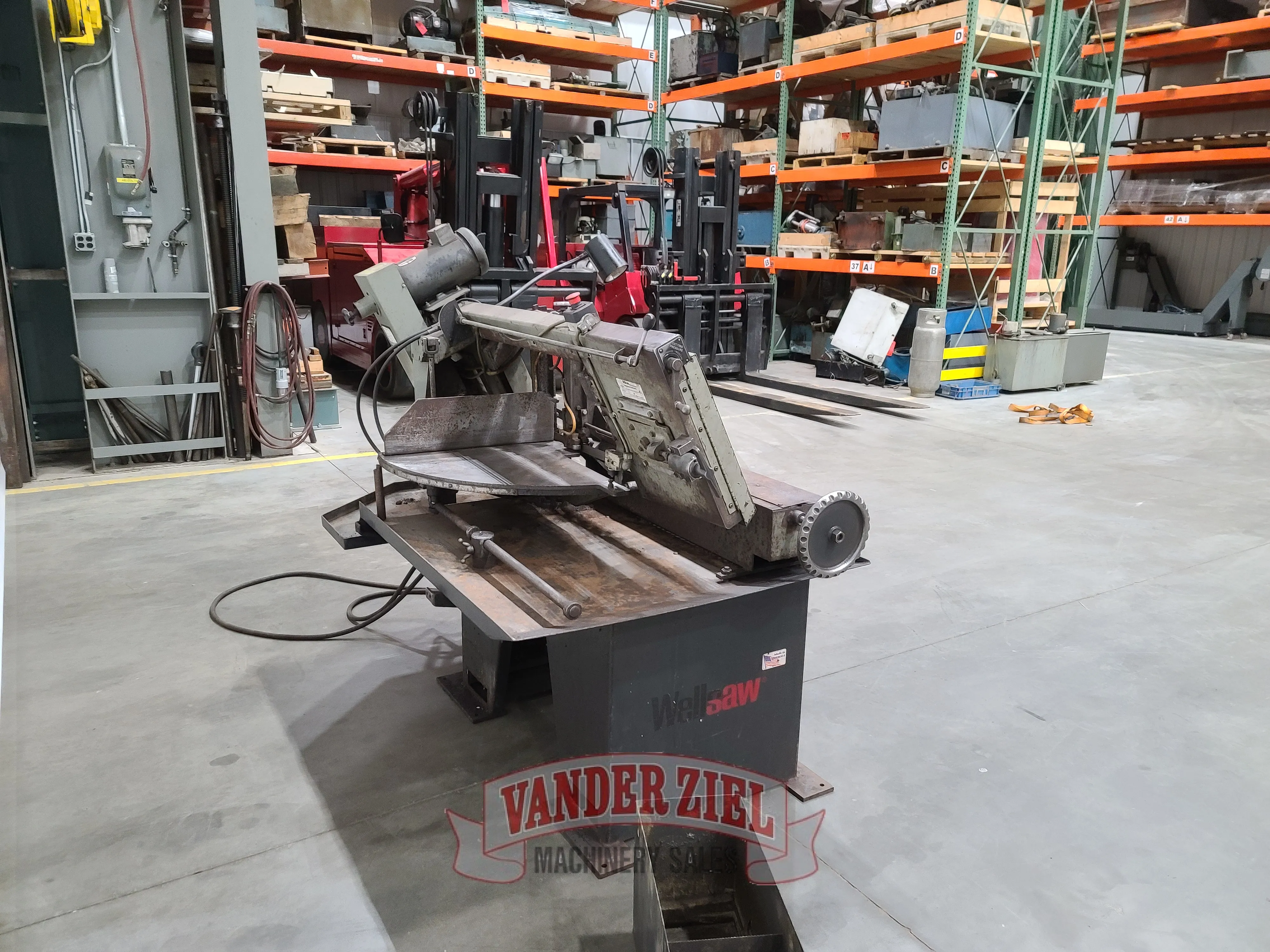

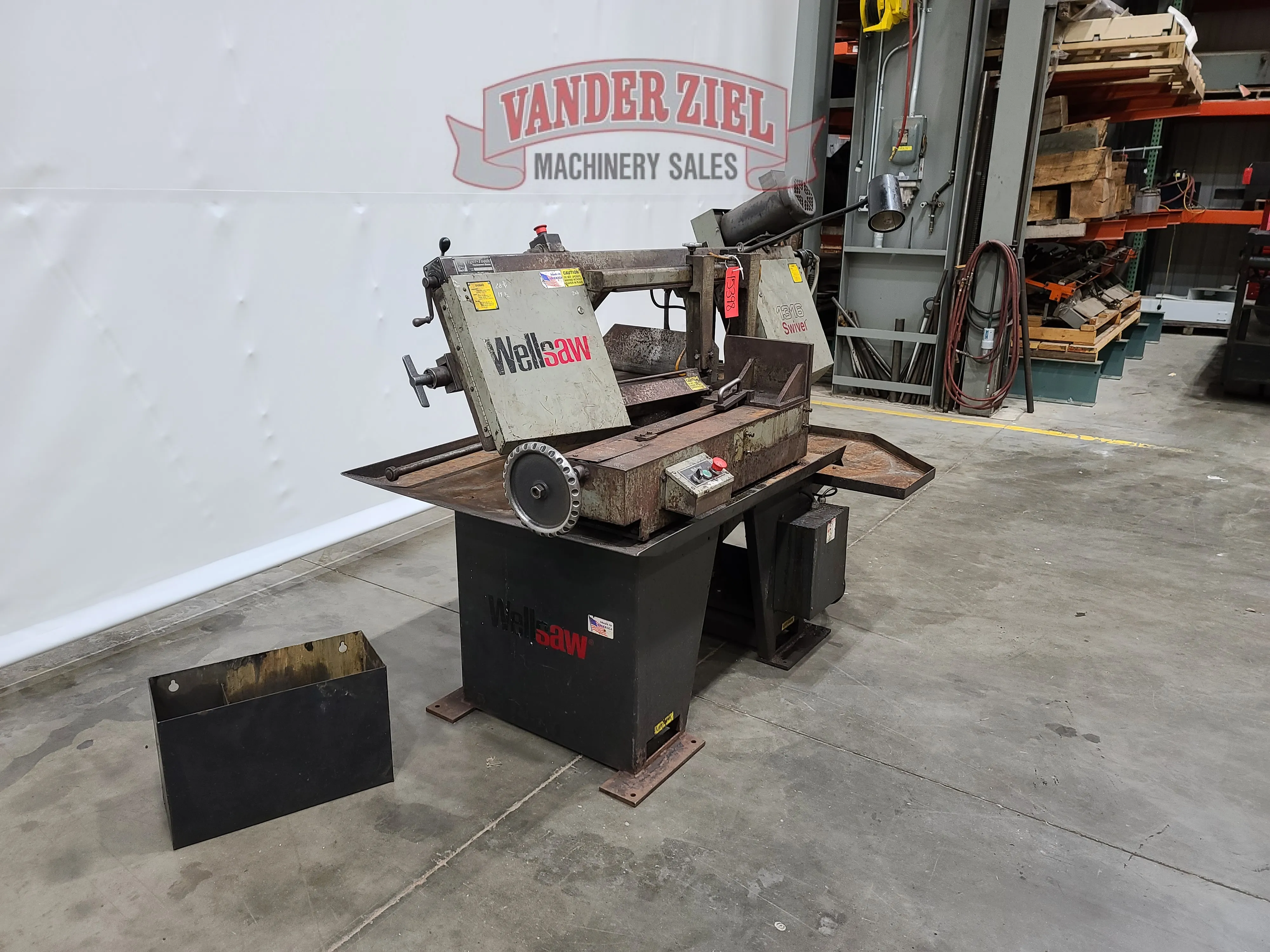

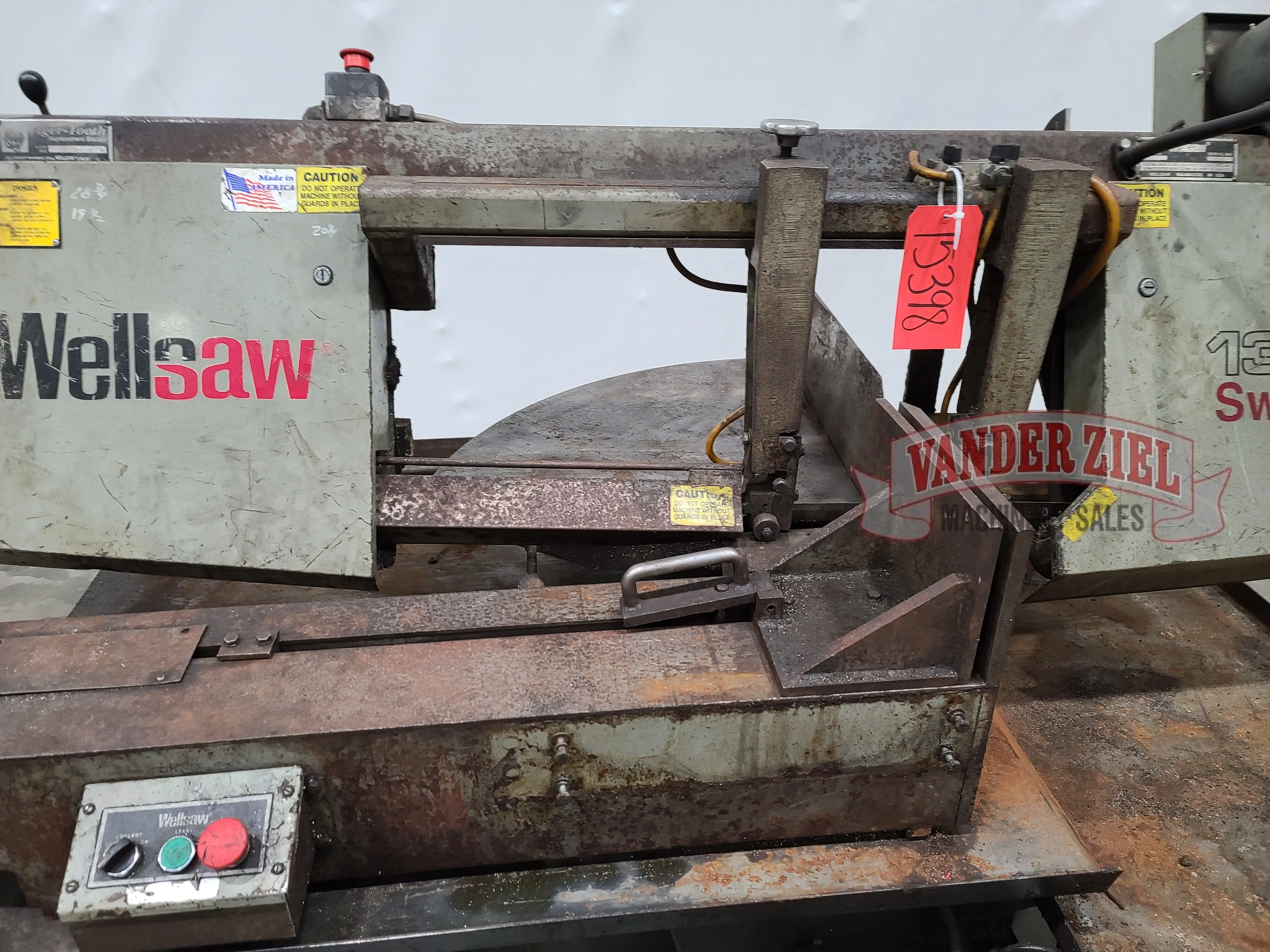

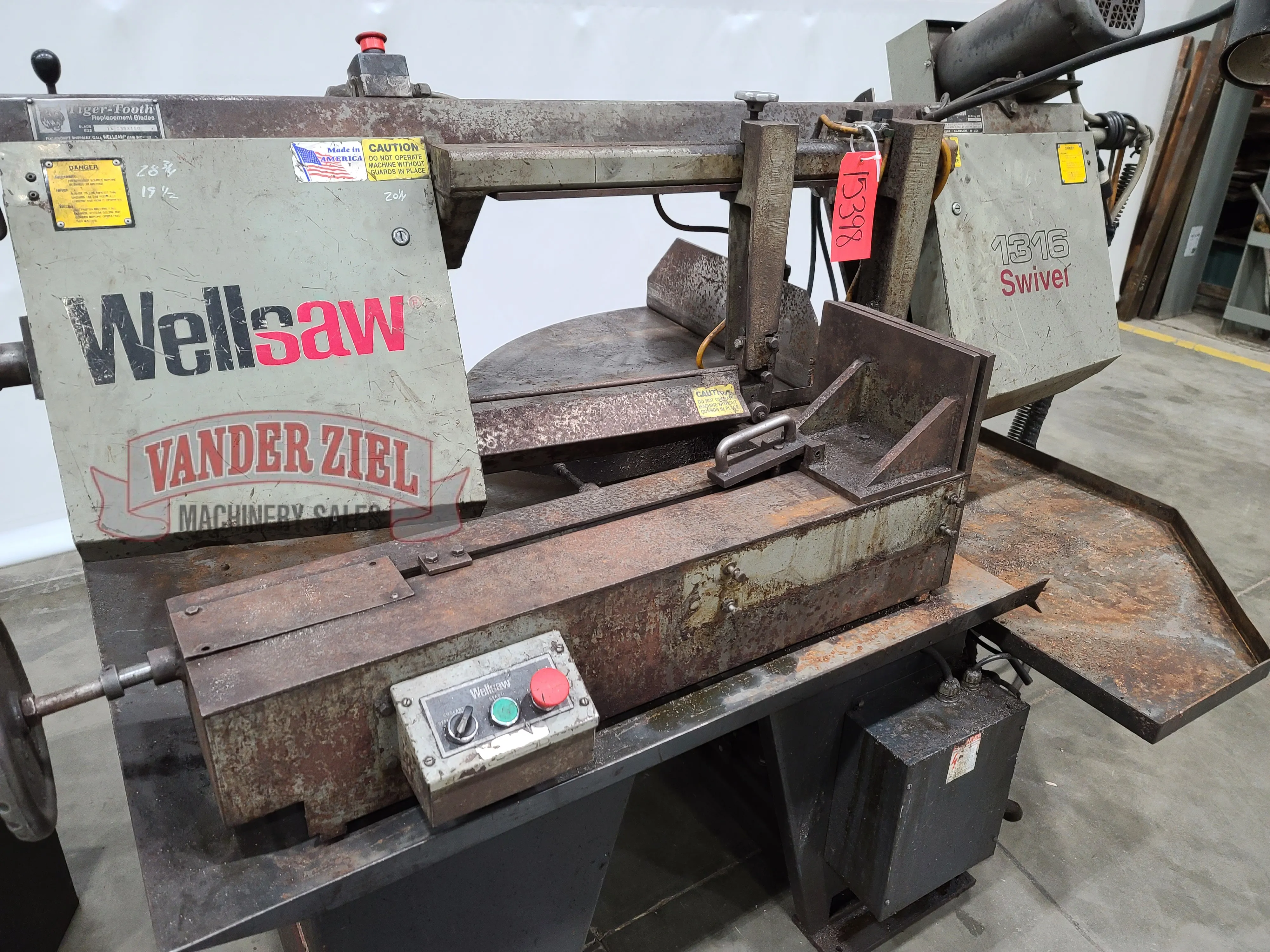

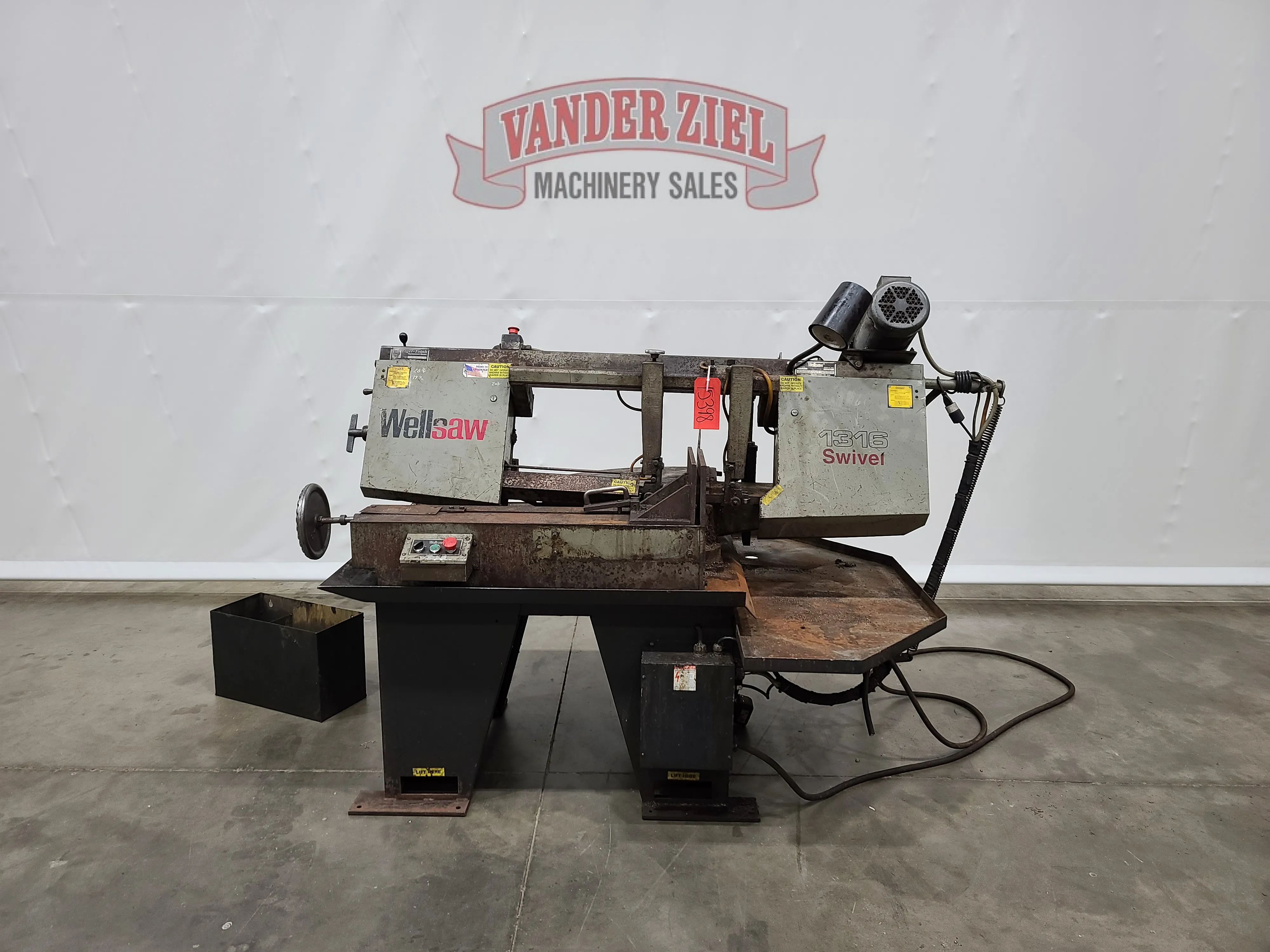

Wellsaw 13” x 16” Horizontal Swivel Saw, Model 1316S

Wellsaw 13” x 16” Horizontal Swivel Saw, Model 1316S

Serial # 6375
Asset # 15398

Specifications:
Rectangular Capacity
Capacity at 0 Deg. (90 Deg.) 13"H x 16"W
Capacity at 45 Deg. 13"H x 11-1/2"W
Capacity at 60 Deg. 8-1/2"H x 8"W
Round Capacity
Capacity at 0 Deg. (90 Deg.) 13”
Capacity at 45 Deg. 11-1/2"
Capacity at 60 Deg. 8" W
Blade Size 1" x .035" x 12'6"
Blade Speeds Infinitely Variable 70-375 SFPM
Blade Guides Carbide Guides
Blade Tension Manual Rite-Tension®
Electrical Options 115-208-230/60/1
Coolant System Tank Capacity 8 Gallons
Submersible Pump 115V/.6 Amp/3 GPM
Vise Control Manual Screw
Feed Rate Control Variable Hydraulic
Band Wheels 15" Diameter Cast Iron
Stock Stop Projection 25"
Bed Height 35"
Floor Area 90"W x 76"L
Shipping Weight 1,600 Lbs.

Preliminary Specifications - Subject to Verification
