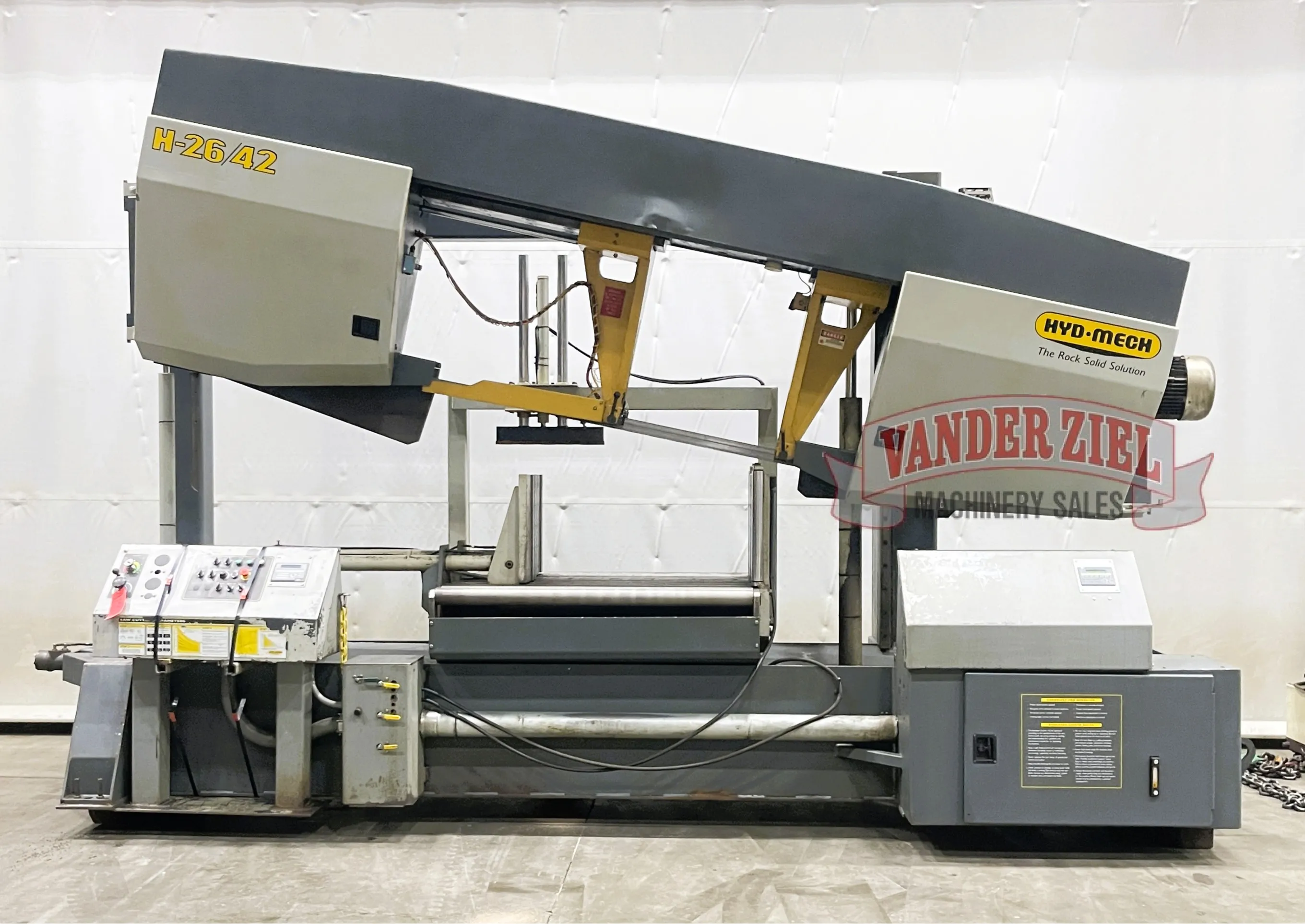

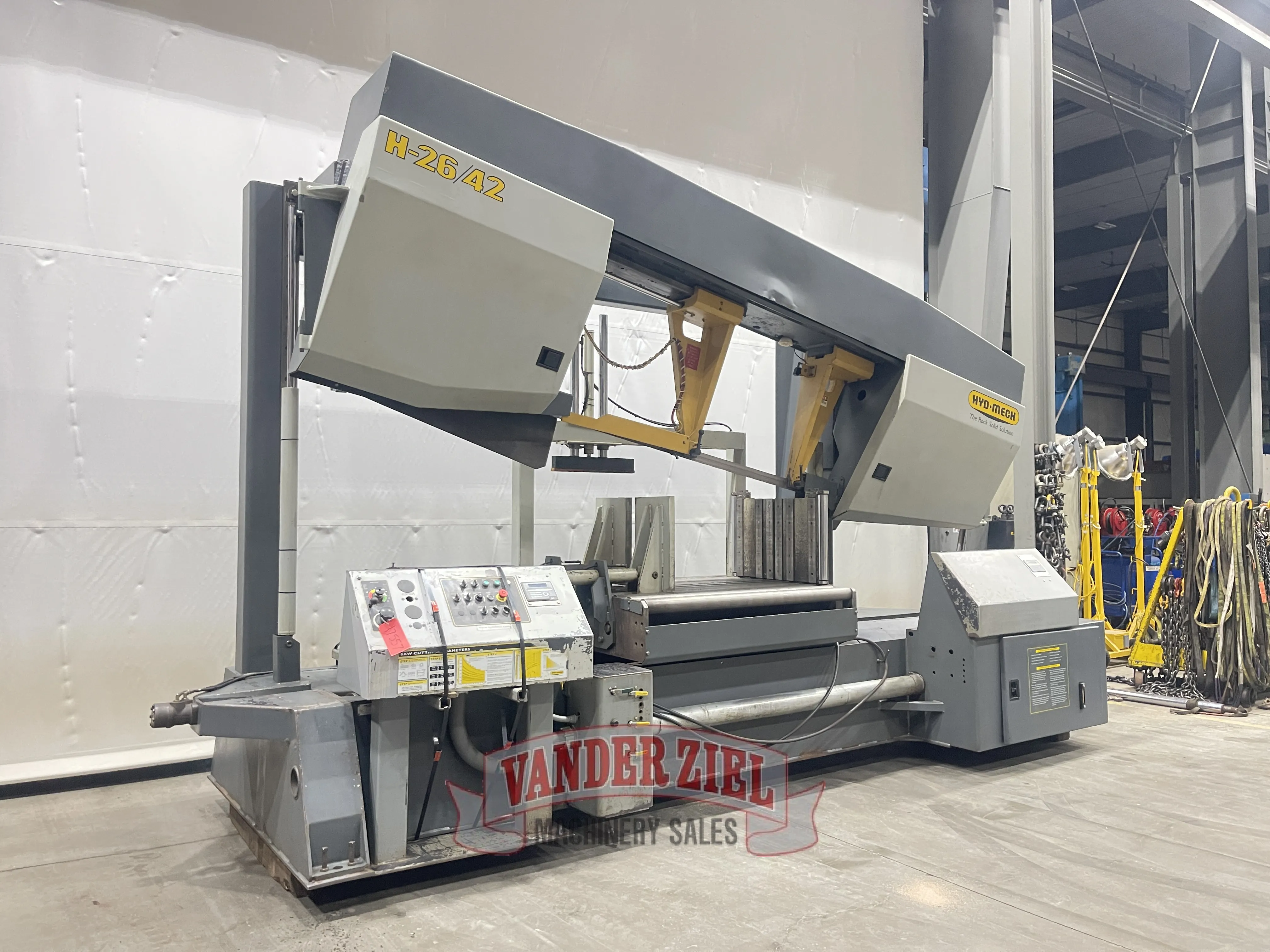

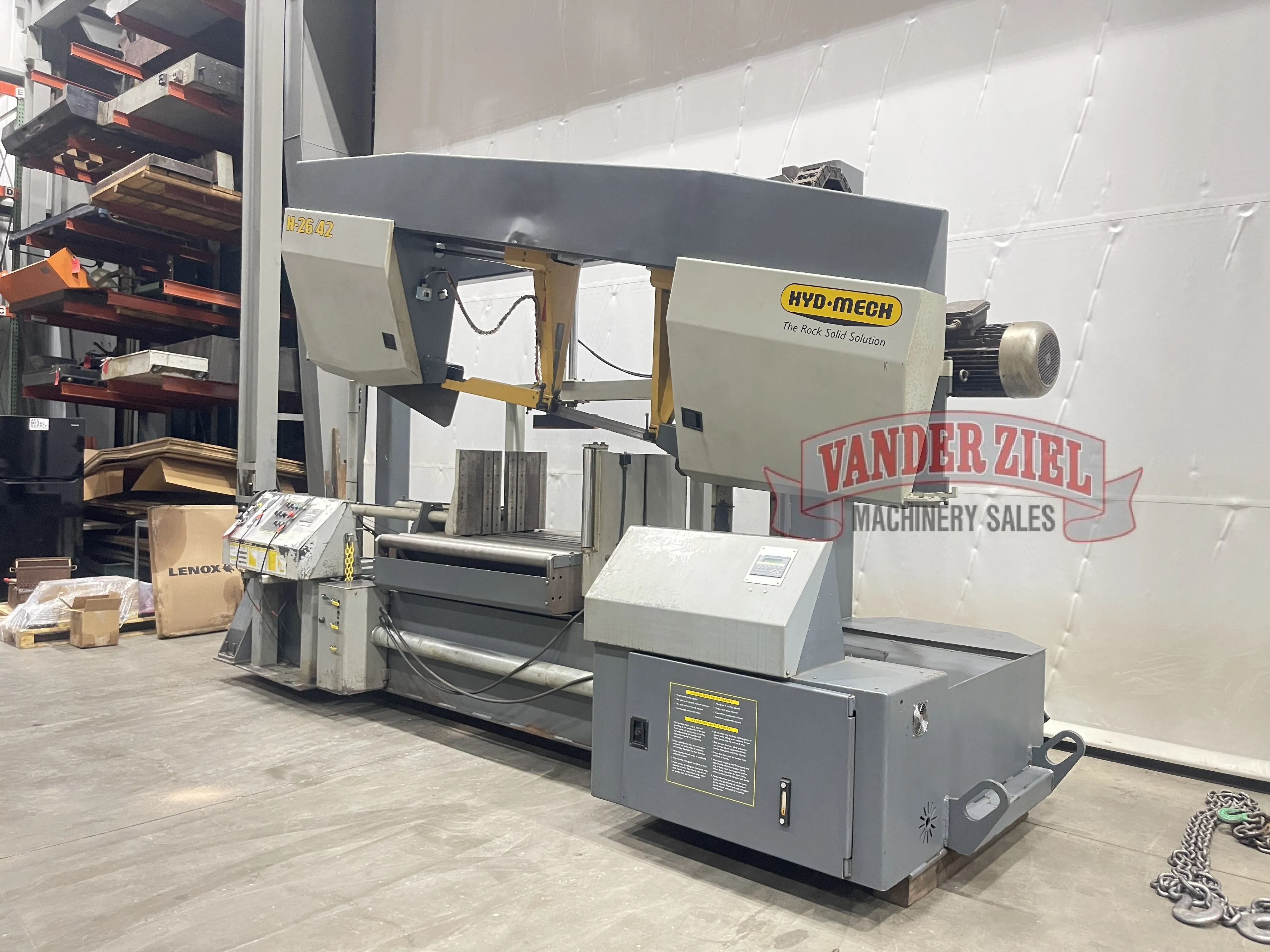

Hyd-Mech 42" x 26" Horizontal Saw, Model H26x42

Hyd-Mech 42" x 26" Horizontal Saw, Model H26x42

Asset # 17557
Serial #DS0906032

Specifications:
Capacity Round 32"
Capacity Rectangle 42" x 26"
Head Incline 12 Degree Canted Head
Blade Dimensions 2 5/8" x .063" x 33'
Blade Tension Hydraulic
Blade Speed 50-300 SFM VFD

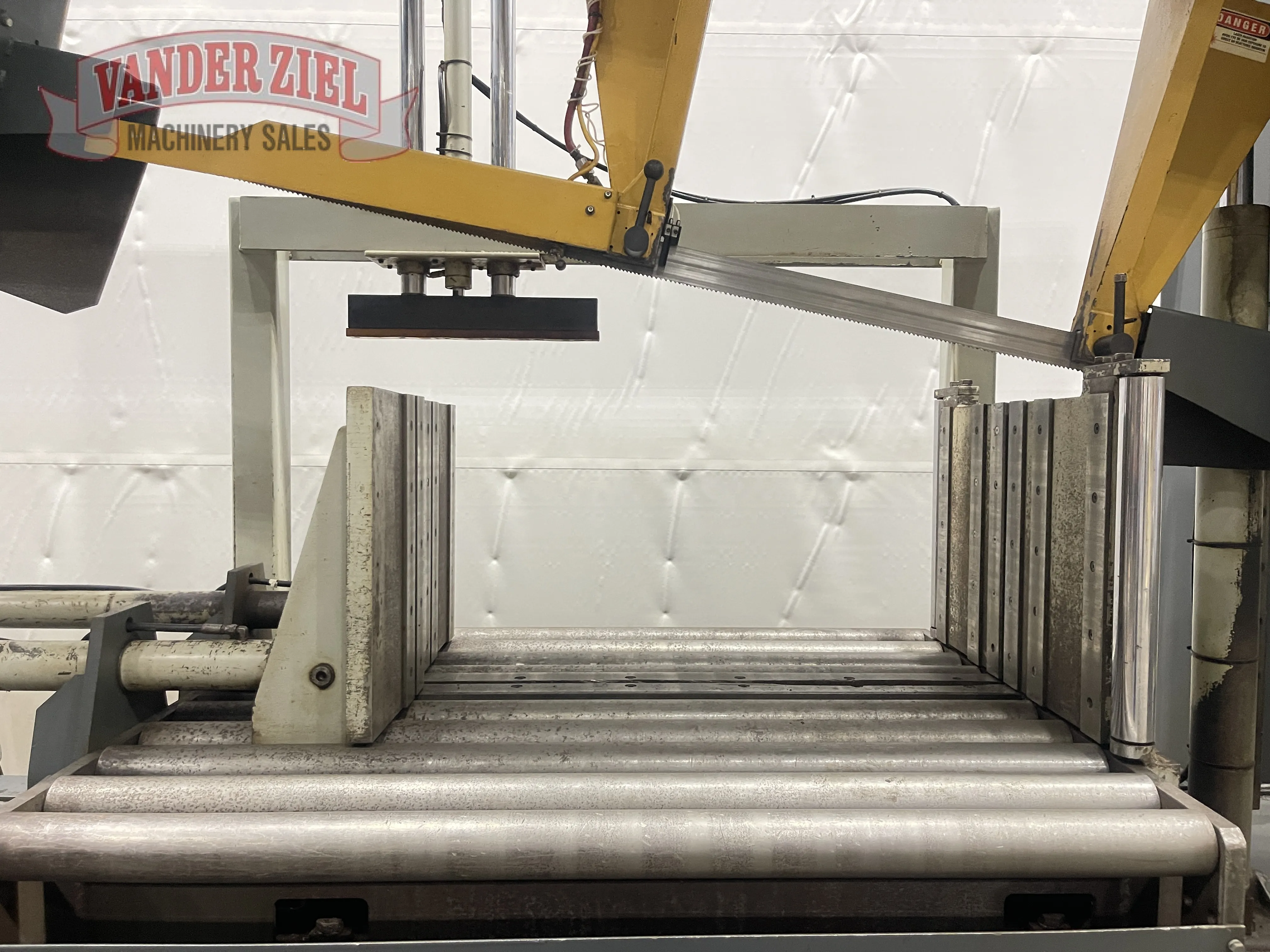

Blade Guides Carbide Inserts (Water Soluble Coolant Lubricated)
Blade Wheel Diameter 38"

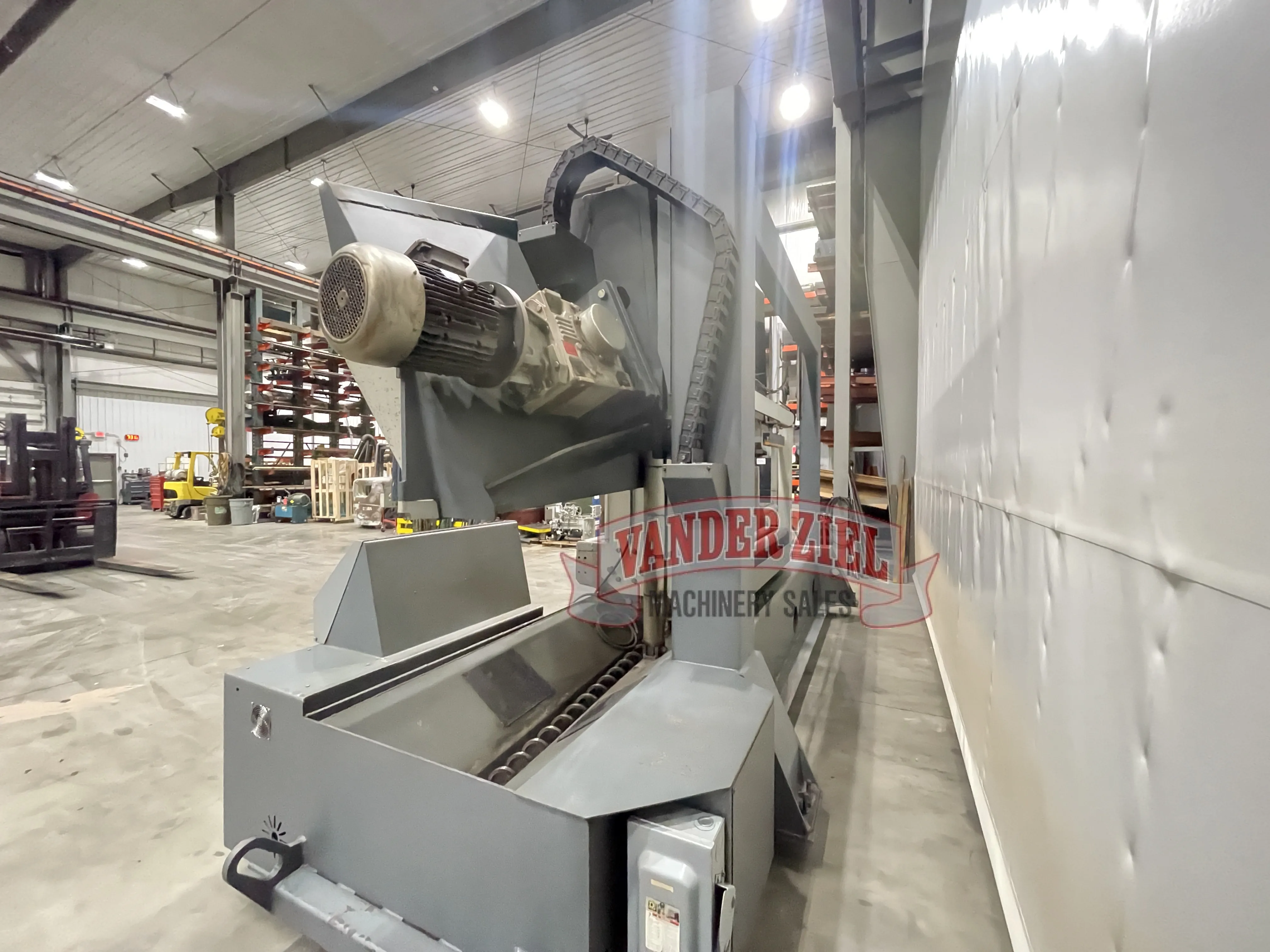

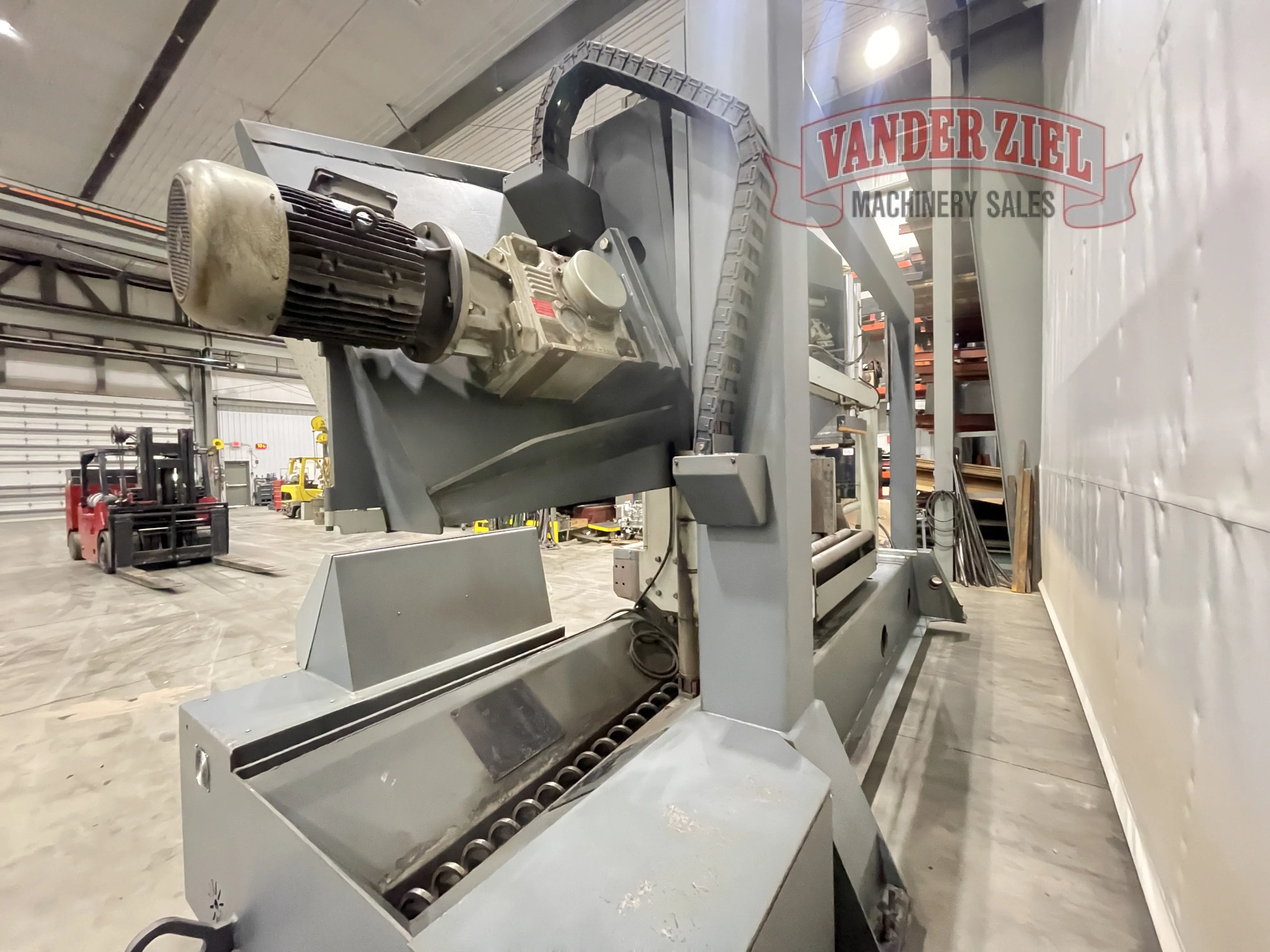

Motors 20 HP Blade Drive
Hydraulic Pump Drive 5 HP
Hydraulic Pump 6.5 GPM
Coolant Pump 3.5 GPM
Hydraulic Tank 9.5 US Gallons
Hydraulic System Pressure 1300 PSI
Coolant Tank 50 US Gallons

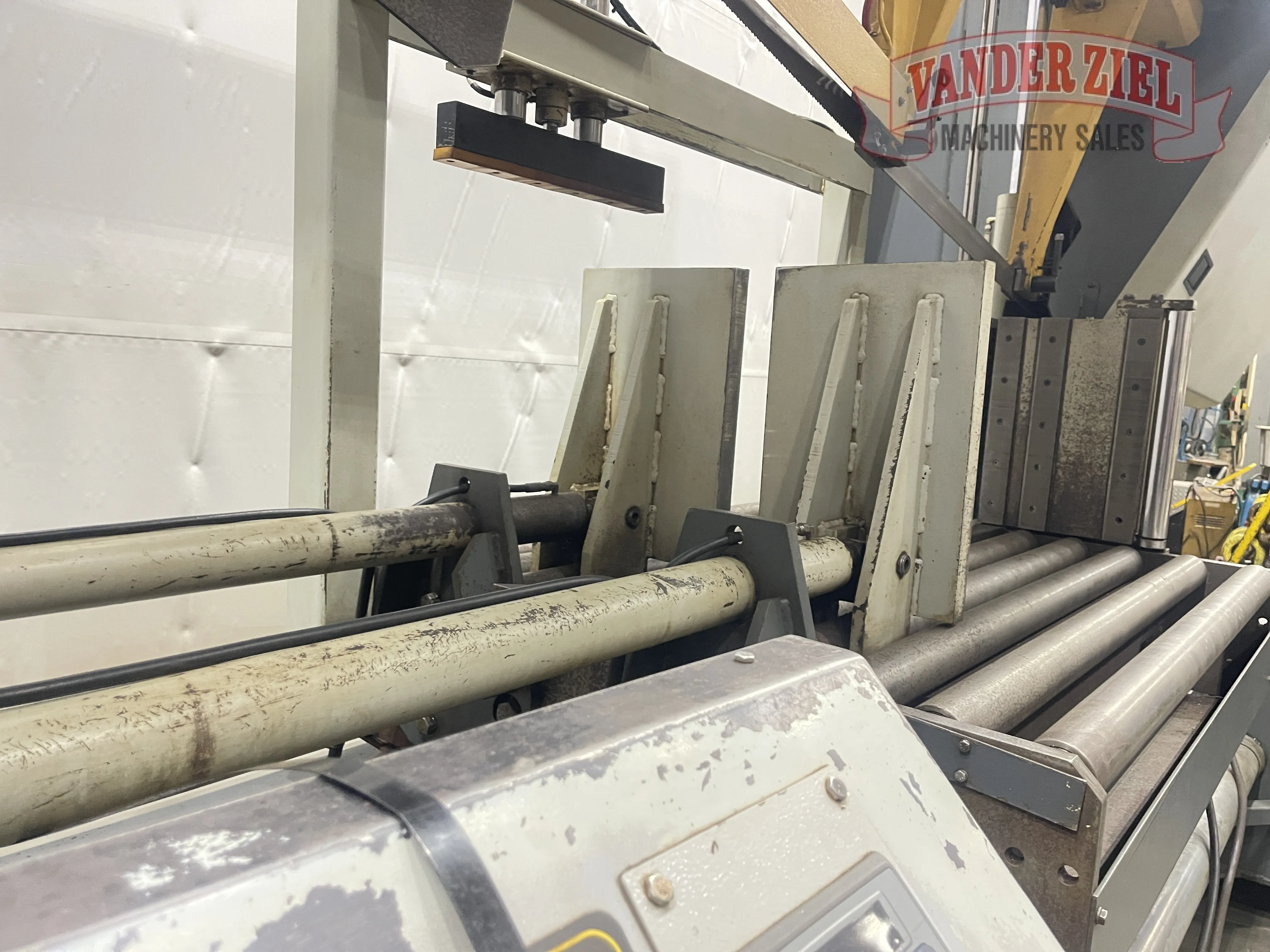

Vise Control Hydraulic
Table Height 38"
Machine Weight 21,000 lbs.
Maximum Workload 30,000 lbs.
Overall Dimensions 211" x 82" x 121H

Preliminary Specifications - Subject to Verification
