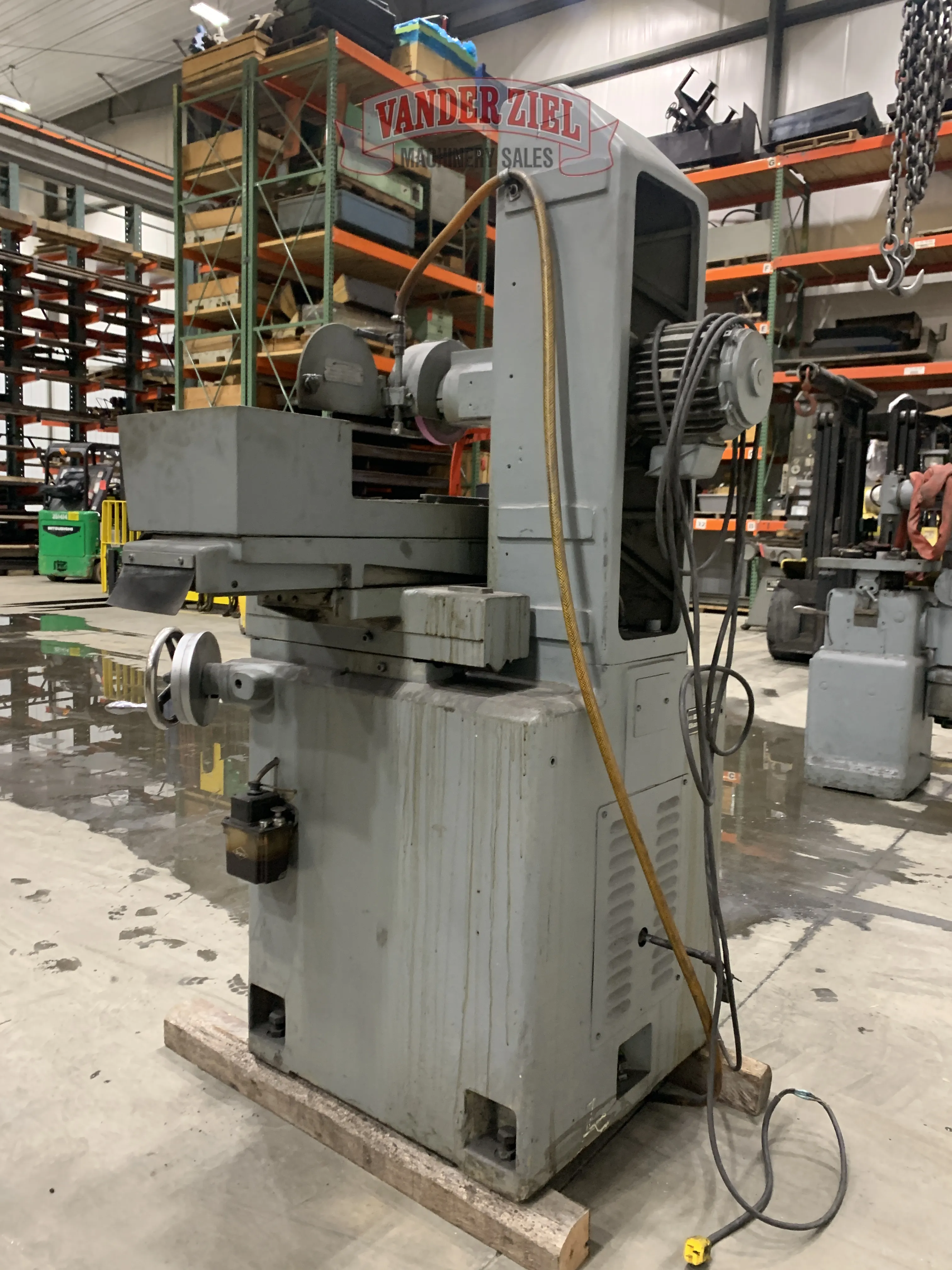

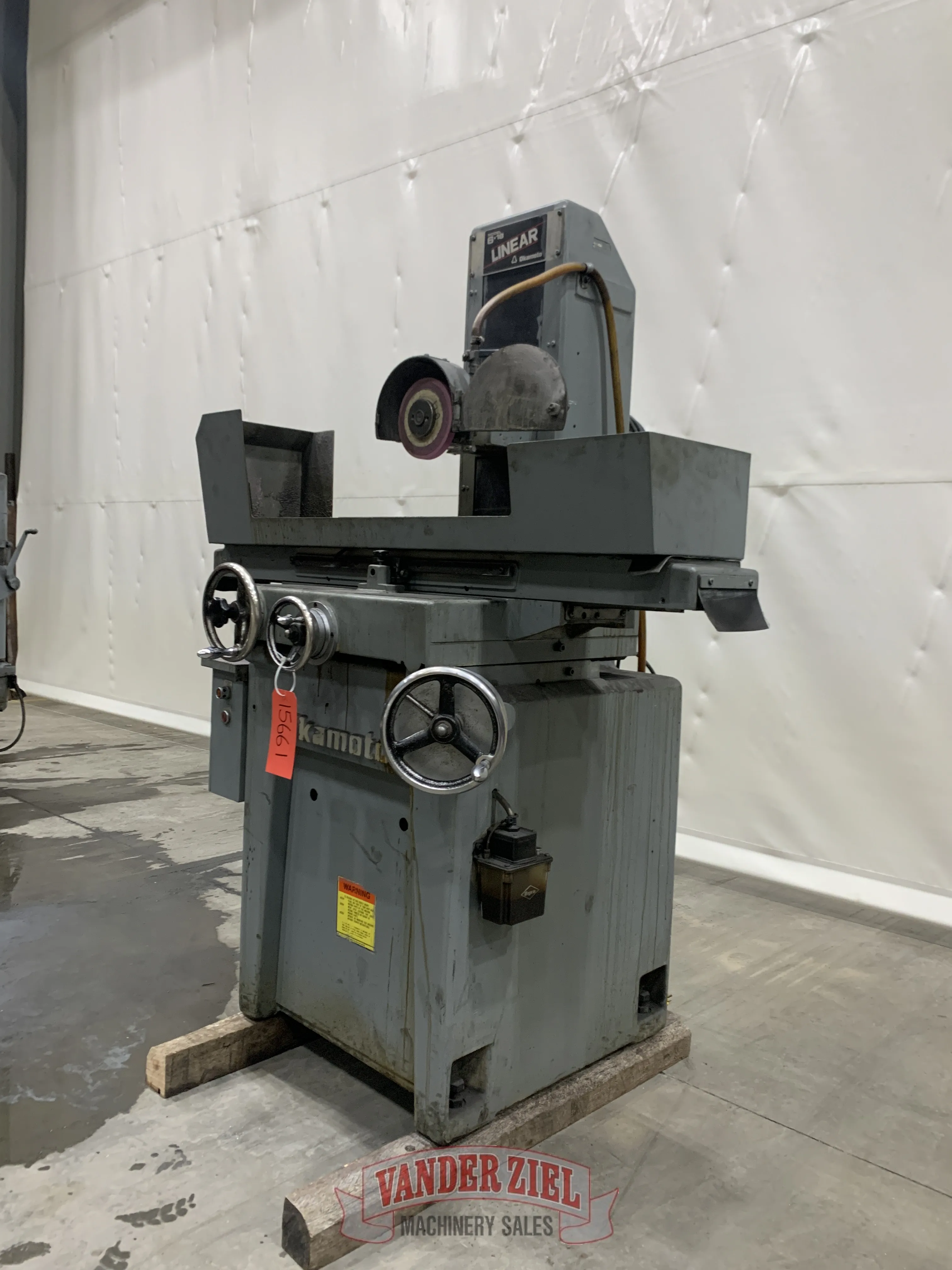

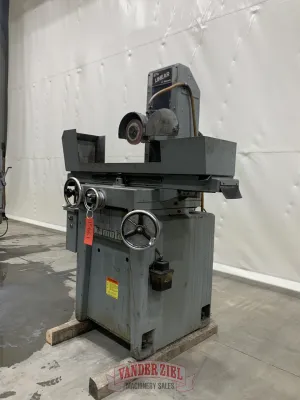

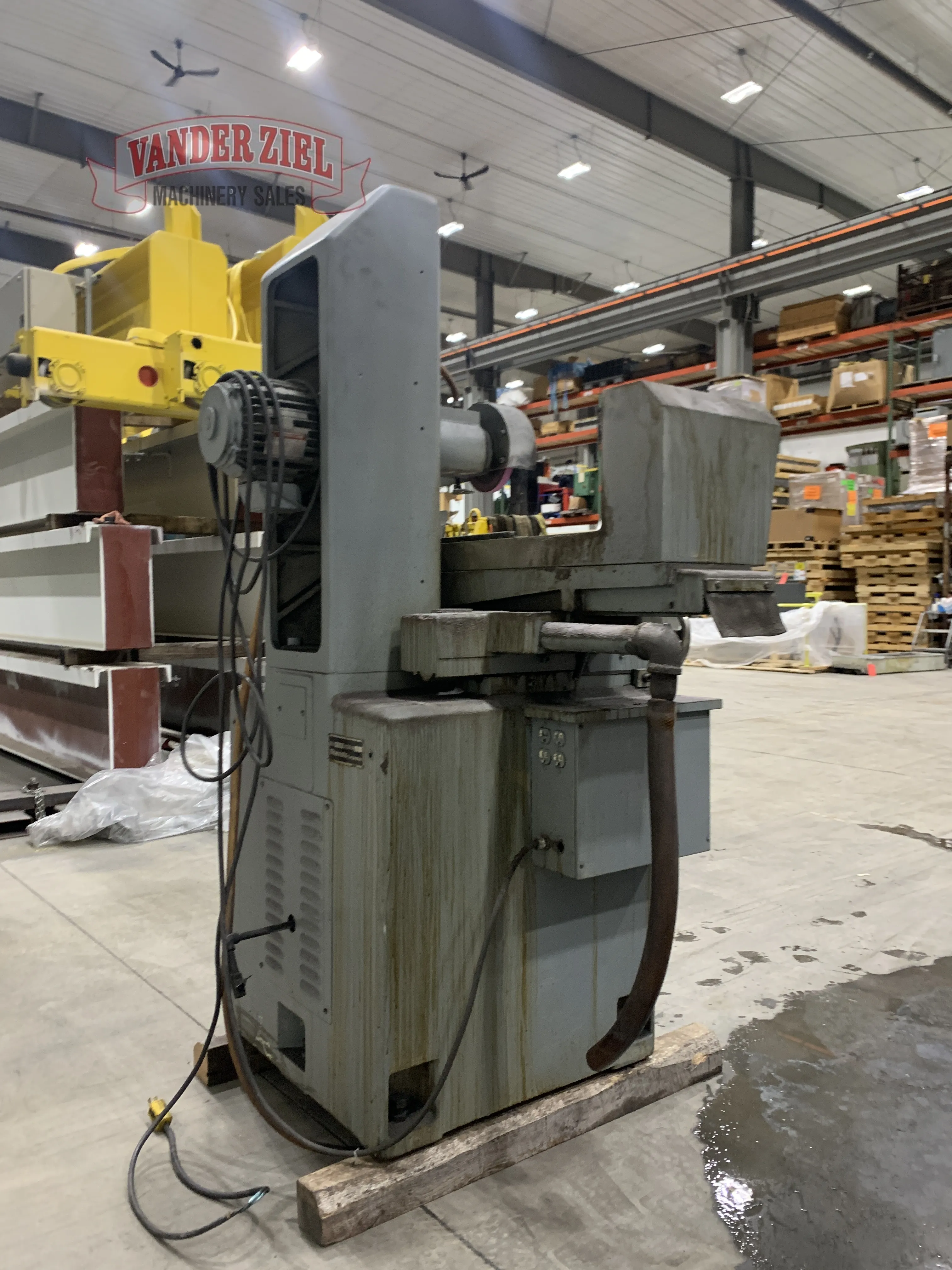

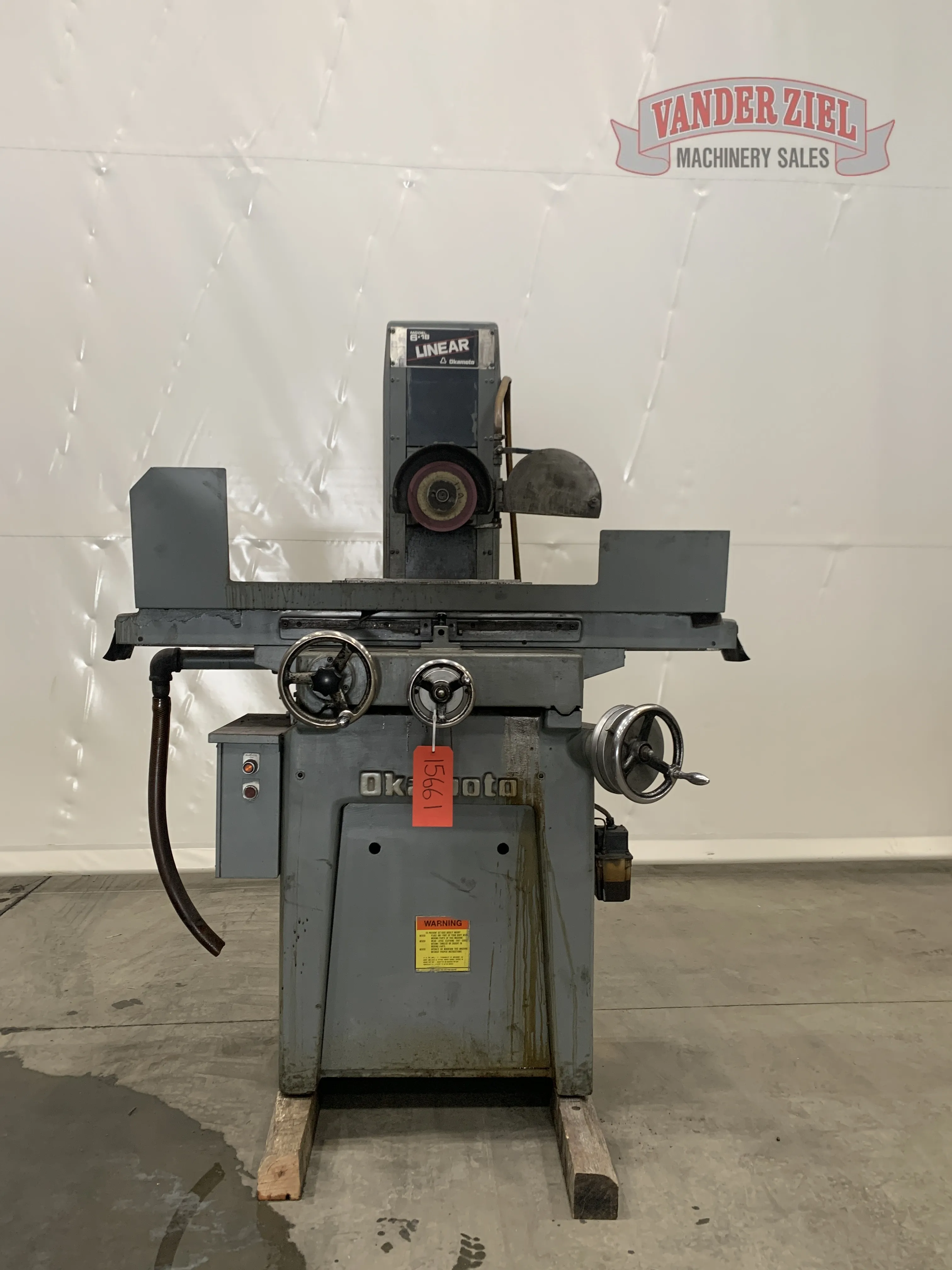

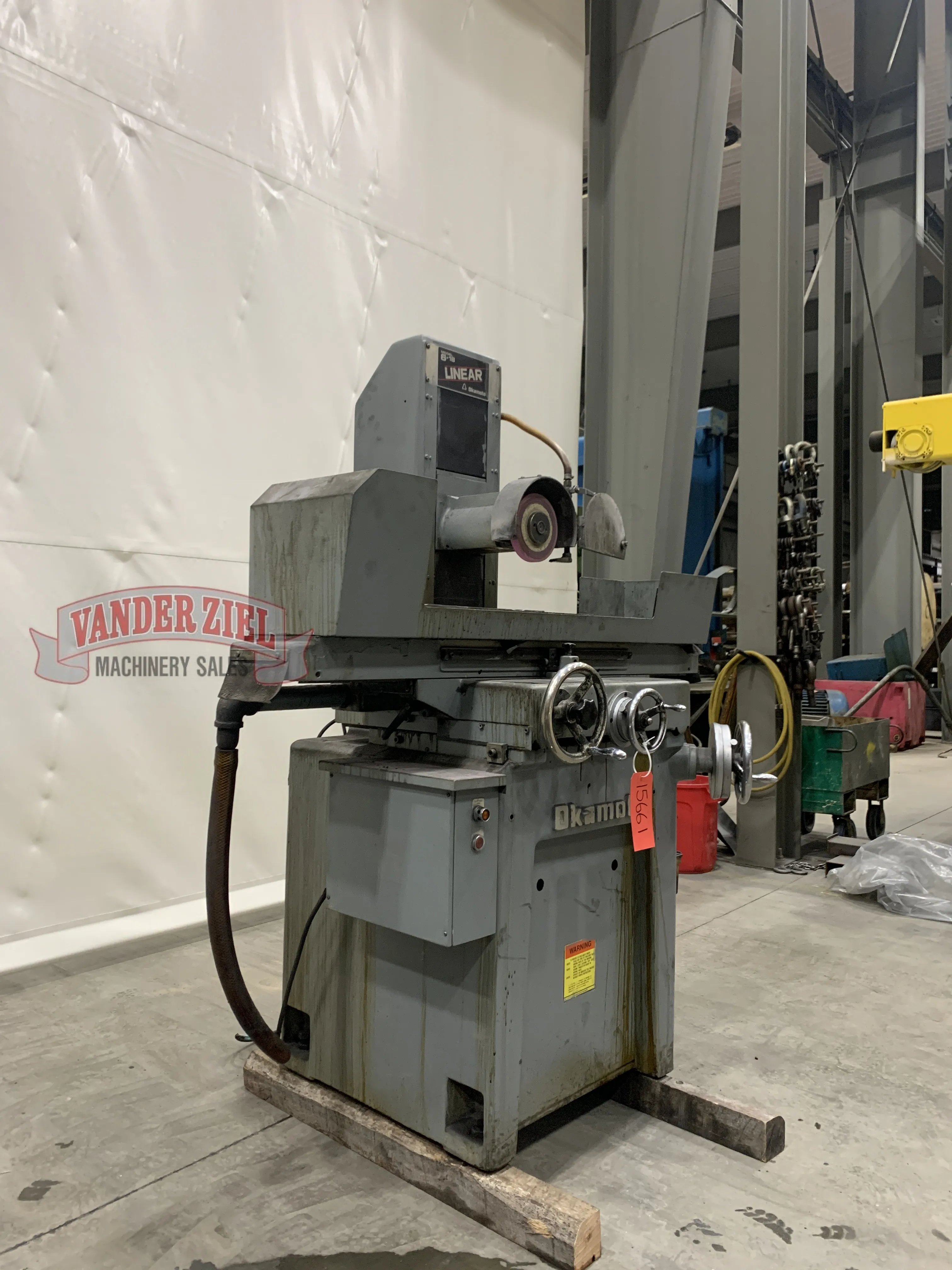

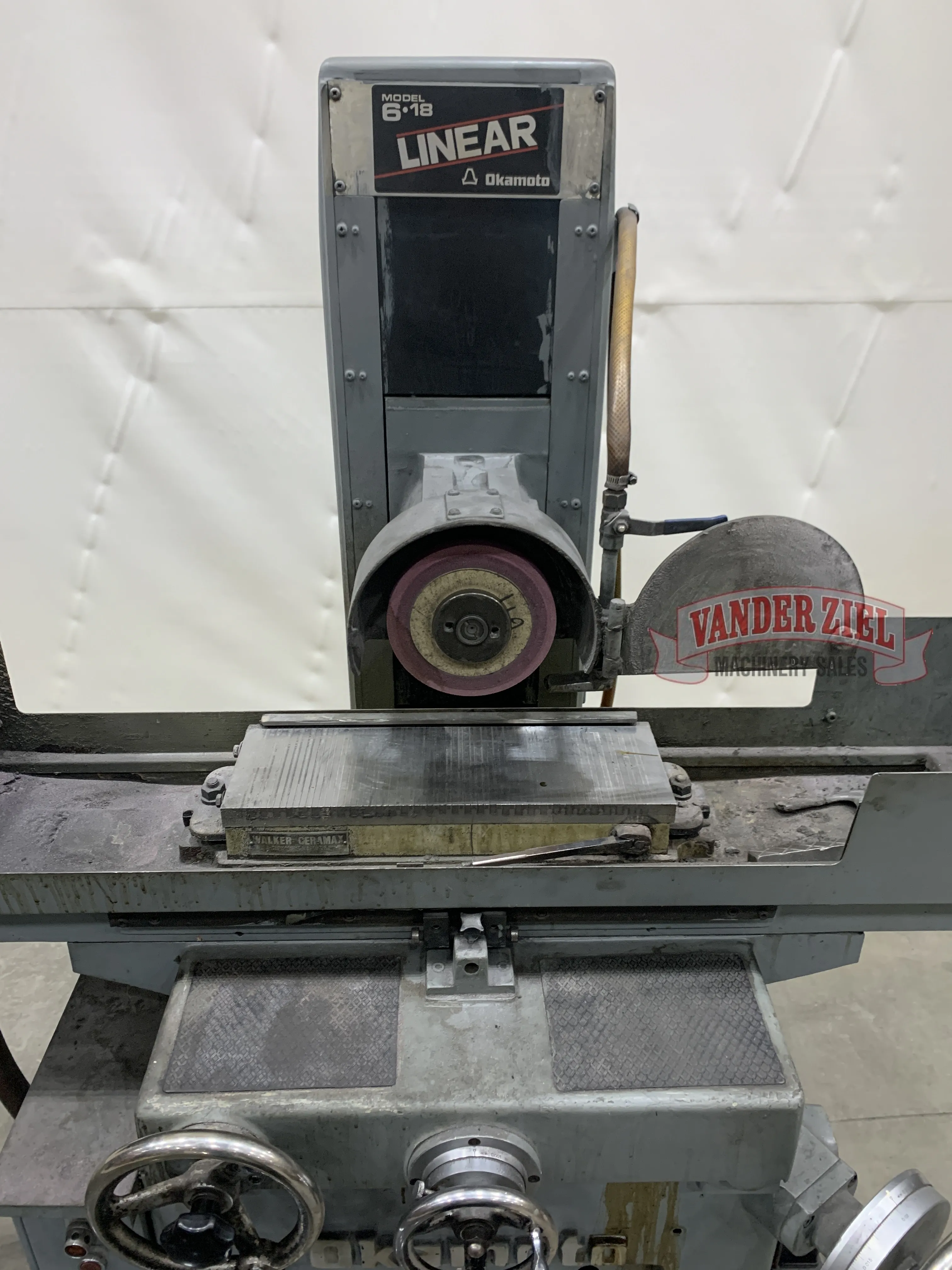

Okamoto 6” x 18” Hand Surface Grinder, Model PFG-618

Okamoto 6” x 18” Hand Surface Grinder, Model PFG-618

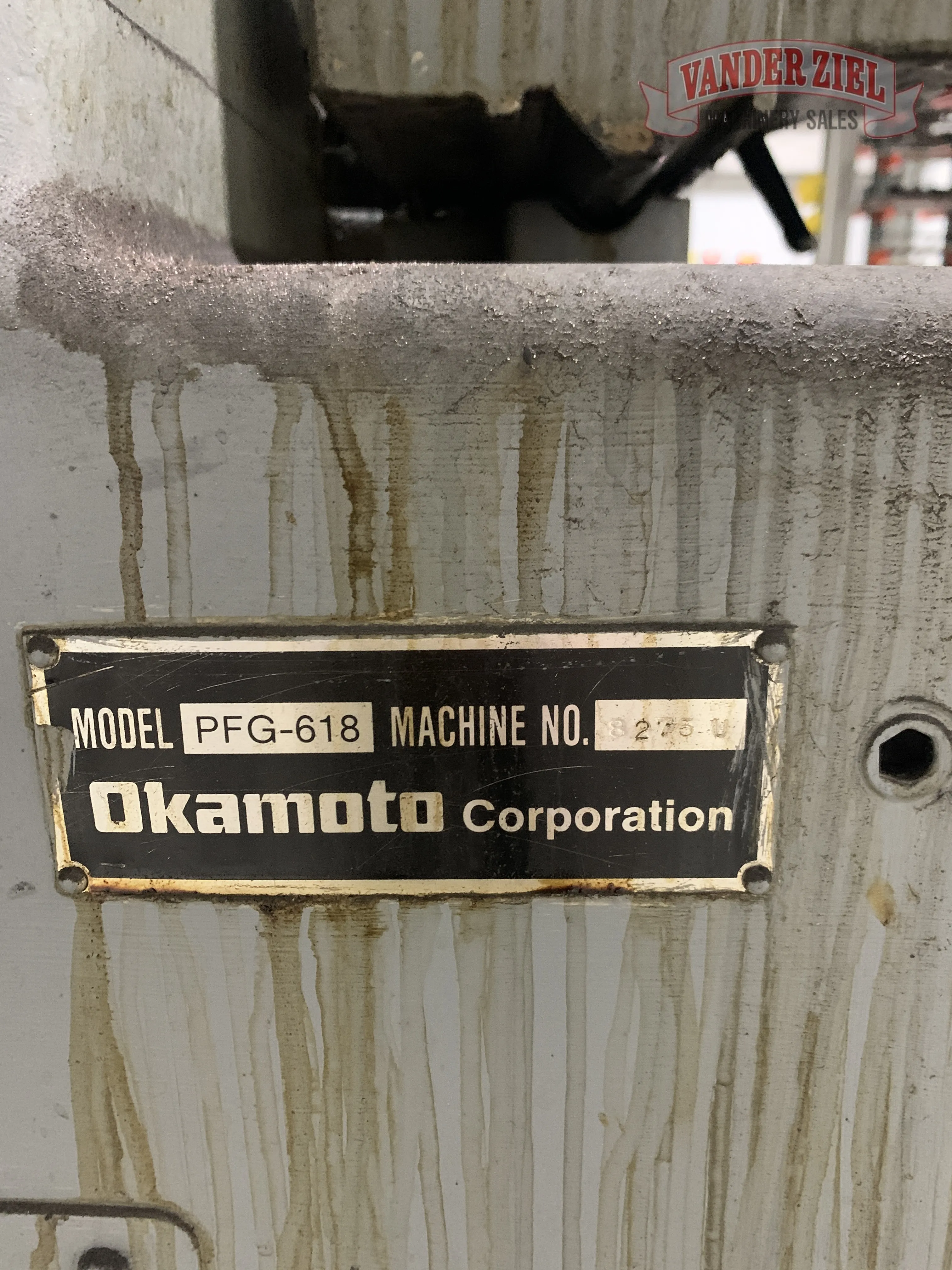

Serial # 8275-U
Asset # 15661

Specifications:
Chuck Size 6” x 18”
Max. Grinding Size 7.5 x 18”
Table to Spindle Center Max. 18”
Table Surface 6.2” x 18”
Table Max Travel 8” x 21”
Longitudinal Movement of Table per Revolution 4”
Cross Movement of Saddle per Revolution 0.1”
Graduation of Handwheel 0.001”
Vertical Movement of Wheelhead per Revolution 0.05”
Graduation of Handwheel 0.0002”
Grinding Wheel 8” x ¾”
Grinding Arbor Bore 1 ¼”
Power 3 PH
Motor 2 HP
Floor Space 76” x 46 ½” x 71”
Weight 1800 lbs.

Preliminary Specification – Subject to Verification
