Haas VF-3 Machining Center - 2003

Technical Specs

As-IsNo

Description

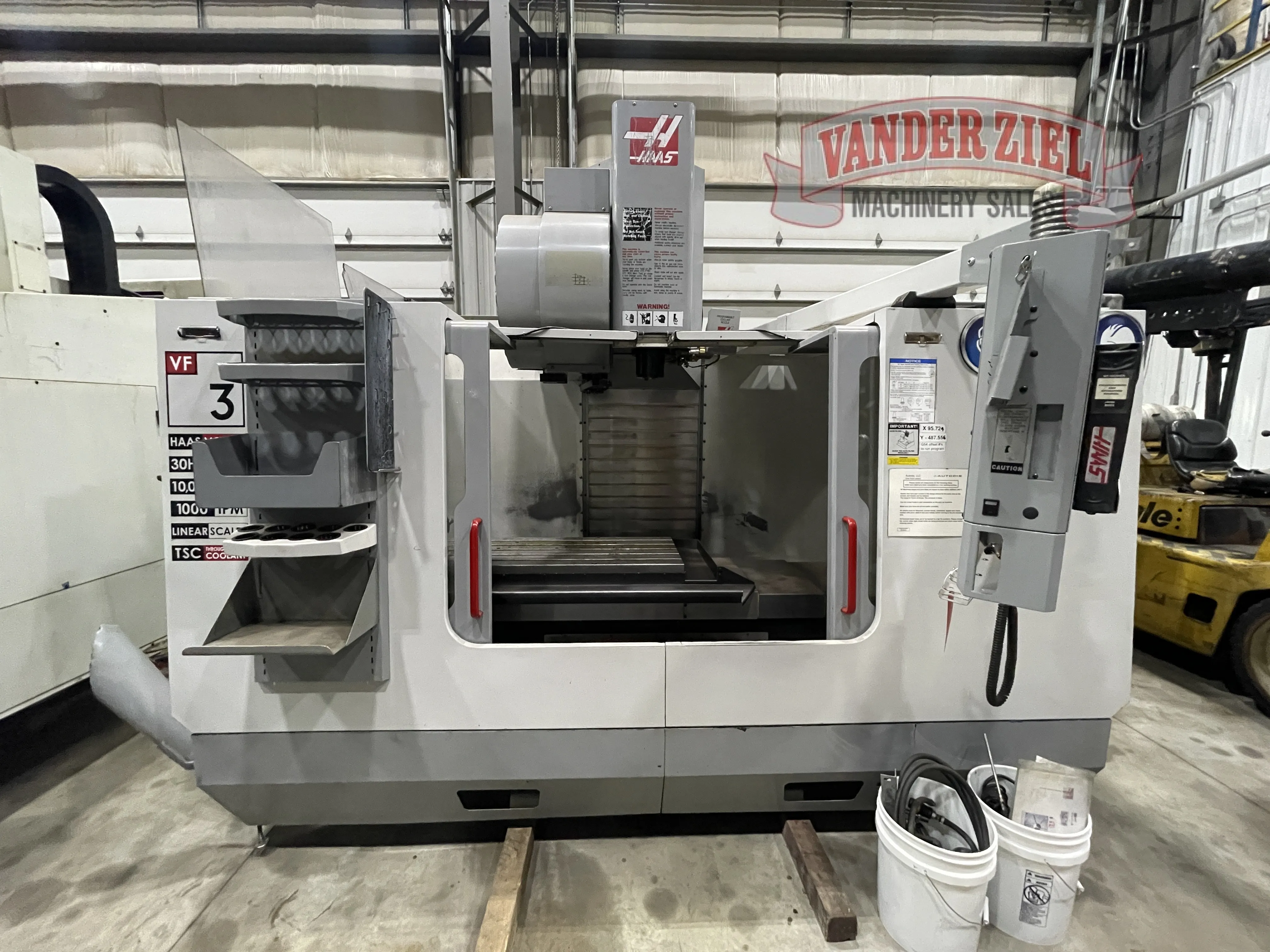

Haas VF-3 Machining Center - 2003

Asset# 16917
S/N: 32286

Machine Specifications


Travel:



  • X-Axis Travel: 40 inches (1016 mm)




  • Y-Axis Travel: 20 inches (508 mm)




  • Z-Axis Travel: 25 inches (635 mm)

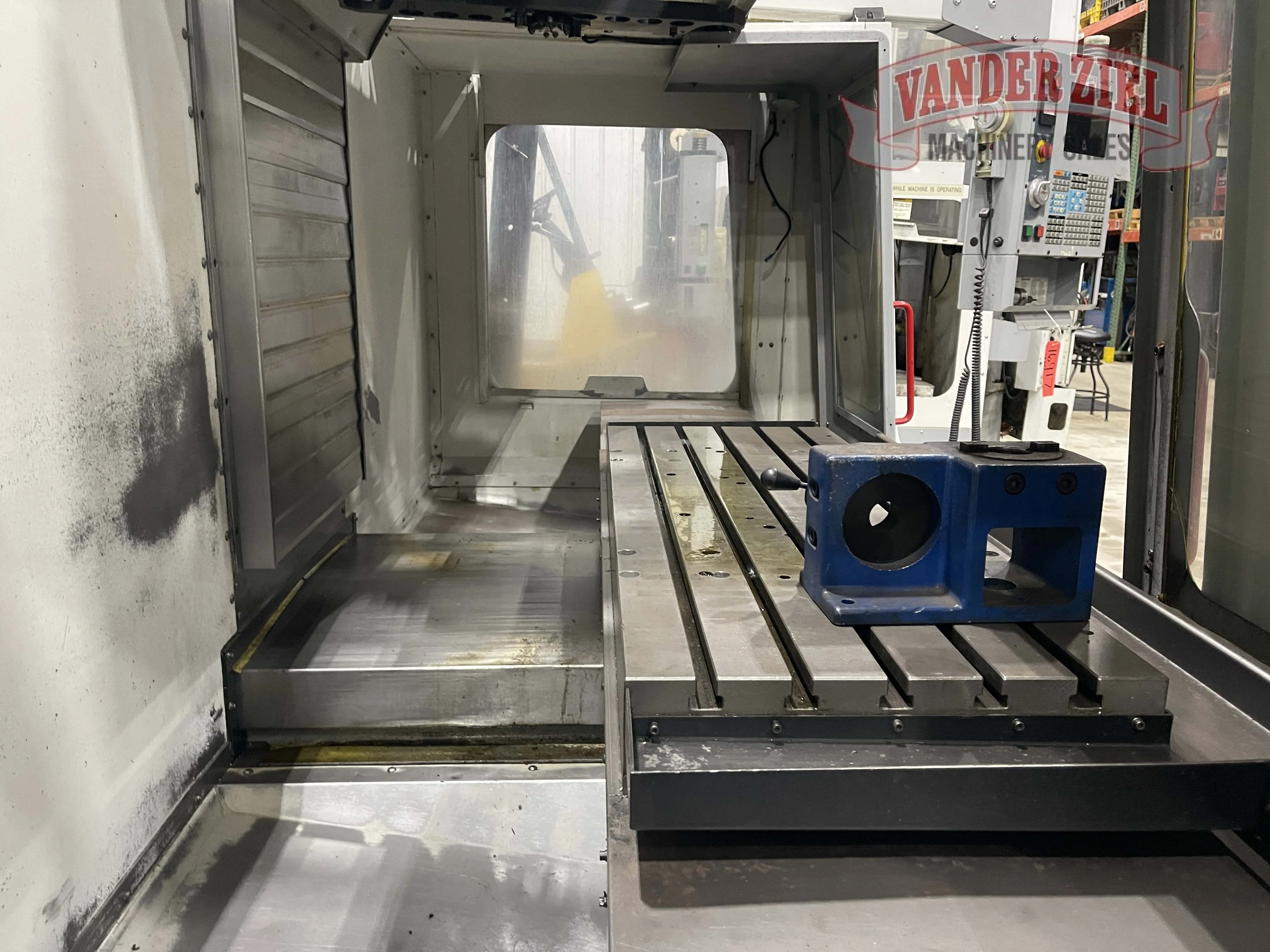

Table:



  • Table Size: 48 inches x 18 inches (1219 mm x 457 mm)




  • Max Table Load: 3,500 lbs (1588 kg)




Spindle:



  • Spindle Speed: 10,000 RPM




  • Spindle Taper: CAT 40




  • Spindle Power: 30 hp vector drive (peak)




Feedrates:



  • Max Cutting Feedrate: 500 ipm (12.7 m/min)




  • Rapid Traverse (X, Y, Z): 1,000 ipm (25.4 m/min)




Tool Changer:



  • Tool Capacity: 20-tool carousel (standard)




  • Tool-to-Tool Time: ~2.8 seconds




  • Max Tool Diameter: 3.5 in (5 in with adjacent tool pocket empty)




  • Max Tool Length: 11 in




  • Max Tool Weight: 12 lbs




Dimensions/Weight:



  • Machine Weight: ~12,500 lbs (5,670 kg)




  • Footprint (approx.): 102" x 102" (2.6m x 2.6m) without chip auger or enclosure extensions




Control:

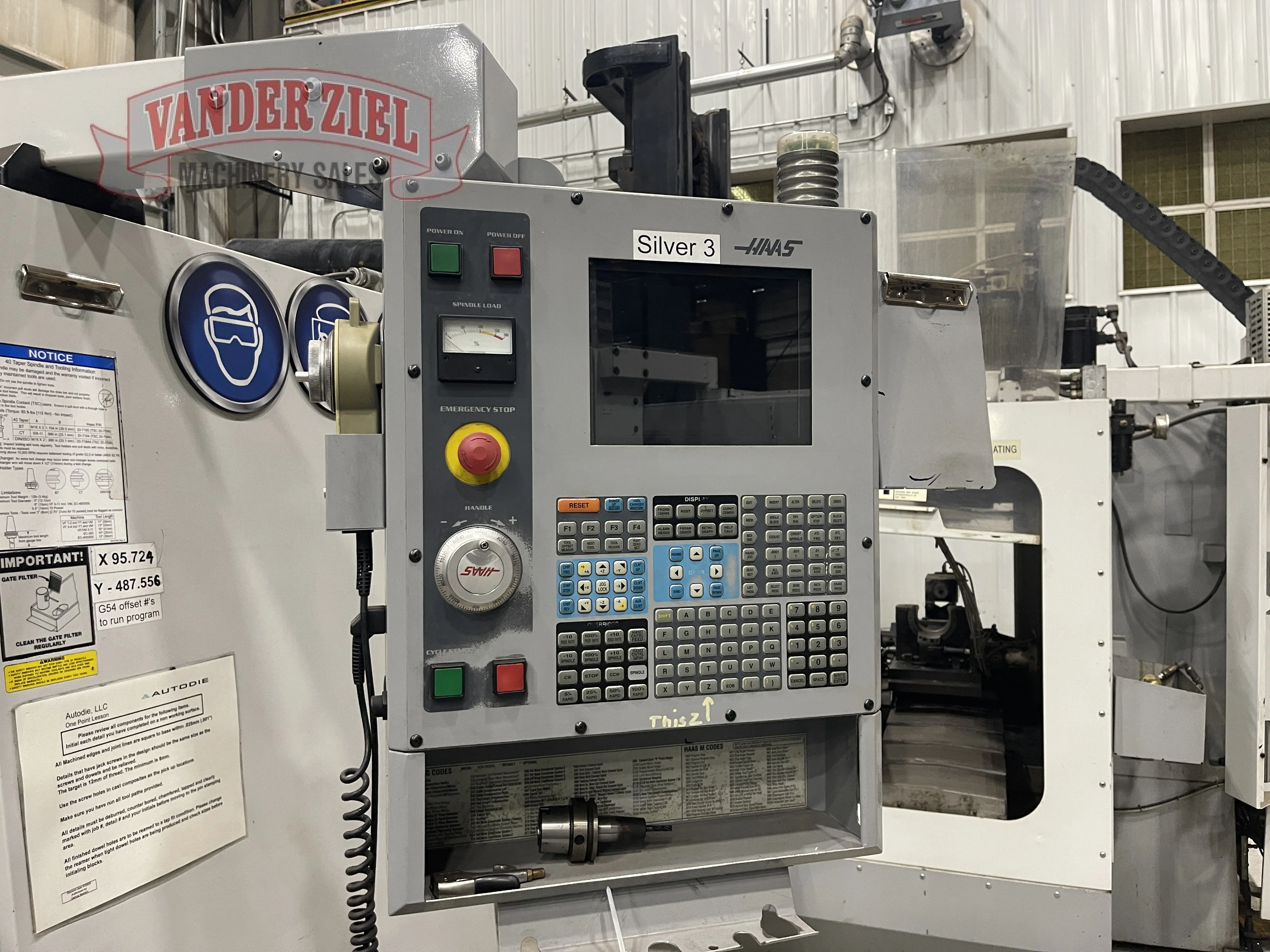

  • Controller: Haas CNC Control (classic Haas control)

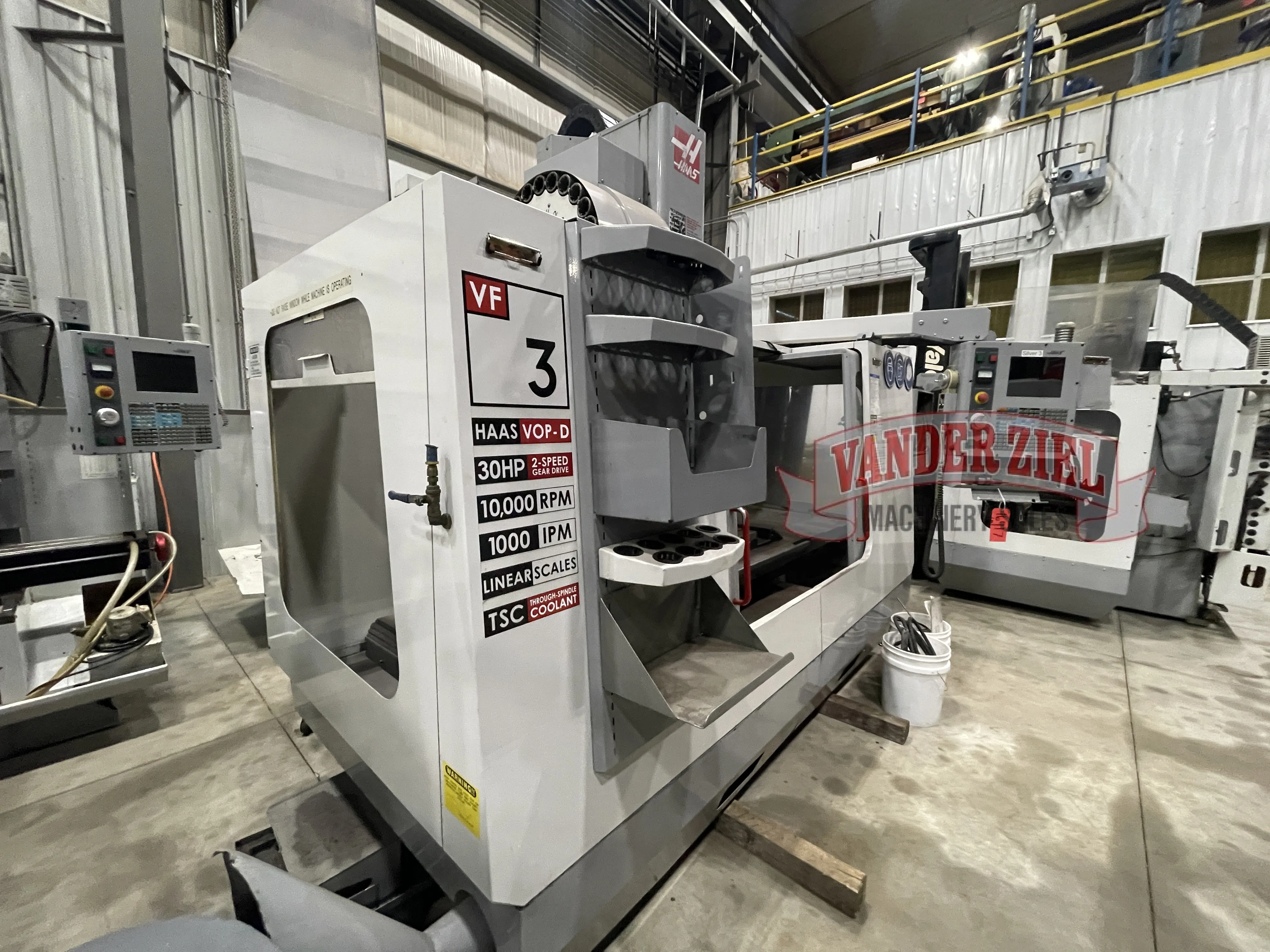

    Machine is equipped with a 30 HP motor, 10,000 RPM Spindle, Thru the Spindle Coolant, and Linear Scales.



$31,263

Member Pricing

Asset Number
#16917I
Location
VZMS HQ (Alto)
CategoryCNC Milling
ManufacturerHAAS
ModelHaas VF-3 Machining Center - 2003
ConditionUsed
REF: 001339
