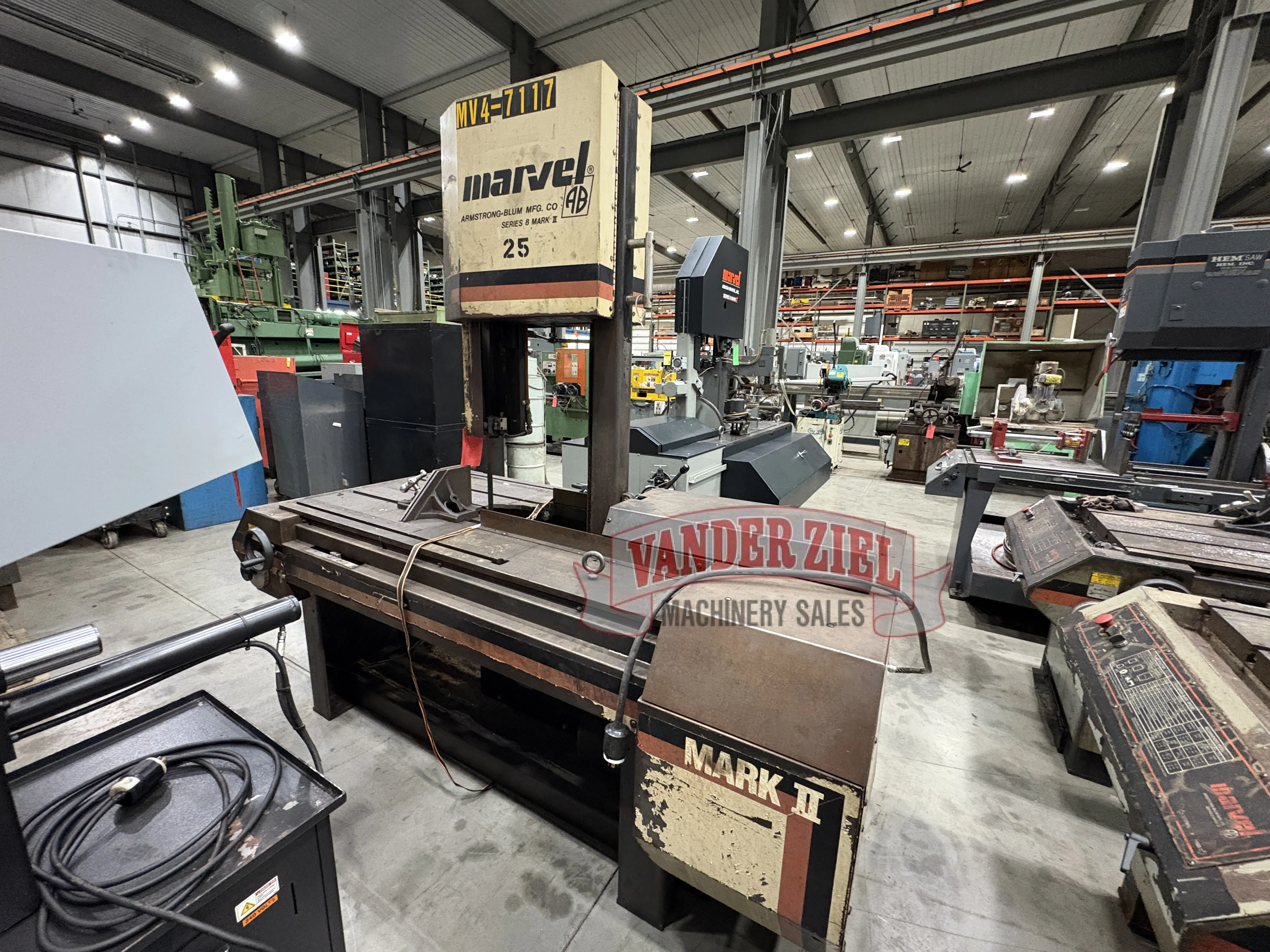

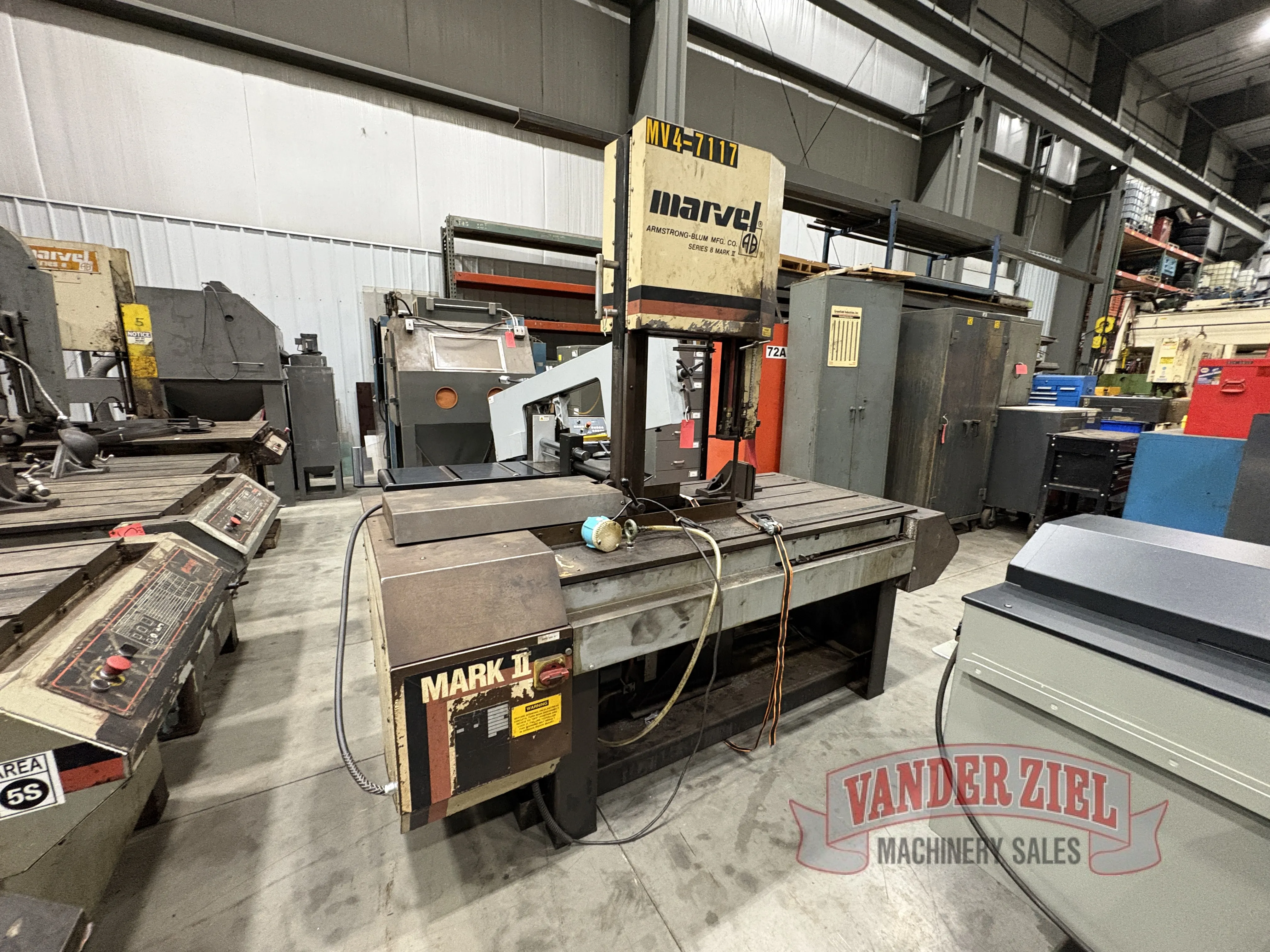

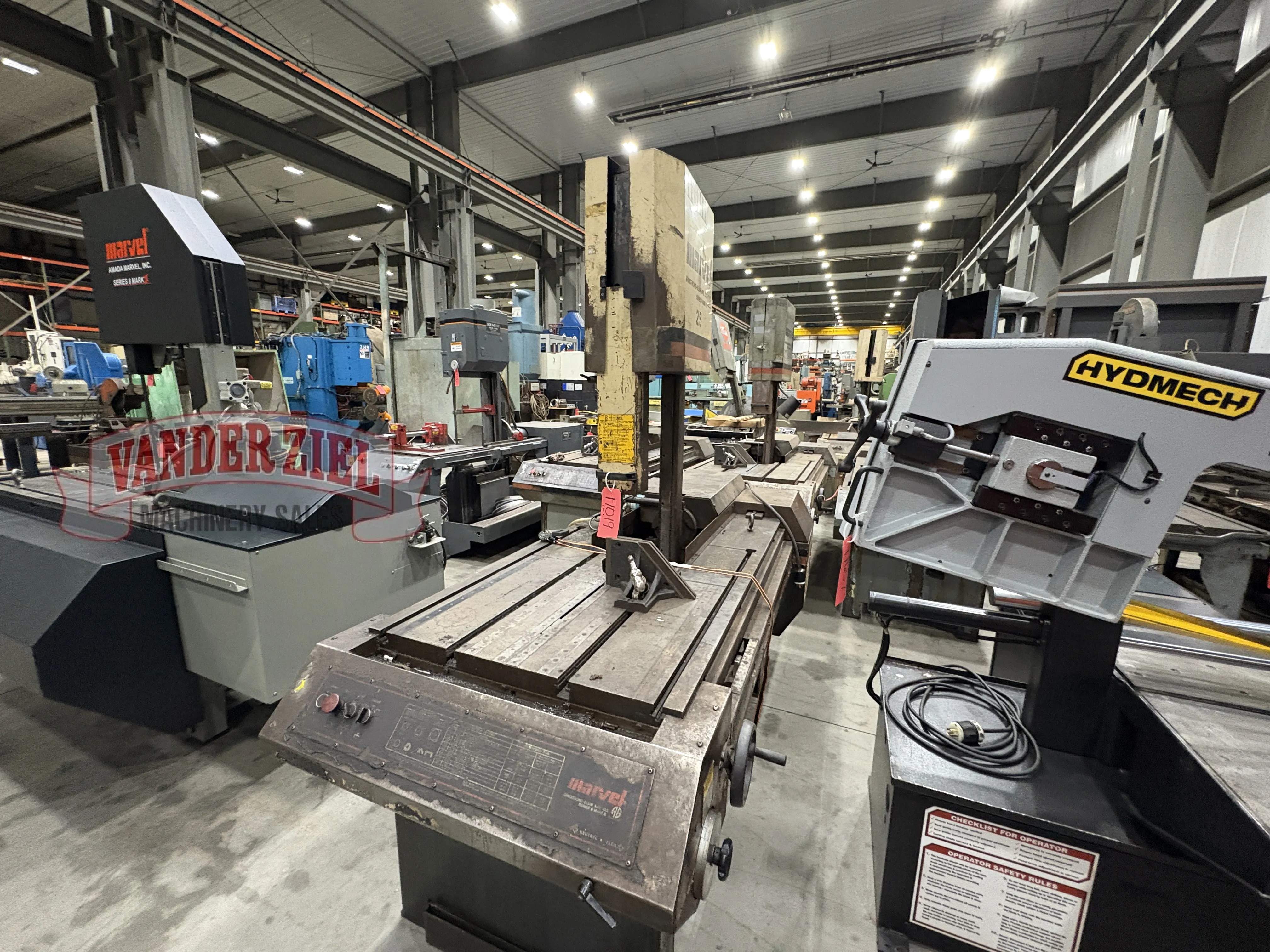

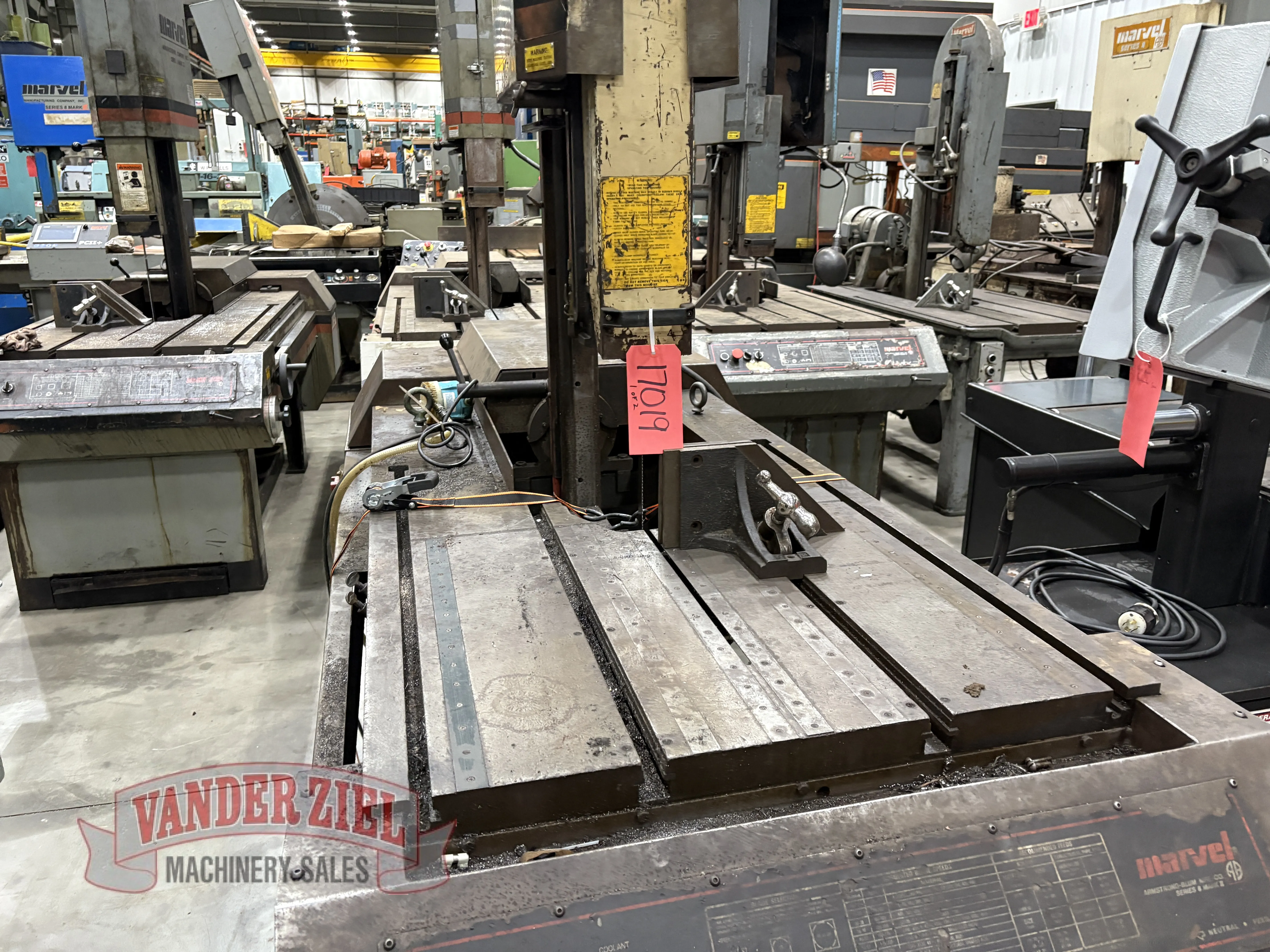

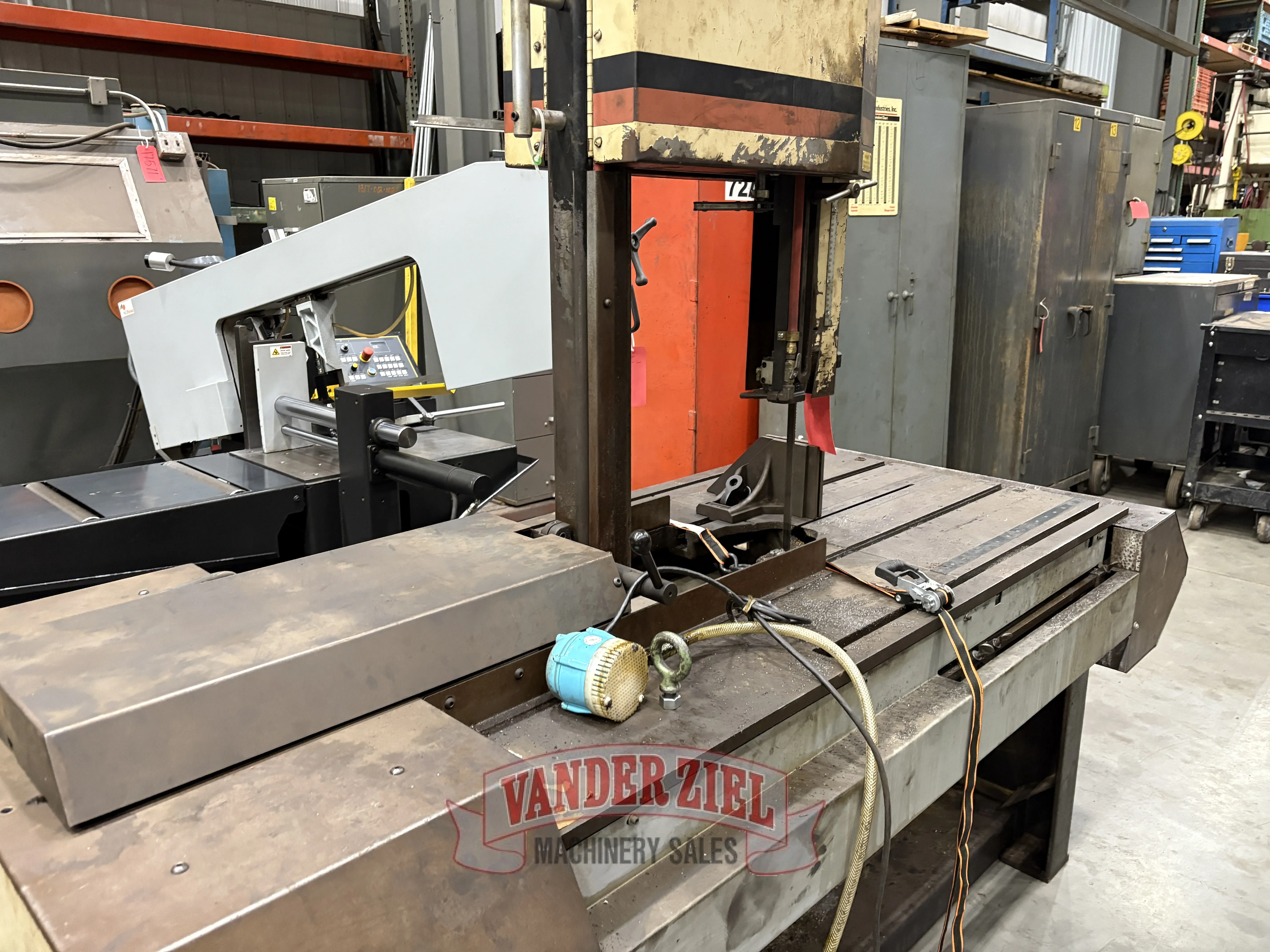

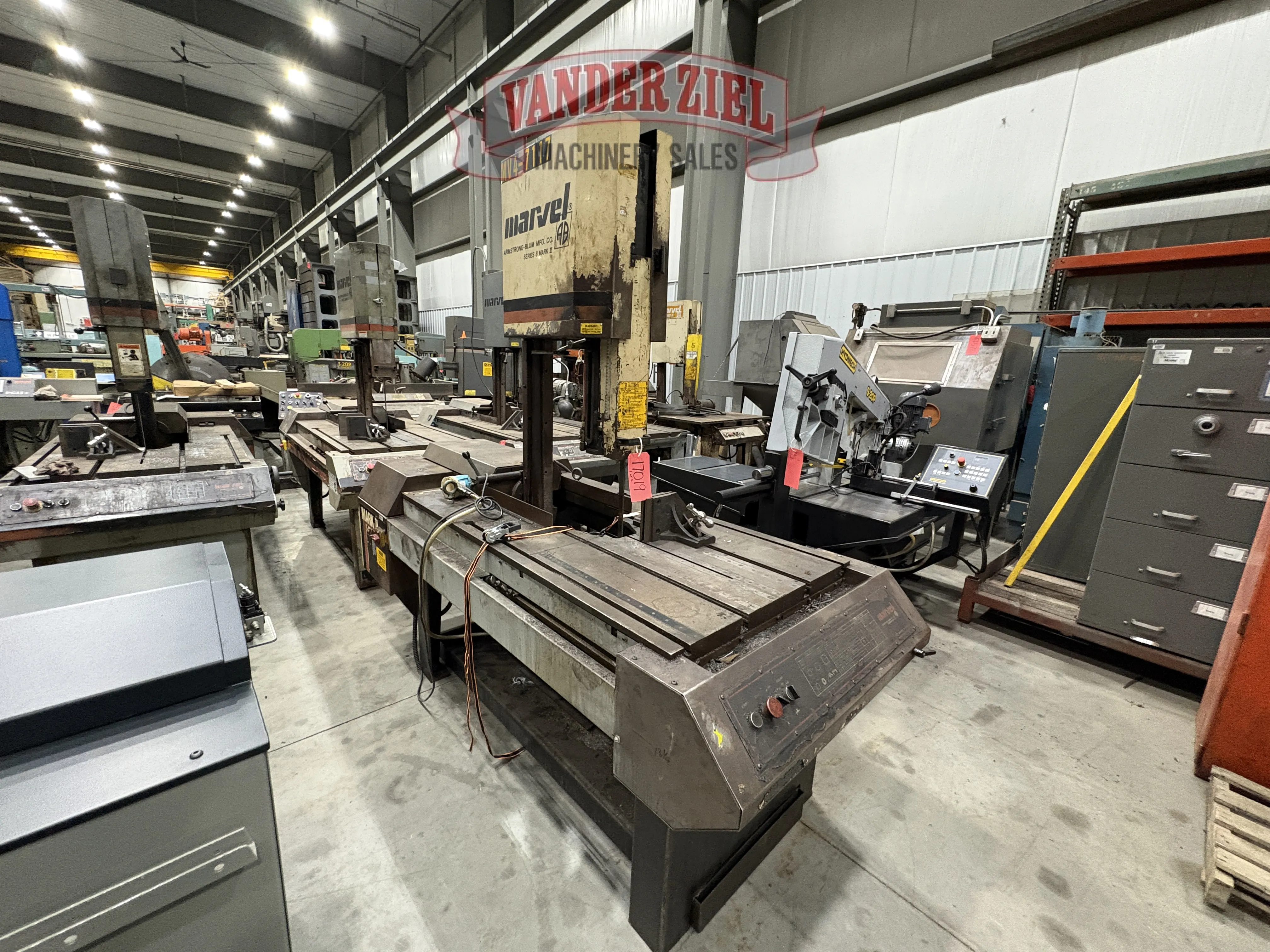

Marvel Mark II Vertical Tilt Frame

Marvel Mark II Vertical Tilt Frame

Asset # 17019

Serial #826911

Specifications:
Capacity 90 Degrees 18" x 22"
Capacity 45 Degrees 18" x 12.75"
Table Height 34.5"
Quick-Action Vise Max. Opening 21"
Column Tilt Left & Right 45 deg.
Speed Range 50 - 450 fpm
Feed Range 0 - 140 lbs.
Work Area 24" x 33"
Table Height 34"
Jaws 6" high 12" wide
Blade 14' 6" x 1" x .035"
Tank Capacity 20 gallons
Main Motor 2 H.P. 1800 RPM
Coolant Pump Motor 1/8 H.P. 3600 RPM
Overall Dimensions 79" x 90"
Overall Height 84.5"
Weight 2,870 lbs.

Preliminary Specifications - Subject to Verification
