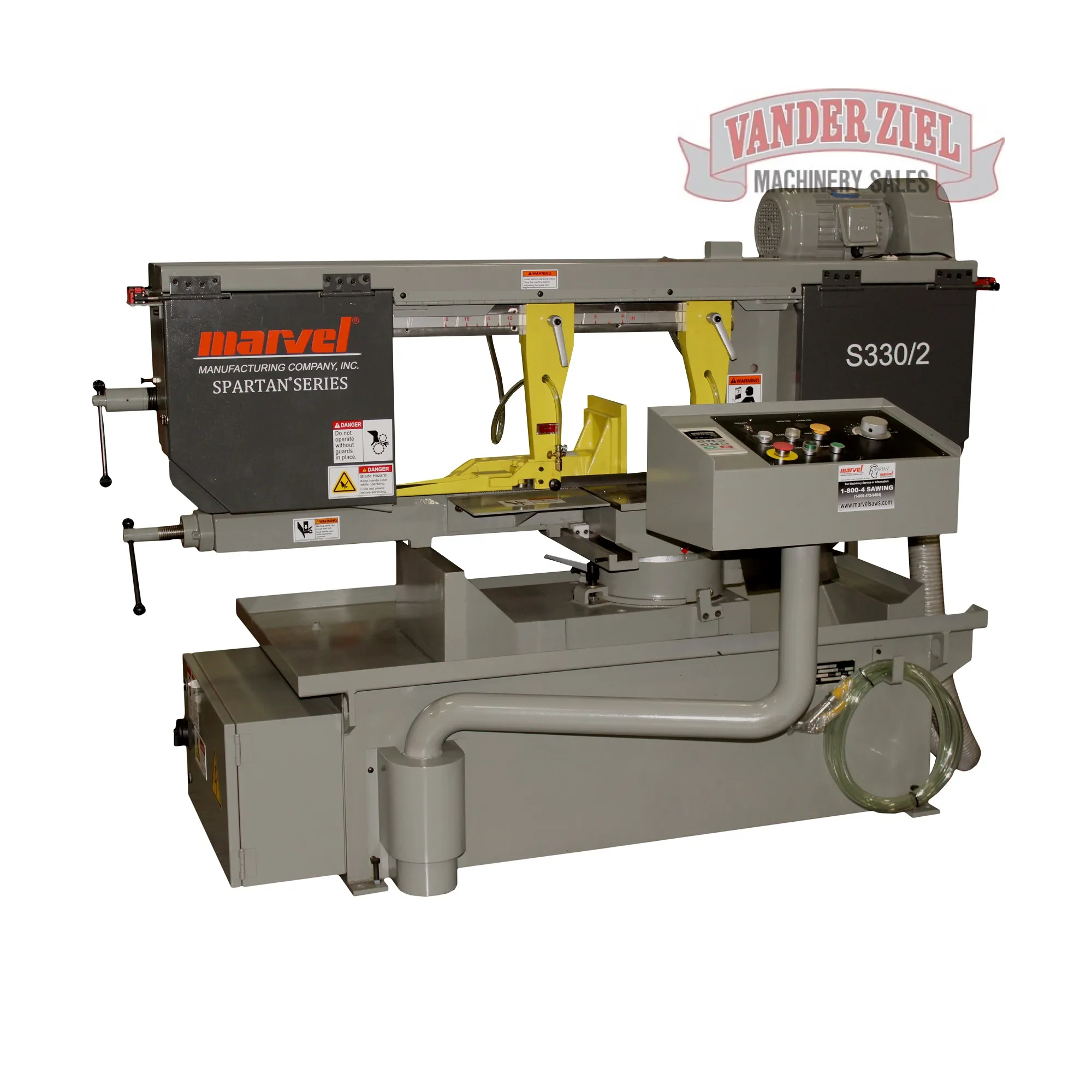

Marvel Hercules 12" x 18" Horizontal Swivel Saw

Marvel Hercules 12" x 18" Horizontal Swivel Saw, Model S330/2-HV - NEW

Asset# 17280N

Serial # S330HV-295

STANDARD SPARTAN MODEL Hercules S330/2 SWIVEL HEAD, HIGH SPEED, HORIZONTAL, METAL CUTTING BANDSAW WITH 3 H.P., 60 DEGREE MITER CUTTING, and HYDRAULIC VISE.

Capacity @ 90°:  12" H x 18" W Rectangle (300 x 460 mm), 13" Round (330mm)

Capacity @ 45°:  11" H x 12" W Rectangle (280 x 300 mm), 13" Round (330mm)

Capacity @ 60°:   11" H x 8" W ( 280 x 203 mm), 9.5" Round (240mm)

Blade: 13' 6" L x 1" W x .035" T (4115 x 27 x 0.9 mm)

Blade Tension:  Manual tension (30,000 psi) provides consistent square cutting accuracy.

Speed Range:  Blade speed is infinitely variable through an Inverter Drive heavy-duty worm gear transmission.  Blade speeds are 60 to 330 FPM.  The broad speed range allows for optimum cutting of a large spectrum of materials.

Hydraulic Down Feed:  Infinitely variable feed rate is hydraulically controlled for fast, accurate cutting.  Settings are made at the operator's control station.

Hydraulic Frame Return: The saw frame is raised hydraulically using a push button mounted on the operator's control panel.

Motors:  Blade Drive: 3 H.P. (1.5kW).  Hydraulic Pump: 1/2 H.P. (0.375kW) Coolant Pump Motor: 1/8 H.P. (0.09 kW).  Machines are available with either 230 or 460 volt, 3 ph., 60 Hz. Electrics.  Voltage must be specified on original order.

(208 volt requires a boost transformer part number V10/SP2095 for $1,645.00 additional).

(220-1-60 volt requires rotary phase converter added, net price $1,395.00 additional (S330PE16996)).

Blade Guides:  Carbide Blade Guides provides reduced vibration, heat and blade stress providing longer blade life and accuracies of + .002 per inch of cut material.

Chip Brush:  Powered from the drive wheel of the saw, the brush changes speed with the blade to assure that chips are being removed from each gullet, improving cutting performance and blade life.

Vise Jaw: Hydraulic rack and pawl vise design clamps and holds the work piece securely.  The vise is operated by a selector switch located on the operator's control panel.  Maximum vise opening is 18" (460 mm).

Swivel:  The saw frame swivels a full 60 degrees to the rear and 45 degrees to the front for optimum miter cutting capability.  The pivot shaft has sealed bearings for maintenance free operation, while a pointer and angle scale (-60^o TO ⁺ 45^o ) make setup fast and easy.  Stops are provided at -60 and +45 degrees.

Operators Control Panel:  Operation of the machine is safe and convenient from the swing arm pedestal mounted on the machine base.  Control Voltage is 110V.

Crated Machine Weight: 3000 lbs.

Machine Dimensions:  86.5" W x  82.5" L x 53.25" H

Other Standard Features:

• 16" Diameter Cast Iron Blade Wheels


• 30.5" Work Height


• Built in Coolant System


• 6 Gallon Coolant Tank


• Guide Arm with Dove Tail Slide
