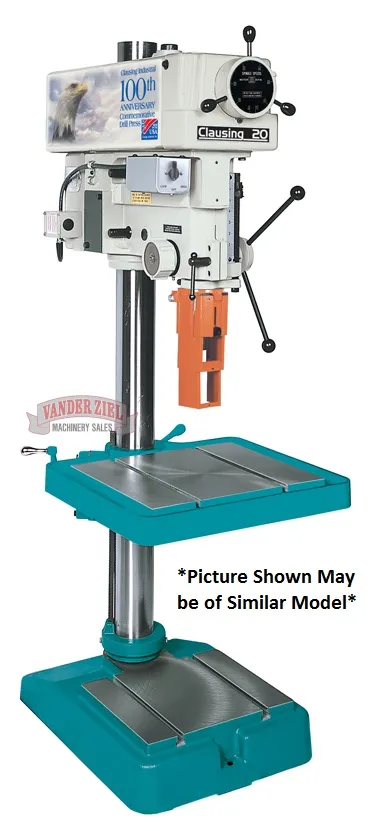

Clausing Model 2272 Drill Press, Single Phase - NEW

Clausing Model 2272 Drill Press, Single Phase - NEW

Asset # 17656

Specifications:

Capacity, hand feed 1 1/4" diameter
Production rated, with optional power feed, 1 1/2 hp motor 1 1/8" in cast iron
7/8" in mild steel
Drill to center of circle 20" diameter
Spindle nose No. 3MT, 1.74" OD
Spindle travel 6 1/2"
Column Ground steel, 4" diameter, 1/2" thick wall
Quill Ground steel, 2 1/2" diameter
Quill return spring, capacity 40 lbs.
WORK TABLE
Working surface 22" x 19 1/2"
Table slots Two, 15 1/2" long, for 1/2" T-bolt
Table slot center distance 9"
Table travel, one setting 20"
Spindle to table, maximum 33 1/8"
COLUMN BASE
Working surface, ground 15 1/2" x 13"
Base T-slots Two, 13" long, for 1/2" T-Bolt
Base T-Slot Center Distance 9"
Spindle to base, maximum 43 3/8"
Shipping weight, approximate 630 lbs.

Preliminary Specifications - Subject to Verification
