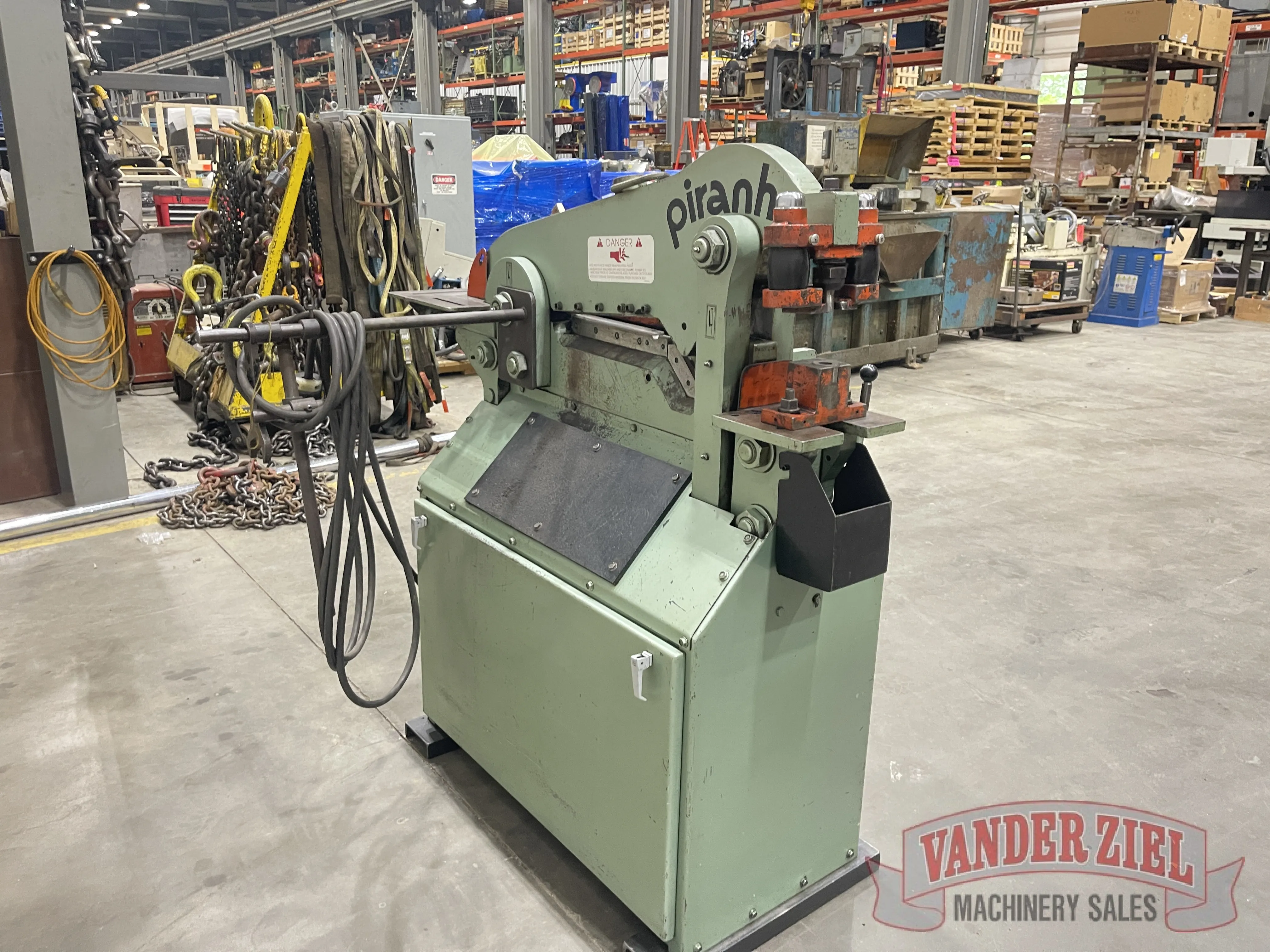

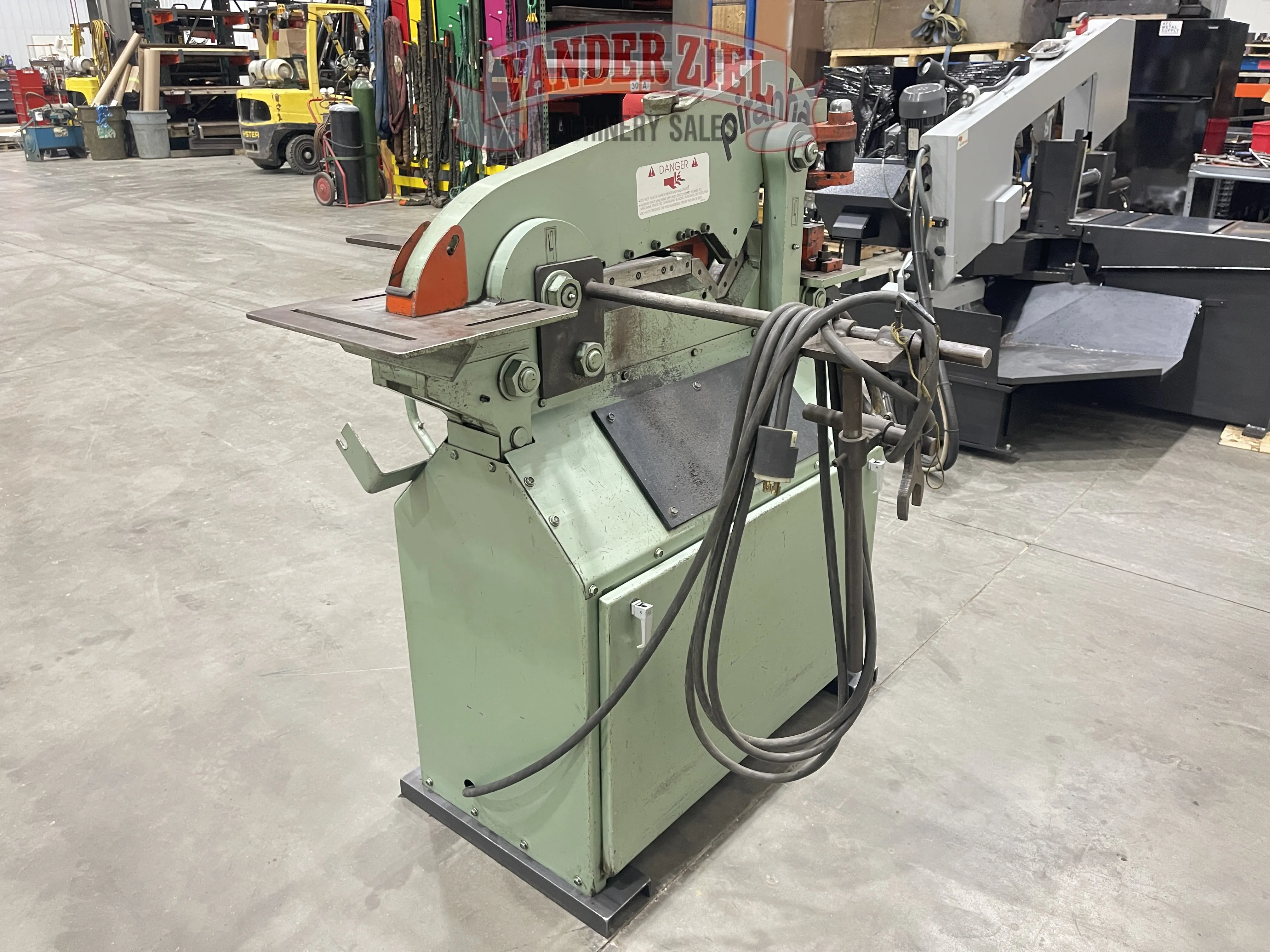

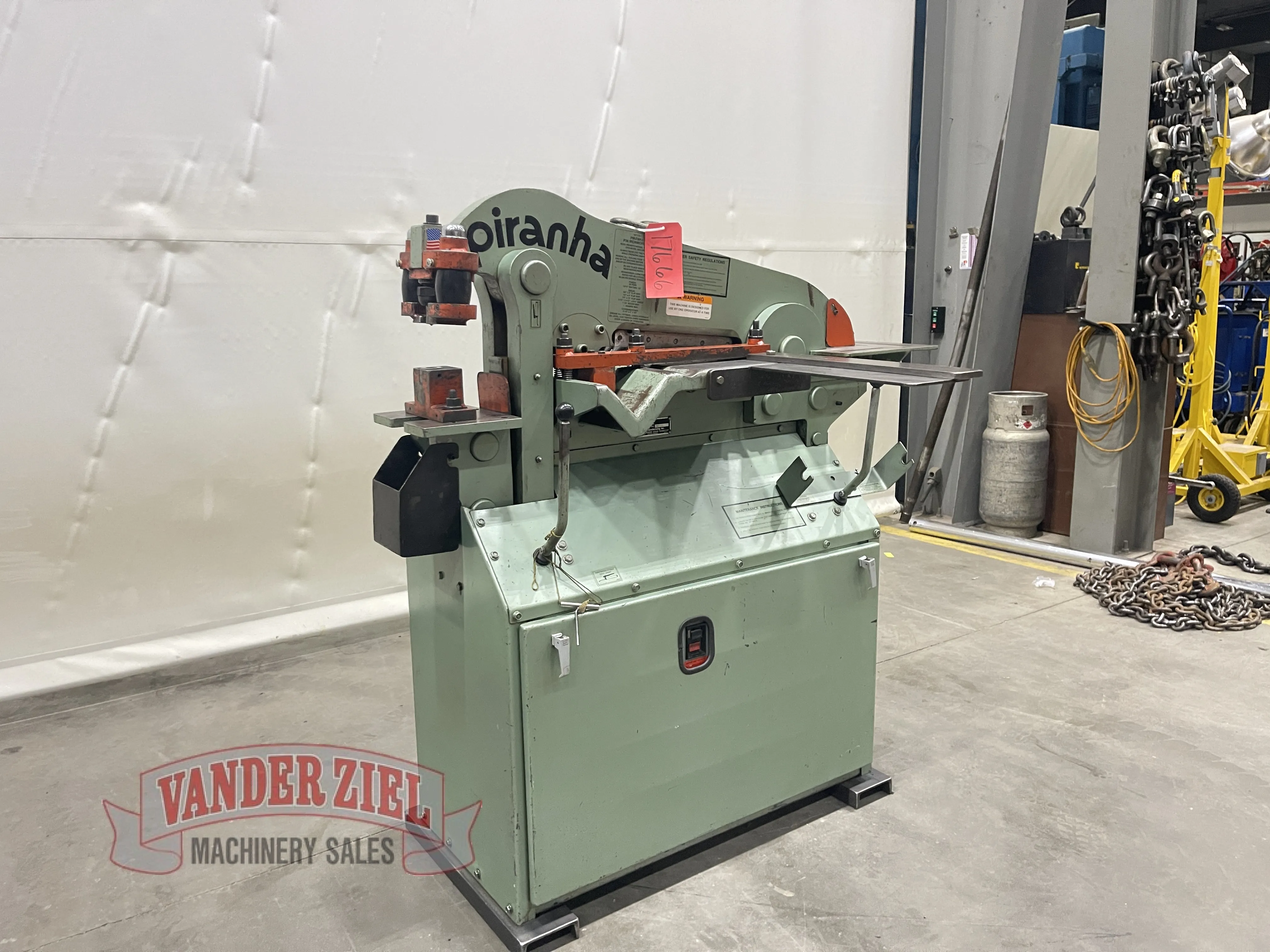

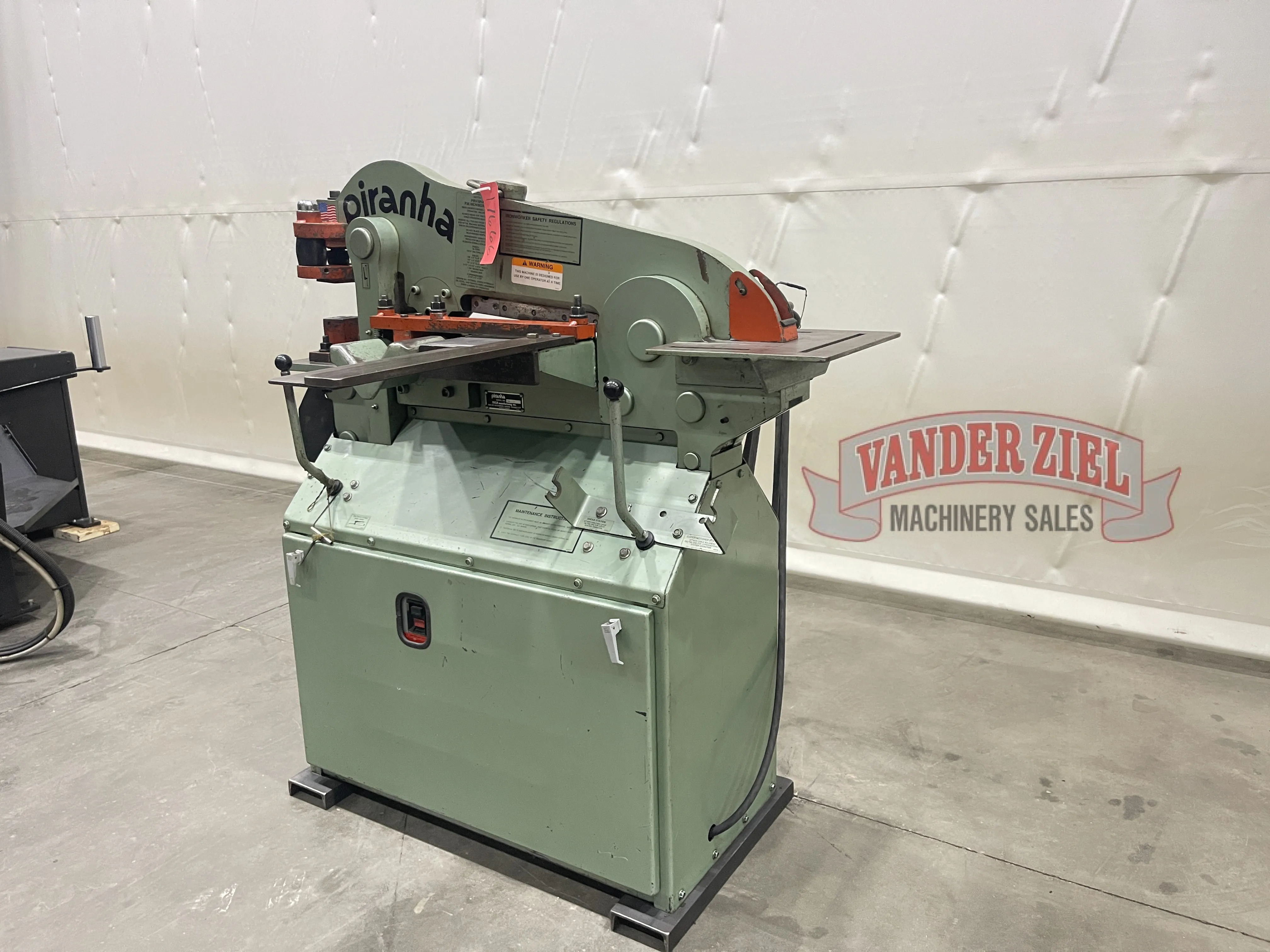

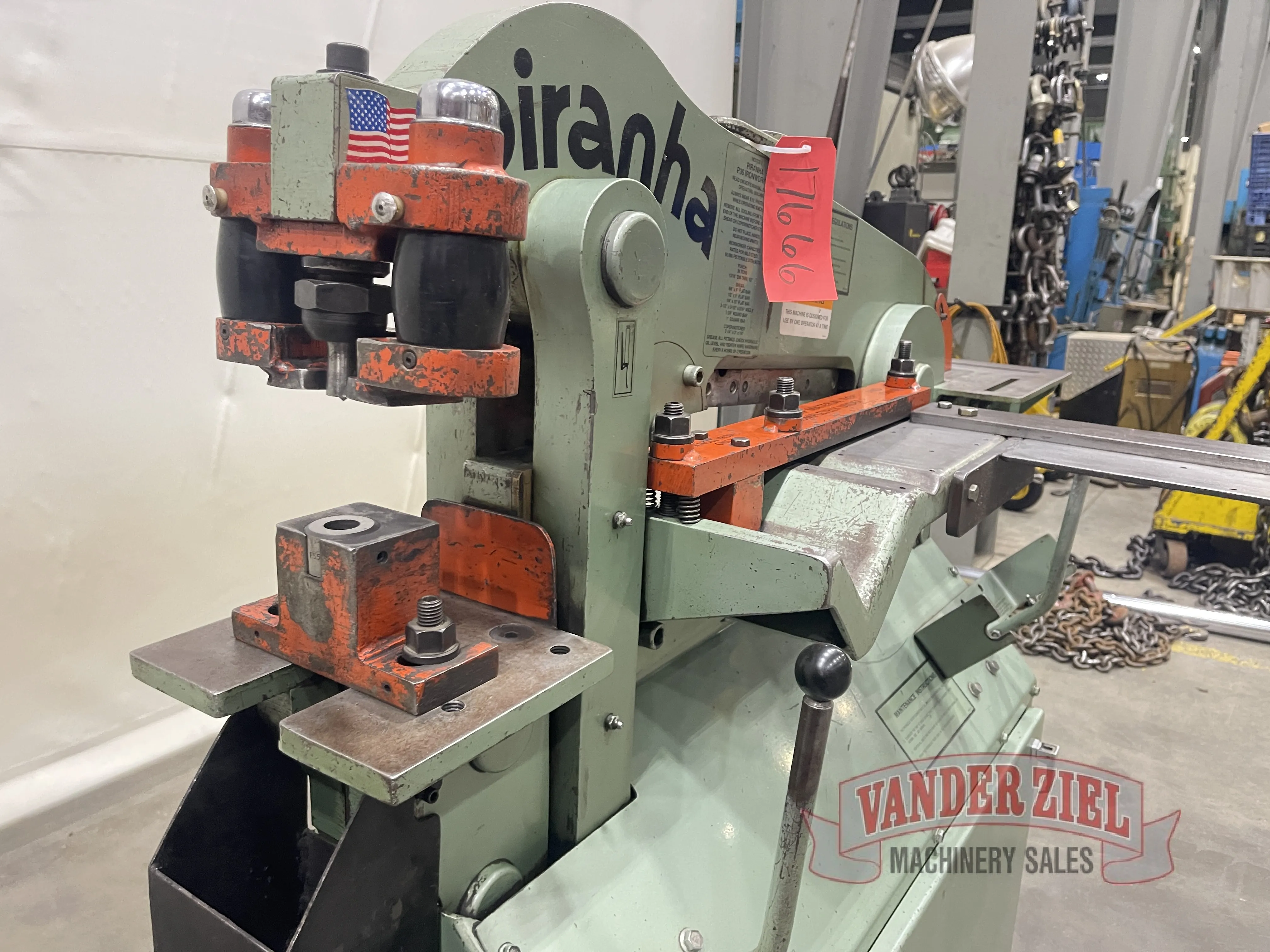

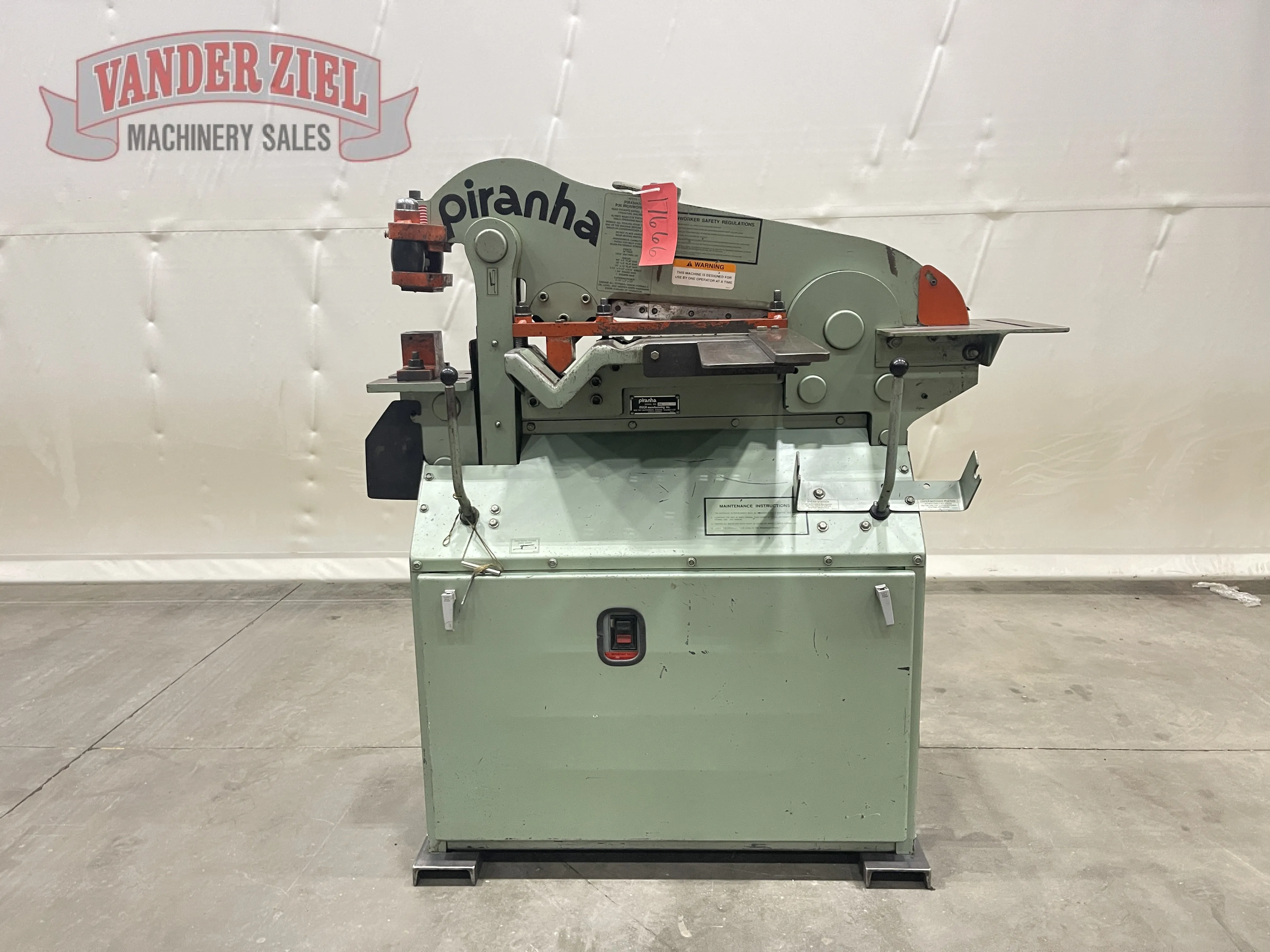

Piranha 36 Ton Ironworker

Piranha 36 Ton Ironworker, Model P-36

Asset # 17666
Serial #  P36-689

Specifications:
Throat Depth 5"
Open Height 12 1/4"
Closed Height without Die Block 8 1/4"
Stroke Length 4"
Punch 36"
Punch Max Material 13/16 - 1/2"
Max Hole (Special Tooling) 1 1/2 - 3/16"
Plate Shear 13" Long
5/8" x 6"
1/2" x 8"
1/4" x 13"
Angle Shear (Special Blade) 3 1/2" x 3 1/2 x 5/16"
Bar Shear Round 1/4" - 1 13/8"
Bar Shear Square 1/2" - 1"
Coper Notcher 40 Tons, 2 1/4" - 3" x 1/4"
Standard Bending Attachment 4"
Punch Strokes per Minute 40 @ 1/4"
Work Station Height 42"
Hydraulics 7.6 GPM
Motor 3 HP, 3 Phase
Approx. Dimensions 24" x 55" x 58"
Approx. Weight 1,700 lbs.

Preliminary Specifications - Subject to Verification
