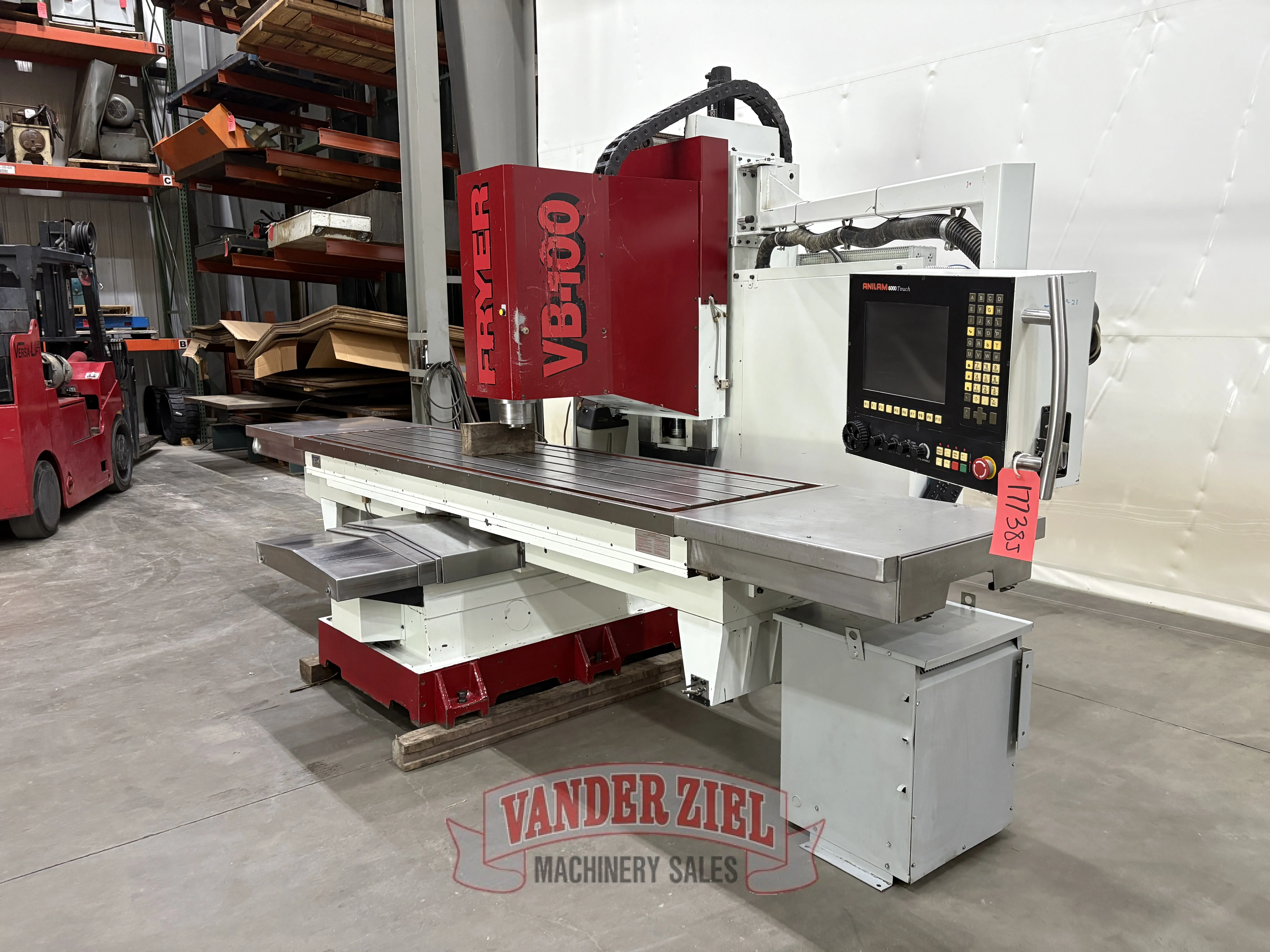

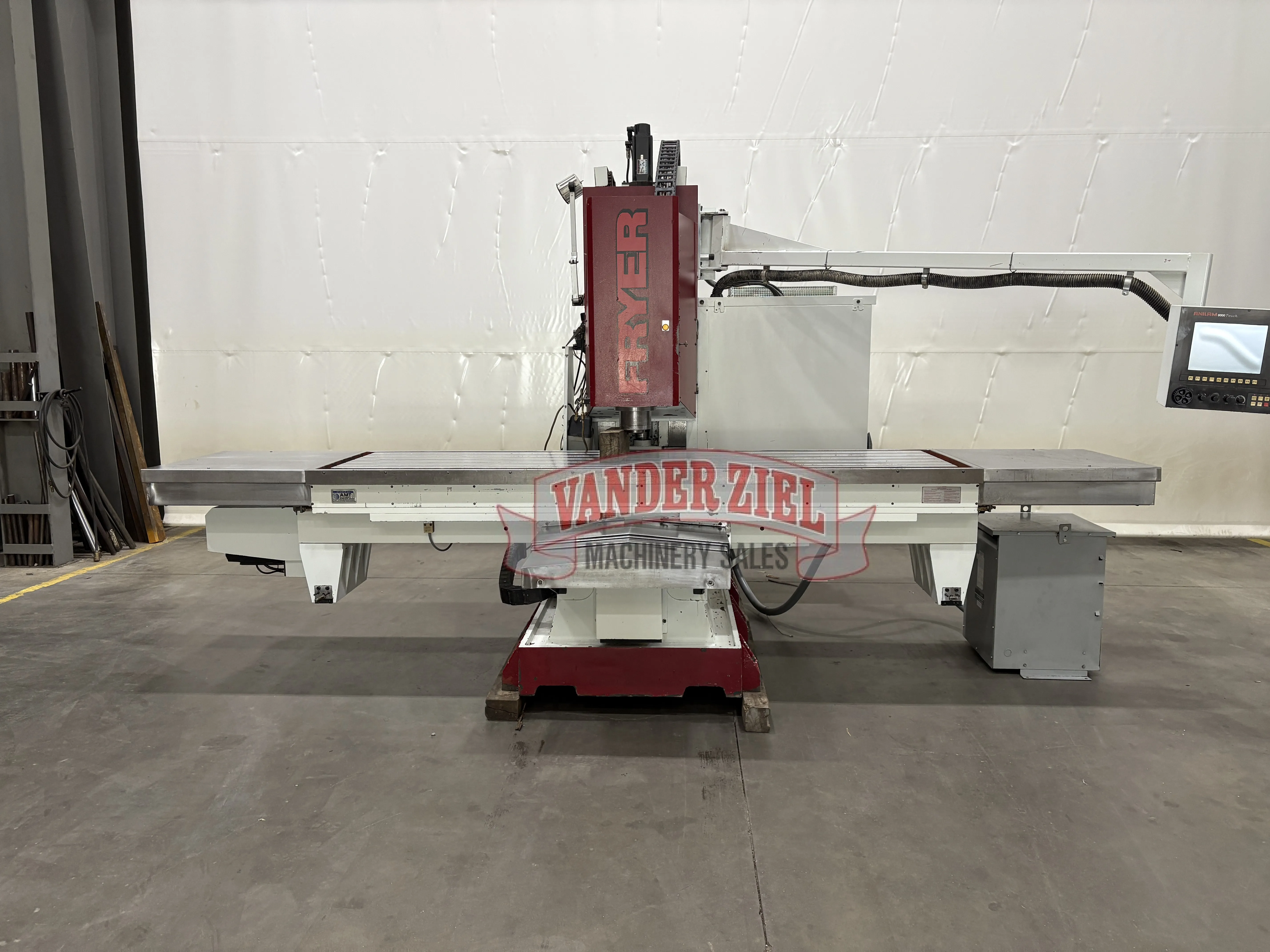

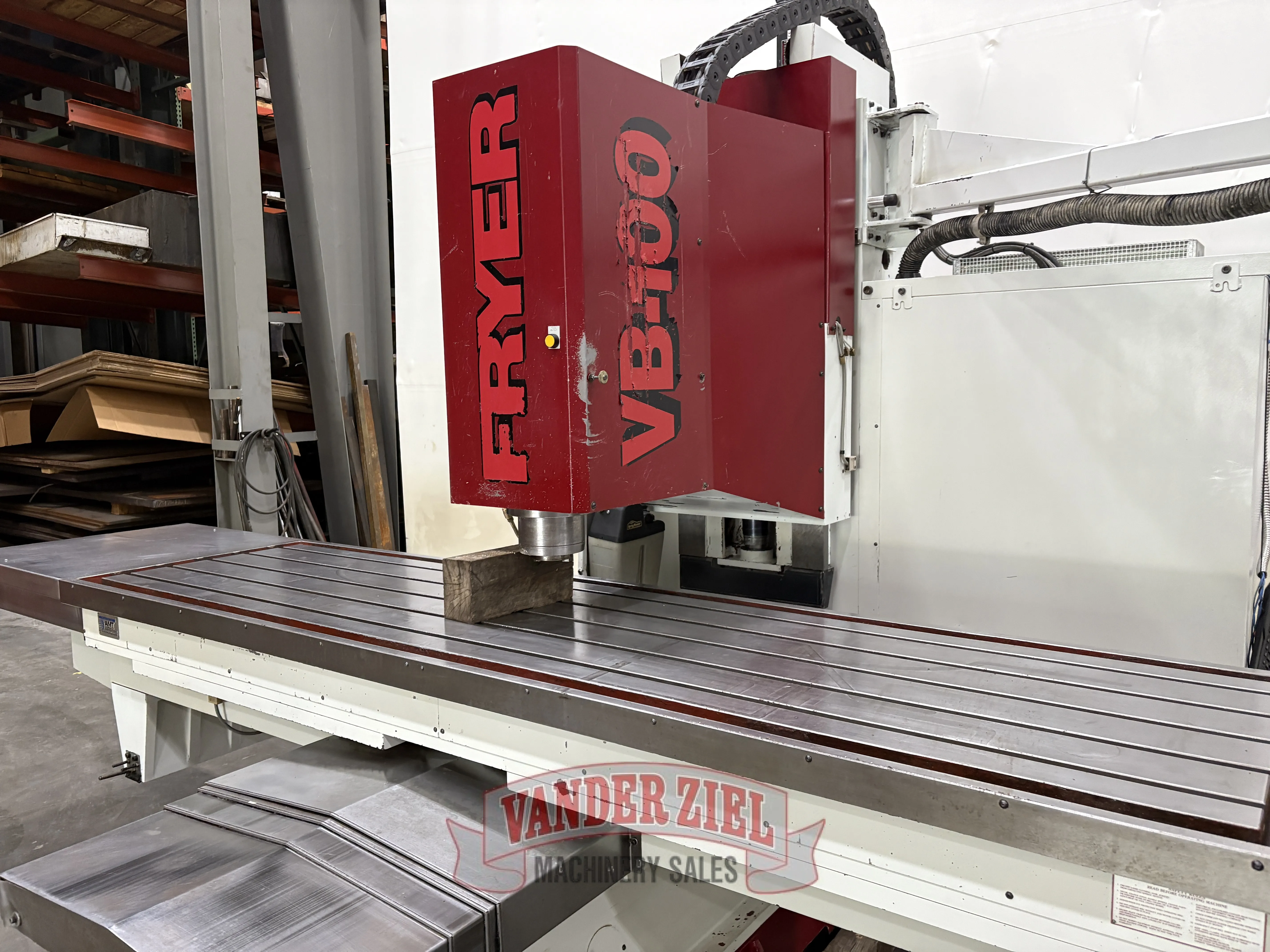

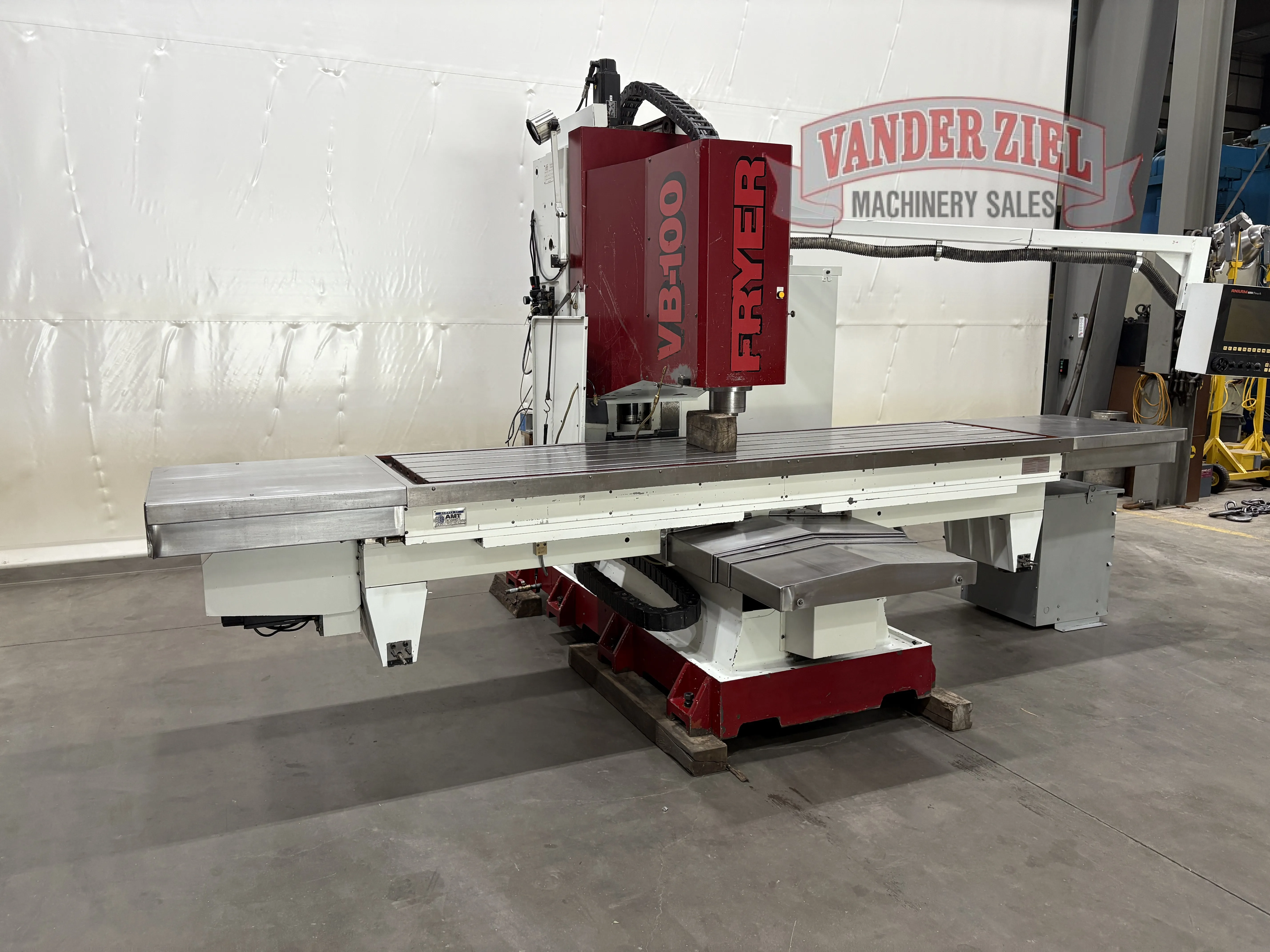

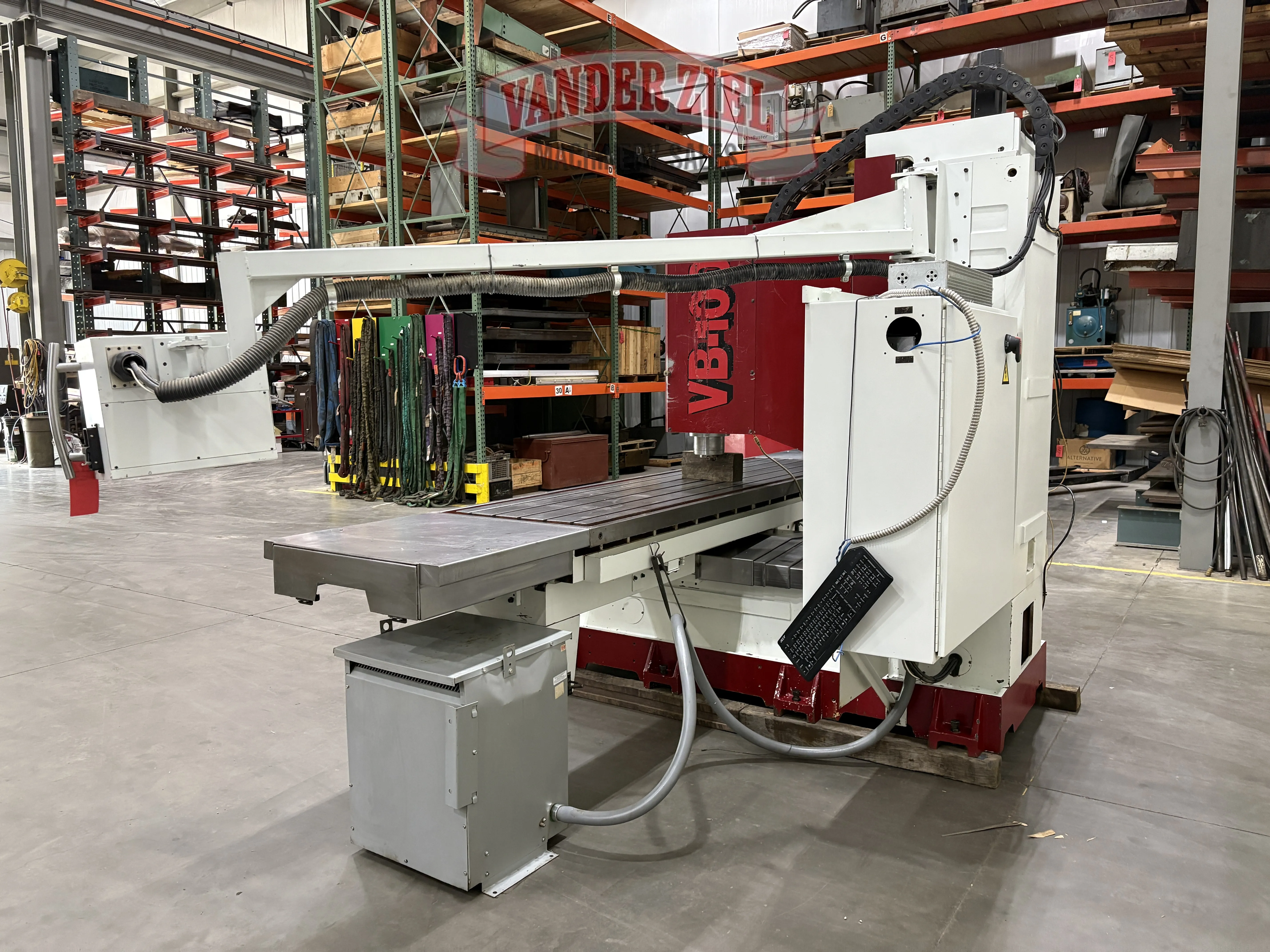

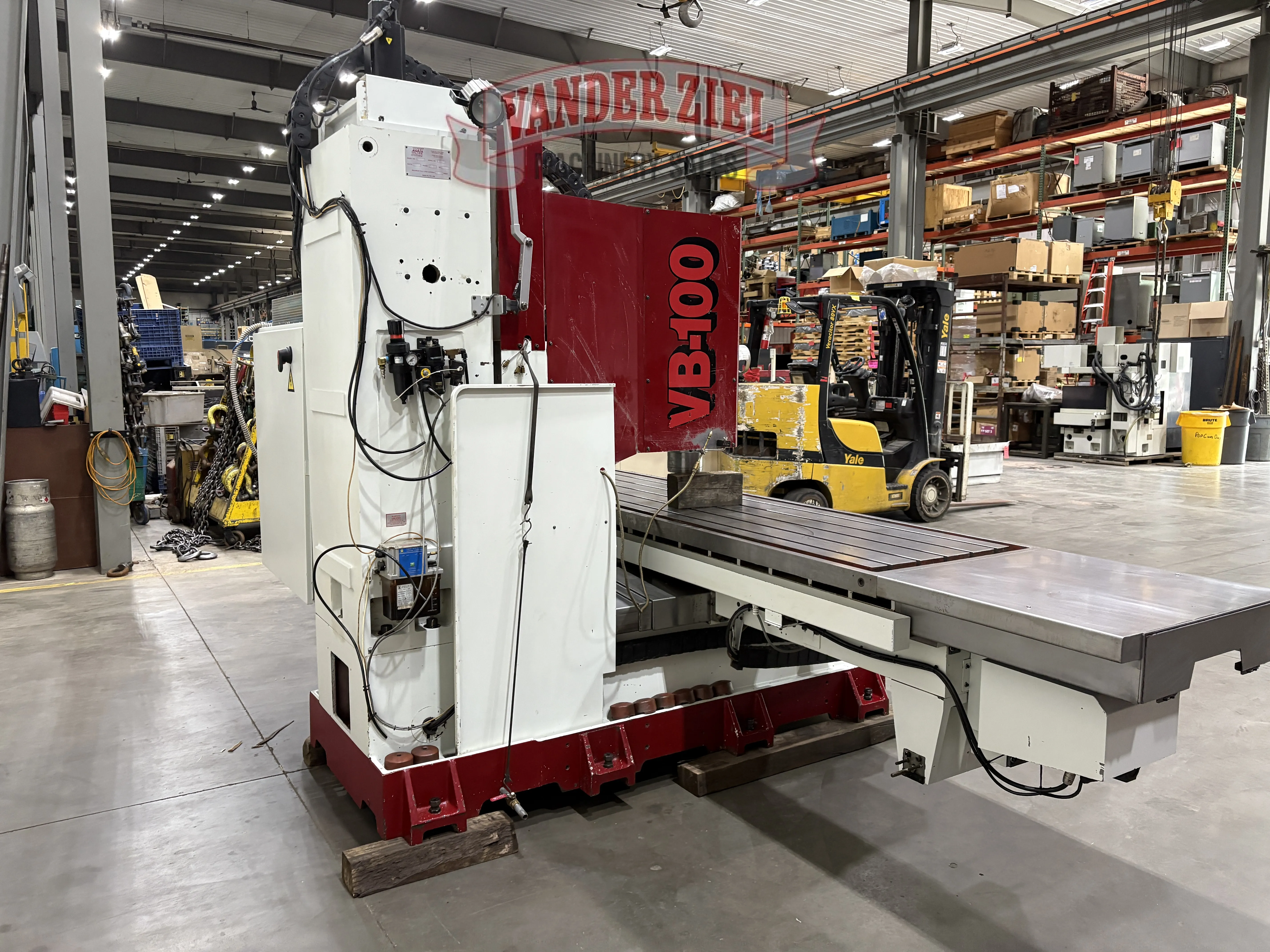

Fryer VB-100 CNC Vertical Machining Center - 2015

Fryer VB-100 CNC Vertical Machining Center - 2015

Asset # 17738J

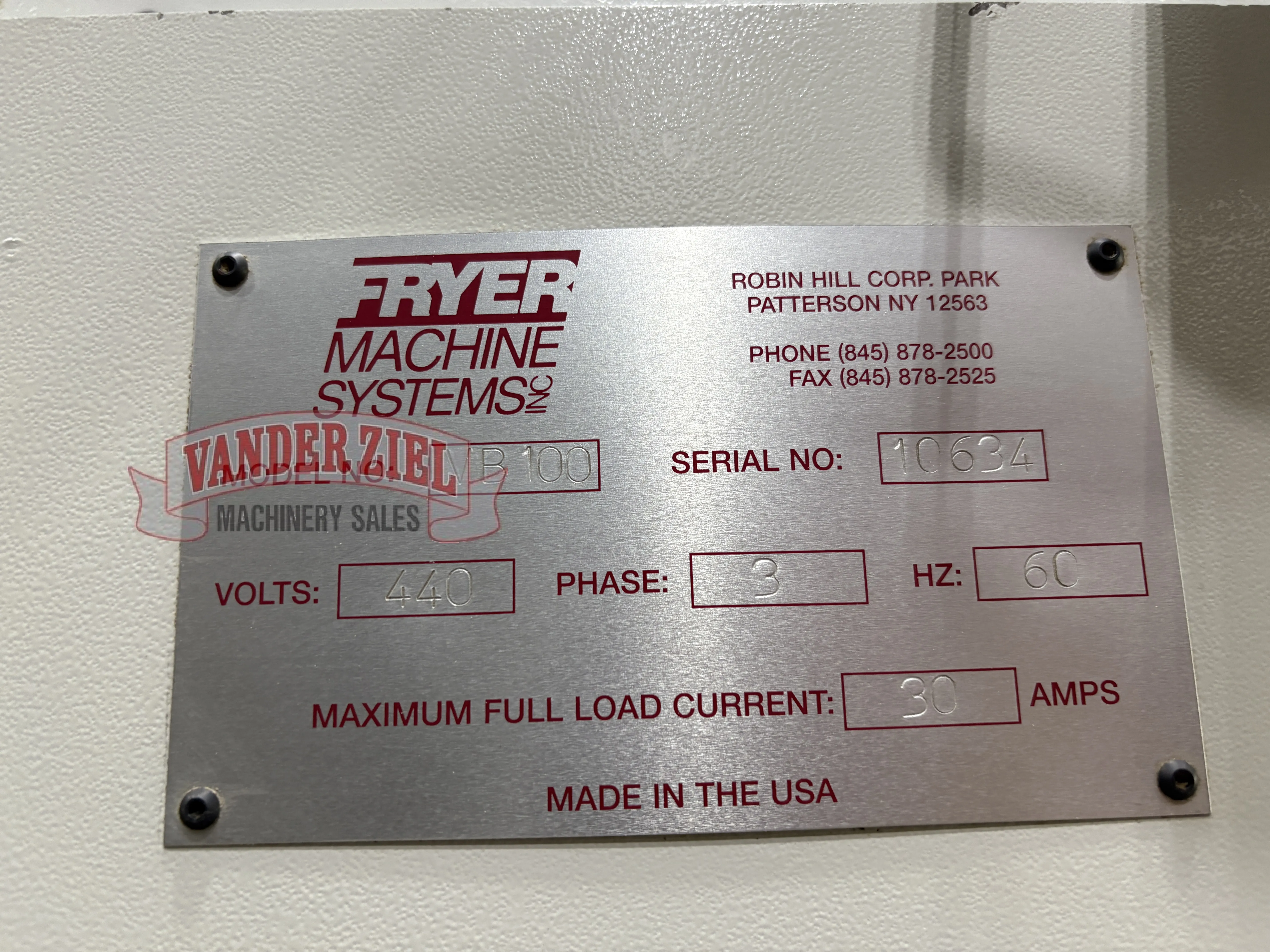

Serial # 10634

Specifications:
Travels: 100" X 35" X 26"

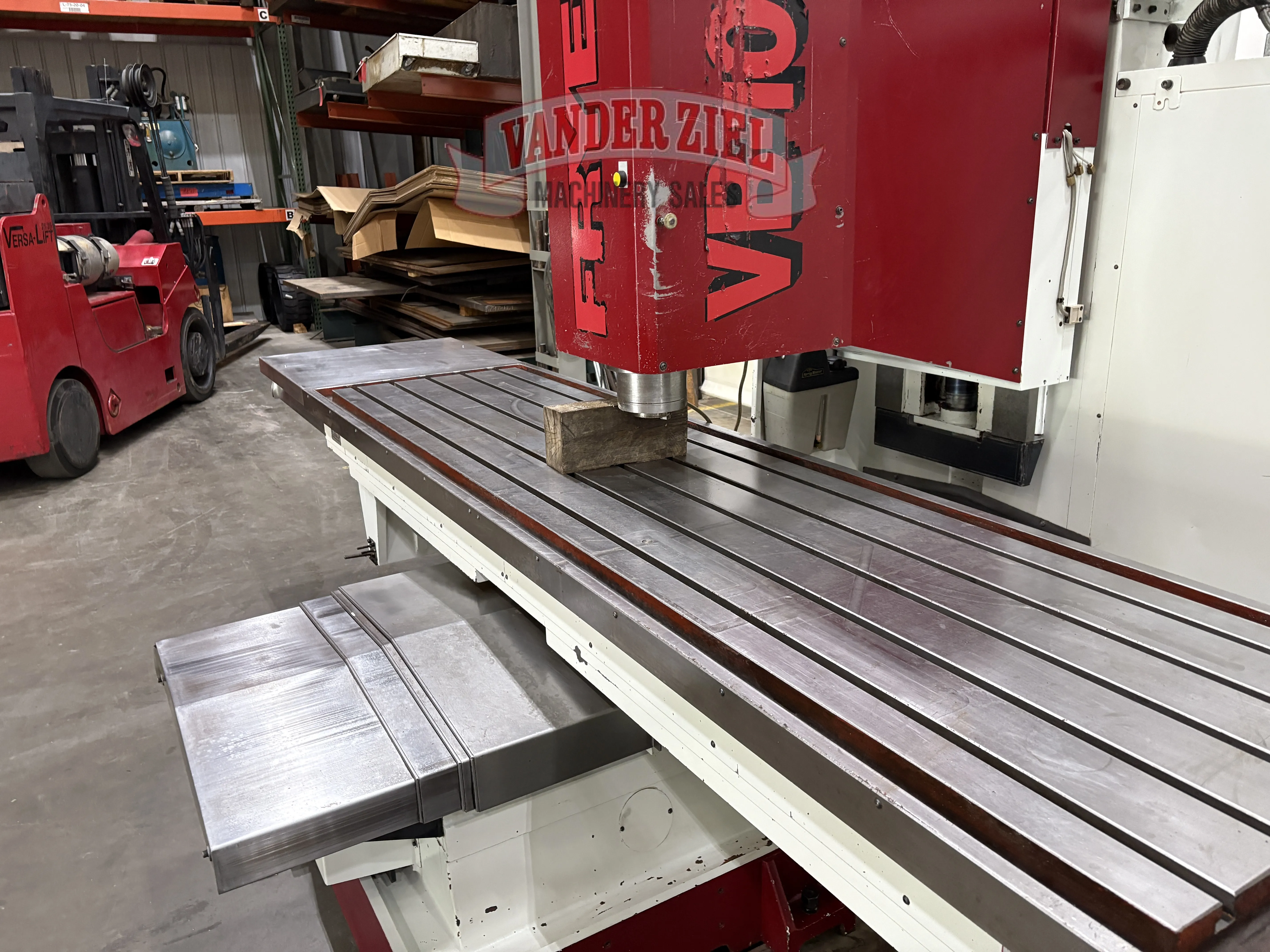

Table Size: 30” X 112”
20 HP - 40 Taper Spindle 60 - 8,000 RPM

Machine Standard Features
Box Way Construction
Double Nut Ballscrews
Digital High Torque Vector Spindle Drive
Digital Ac Brushless Servo Drives
Halogen Work Lamp
All Axes Laser Calibrated & Ballbar Verified
1,000 IPM Rapid Feedrate (Except VB-80, 100)
Automatic Lube System W/Low Lube Fault
6 Inch – 5 Bearing Spindle Cartridge – 8,000 RPM
2,500 RPM Rigid Tapping
Turcite B On All Sliding Ways & Gibs
Hardened And Ground Table
Electronic Spindle Orientation
Hand Built Precision ± .002” Entire Travel

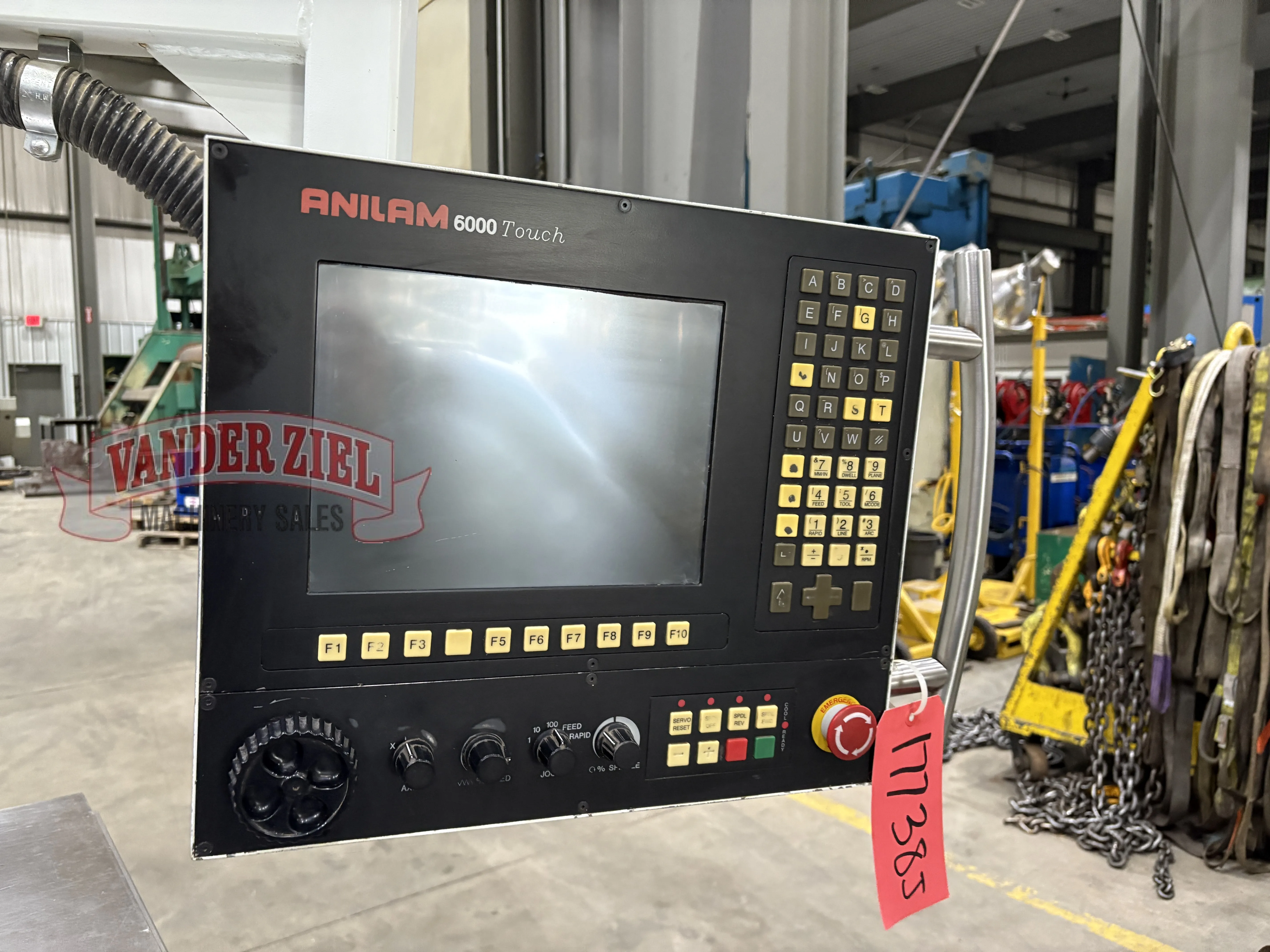

Anilam-Fryer Touch 6000 Control
Standard Features
Fully Digital Control – Drive System
12 Inch Digital Color Flat Panel Display
10 GB Part Storage Memory
16 MB Ram Buffer Memory
3.5" MB Floppy Disk Drive
High Speed DSP Processor – 1,300 Block/Sec
Panel Mounted Electronic Handwheel
Menu Style Conversational Programming
Standard G & M Code Programming
DXF File Input Feature W/ Touch Screen
Scaling, Rotation, Mirror Image, Helical
Engraving, Event Repeat, Mill Cycle
User Defined Macros
3D Graphics With Zoom And Rotate
Large File Edit With Any Point Start

Preliminary Specifications - Subject to Verification
