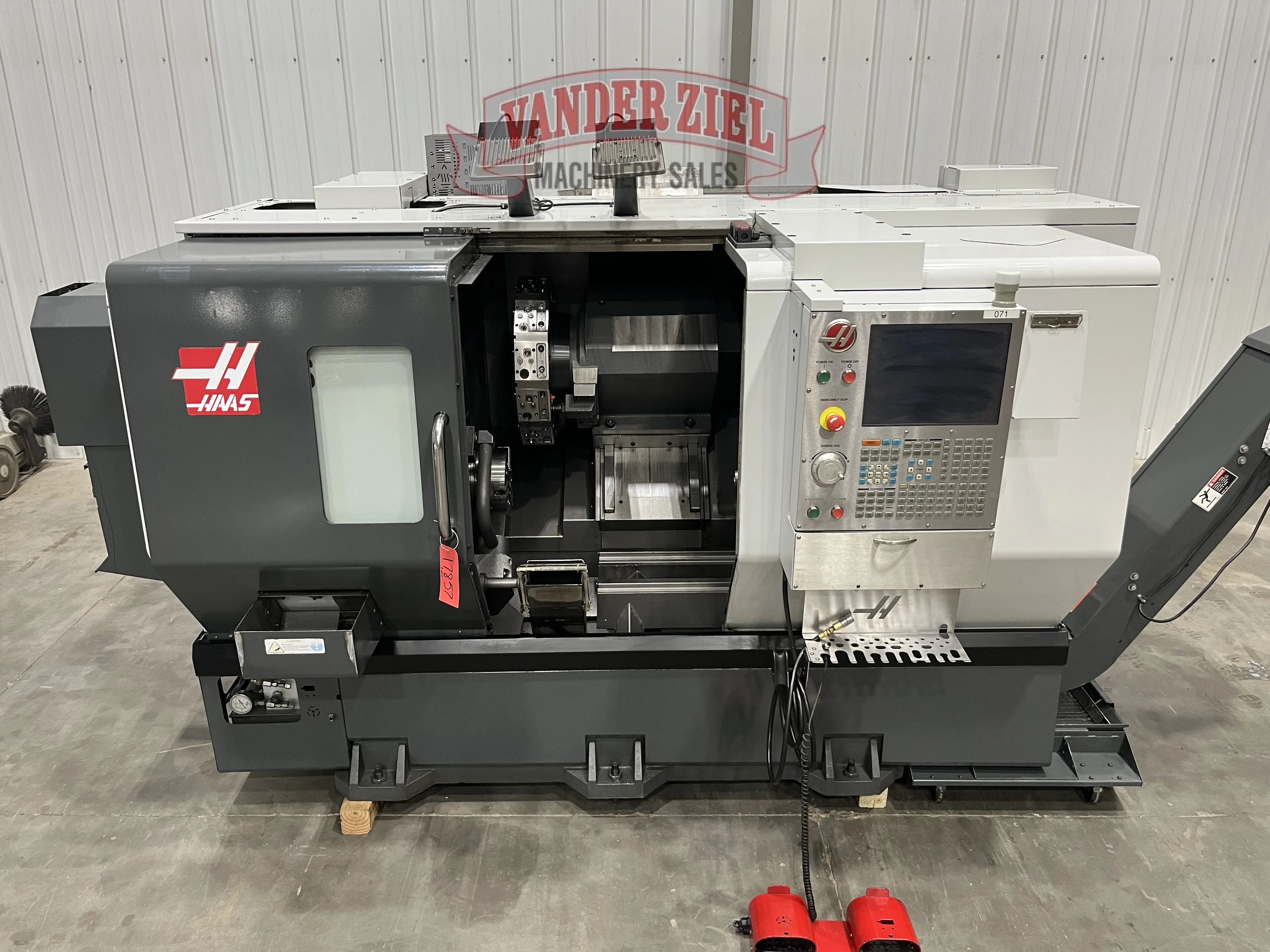

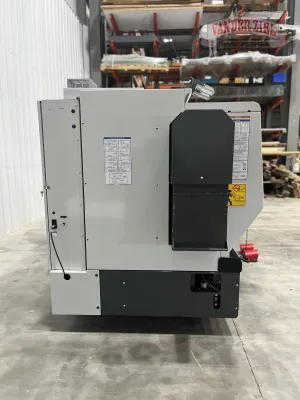

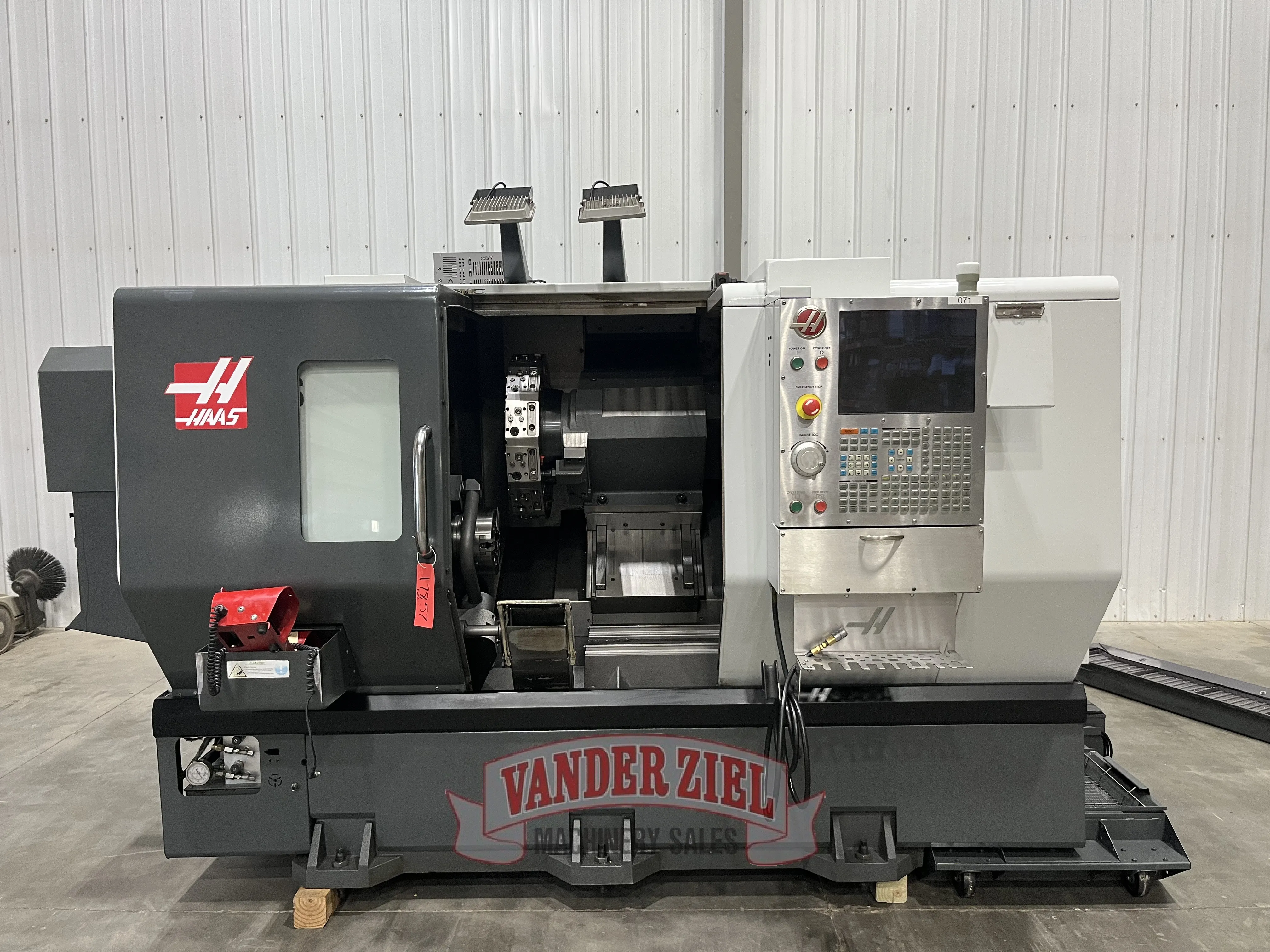

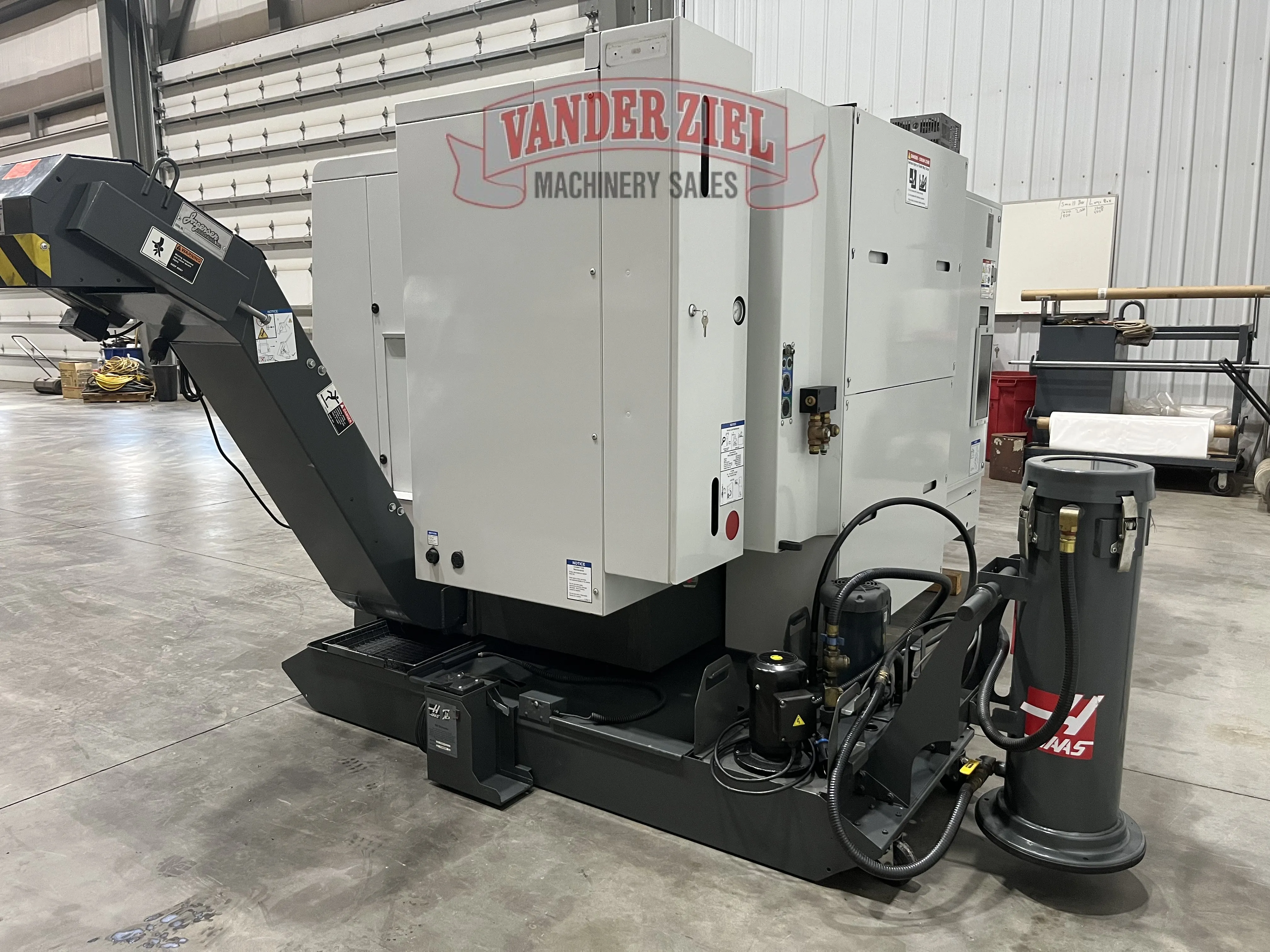

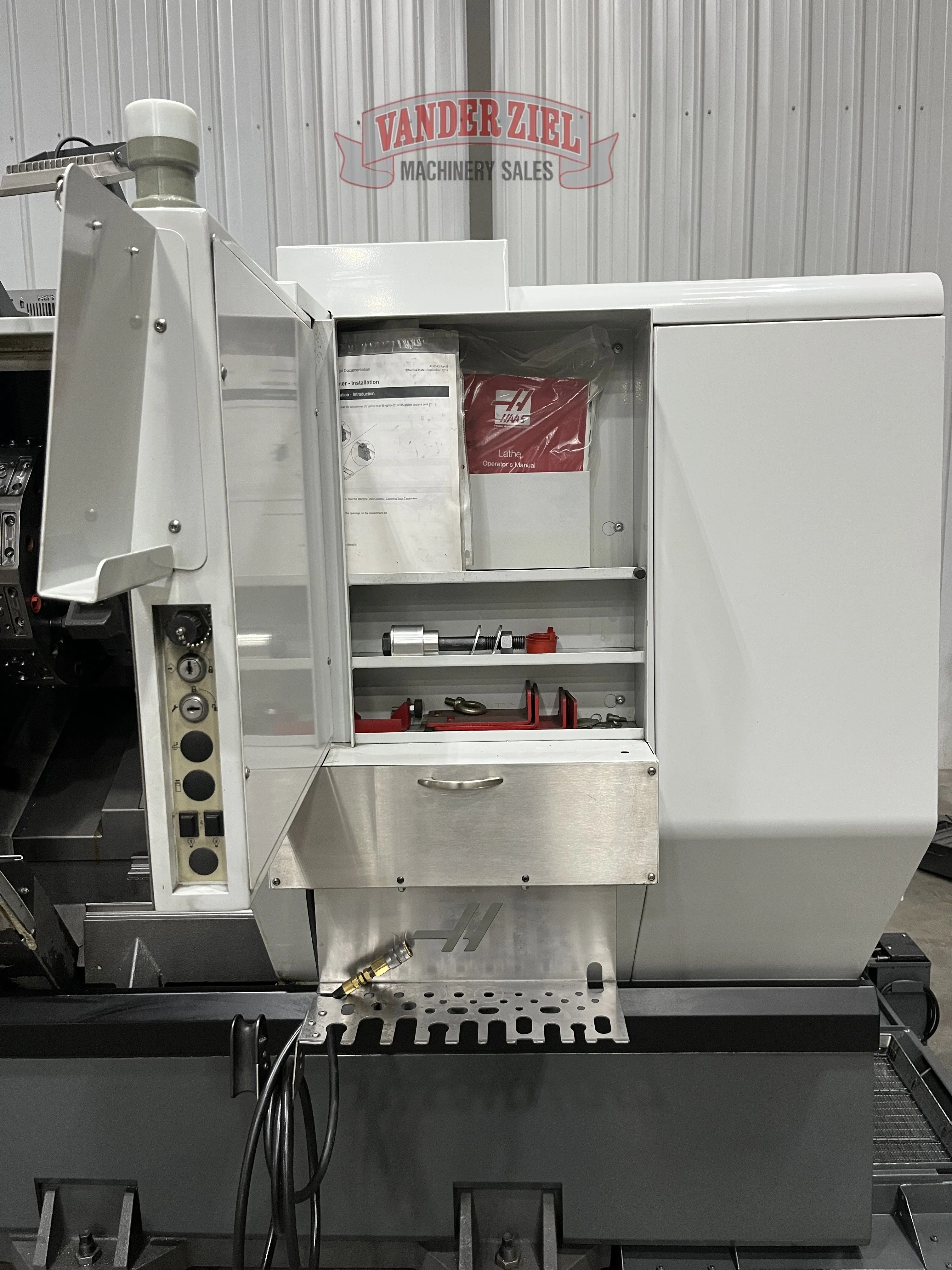

Haas ST-20SS CNC Turning Center, 2015

Haas ST-20SS CNC Turning Center, 2015

Asset # 17857

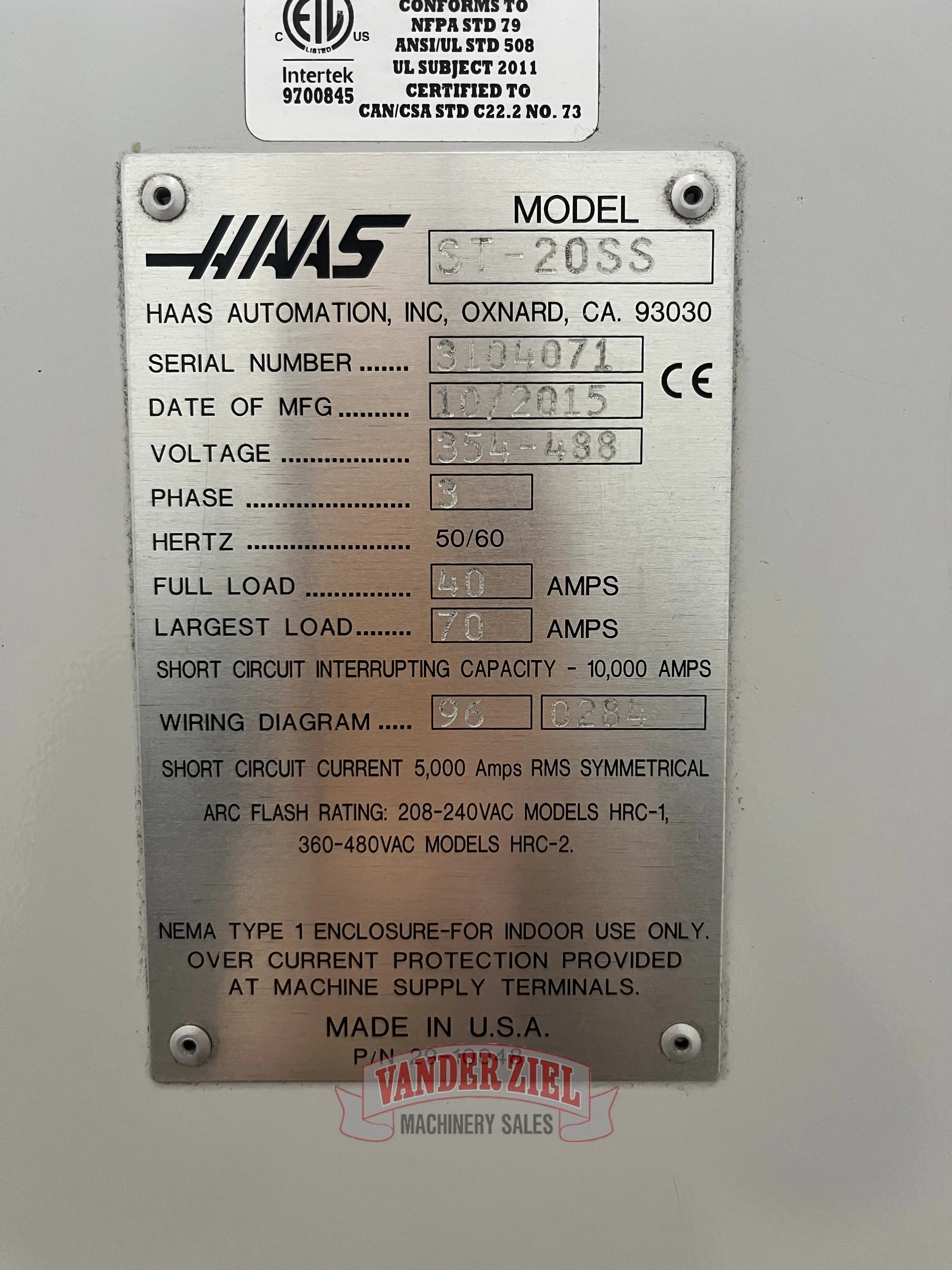

Serial # 3104071

SWING DIAMETER S.A.E.
Over Front Apron 31.75 "
Over Cross Slide 20.75 "
Over Tailstock 23.0 "
CAPACITIES S.A.E.

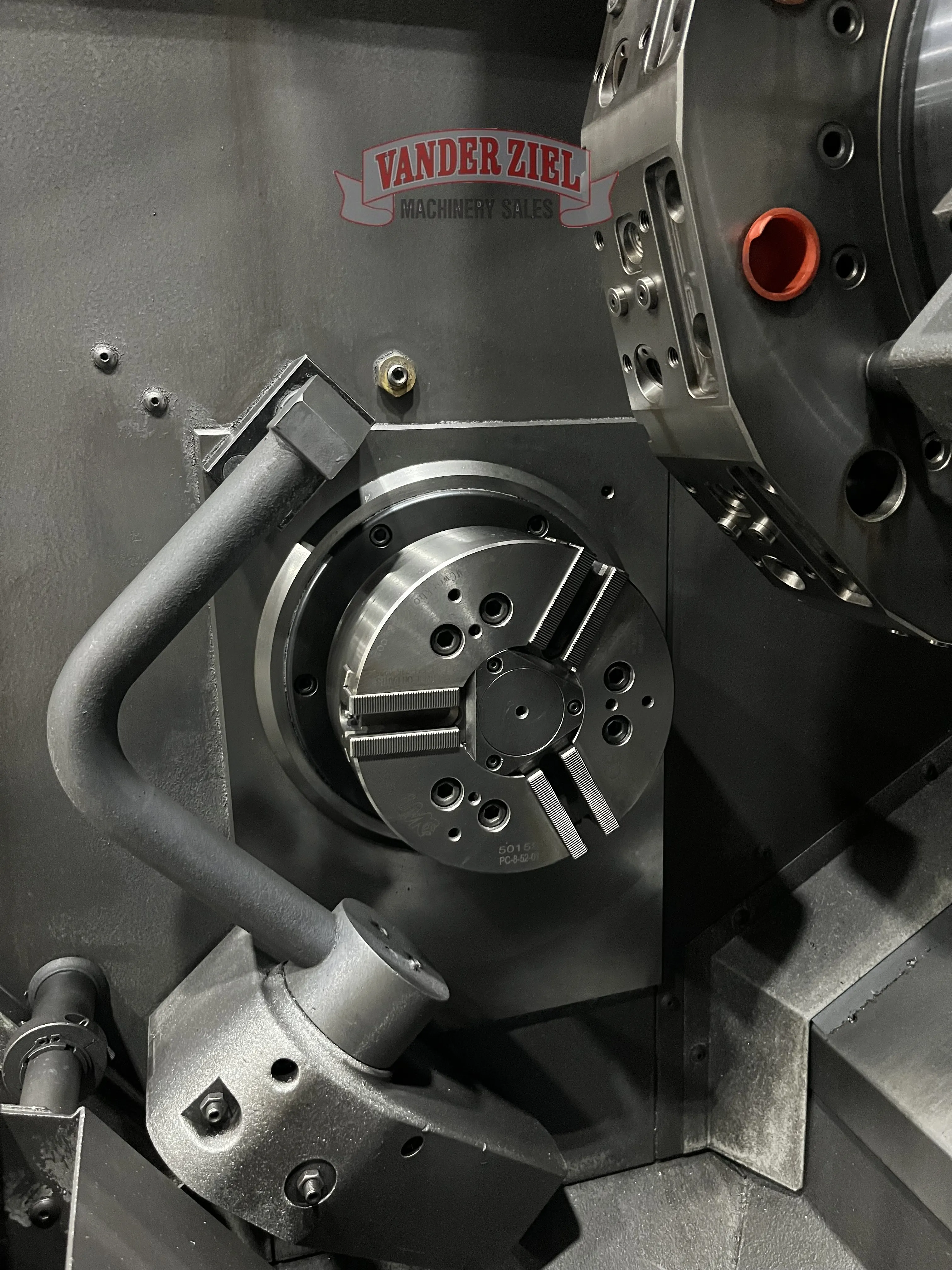

Chuck Size 8.3 "
Max Cutting Diameter (varies with turret) 10.0 "
Max Cutting Length (without workholding) 21 "
Bar Capacity 2.0 "

TRAVELS & FEEDRATES S.A.E.
X Axis 9.3 "
Z Axis 21.0 "
Rapids on X 945 in/min
Rapids on Z 1200 in/min
Max Thrust X 4100 lb
Max Thrust Z 4050 lb

SPINDLE S.A.E.
Max Rating 30 hp
Max Speed 5000 rpm
Max Torque 140 ft-lb @ 1450 rpm
Spindle Nose A2-6
Spindle Bore ø 3.50 "

TURRET S.A.E.

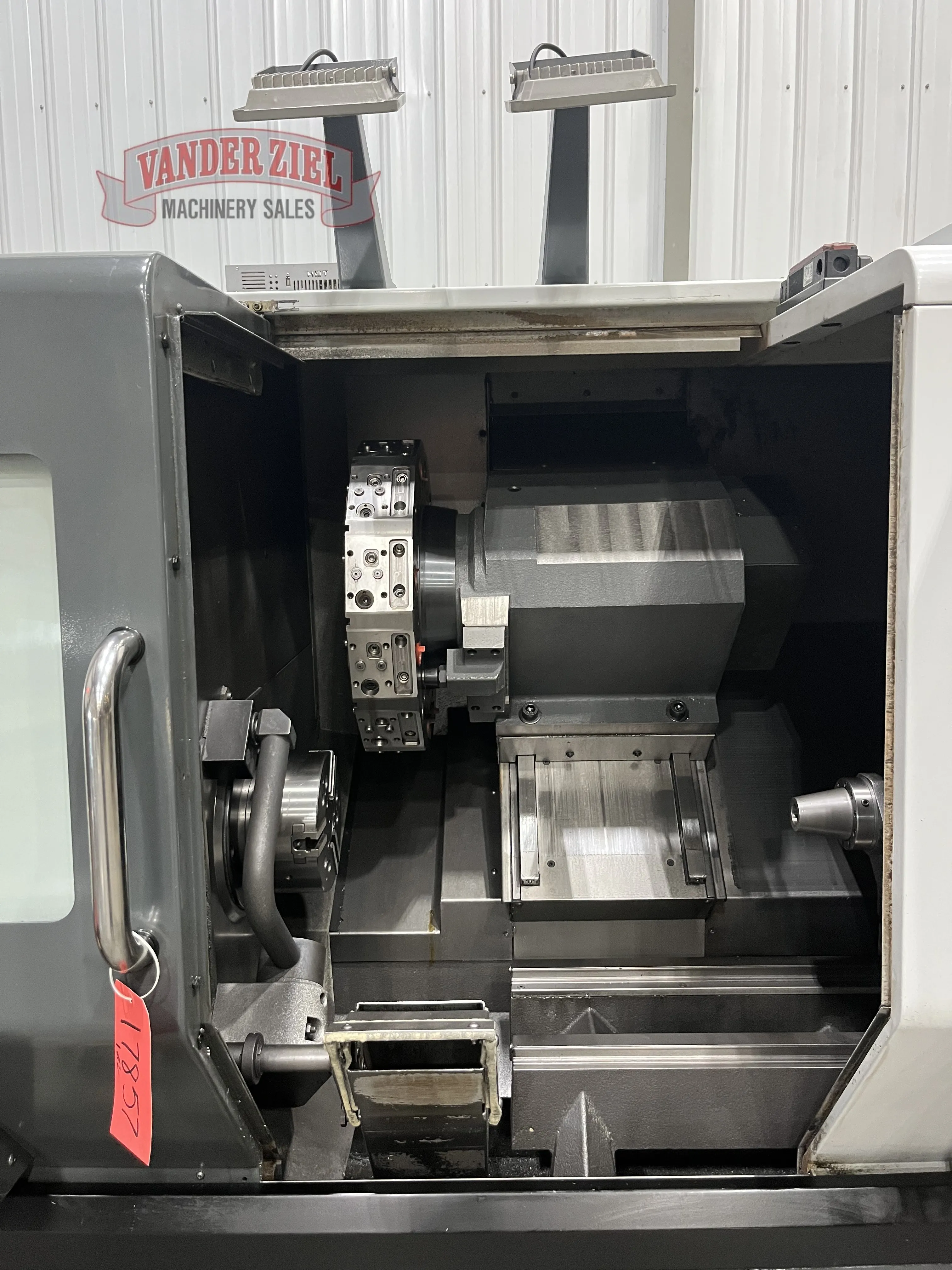

Number of Tools 24 Stations
OD vs ID Tools Hybrid 12 BOT/12 VDI
Boring Bar Rear Clearance (from back of turret ) 4.0 "

GENERAL S.A.E.
Air Required 4 scfm, 100 psi
Coolant Capacity 55 gal

Preliminary Specifications - Subject to Verification

Additional Factory included options:

• 24 station BOT/VDI turret

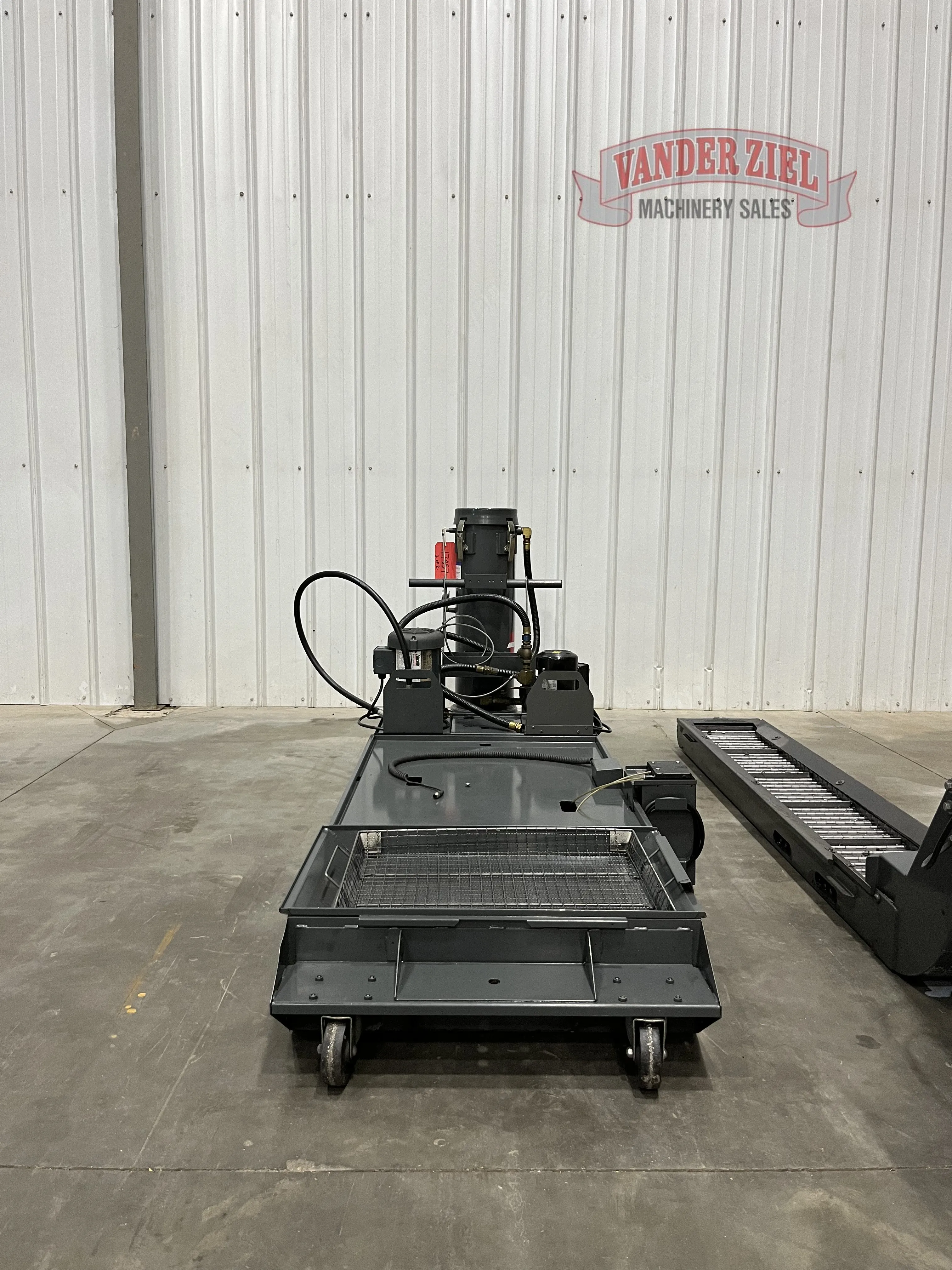

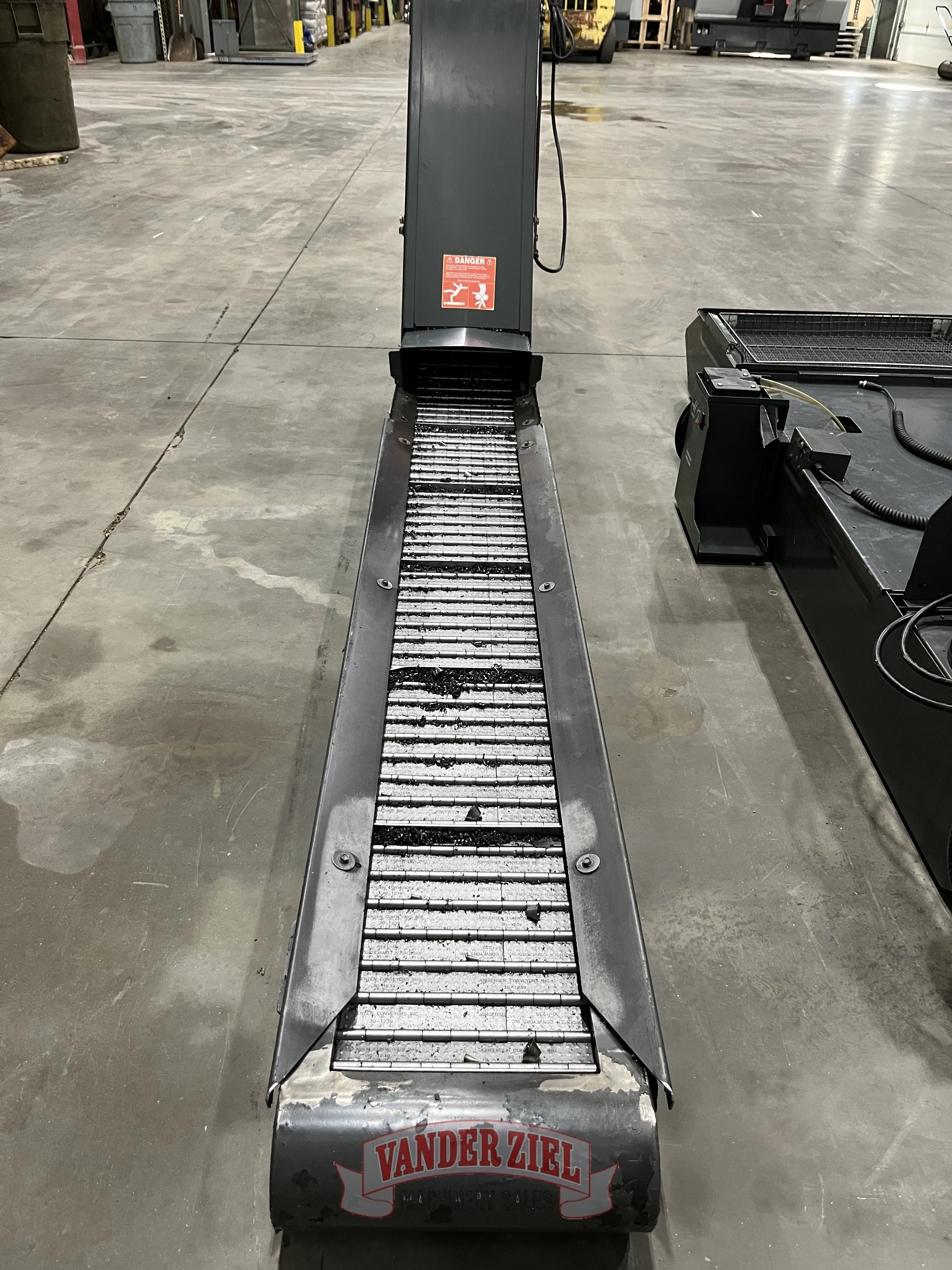

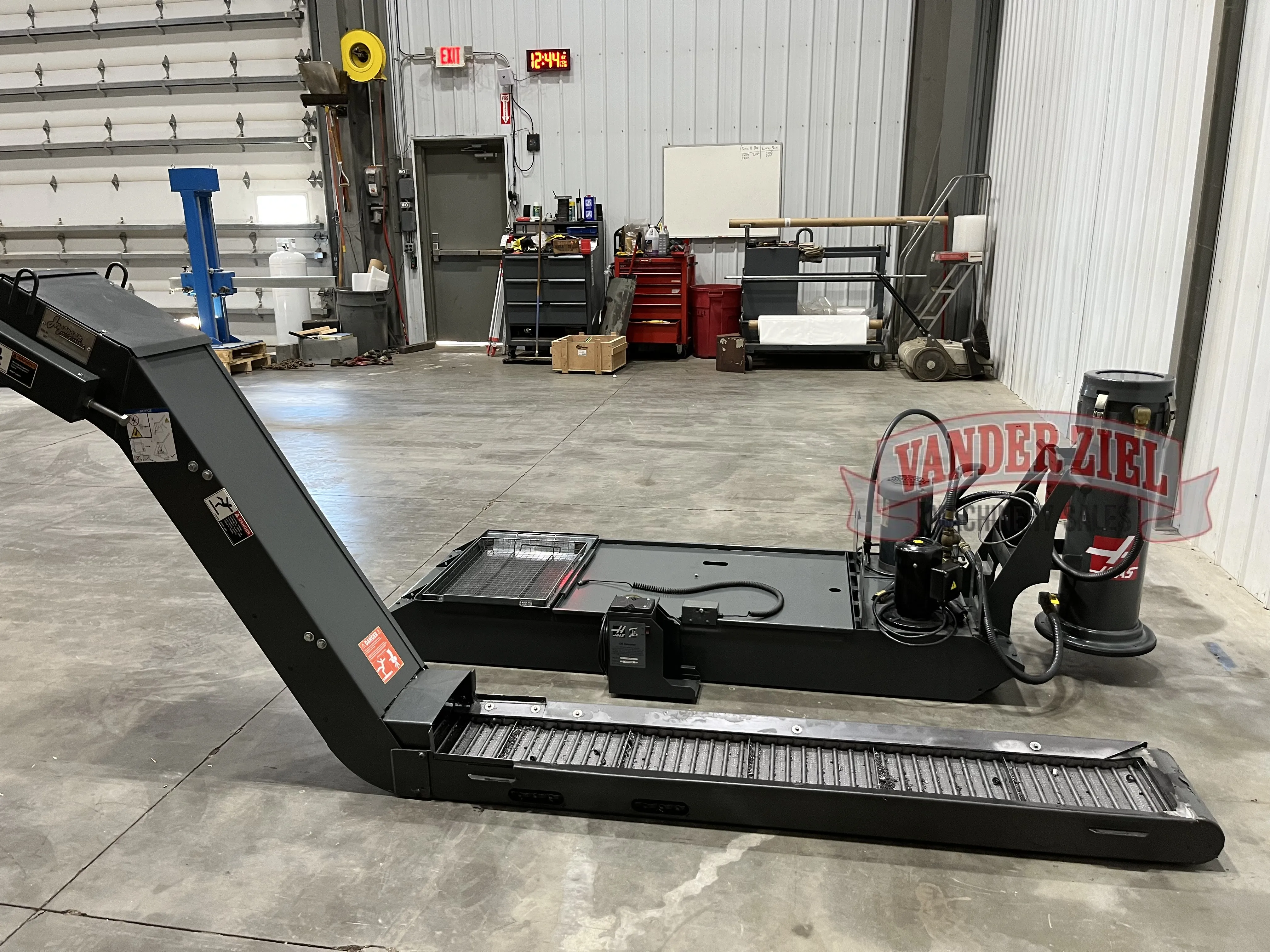

• Chip conveyor
• Automatic tool Presetter
• Spindle orientation
• Parts catcher
• Ethernet interface
• High pressure coolant, 300 psi

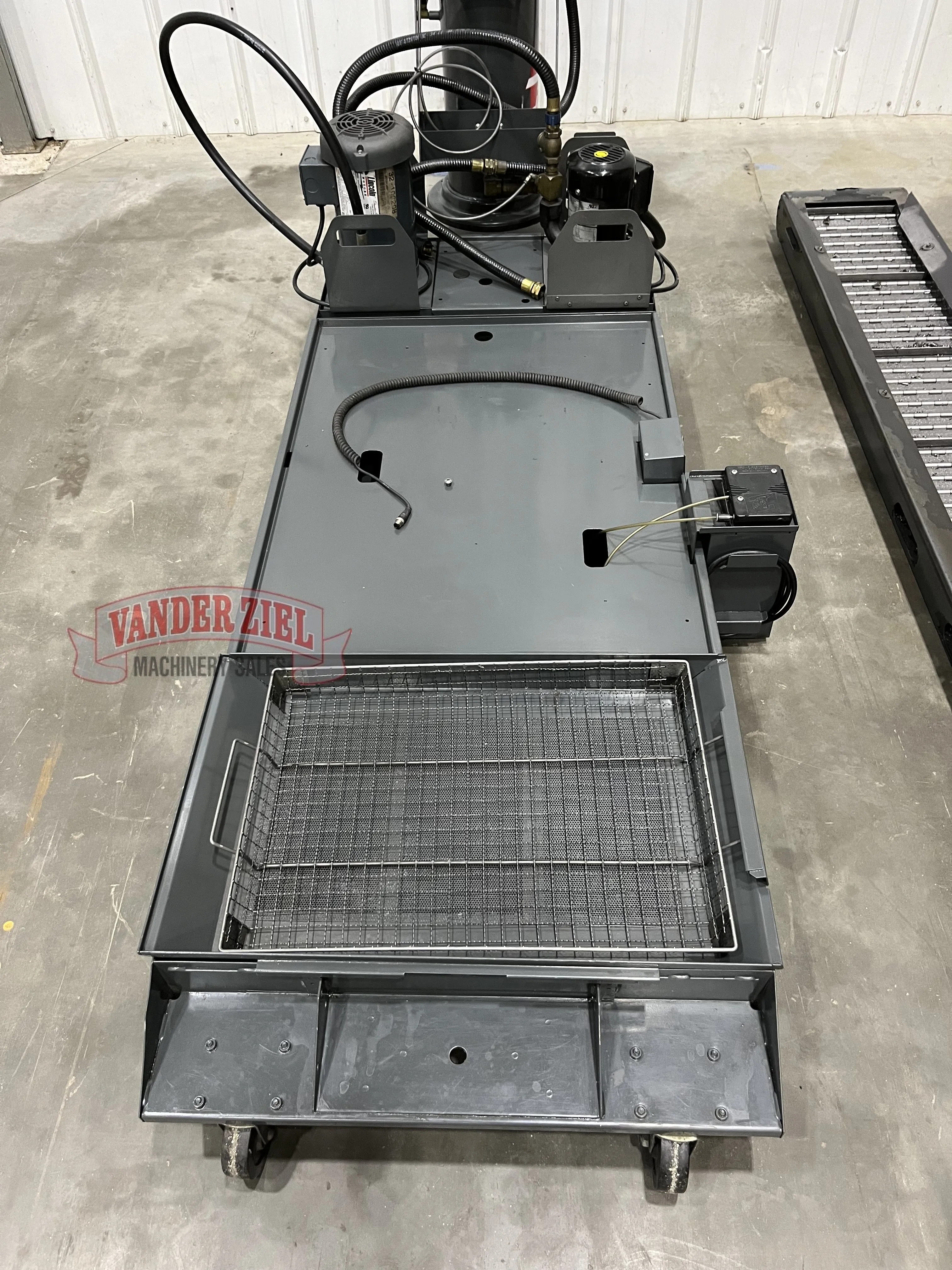

• Auxiliary coolant filter

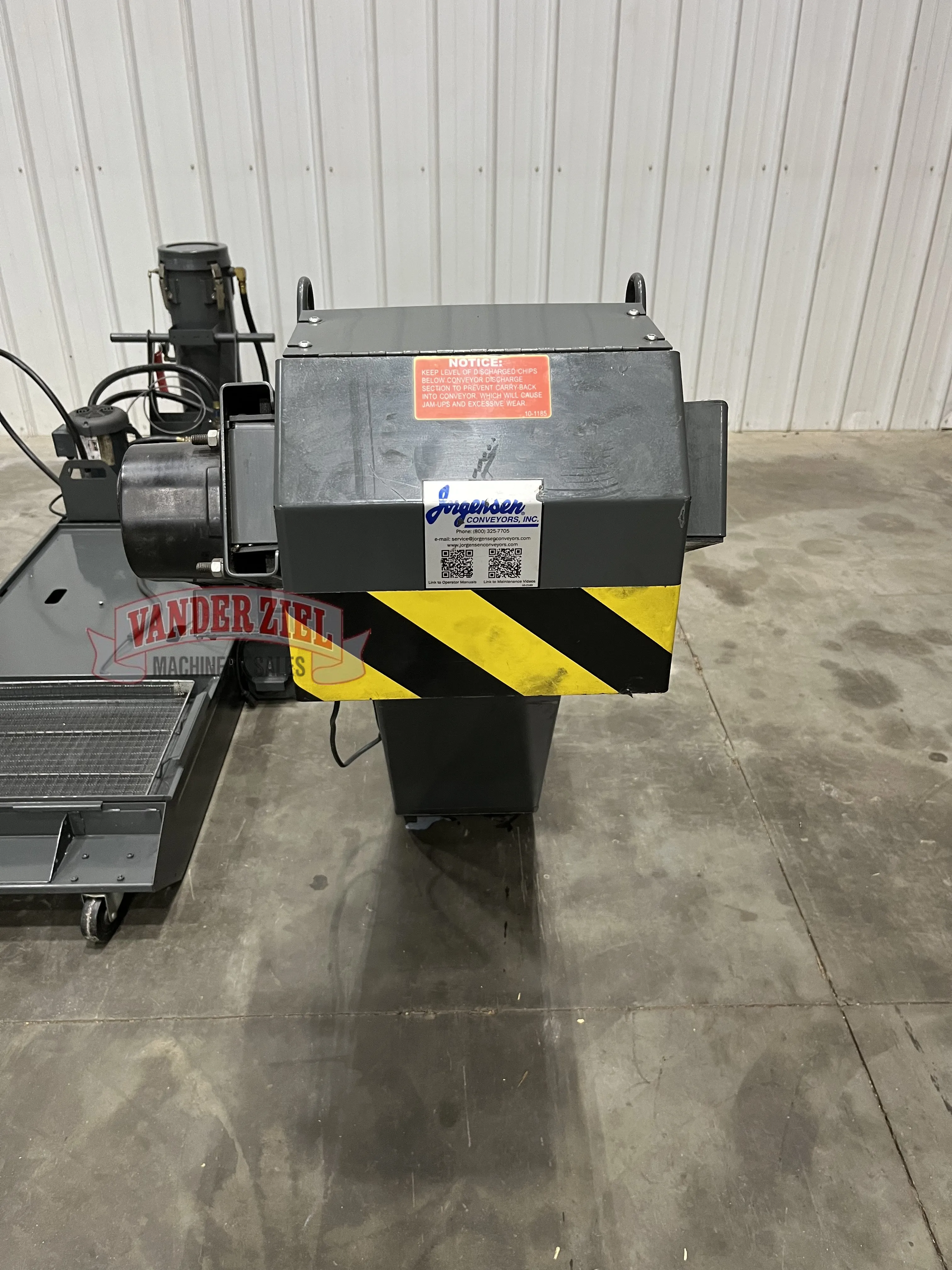

• Coolant tank oil skimmer
• High intensity lighting
• 30HP spindle motor
