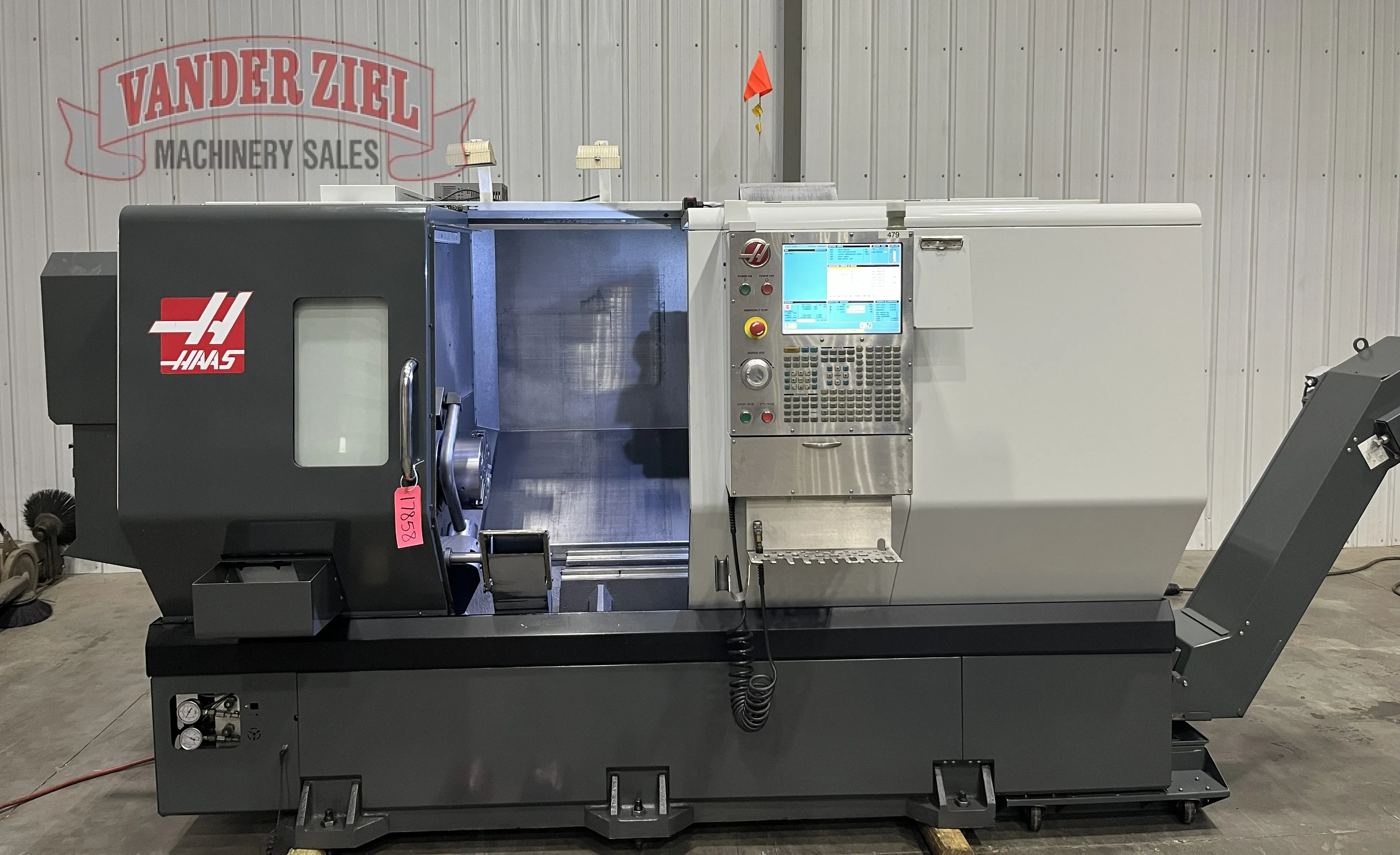

Haas ST-30 CNC Turning Center, 2015

SWING DIAMETER                                                  S.A.E.

Over Front Apron                                                       31.75 "

Over Cross Slide                                                        20.75 "

Over Tailstock                                                           23.0 "

CAPACITIES                                                              S.A.E.

Chuck Size                                                                10.0 "

Max Cutting Diameter (varies with turret) 21.0 "

Max Cutting Length (without work holding) 26.0 "

Bar Capacity                                                             3.0 "

Between Centers                                                      30 "

TRAVELS & FEEDRATES                                      S.A.E.

X Axis                                                                      12.5 "

Z Axis                                                                       26 "

Rapids on X                                                             945 in/min

Rapids on Z                                                             945 in/min

Max Thrust X                                                           4100 lb

Max Thrust Z                                                           5100 lb

SPINDLE                                                                 S.A.E.

Max Rating                                                              30 hp

Max Speed                                                              3400 rpm

Max Torque                                                             300 ft-lb @ 500 rpm

Spindle Nose                                                           A2-6

Max Torque w/opt Gearbox                                     1000 ft-lb @ 150 rpm

Spindle Bore ø                                                        3.50 "

TURRET                                                                   S.A.E.

Number of Tools                                                      12 Stations

OD vs ID Tools                                                         Any Combination (will vary with turret style)

Boring Bar Rear Clearance (from back of turret) 4.0 "

GENERAL                                                                 S.A.E.

Air Required                                                          4 scfm, 100 psi

Coolant Capacity                                                   55 gal

Preliminary Specifications - Subject to Verification

Additional Factory included options:

30HP spindle motor

12 station BOT turret

Chip conveyor

Tailstock

Automatic tool Presetter

High intensity lighting

High pressure coolant, 300psi

Parts catcher

Ethernet interface

Auxiliary coolant filter

Coolant tank oil skimmer
