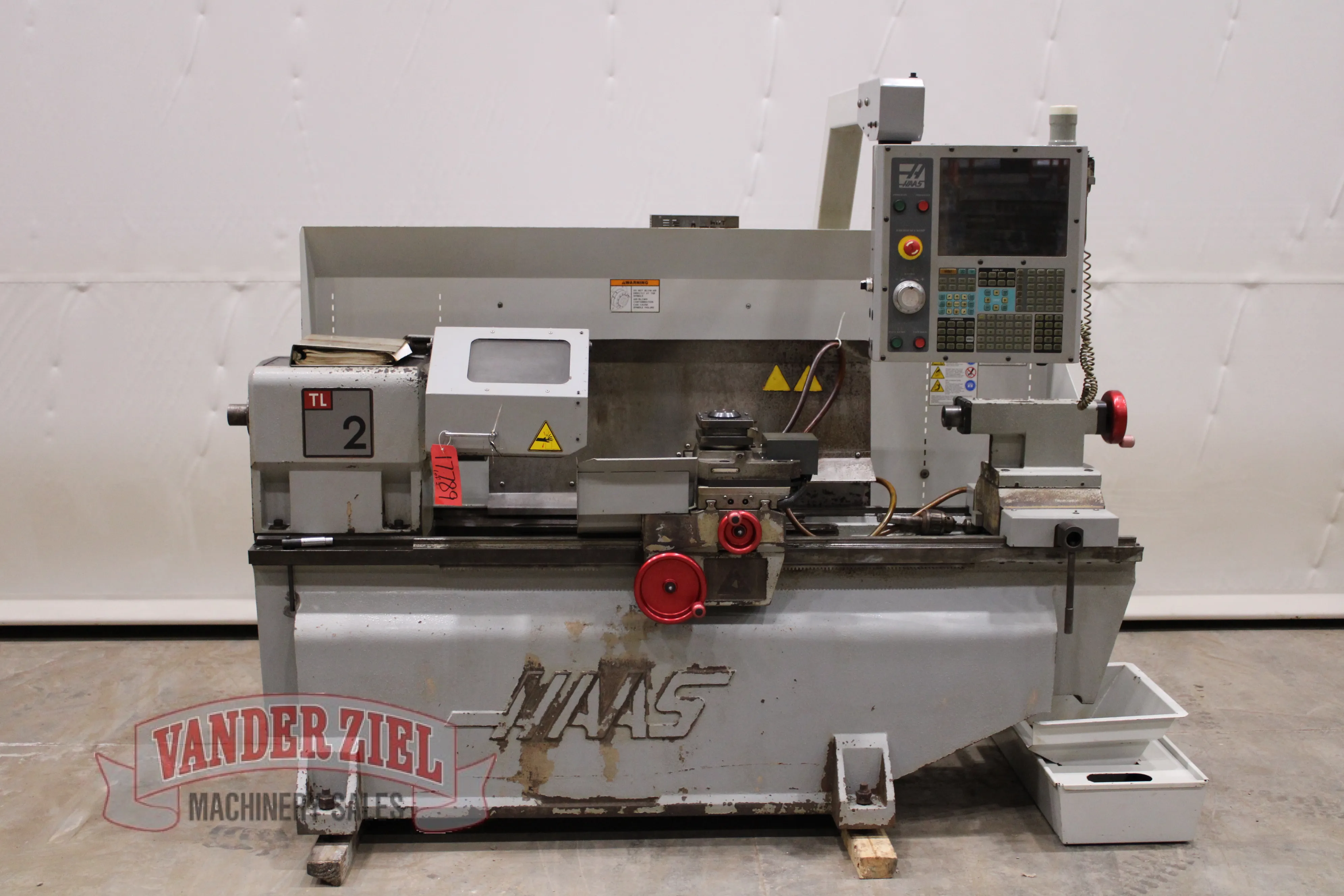

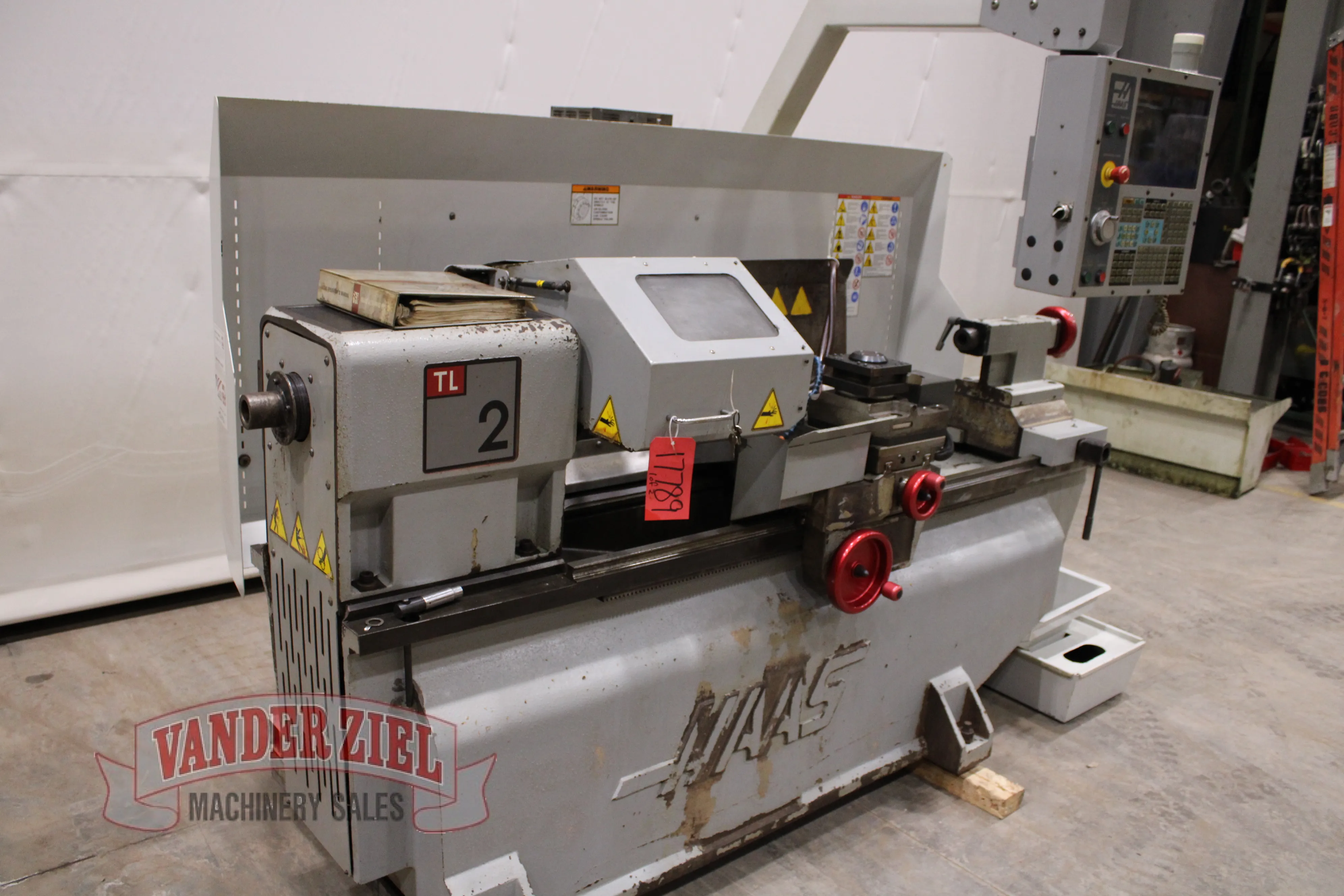

Haas TL-2 CNC Lathe, 11.1" x 48"

Haas TL-2 CNC Lathe, 11.1" x 48"

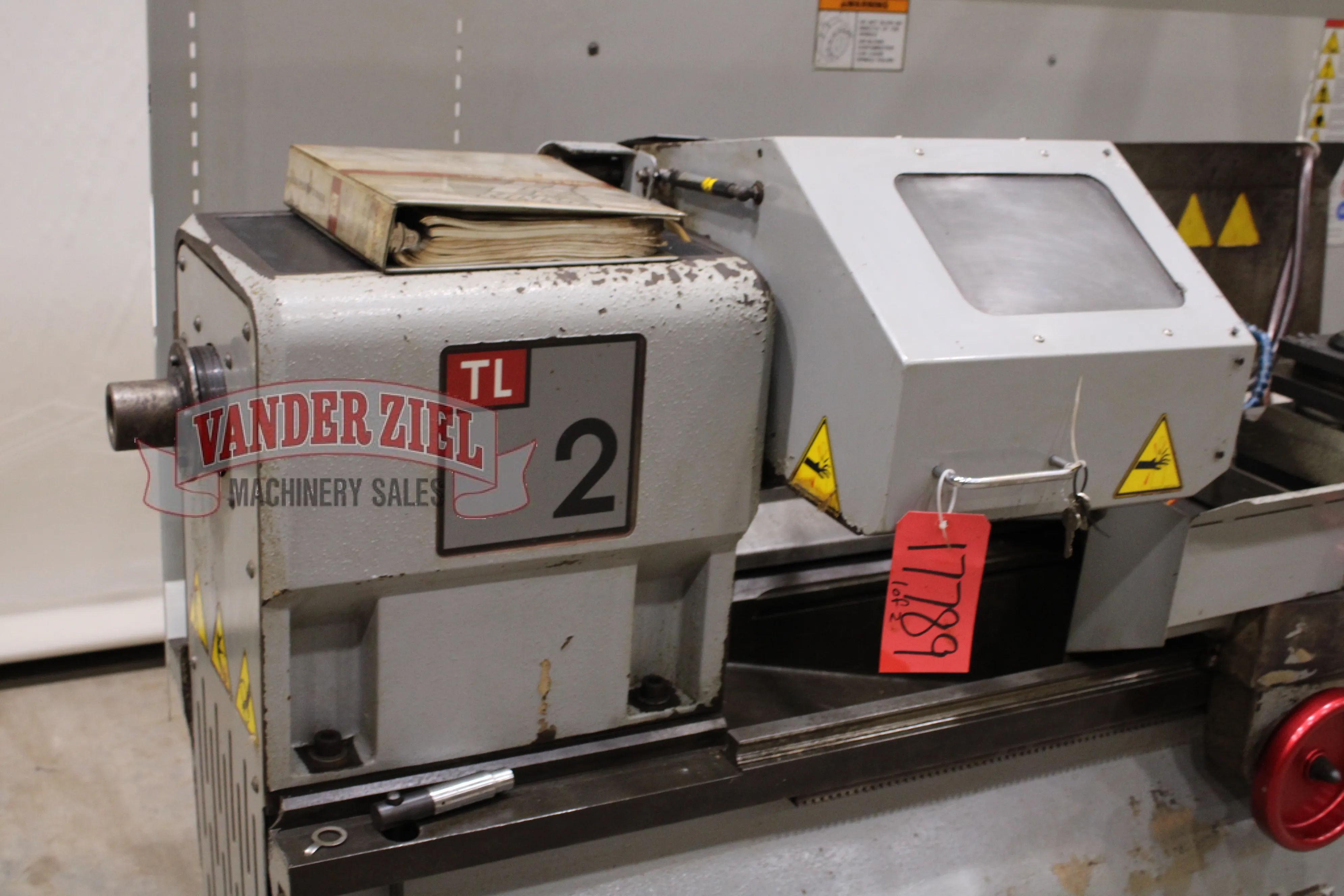

Asset # 17789

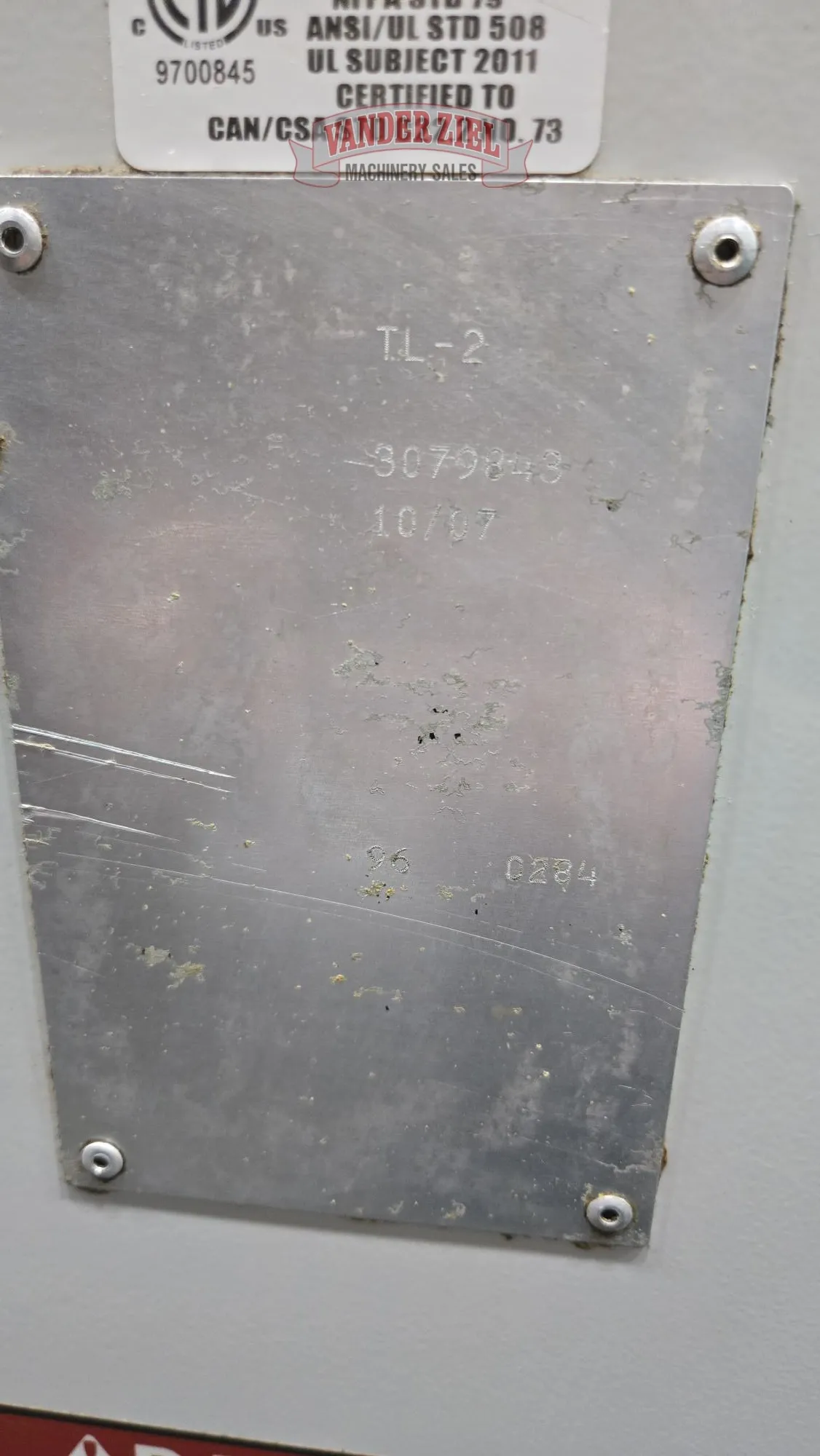

Serial # 3079843

SWING DIAMETER S.A.E.
Over Cross Slide 11.1 "
Over Front Apron 16.0 "
CAPACITIES S.A.E.
Between Centers 48 "
Chuck Size (max) 10 "
Maximum Cutting Diameter 16 "
Maximum Cutting Length 48 "
SPINDLE S.A.E.
Maximum Speed 2000 rpm
Spindle Bore ø 2.925 "
Spindle Nose A2-5
Max Power Rating 12 hp
Max Torque Standard 150 ft-lb @ 150 rpm
TRAVELS & FEEDRATES S.A.E.
X Axis 8 "
Z Axis 48 "
Rapids on X Axis 75 in/min
Rapids on Z Axis 150 in/min
Max Thrust Rating X 3096 lb
Max Thrust Rating Z 2340 lb
GENERAL S.A.E.
Power Required (continuous) 9 kVA;
3-phase: 208V @ 25A 50-60 Hz
Machine Weight 4600 lb

Lathe is equipped with a 10" 3 Jaw Chuck.
