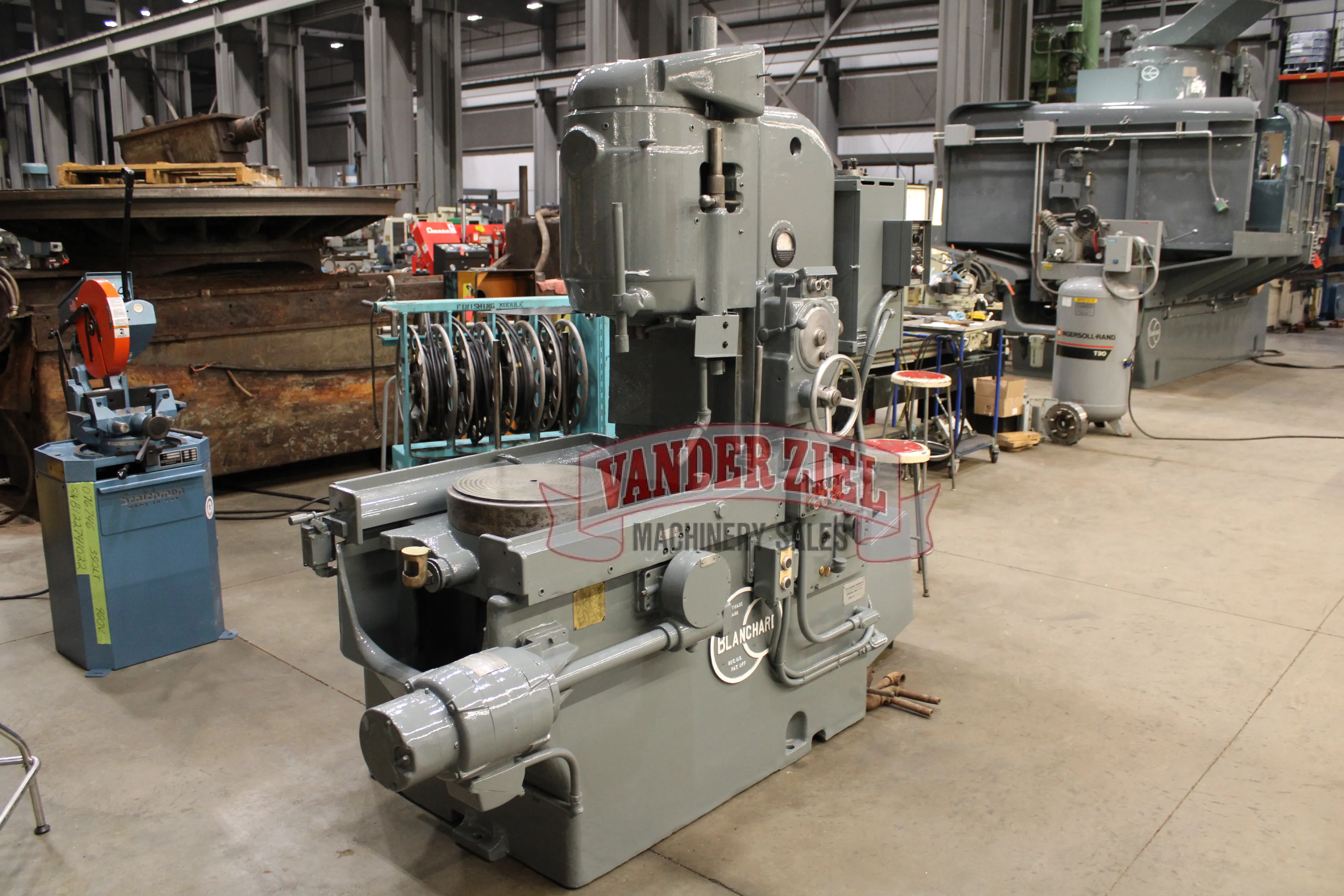

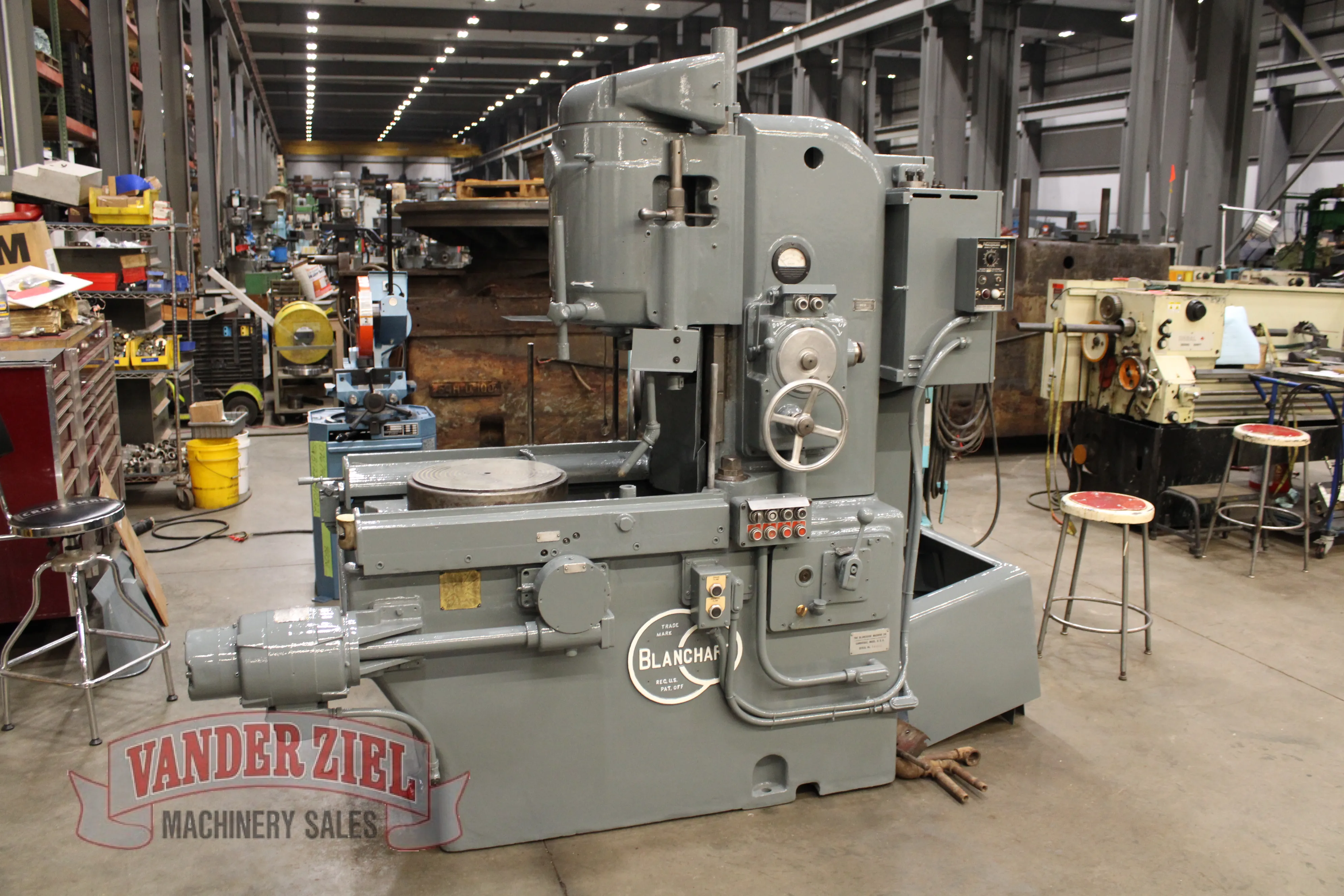

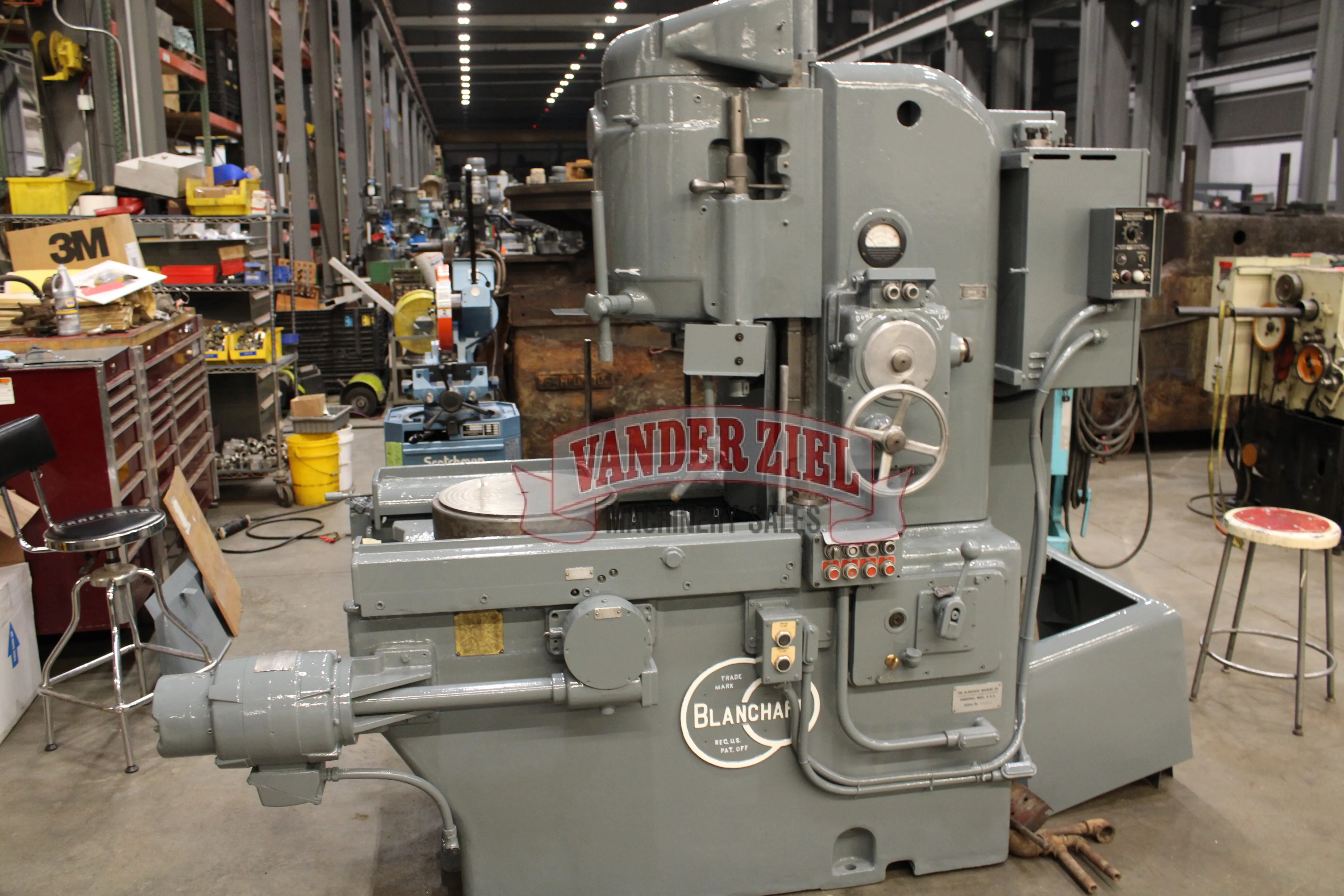

Blanchard 16" Rotary Grinder, Model 11

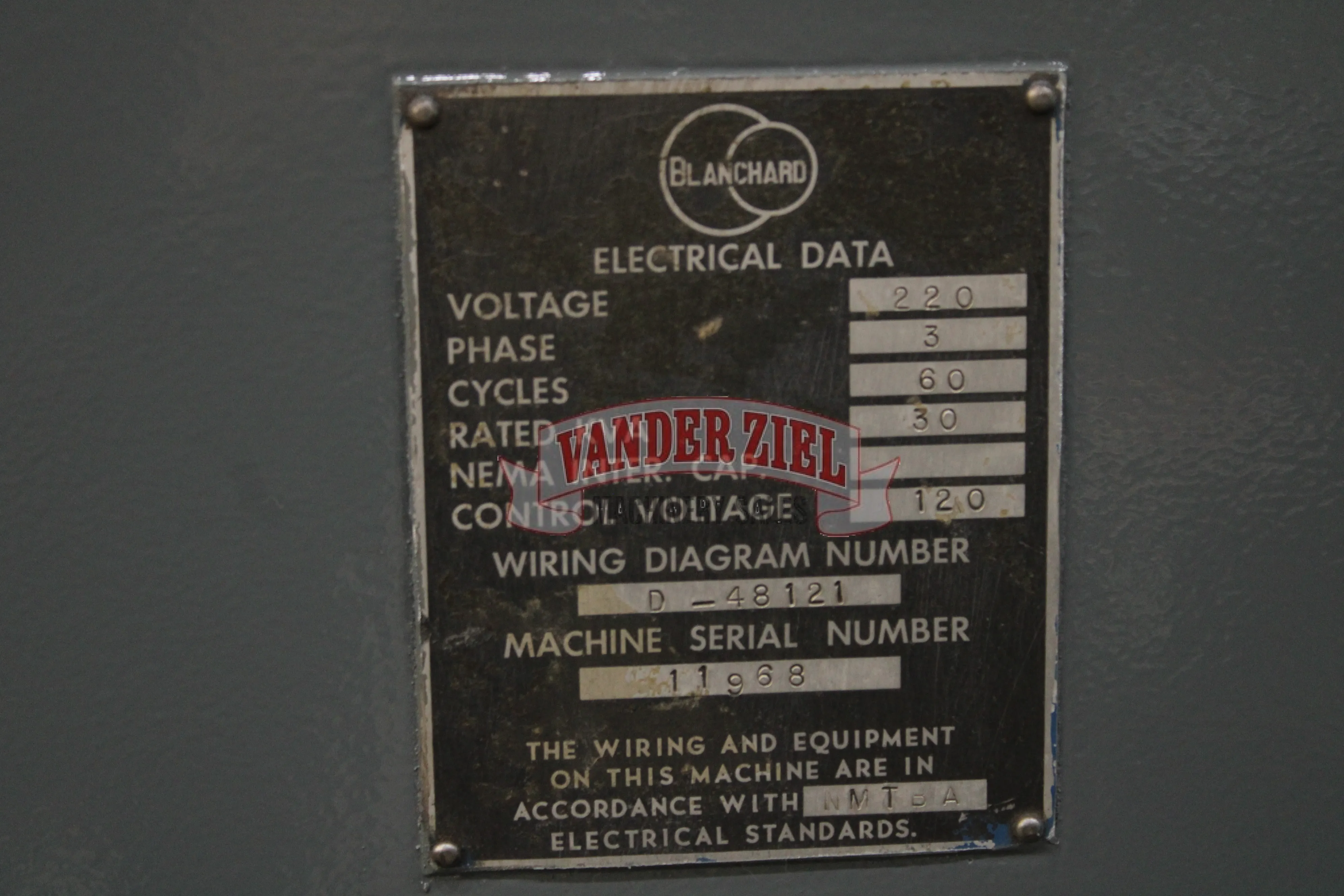

Serial # 11968
Asset # 9742

Specifications:
Grinding Wheel Diameter 11"
Magnetic Chuck Diameter 16"
Swing Clearance 20 1/2"
Wheel Motor 15 HP
Range 20" (diameter) x 7"

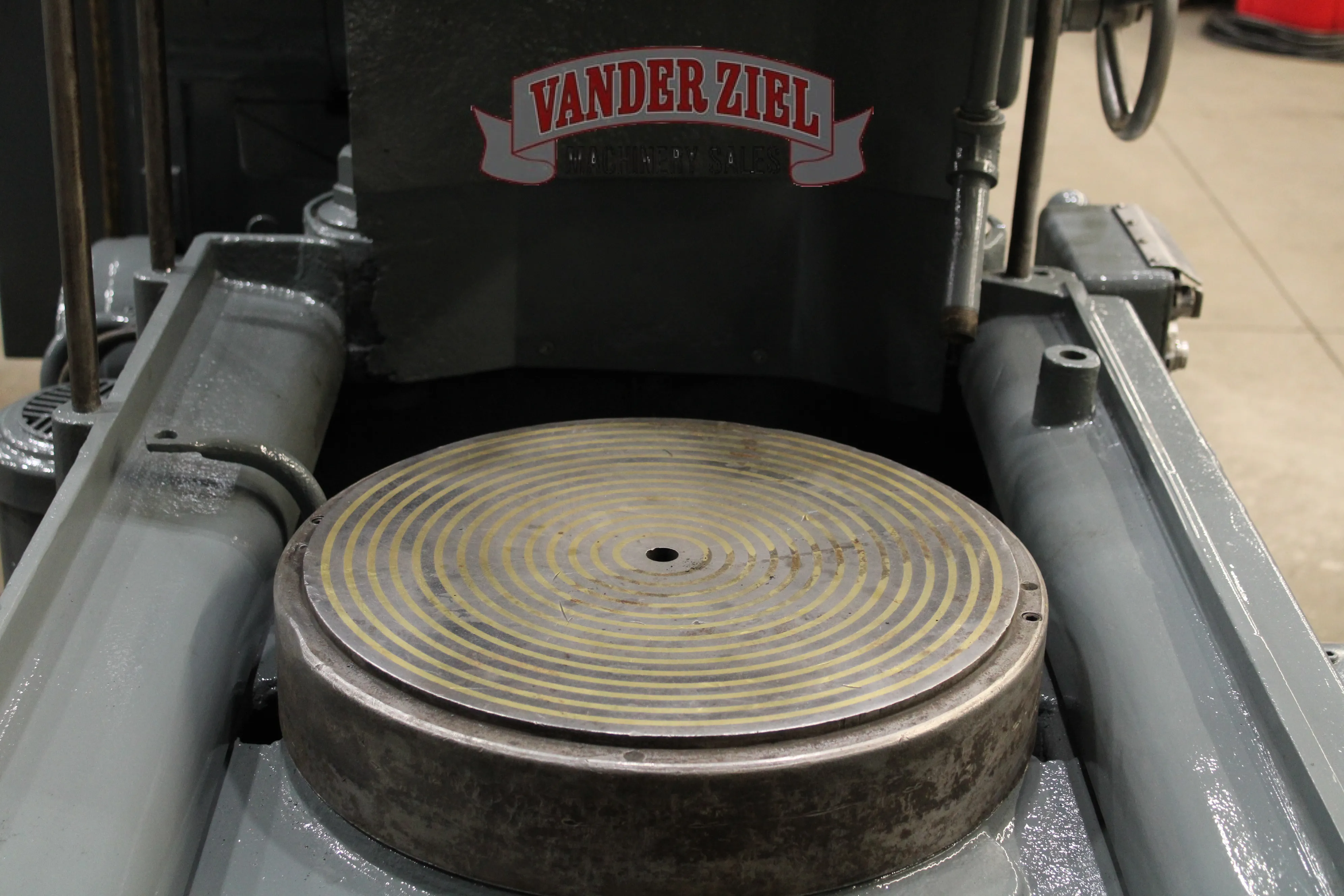

Work Table:
16" Dia. w/ 1/2" Pole Spacing
Center Hole 3/4"
Maximum Weight 500 lbs.
Wheel:
Diameter 11"
Thickness 1"
Speeds:
Wheel 1,200 RPM
Chuck 15, 24, 41, 60
Feed:

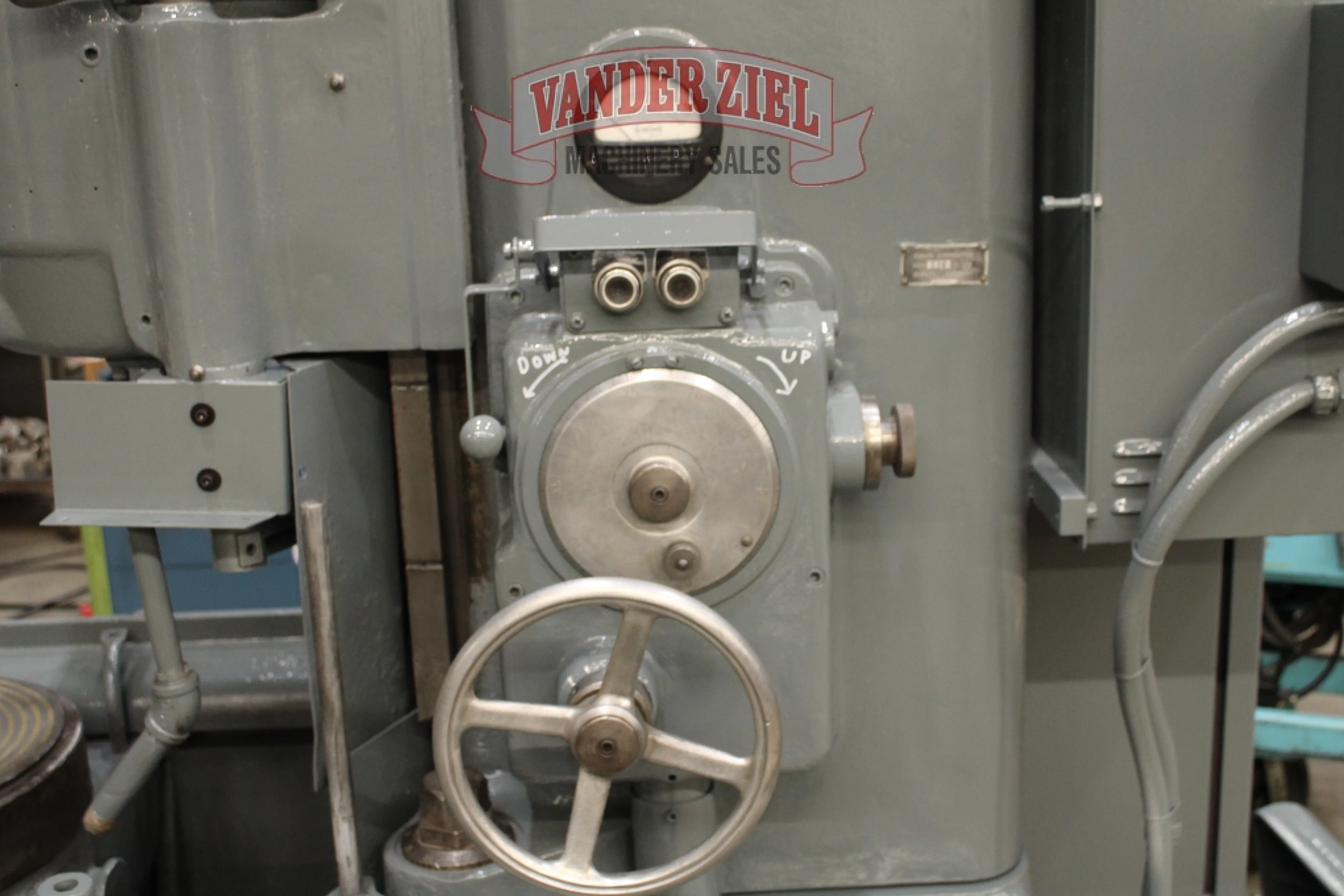

Vertical Downfeed Dial Graduated by 0.005"
Increments
Floor Space 6' x 3' 8"
Height 6' 9"
Weight 7,000 lbs.

Preliminary Specifications - Subject to Verification
